Exploded views for Suzuki DF140ZUL (E01) 2002 [DF140Z_E01]
1
2
3
Read more
Read less
Parts Pilot

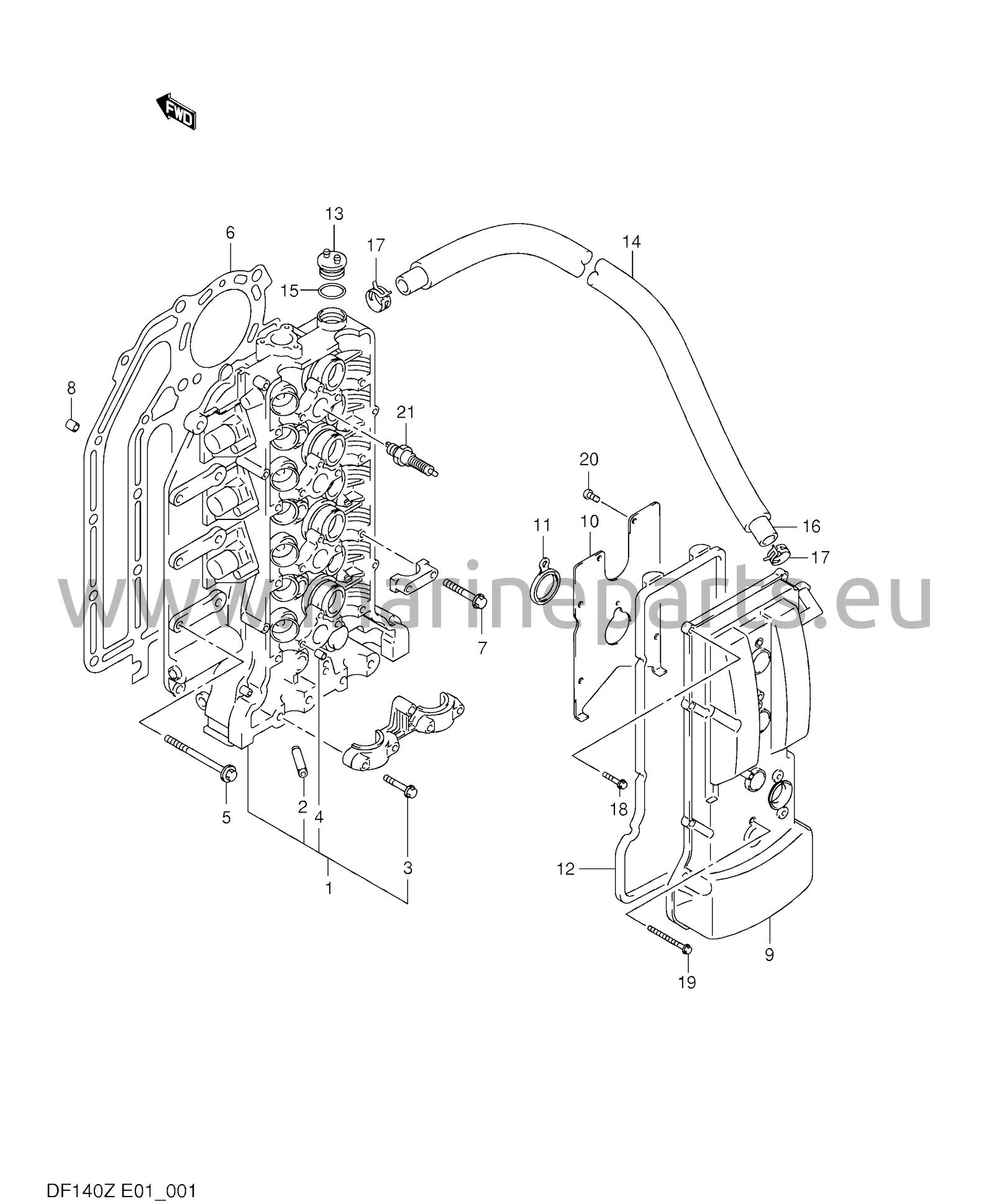

Cylinder head
Reference no. DF140Z_E01 0

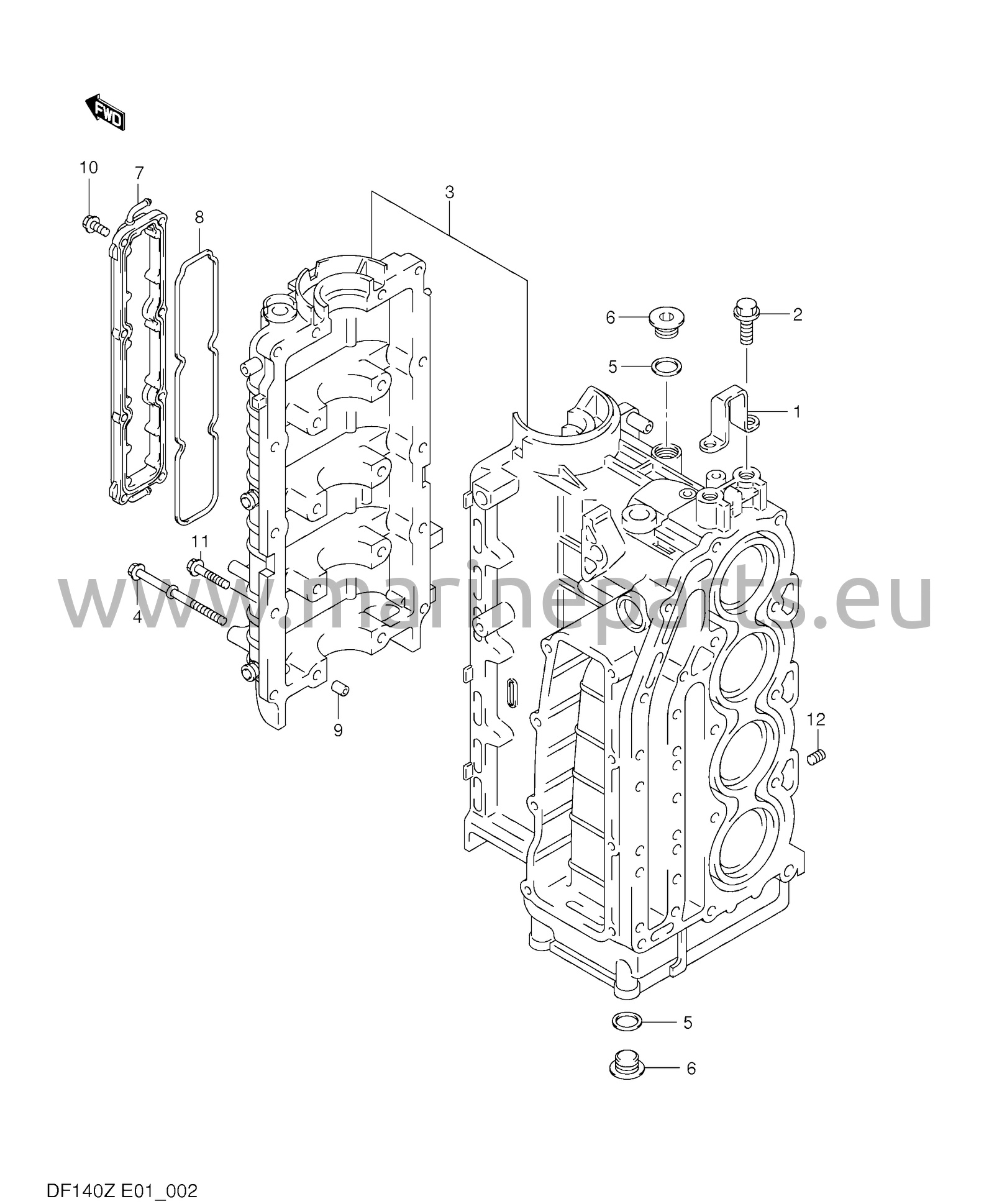

Cylinder block
Reference no. DF140Z_E01 1

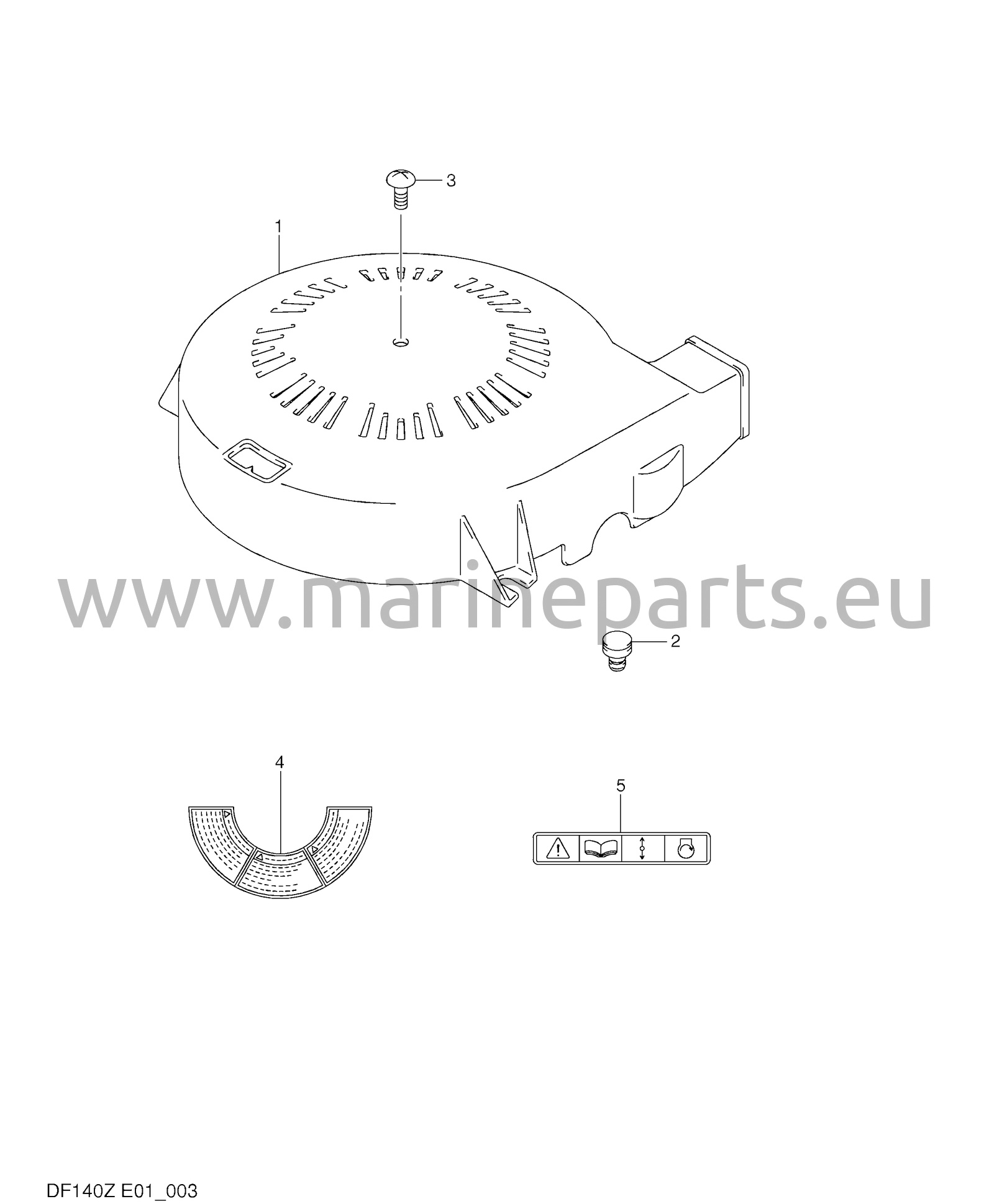

Ring gear cover
Reference no. DF140Z_E01 2

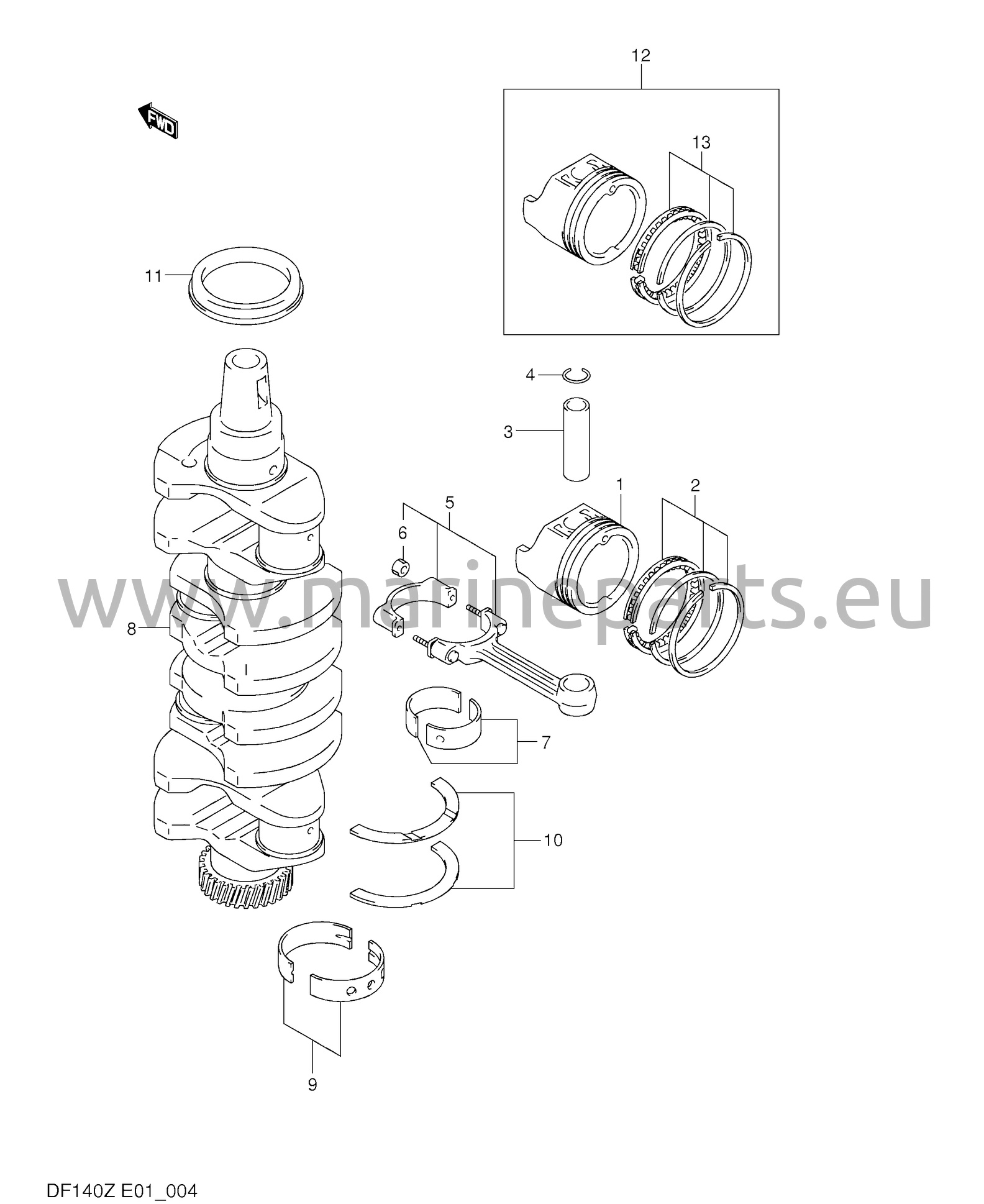

Crankshaft
Reference no. DF140Z_E01 3

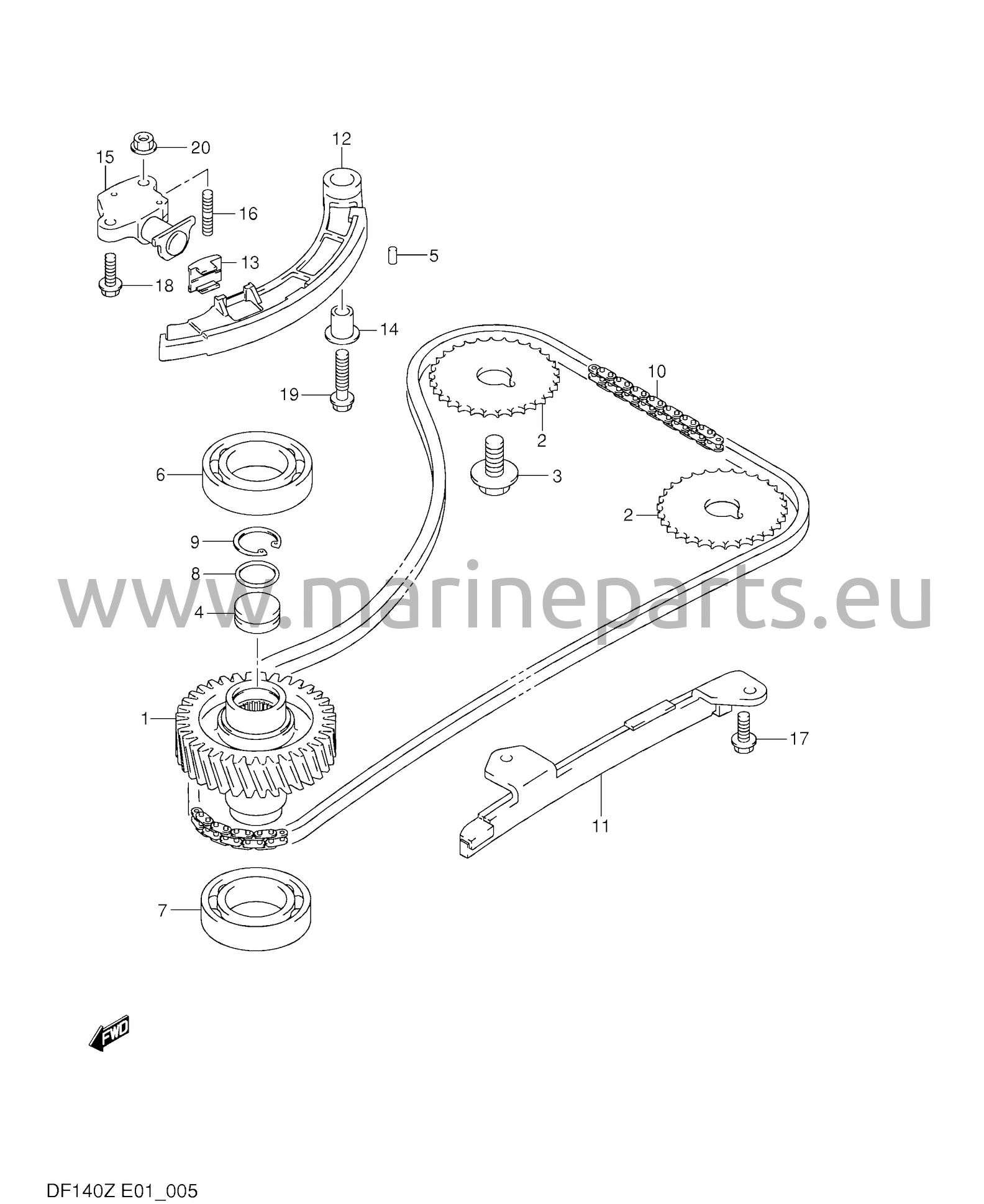

Timing chain
Reference no. DF140Z_E01 4

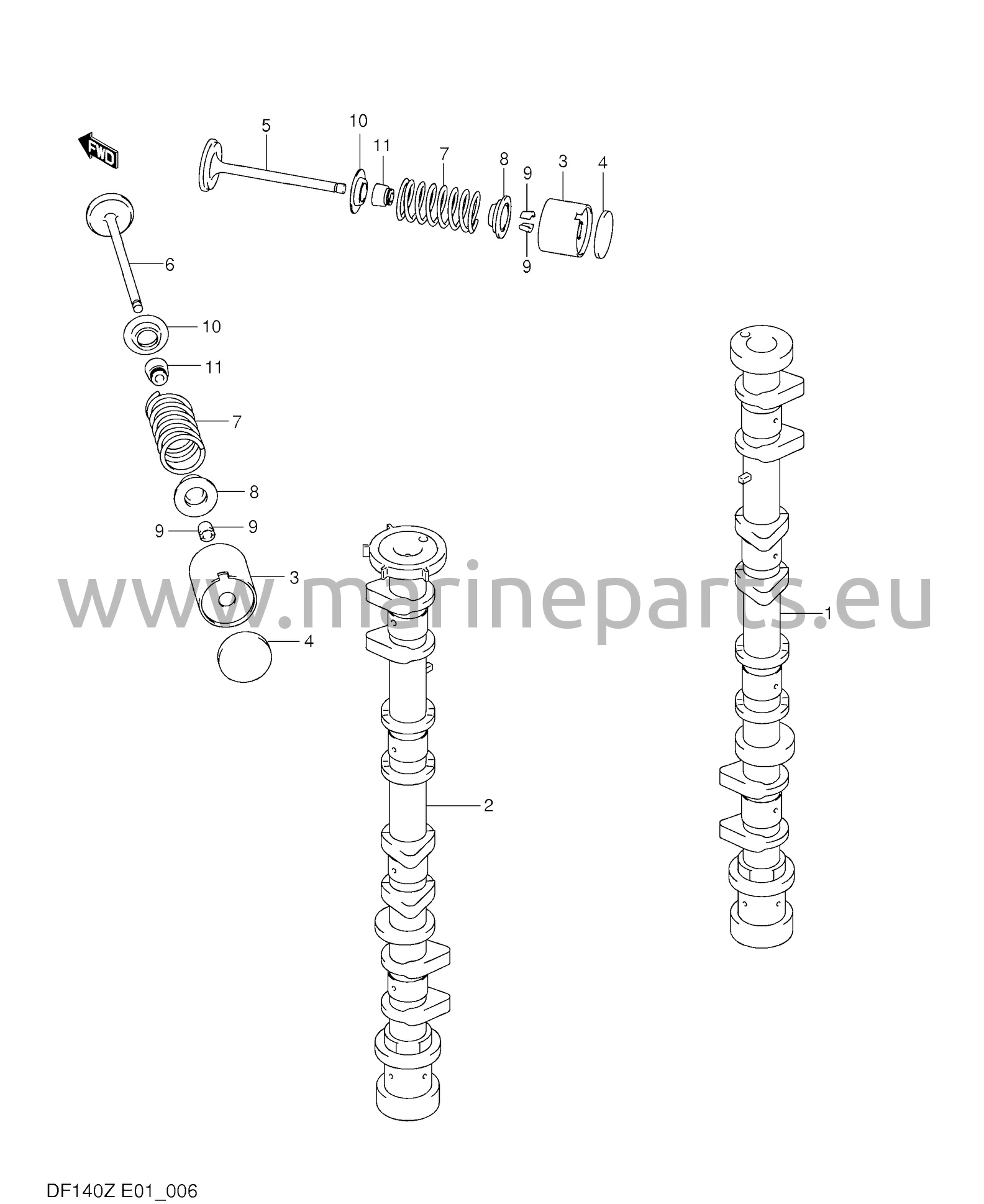

Camshaft
Reference no. DF140Z_E01 5

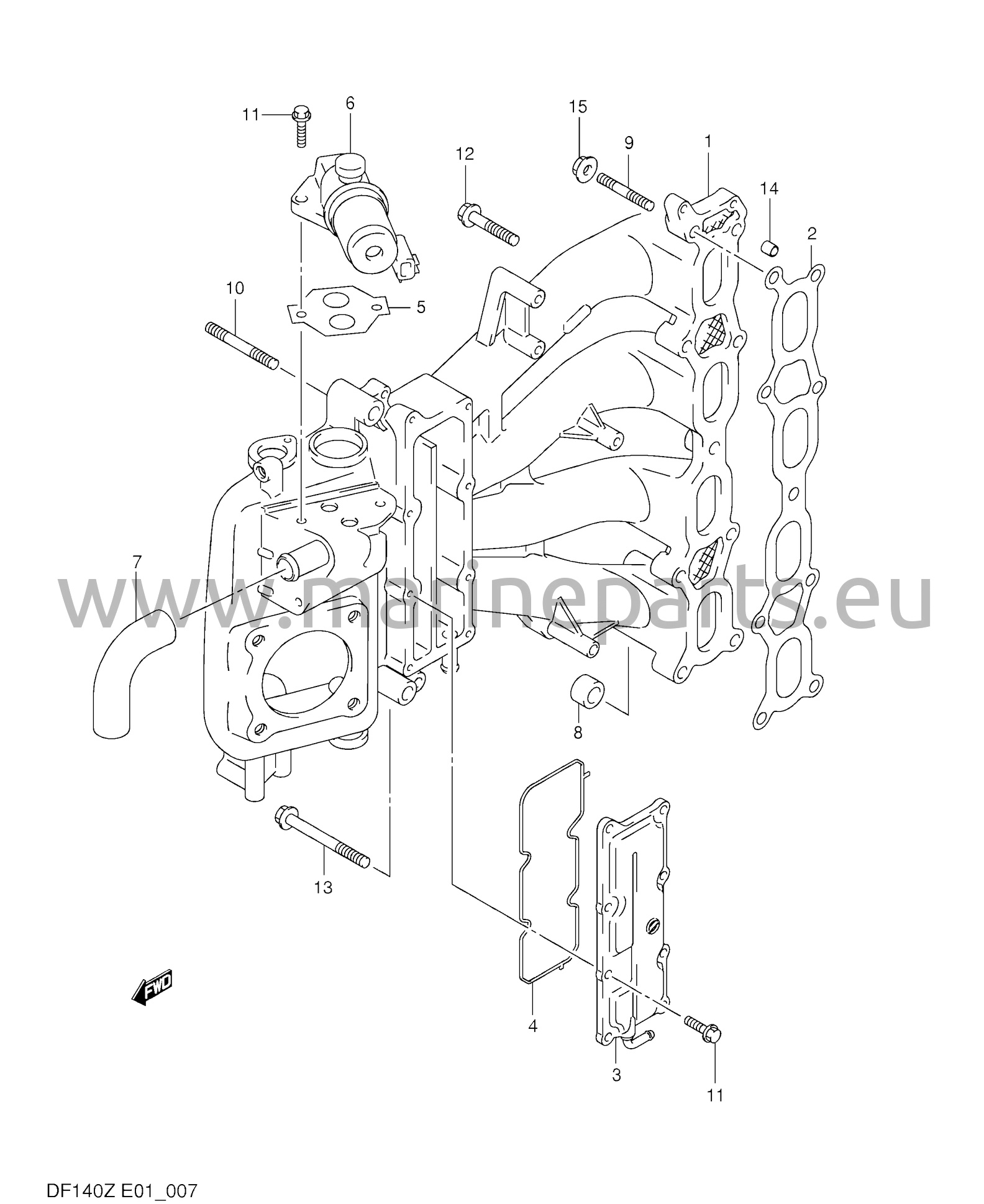

Intake manifold
Reference no. DF140Z_E01 6

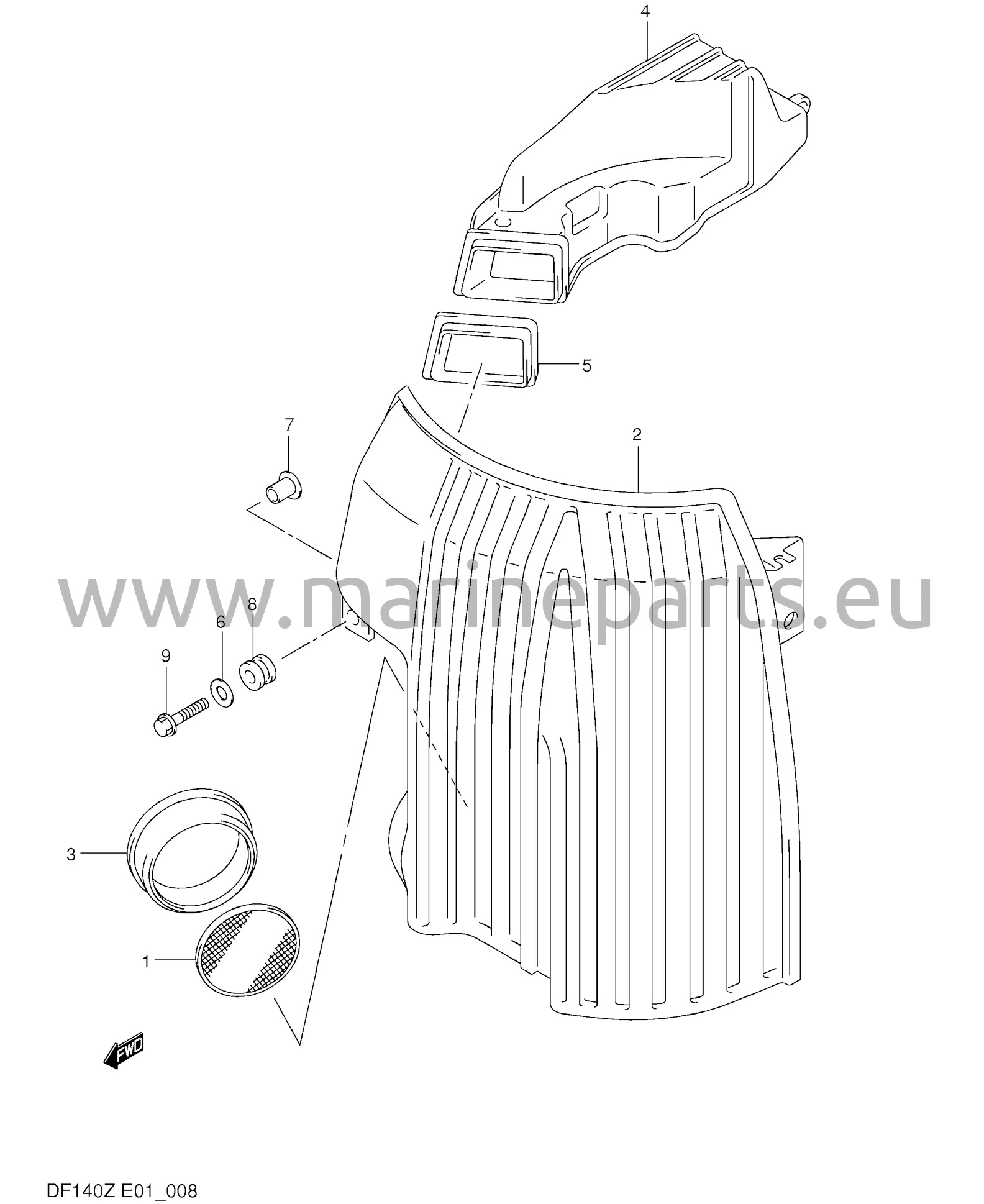

Silencer
Reference no. DF140Z_E01 7

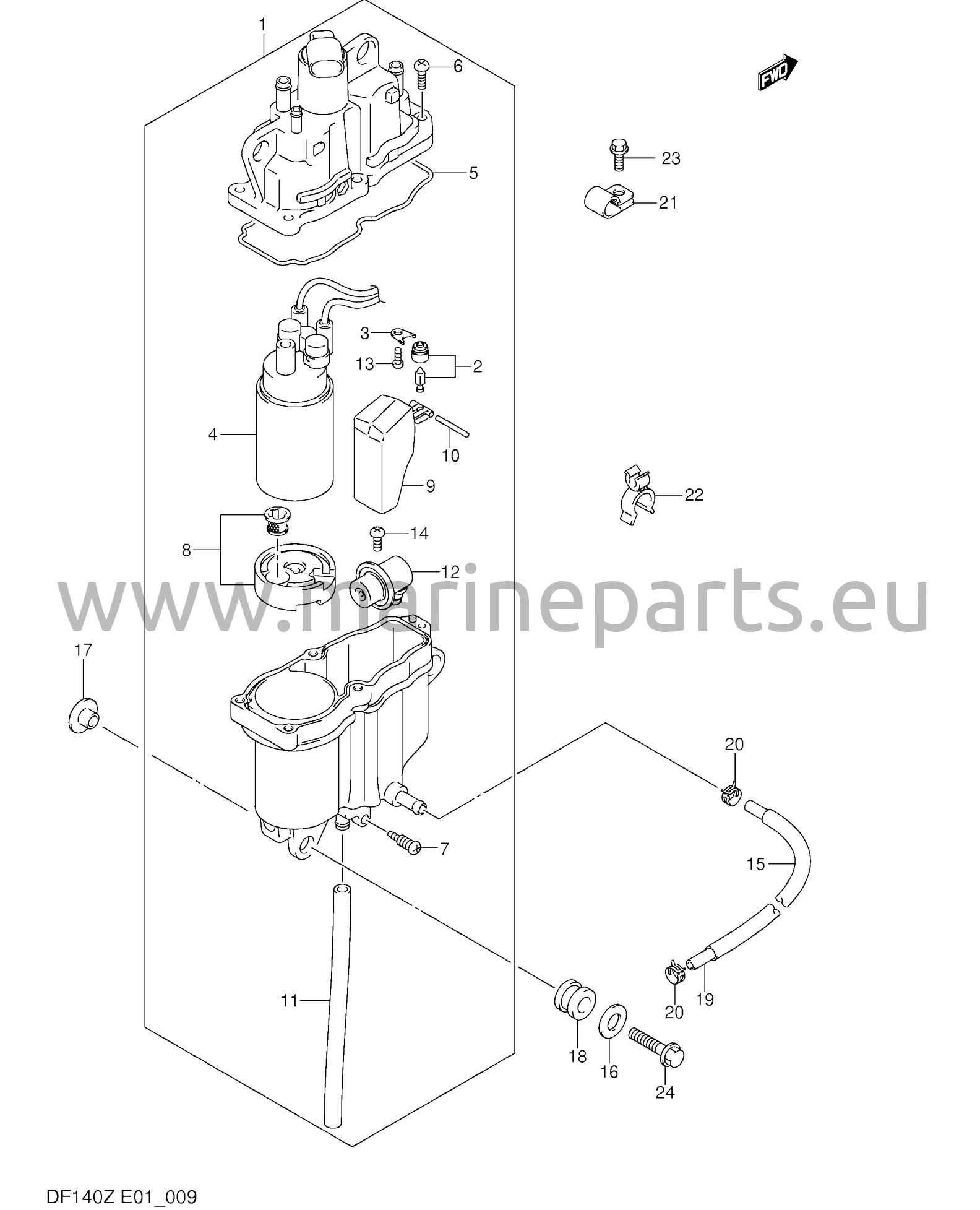

Fuel vapor separator
Reference no. DF140Z_E01 8

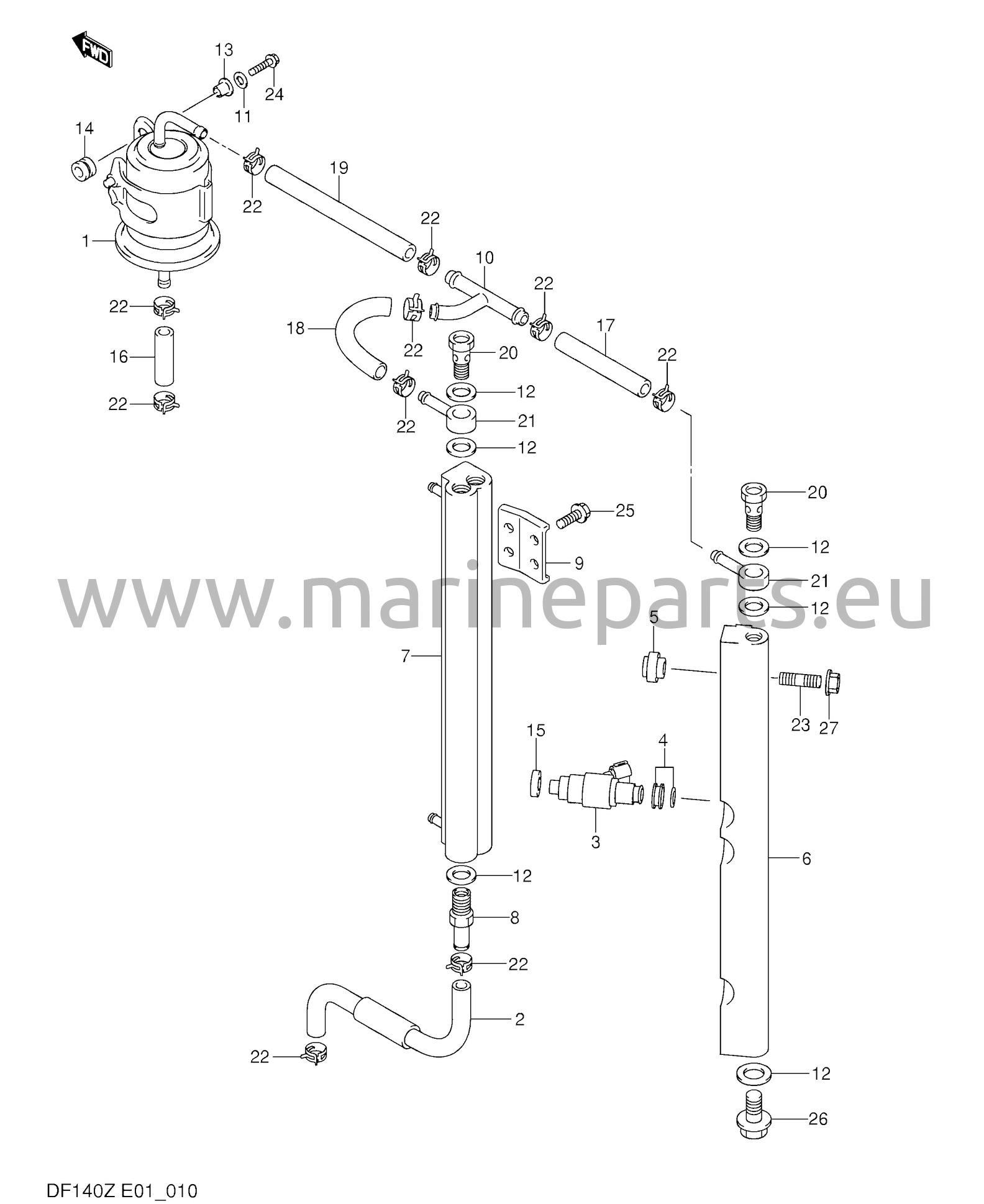

Fuel injector
Reference no. DF140Z_E01 9

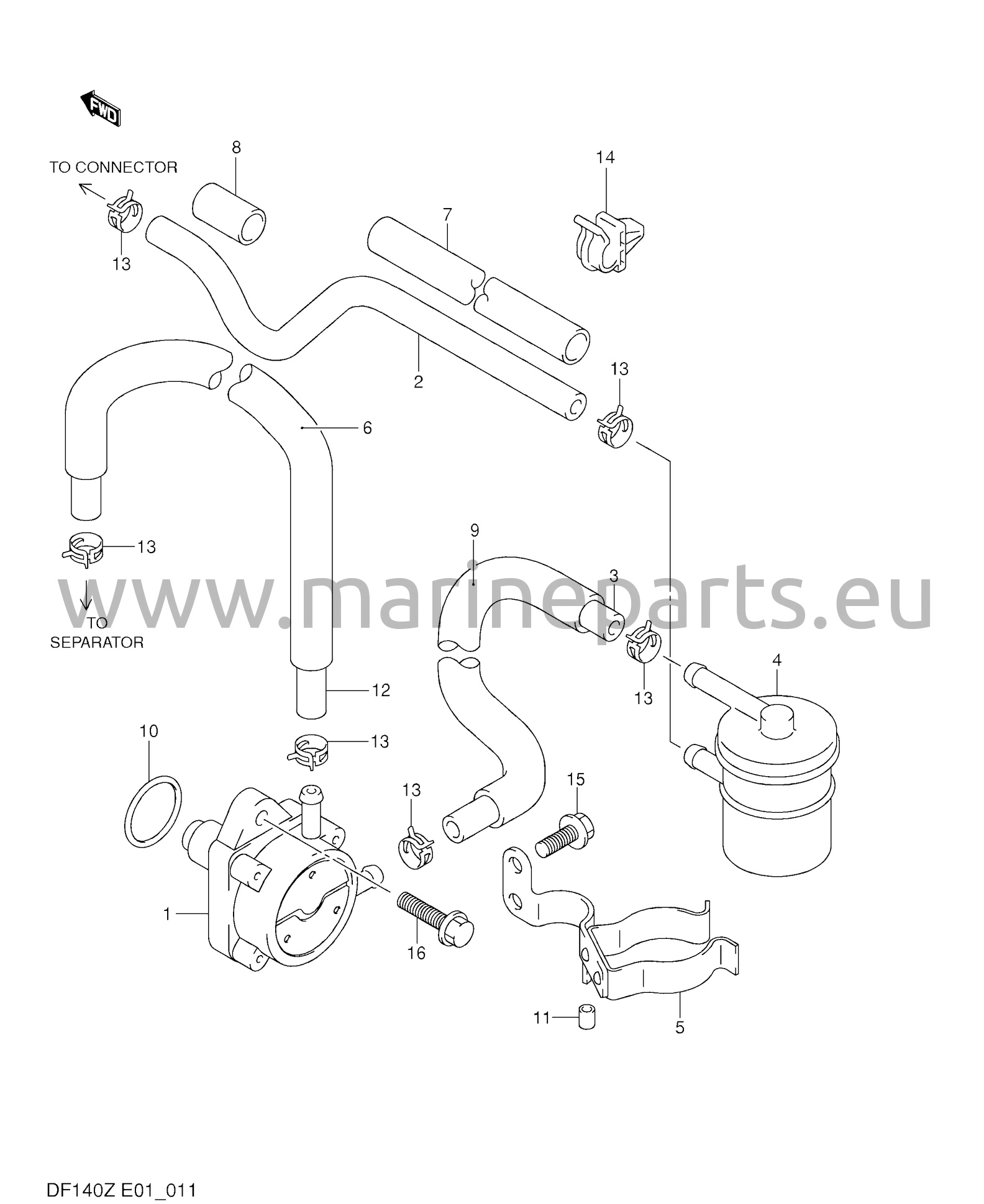

Fuel pump
Reference no. DF140Z_E01 10

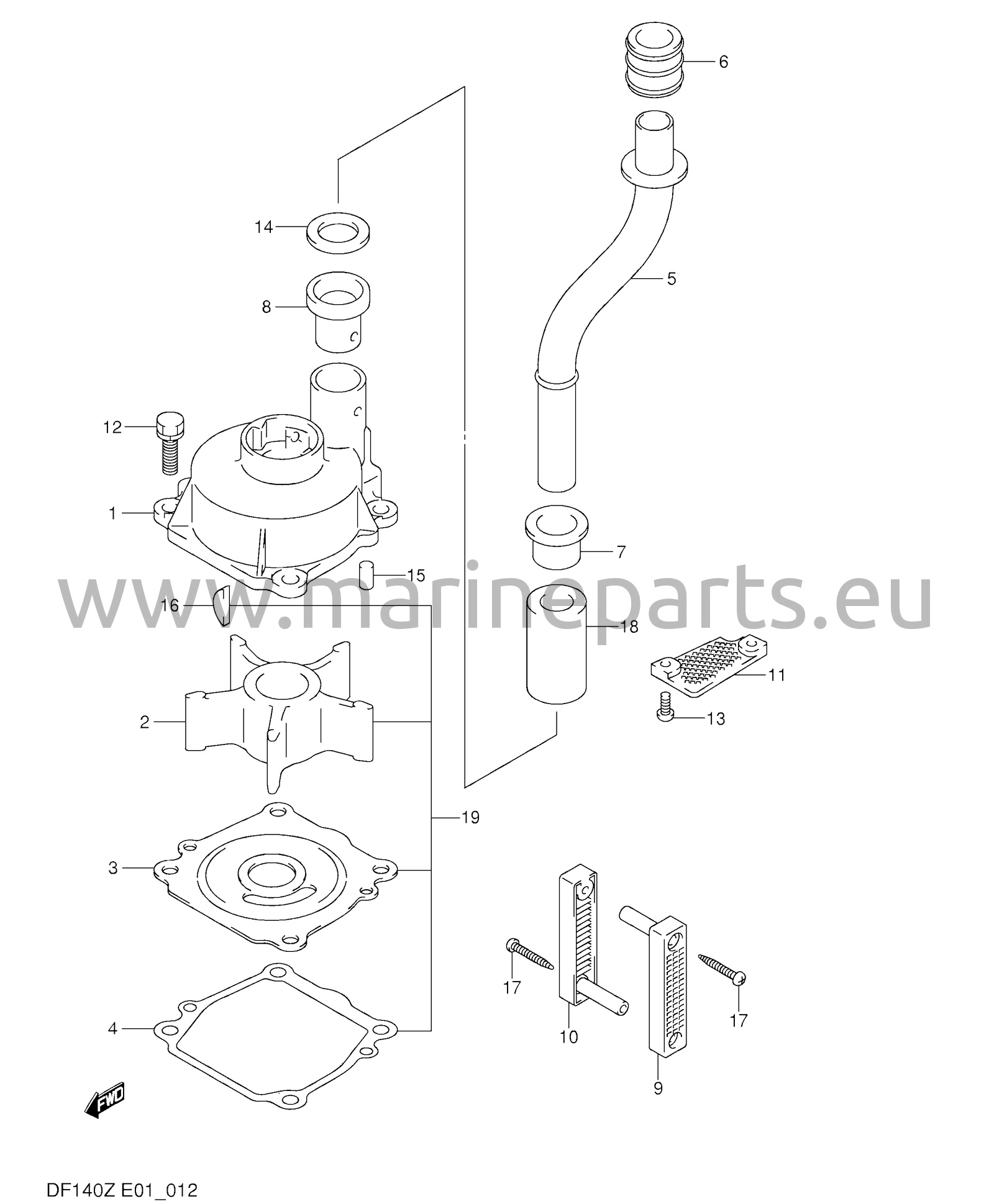

Water pump
Reference no. DF140Z_E01 11

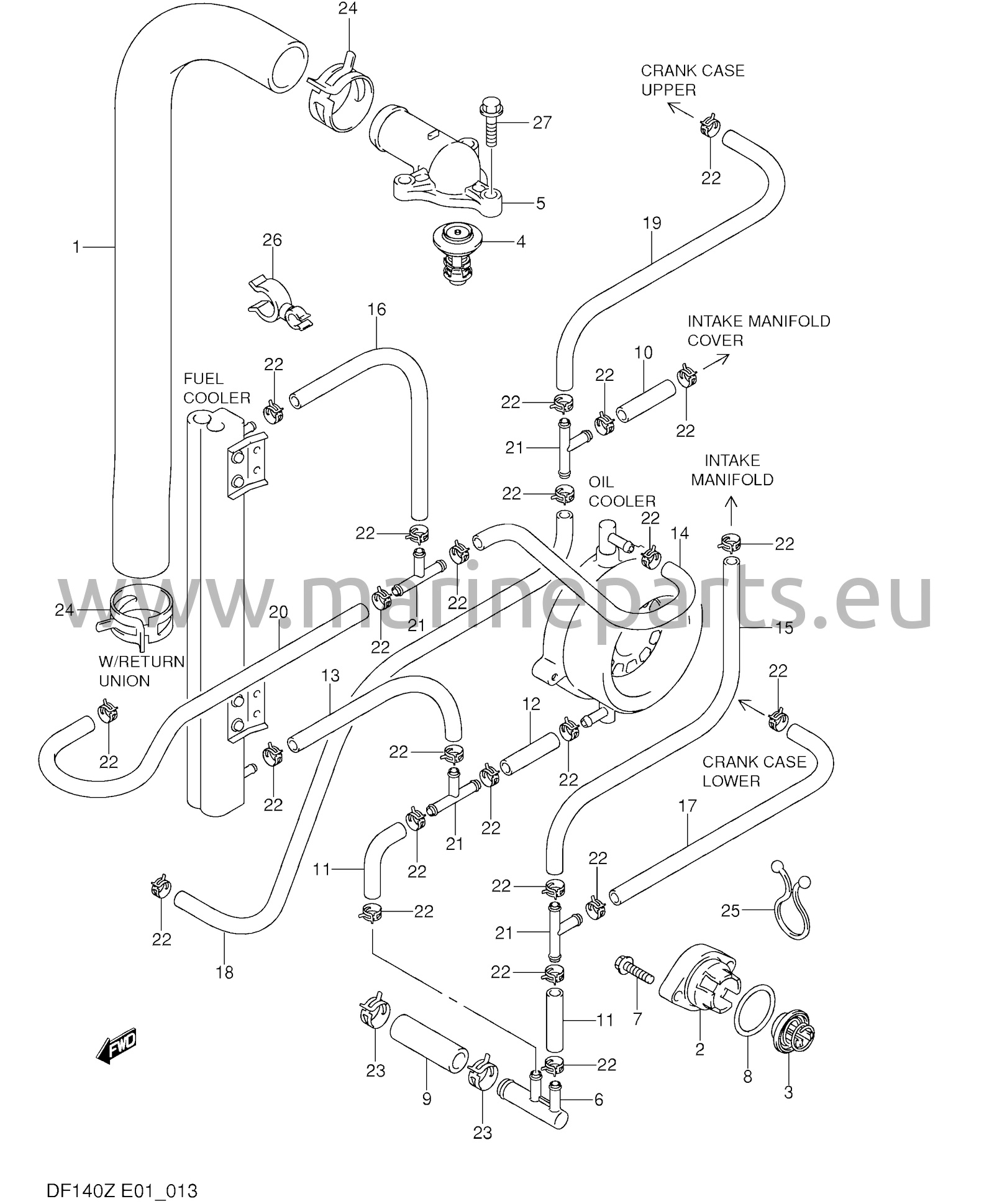

Thermostat
Reference no. DF140Z_E01 12

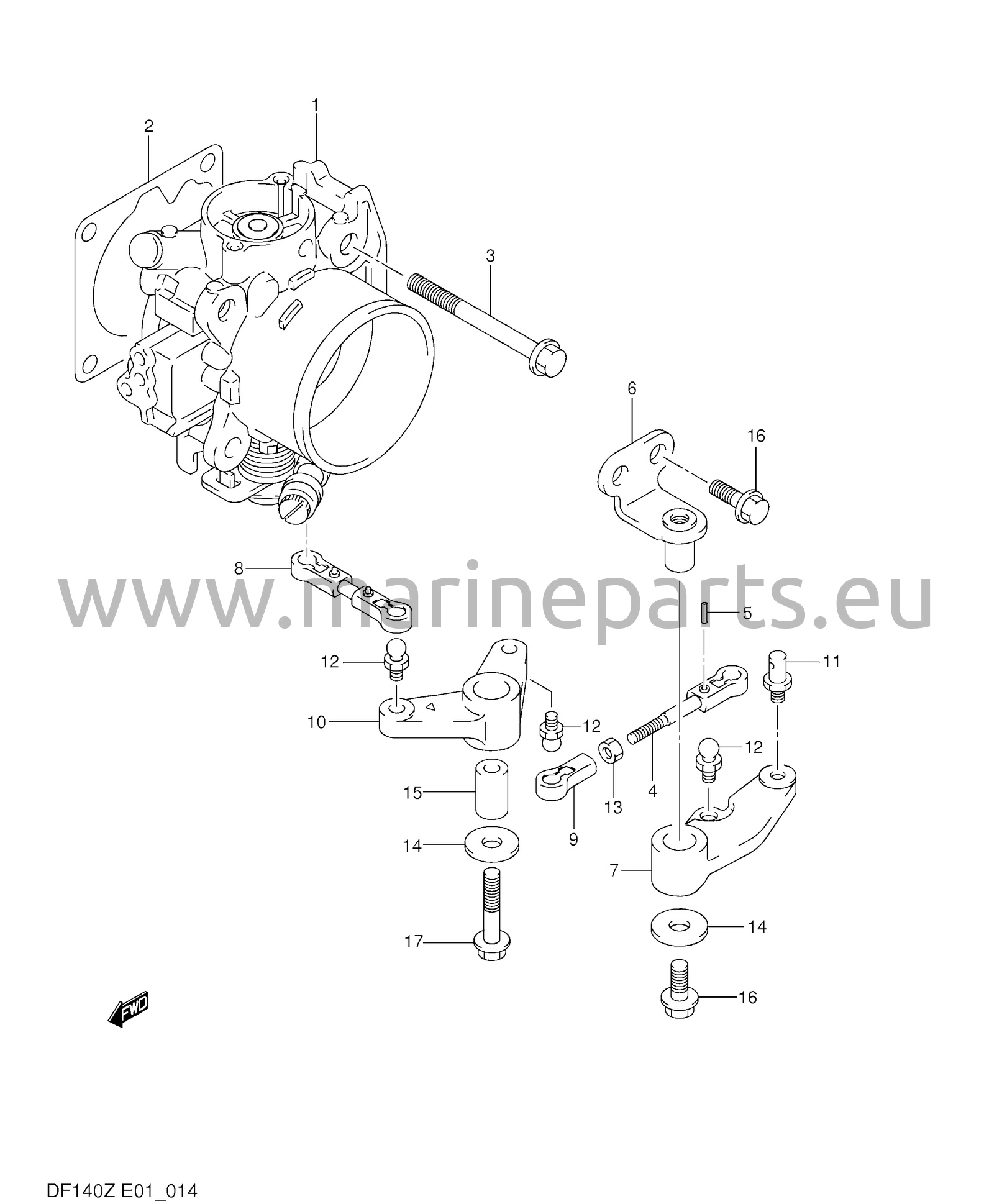

Throttle body
Reference no. DF140Z_E01 13

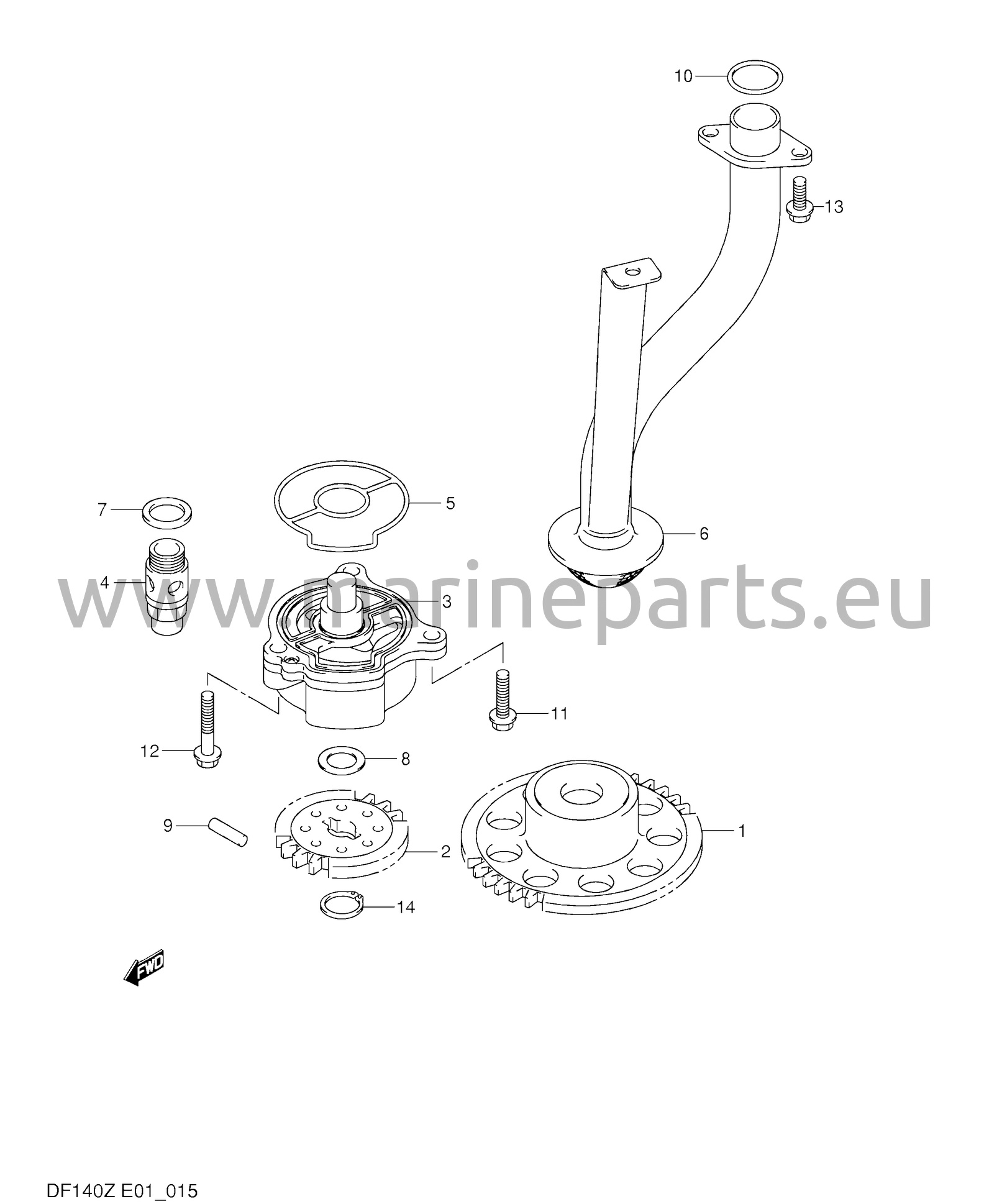

Oil pump
Reference no. DF140Z_E01 14

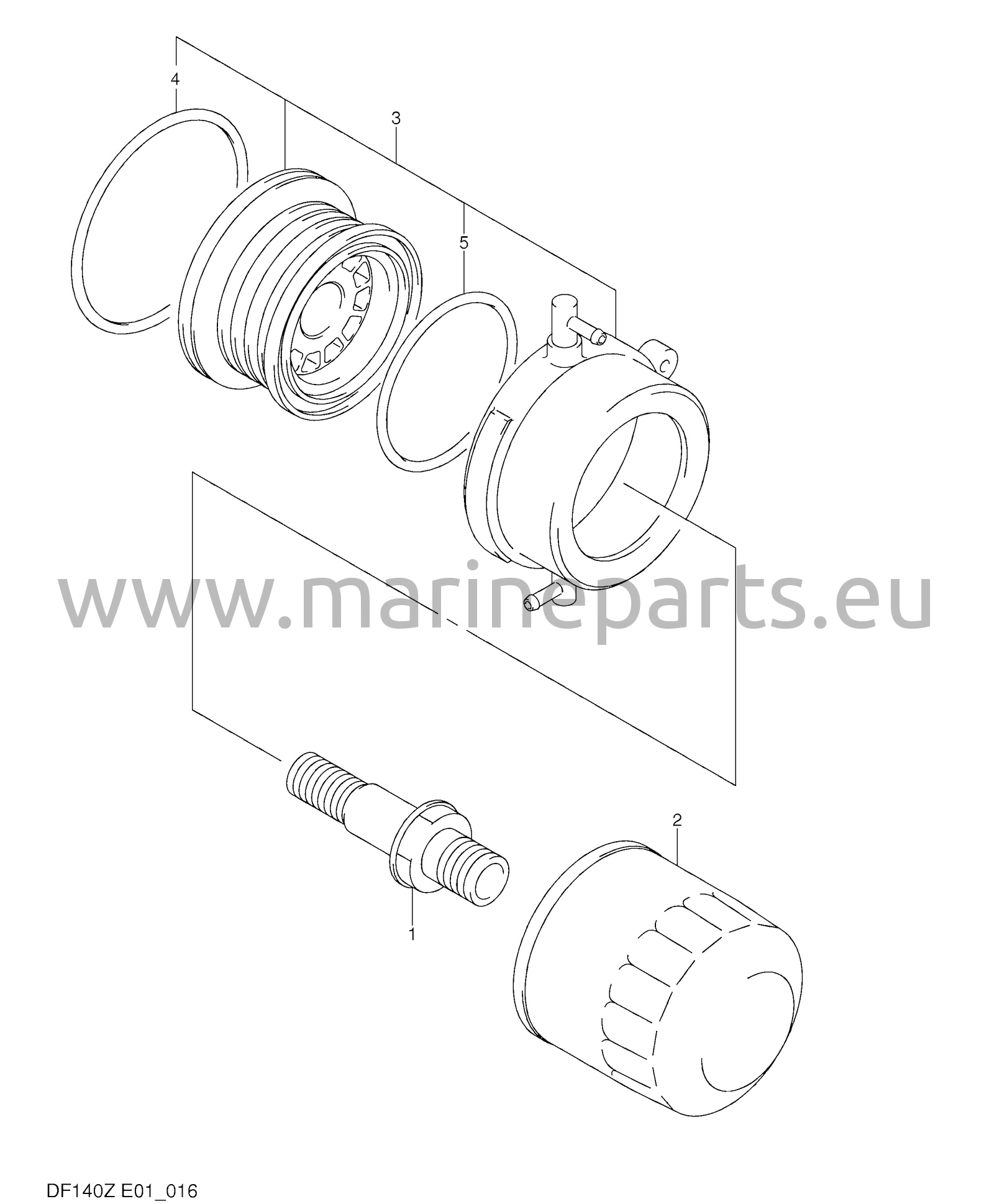

Oil filter
Reference no. DF140Z_E01 15

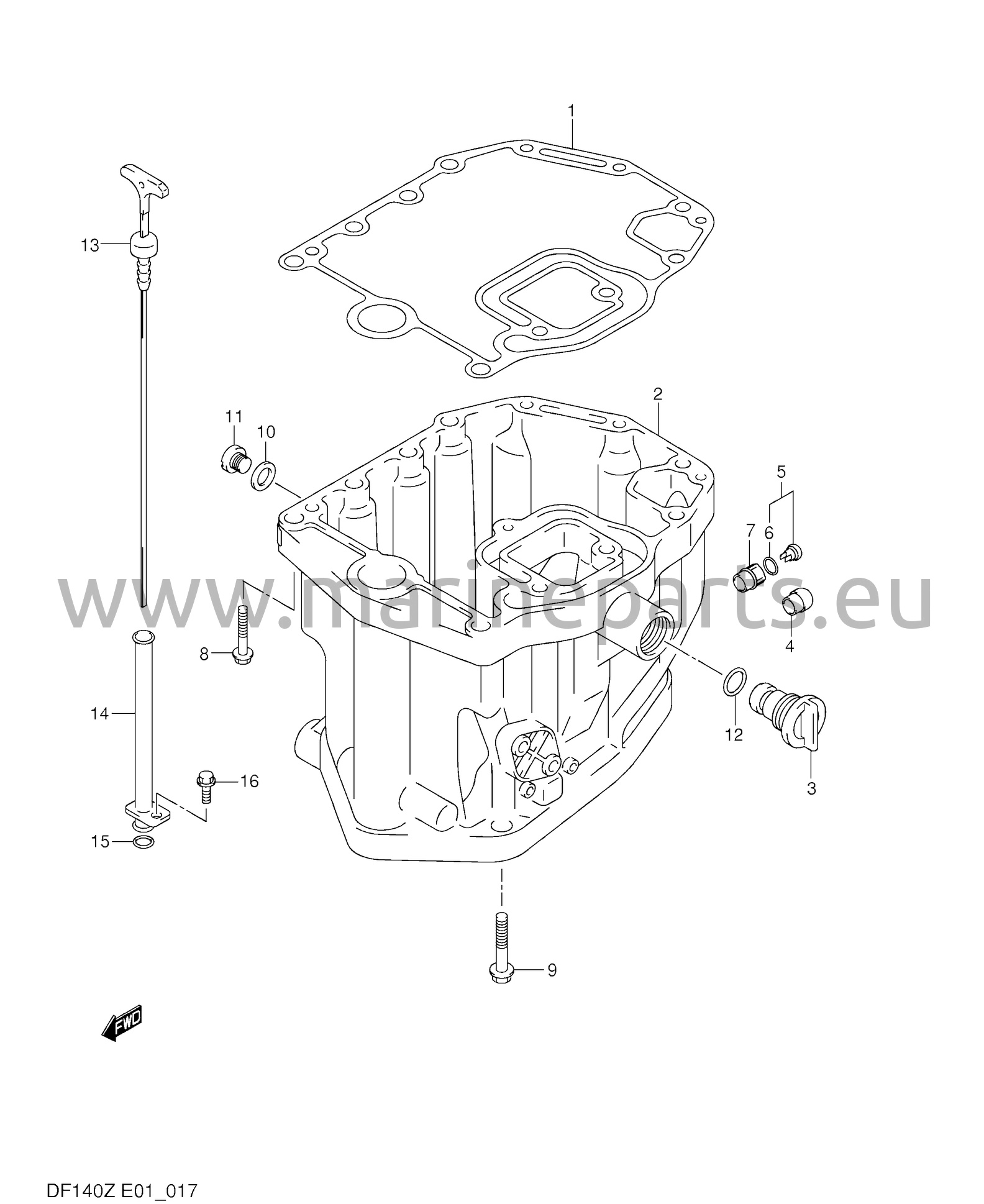

Oil pan
Reference no. DF140Z_E01 16

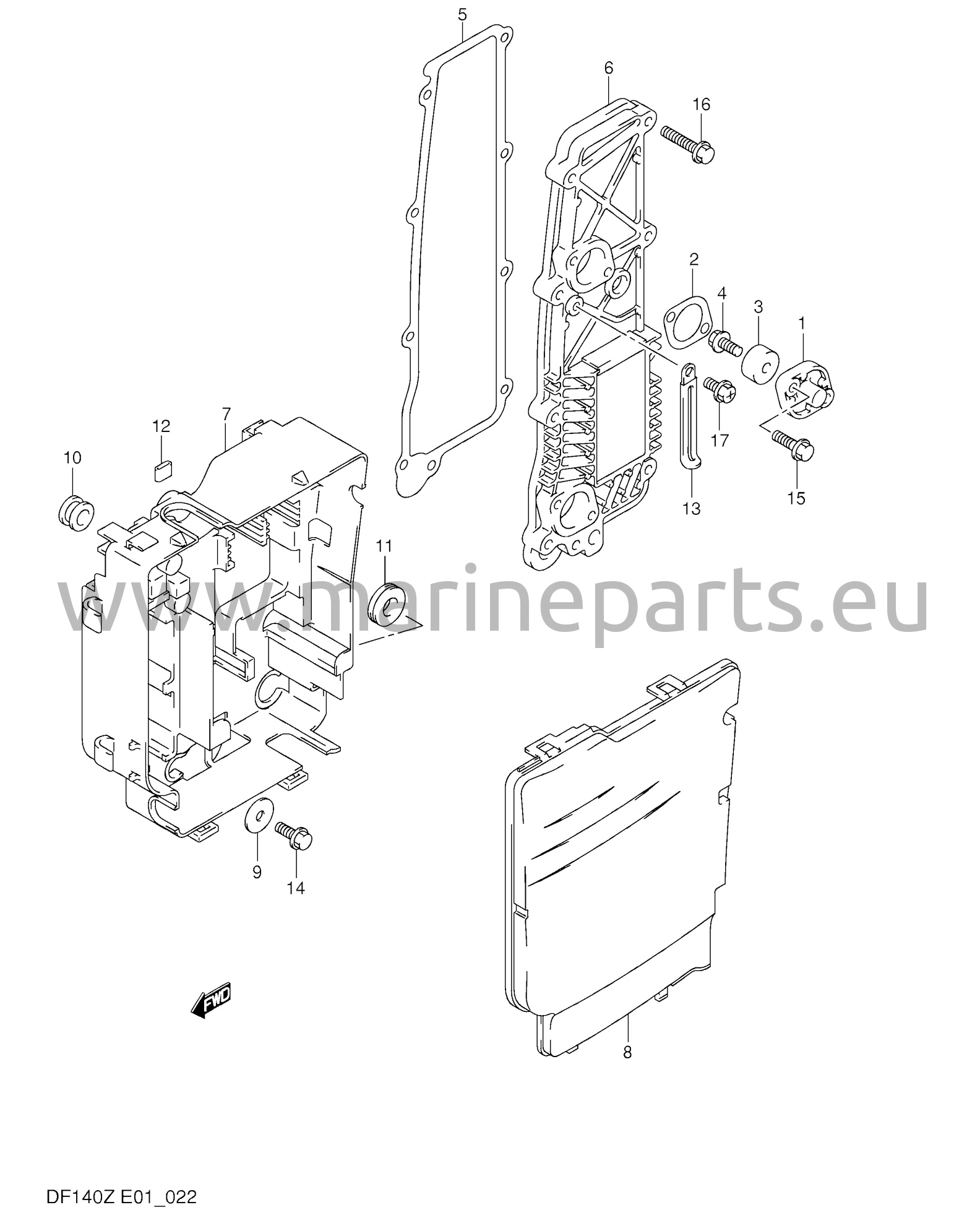

Rectifier
Reference no. DF140Z_E01 17

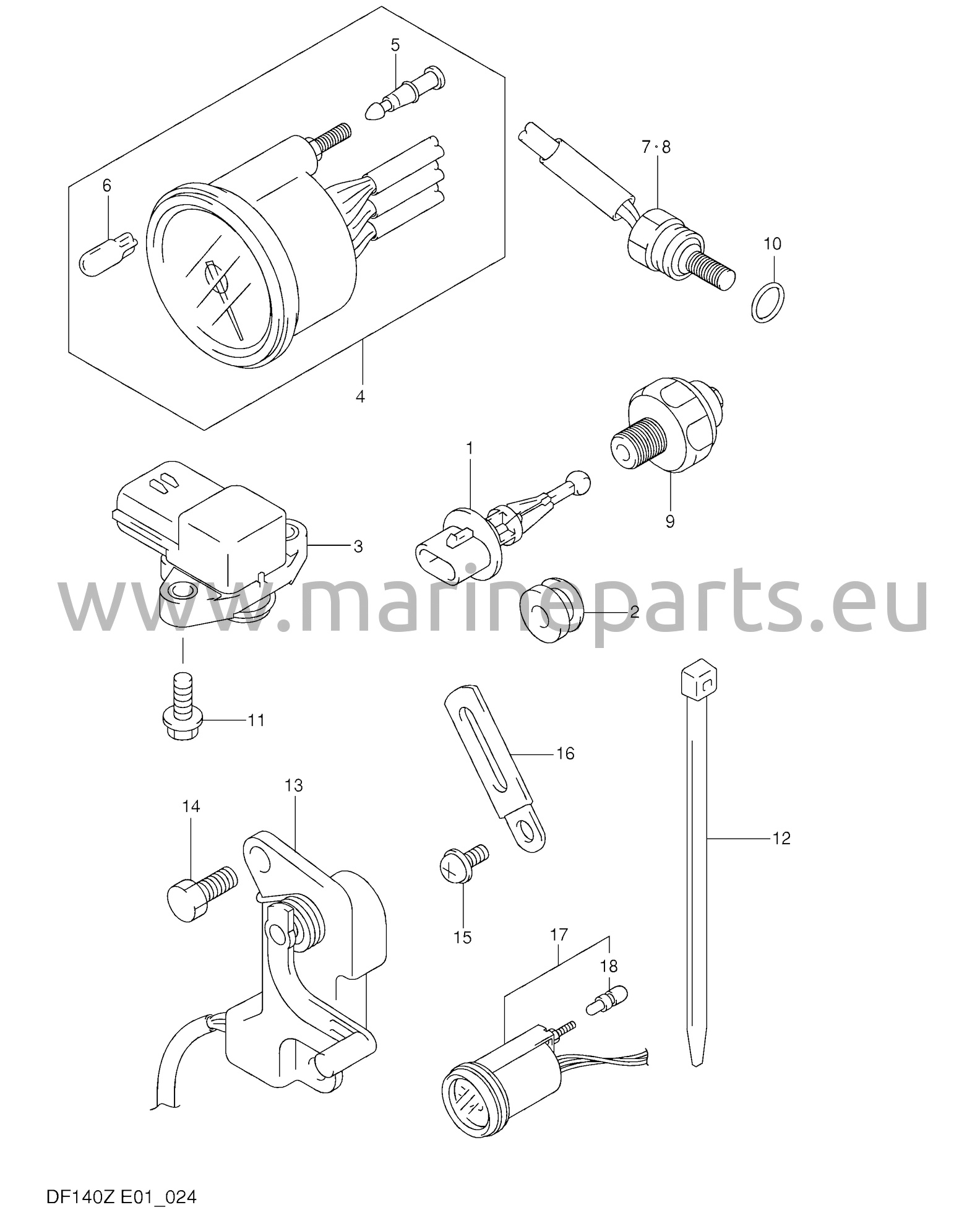

Sensor
Reference no. DF140Z_E01 18

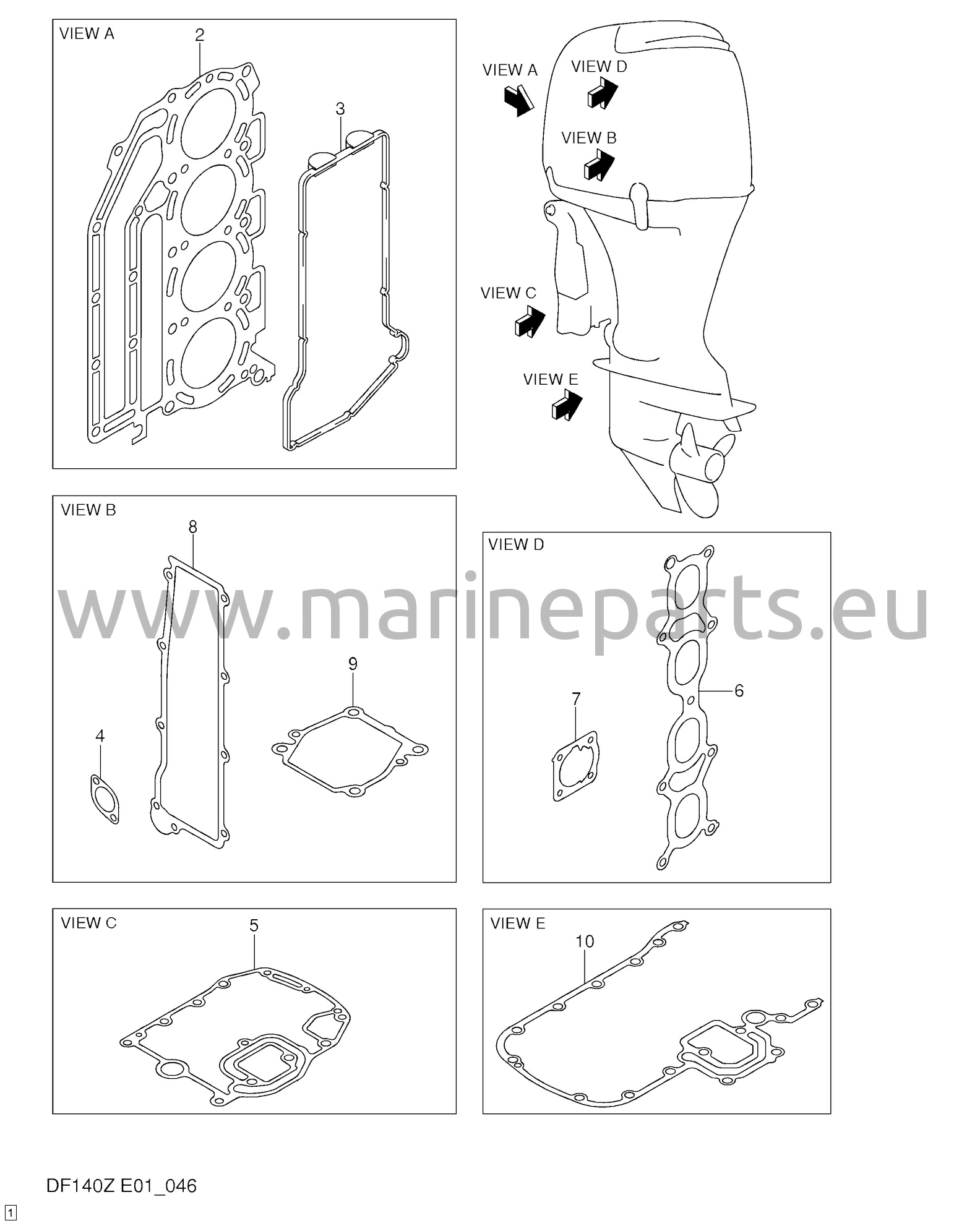

Gasket set (optional)
Reference no. DF140Z_E01 19

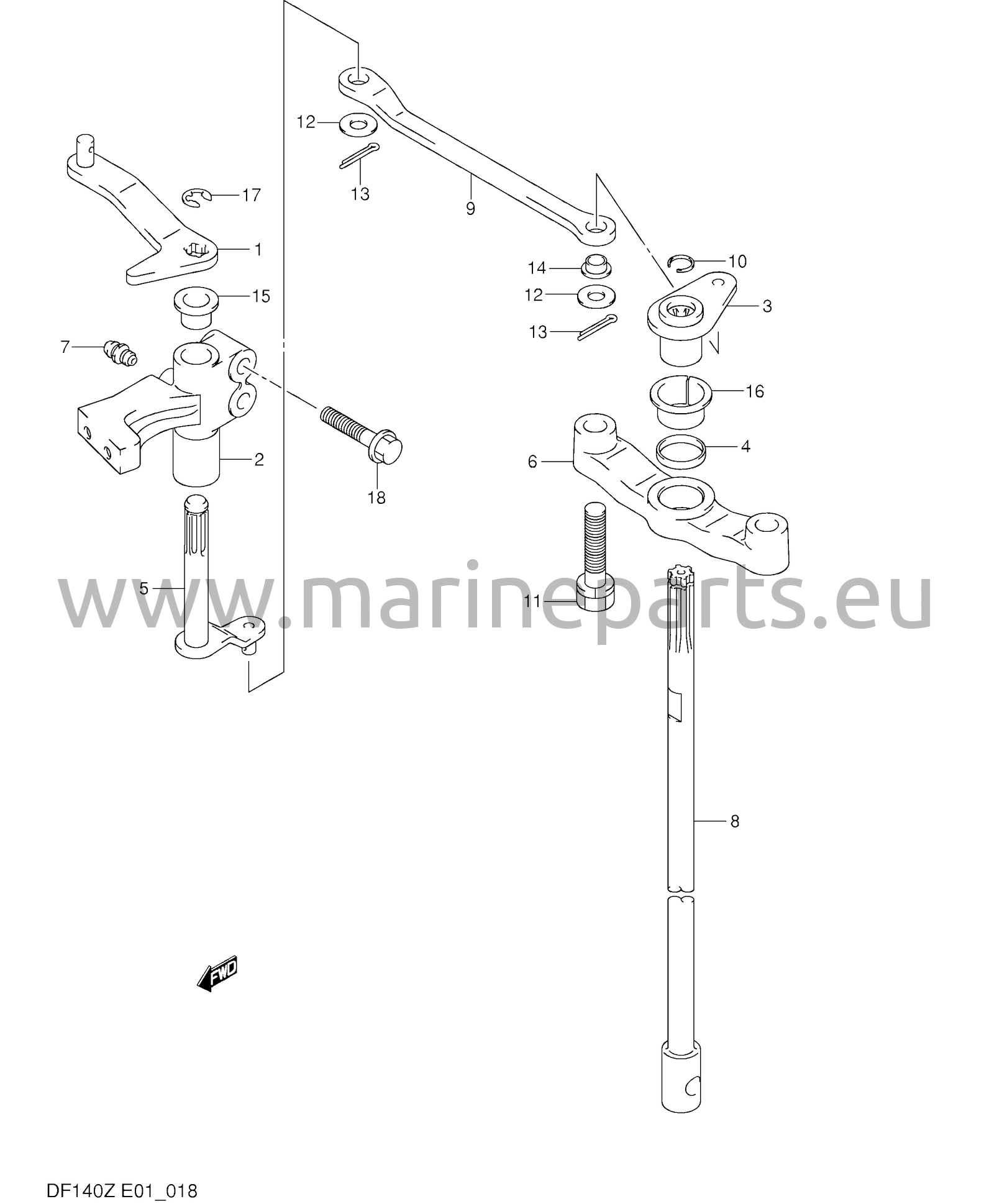

Clutch shaft
Reference no. DF140Z_E01 20

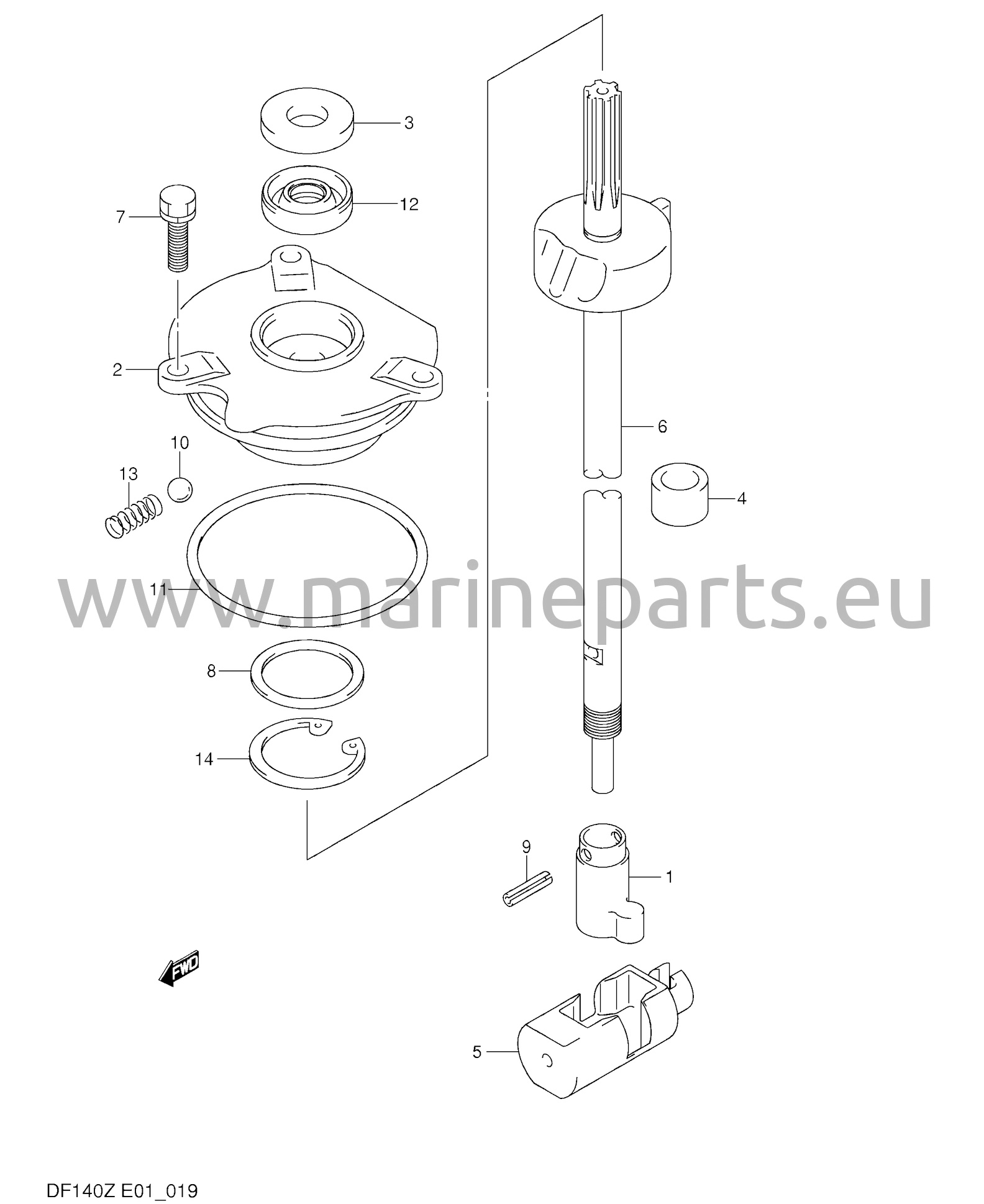

Clutch rod
Reference no. DF140Z_E01 21

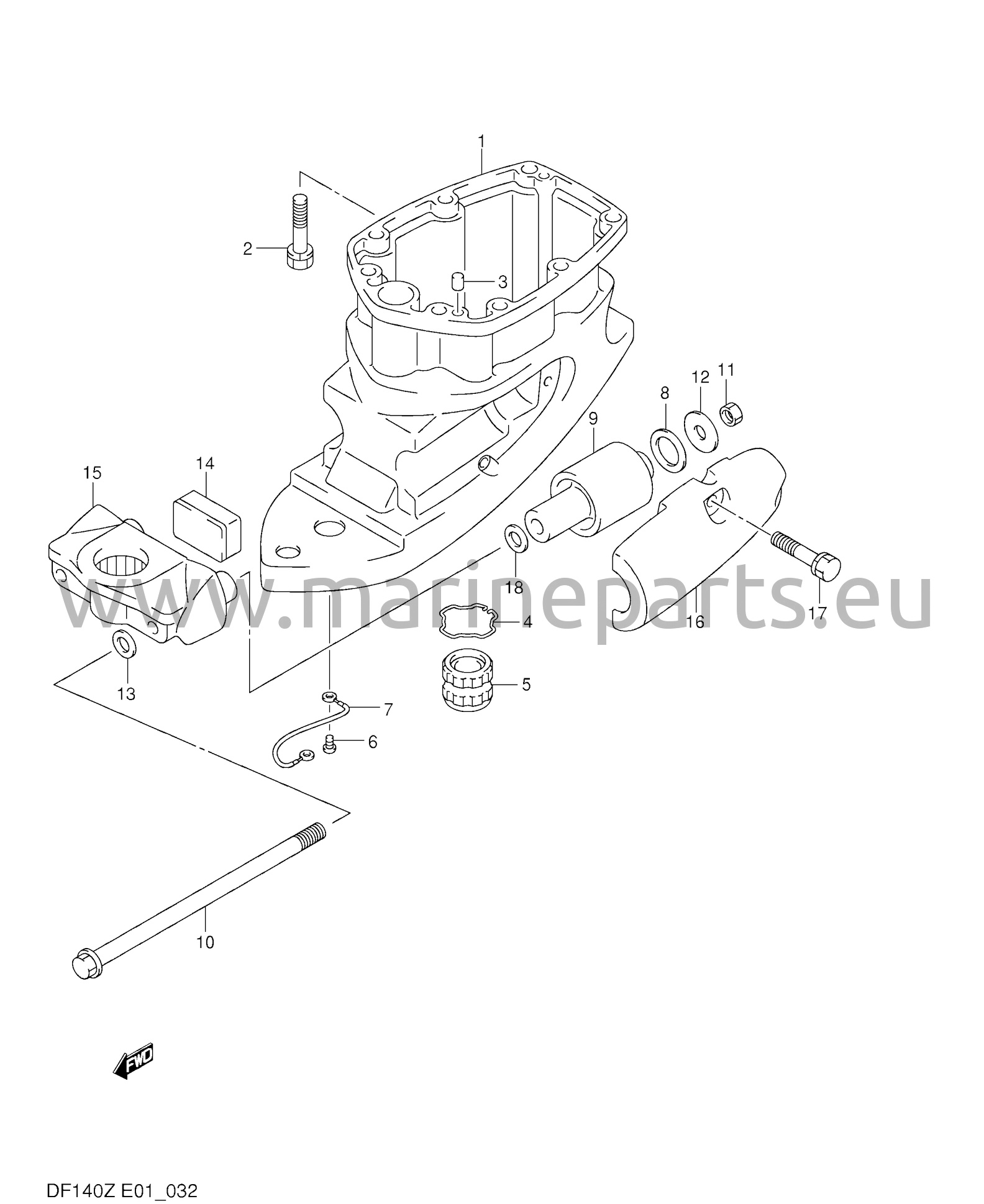

Drive shaft housing
Reference no. DF140Z_E01 22

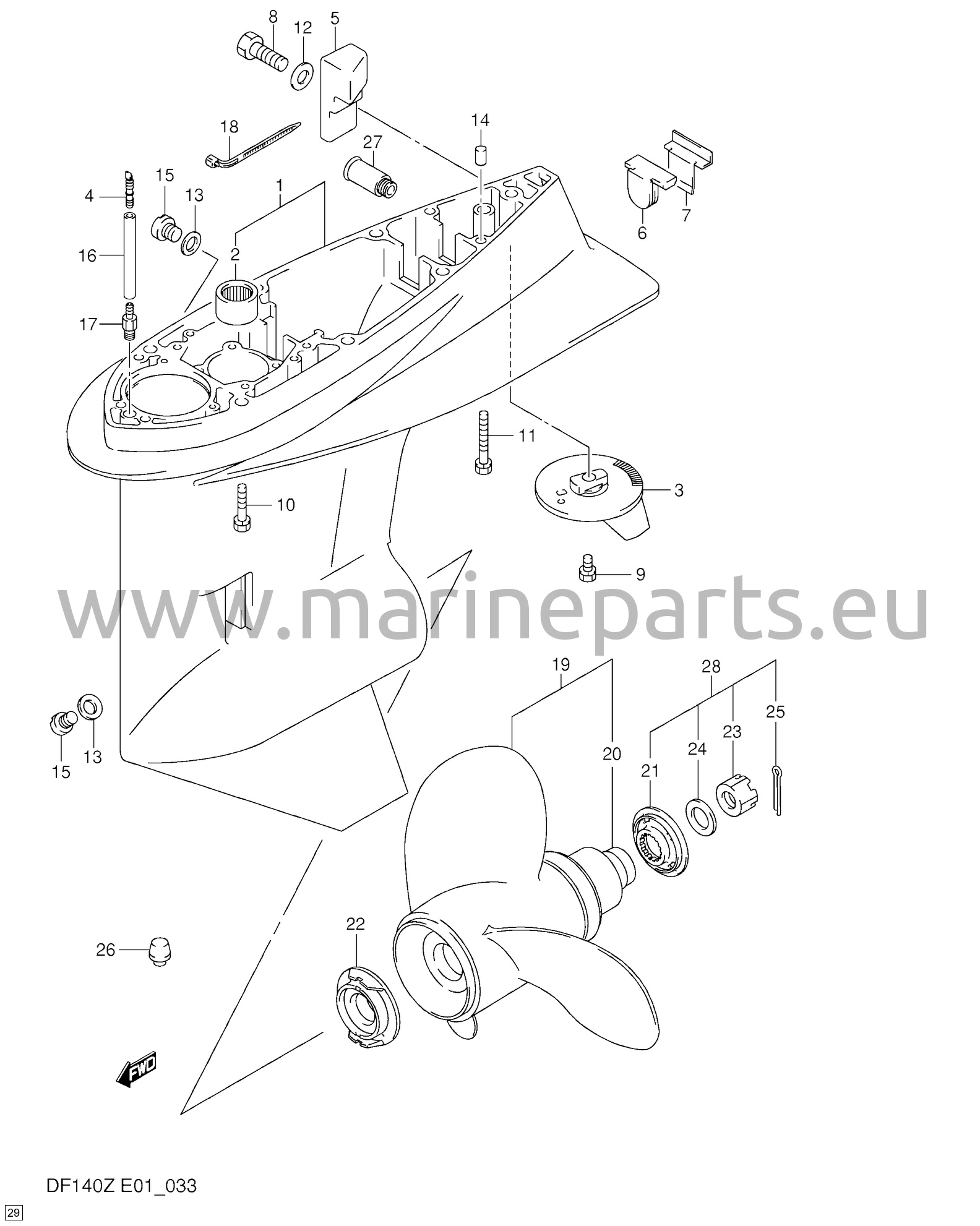

Gear case
Reference no. DF140Z_E01 23

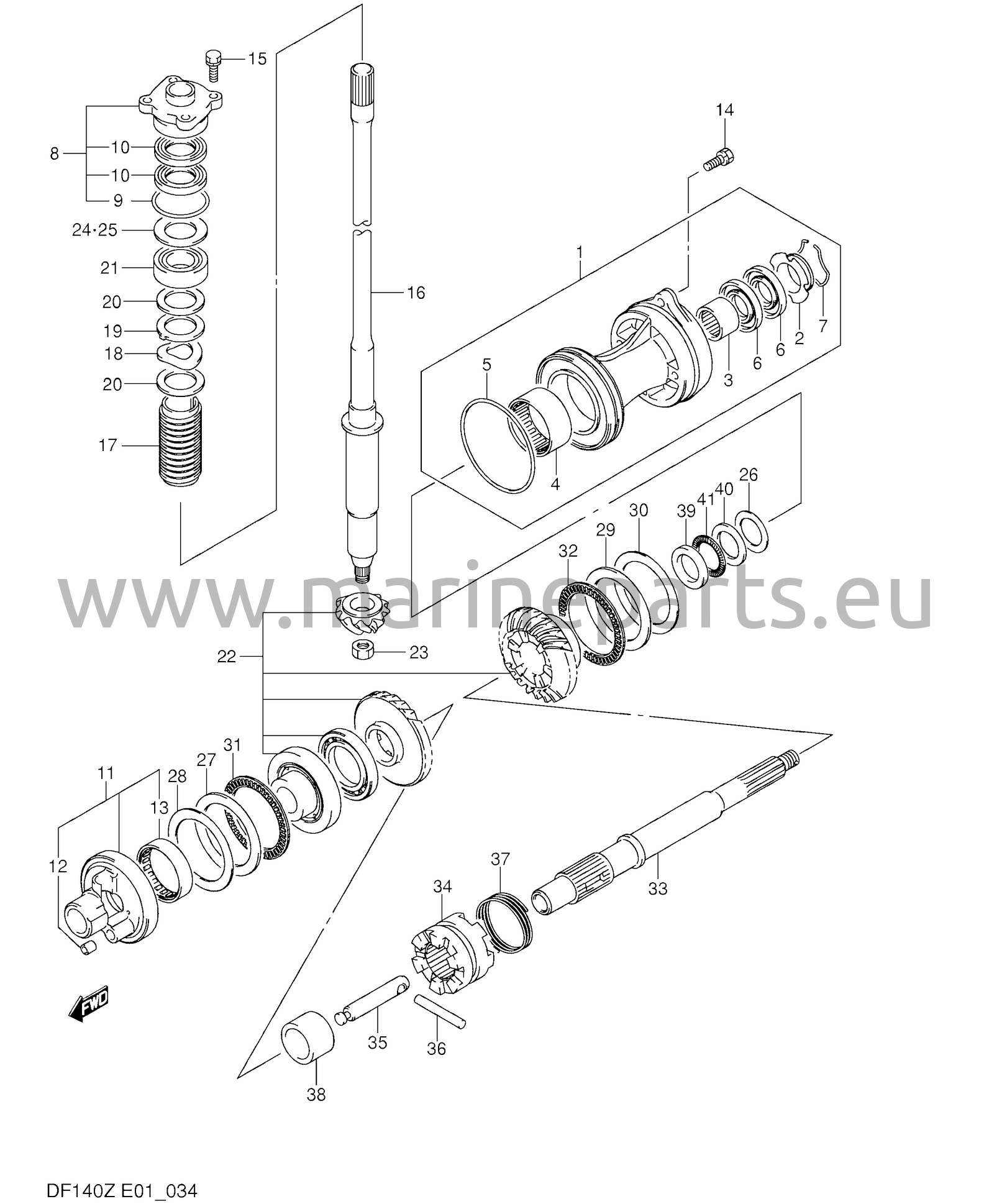

Transmission (counter rotation)
Reference no. DF140Z_E01 24

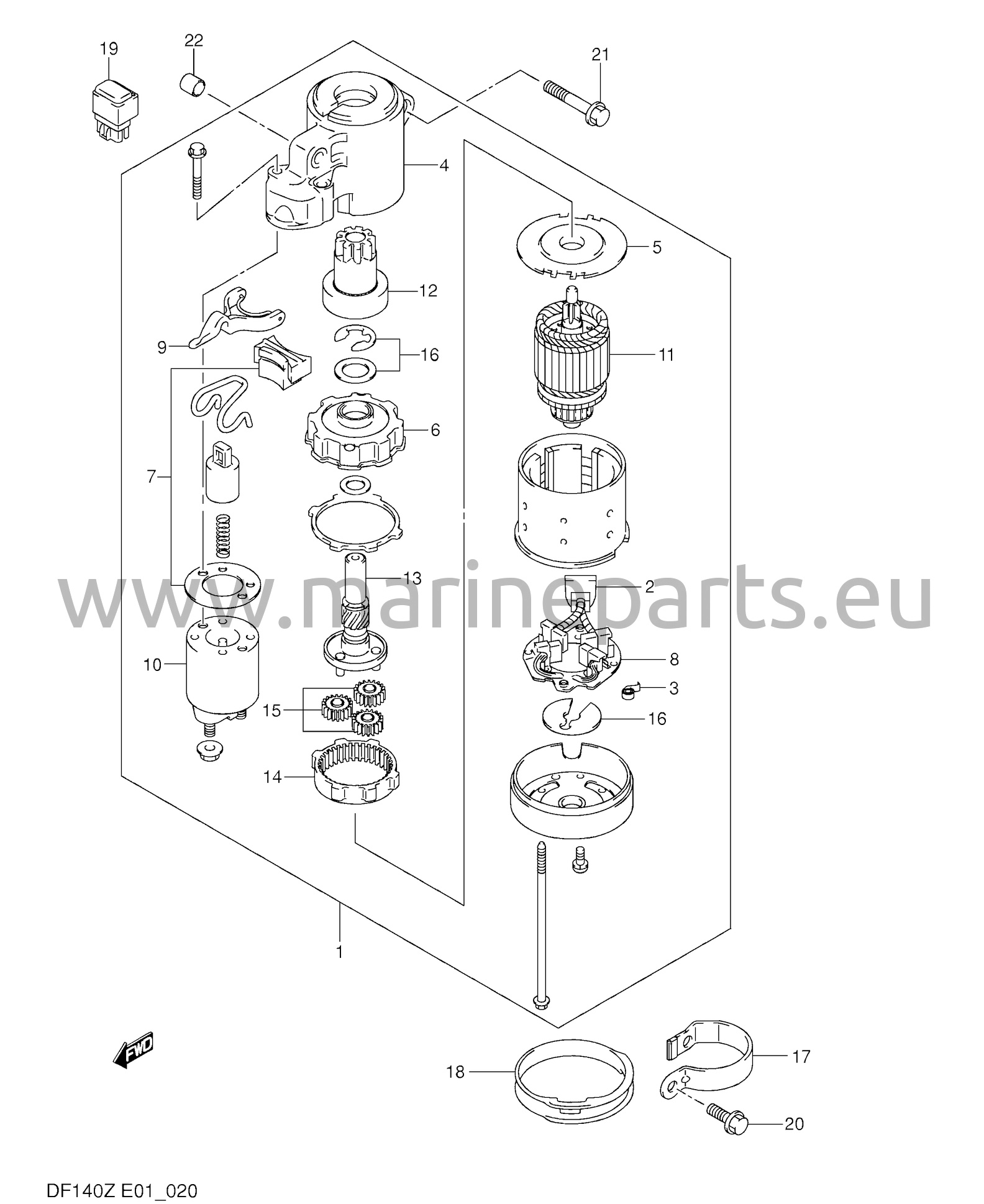

Starting motor
Reference no. DF140Z_E01 25

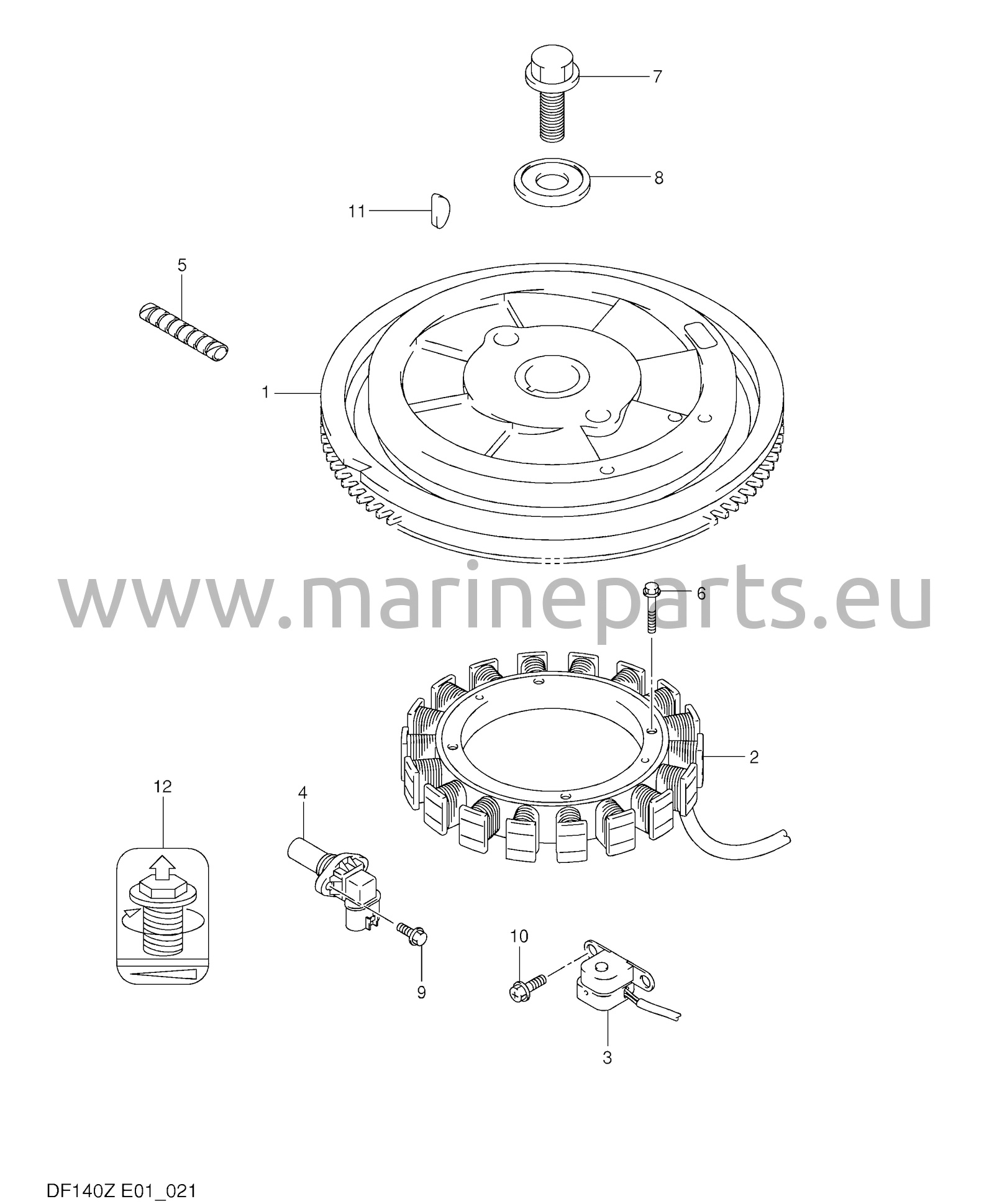

Magneto
Reference no. DF140Z_E01 26

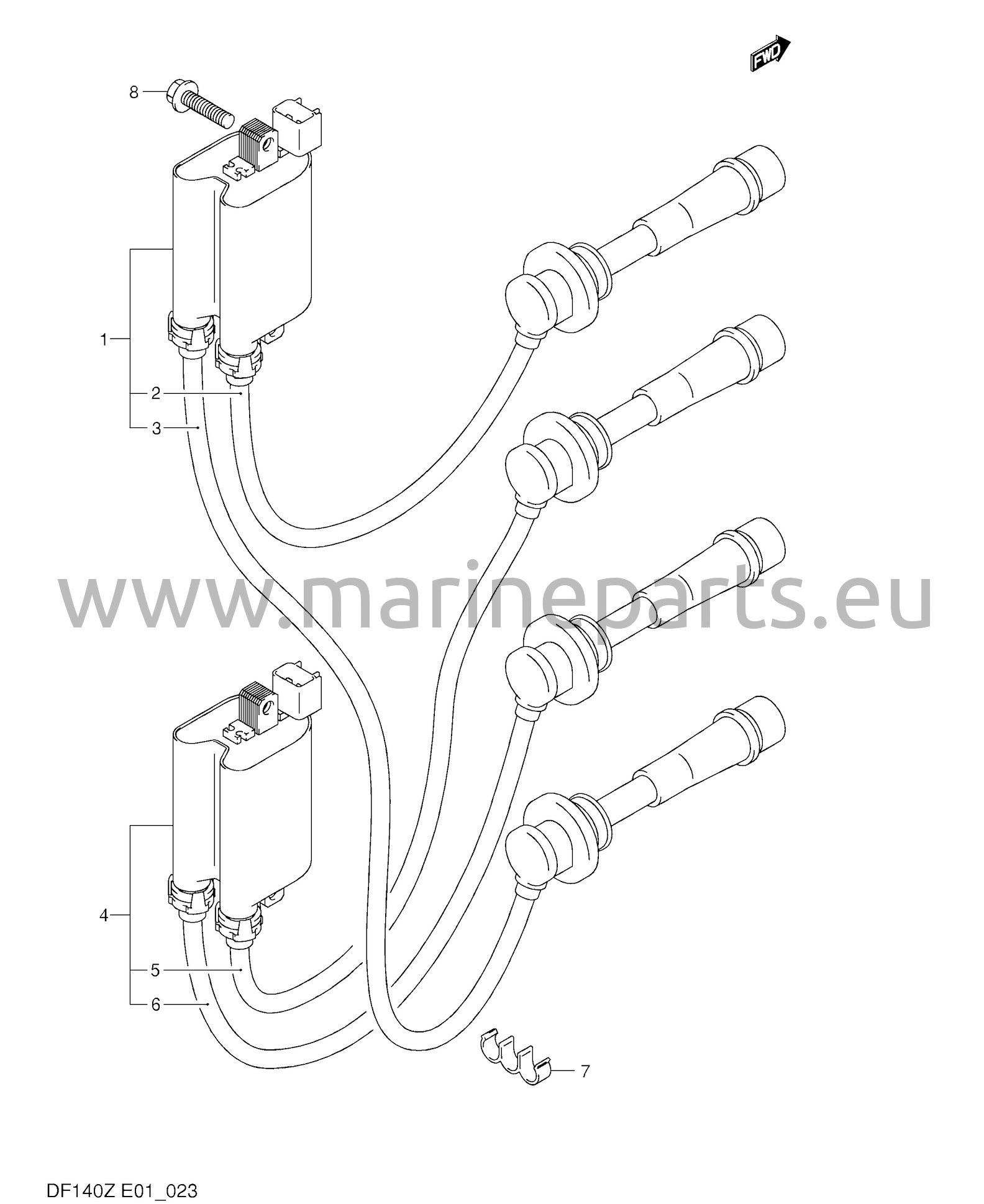

Ignition coil
Reference no. DF140Z_E01 27

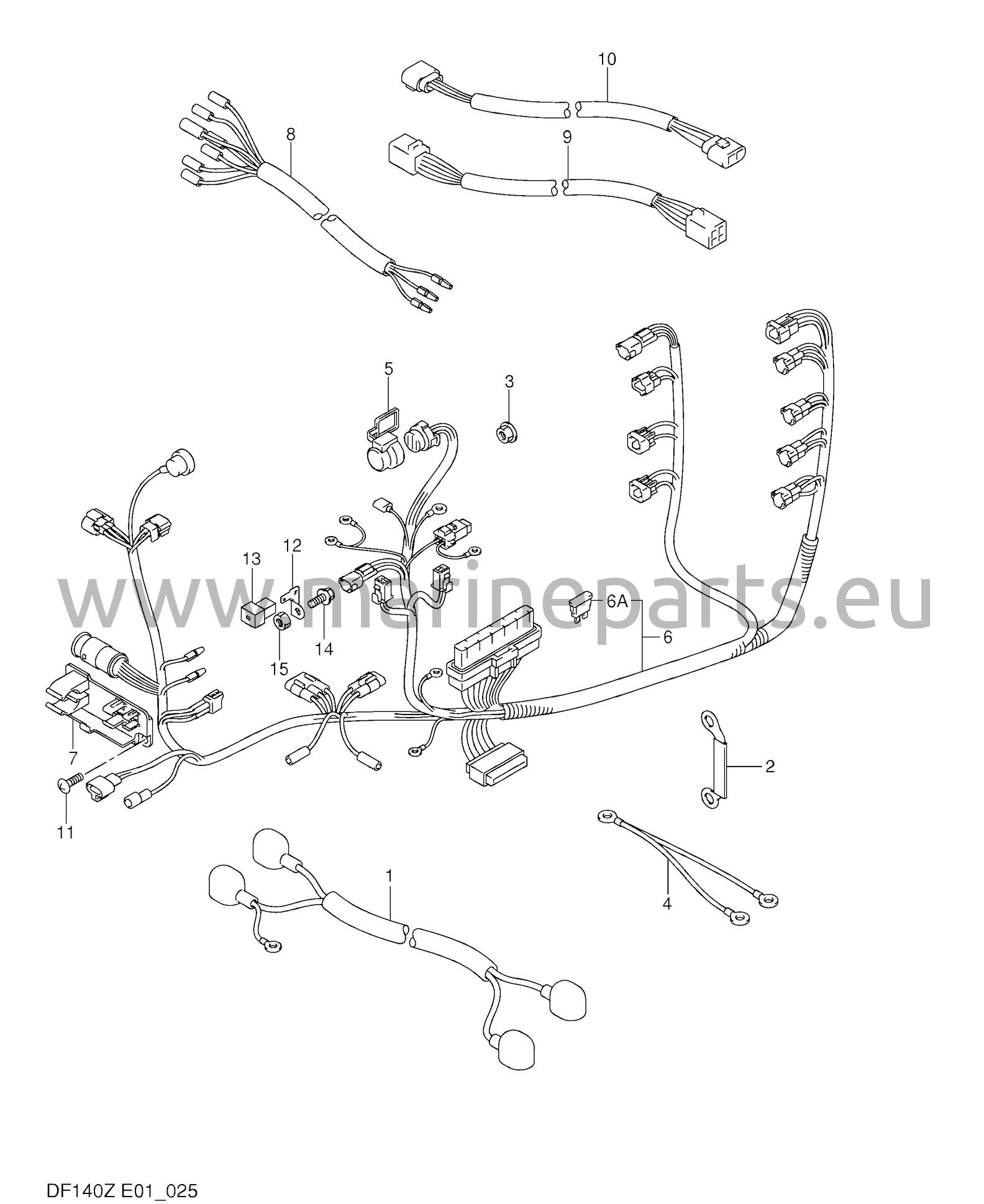

Harness
Reference no. DF140Z_E01 28

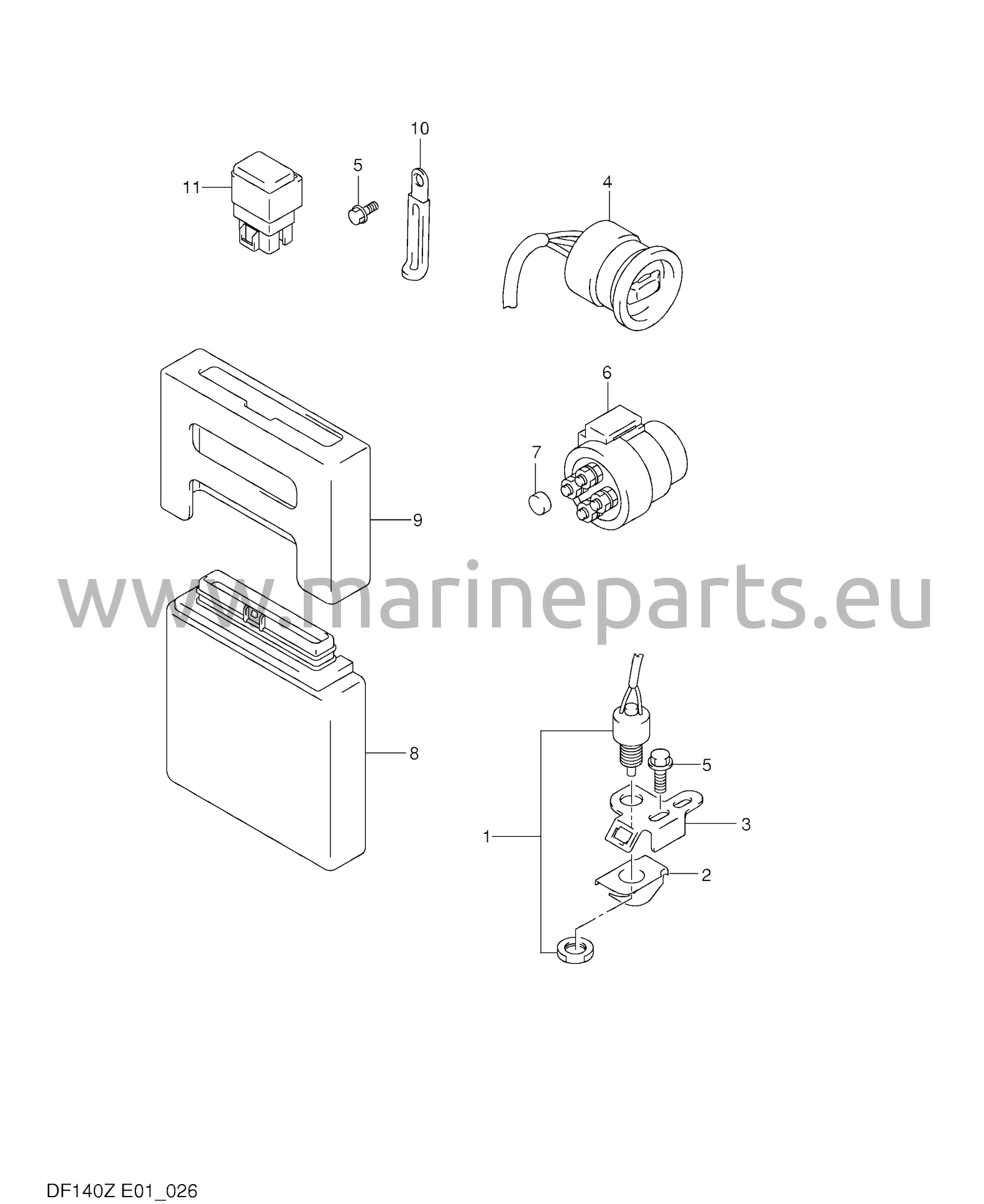

PTT switch & engine control unit
Reference no. DF140Z_E01 29

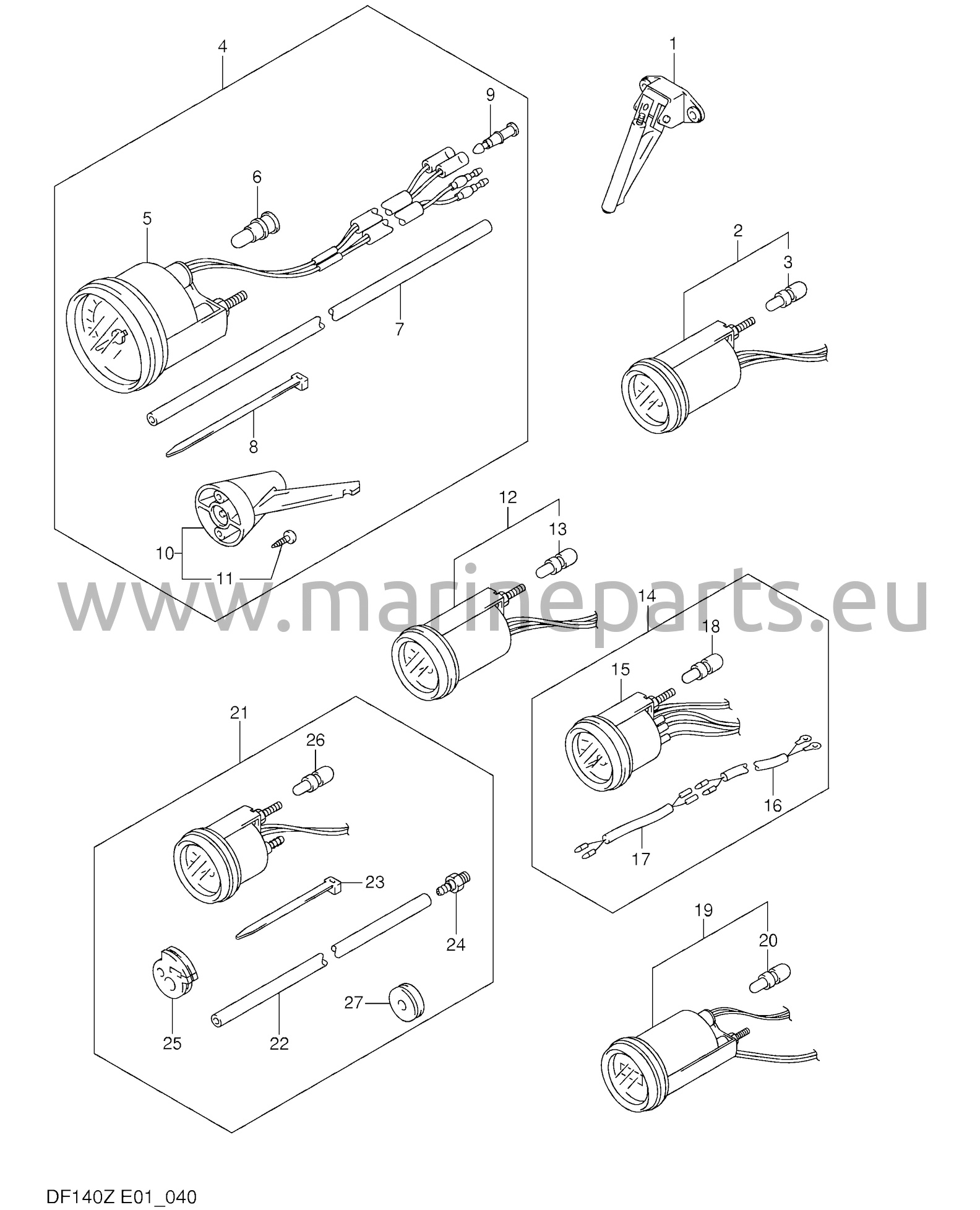

Meter (optional)
Reference no. DF140Z_E01 30

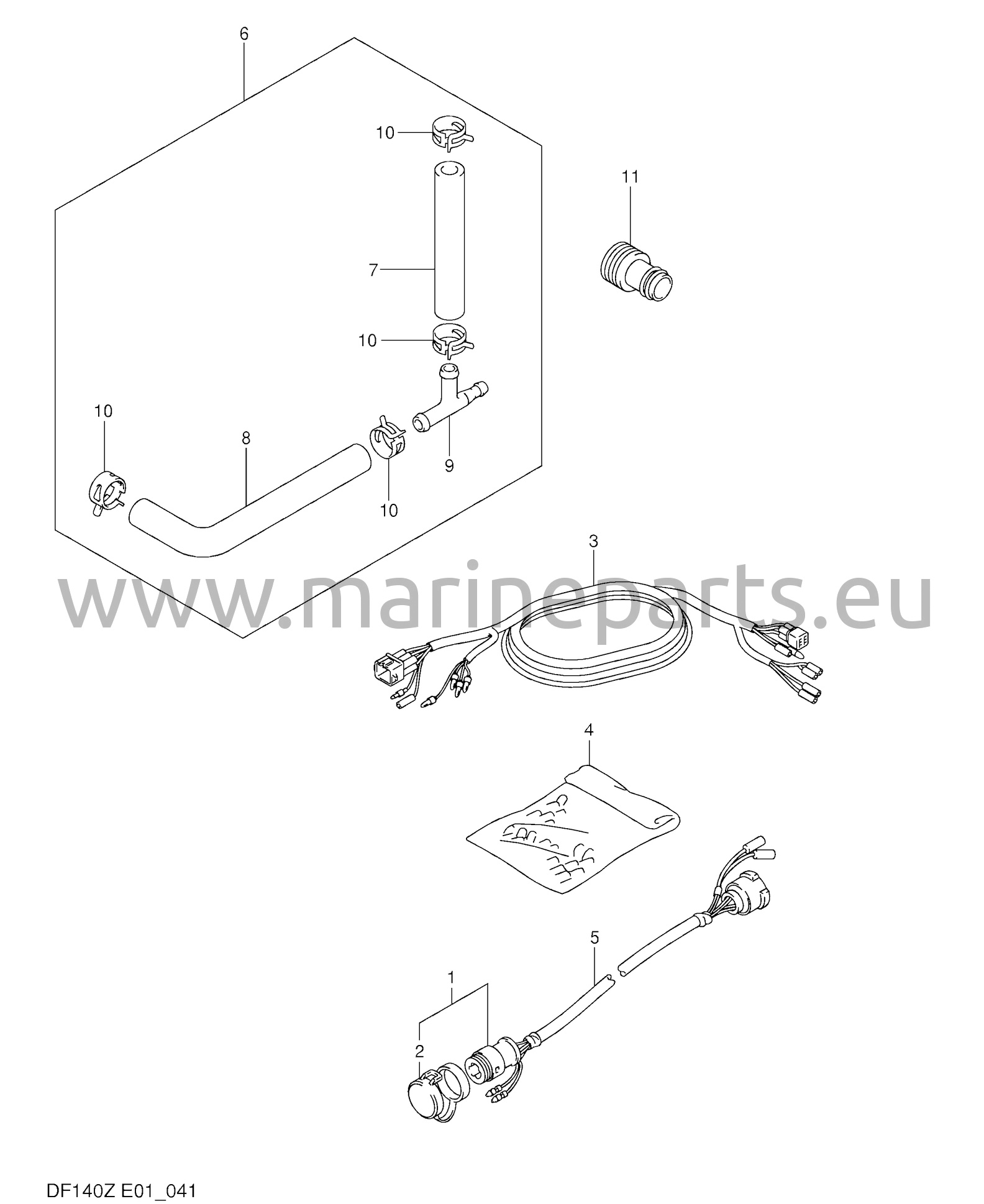

Harness (optional)
Reference no. DF140Z_E01 31

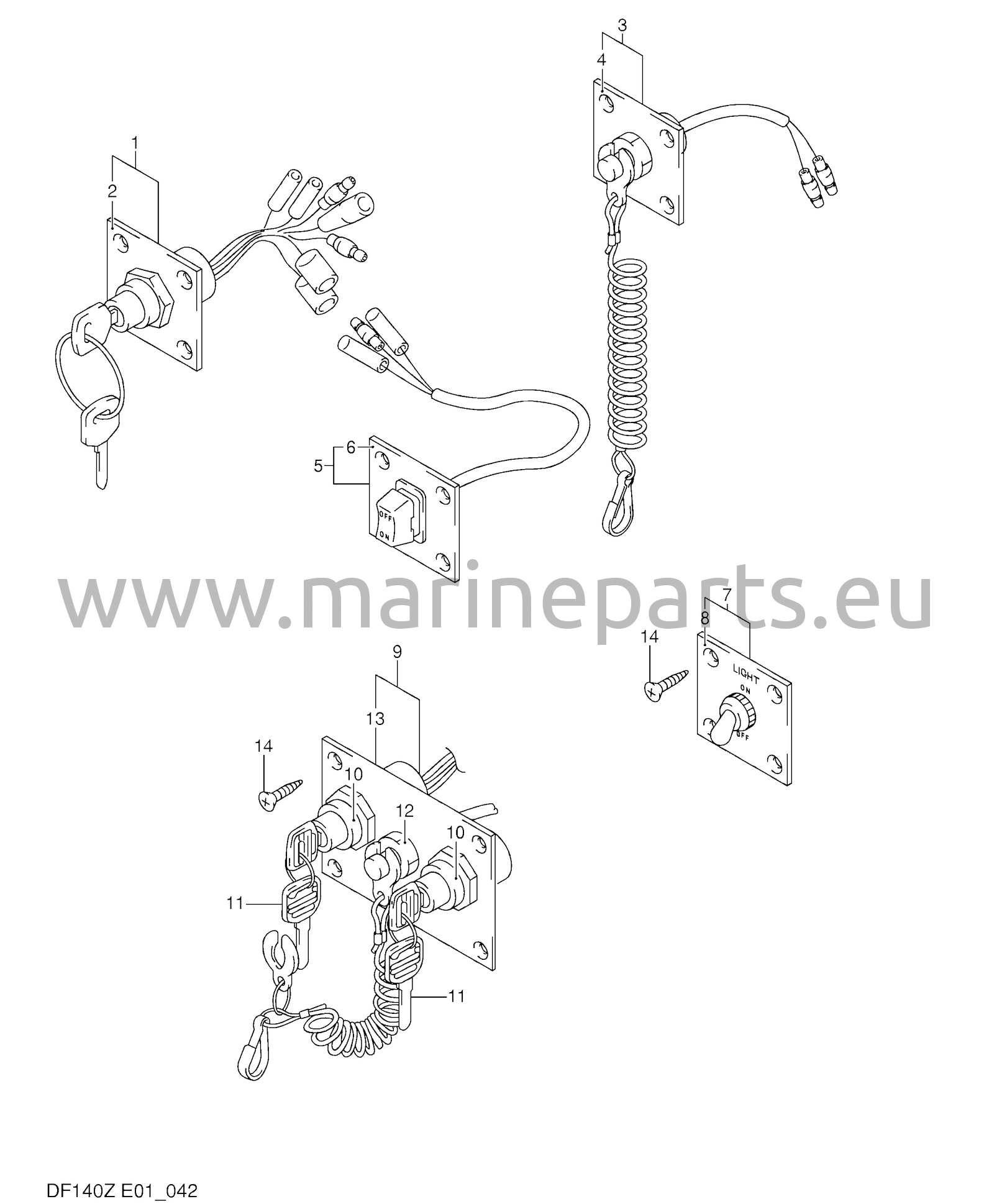

Switch (optional)
Reference no. DF140Z_E01 32

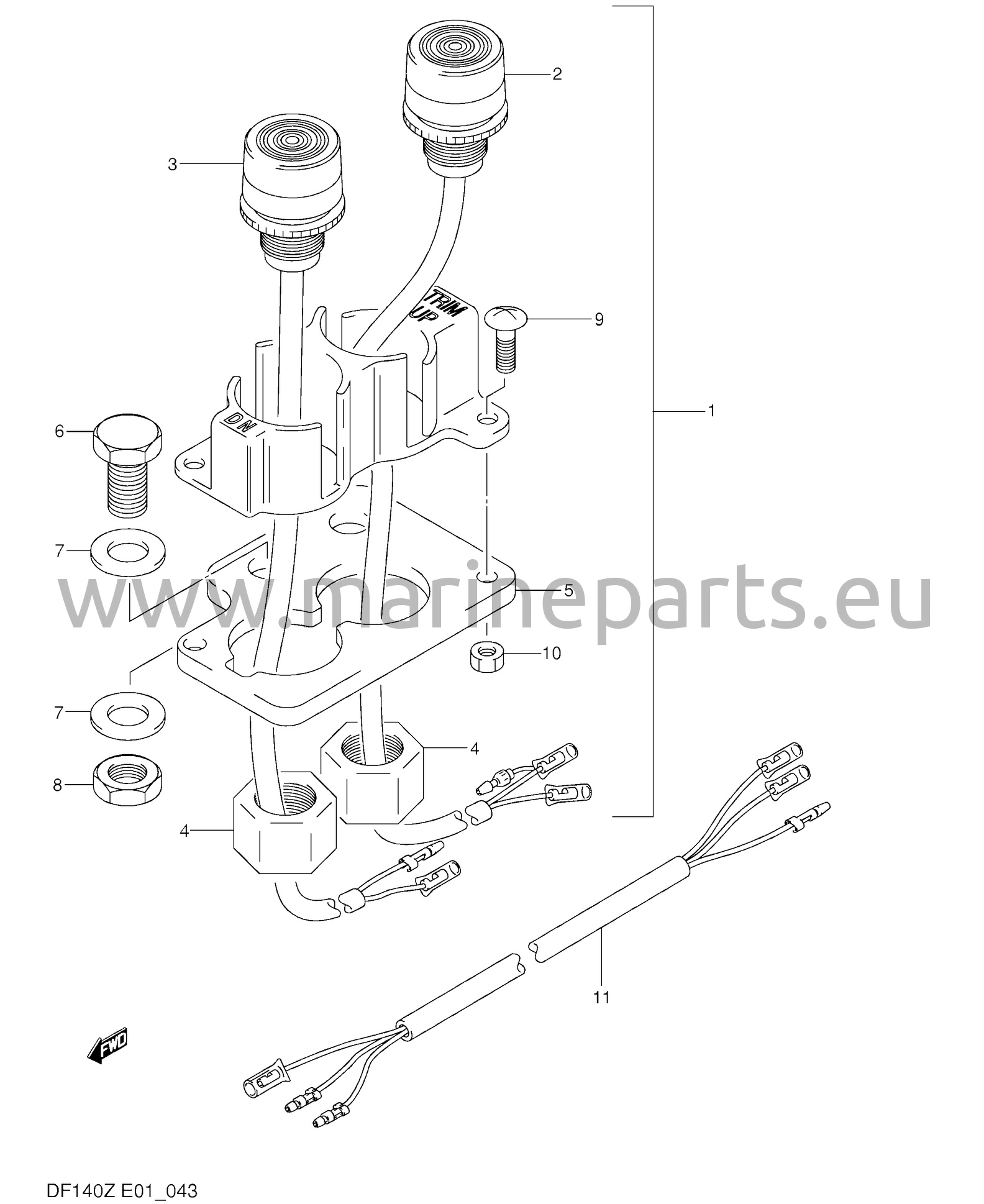

Trim switch (optional)
Reference no. DF140Z_E01 33

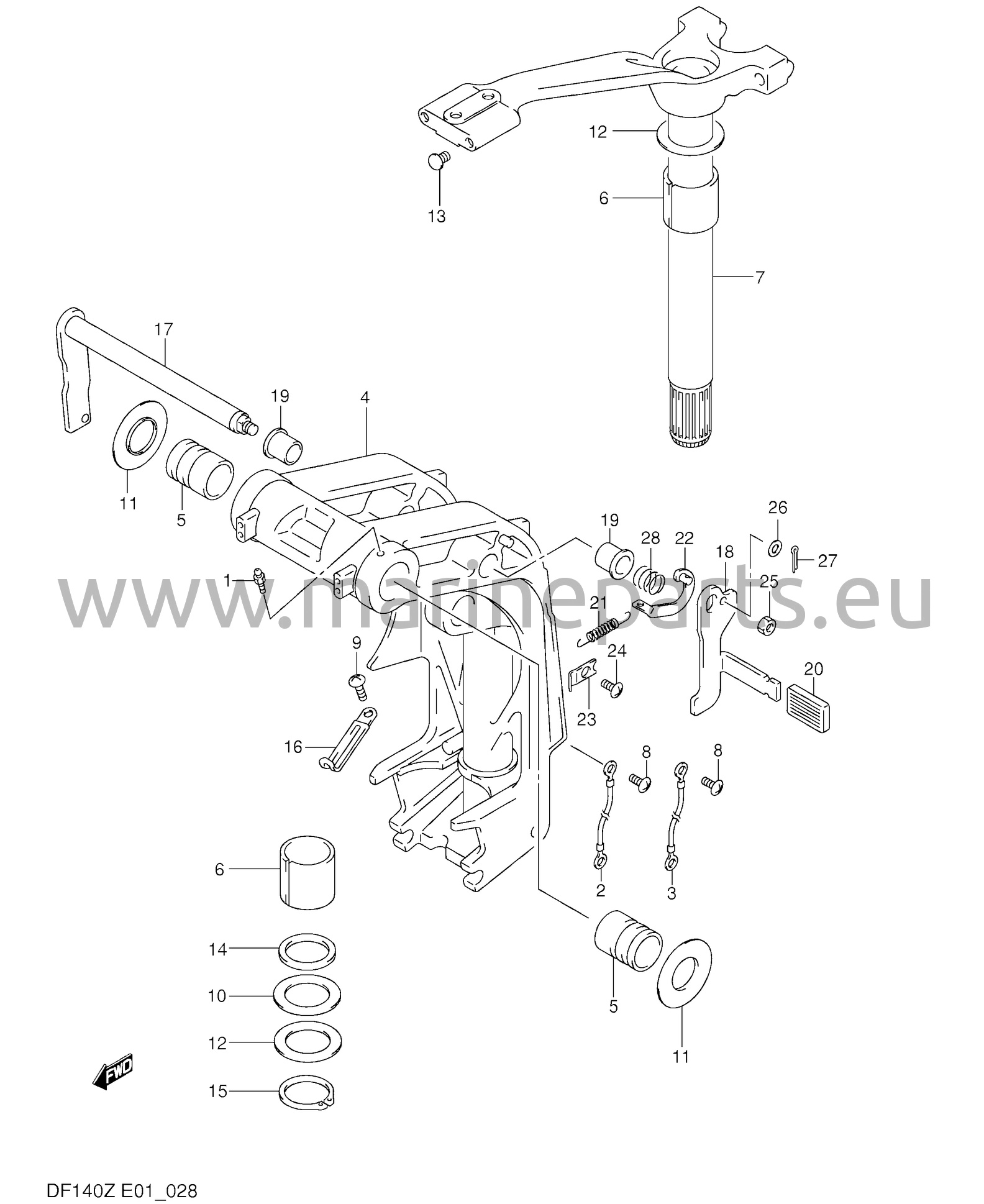

Swivel bracket
Reference no. DF140Z_E01 35

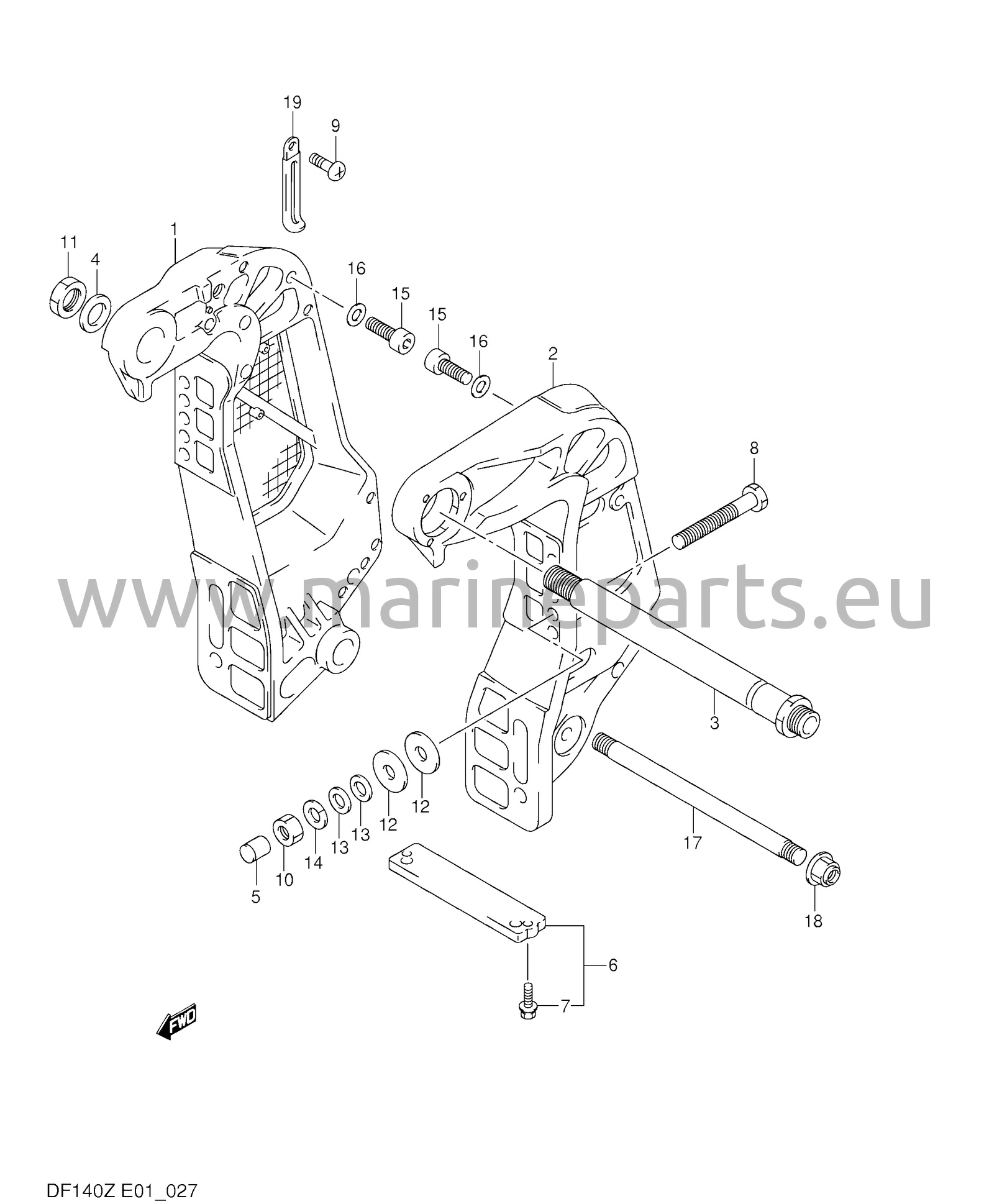

Clamp bracket
Reference no. DF140Z_E01 34

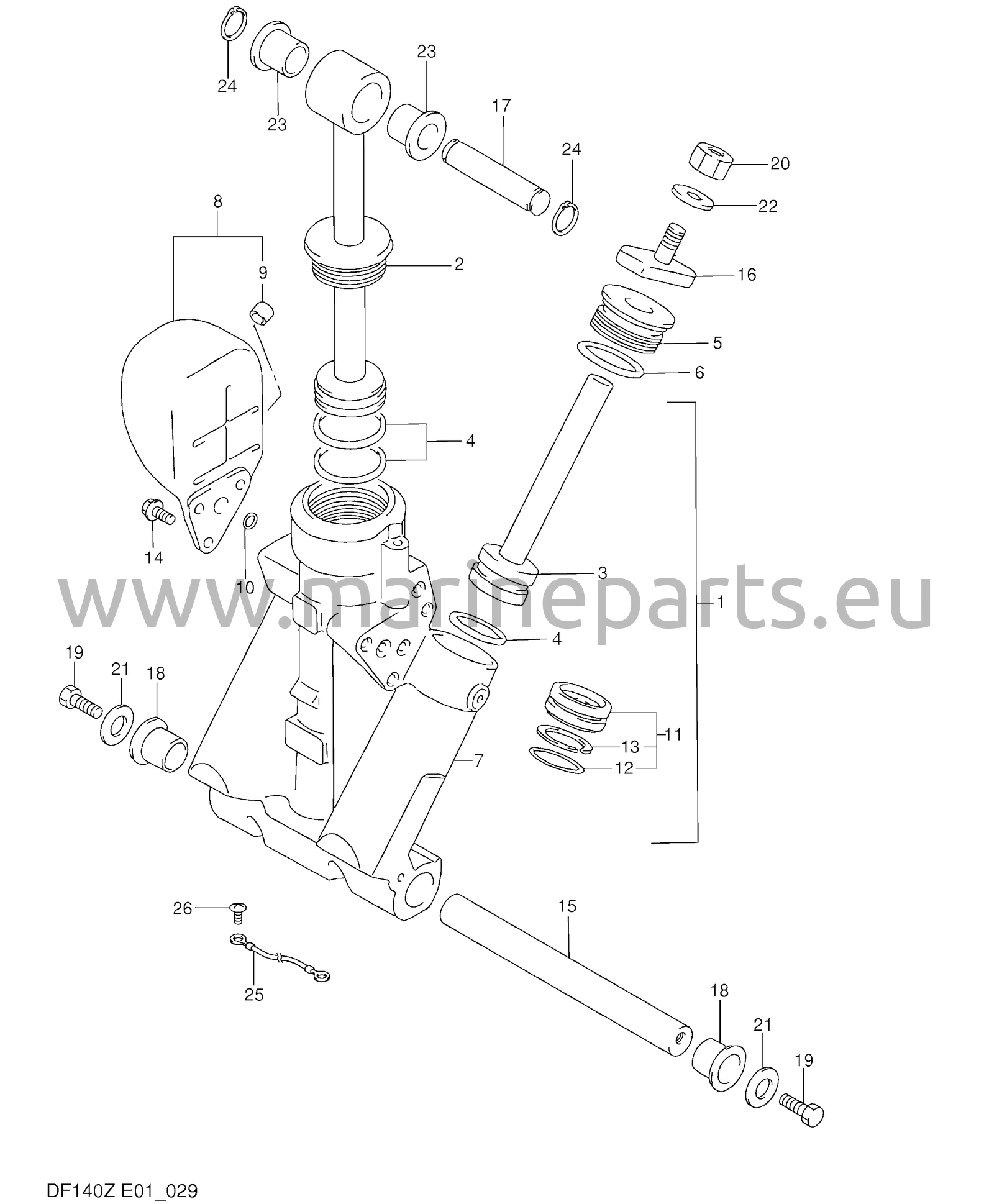

Trim cylinder
Reference no. DF140Z_E01 36

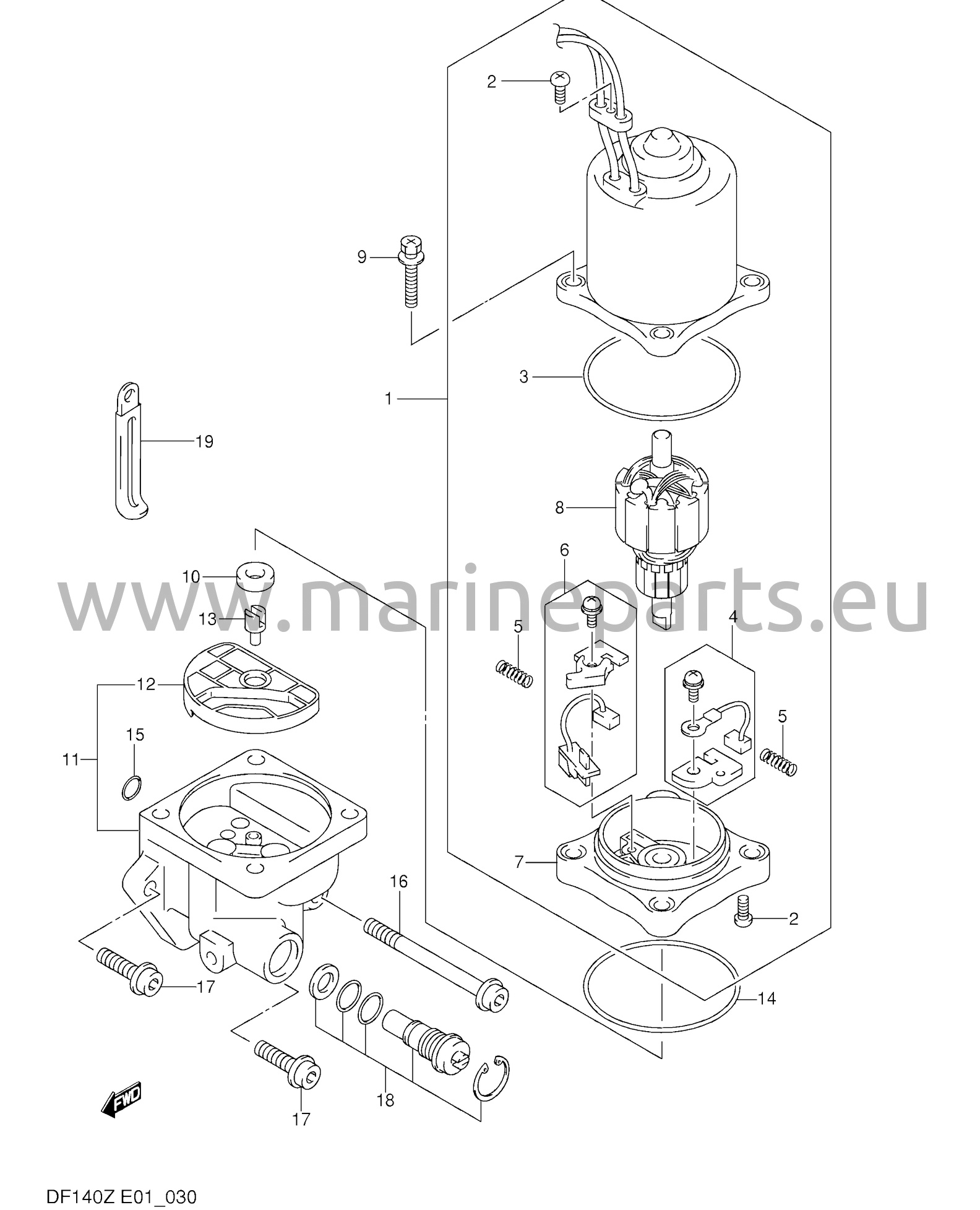

PTT motor
Reference no. DF140Z_E01 37

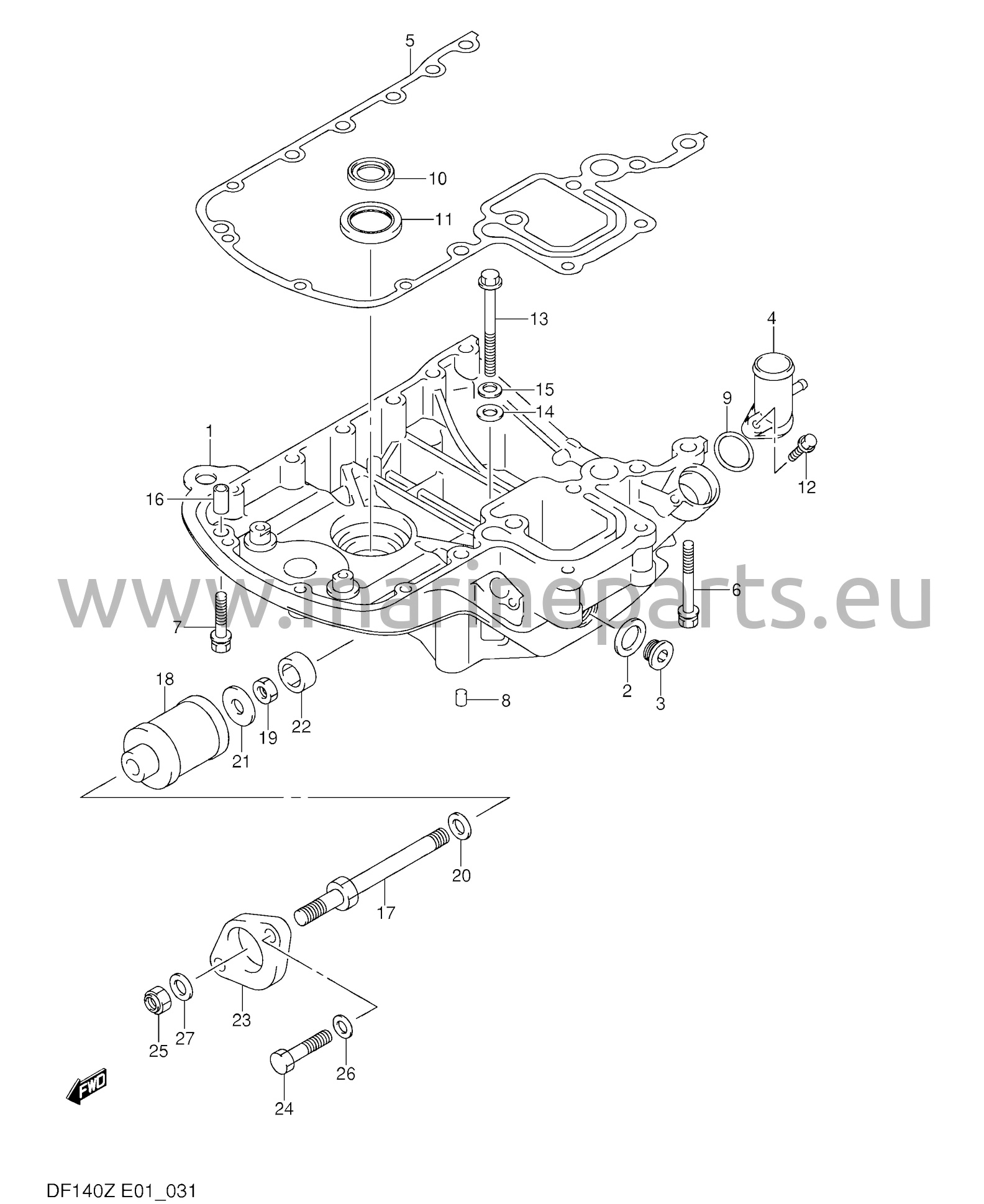

Engine holder
Reference no. DF140Z_E01 38

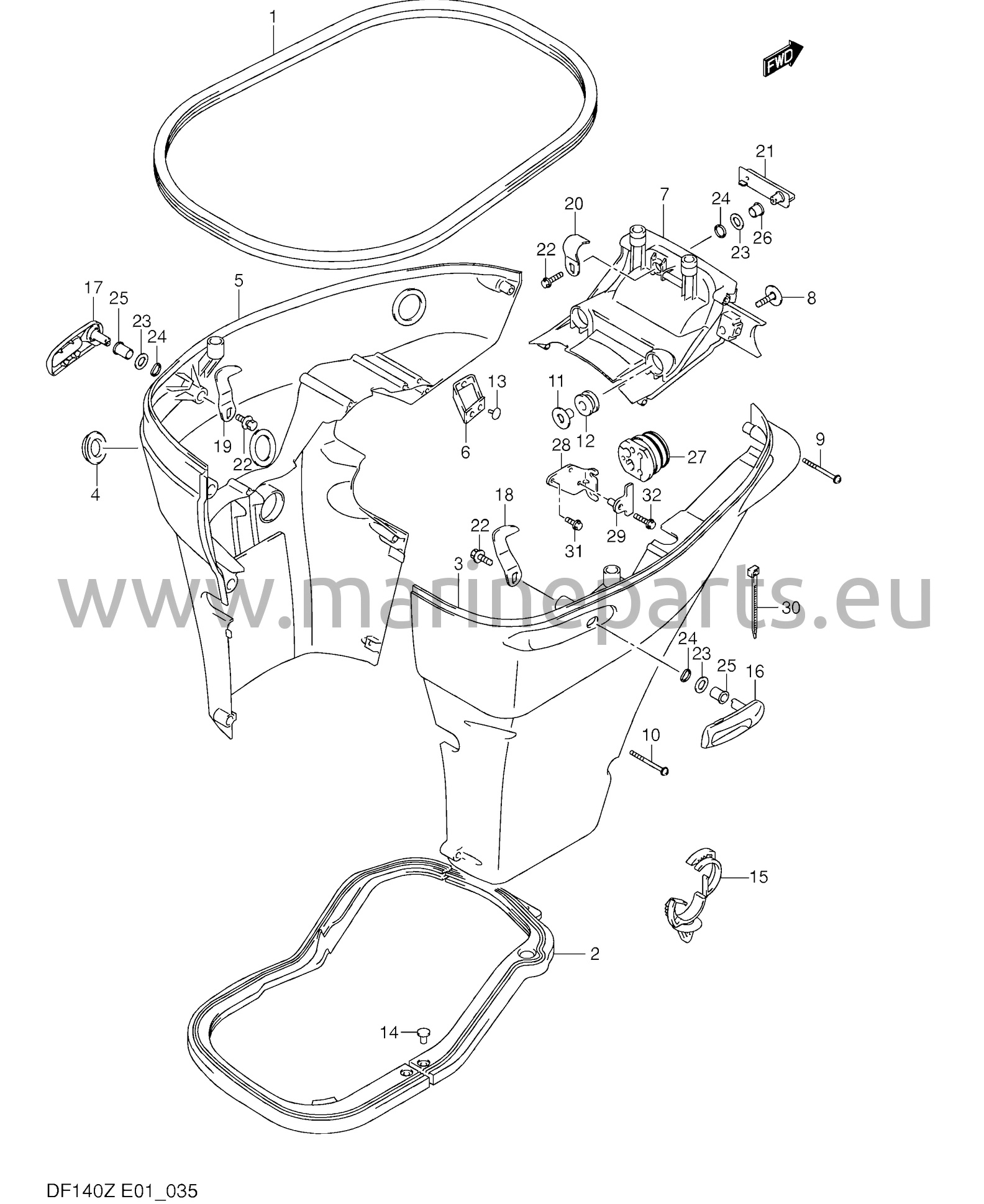

Side cover
Reference no. DF140Z_E01 39

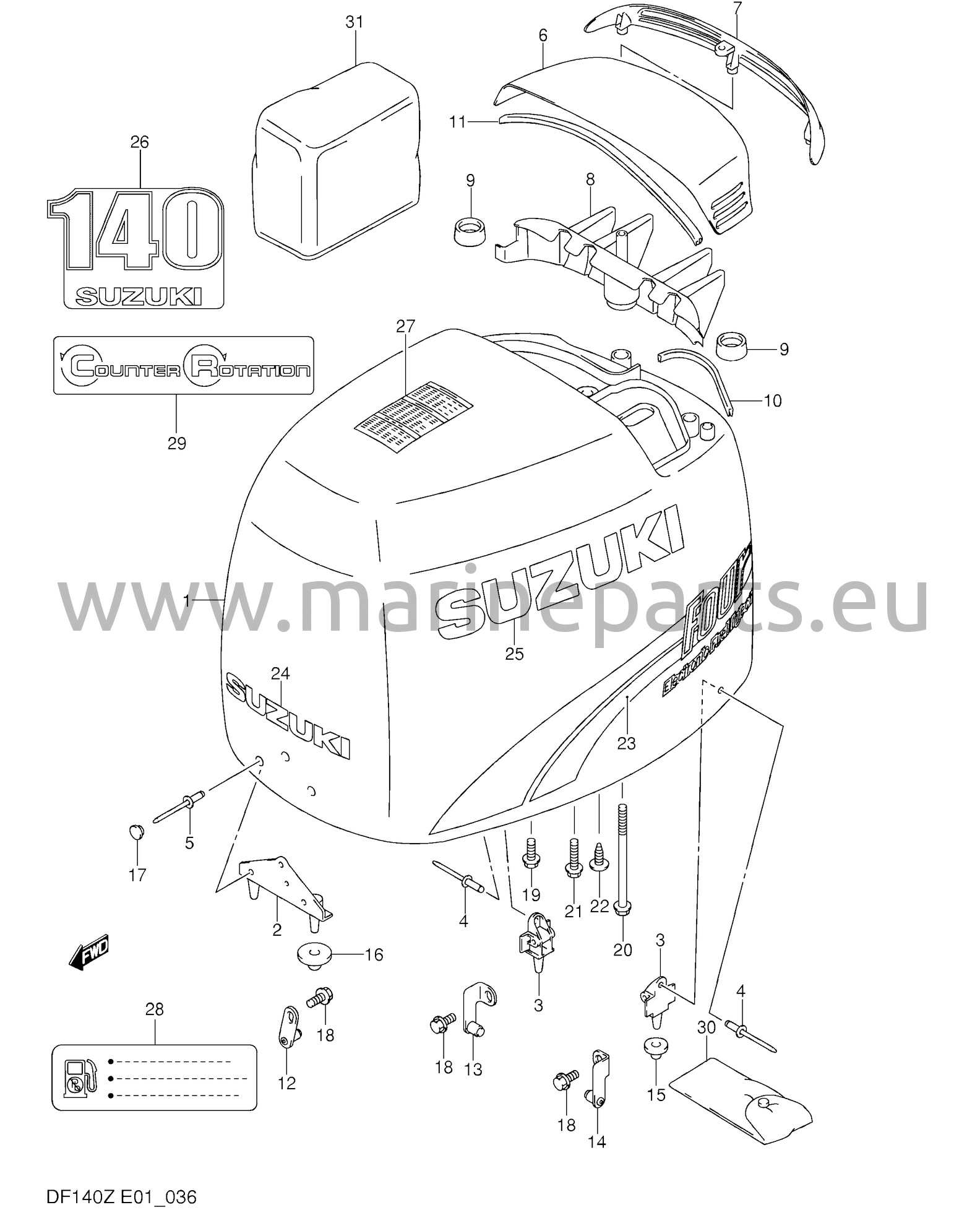

Engine cover
Reference no. DF140Z_E01 40

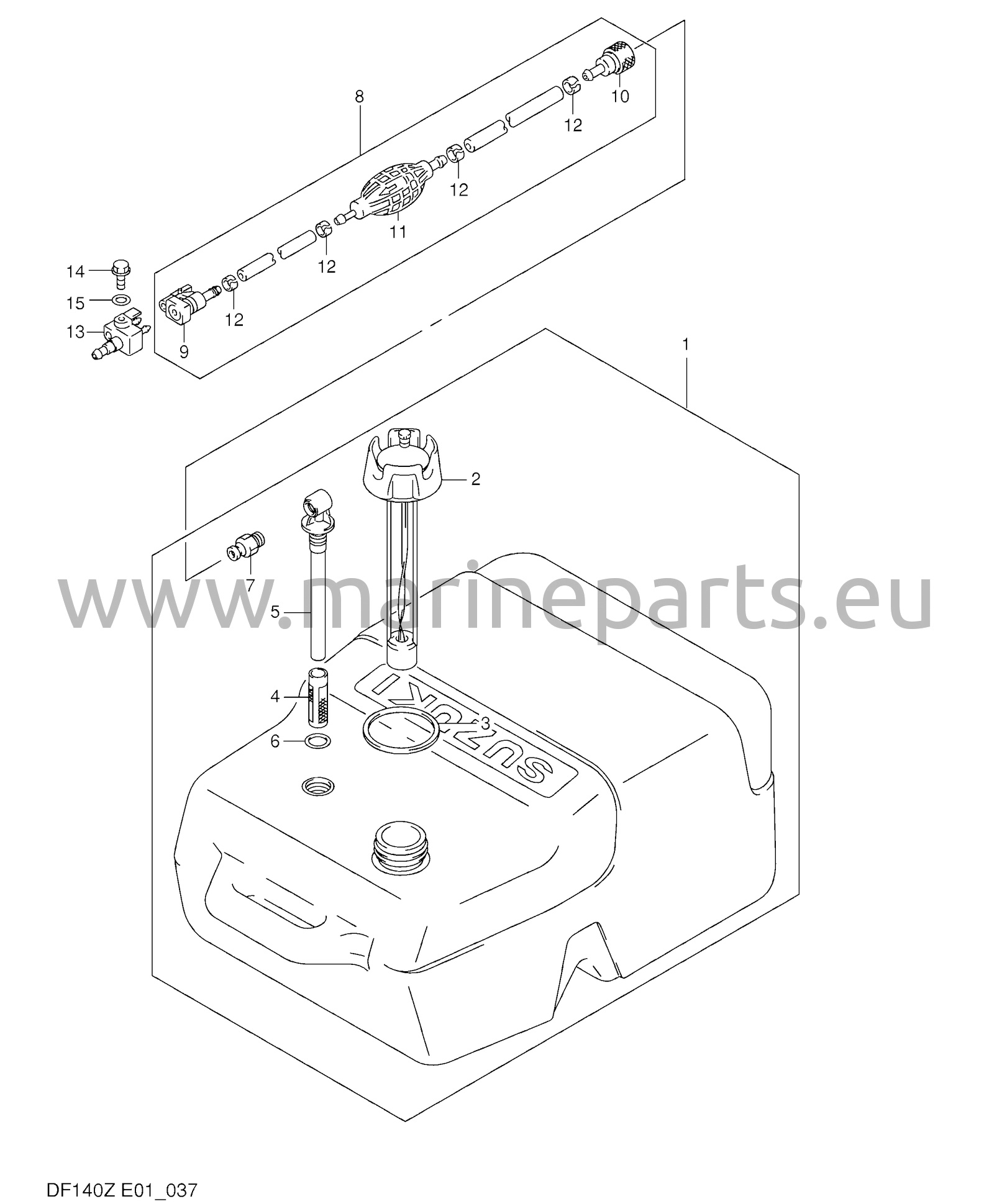

Fuel tank (plastic)
Reference no. DF140Z_E01 41

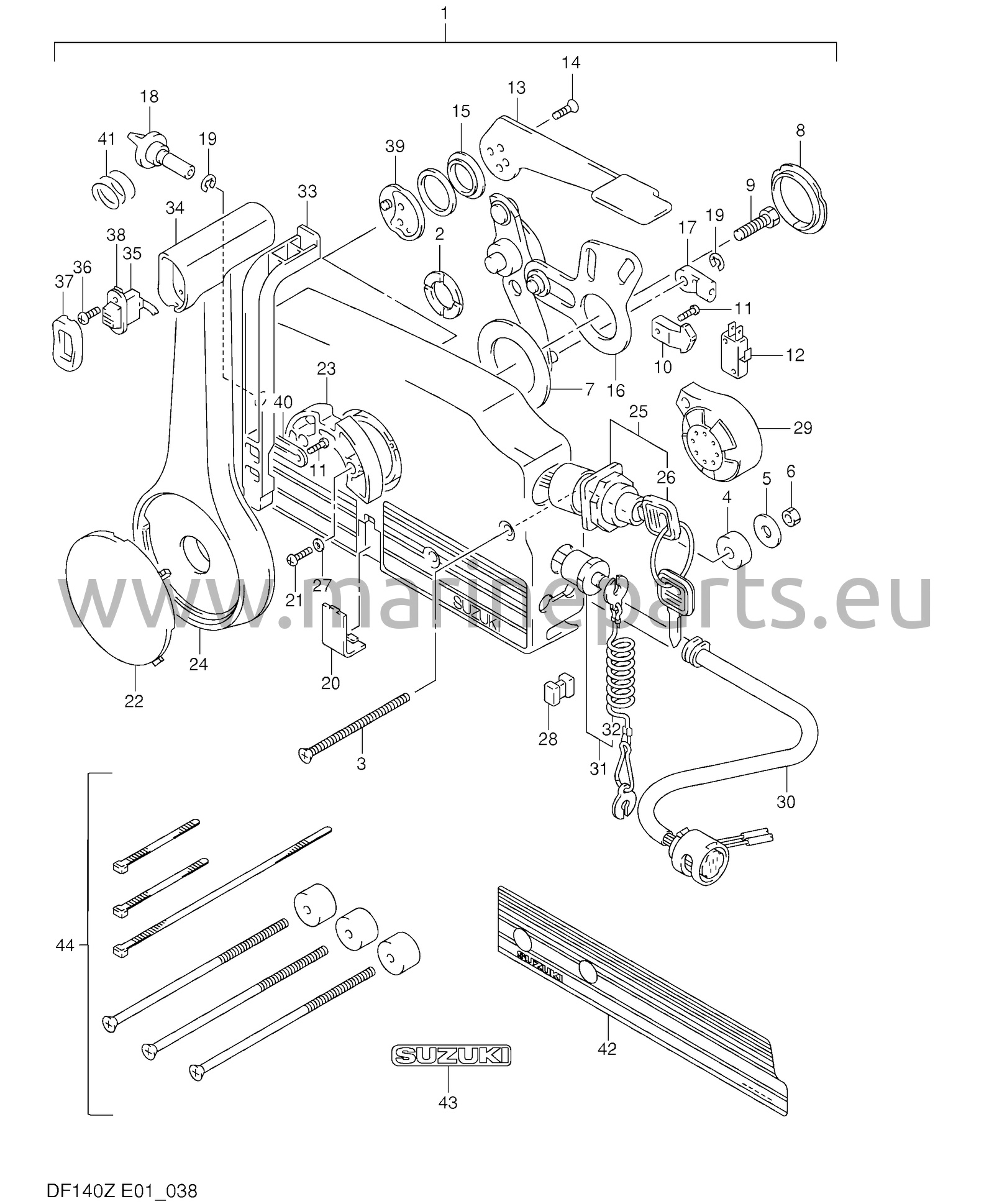

Remote control
Reference no. DF140Z_E01 42

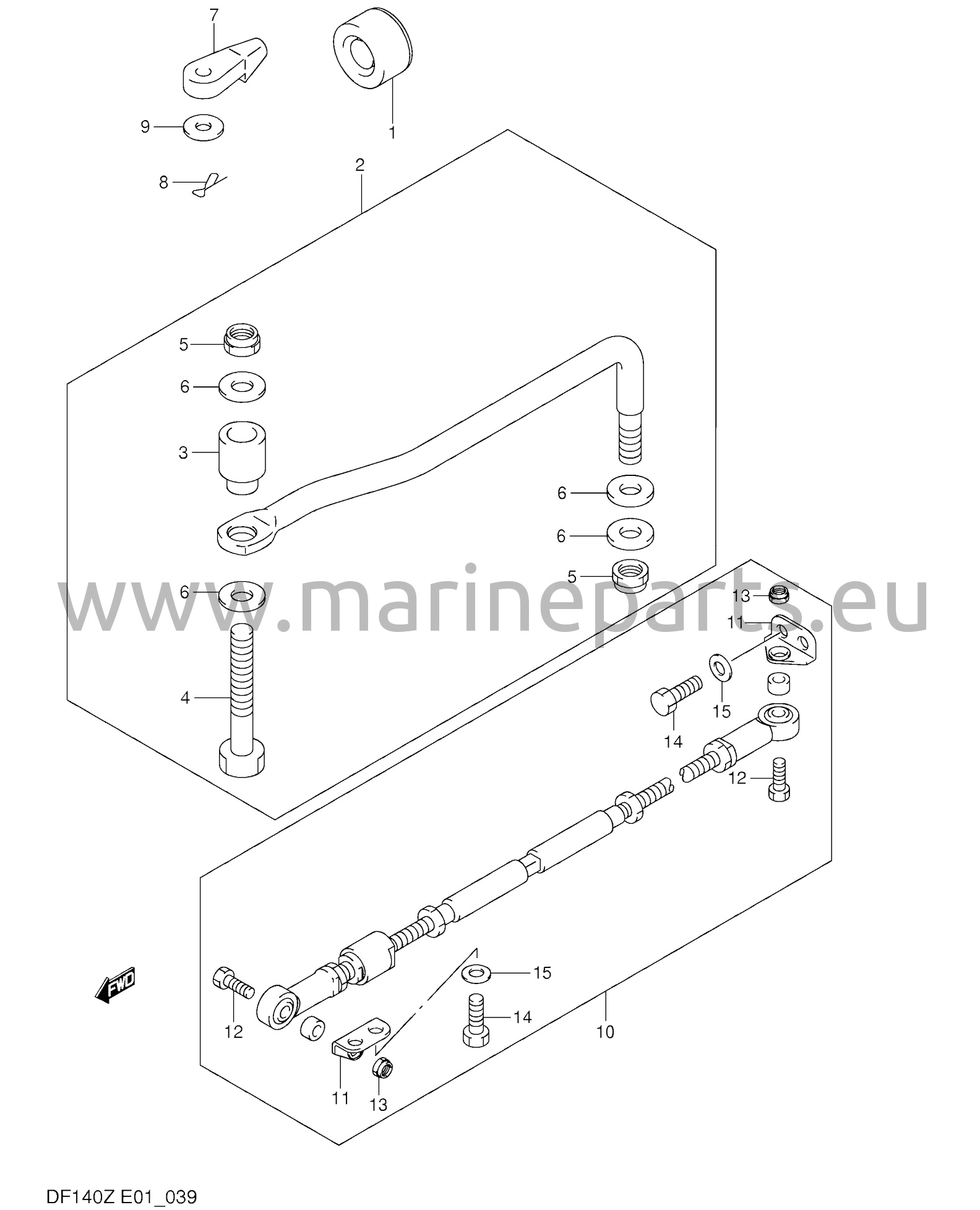

Drag link
Reference no. DF140Z_E01 43

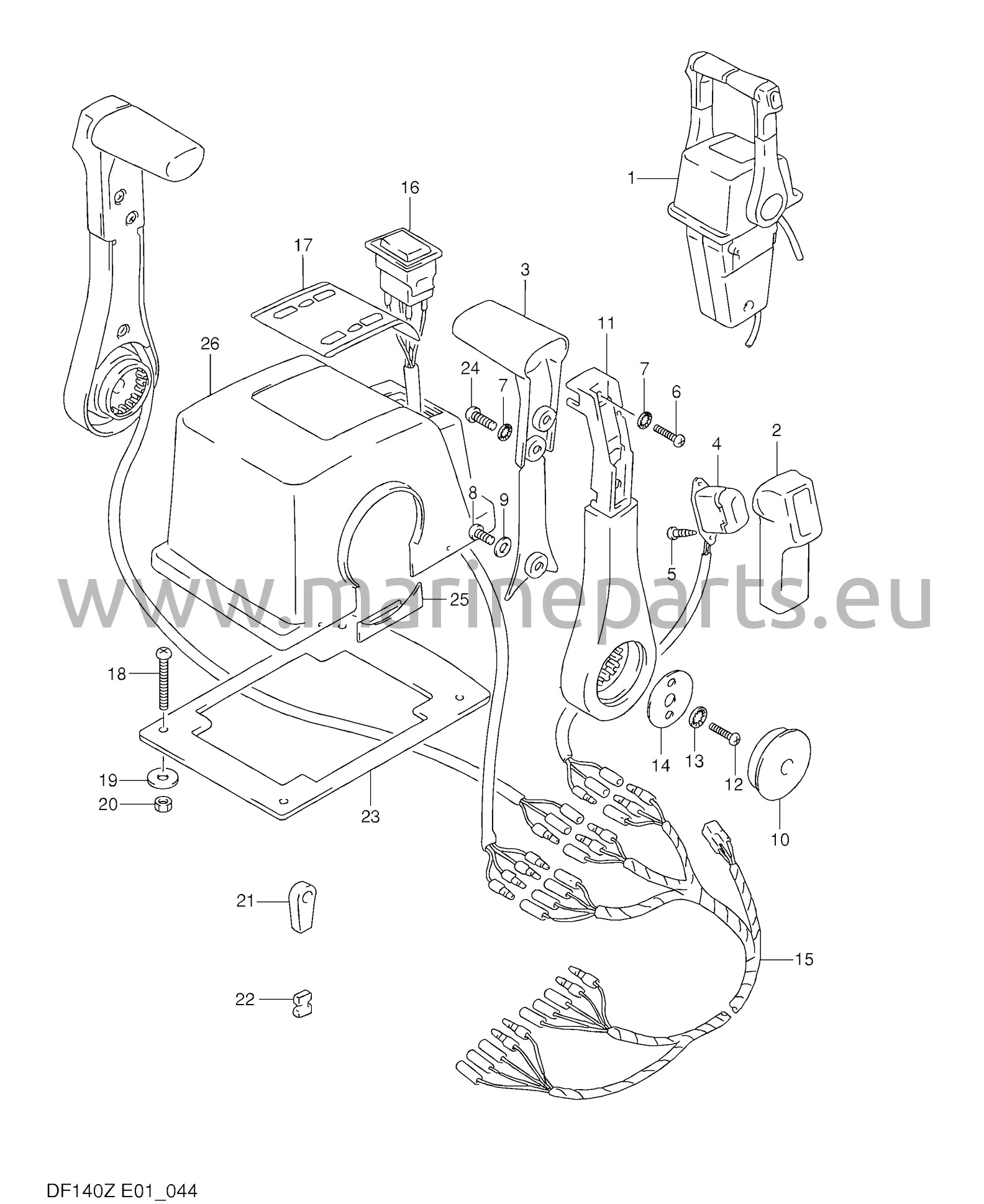

Top mount dual (1) (optional)
Reference no. DF140Z_E01 44

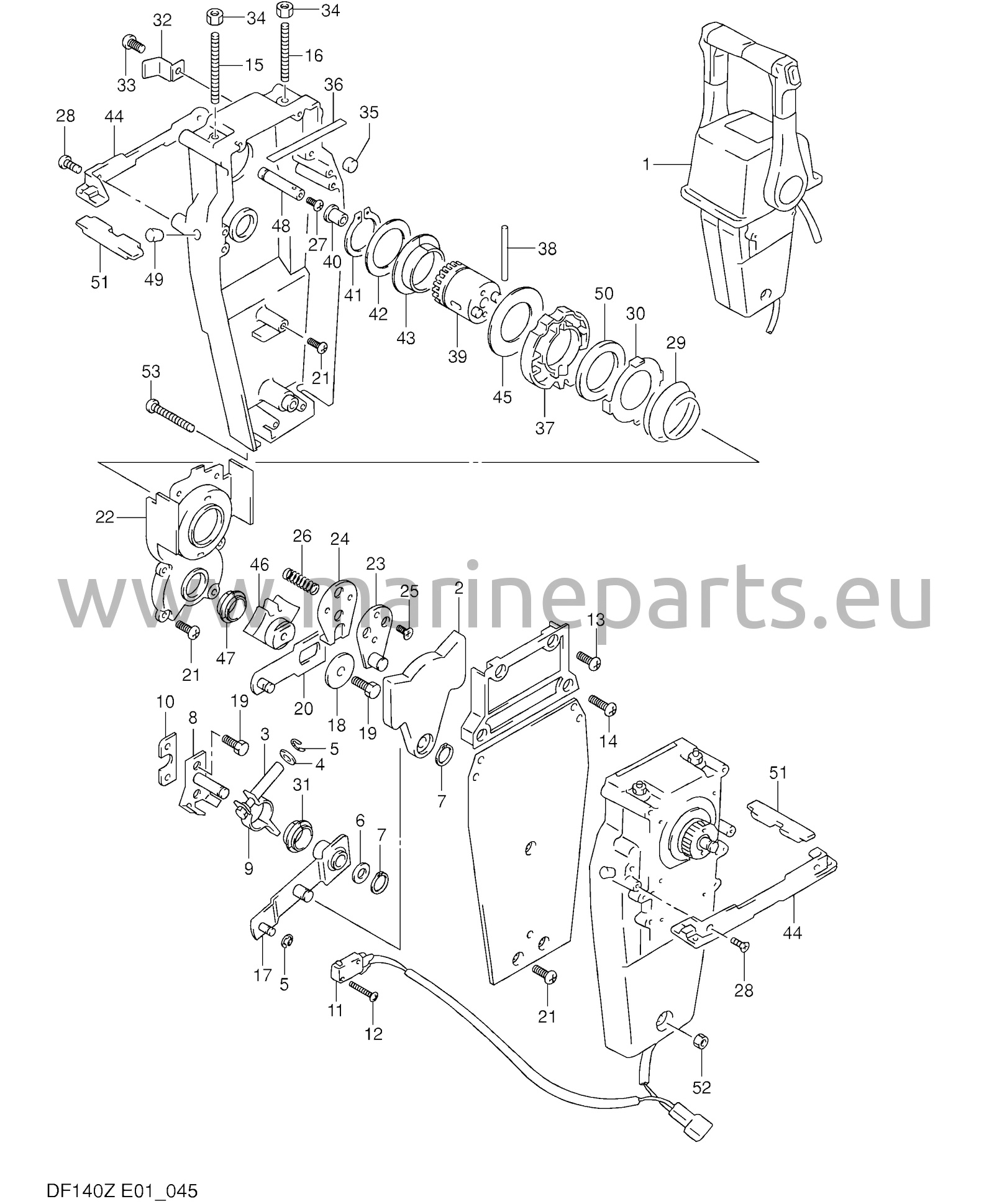

Top mount dual (2) (optional)
Reference no. DF140Z_E01 45

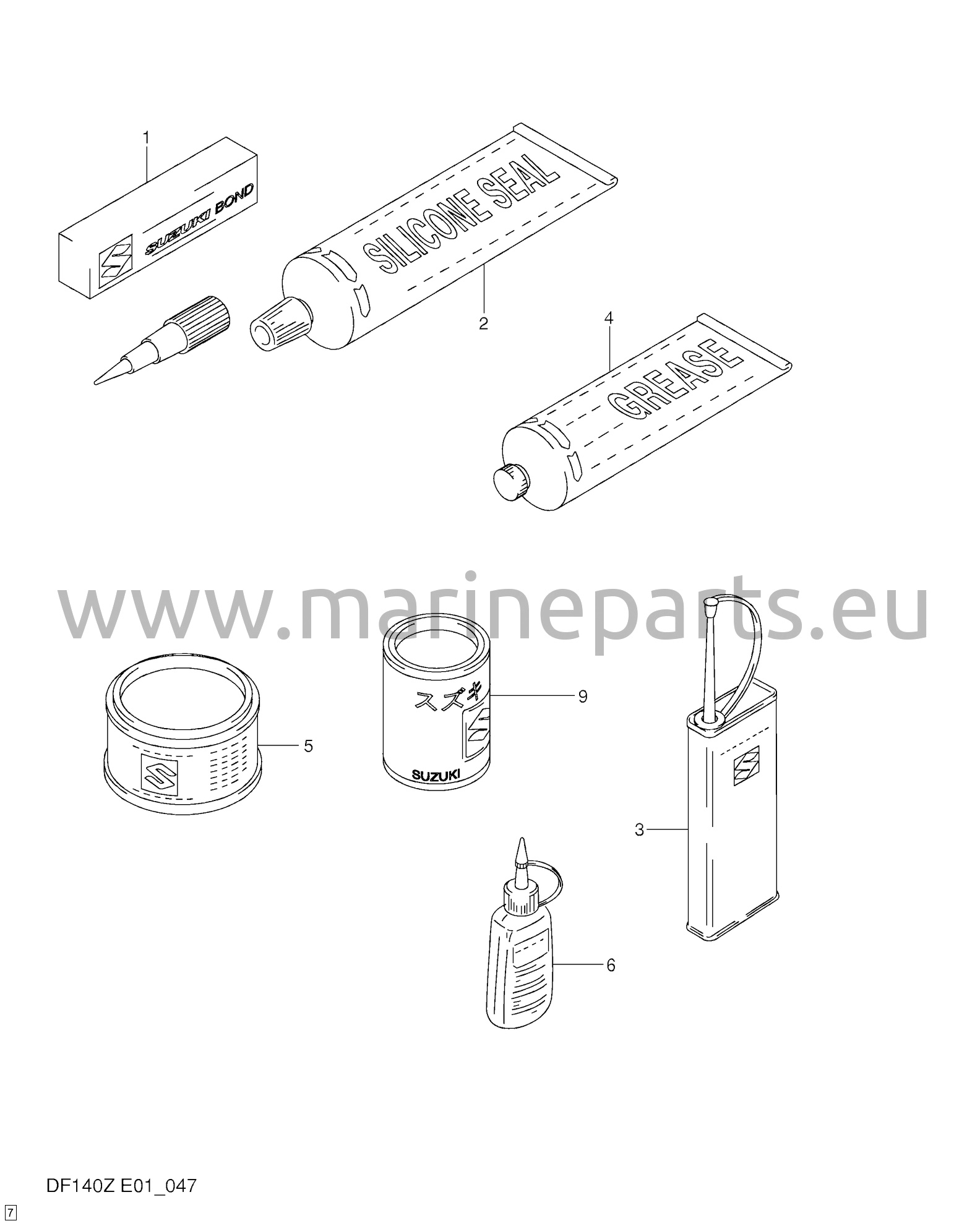

Maintenance materials
Reference no. DF140Z_E01 46
Original or aftermarket?
Aftermarket parts are made by other manufacturers to fit and work like the original, often at a lower price. Where only one kind exists, it is shown either way.
Water pump
Replace the impeller at the interval in your owner's manual, or sooner if the cooling water stream weakens.
Water pump repair kit
From the diagram: Water pump
Water Pump Kit Suzuki 90-140 hp
Aftermarket
Recmar
17400-90J20-000
Expected delivery: Oct 14, 2026
€35.06
Filters
Change the oil filter with every oil change and the fuel filter at the interval in your owner's manual.
Fuel filter
From the diagram: Fuel injector
FILTER, FUEL DF90/115
Original (OEM)
Suzuki Marine
15440-90J00-000
Expected delivery: Oct 13, 2026
€89.24
Fuel Filter High-Pressure for Suzuki DF90, DF100, DF115, DF140
Aftermarket
Recmar
15440-90J00-000
Expected delivery: Oct 14, 2026
€31.87
Ignition and cooling
Spark plugs and thermostat according to the service schedule.
Spark plug
From the diagram: Cylinder head
Spark Plug Champion RC9YC
Aftermarket
Champion
09482-00427-000
×4
Expected delivery: Oct 14, 2026
€4.78
Thermostat
From the diagram: Thermostat
THERMOSTAT,WATER 60 DEG
Original (OEM)
Suzuki Marine
17670-90J01-000
Expected delivery: Oct 13, 2026
€60.56
THERMOSTAT OPT. 71C DF90/115
Original (OEM)
Suzuki Marine
17670-90J11-000
Expected delivery: Oct 13, 2026
€60.56
Thermostat for Suzuki DF70-DF400 outboards 72ºC
Aftermarket
Recmar
17670-90J11-000
Expected delivery: Oct 13, 2026
€33.47
Corrosion protection
Replace an anode once it has worn down to about half its size.
Anode
From the diagram: Clamp bracket
ANODE, ALUMINIUM
Original (OEM)
Suzuki Marine
55320-94910-000
Expected delivery: Oct 14, 2026
€28.68
Propellers
Original propellers listed for this engine.
Propeller
From the diagram: Gear case
PROPELLER (3X362X457)
99105-0070L-18P
Discontinued
PROPELLER (3X362X508)
99105-0070L-20P
Discontinued
PROPELLER DF140Z 24"
99105-0070L-24P
Discontinued
