Exploded views for Parts Catalog Mercury/Mariner 6, 8, 9.9 & 15 hk 2-cyl. (2-stroke) gen 2

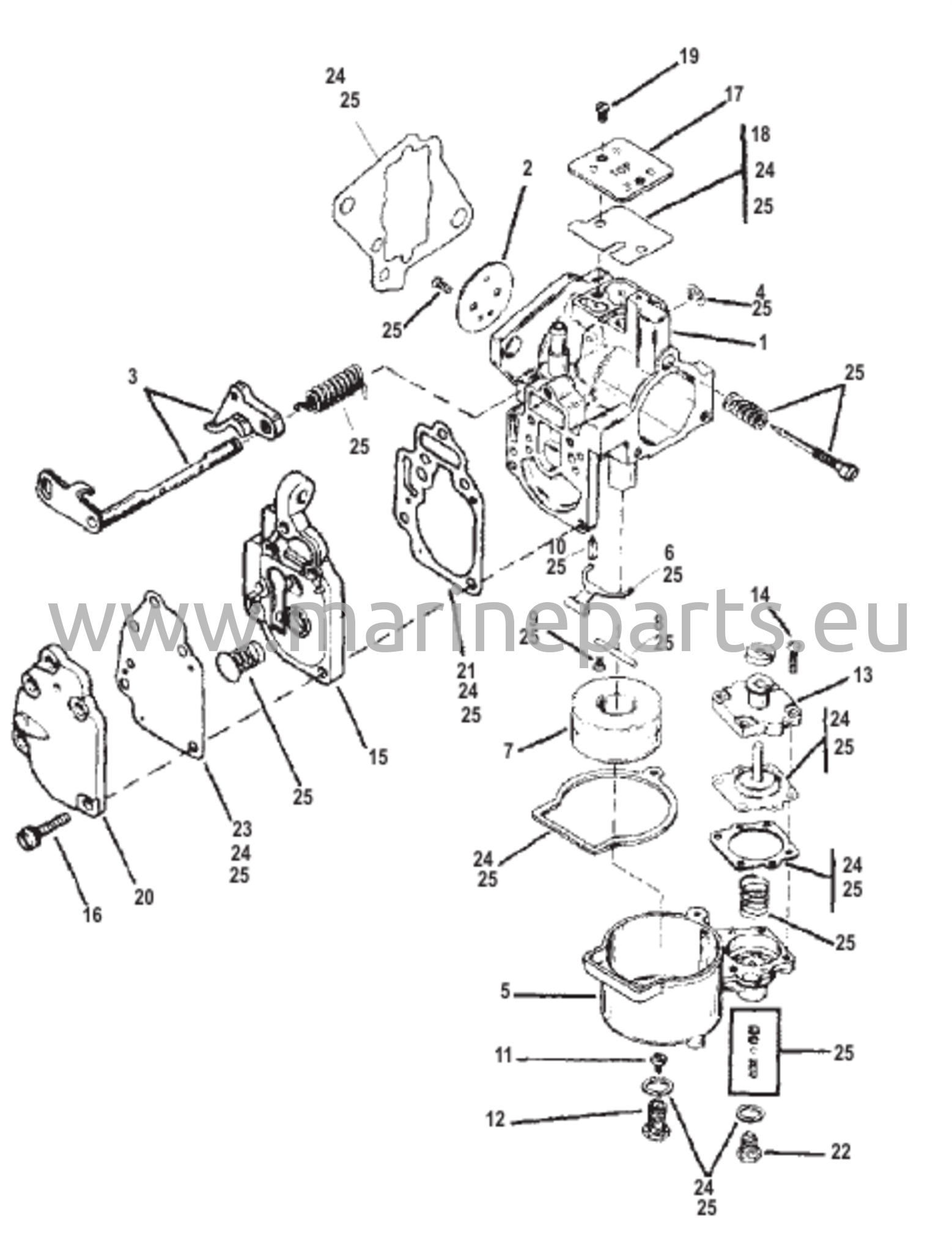

Carburetor Assembly

Reference no. 803024001 0

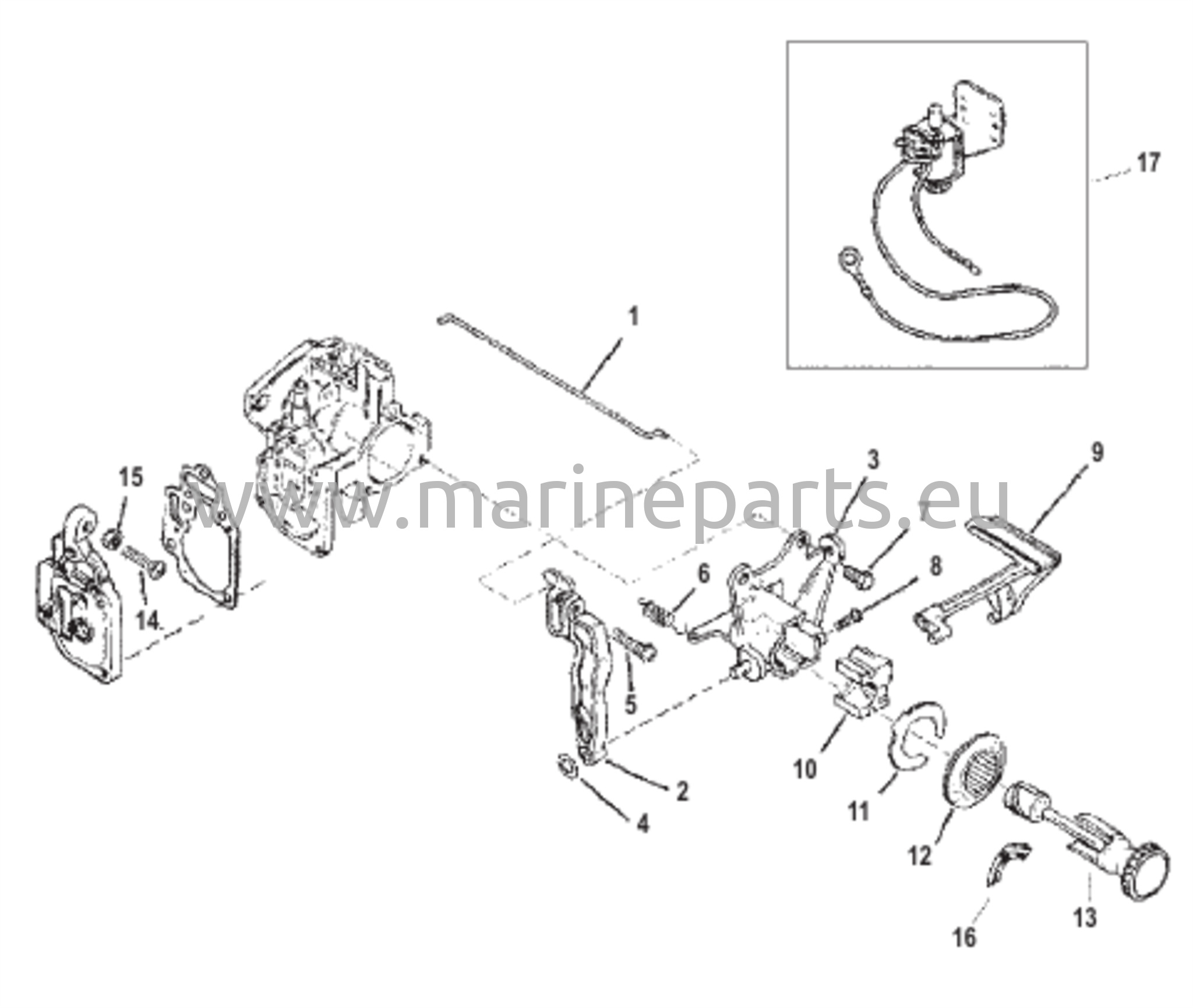

Carburetor Linkage

Reference no. 803024001 1

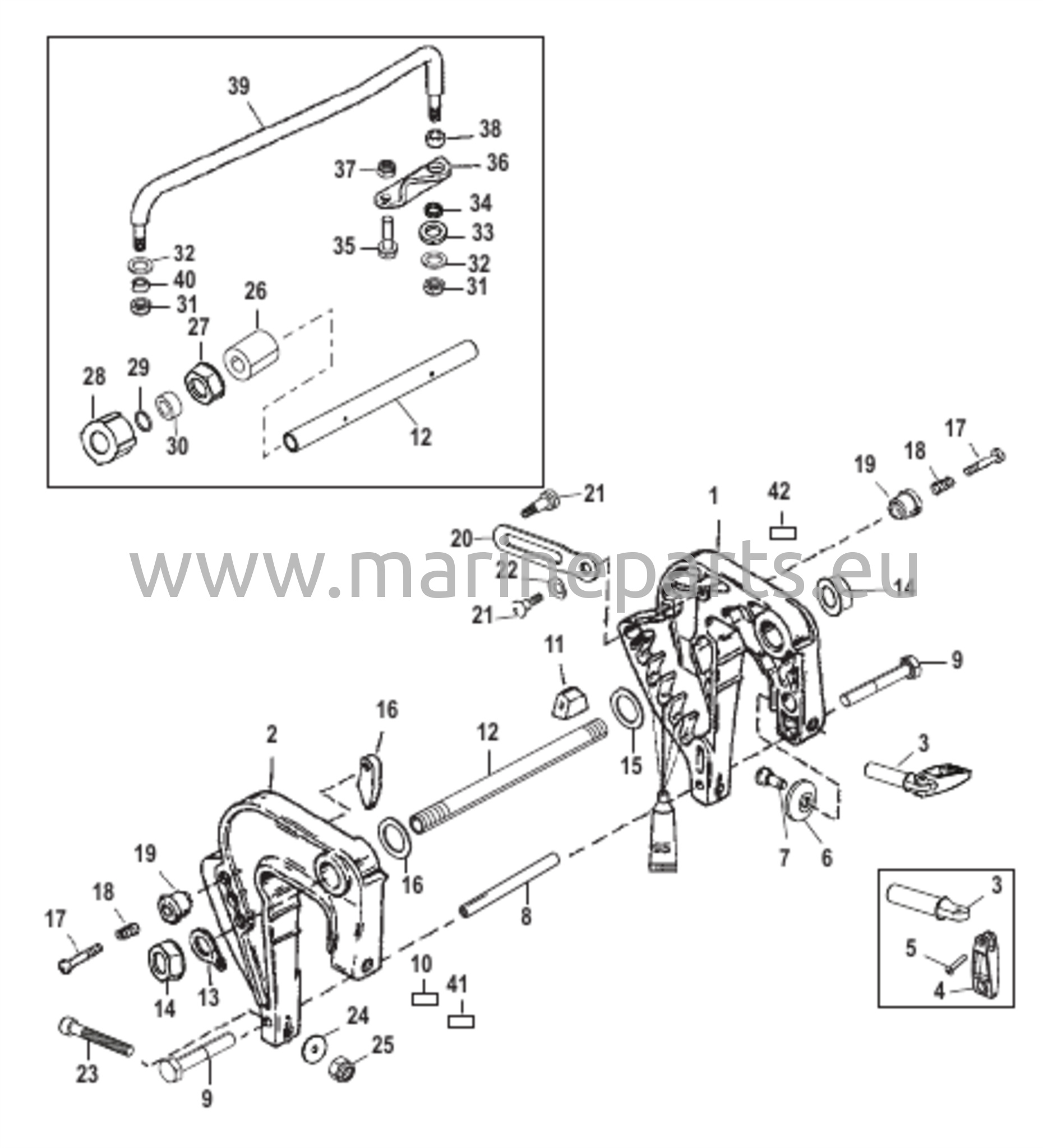

Clamp Bracket

Reference no. 803024001 2

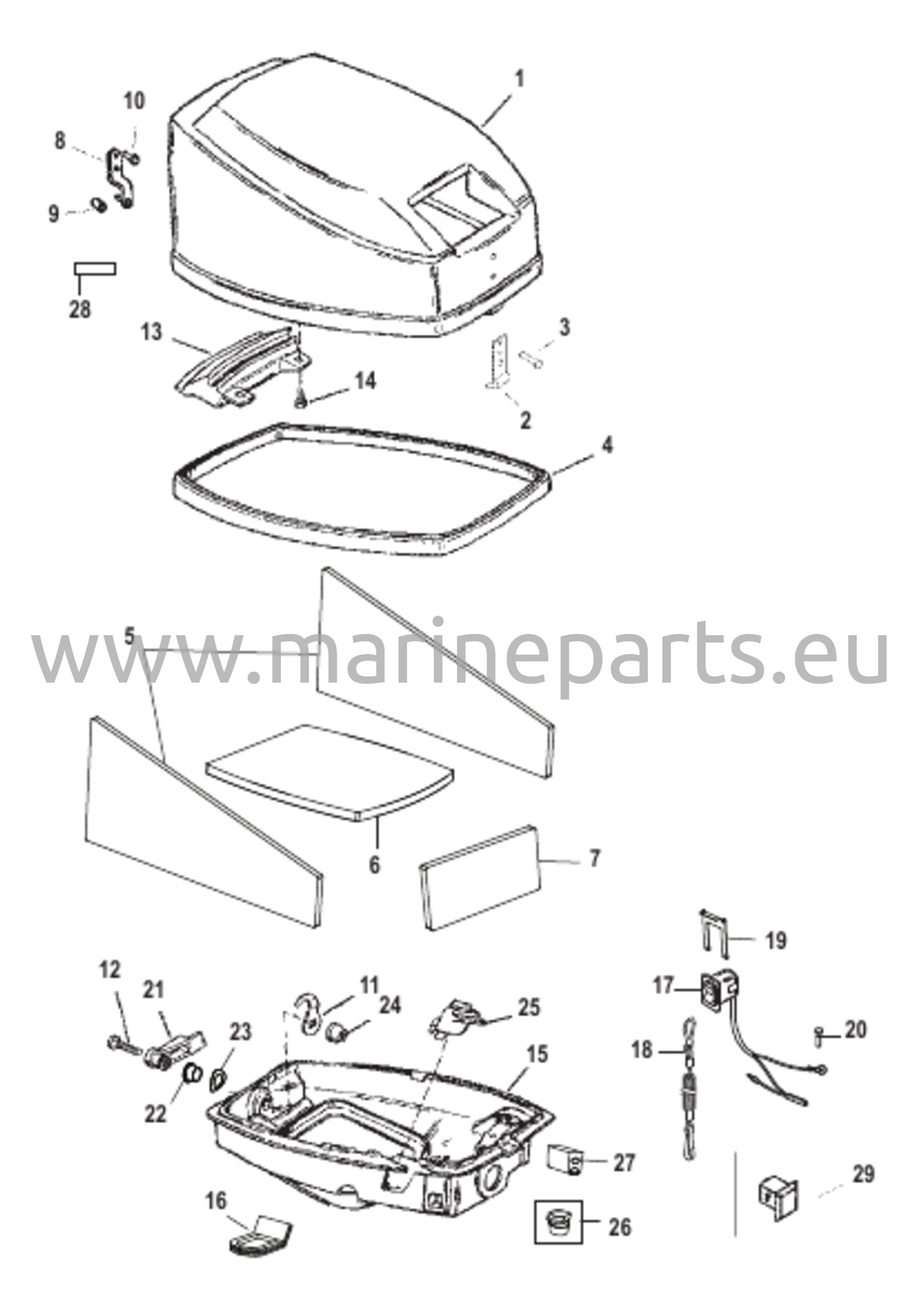

Cowls

Reference no. 803024001 3

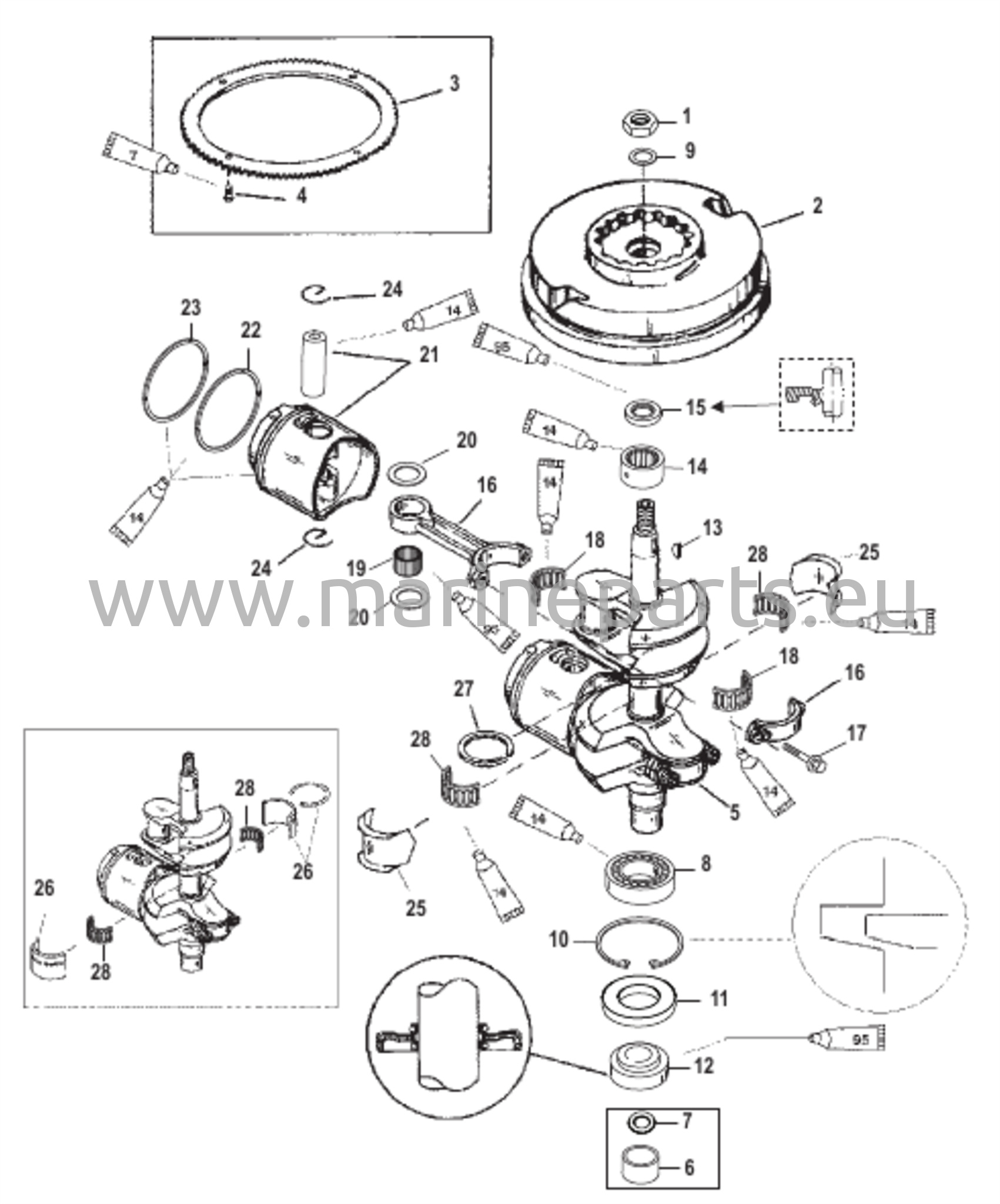

Crankshaft Pistons and Flywheel

Reference no. 803024001 4

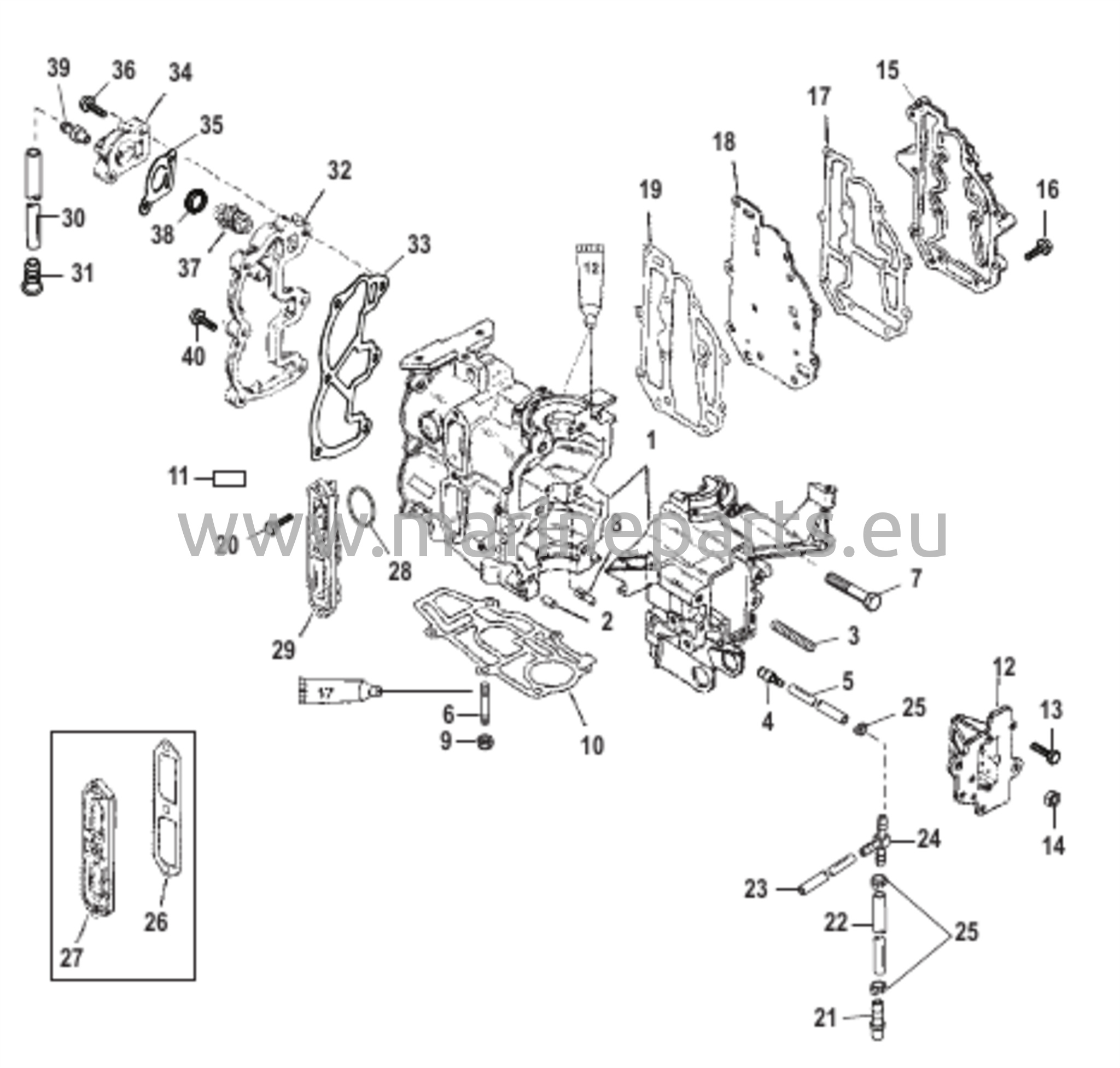

Cylinder Block and Covers

Reference no. 803024001 5

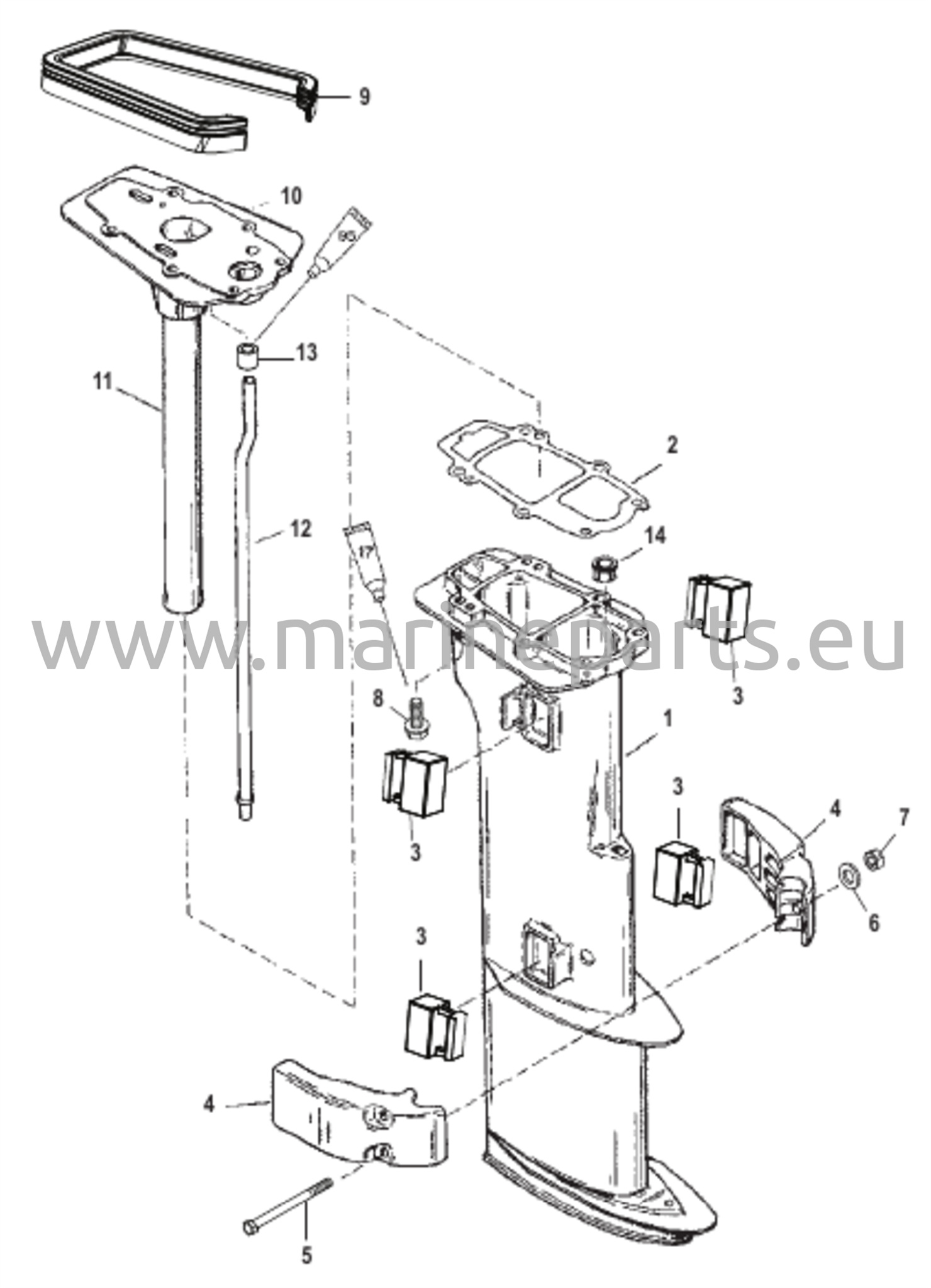

Driveshaft Housing

Reference no. 803024001 6

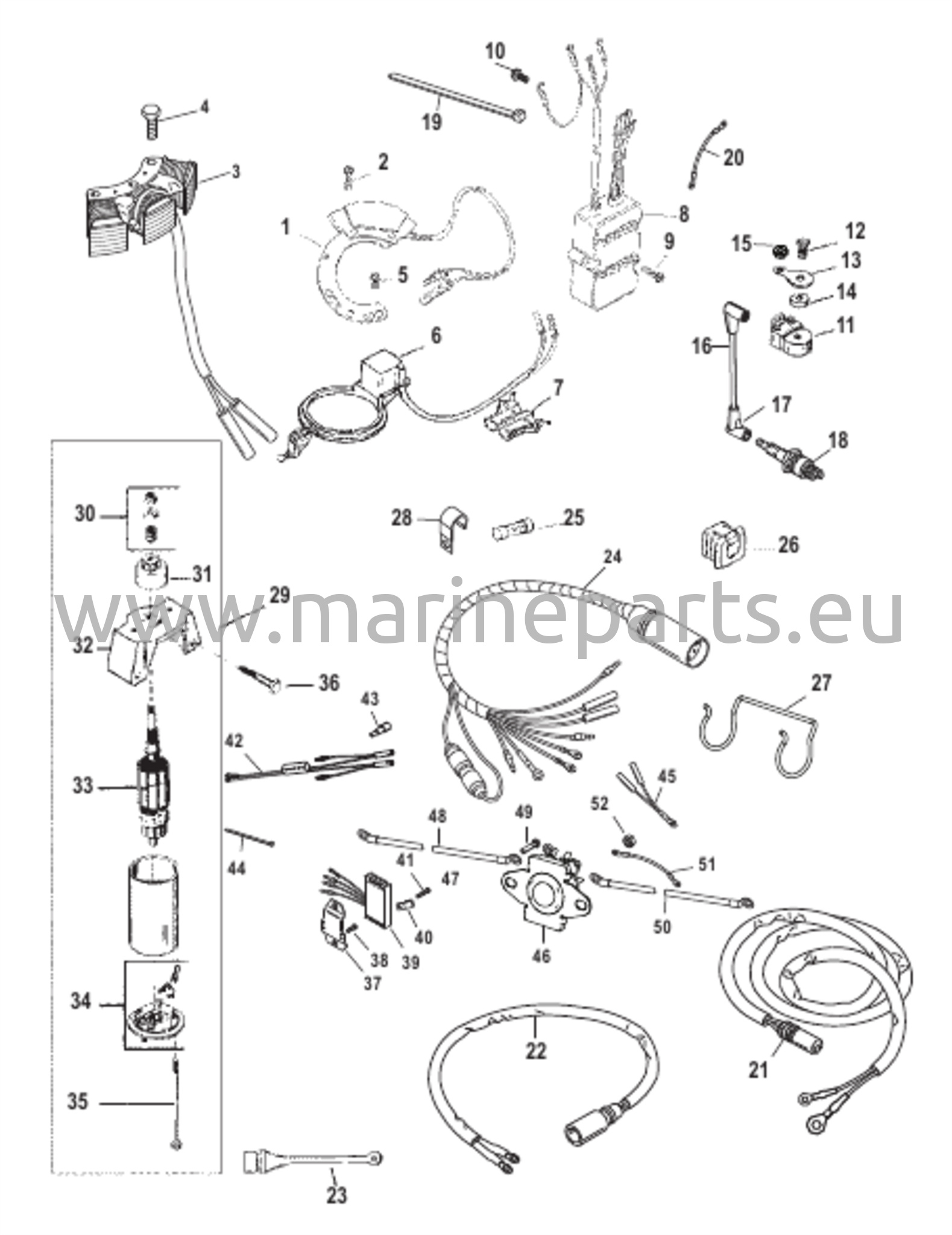

Electrical Components

Reference no. 803024001 7

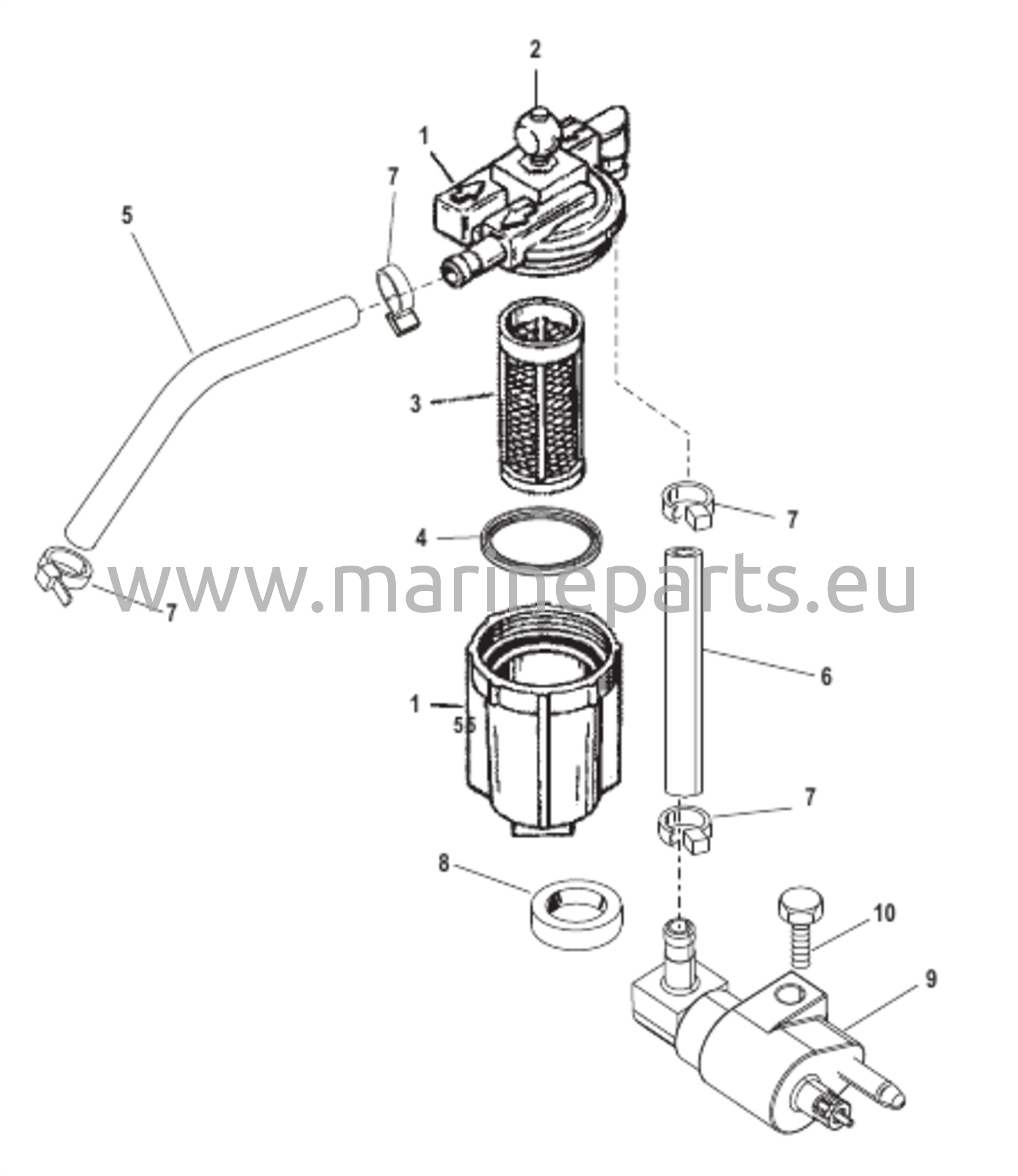

uel Filter Assembly (USA-1B153167/BEL-0P360020 and Below)

Reference no. 803024001 8

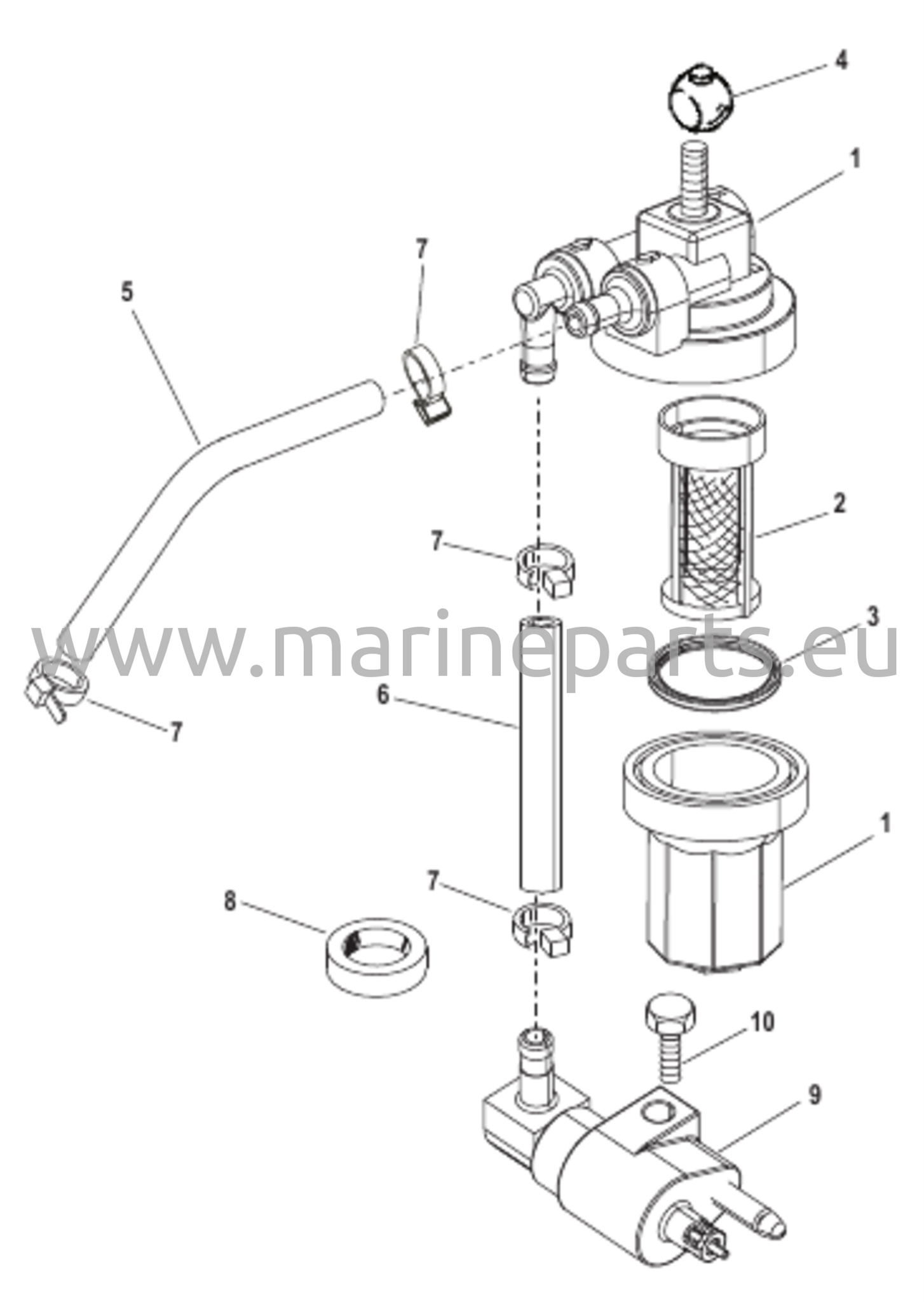

Fuel Filter Assembly (USA-1B153168/BEL-0P360021 and Up)

Reference no. 803024001 9

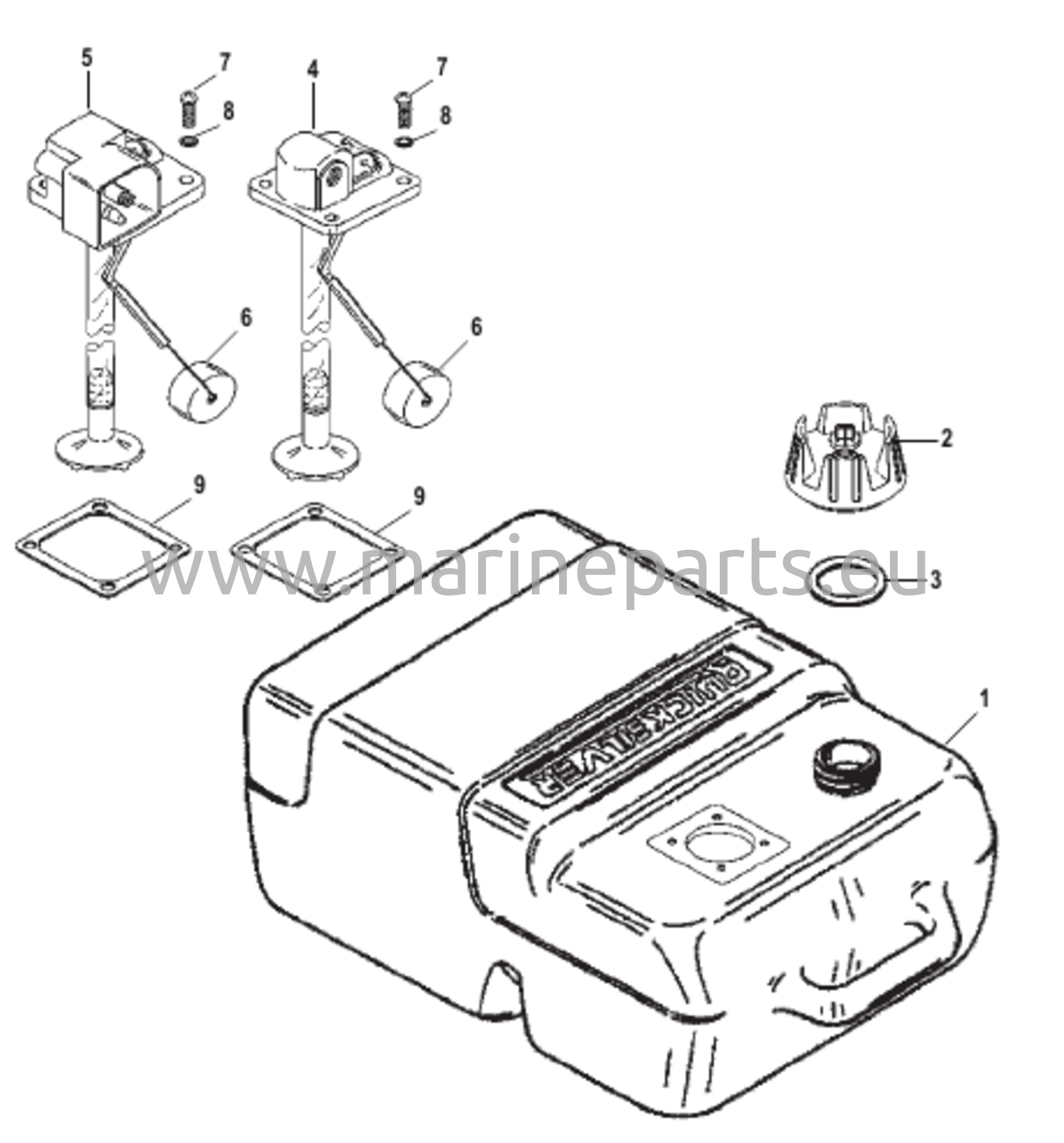

Fuel Tank Assembly (3.2 Gallon)

Reference no. 803024001 10

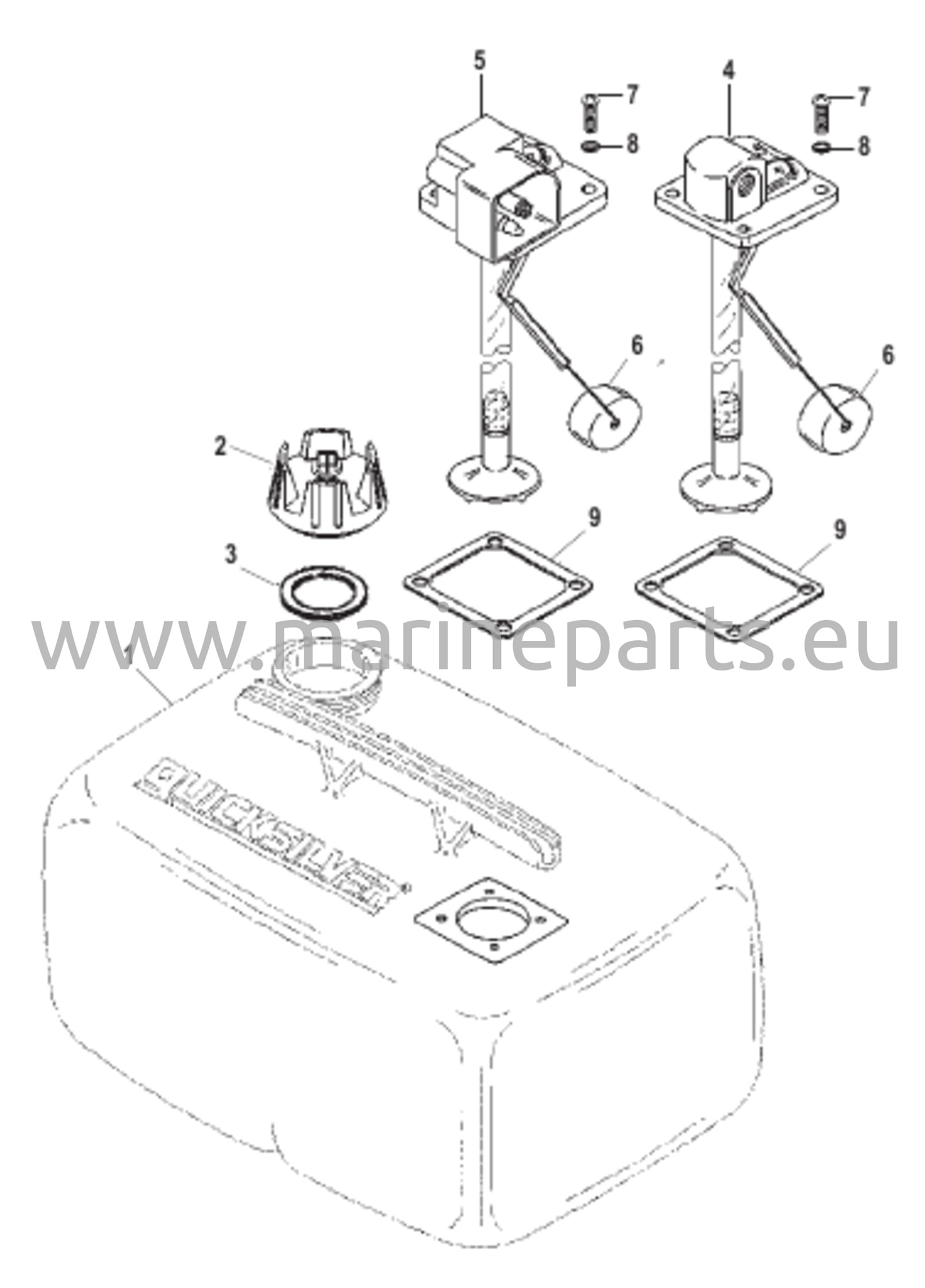

Fuel Tank Assembly (6.6 Gallon)

Reference no. 803024001 11

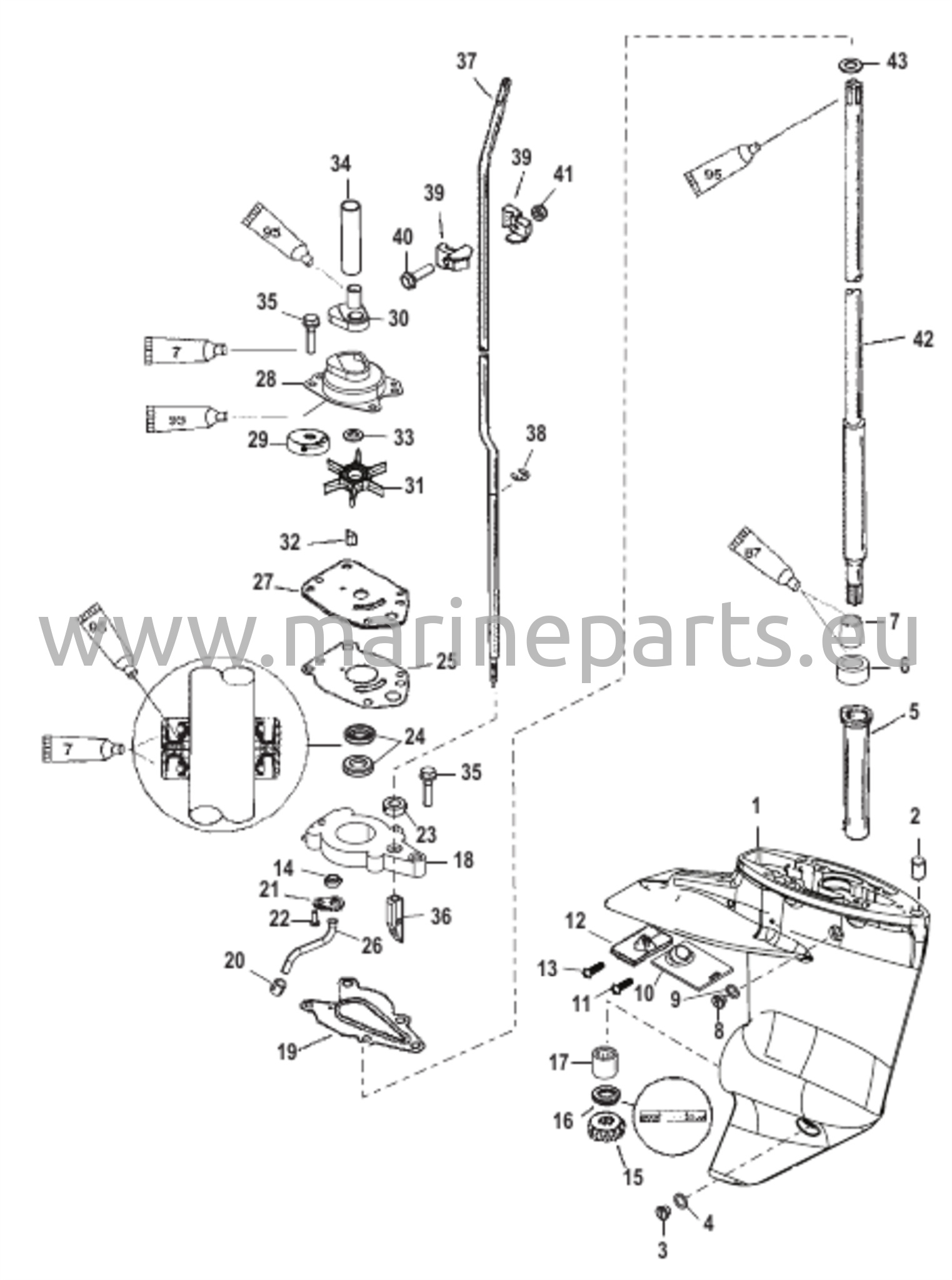

Gear Housing (Driveshaft)(2.00:1 Gear Ratio)

Reference no. 803024001 12

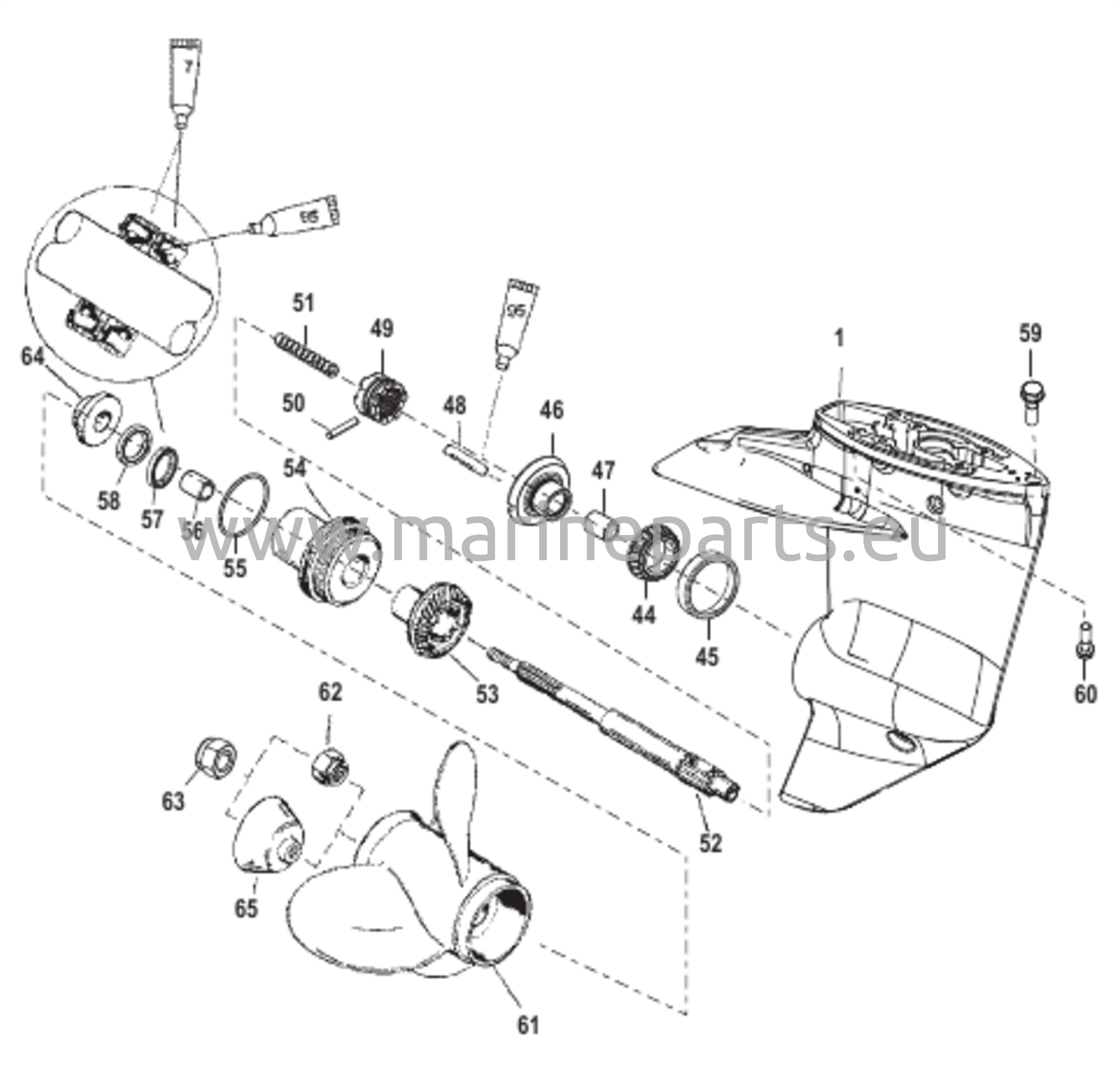

Gear Housing Propeller Shaft - 2.00:1 Gear Ratio

Reference no. 803024001 13

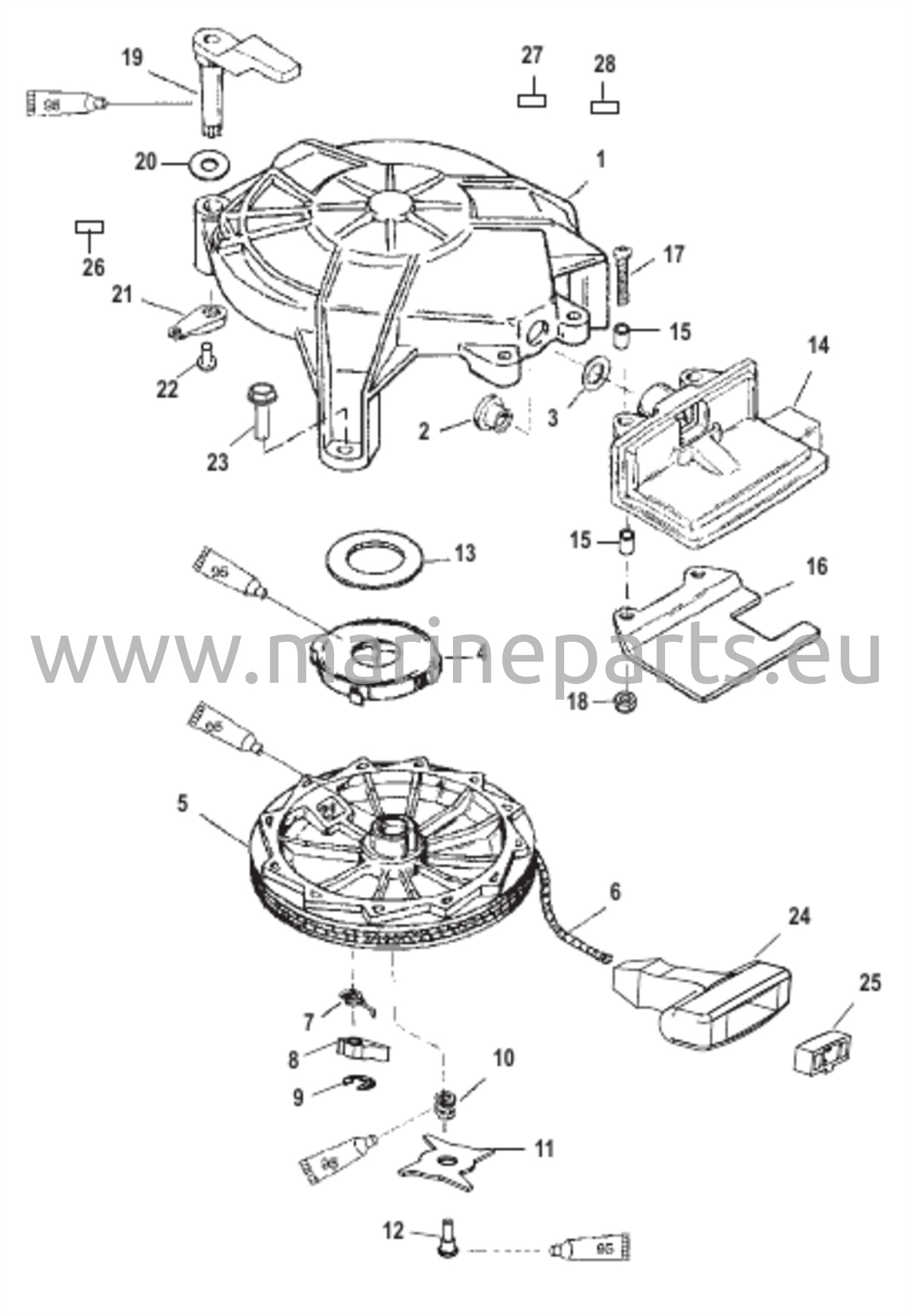

Manual Starter

Reference no. 803024001 14

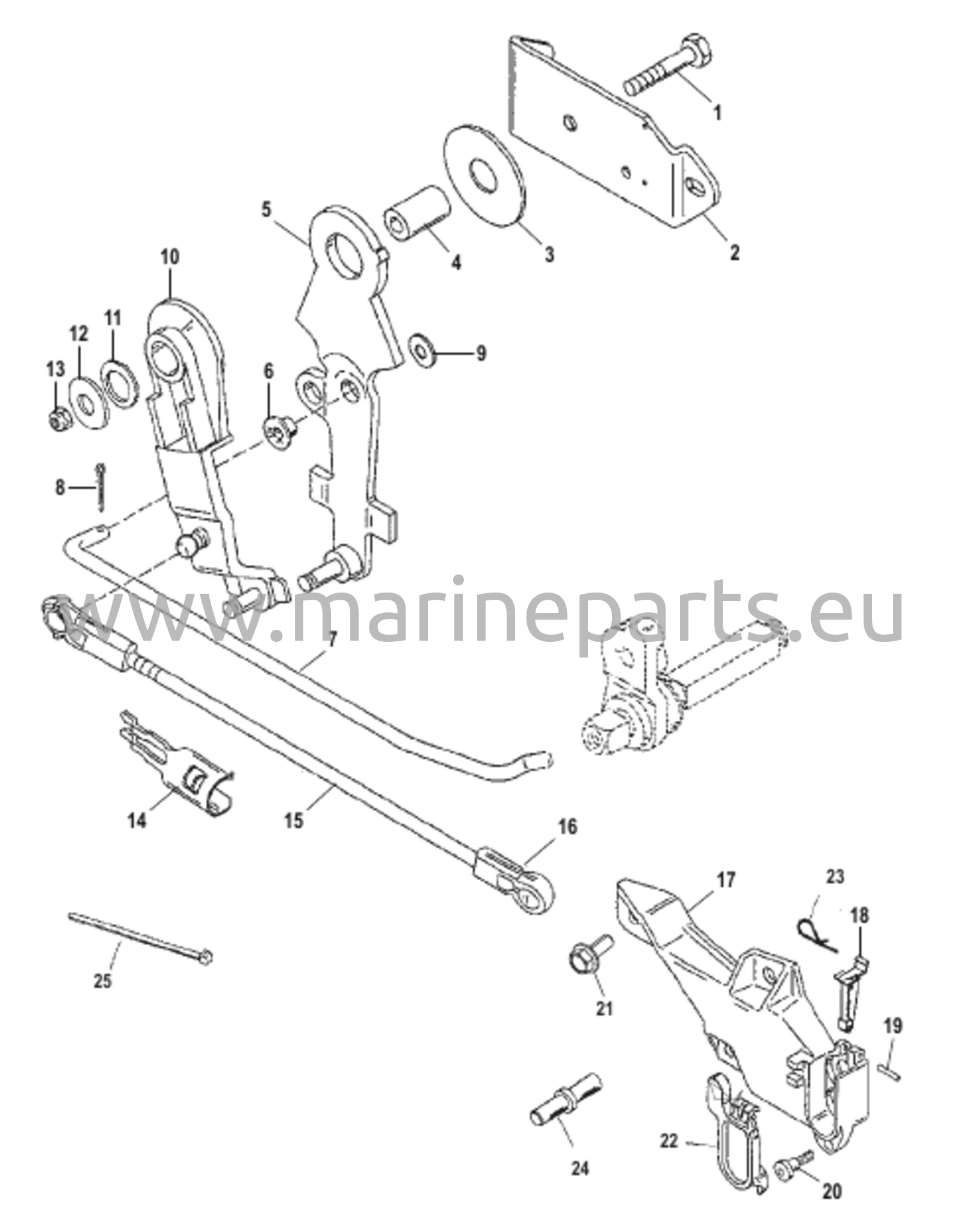

Remote Control Attaching Components

Reference no. 803024001 15

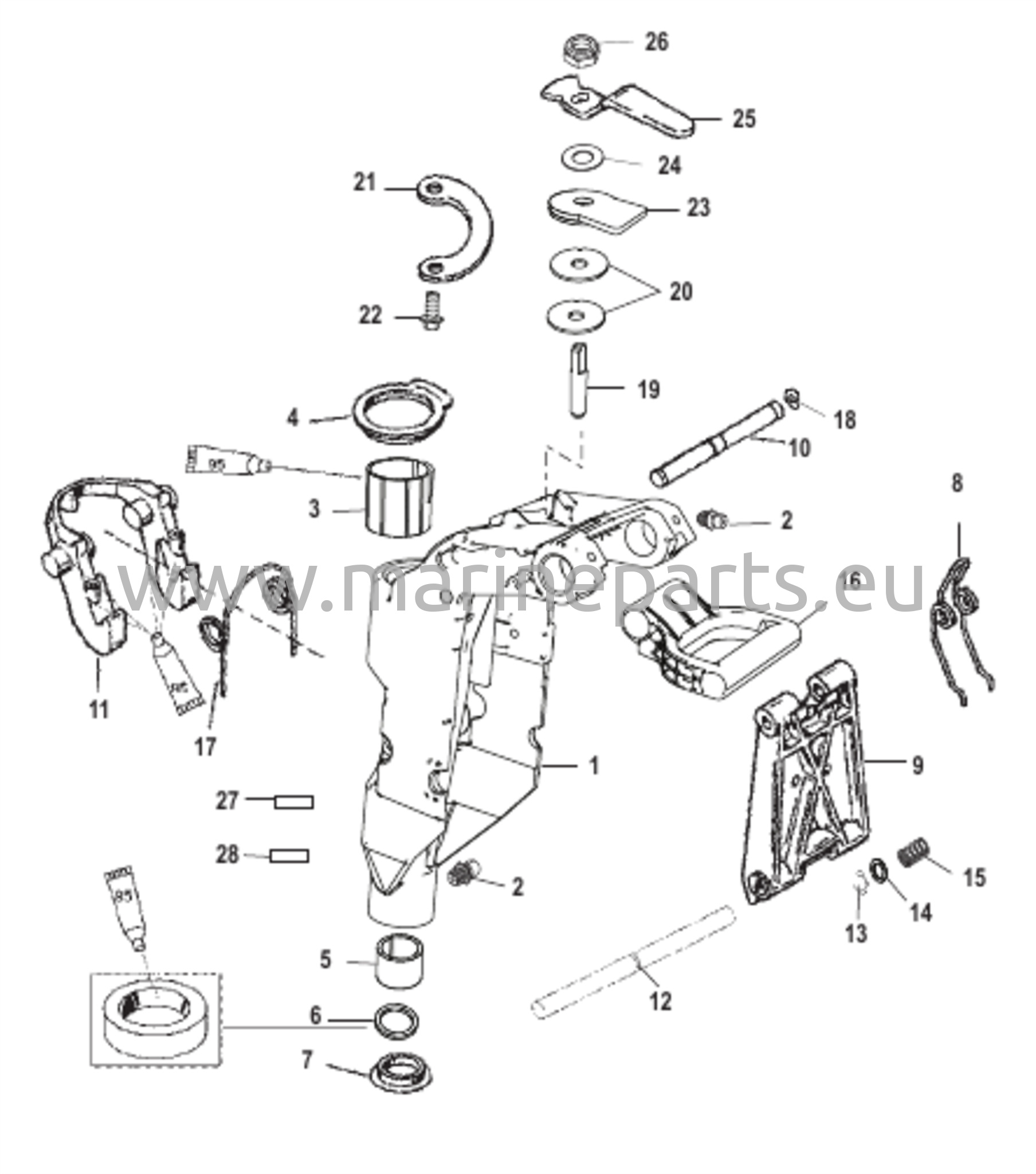

Swivel Bracket

Reference no. 803024001 16

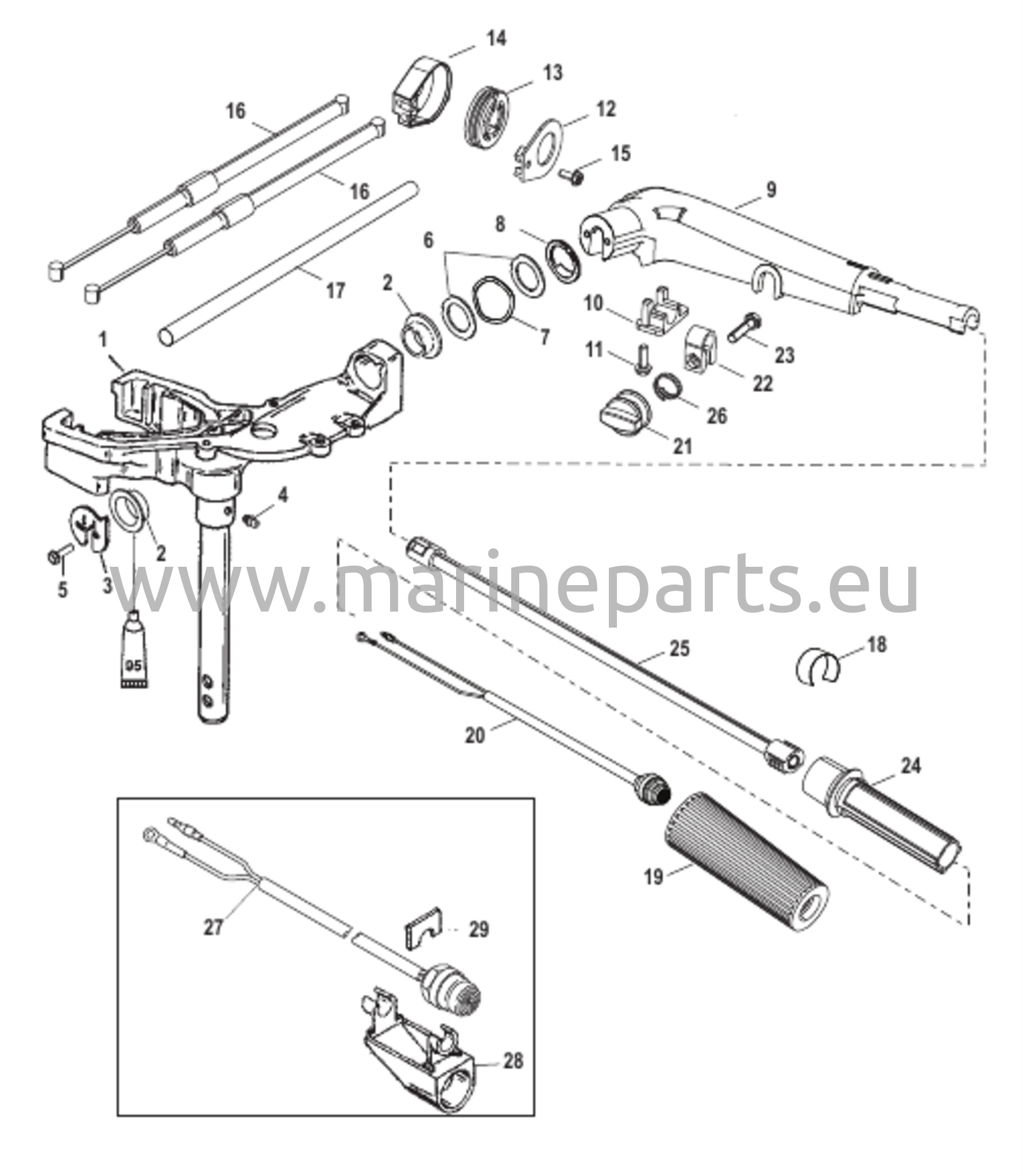

Swivel Head and Steering Handle

Reference no. 803024001 17

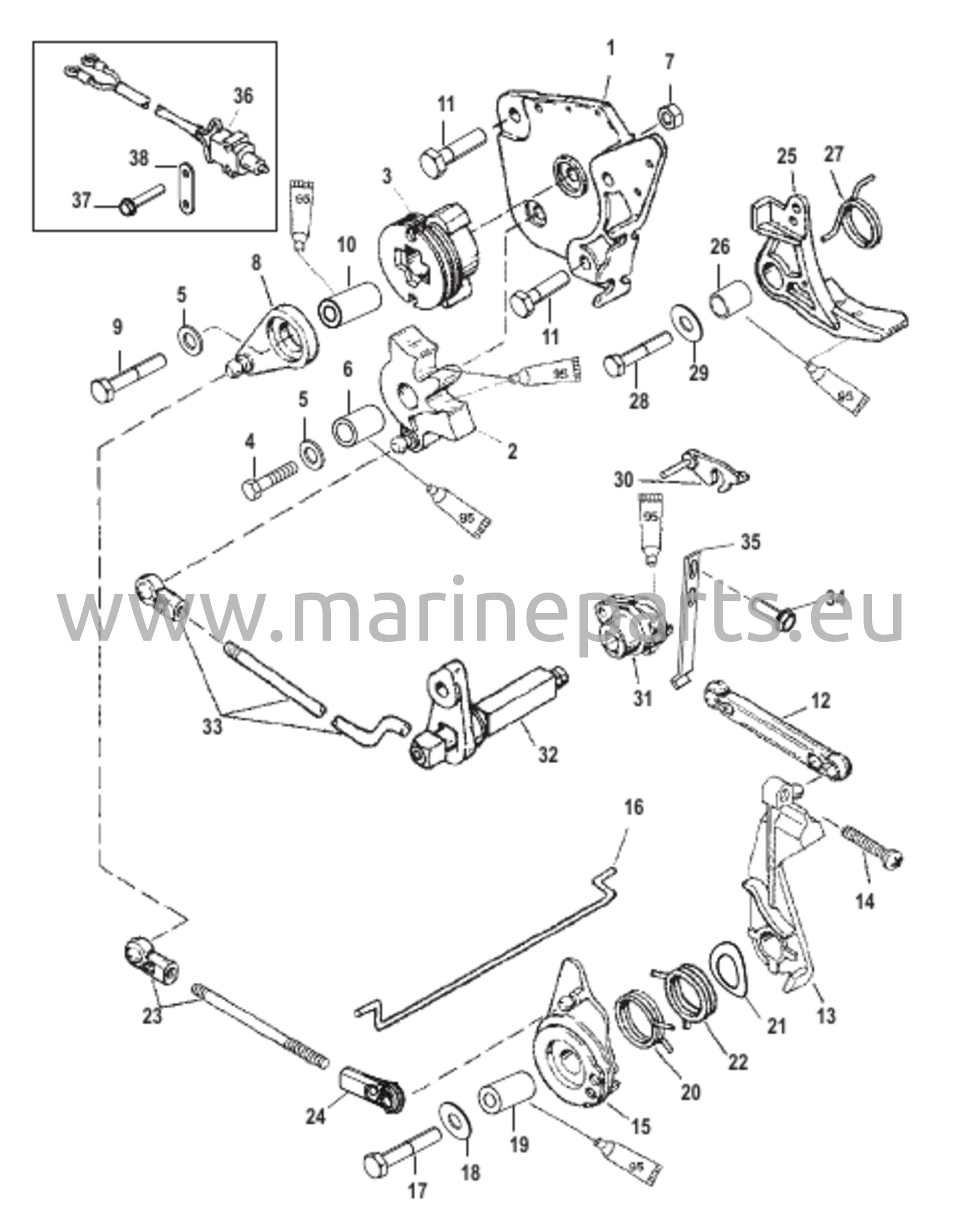

Throttle and Shift Linkage

Reference no. 803024001 18
