Exploded views for Parts Catalog Mercury/Mariner 40, 55 & 60 hp 3-cyl. (2-stroke) gen 2

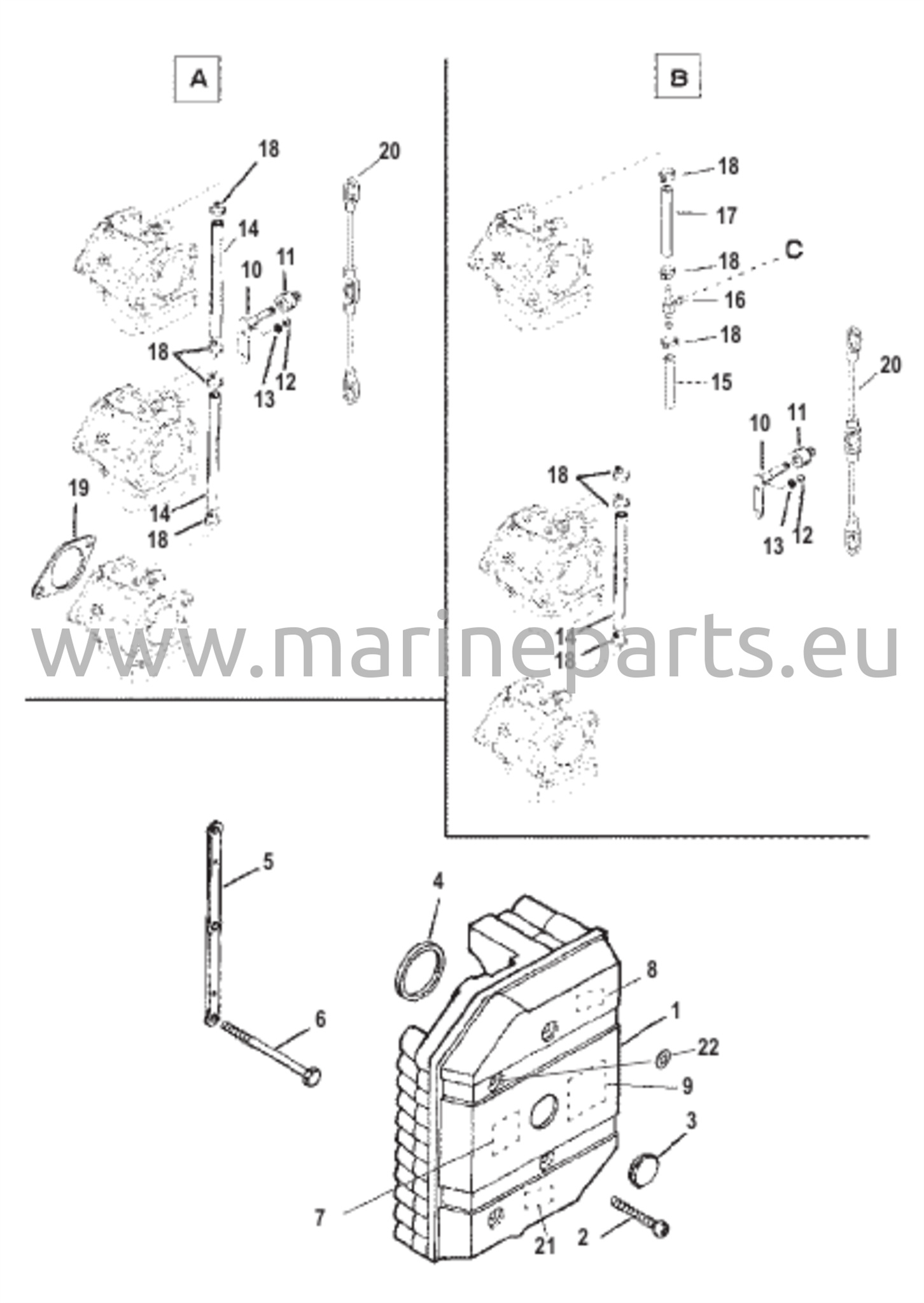

Attenuator Plate

Reference no. 803022001 0

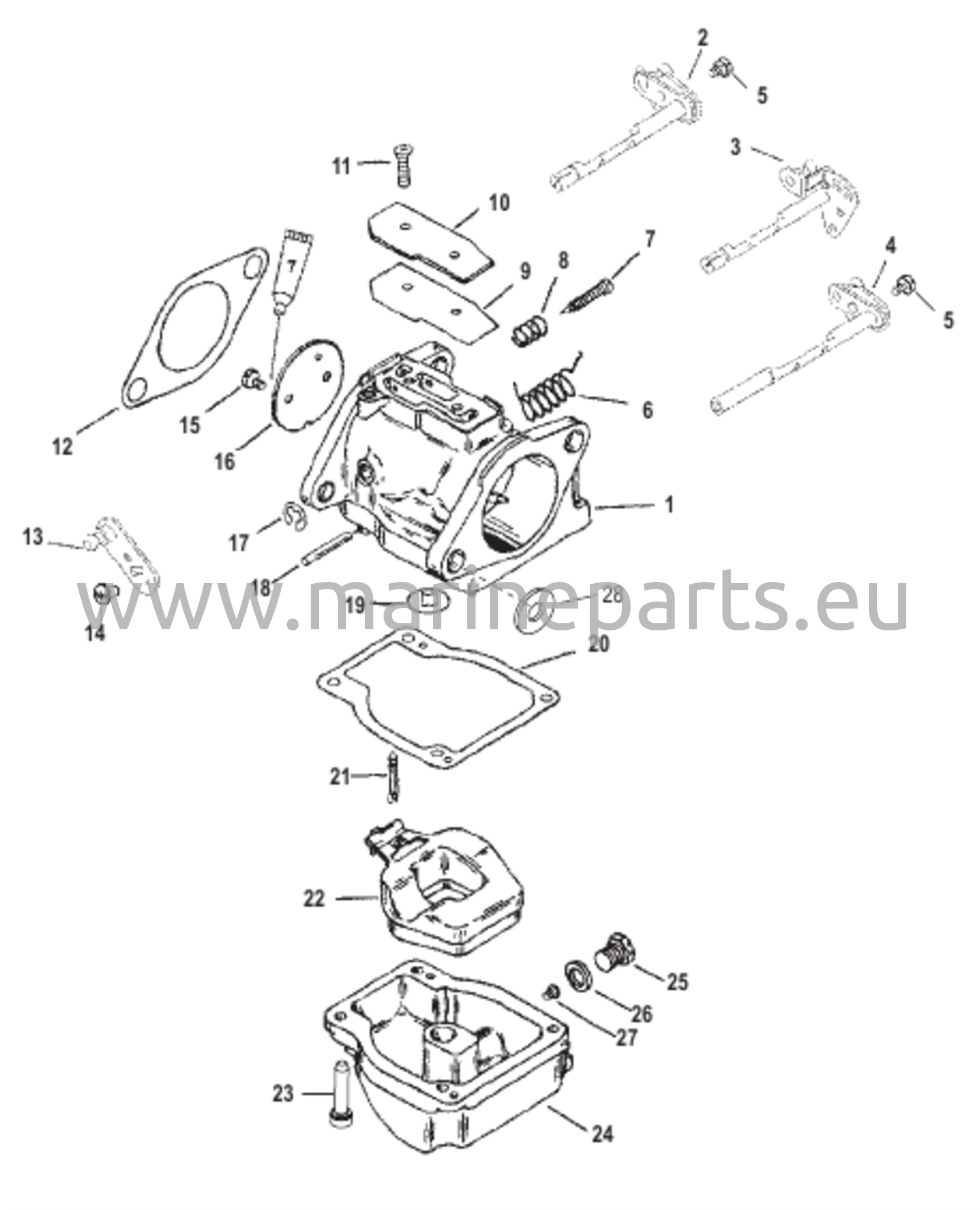

Carburetor

Reference no. 803022001 1

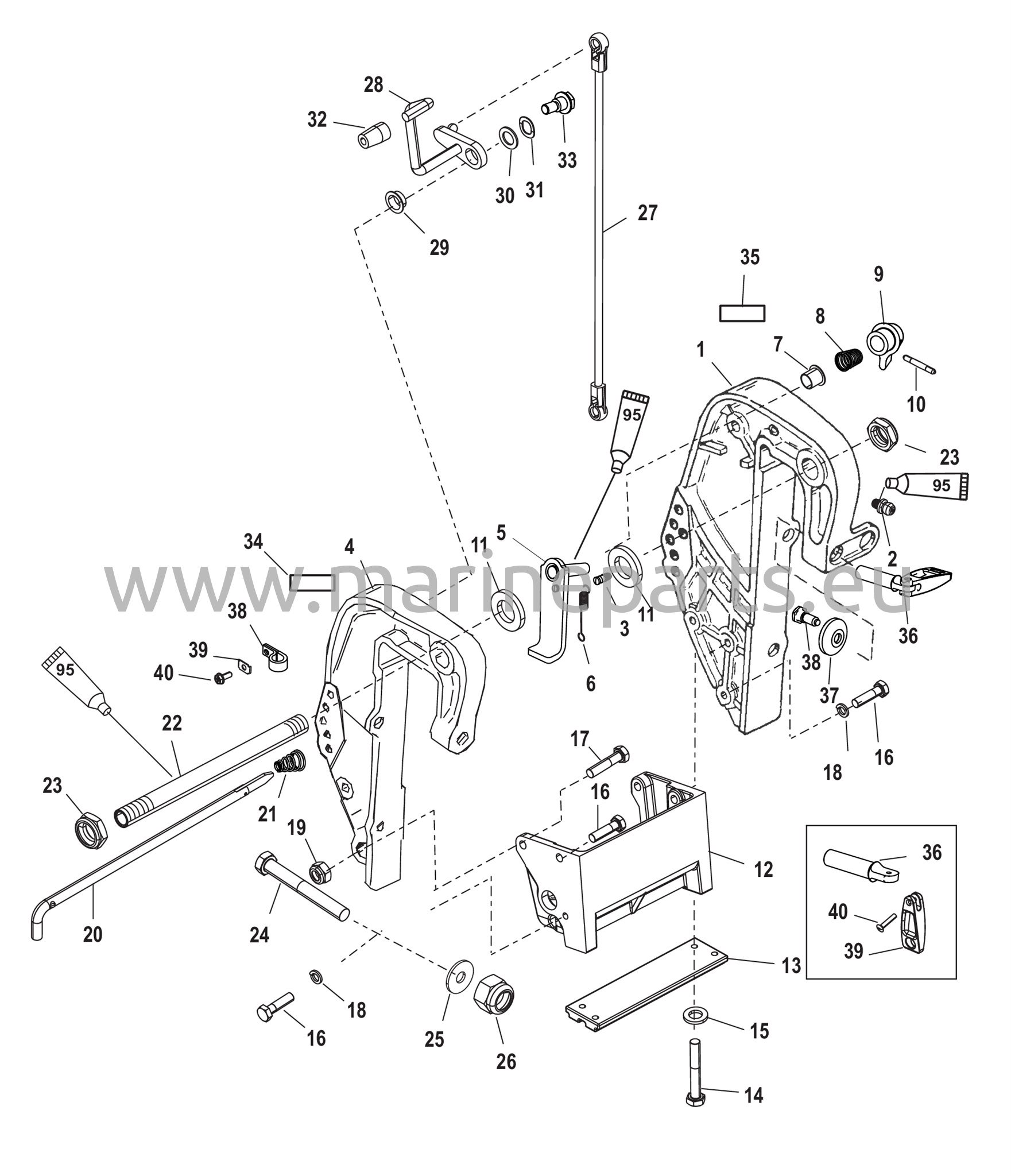

Clamp Bracket (Manual)

Reference no. 803022001 2

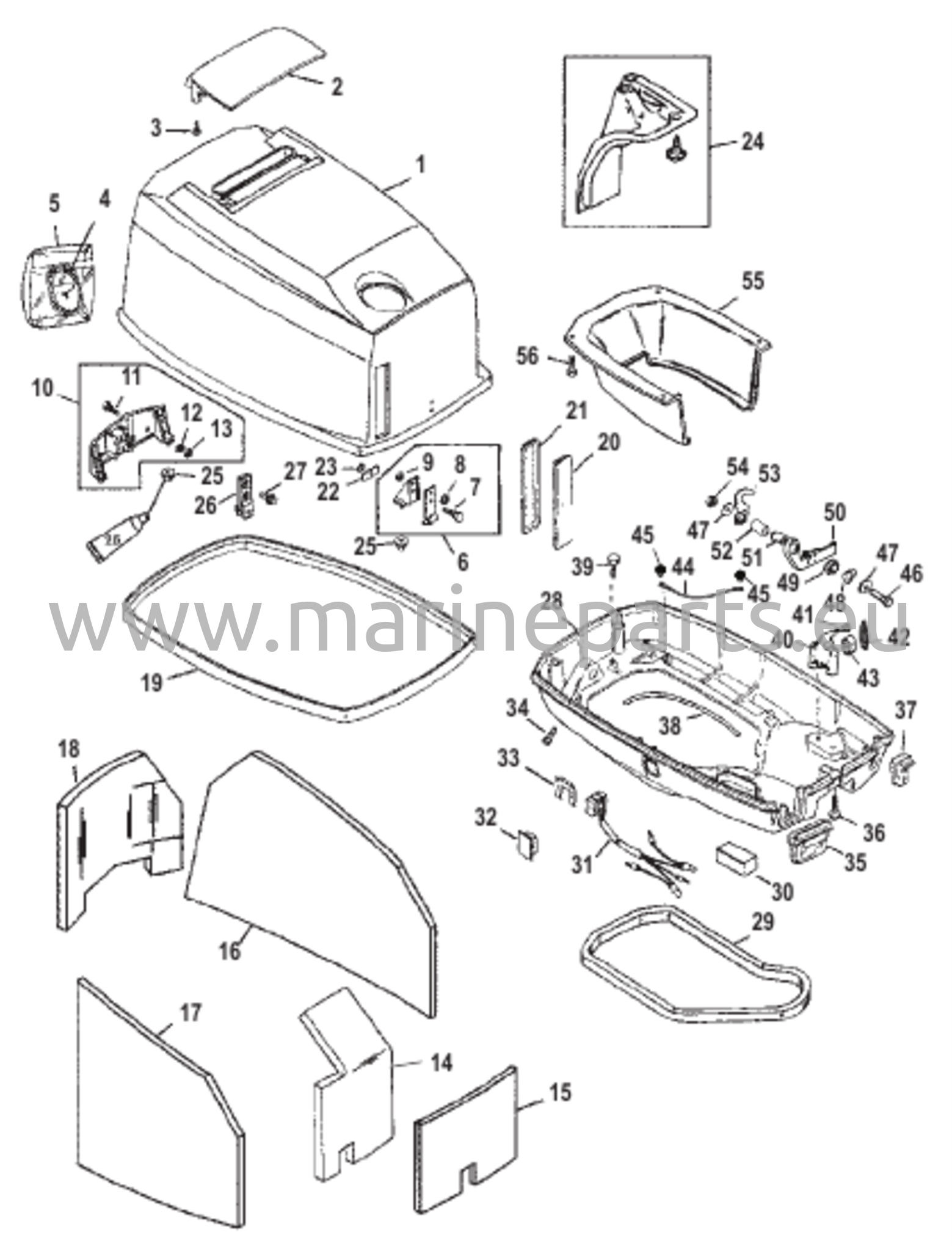

Cowl Top and Bottom

Reference no. 803022001 3

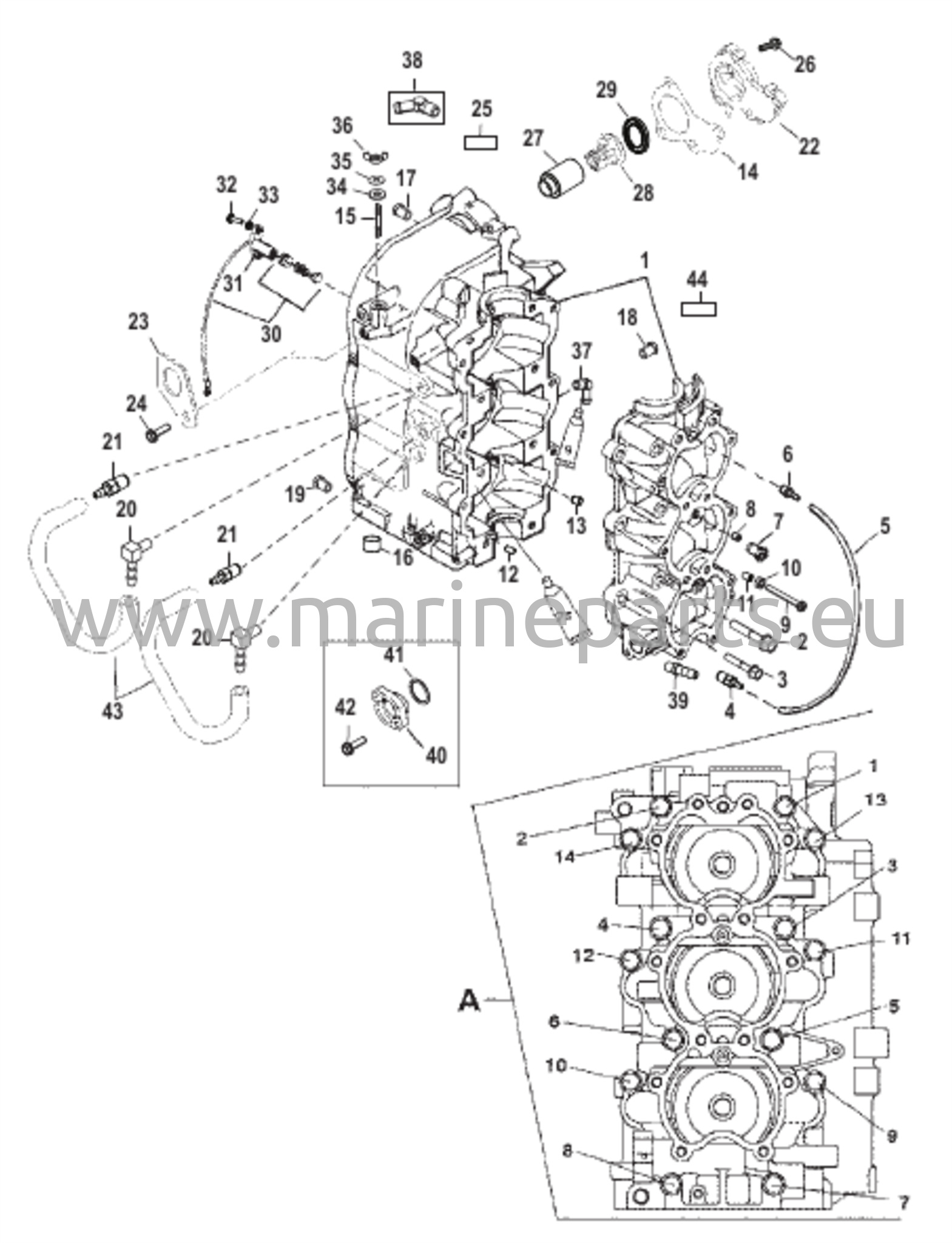

Cylinder Block and Crankcase

Reference no. 803022001 4

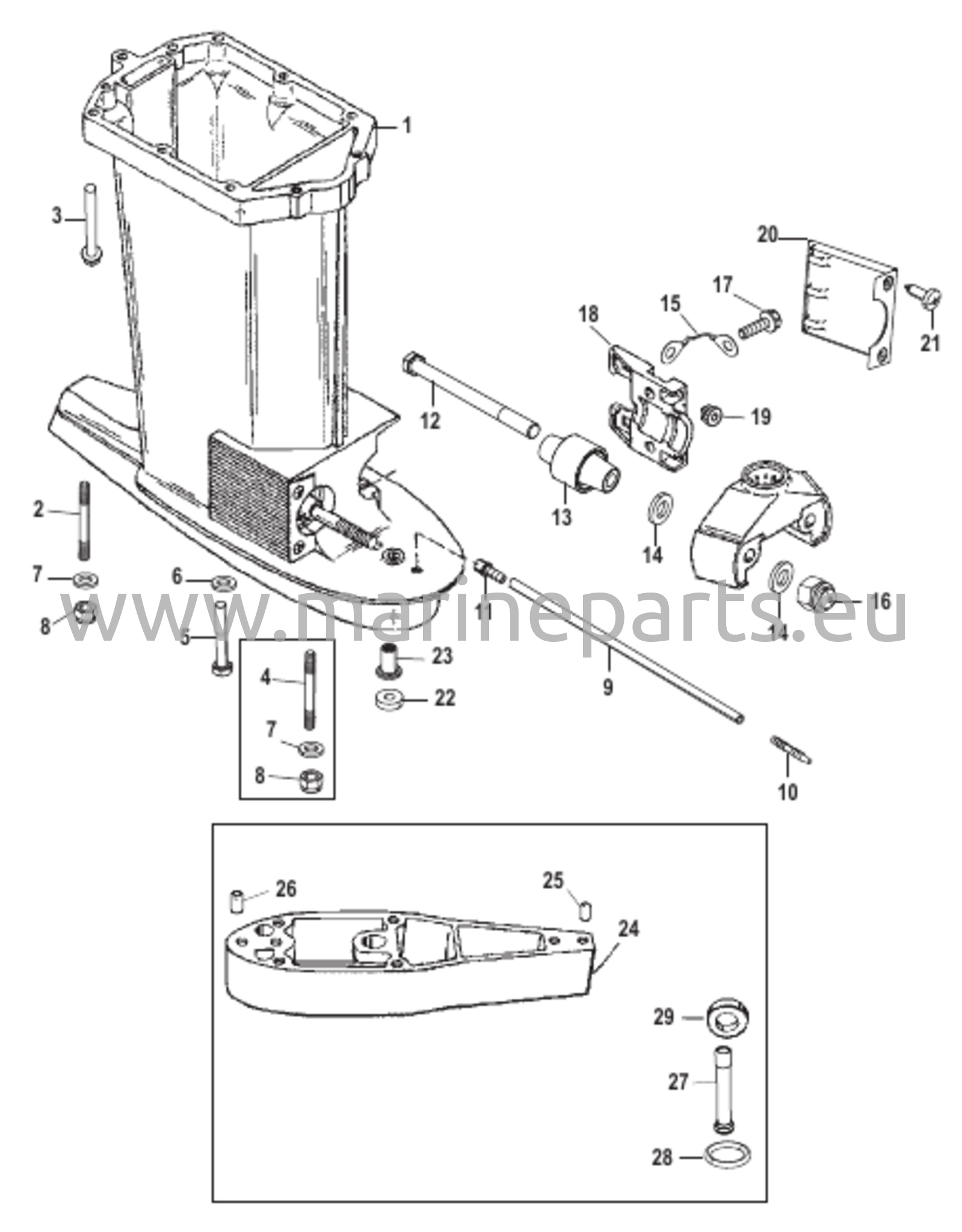

Driveshaft Housing

Reference no. 803022001 5

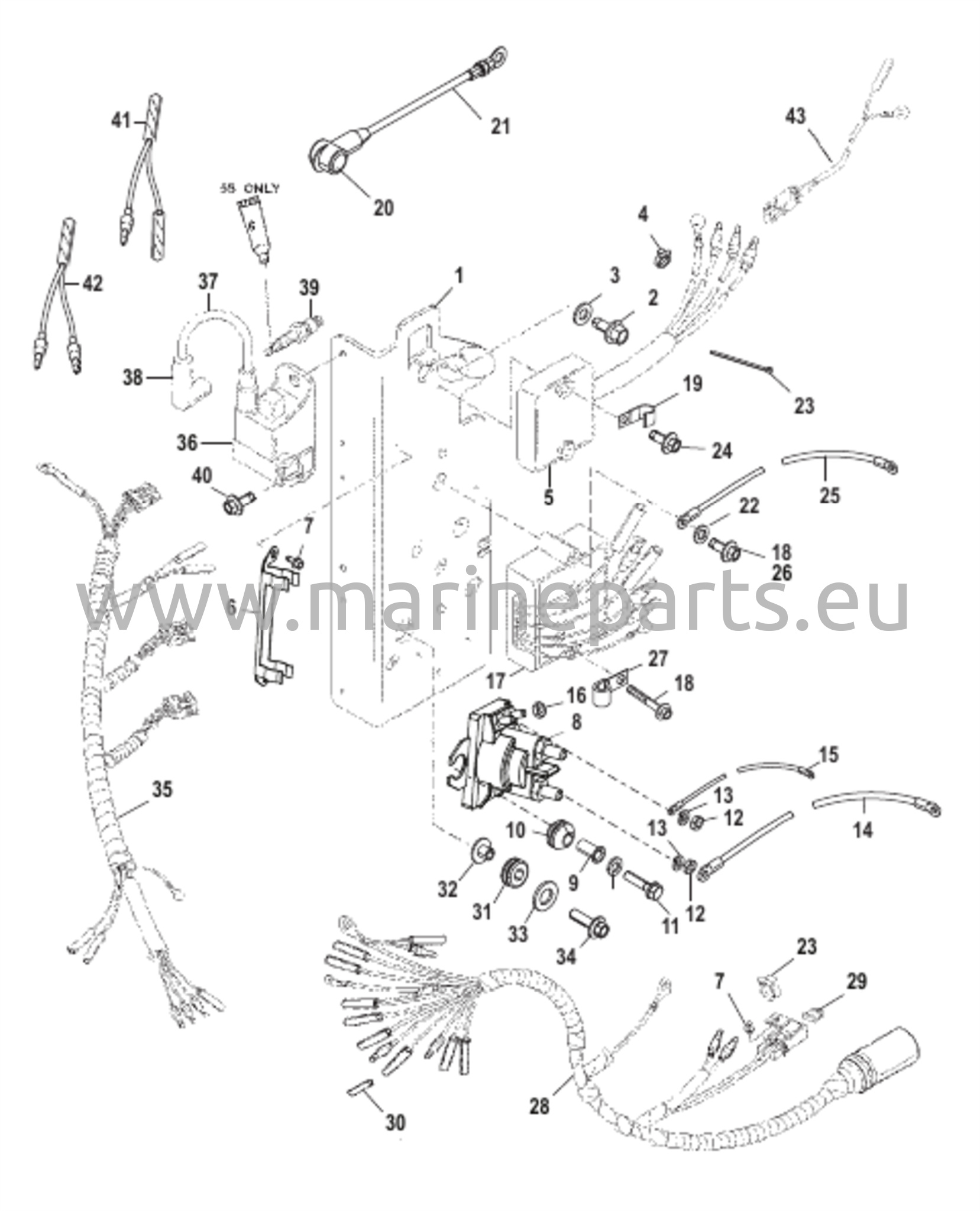

Electrical Components

Reference no. 803022001 6

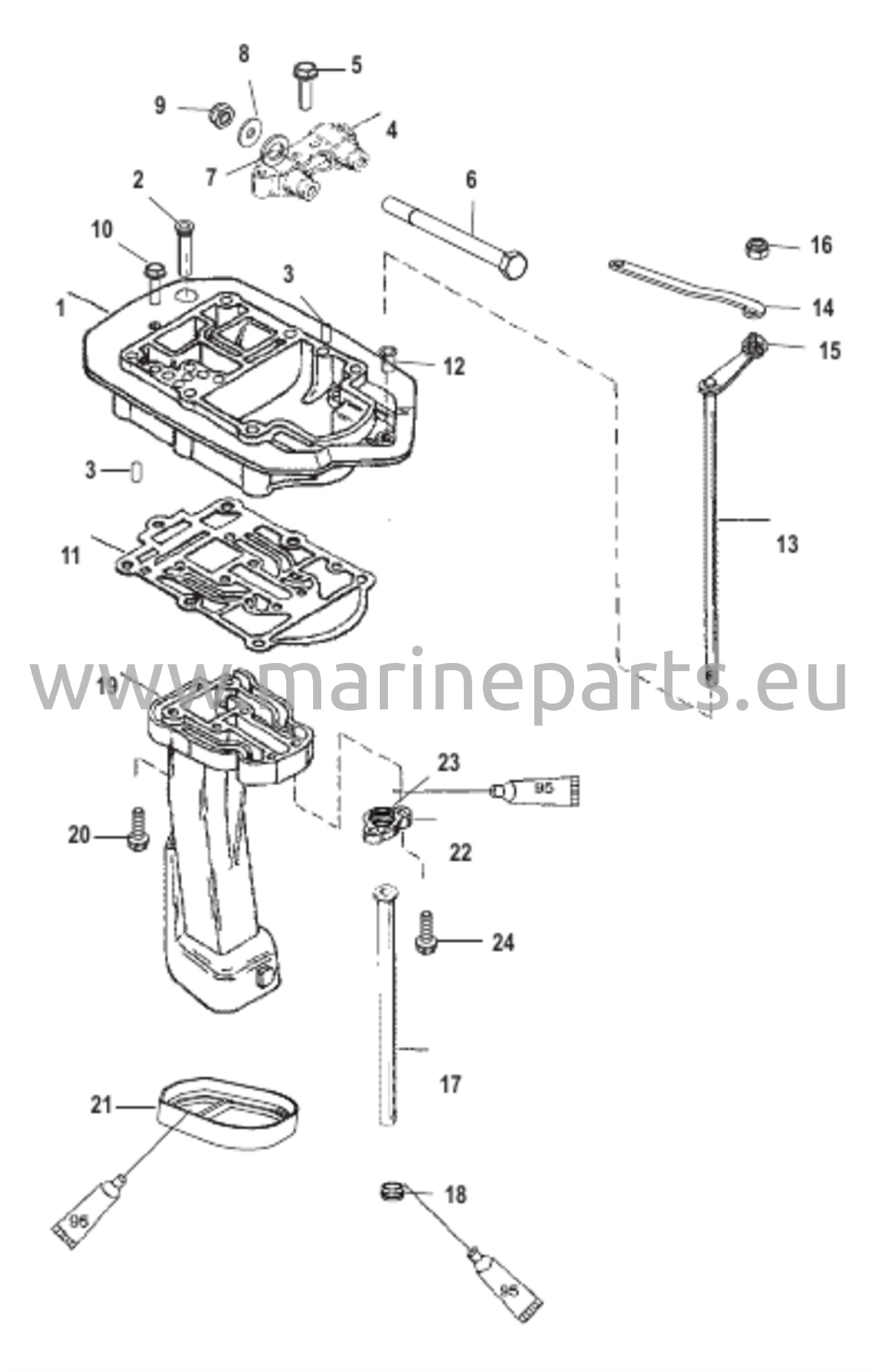

Exhaust Plate

Reference no. 803022001 7

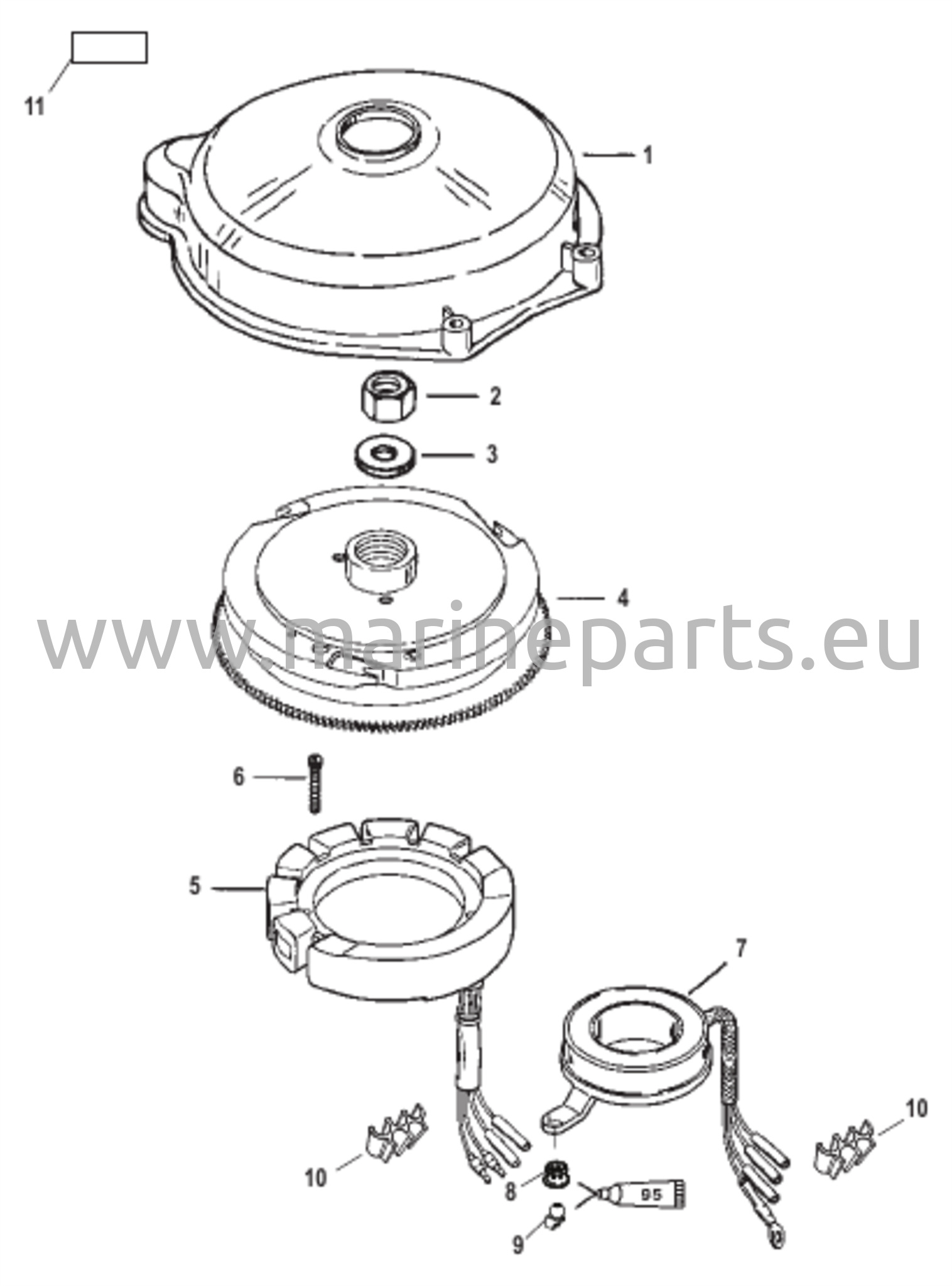

Flywheel and Stator Electric

Reference no. 803022001 8

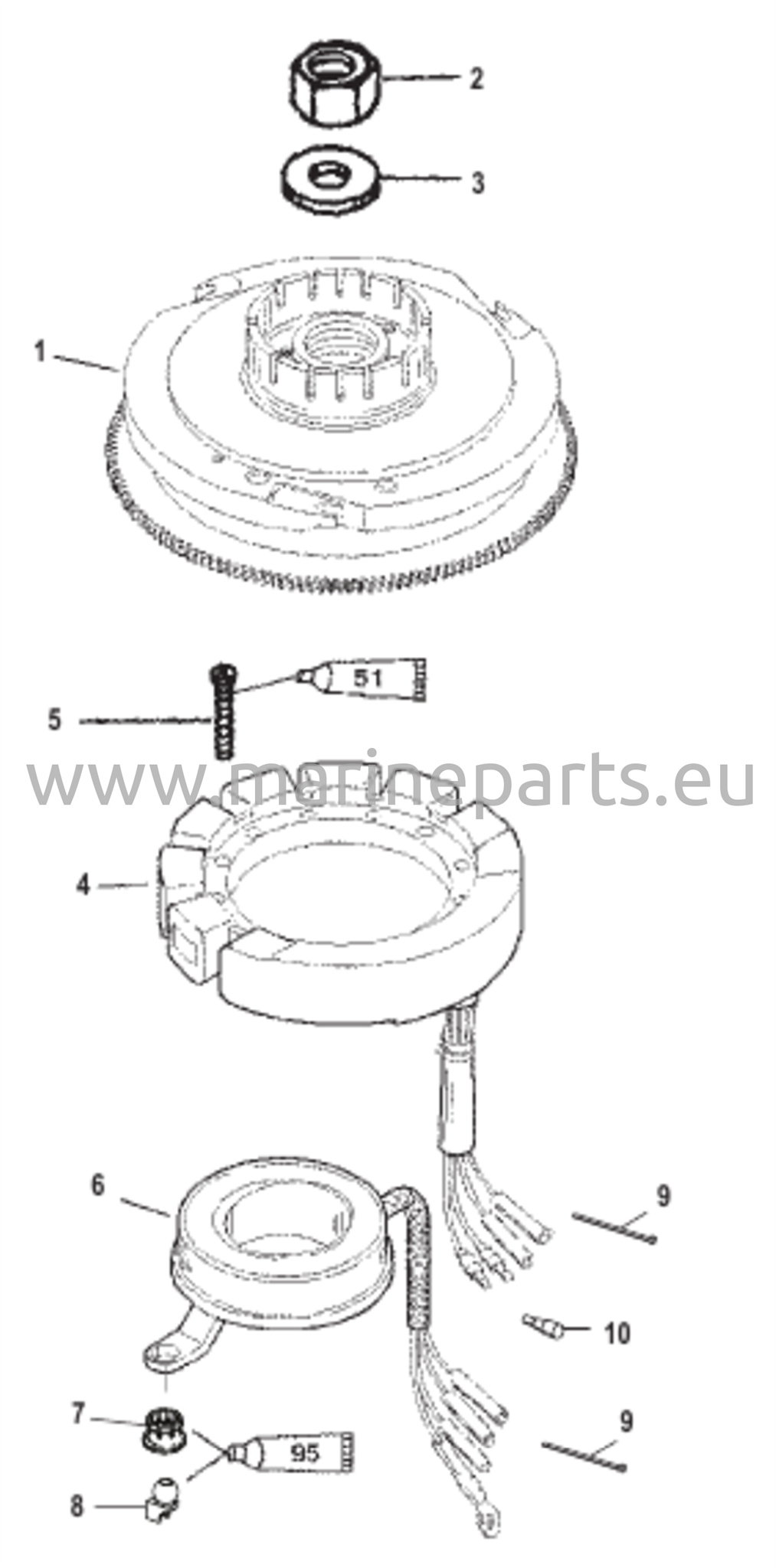

Flywheel and Stator Manual

Reference no. 803022001 9

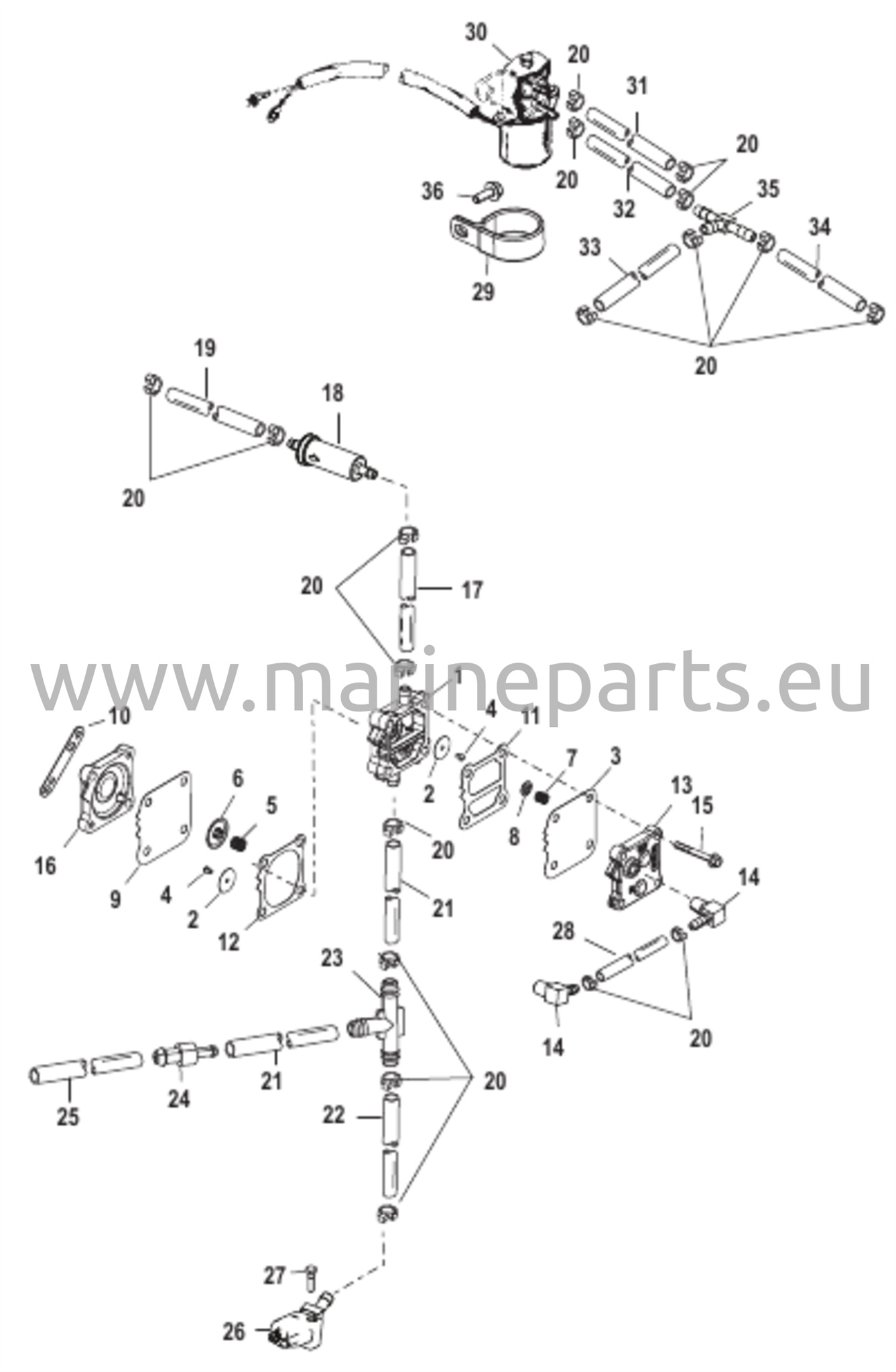

Fuel Pump Electric

Reference no. 803022001 10

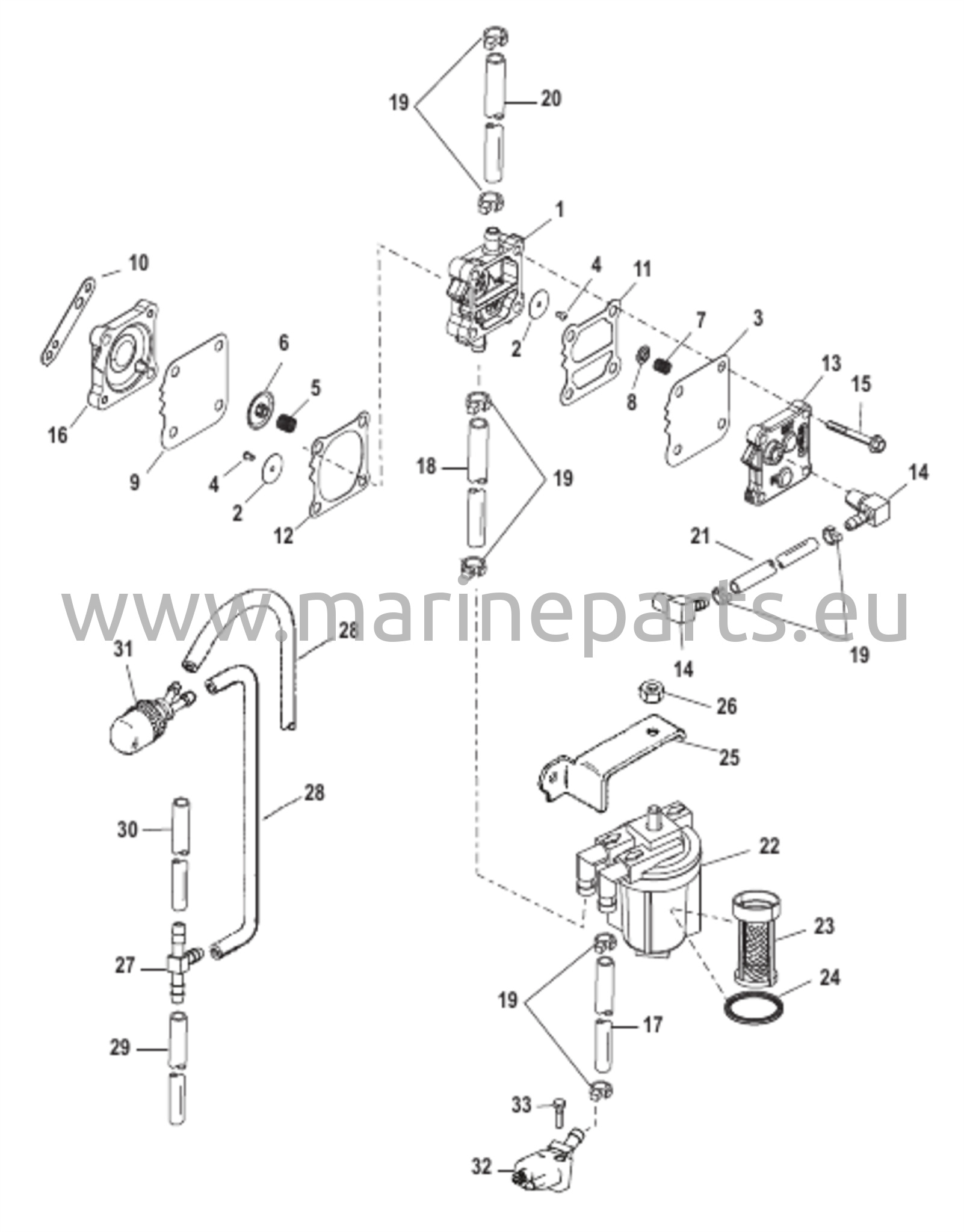

Fuel Pump Manual

Reference no. 803022001 11

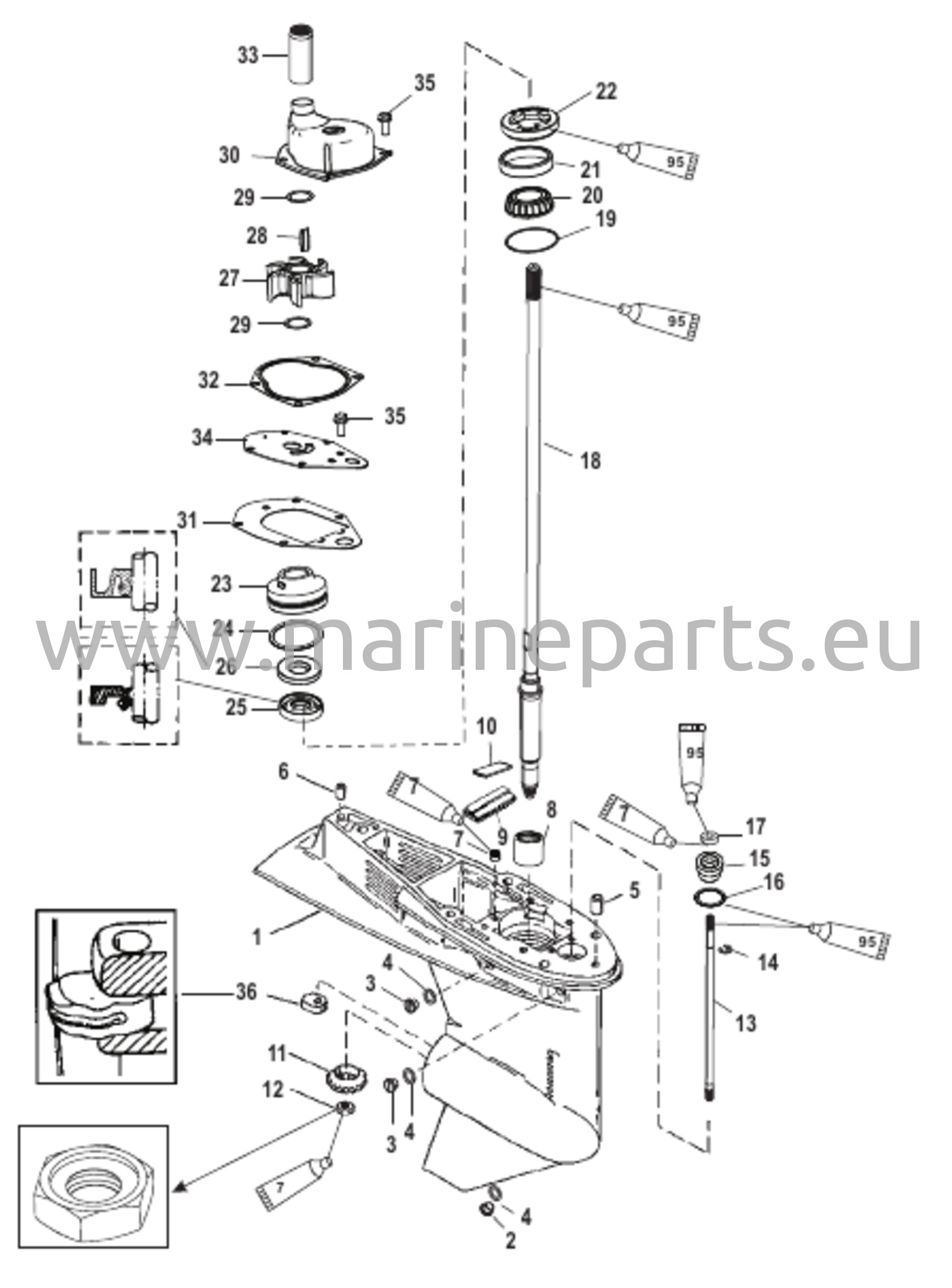

Gear Housing Driveshaft 1.64:1 Gear Ratio

Reference no. 803022001 12

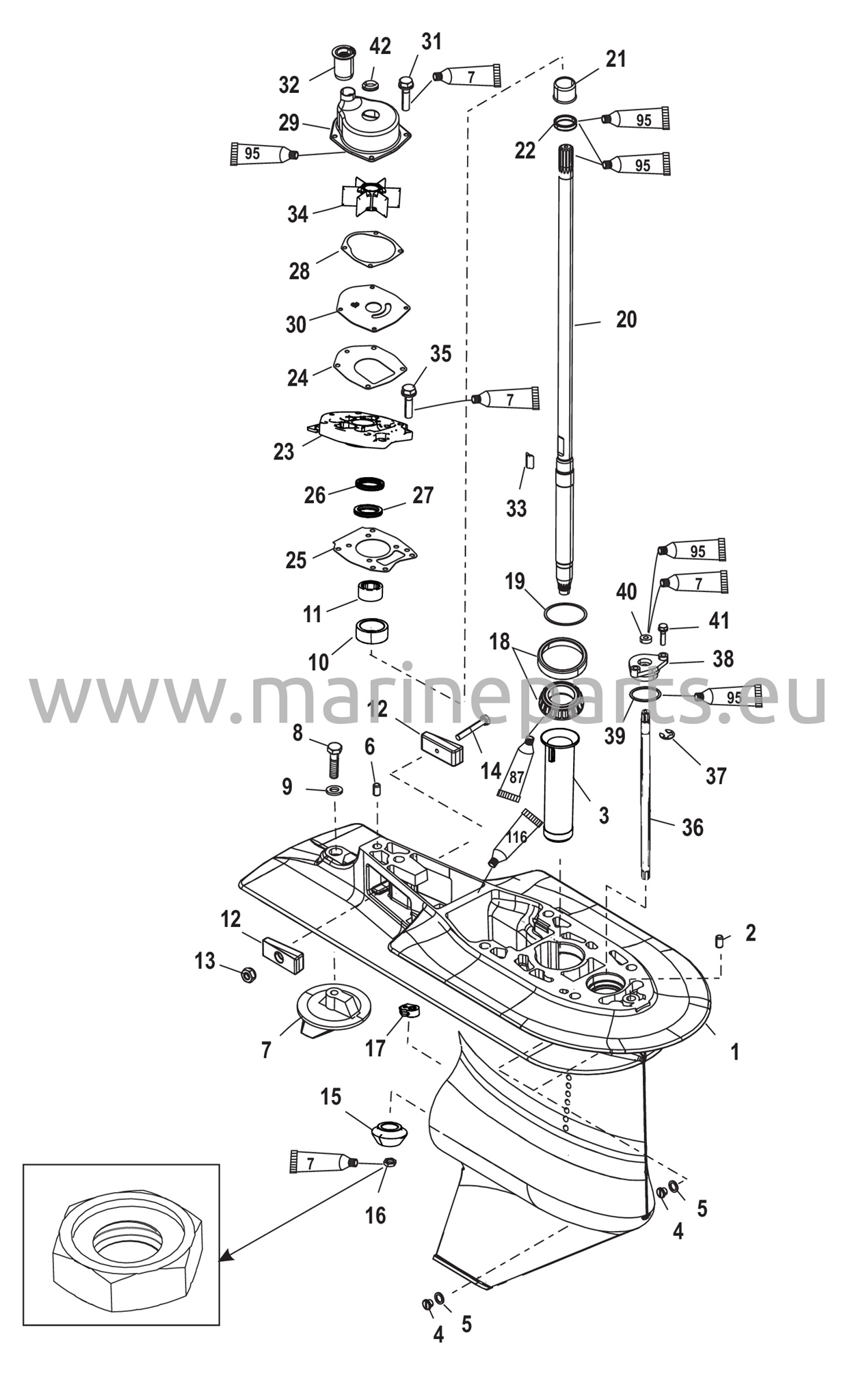

Gear Housing Driveshaft 2.33:1

Reference no. 803022001 13

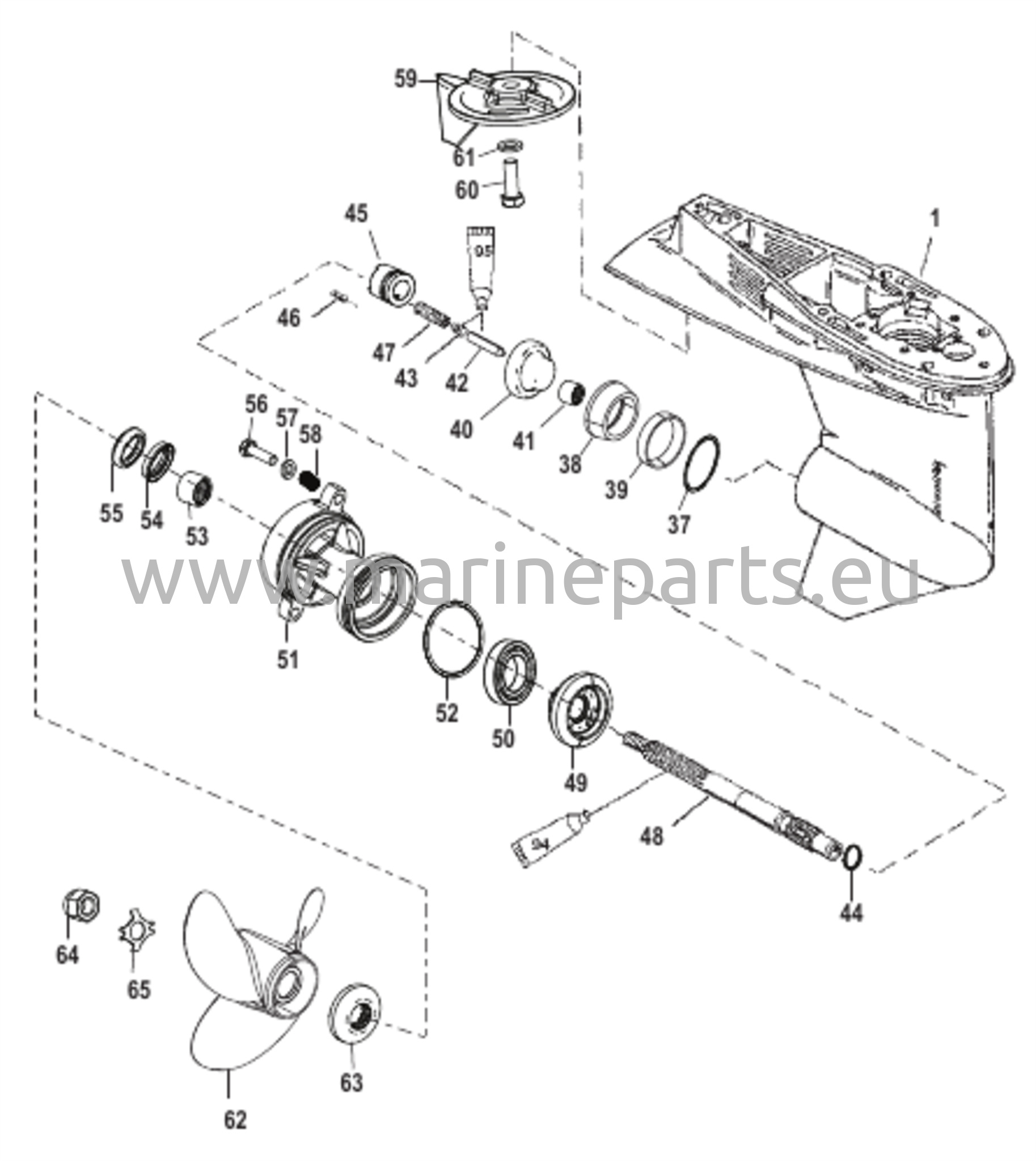

Gear Housing Propeller Shaft - 1.64:1 Gear Ratio

Reference no. 803022001 14

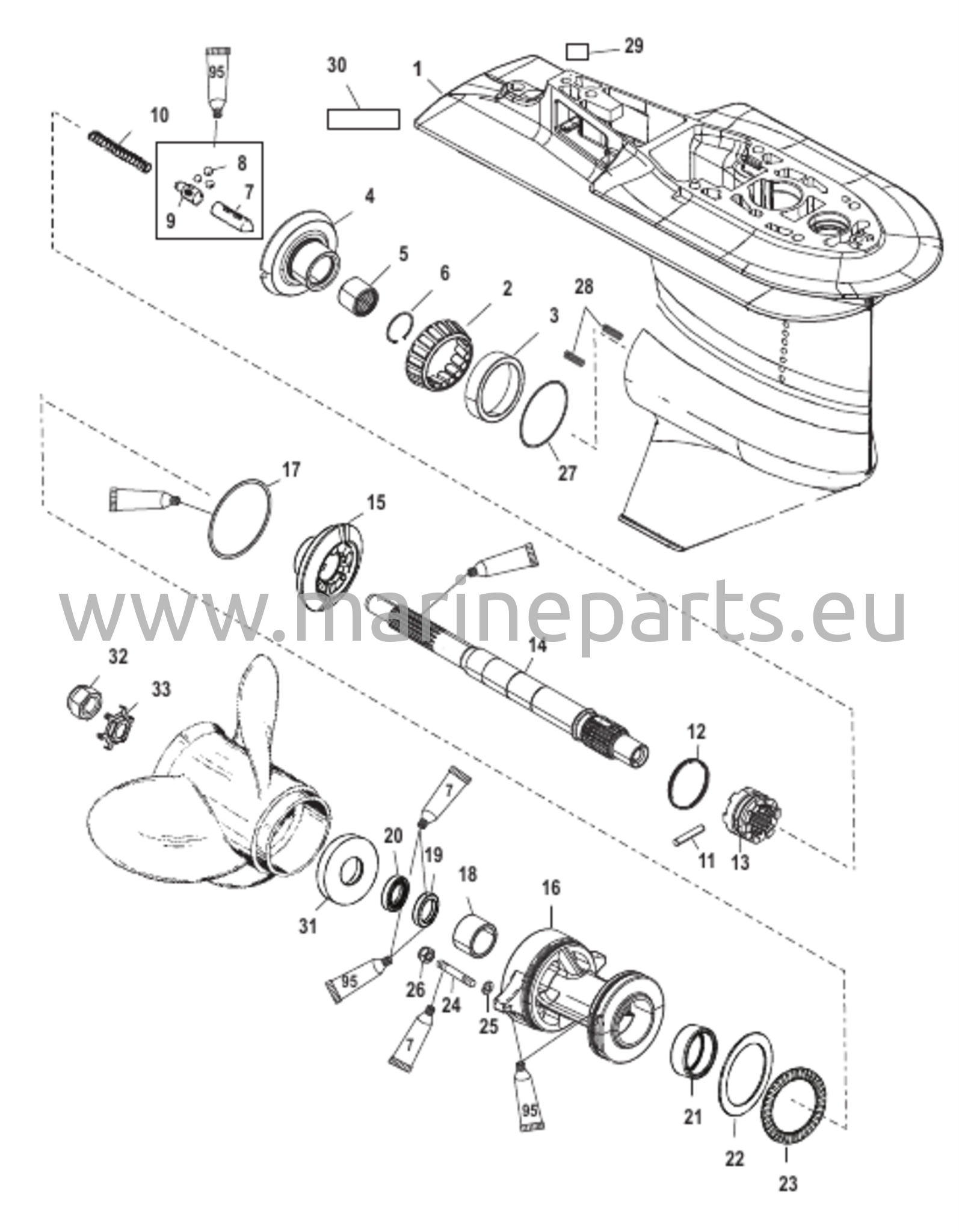

Gear Housing Propeller Shaft - 2.33:1 Gear Ratio

Reference no. 803022001 15

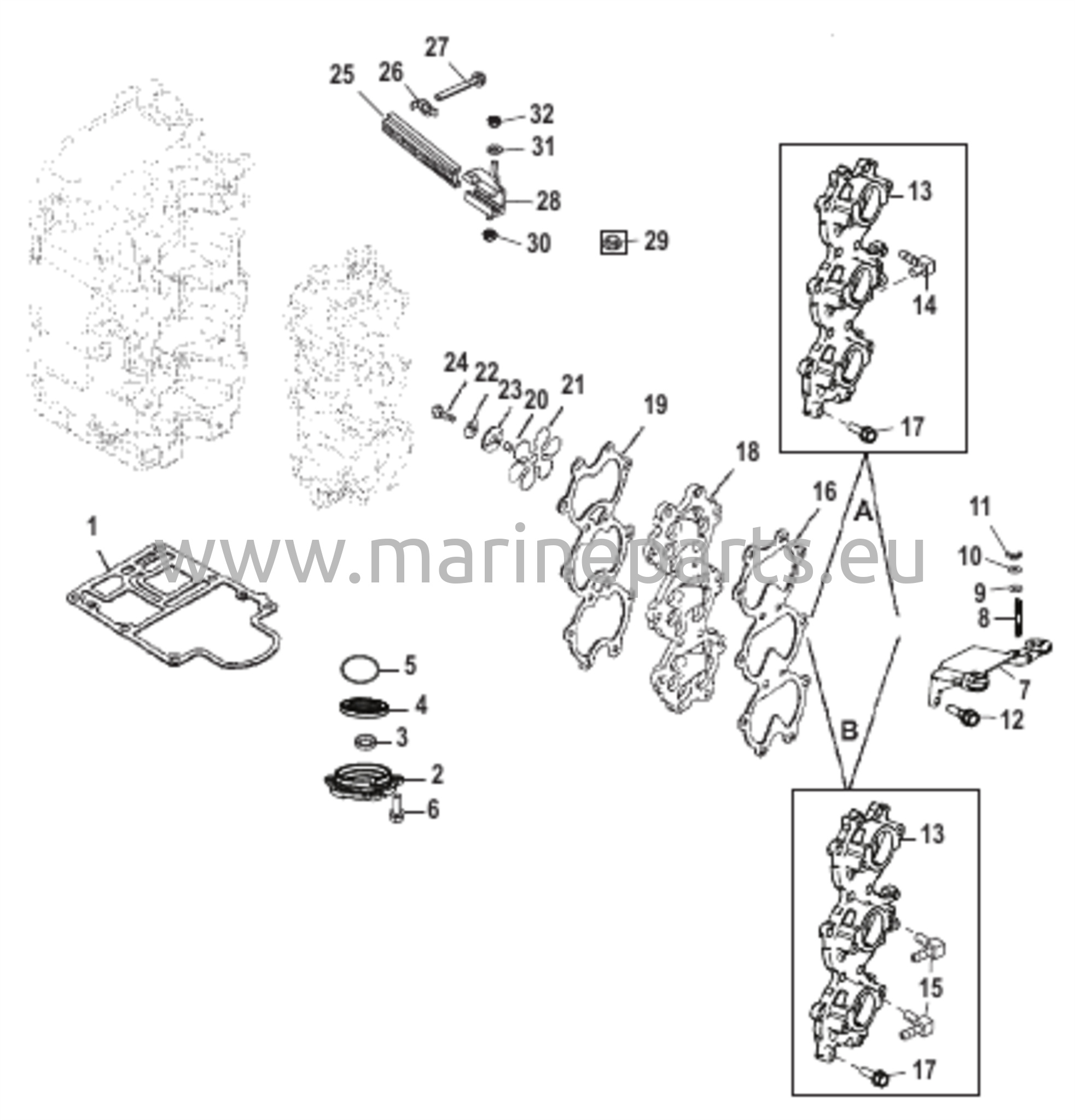

Induction Manifold and Reed Block

Reference no. 803022001 16

Jet Components

Reference no. 803022001 17

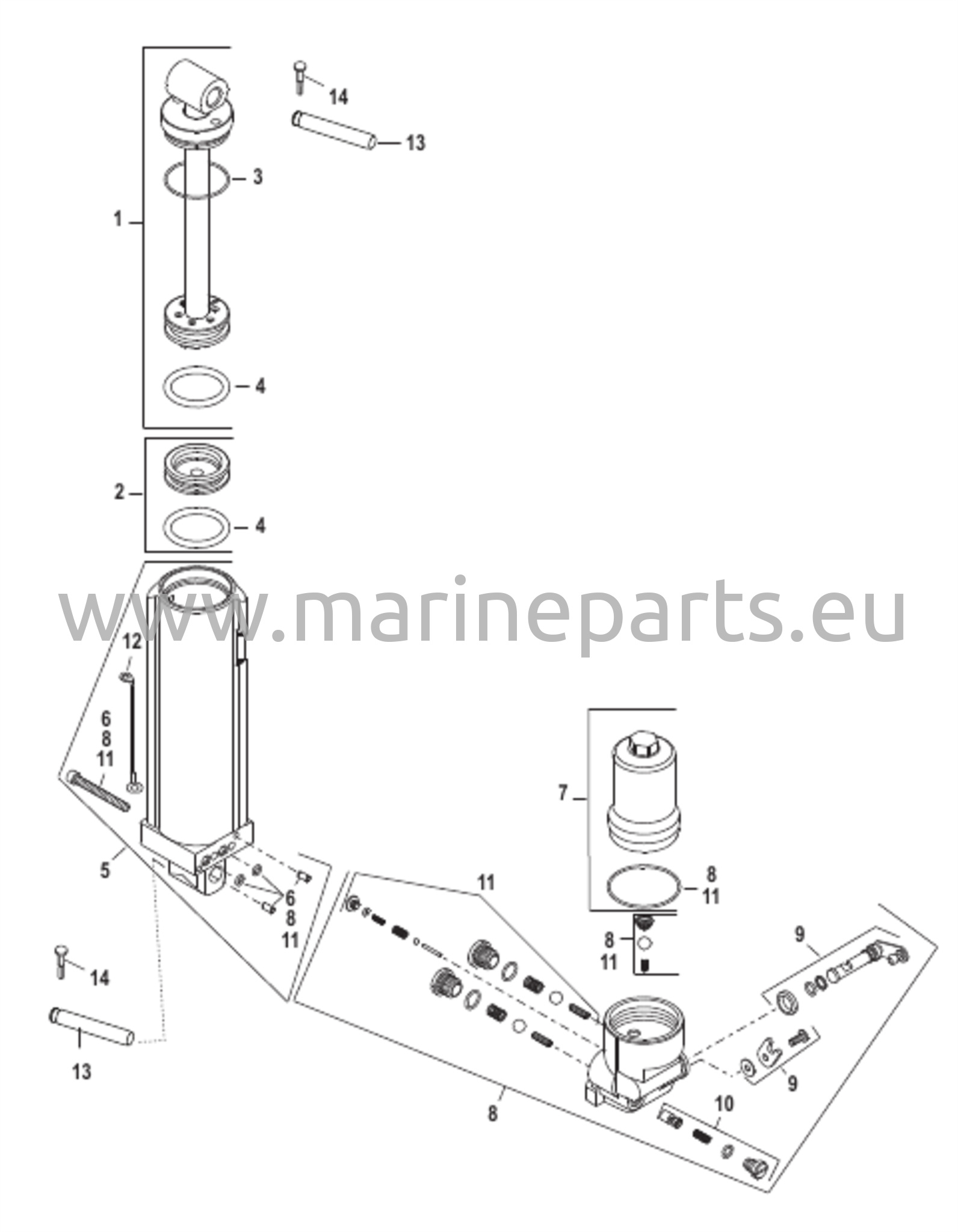

Manual Tilt Components

Reference no. 803022001 18

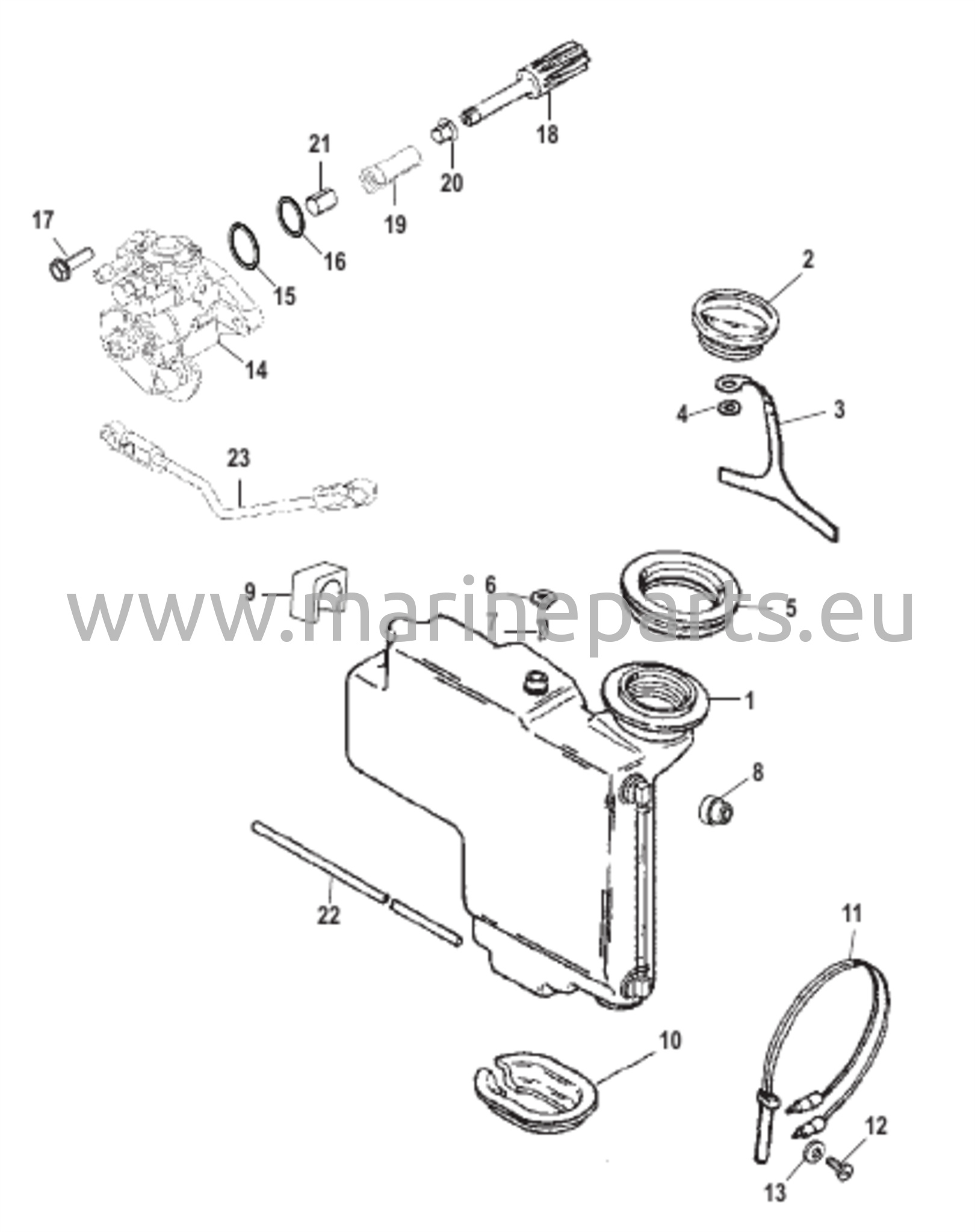

Oil Injection Components

Reference no. 803022001 19

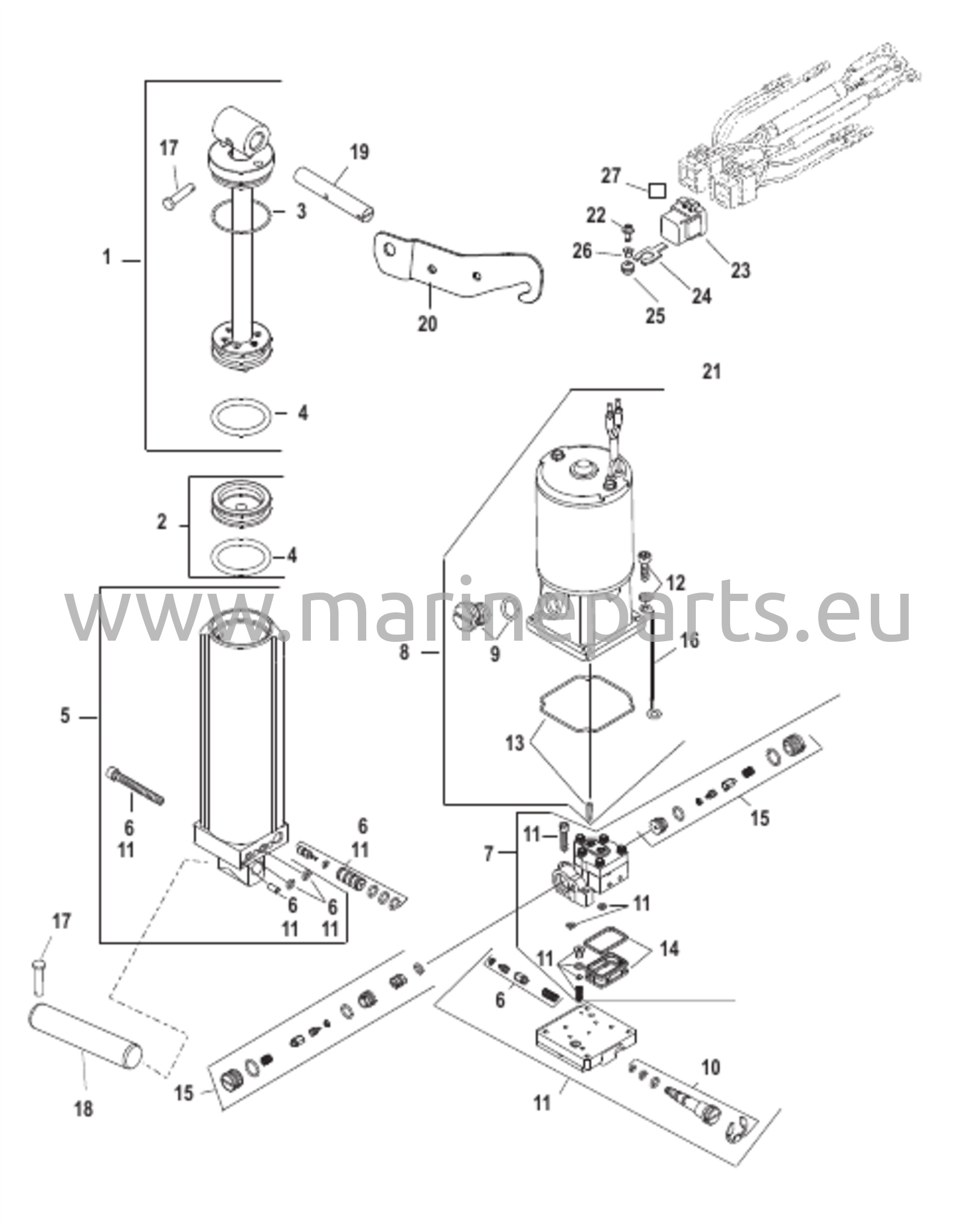

Power Trim Components

Reference no. 803022001 20

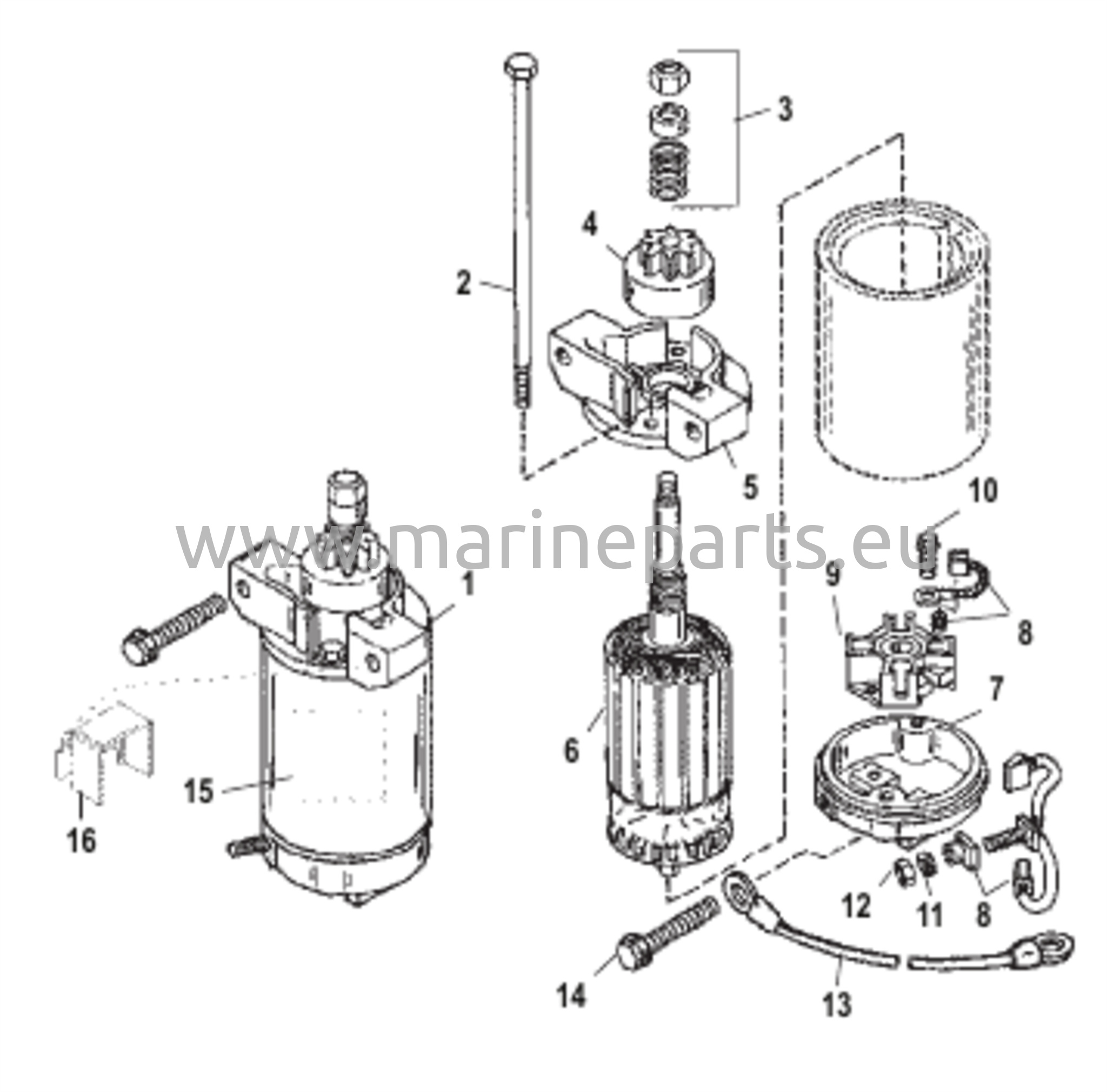

Starter Motor

Reference no. 803022001 22

Steerig Handle Kit

Reference no. 803022001 23

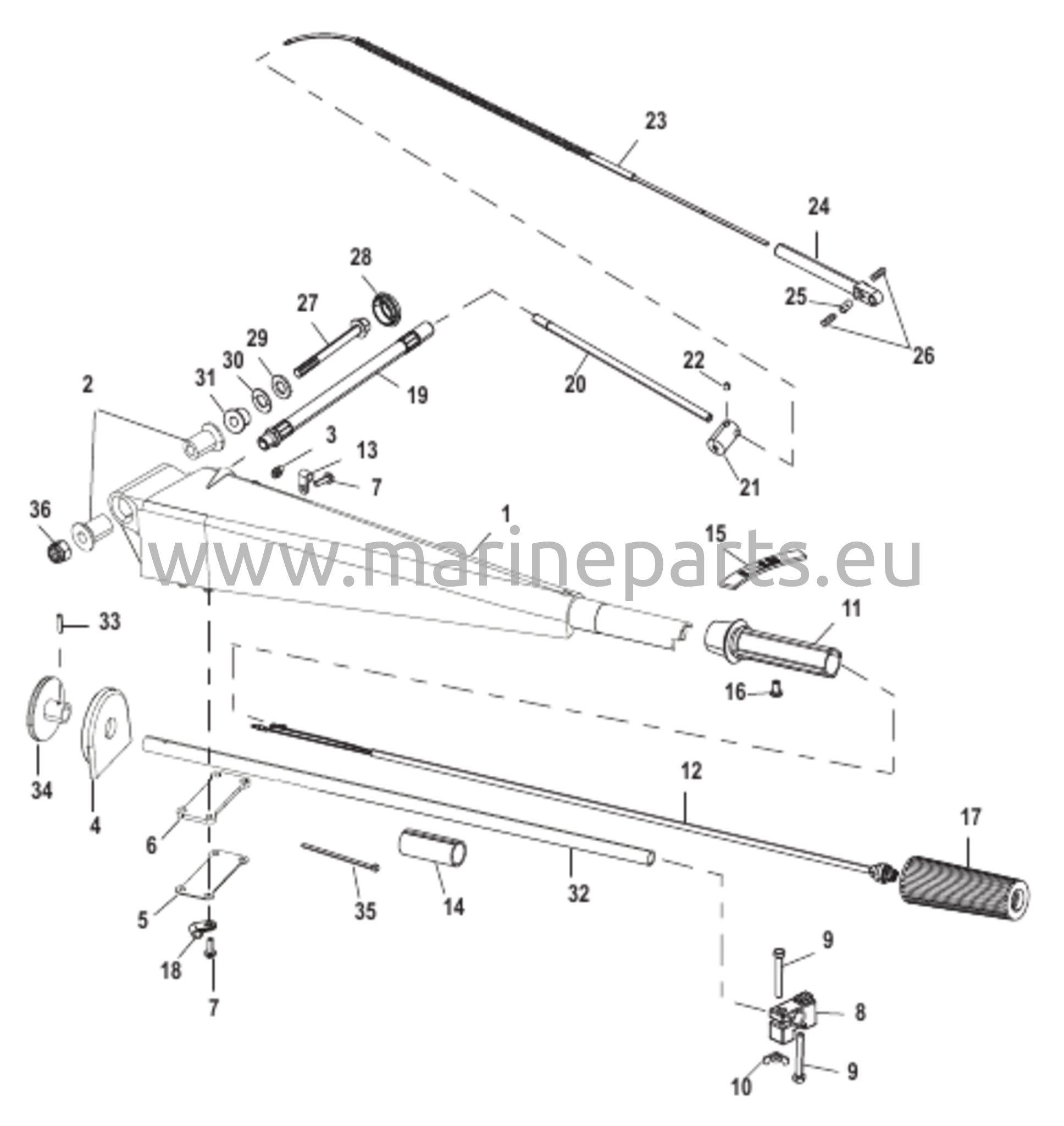

Steering Handle

Reference no. 803022001 24

Throttle Lever and Linkage

Reference no. 803022001 26

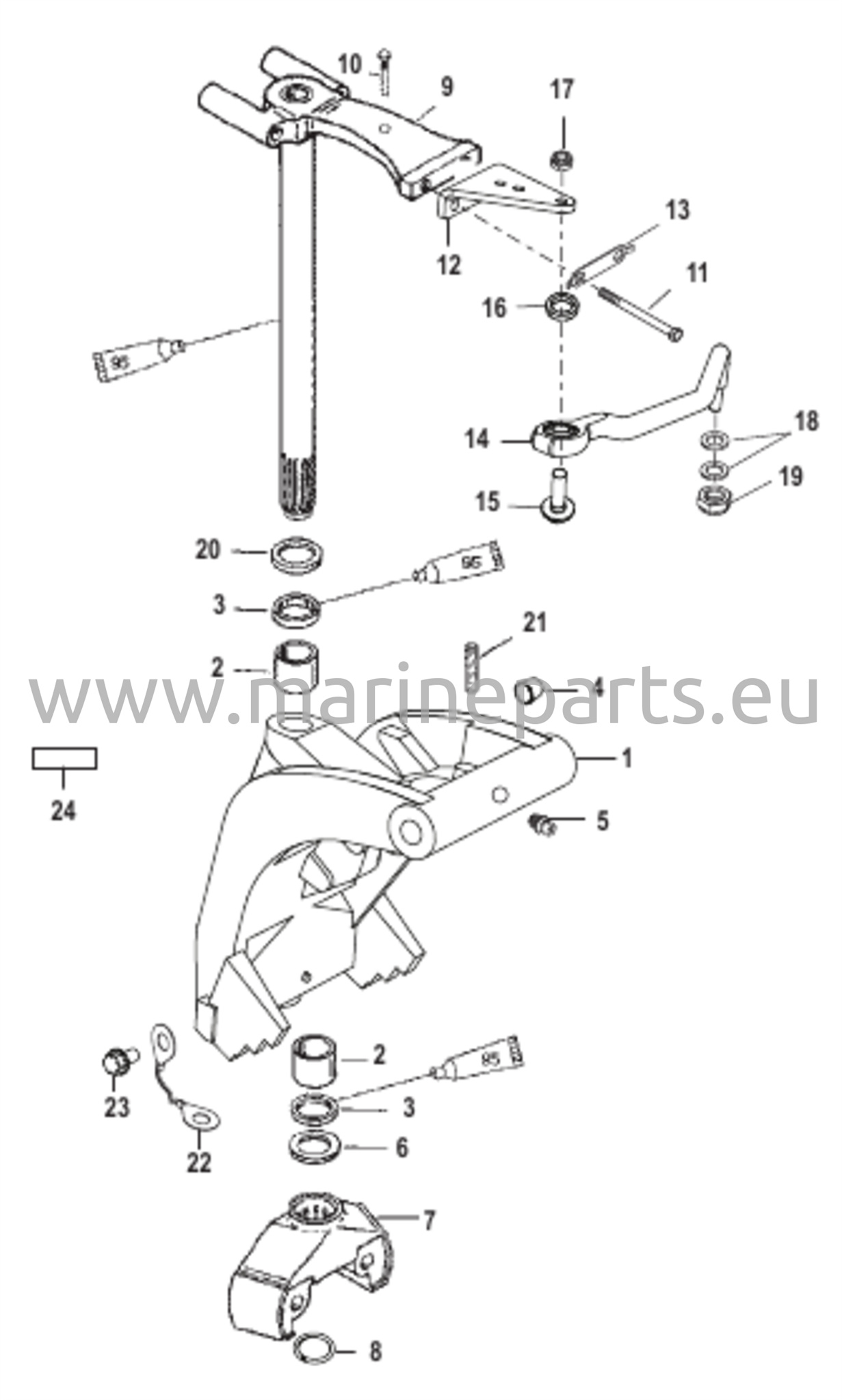

Swivel Bracket

Reference no. 803022001 25

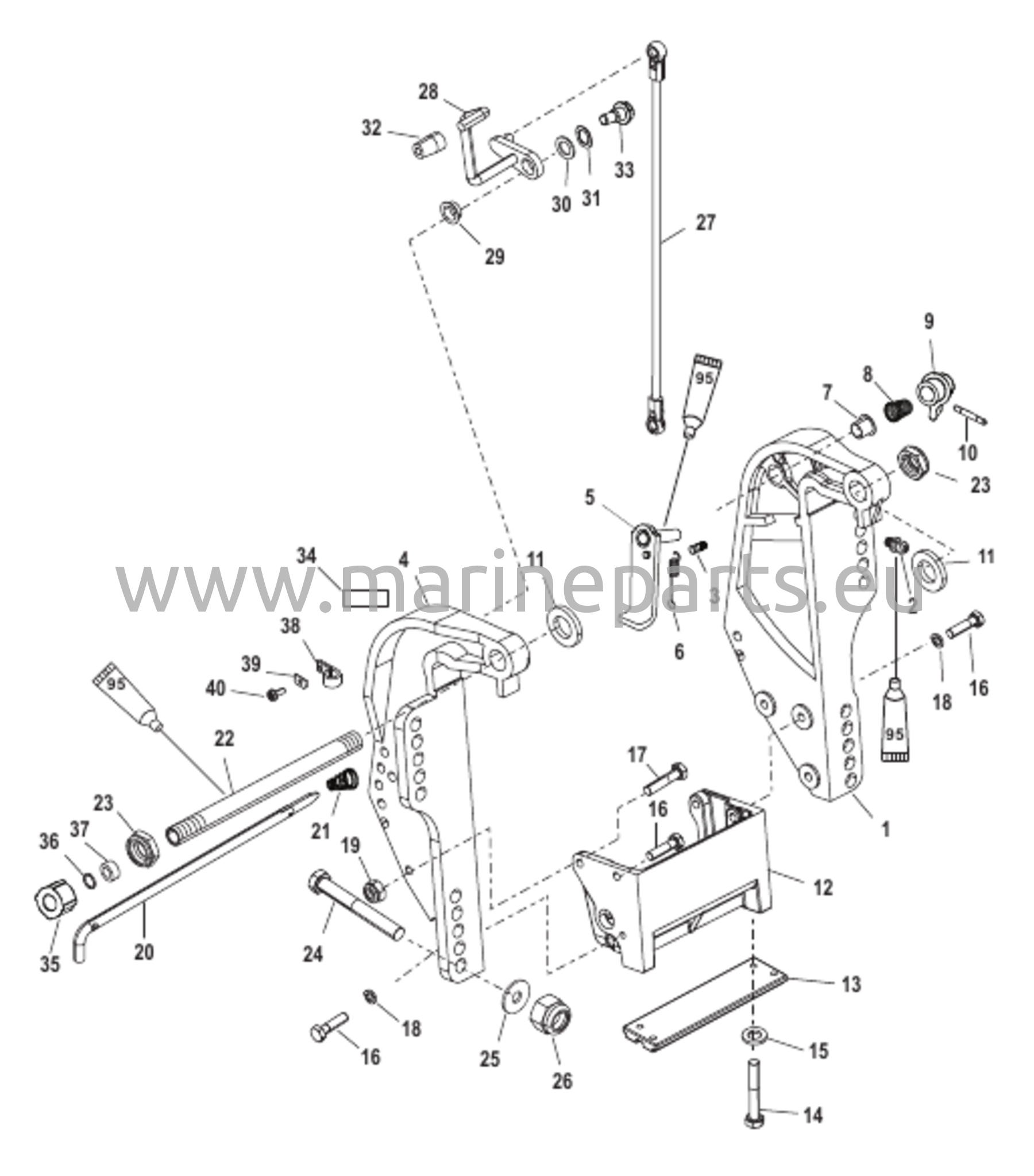

Transom Bracket (Electric)

Reference no. 803022001 27

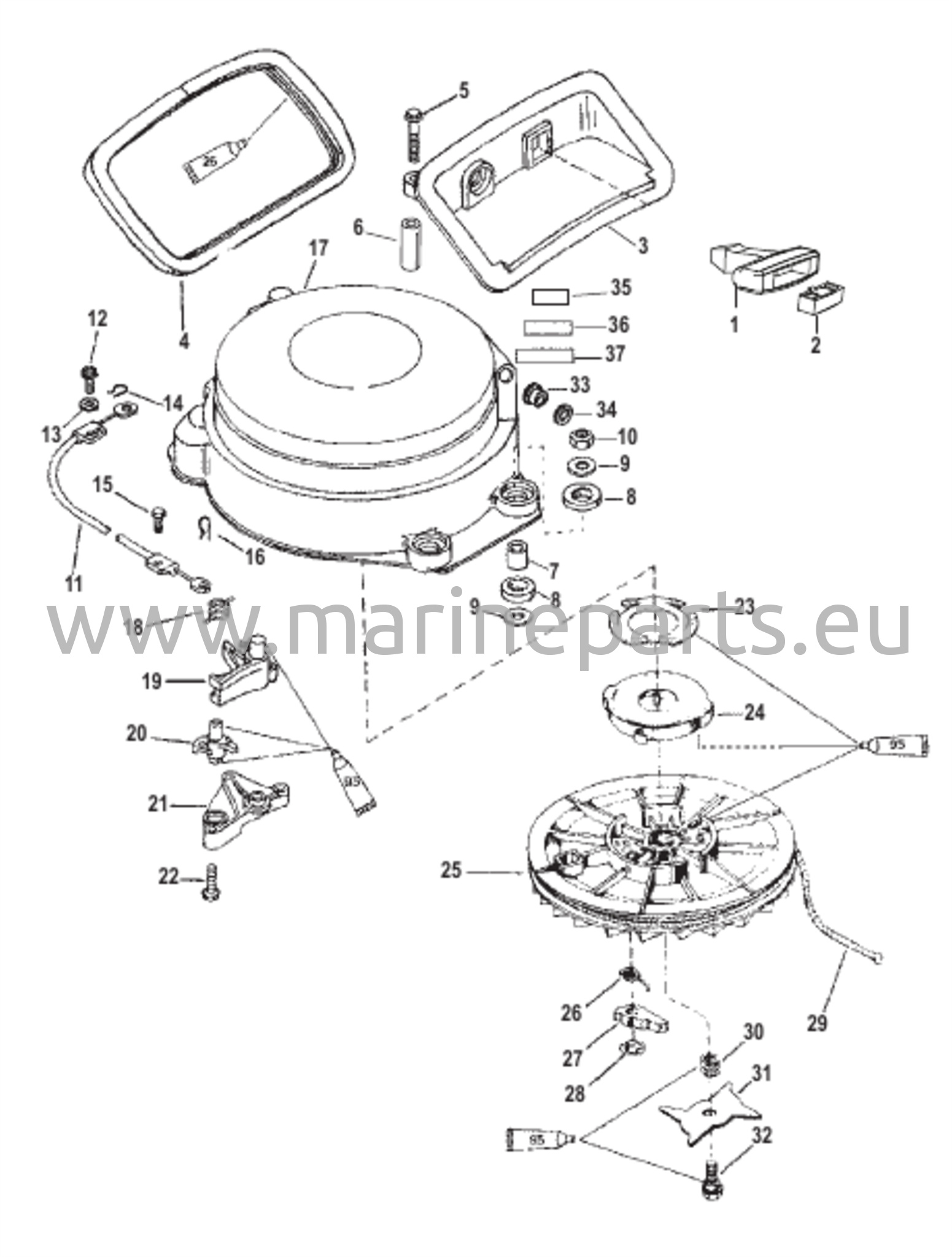

Starter Assembly Manual

Reference no. 803022001 21
