Exploded views for Parts Catalog Mercury/Mariner 55 & 60 hp 3 cyl. 2-stroke

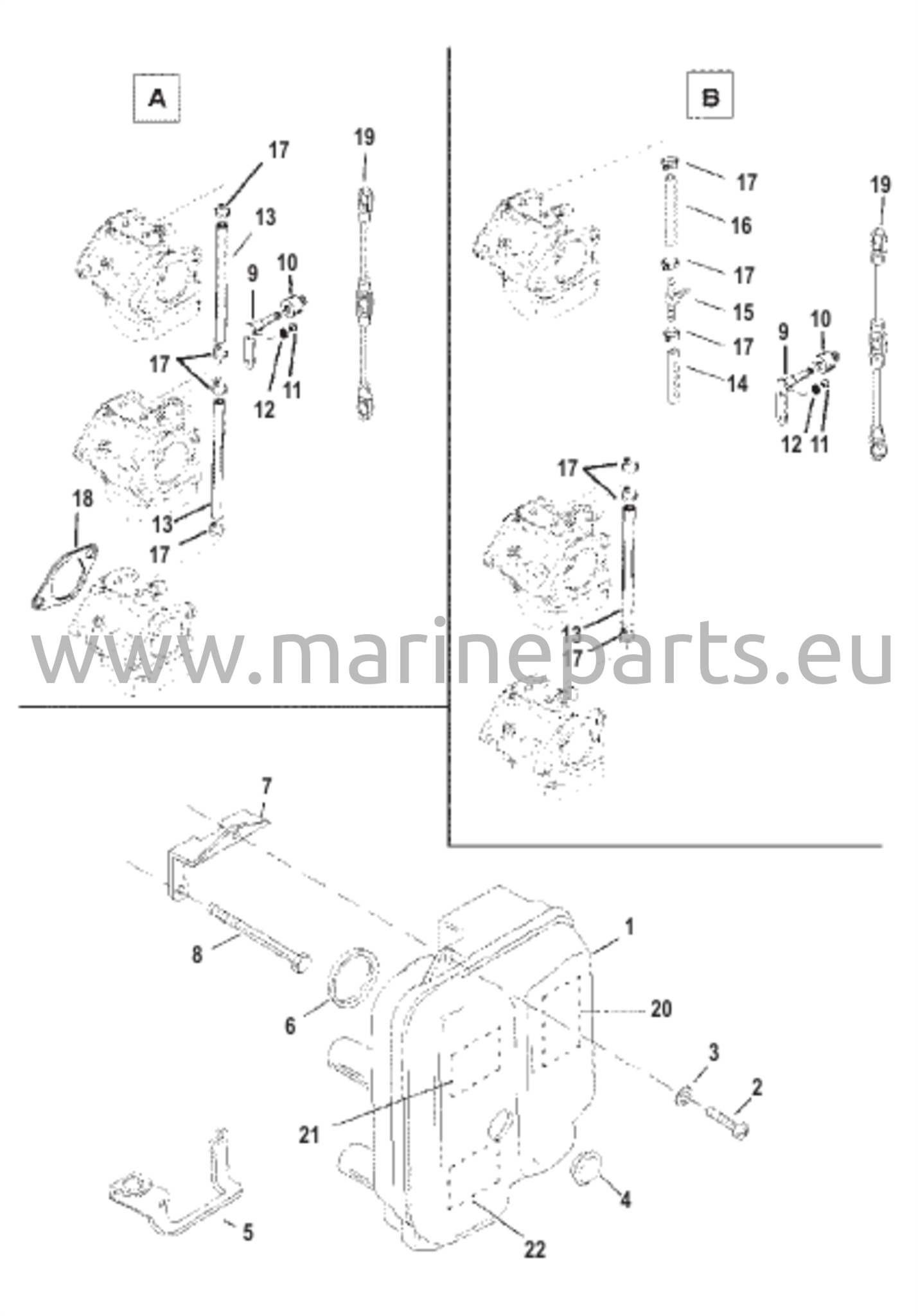

Attenuator Plate

Reference no. 85207097 0

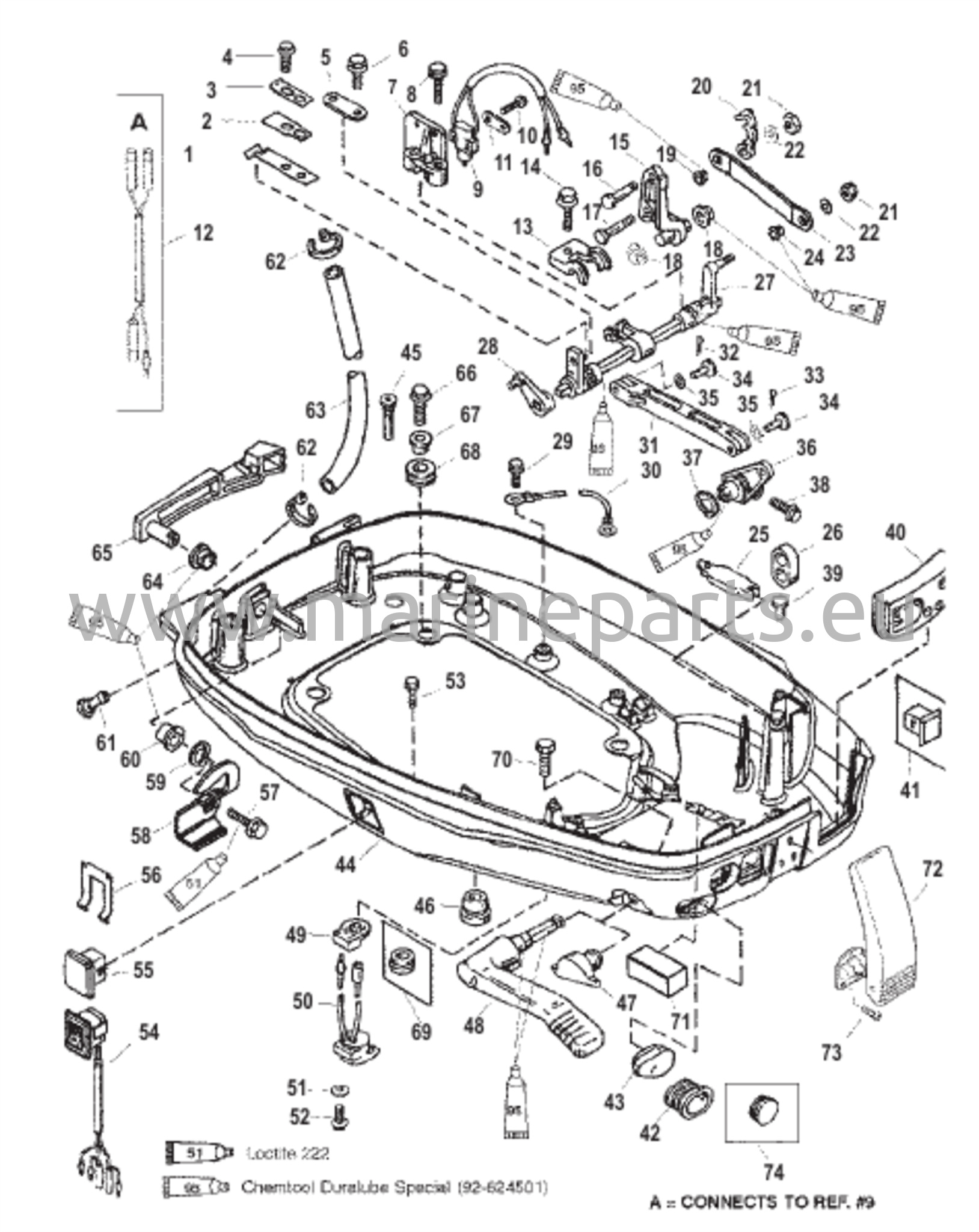

Bottom Cowl

Reference no. 85207097 1

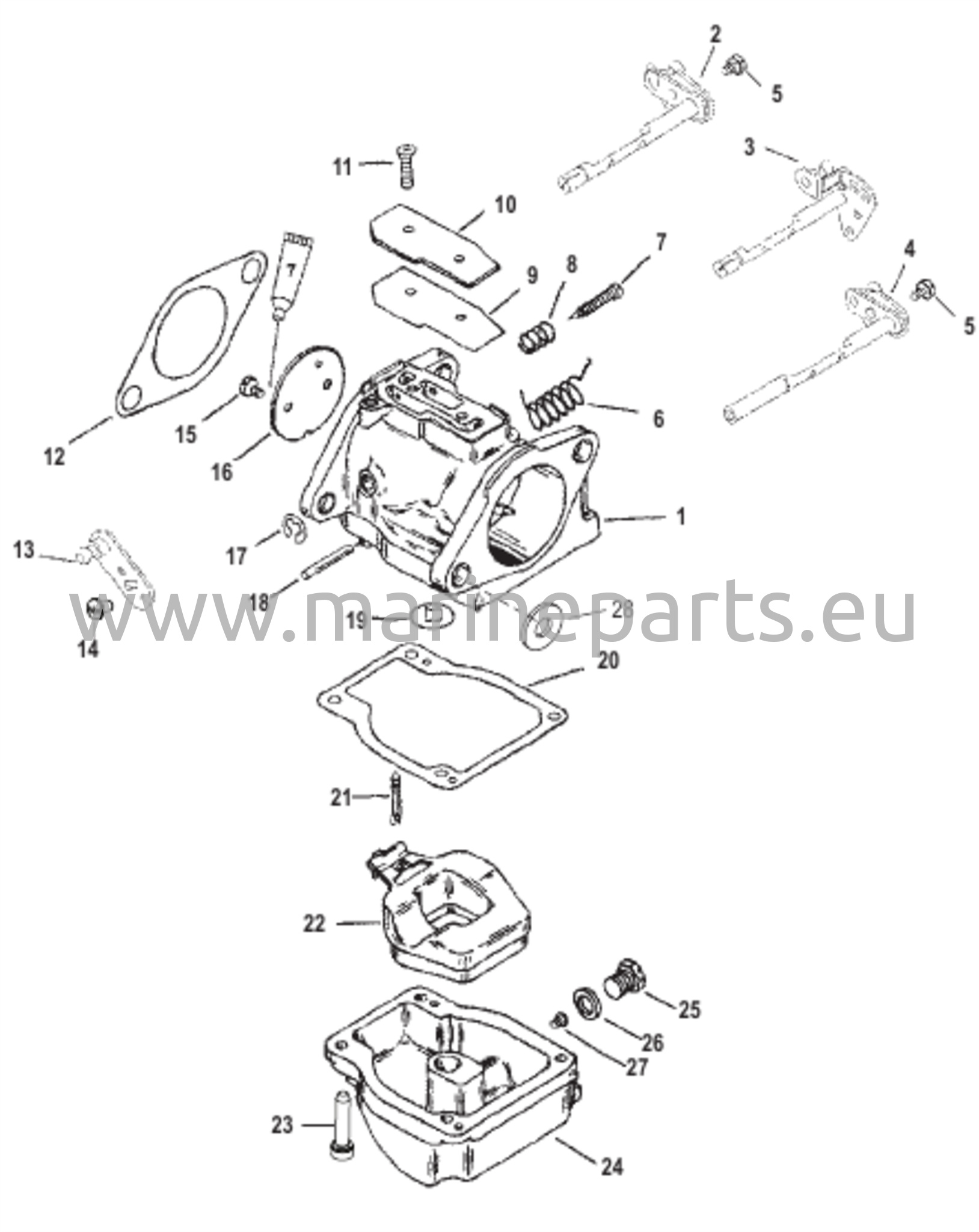

Carburetor

Reference no. 85207097 2

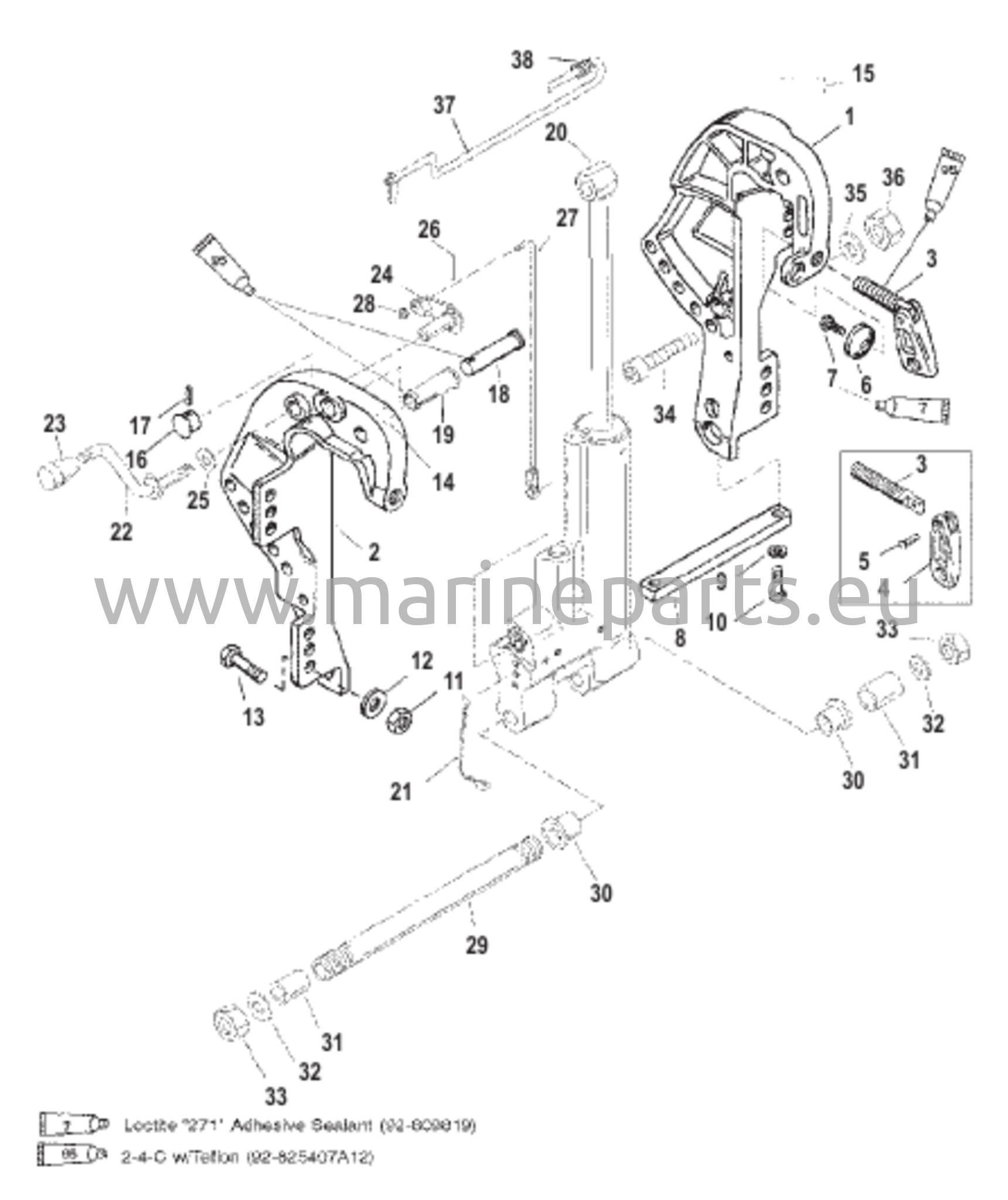

Clamp Bracket

Reference no. 85207097 3

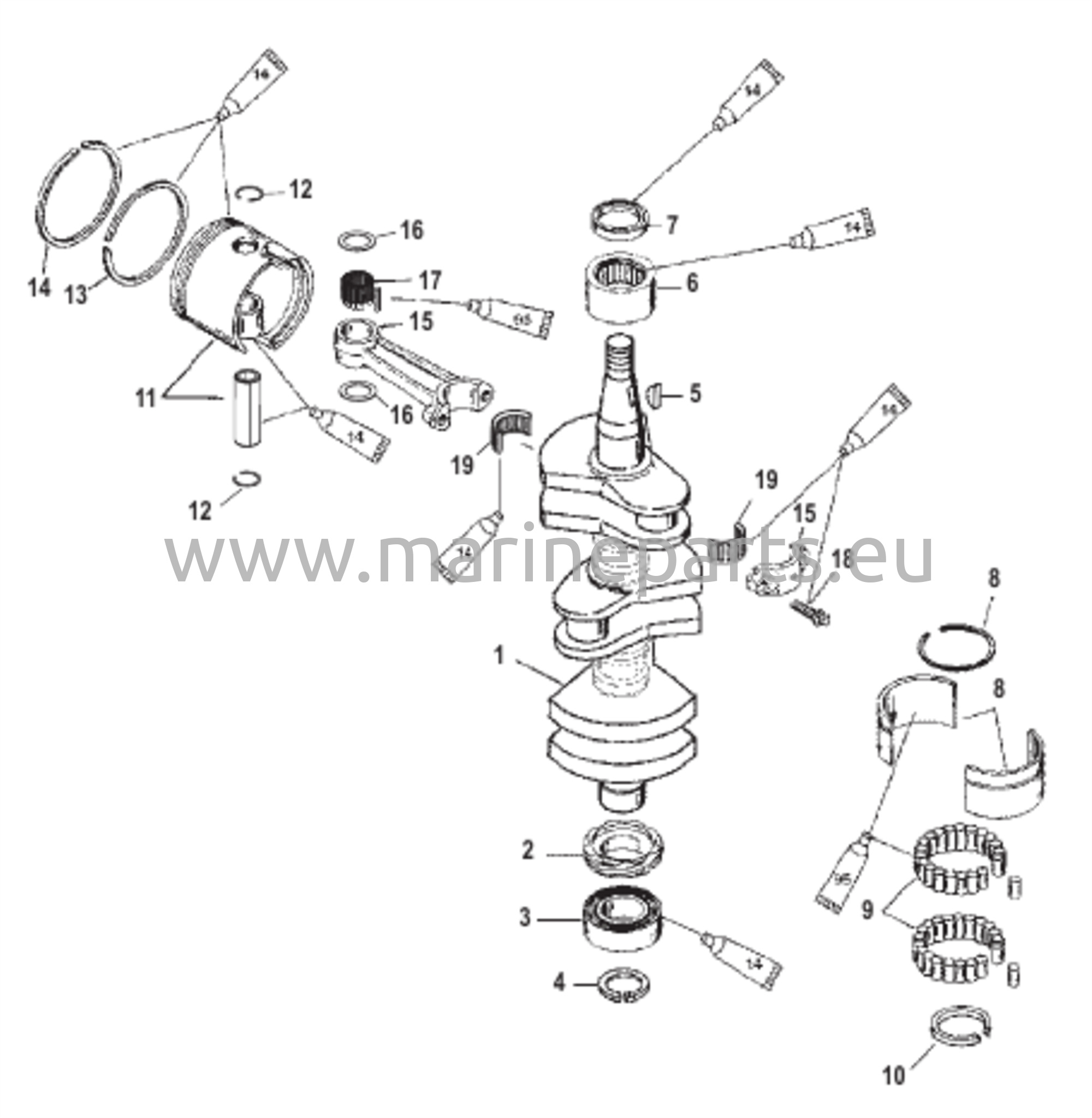

Crankshaft, Pistons and Connecting Rods

Reference no. 85207097 4

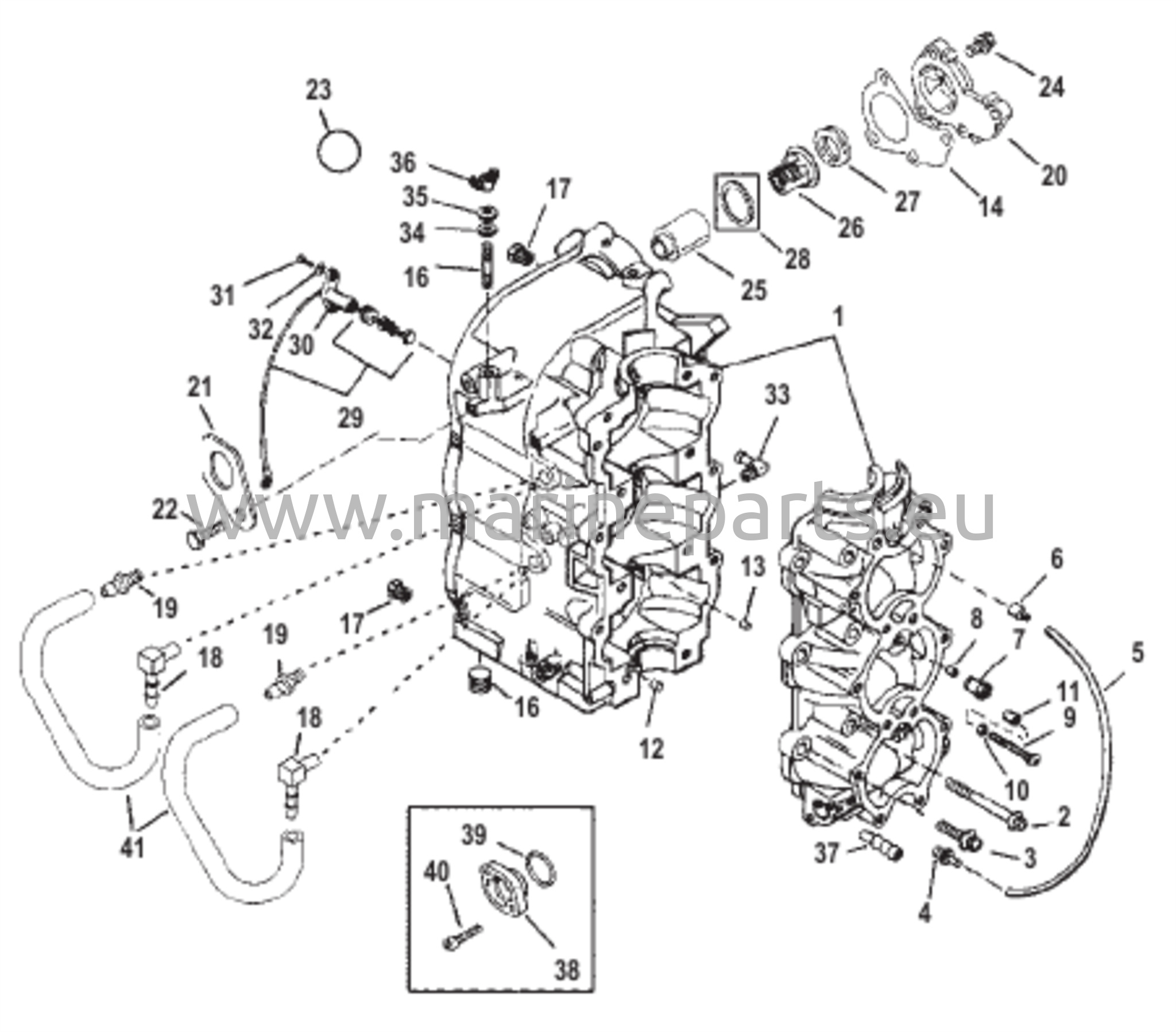

Cylinder Block and Crankcase

Reference no. 85207097 5

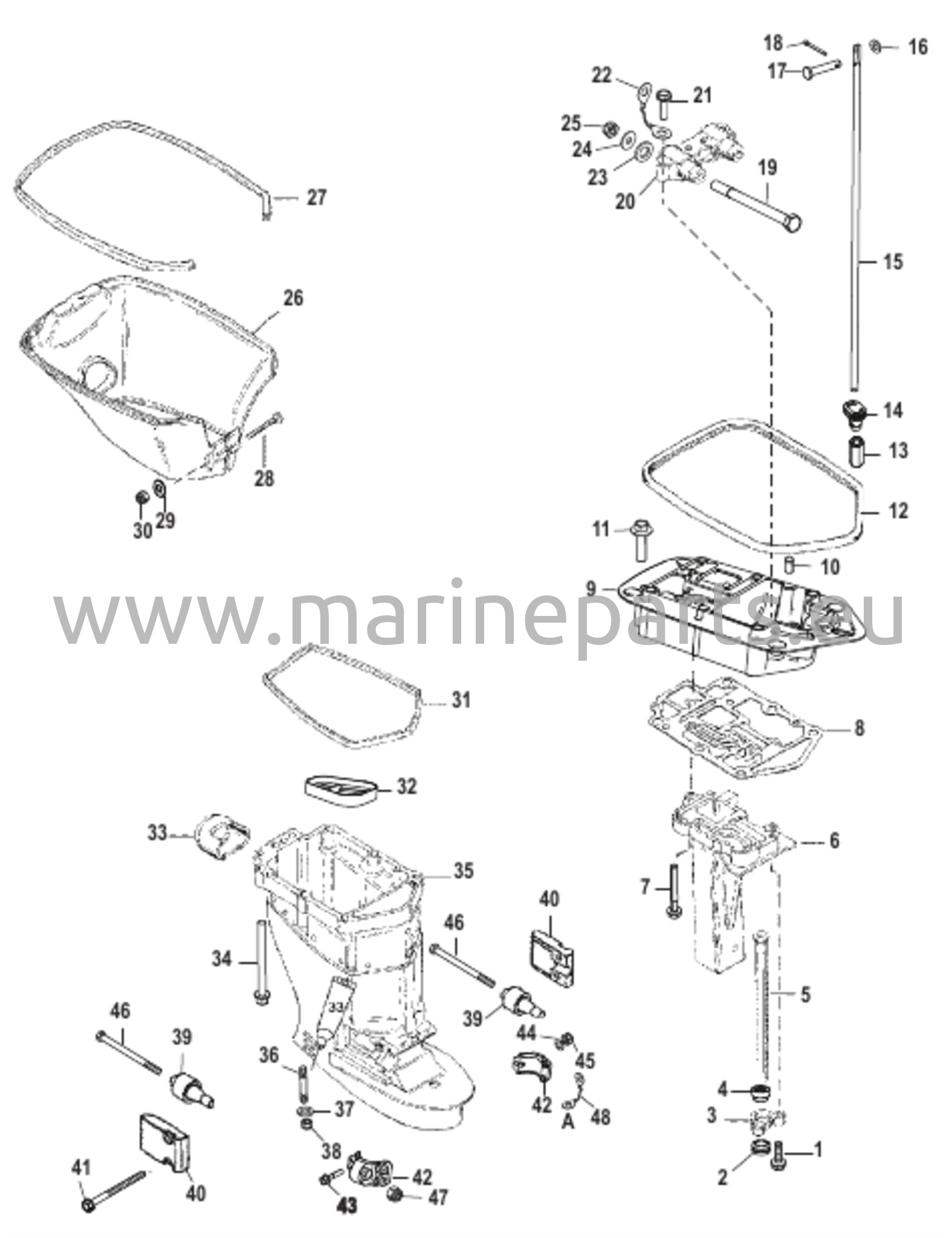

Driveshaft Housing / Exhaust Plate

Reference no. 85207097 6

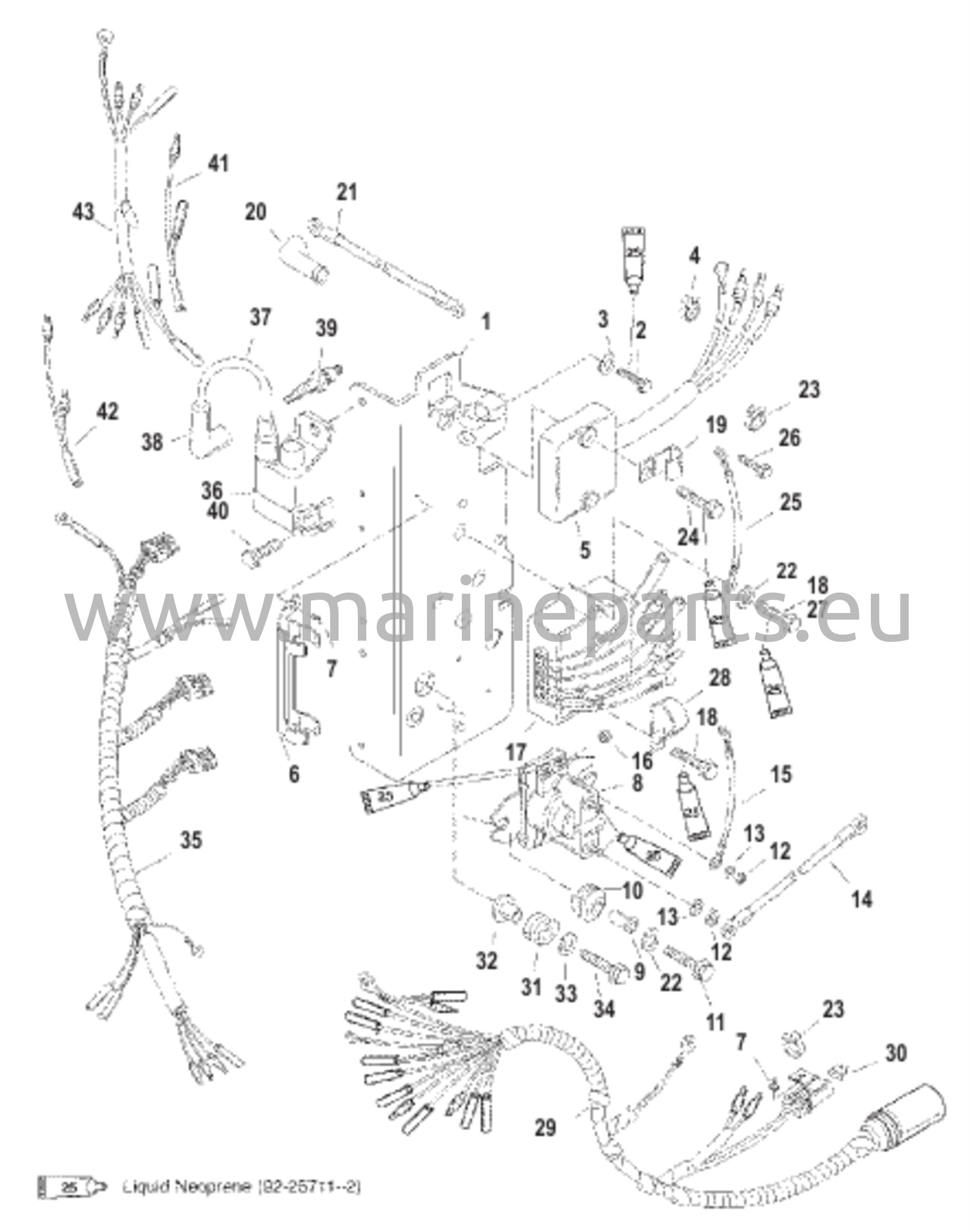

Electrical Components

Reference no. 85207097 7

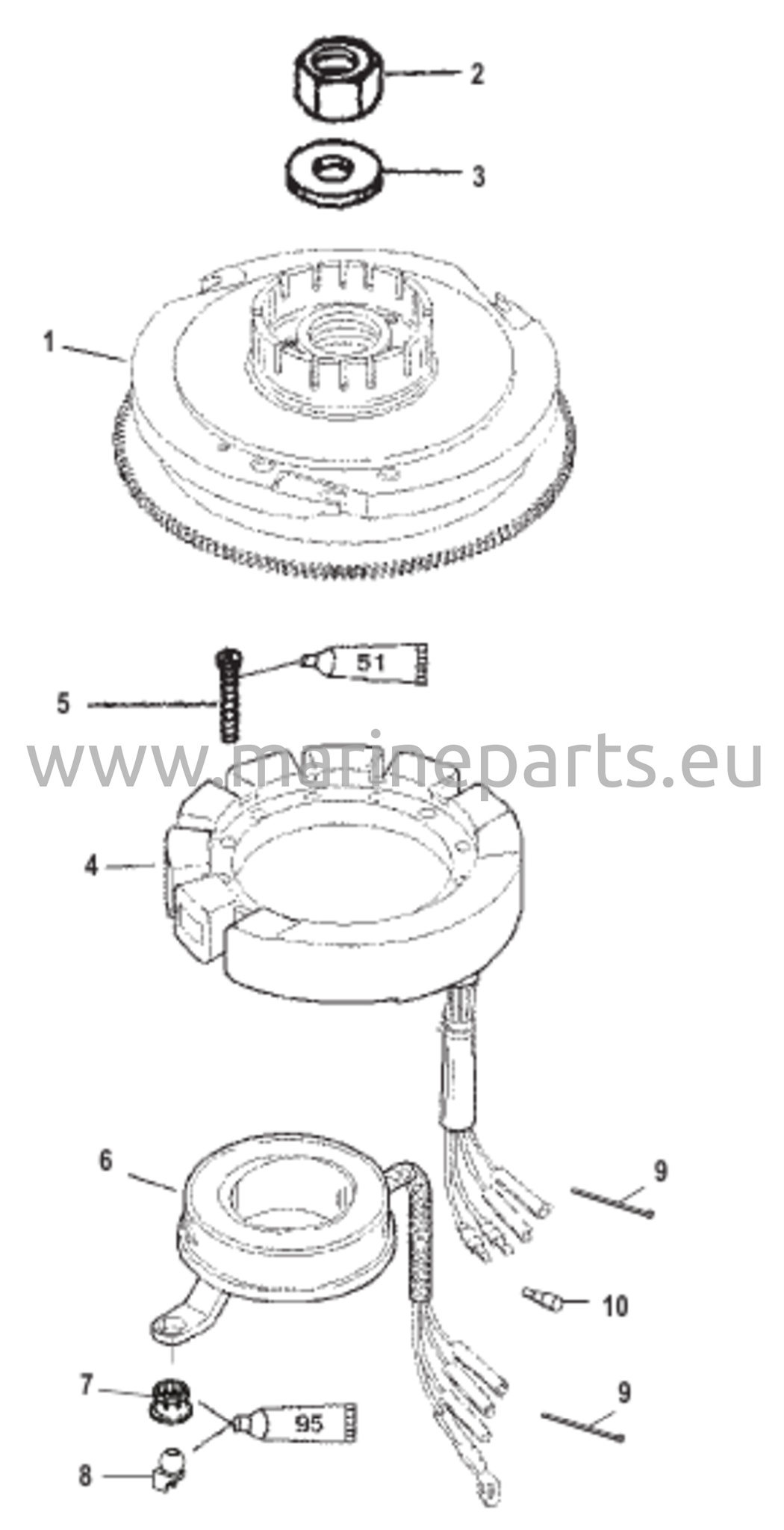

Flywheel and Stator (Manual)

Reference no. 85207097 8

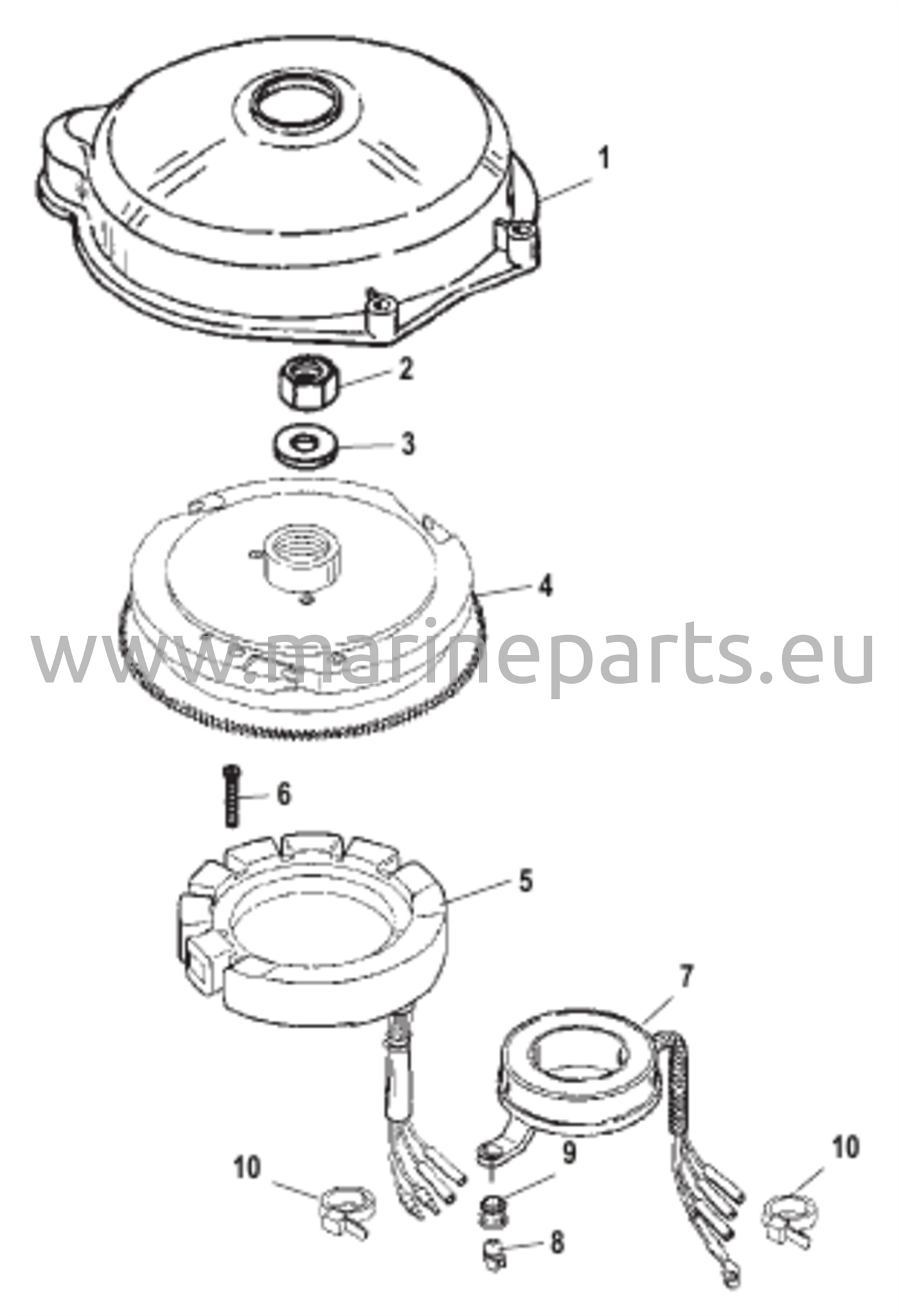

Flywheel and Stator (Electric)

Reference no. 85207097 9

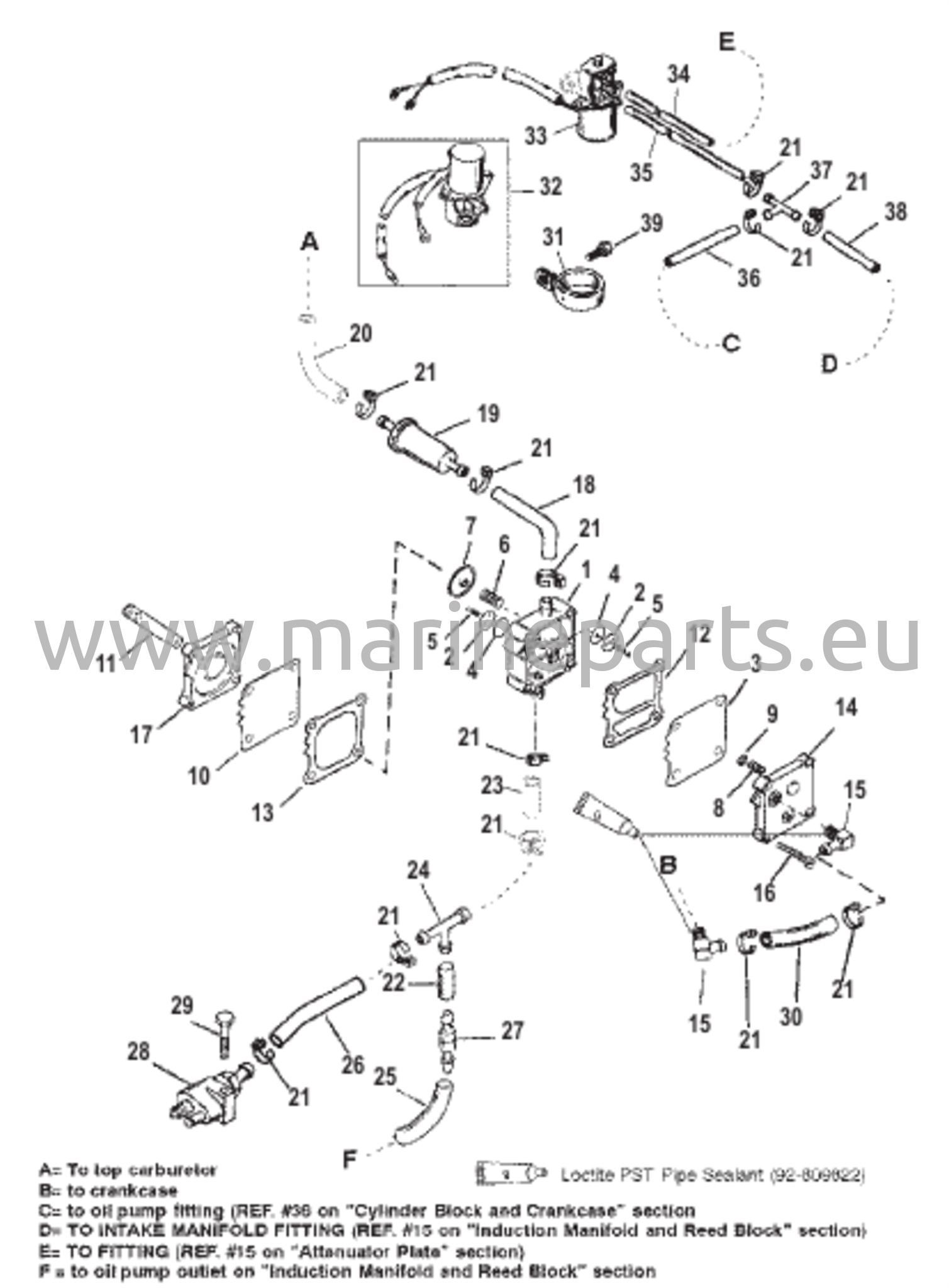

Fuel Pump (Electric)

Reference no. 85207097 10

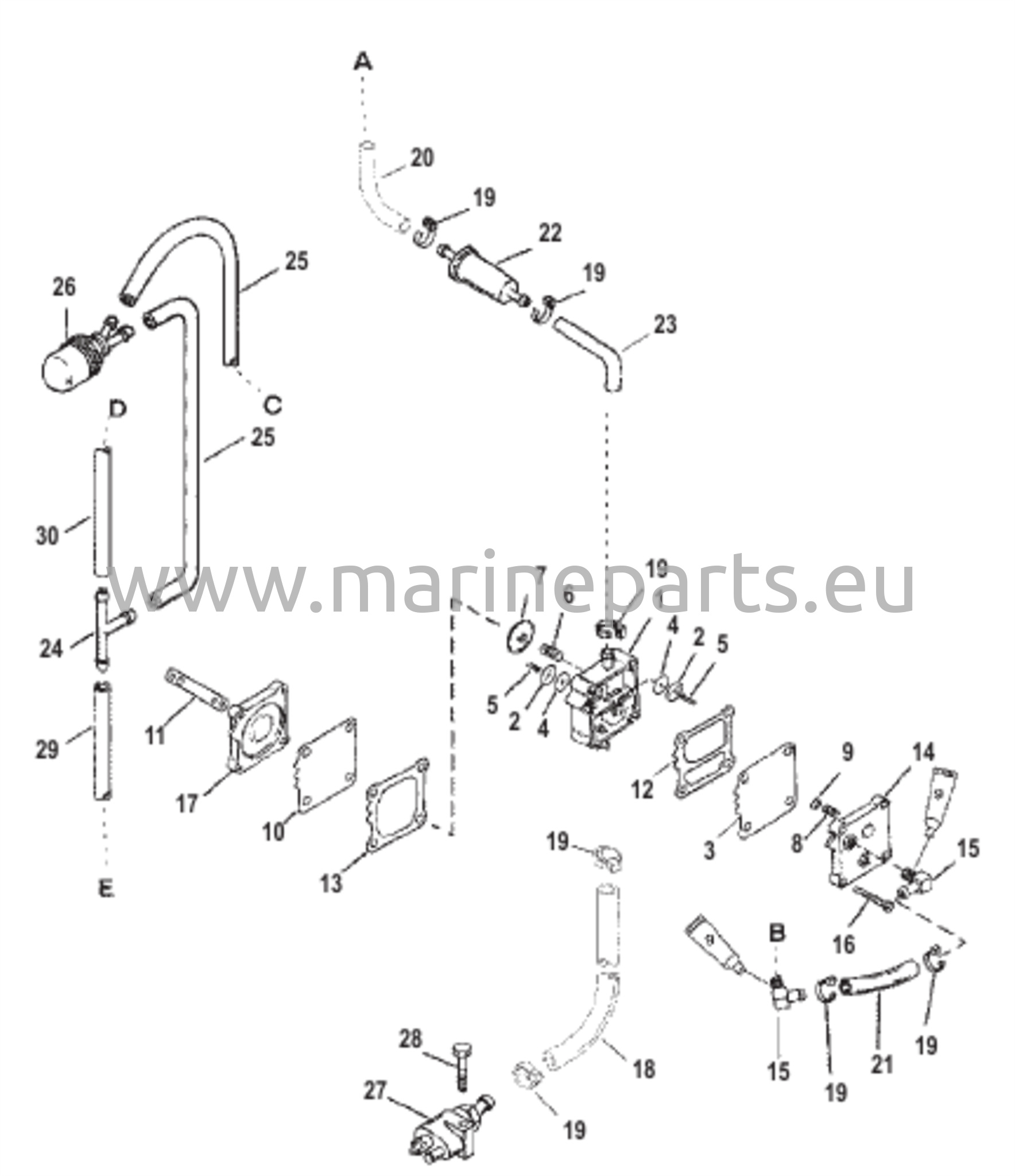

Fuel Pump (Manual)

Reference no. 85207097 11

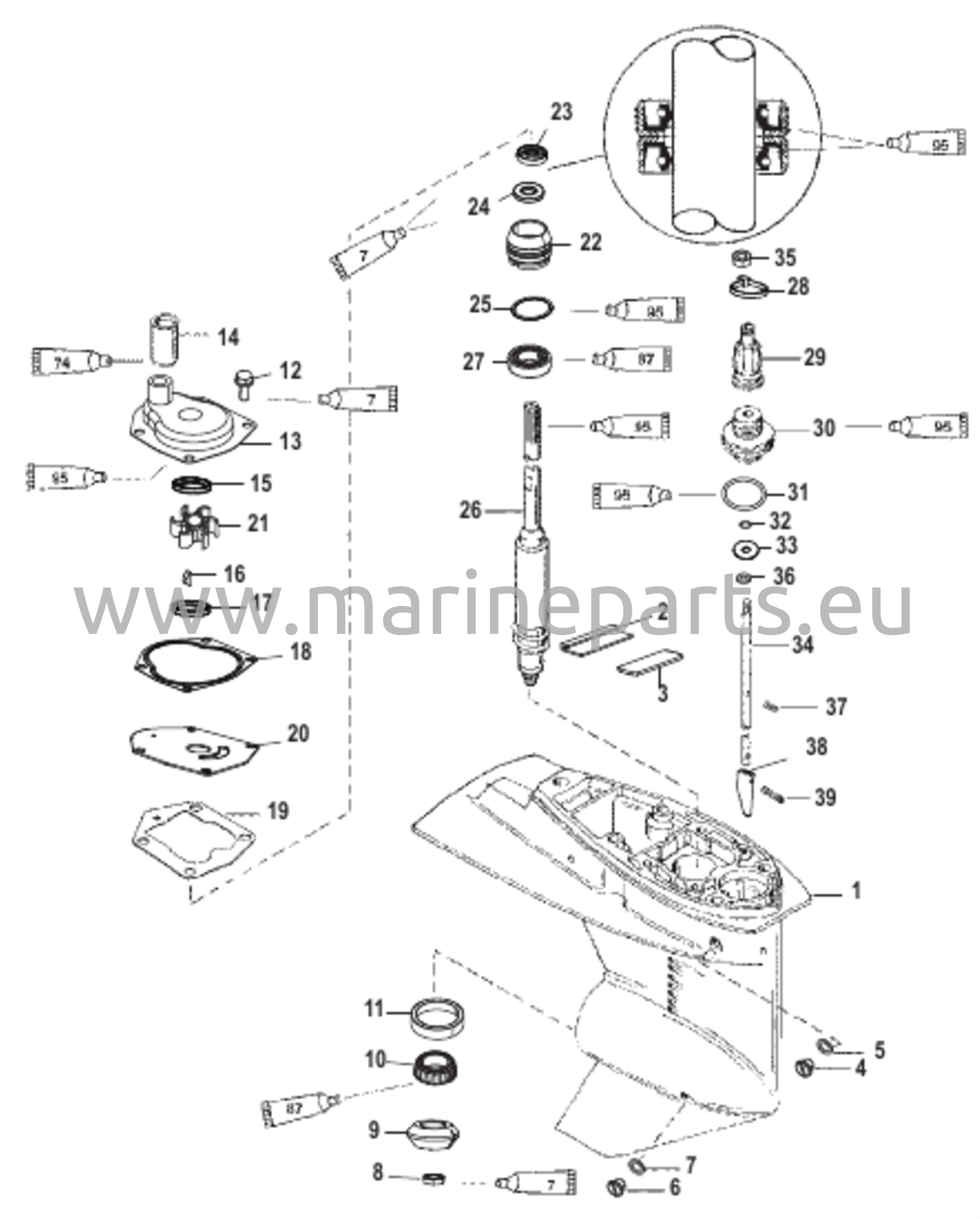

Gear Housing (Driveshaft) (1.83:1 Gear Ratio)

Reference no. 85207097 12

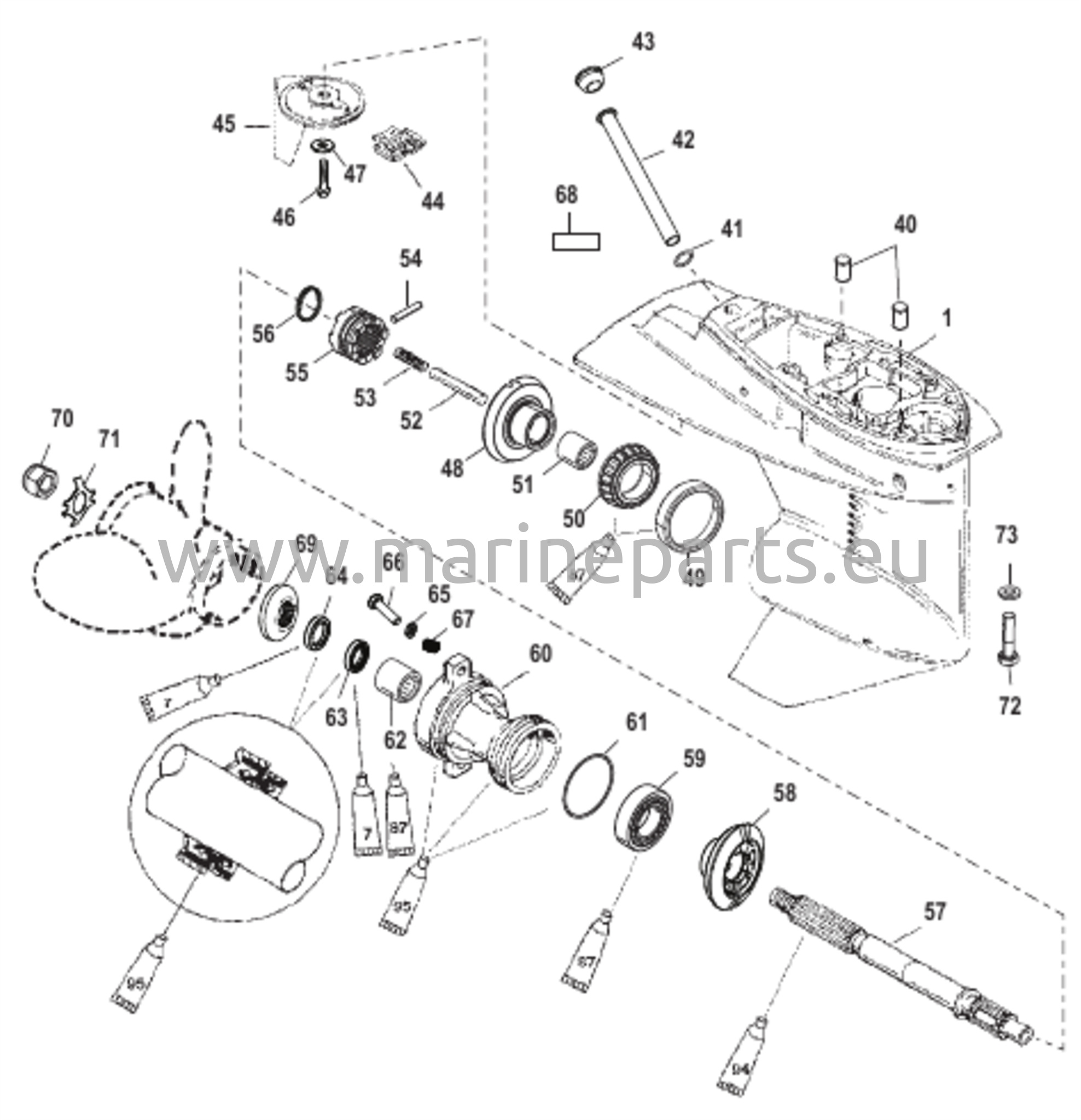

Gear Housing (Propeller Shaft) (1.83:1 Gear Ratio)

Reference no. 85207097 13

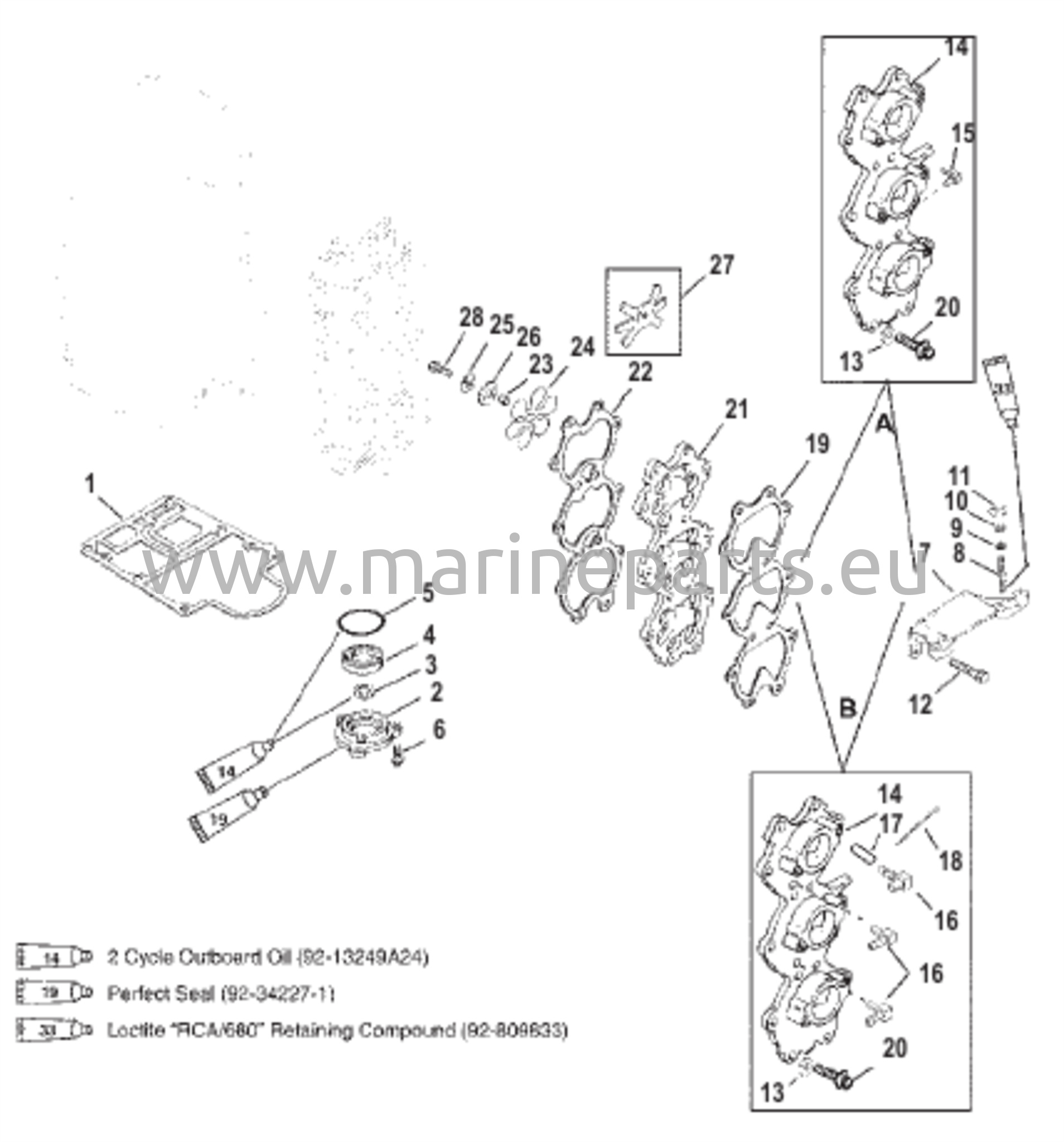

Induction Manifold and Reed Block

Reference no. 85207097 14

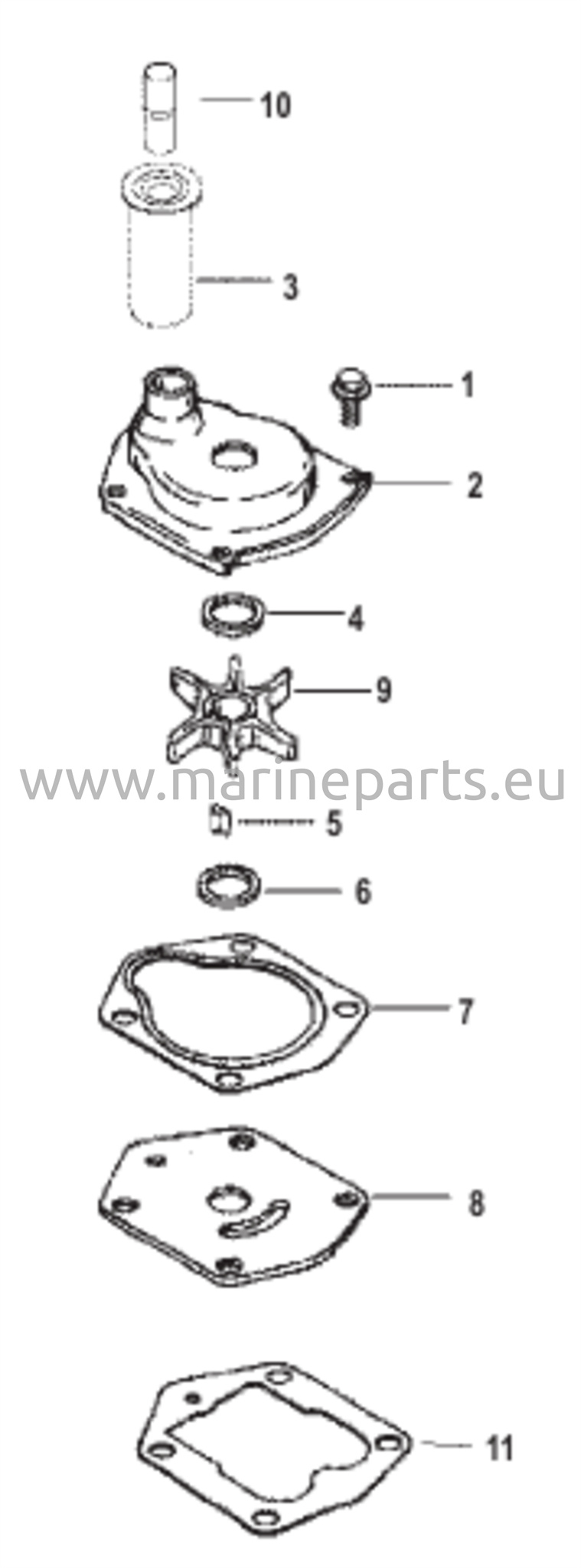

Jet Components

Reference no. 85207097 15

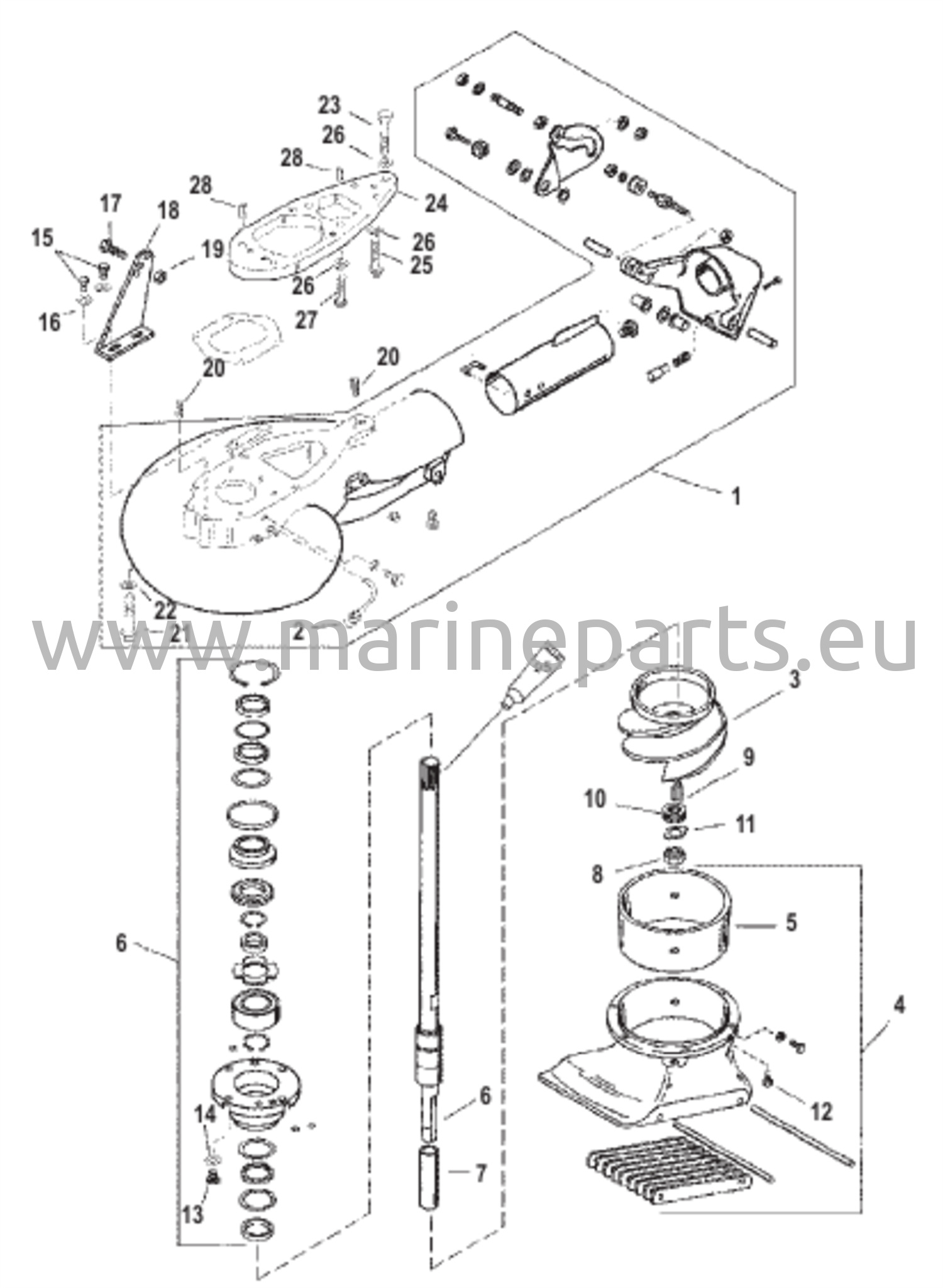

Jet Pump Assembly

Reference no. 85207097 16

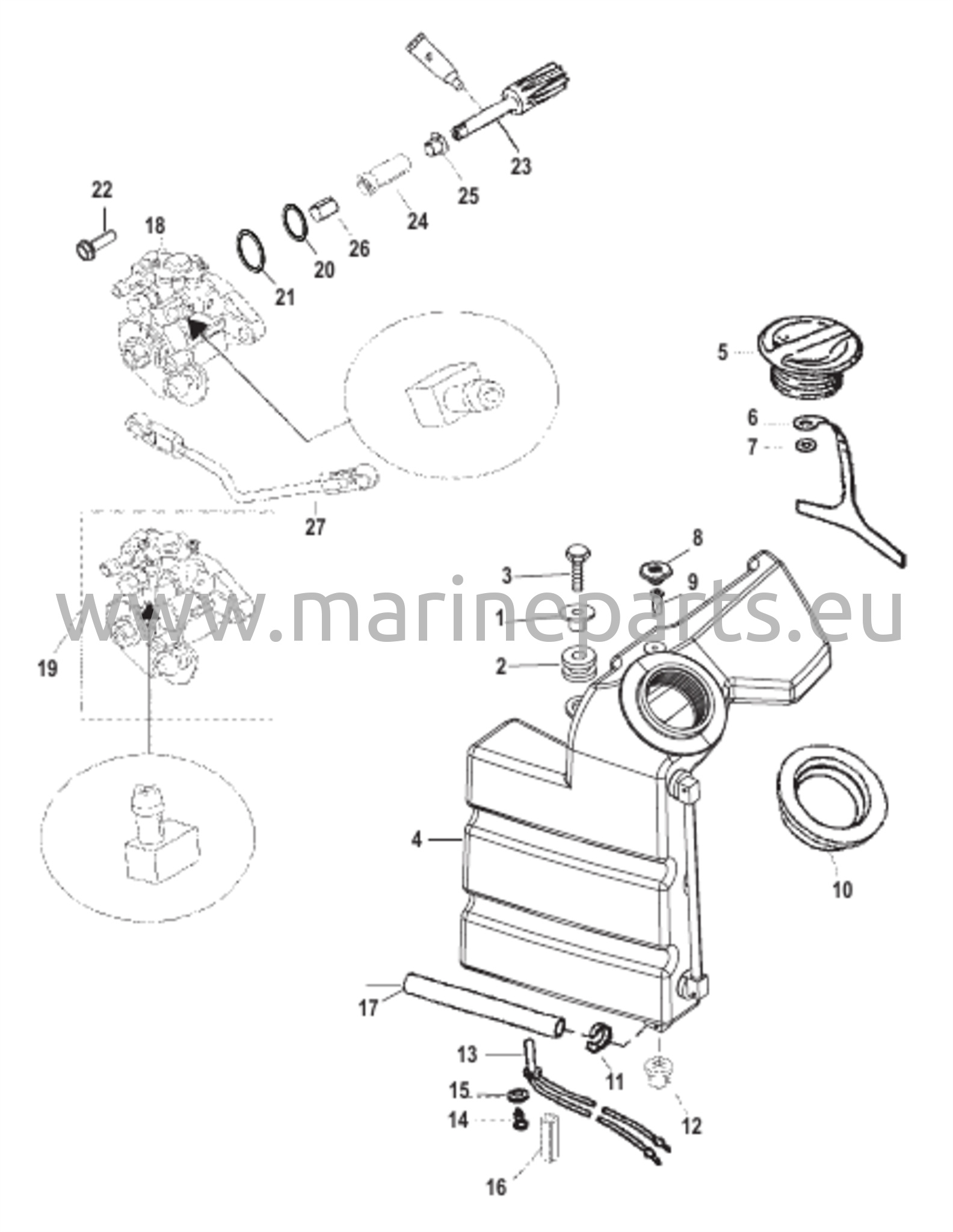

Oil Injection Components

Reference no. 85207097 17

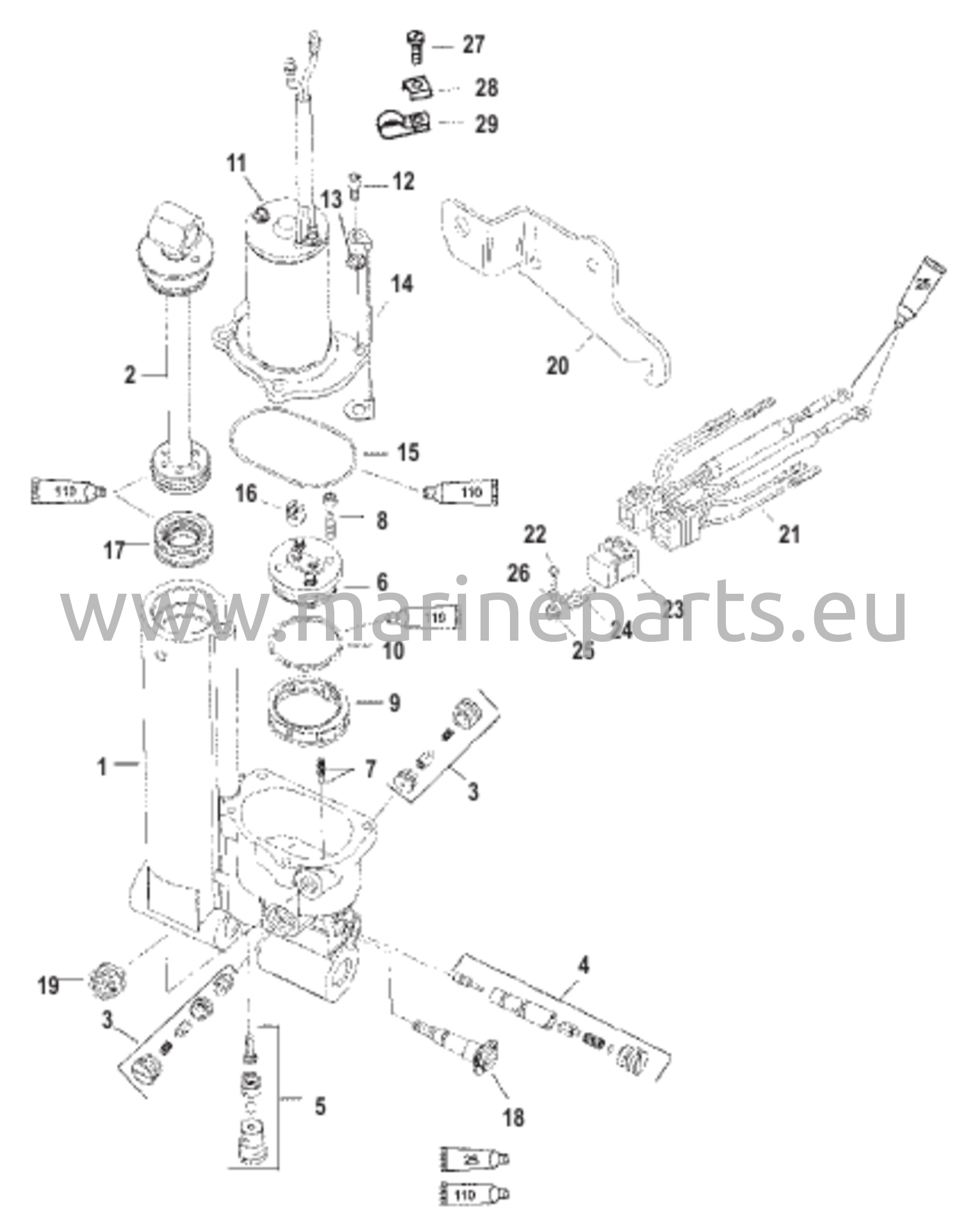

Power Trim

Reference no. 85207097 18

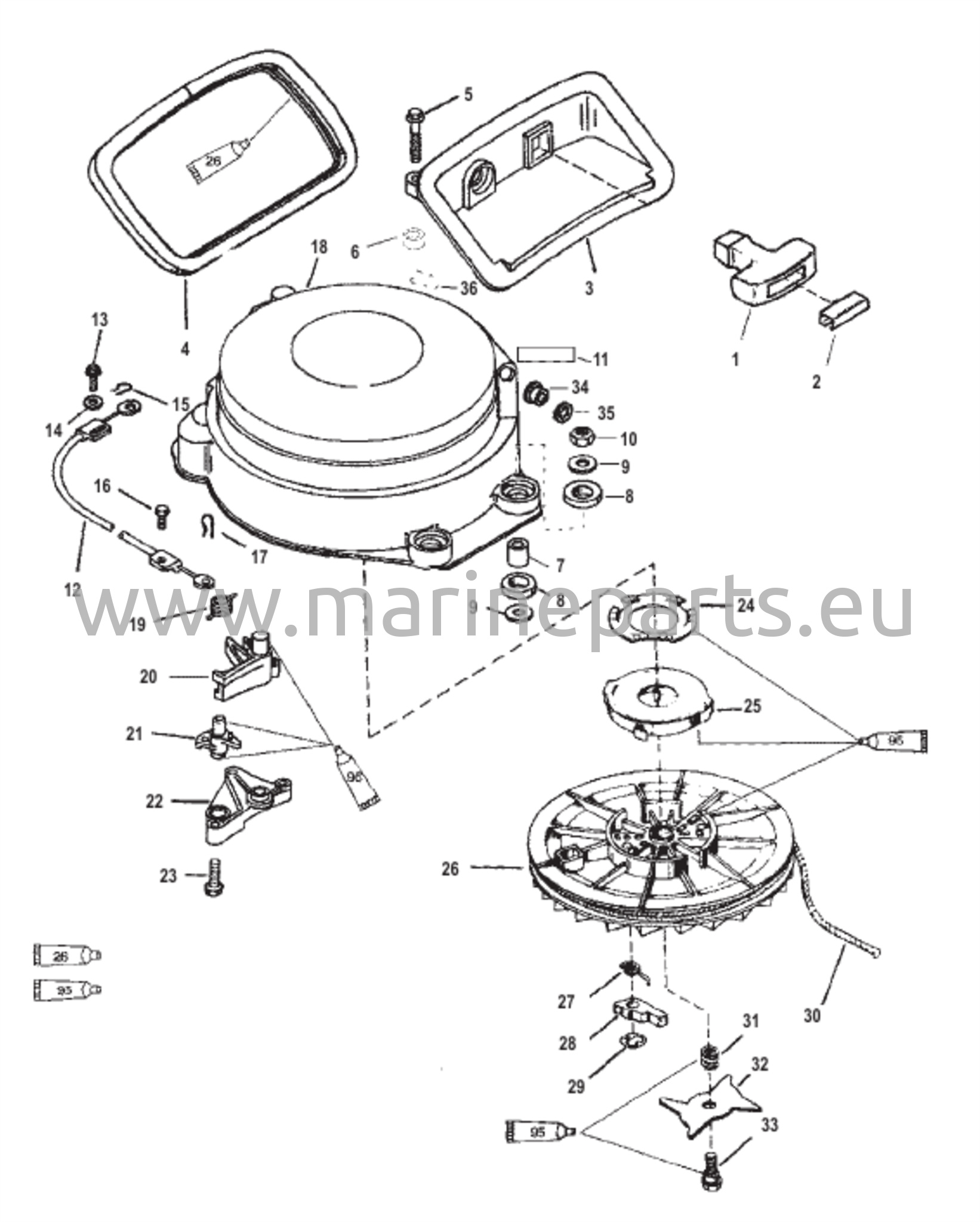

Starter Assembly (Manual)

Reference no. 85207097 19

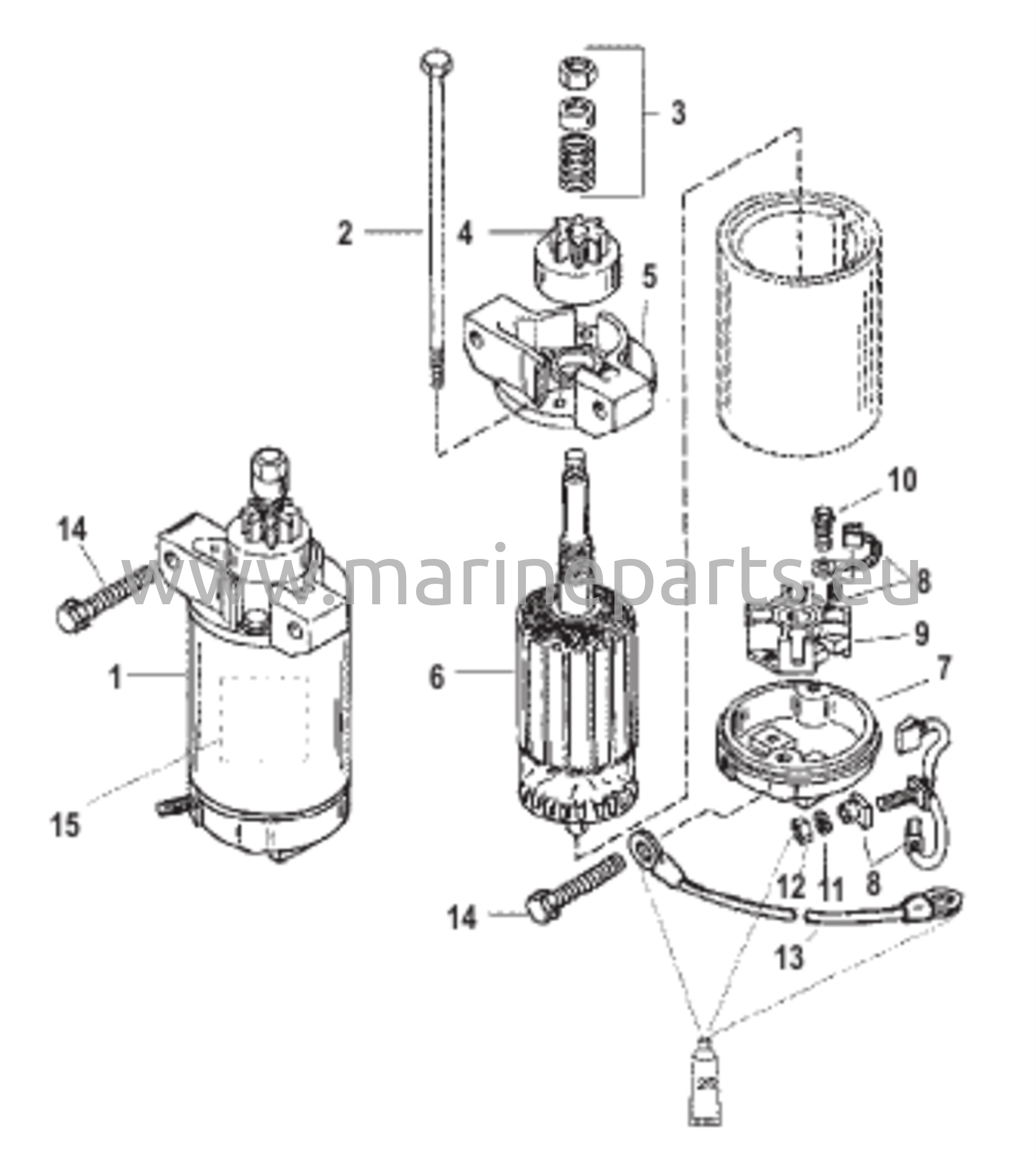

Starter Motor

Reference no. 85207097 20

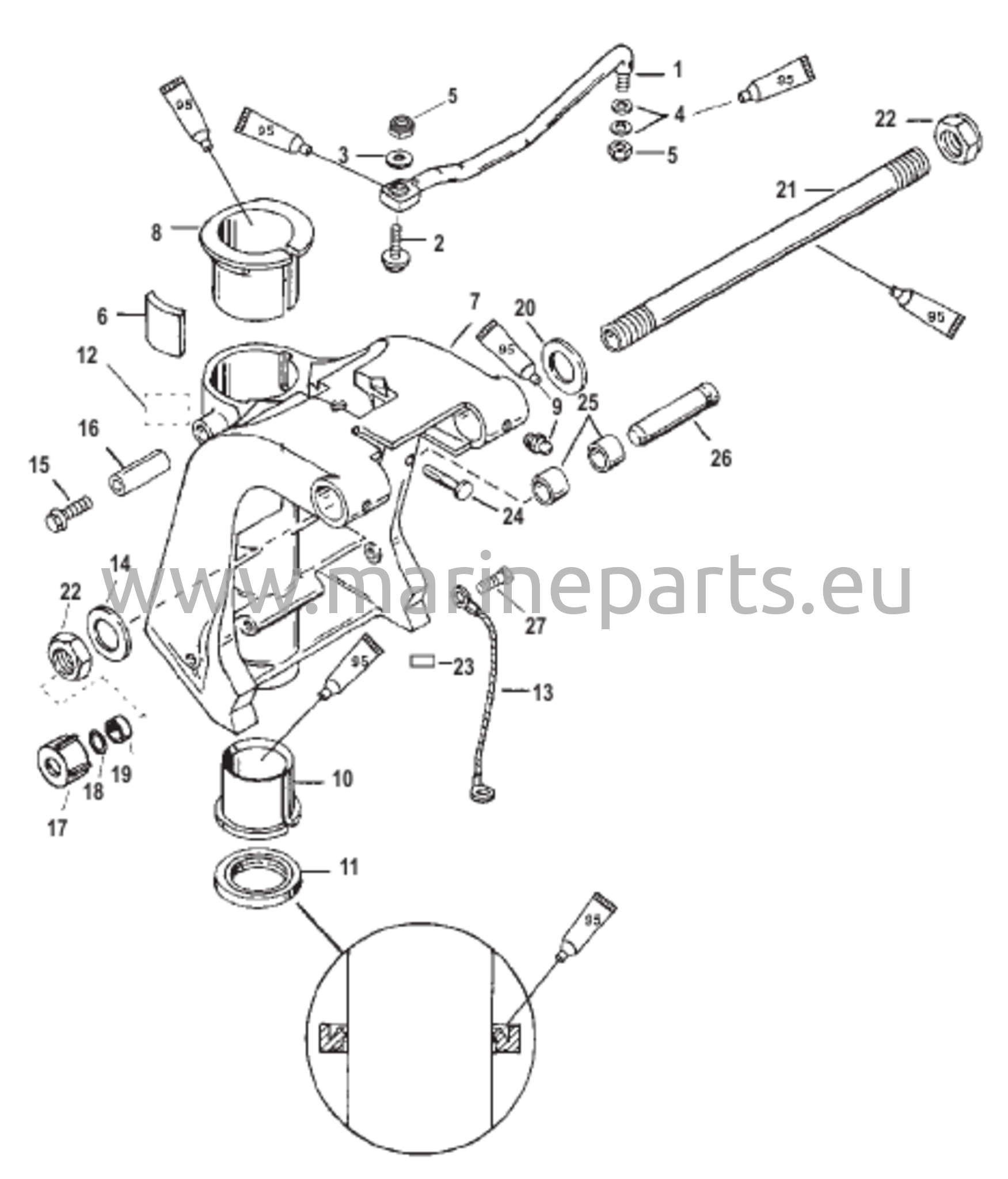

Swivel Bracket

Reference no. 85207097 21

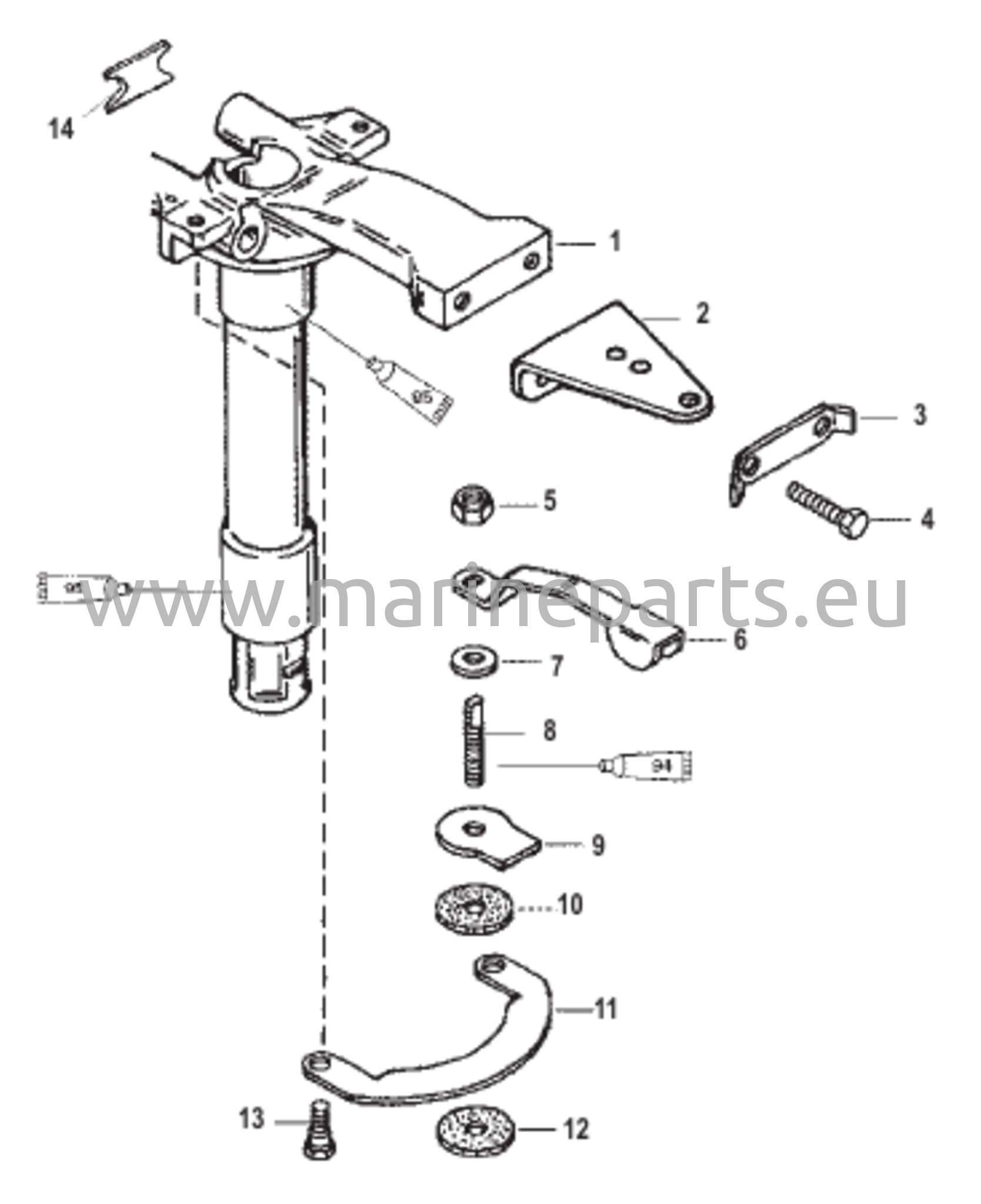

Swivel Tube

Reference no. 85207097 22

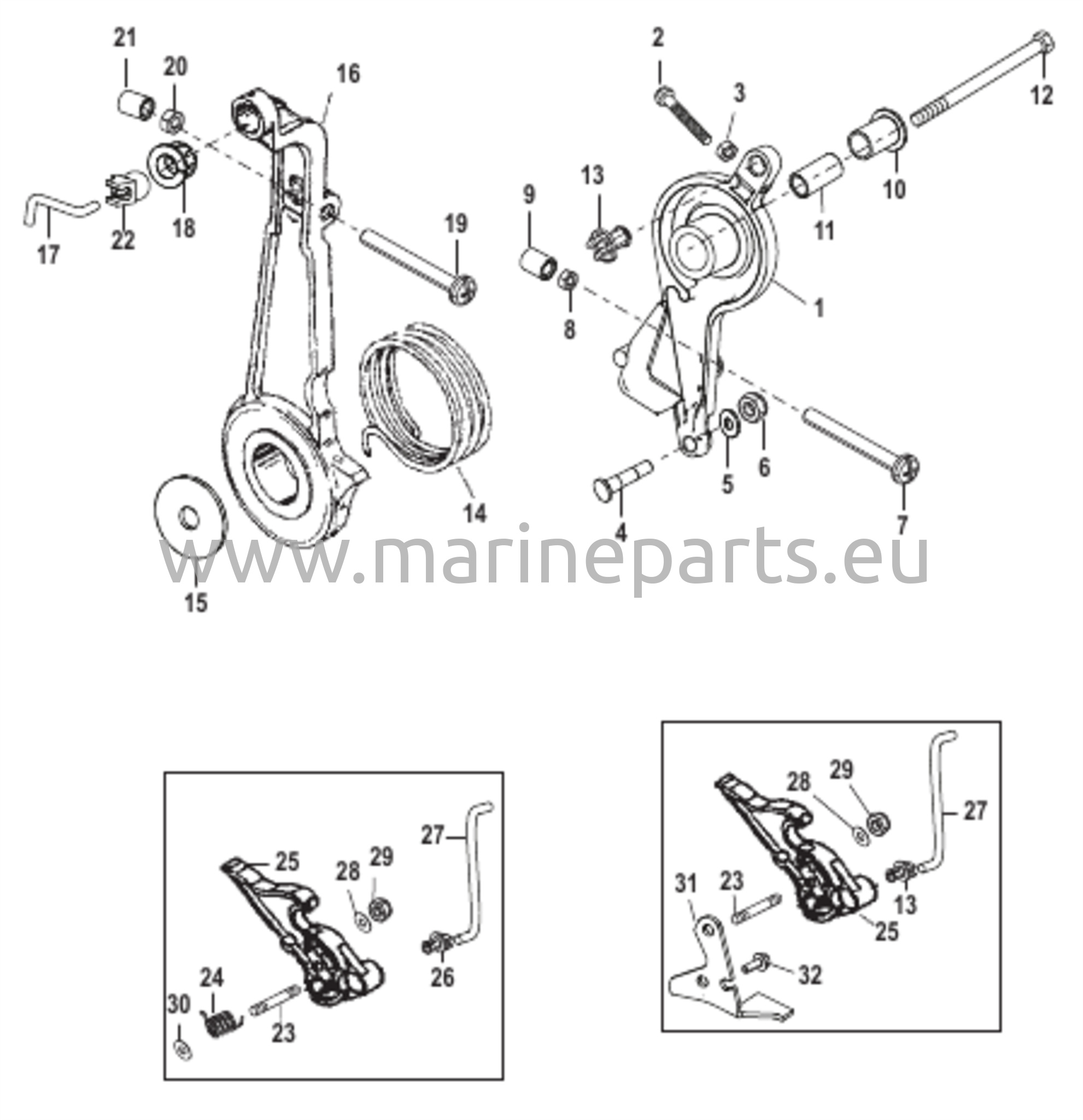

Throttle Lever and Linkage

Reference no. 85207097 23

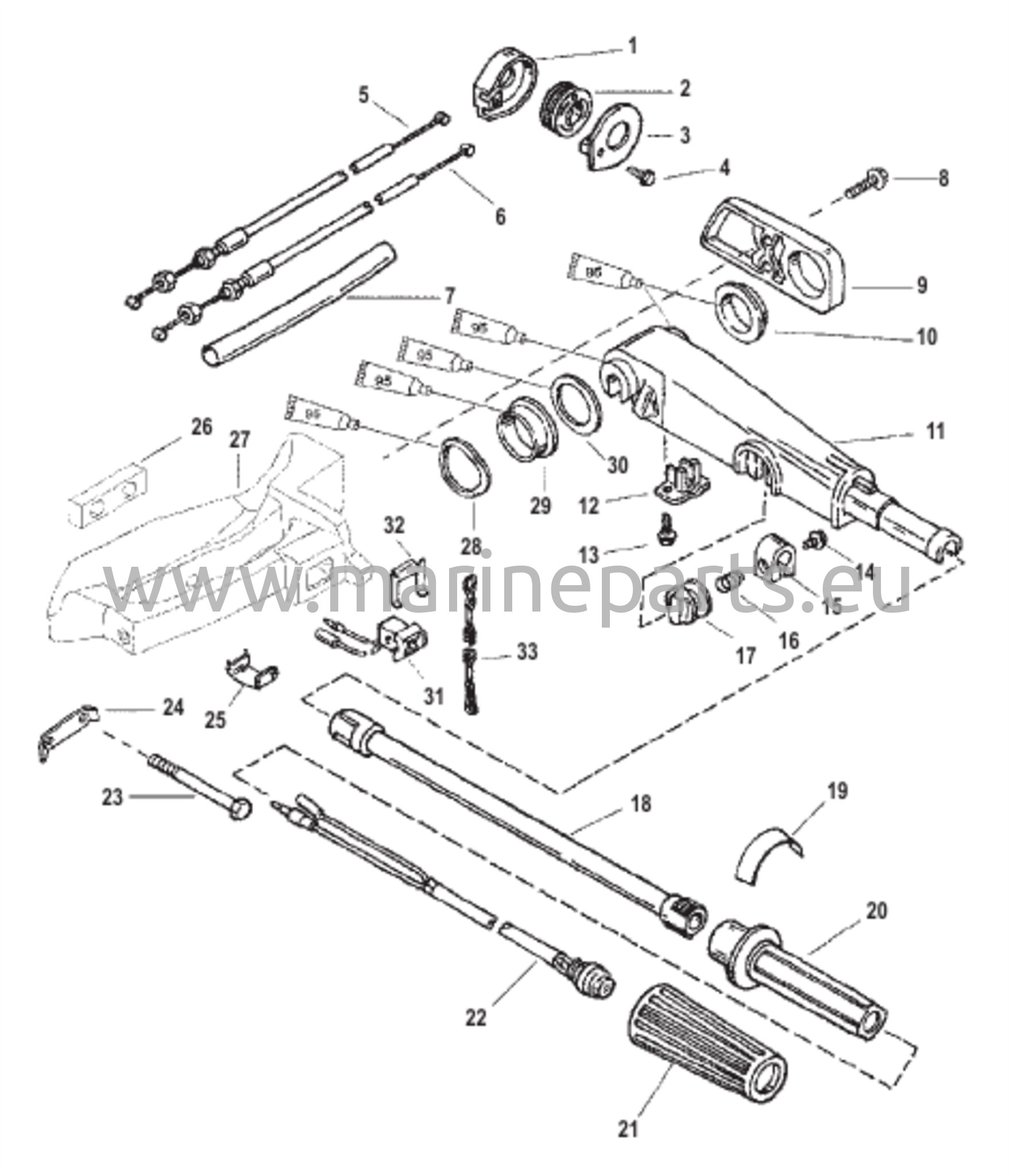

Tiller Handle

Reference no. 85207097 24

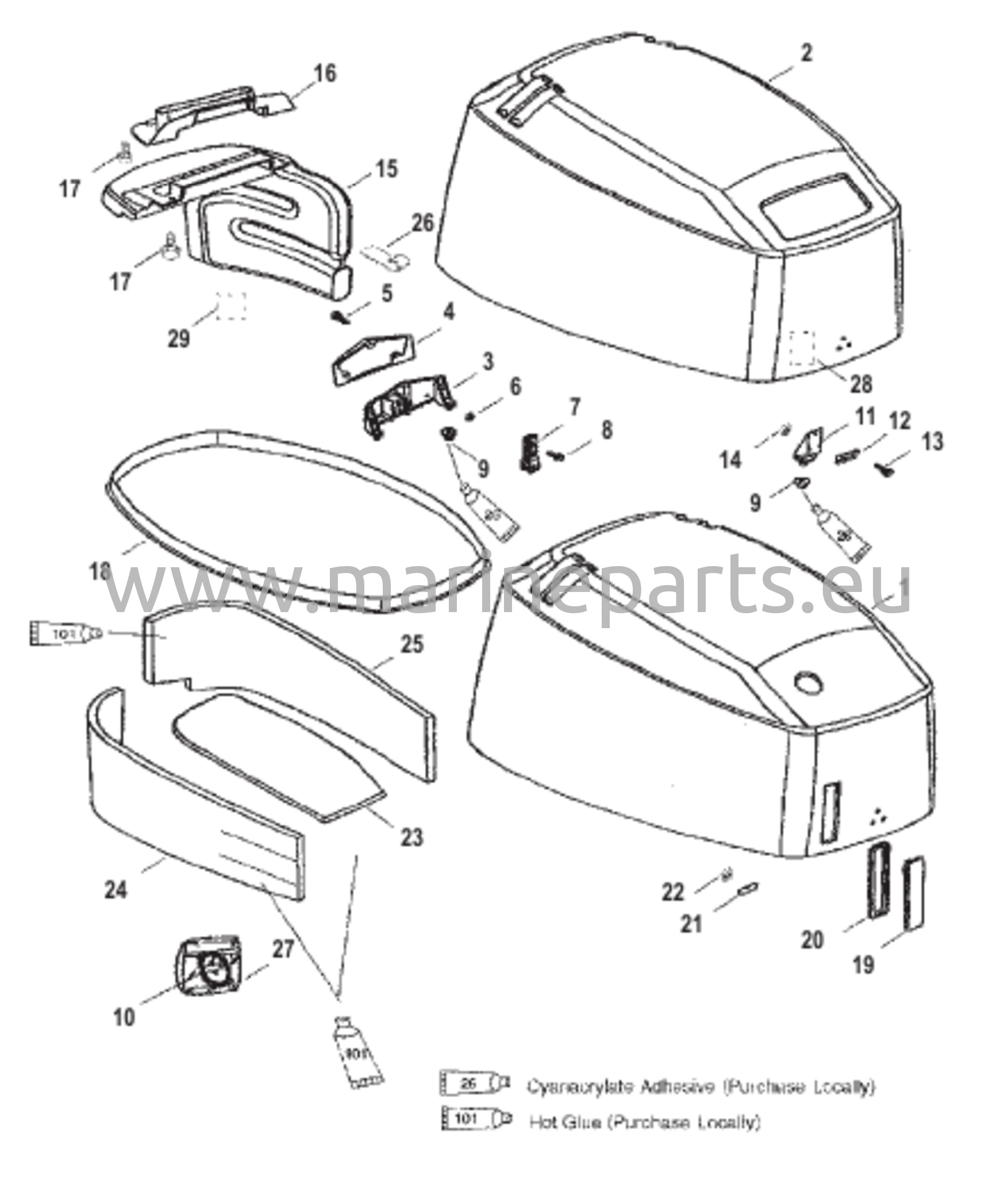

Top Cowl

Reference no. 85207097 25

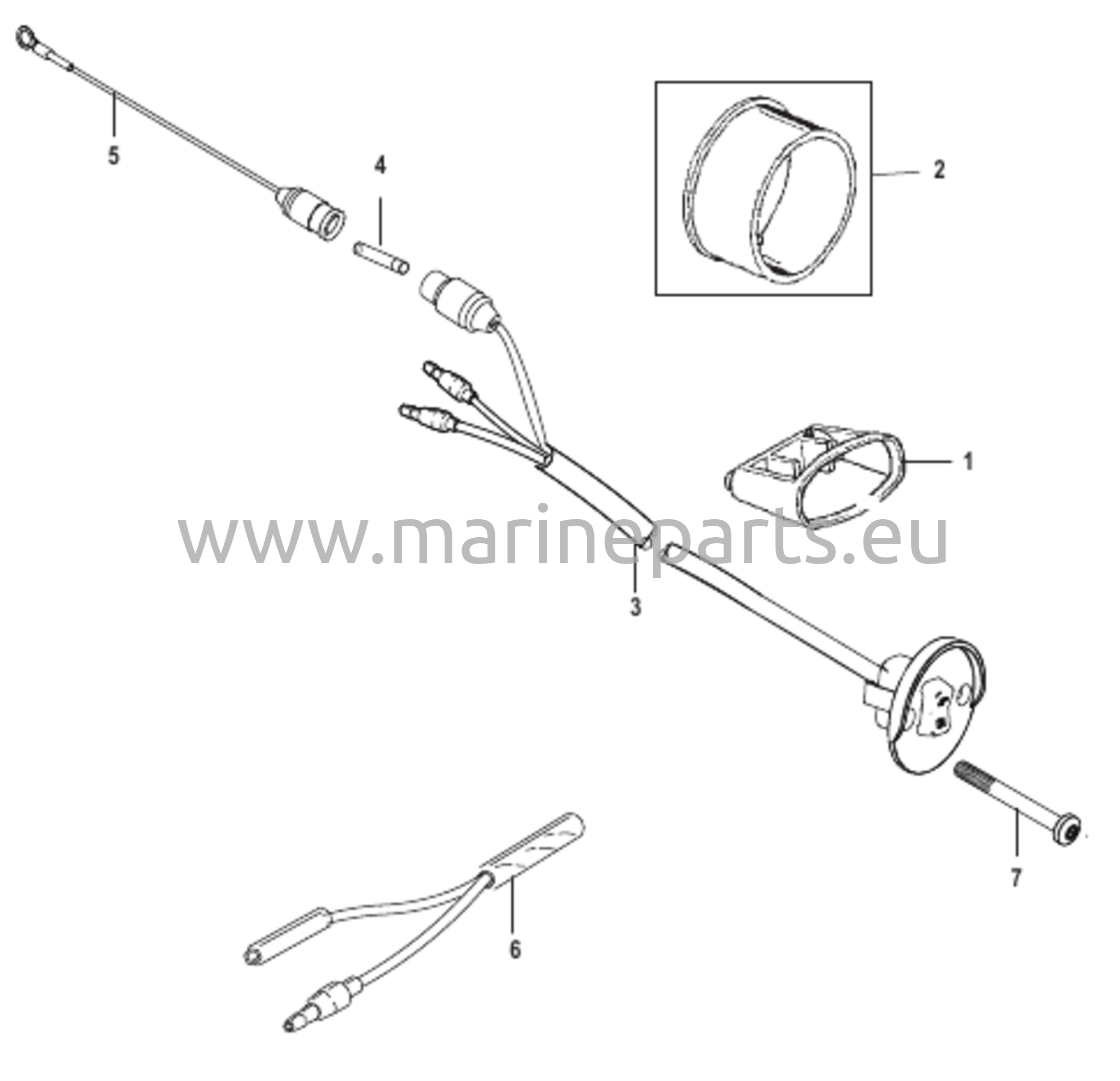

Trim Switch Kit

Reference no. 85207097 26
