Exploded views for Parts Catalog Mercury/Mariner 35 hp 2 cyl. (2-stroke)

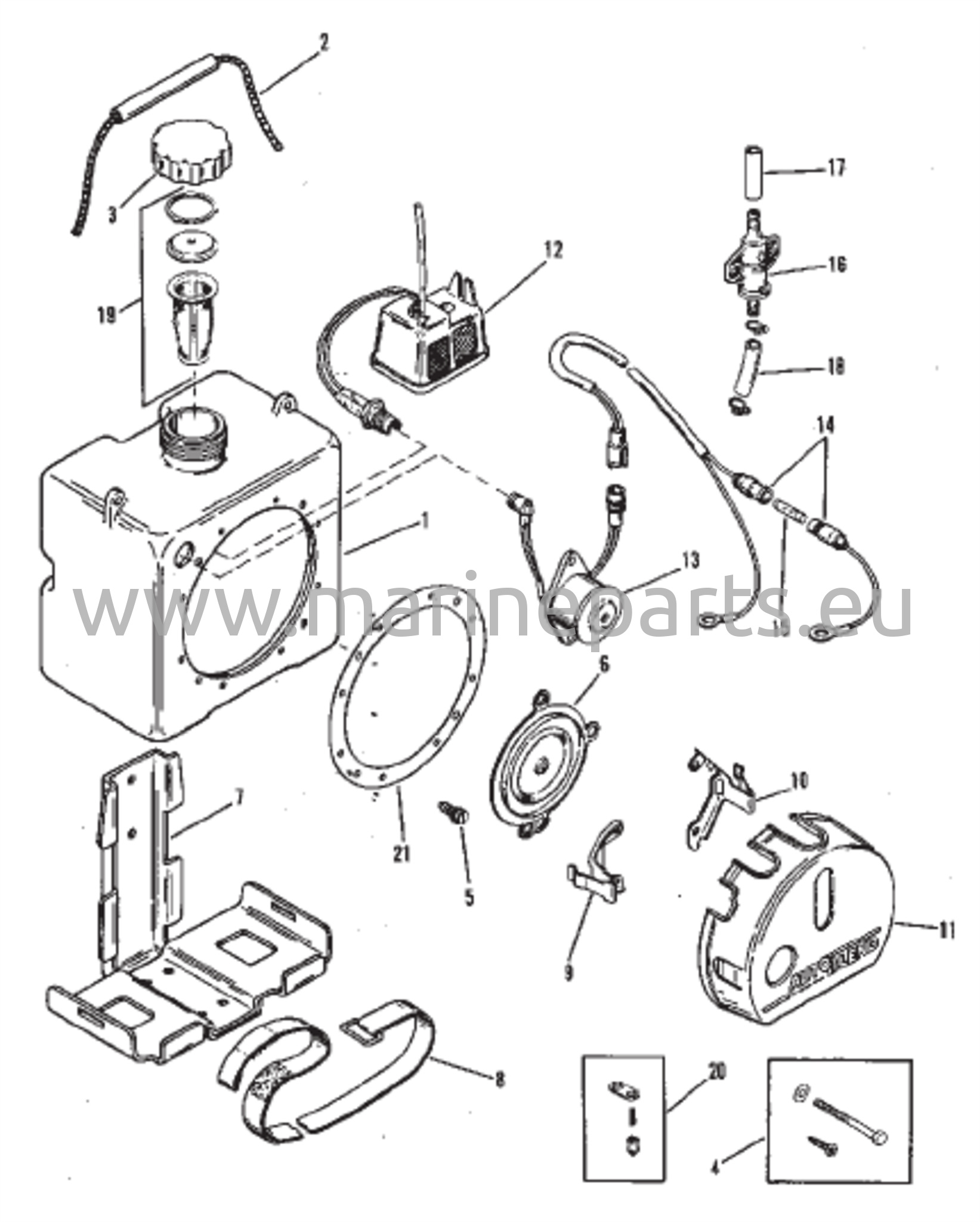

Auto-Blend

Reference no. 43116 0

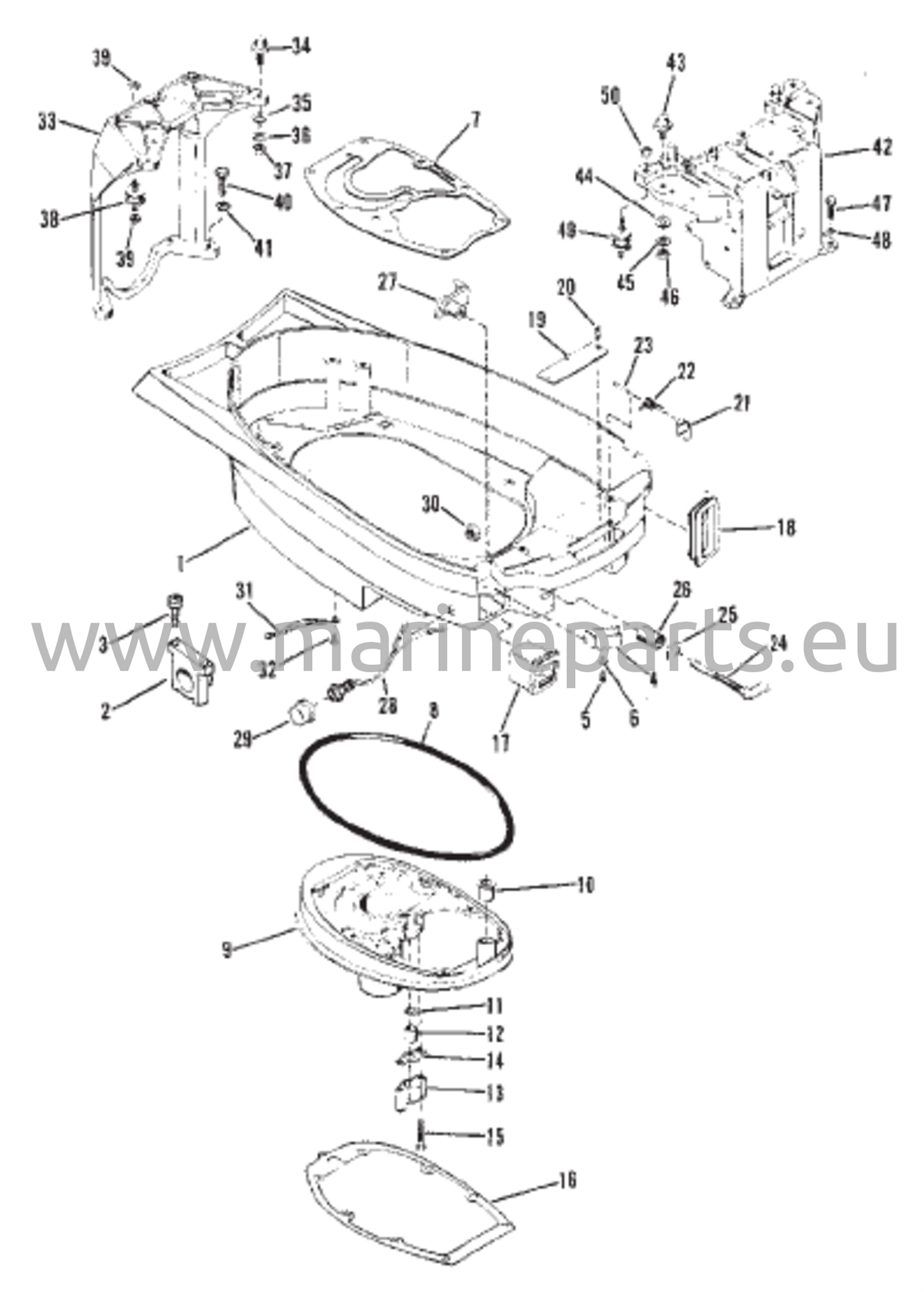

Bottom Cowl And Exhaust Plate

Reference no. 43116 1

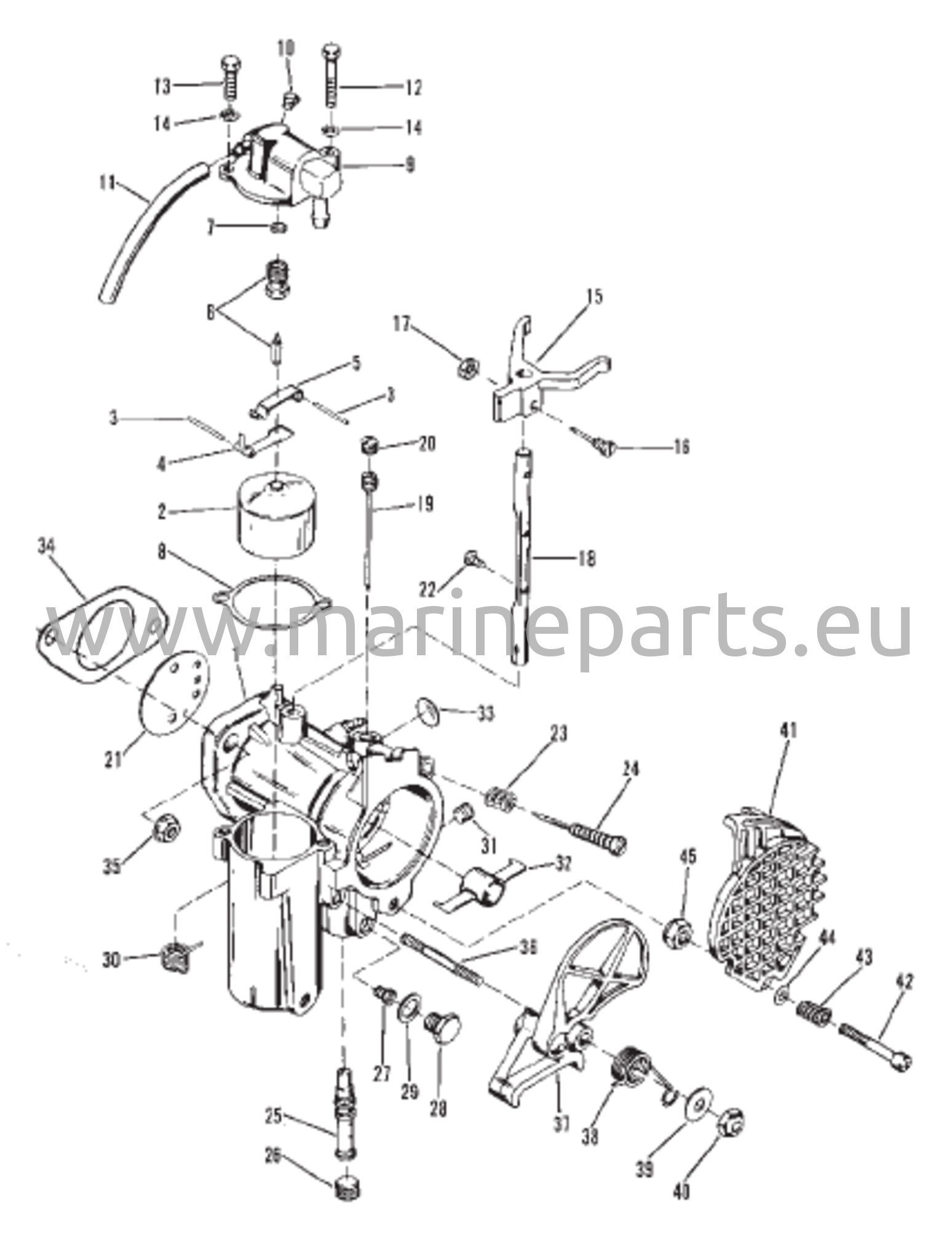

Carburetor Assembly

Reference no. 43116 2

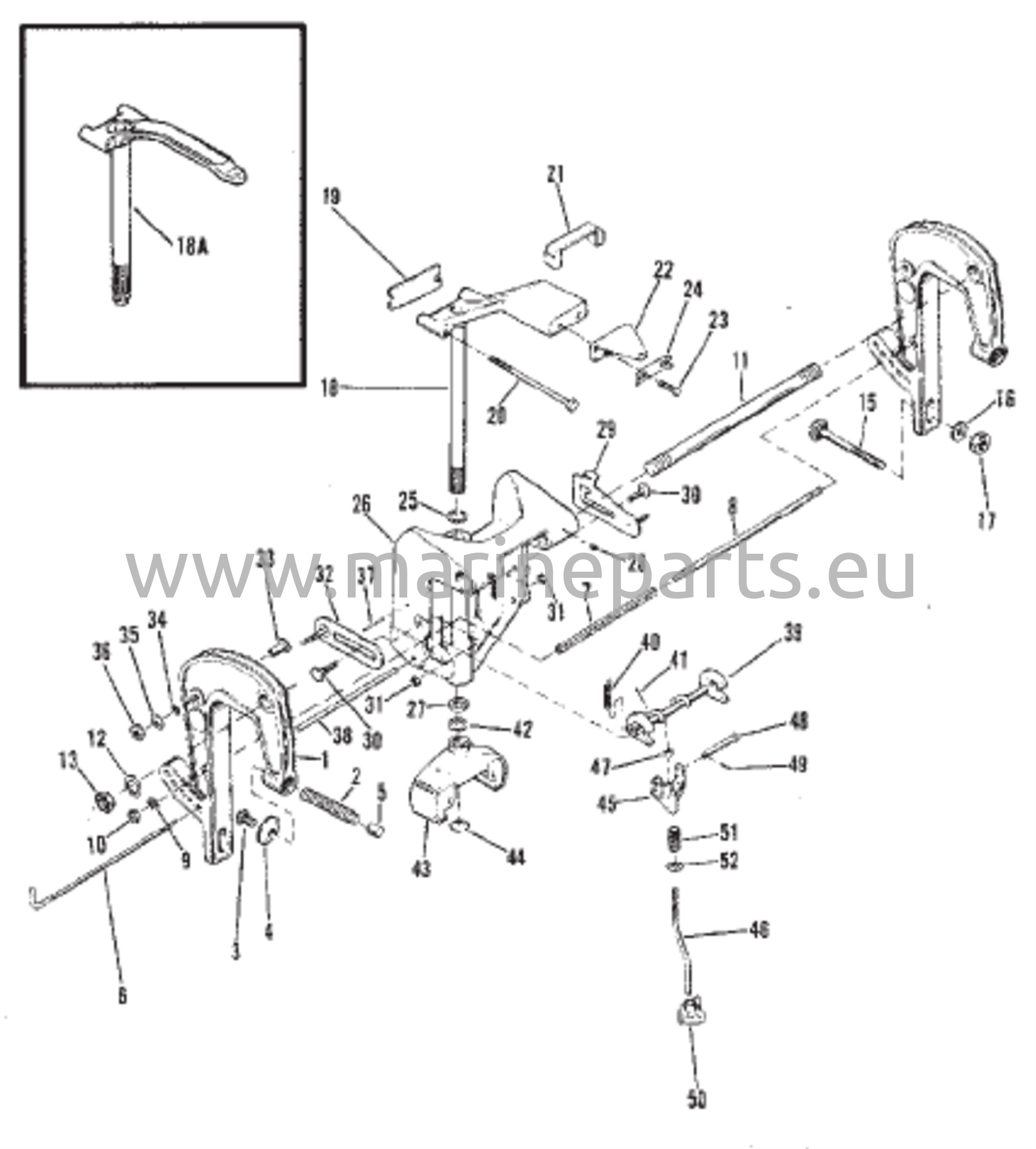

Clamp And Swivel Bracket (Non Power Trim)

Reference no. 43116 3

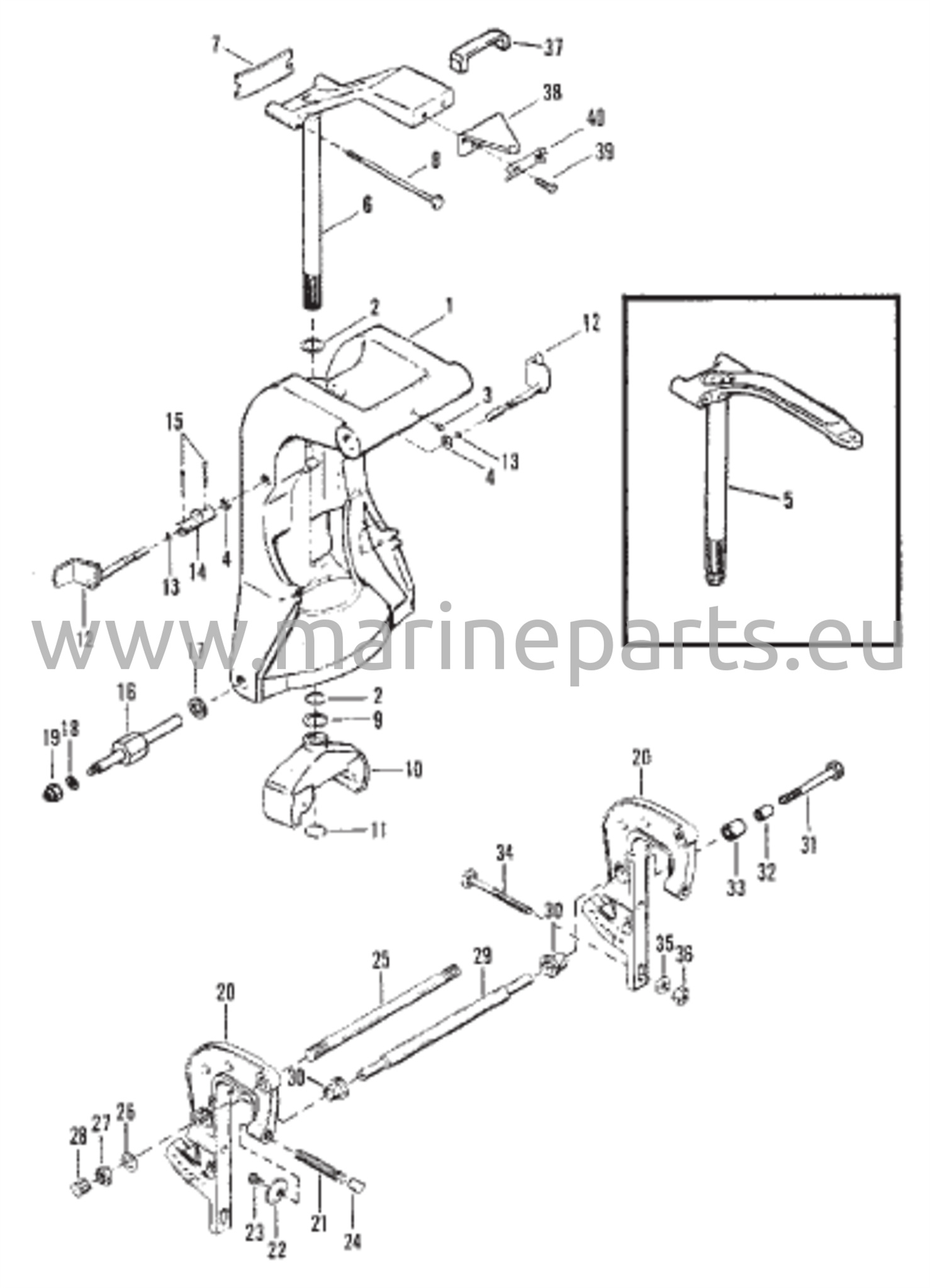

Clamp And Swivel Bracket (Power Trim)

Reference no. 43116 4

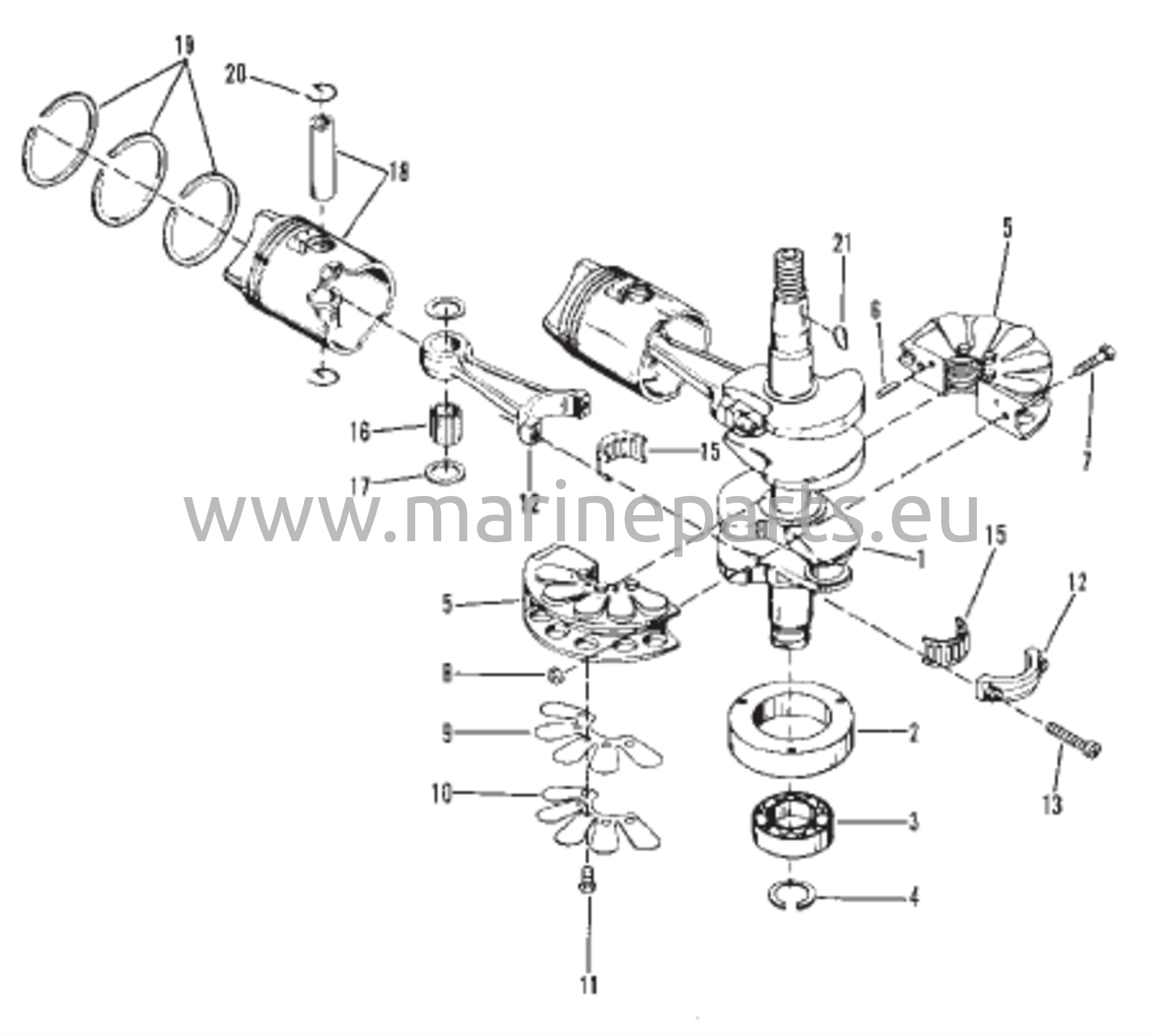

Crankshaft, Pistons And Connecting Rods

Reference no. 43116 5

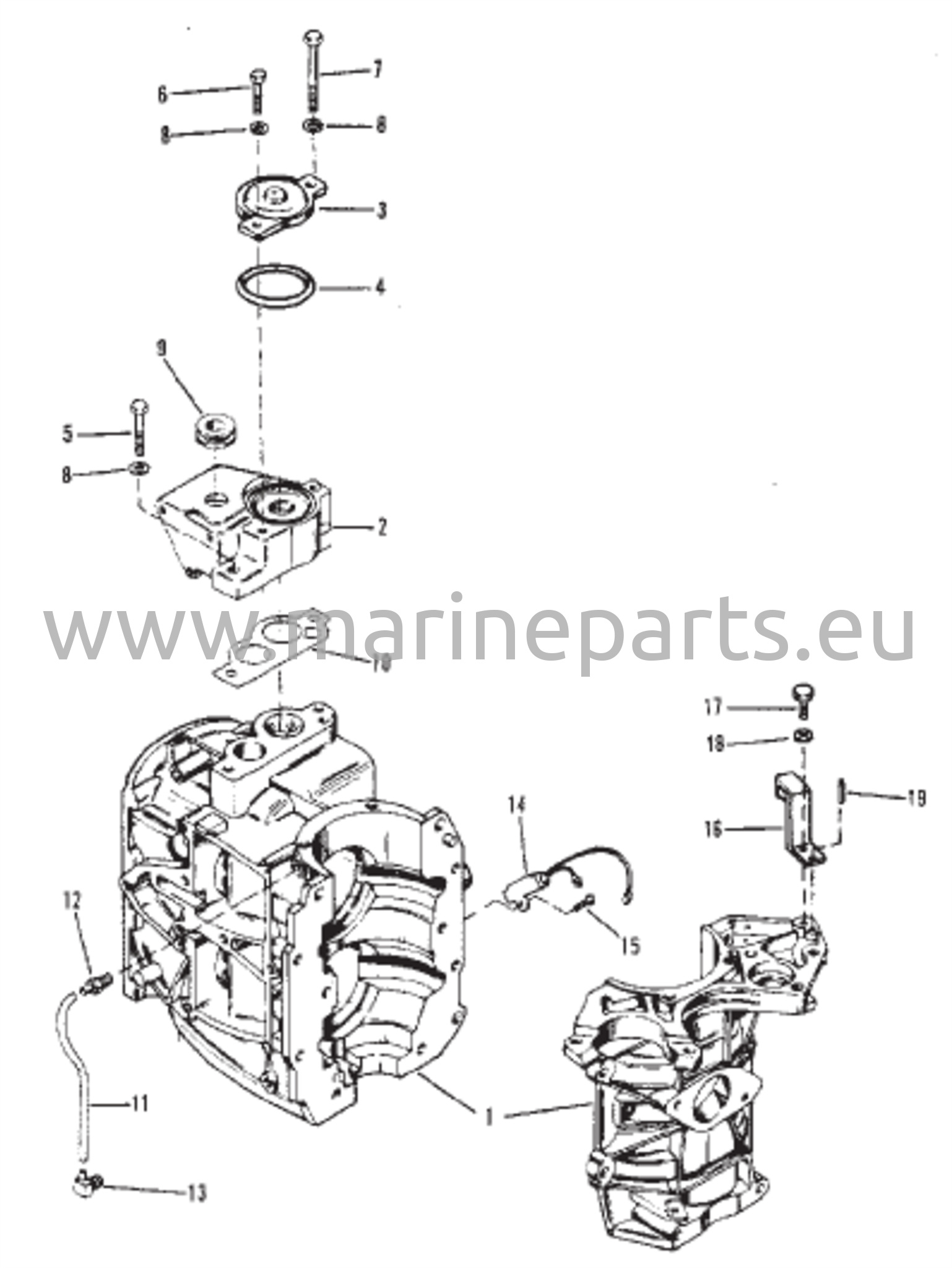

Cylinder Block And Thermostat

Reference no. 43116 6

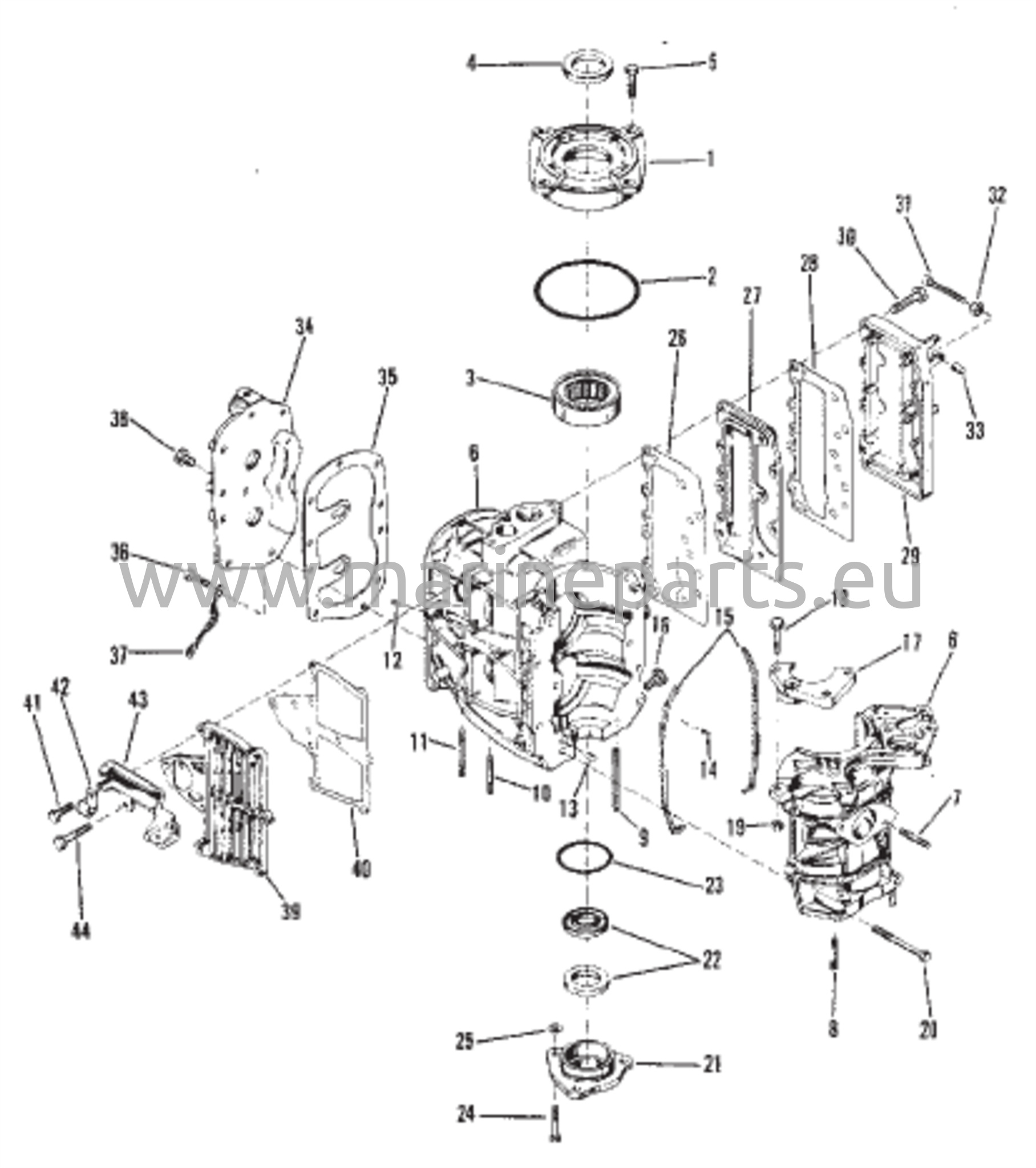

Cylinder Block Crankcase And Covers

Reference no. 43116 7

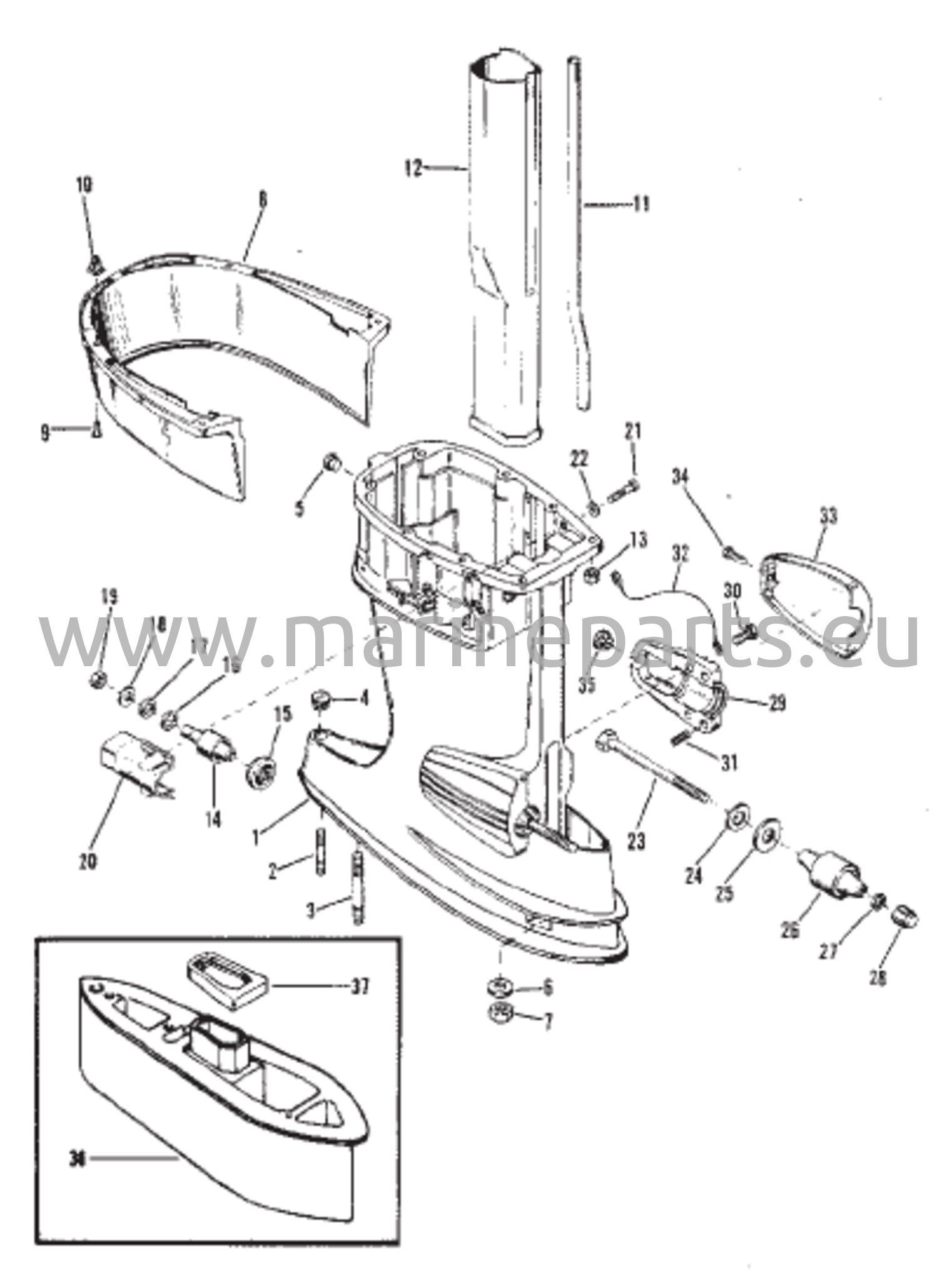

Driveshaft Housing

Reference no. 43116 8

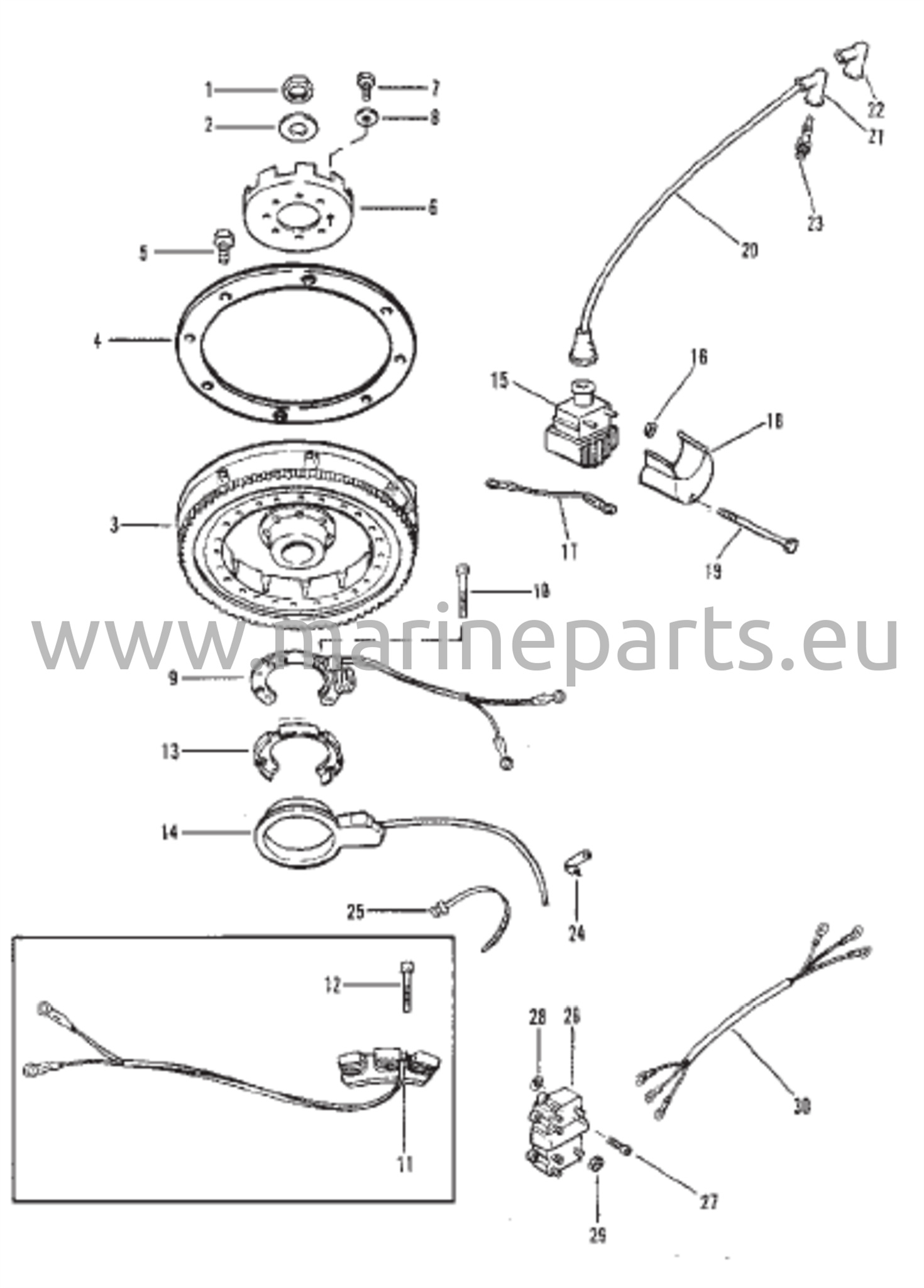

Flywheel, Ignition Coil And Switch Box

Reference no. 43116 9

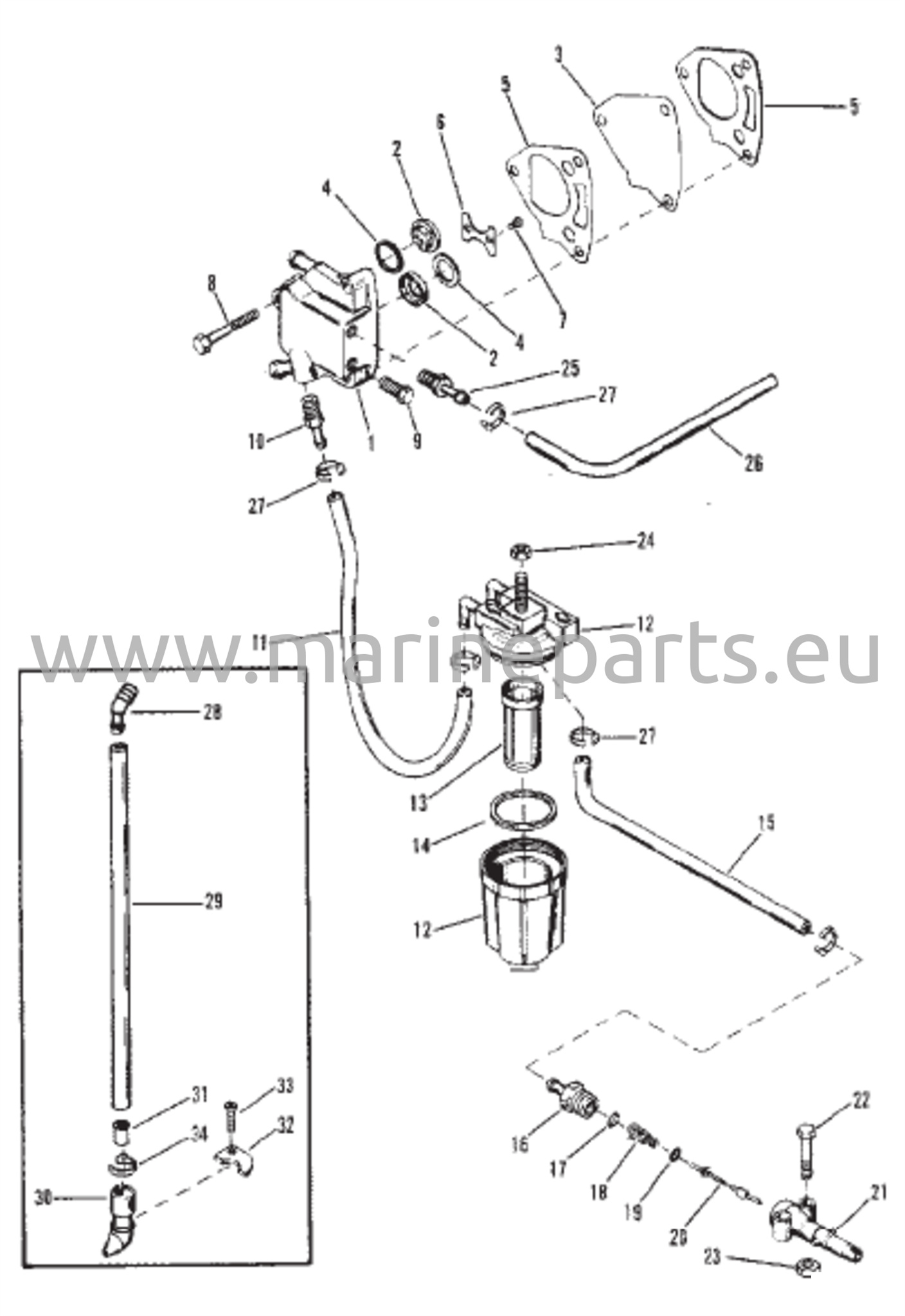

Fuel Pump And Fuel Line

Reference no. 43116 10

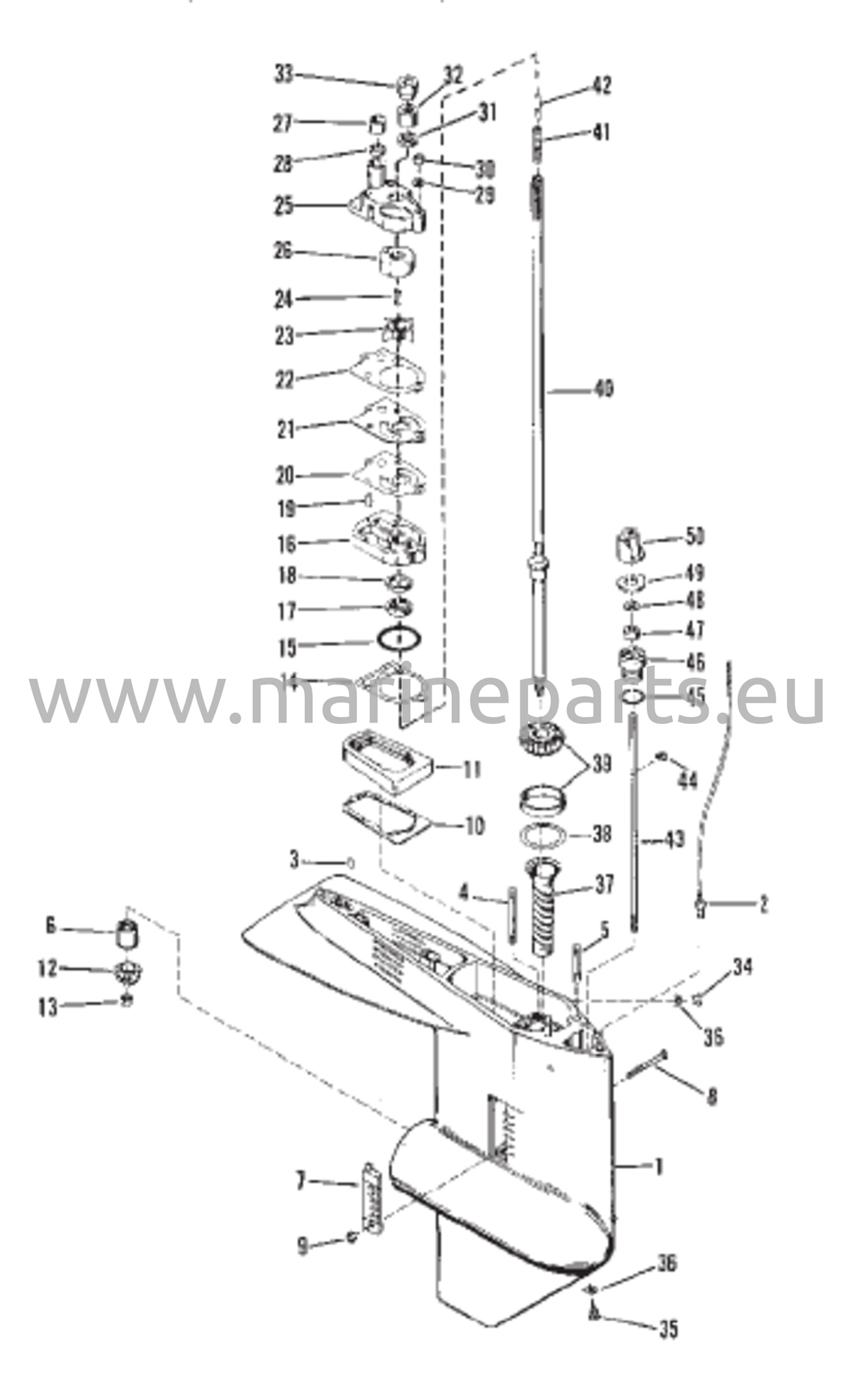

Gear Housing (Driveshaft)

Reference no. 43116 11

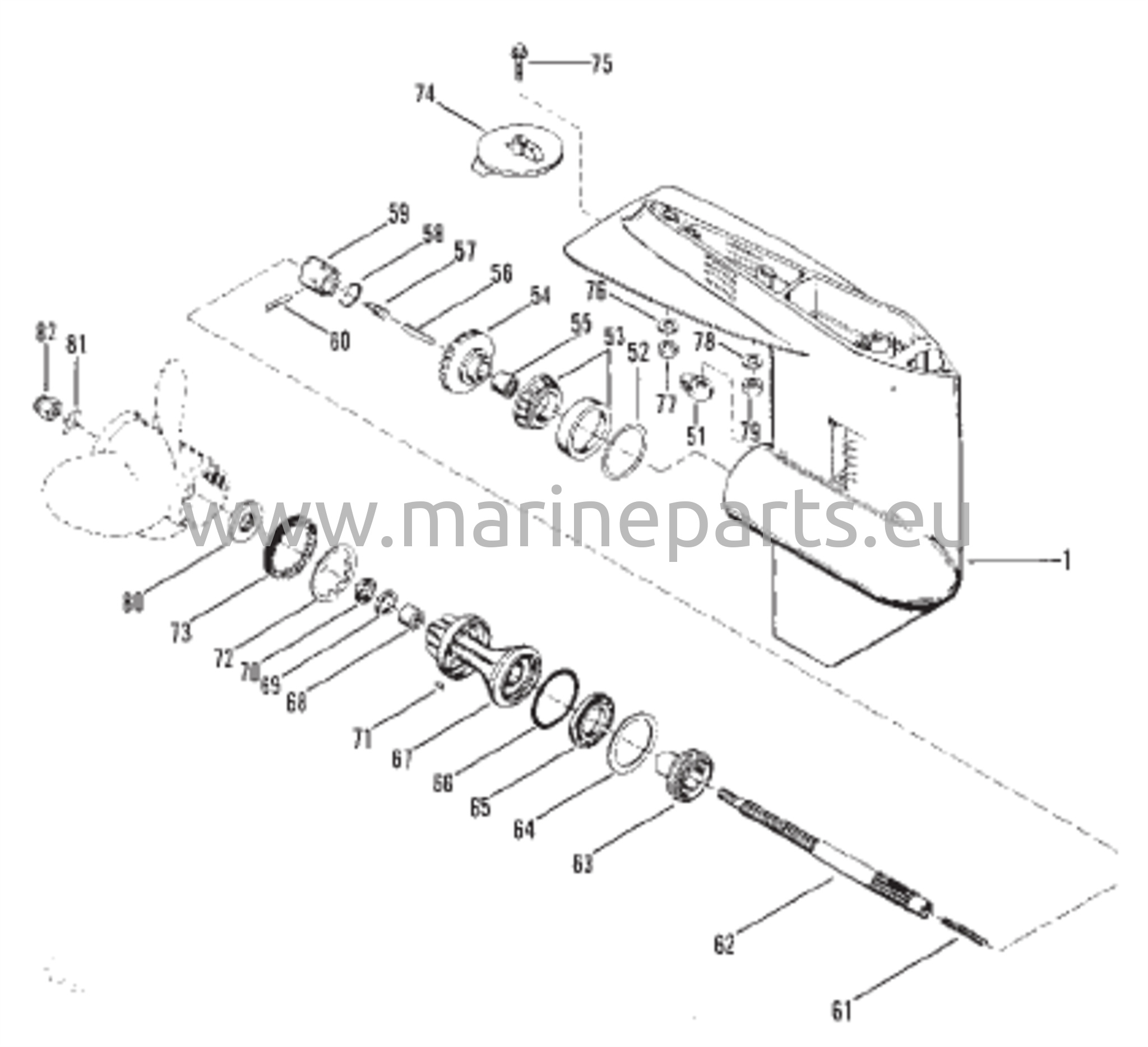

Gear Housing (Propeller Shaft)

Reference no. 43116 12

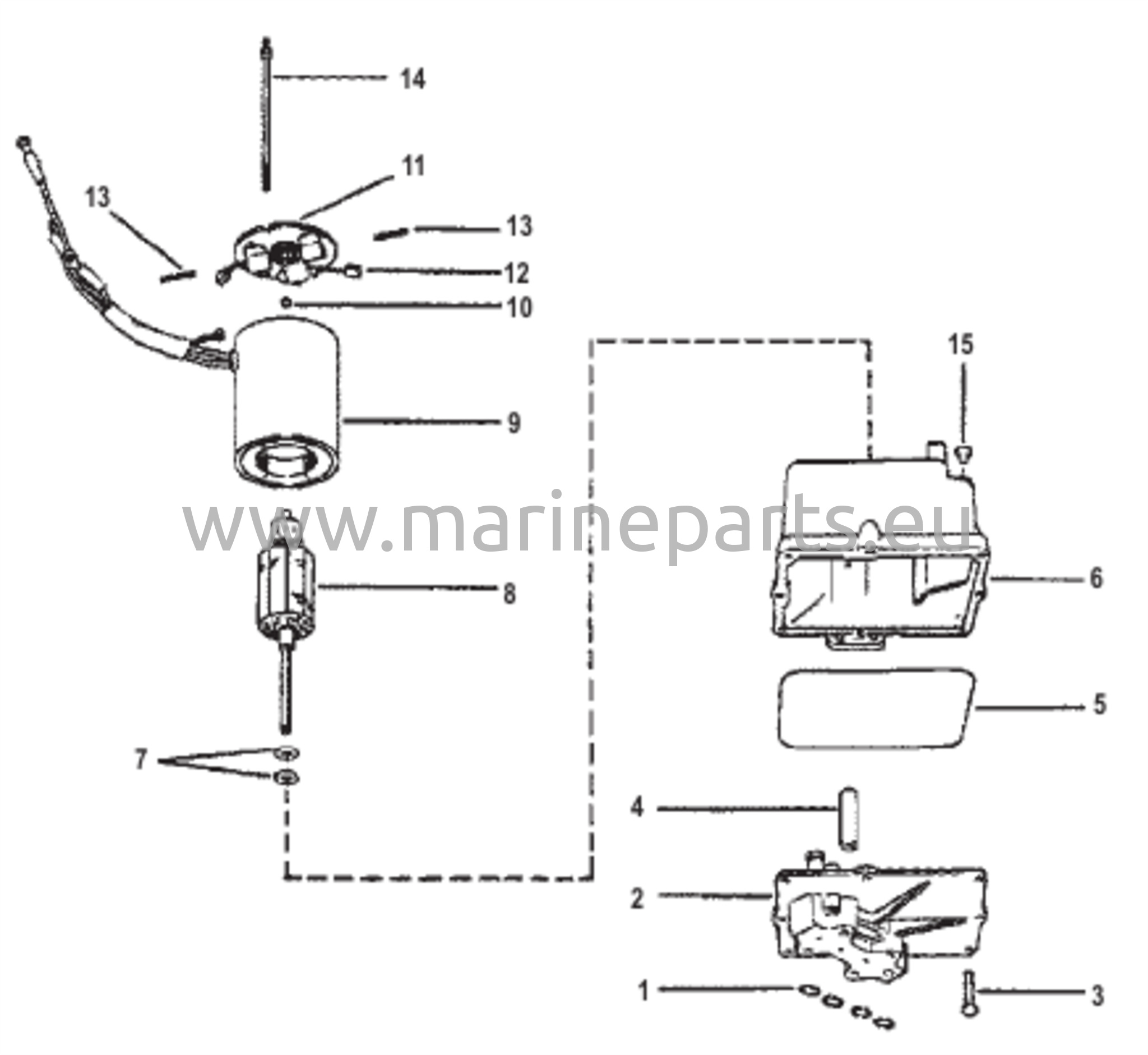

Hydraulic Pump Assembly (Plastic Reservoir)

Reference no. 43116 13

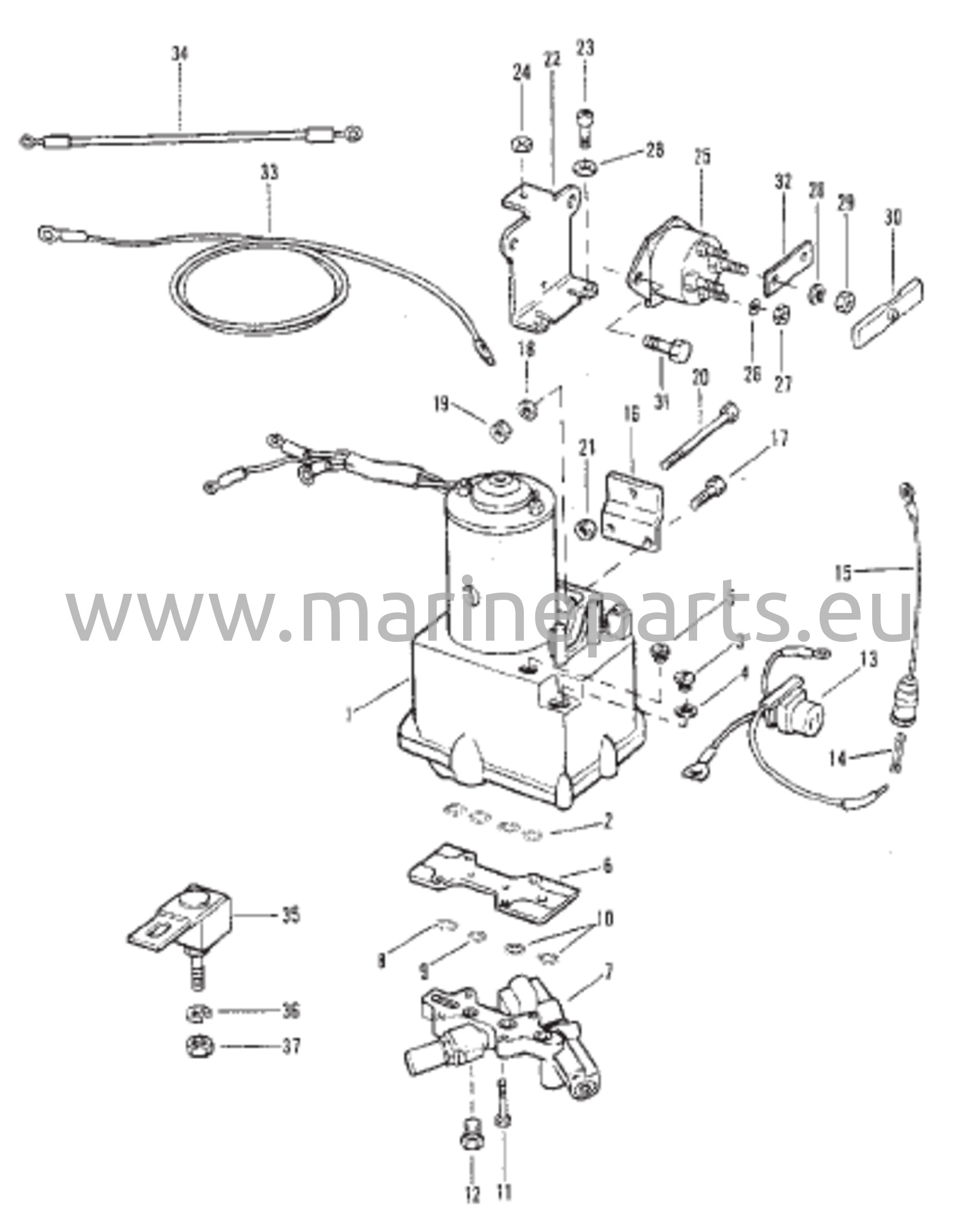

Power Trim Components

Reference no. 43116 14

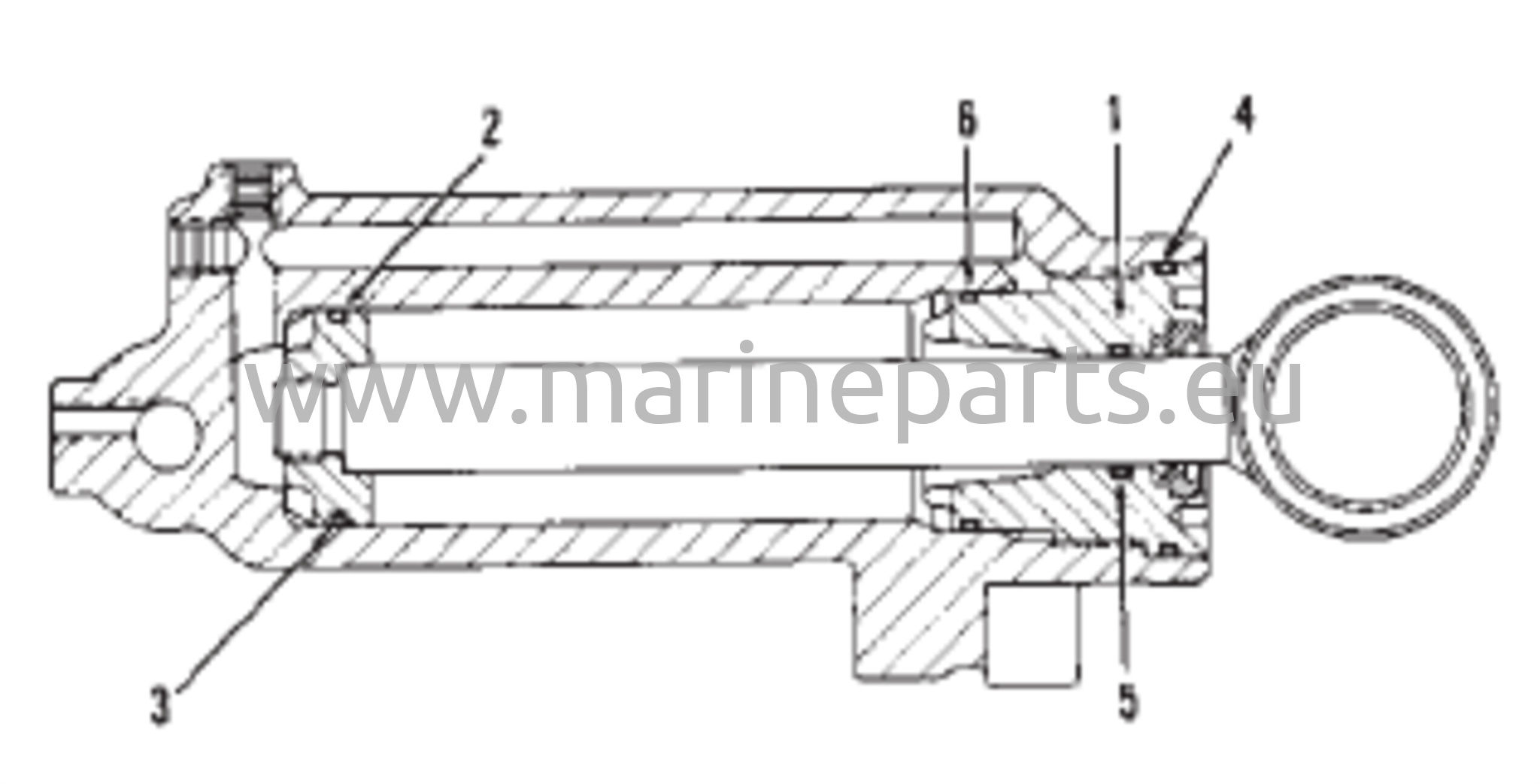

Power Trim Cylinder Repair Kits

Reference no. 43116 15

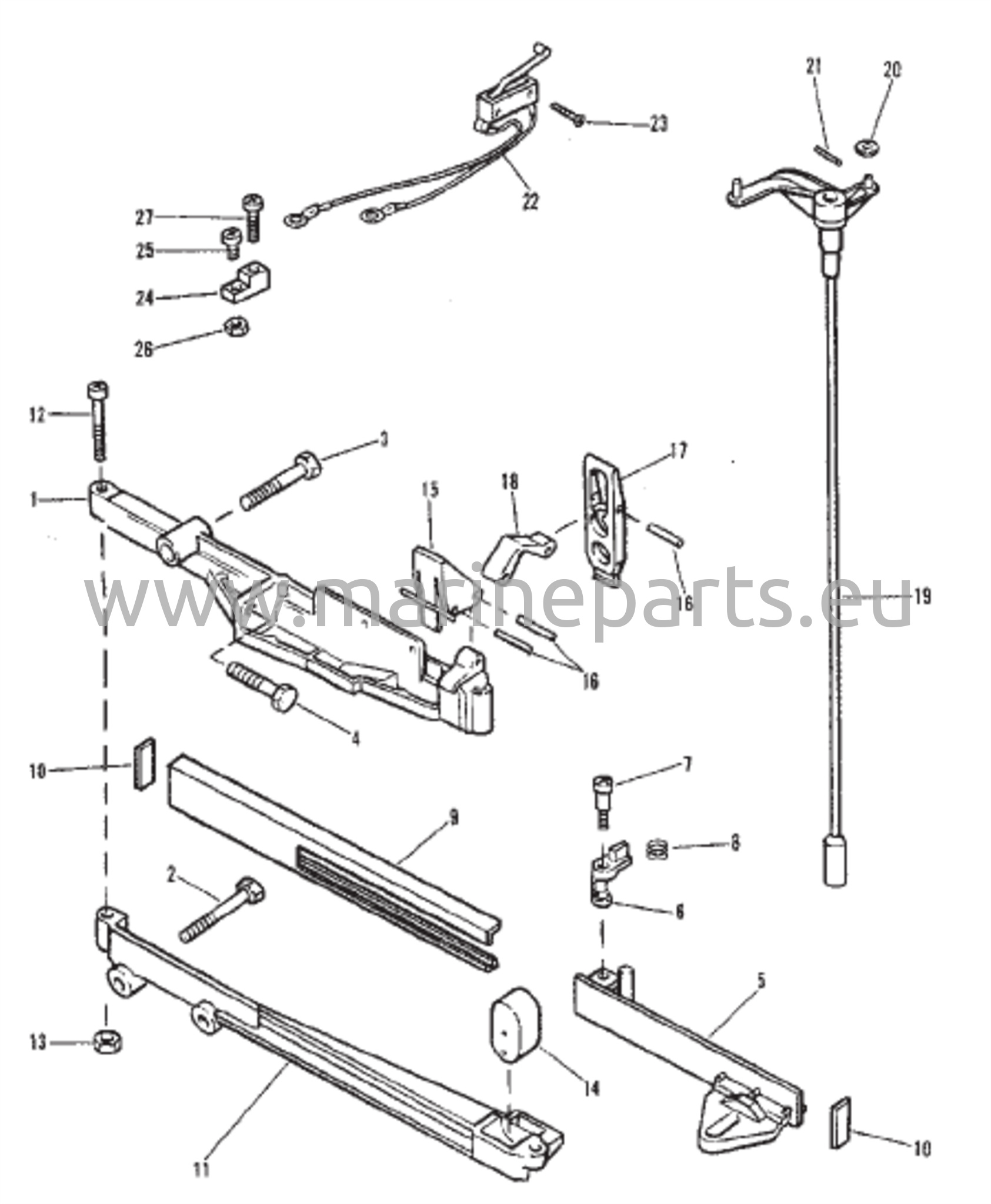

Shift Control Linkage

Reference no. 43116 16

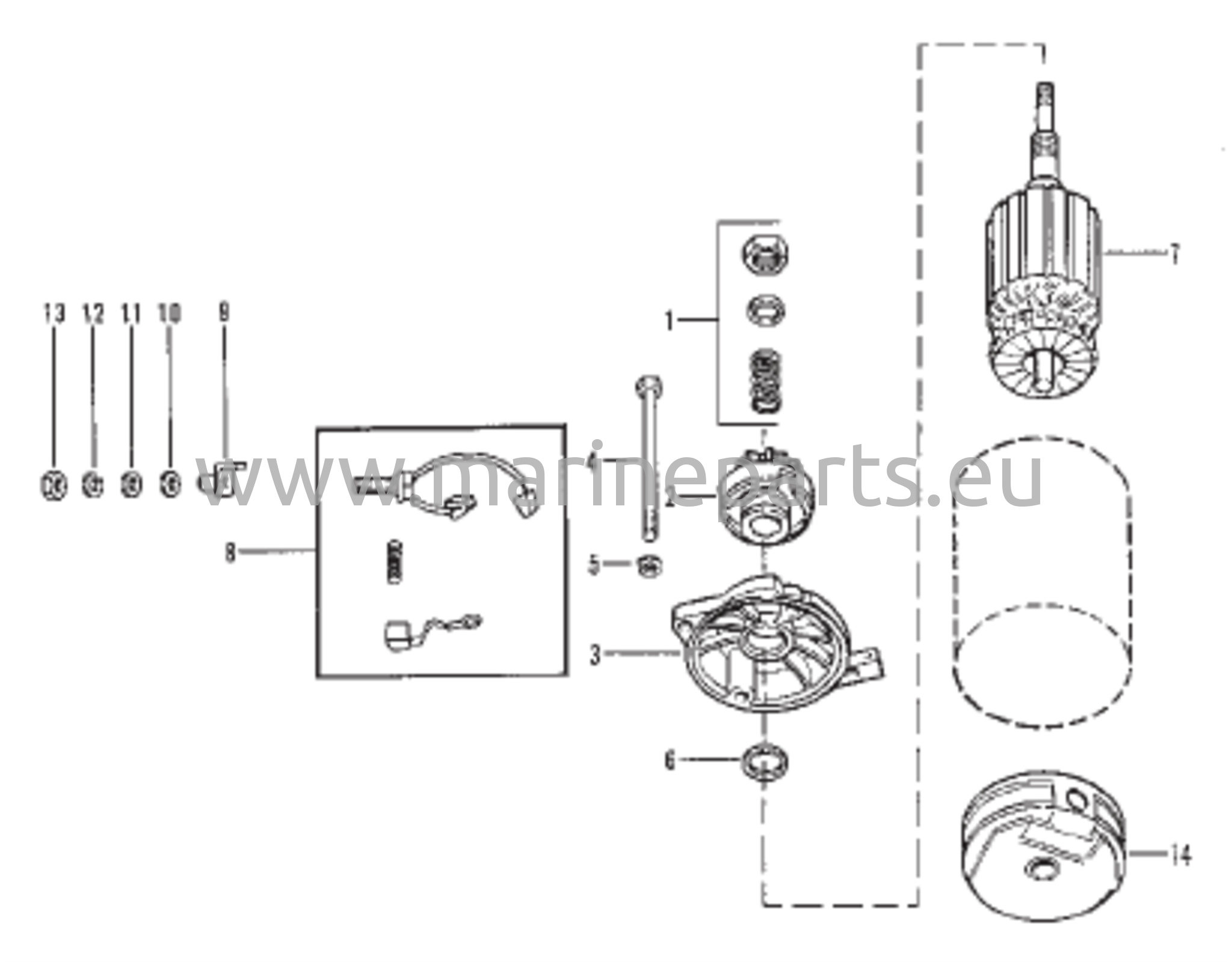

Starter Motor Assembly

Reference no. 43116 17

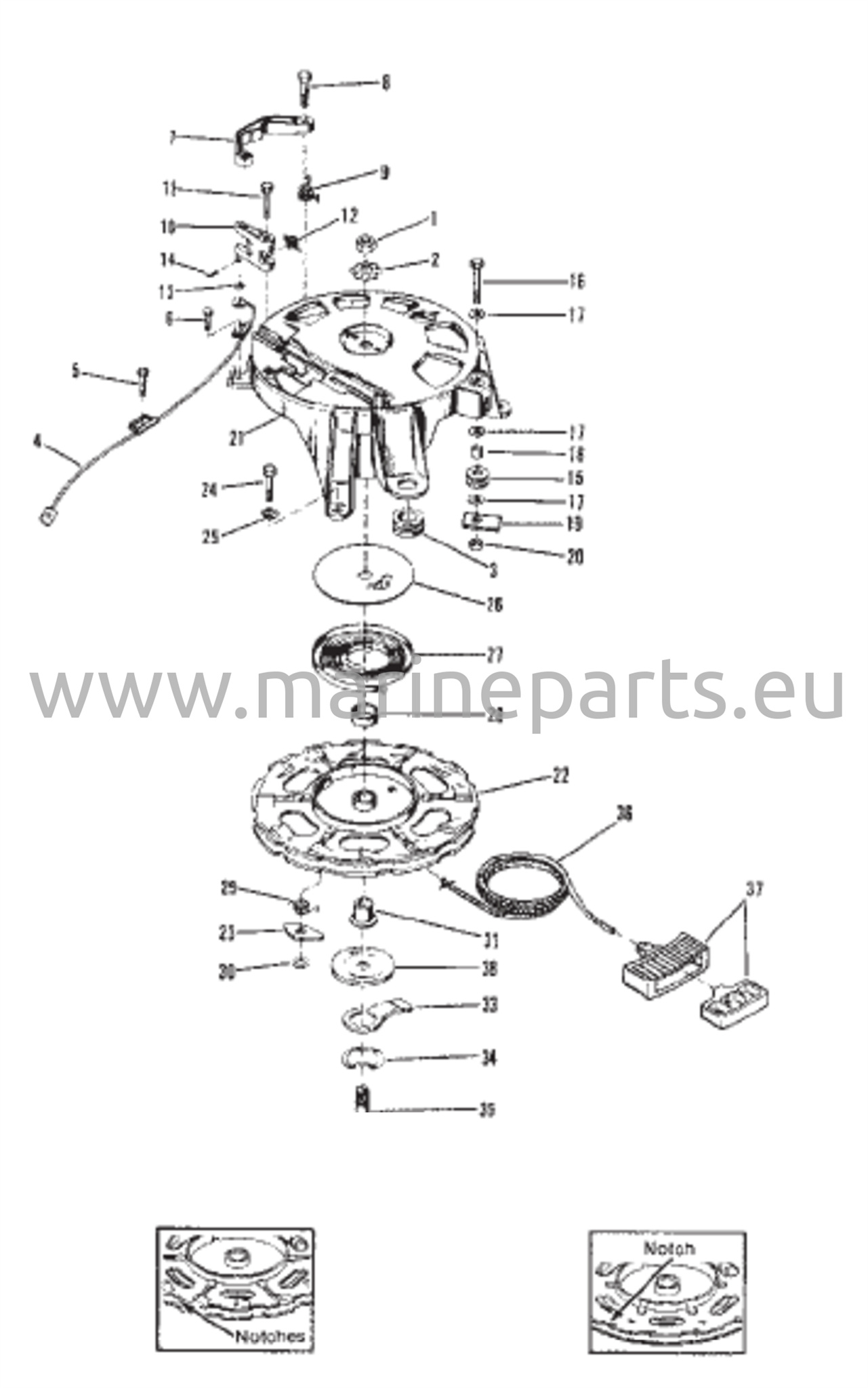

Starter Rewind

Reference no. 43116 19

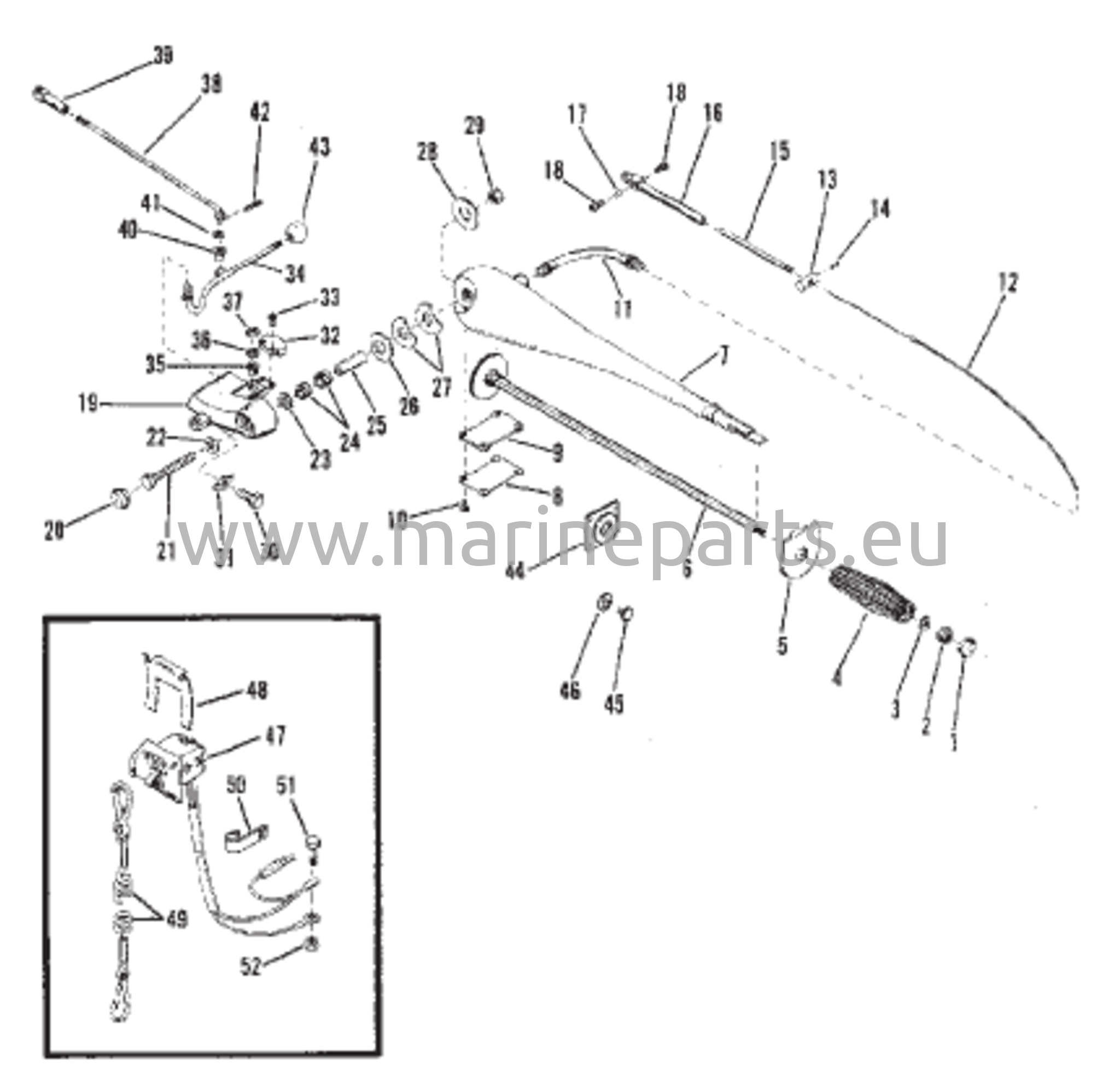

Steering Handle

Reference no. 43116 20

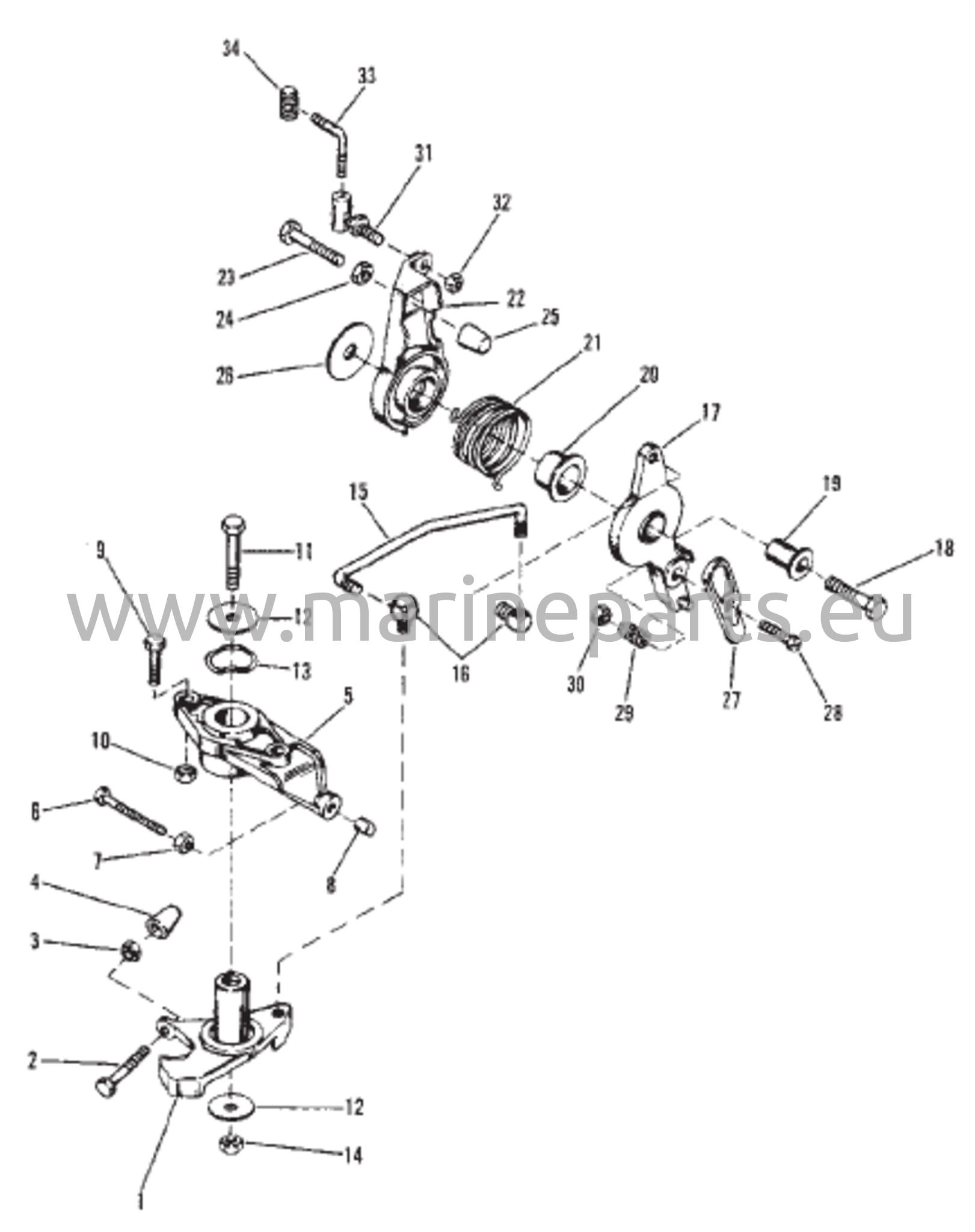

Throttle And Spark Advance Linkage

Reference no. 43116 21

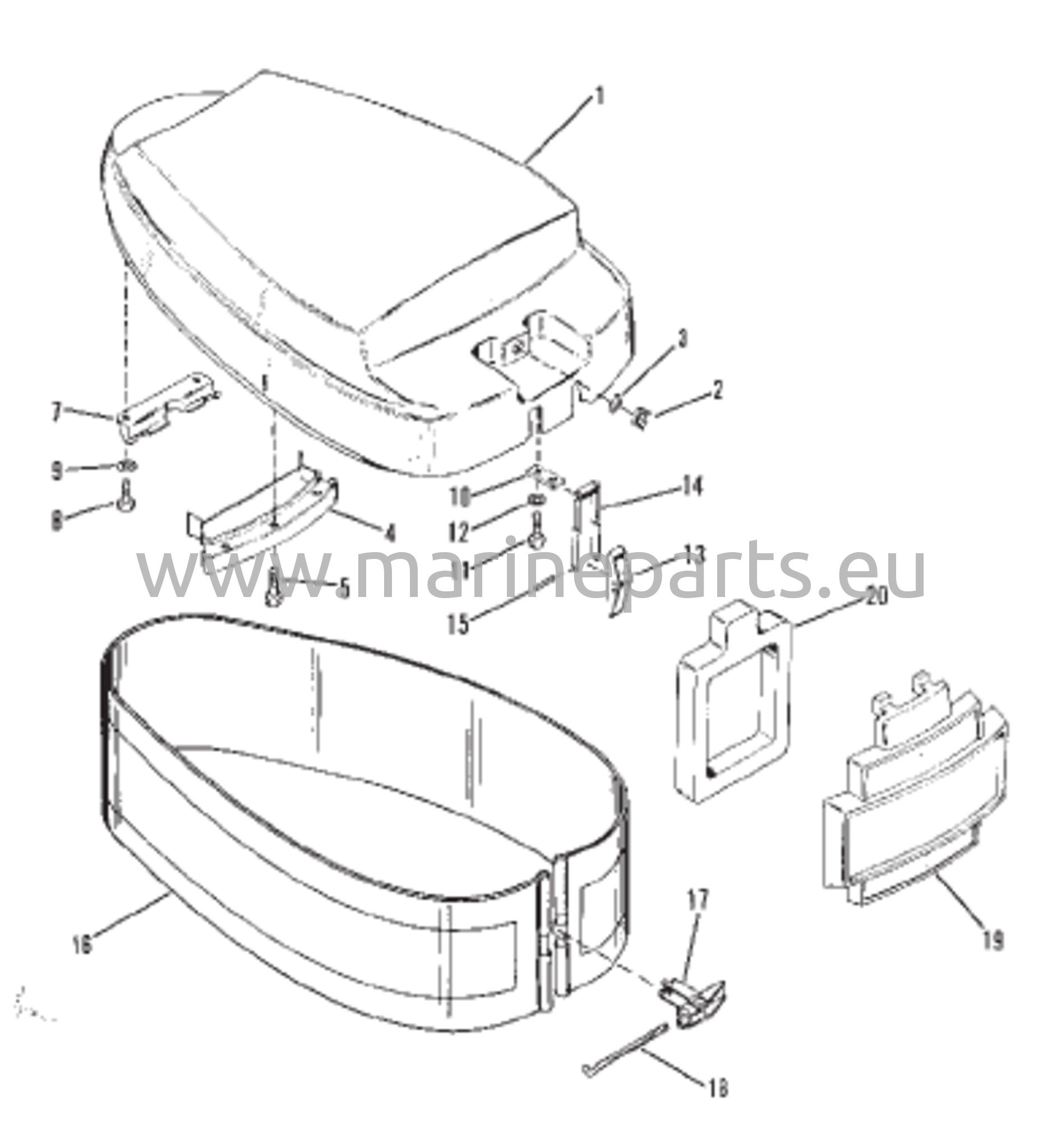

Top Cowl And Cowling

Reference no. 43116 22

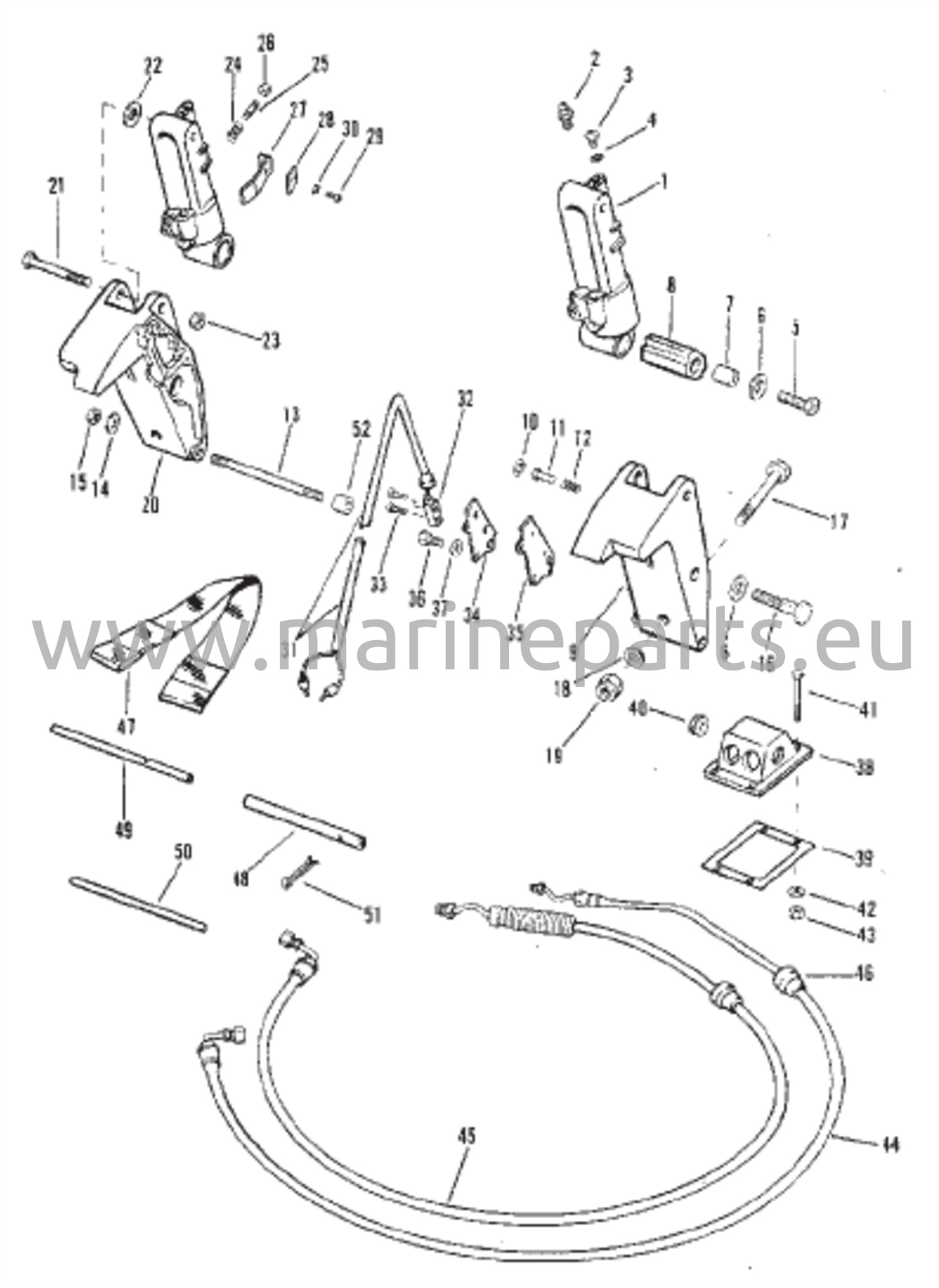

Trim Cylinders And Hydraulic Hoses

Reference no. 43116 23

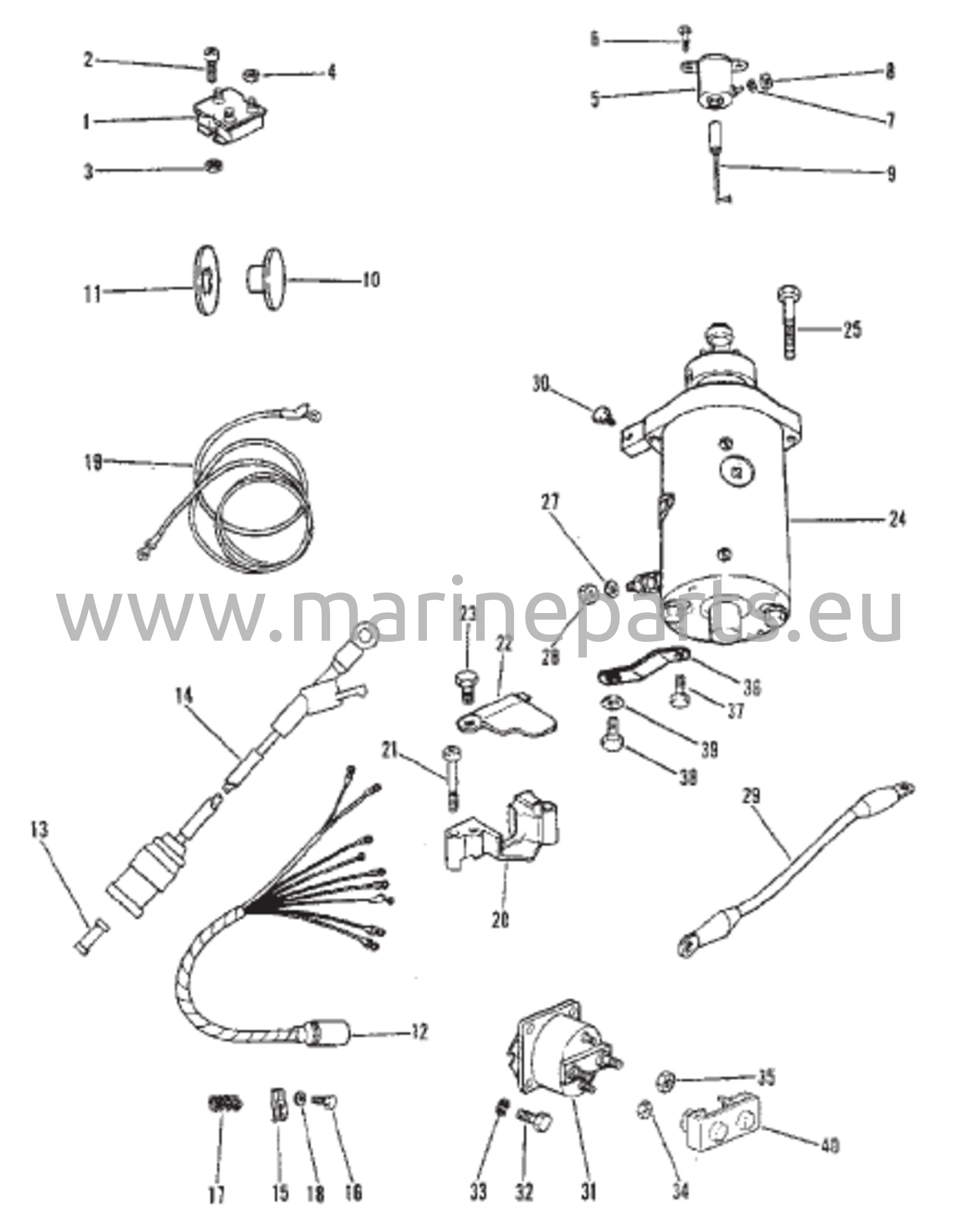

Power Motor, Rectifier And Wiring Harness (Electric Only)

Reference no. 43116 18
