Exploded views for Parts Catalog Mercury/Mariner 25 hp 3 cyl. lightning (gen 2)

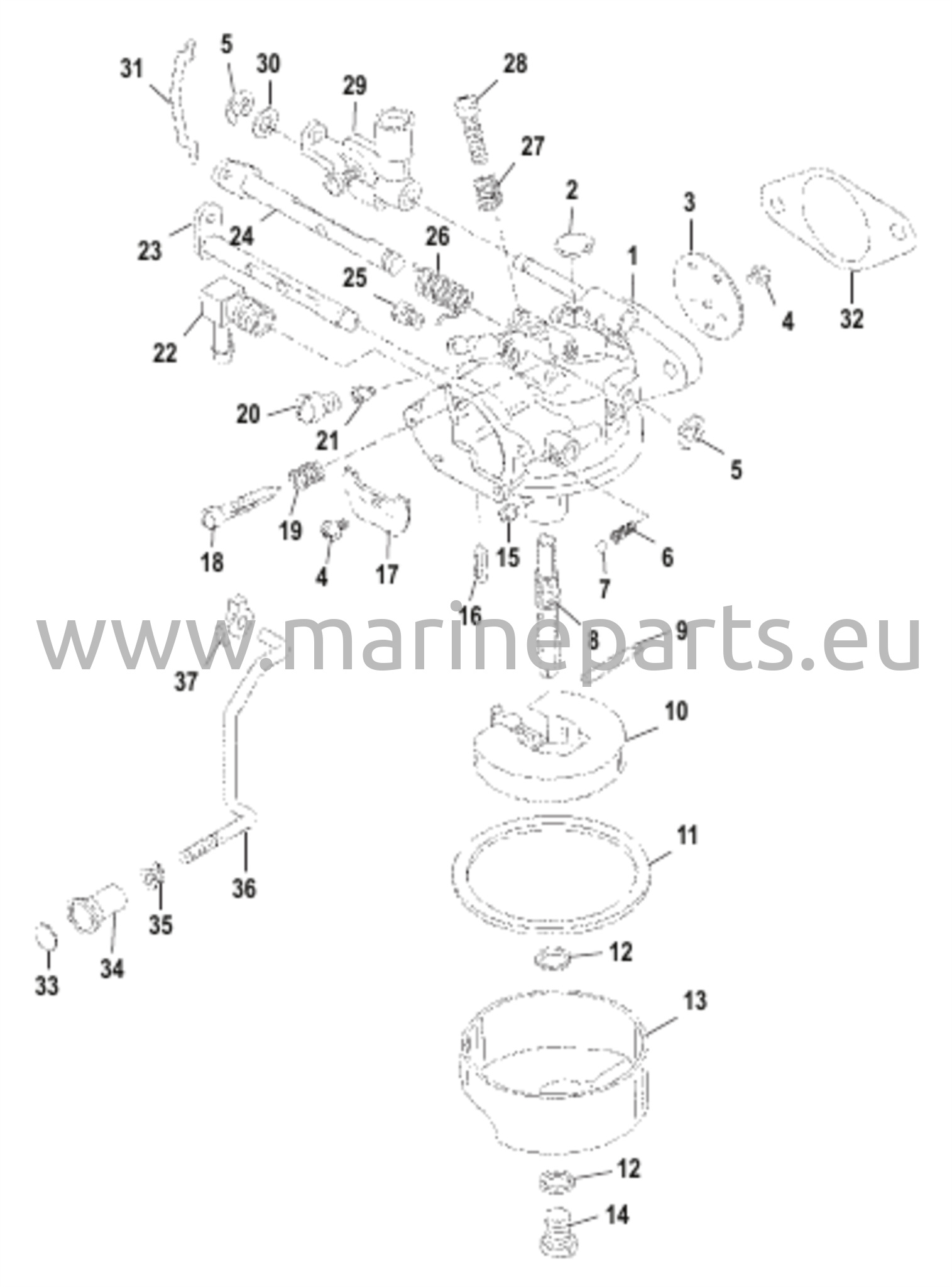

Carburetor

Reference no. 854300 0

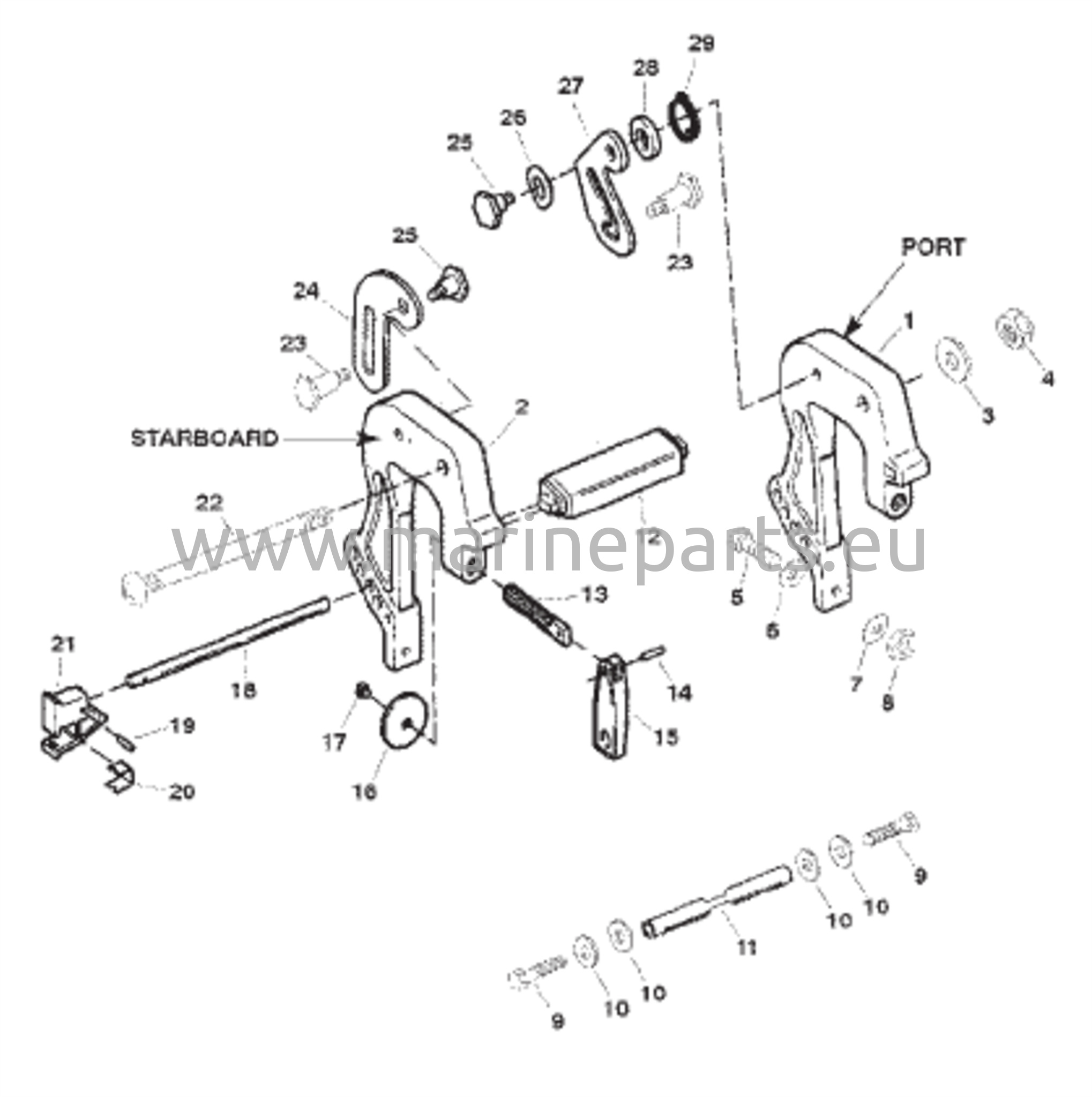

Clamp Brackets

Reference no. 854300 1

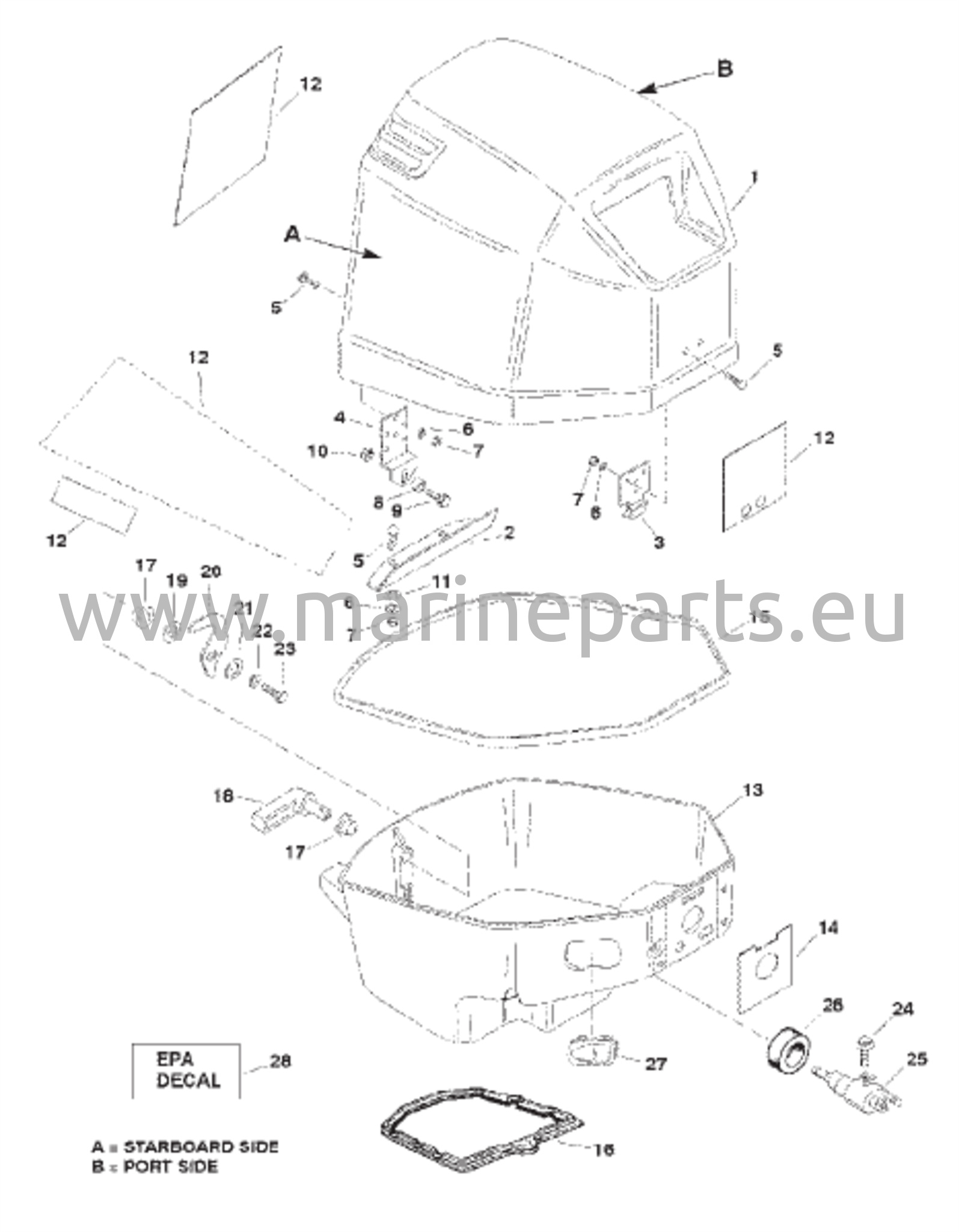

Cowling

Reference no. 854300 2

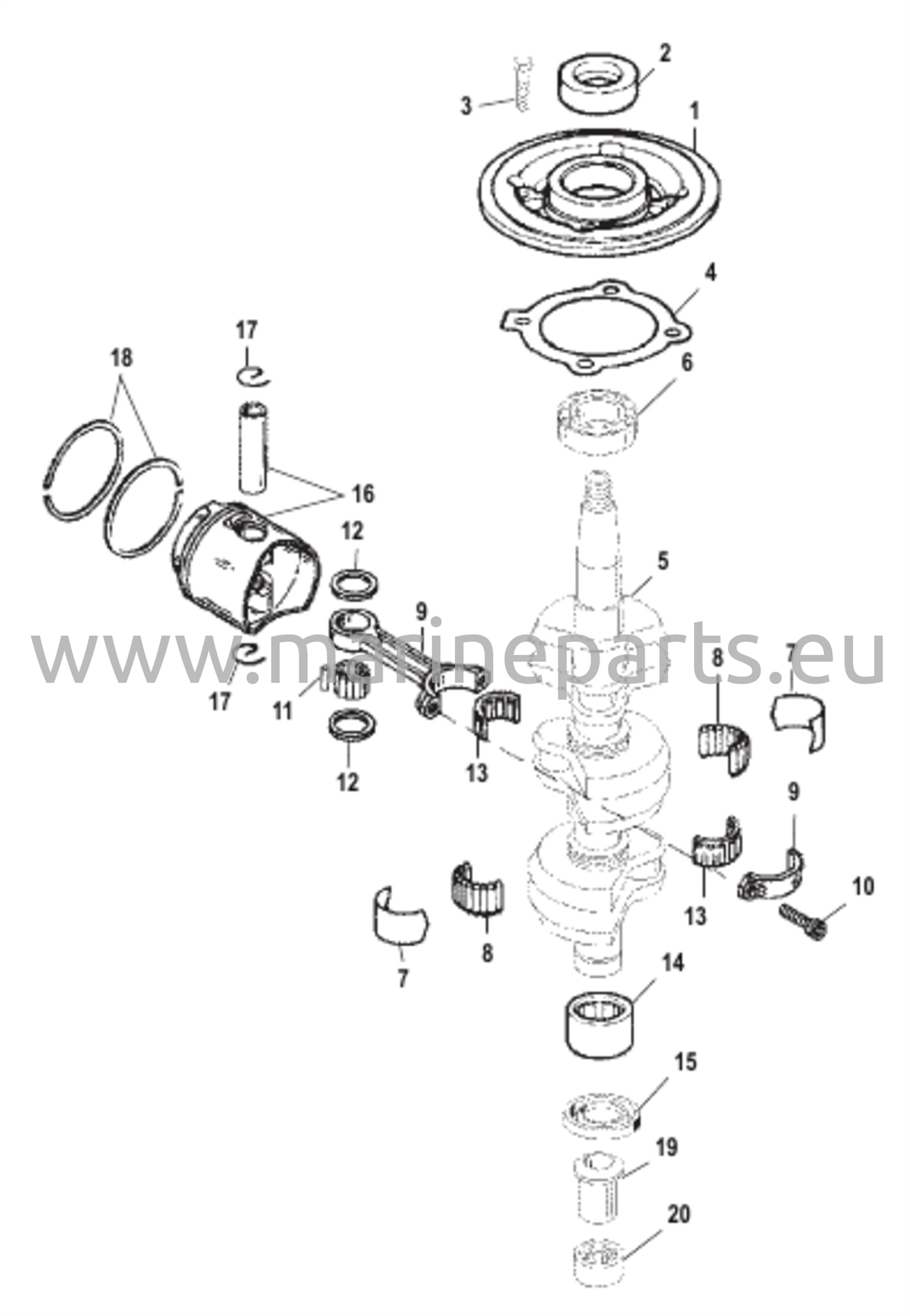

Crankshaft and Piston

Reference no. 854300 3

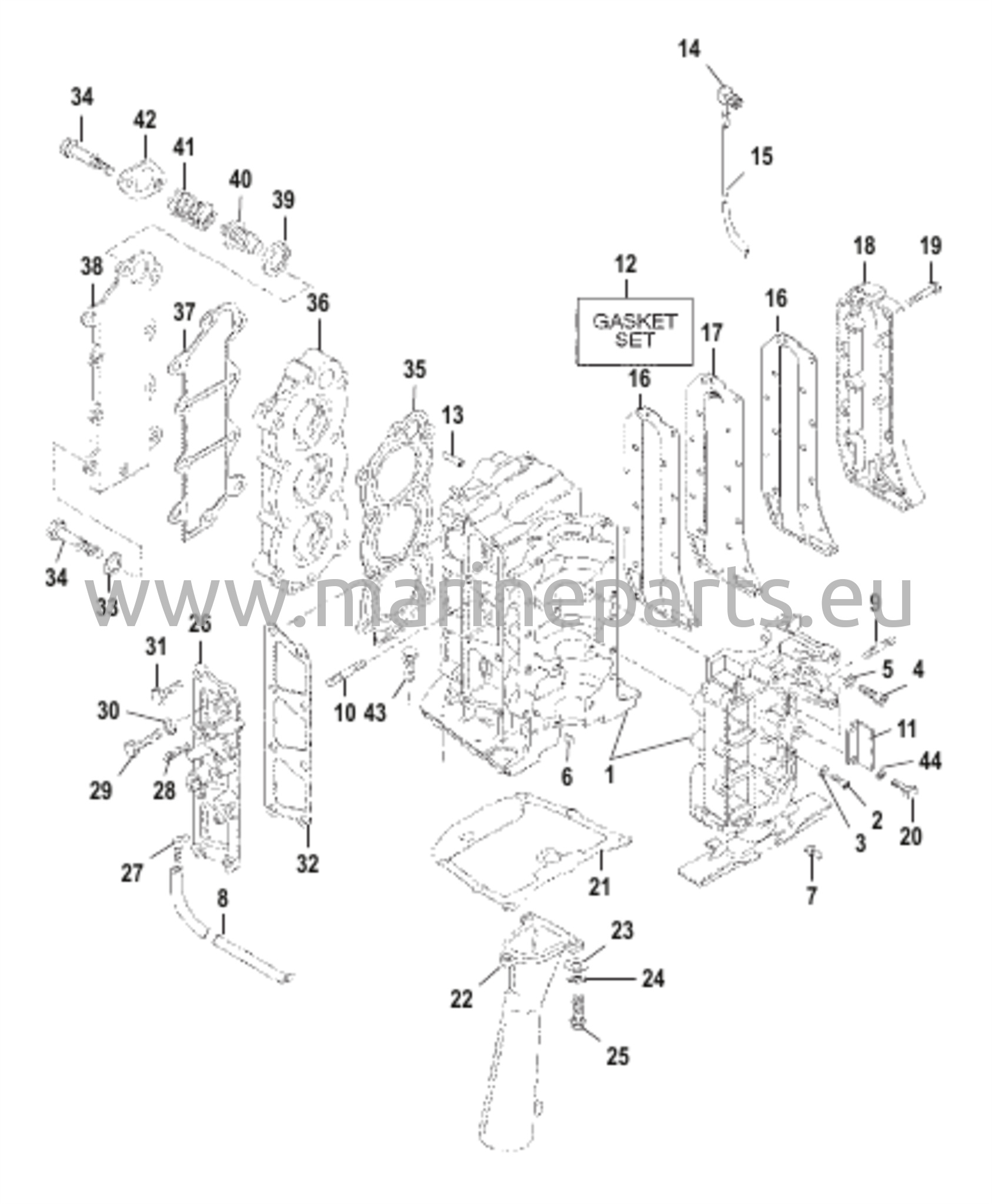

Cylinder Block Assembly

Reference no. 854300 4

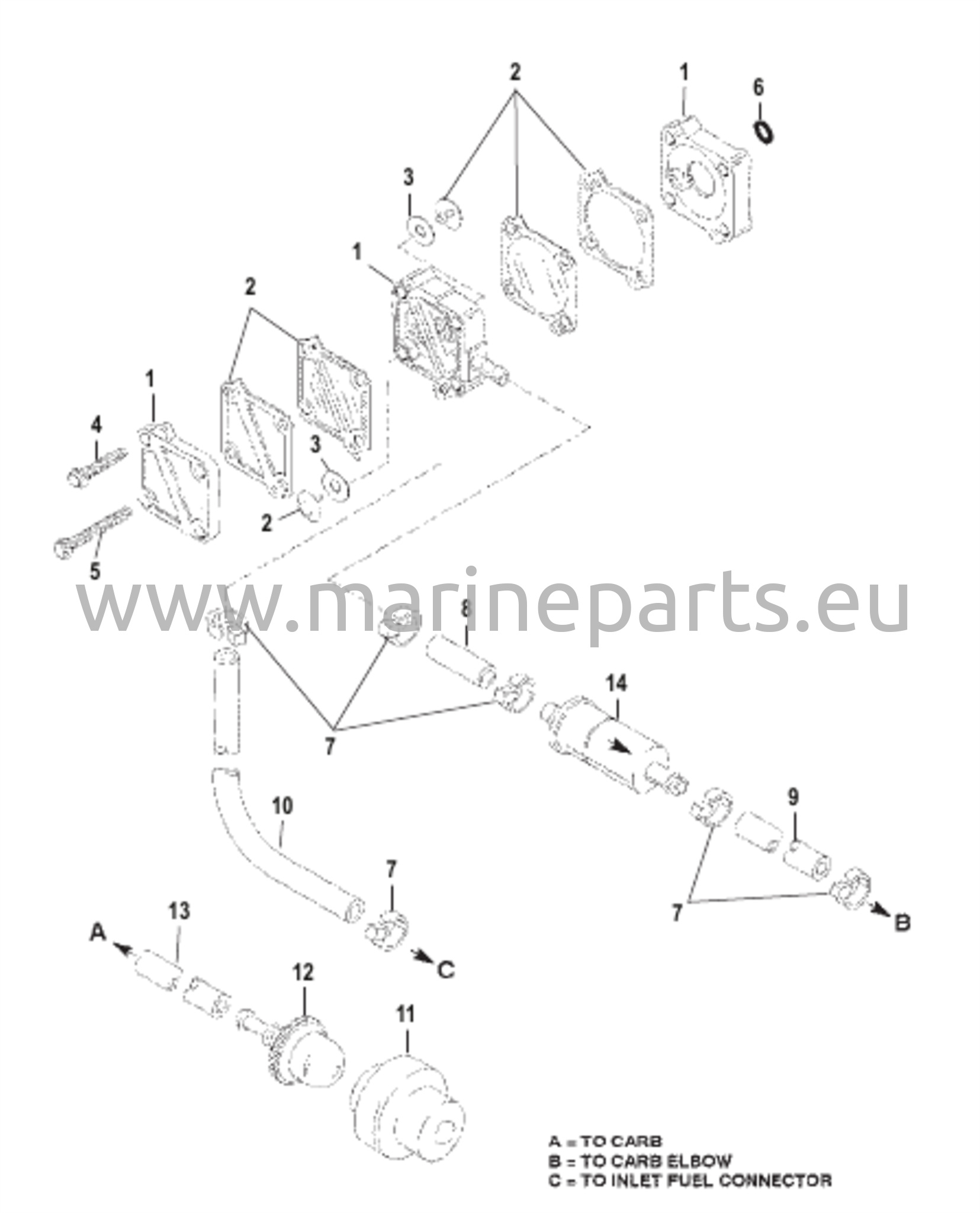

Fuel System

Reference no. 854300 5

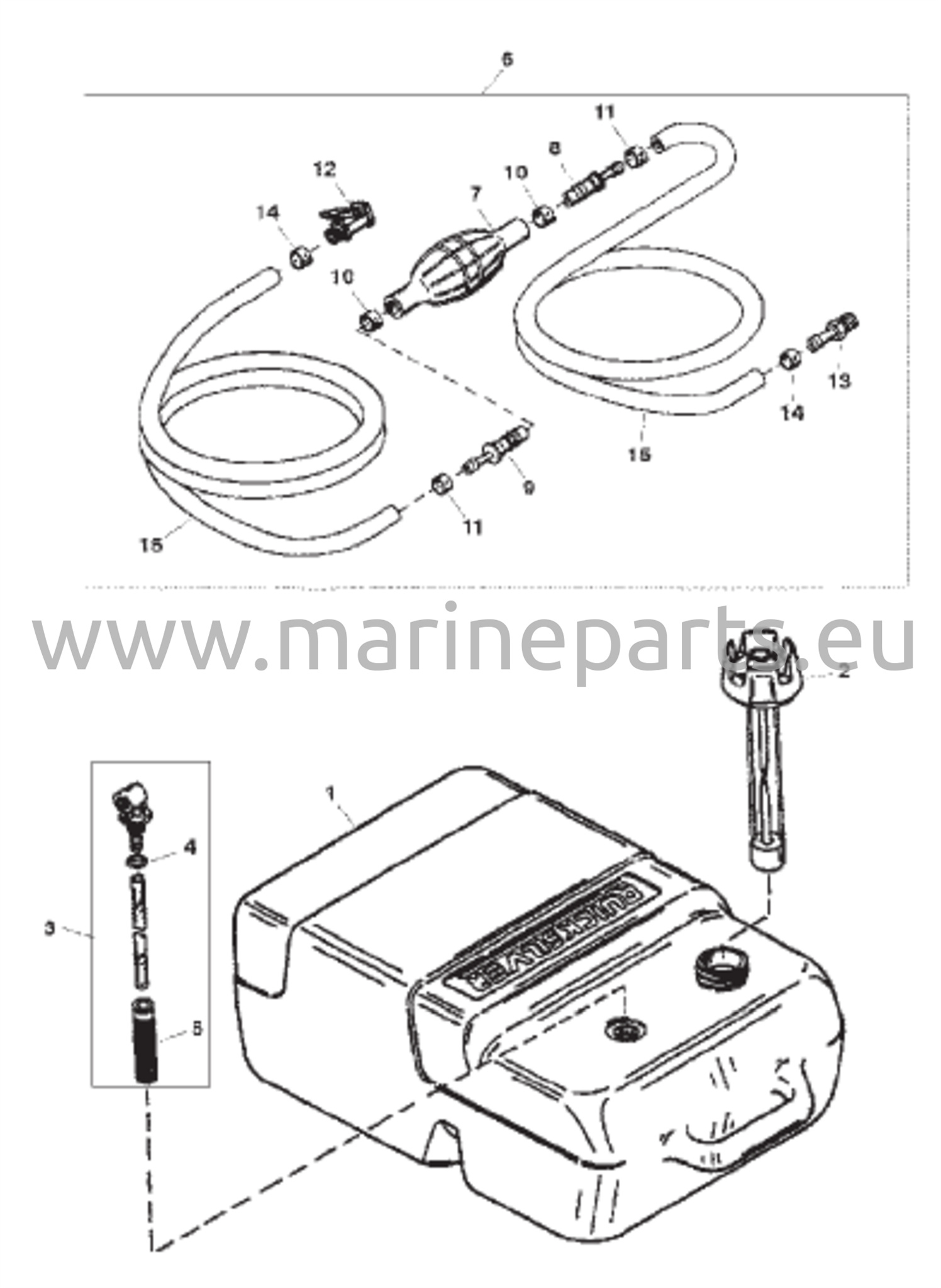

Fuel Tank and Line Assembly (6.6 Gallon)

Reference no. 854300 6

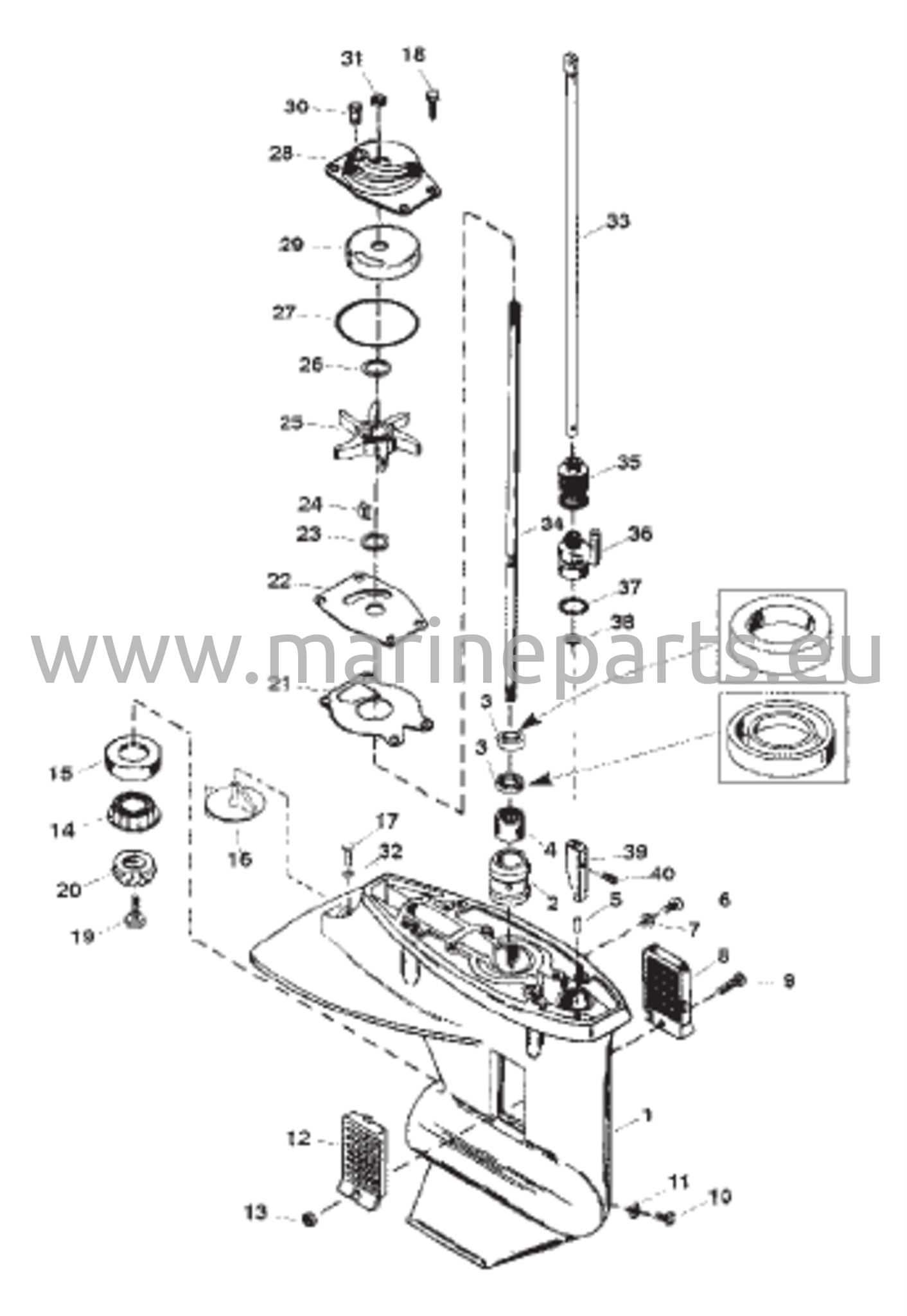

Gear Housing Assembly (Driveshaft)

Reference no. 854300 7

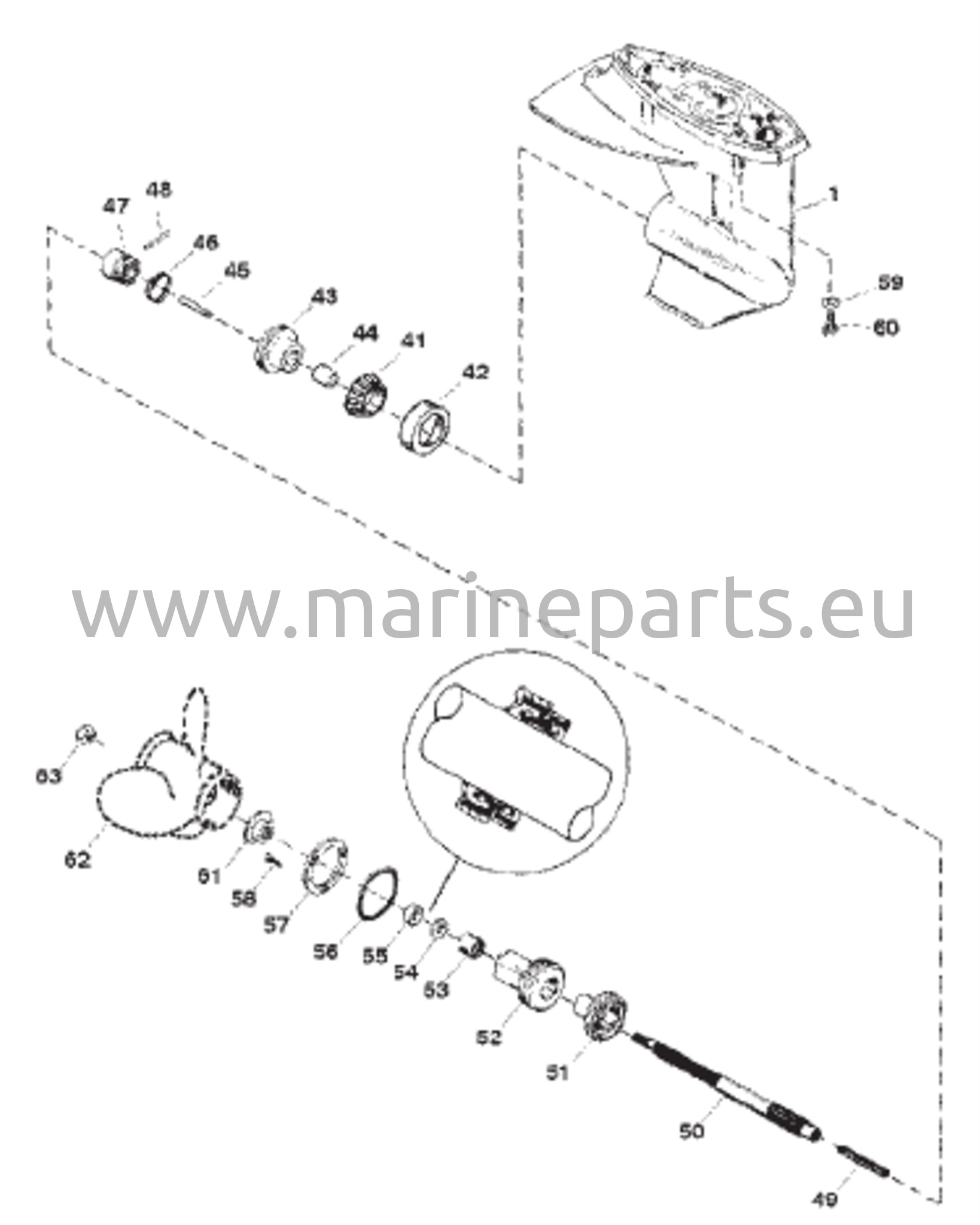

Gear Housing Assembly (Propeller Shaft)

Reference no. 854300 8

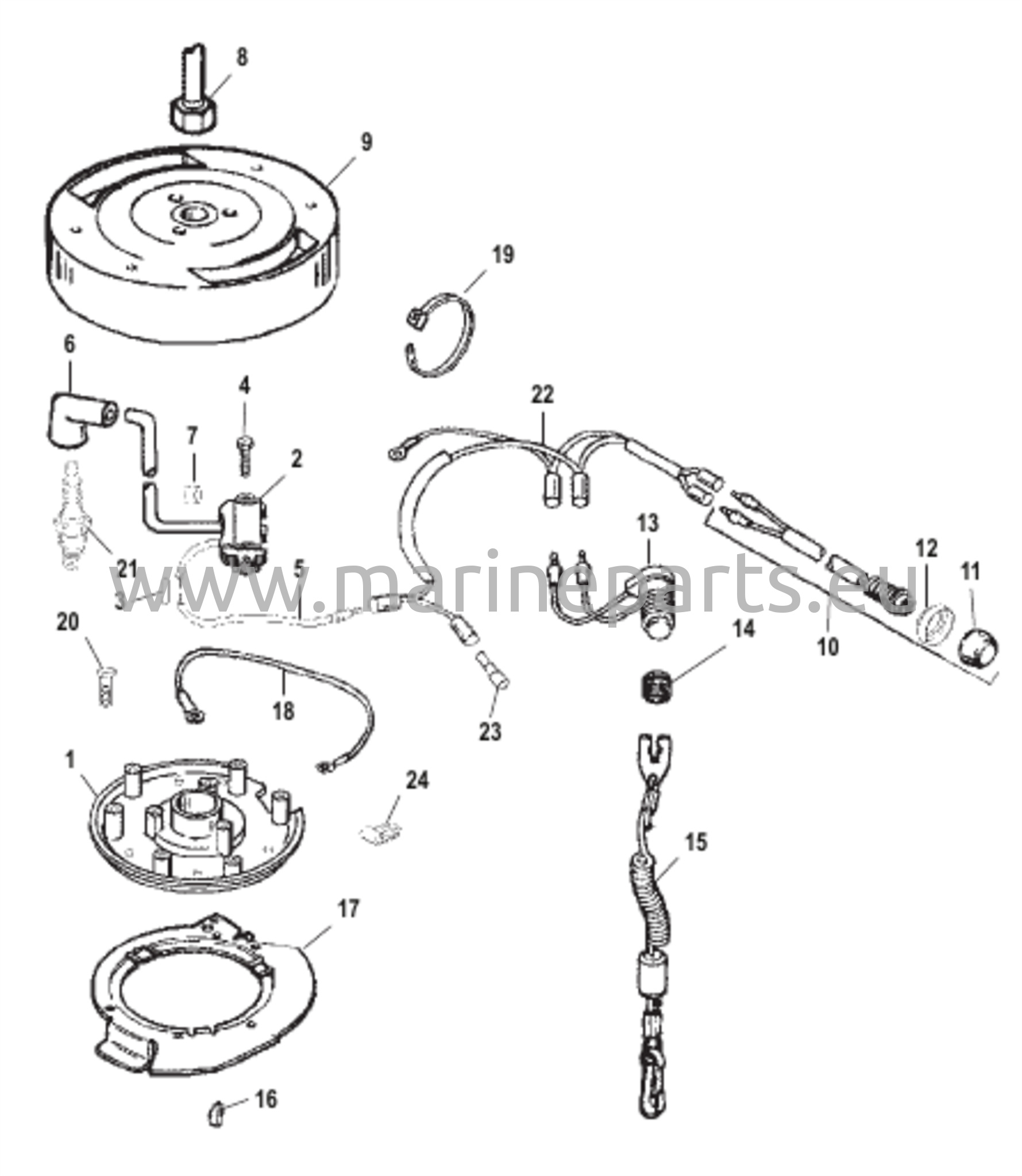

Ignition System

Reference no. 854300 9

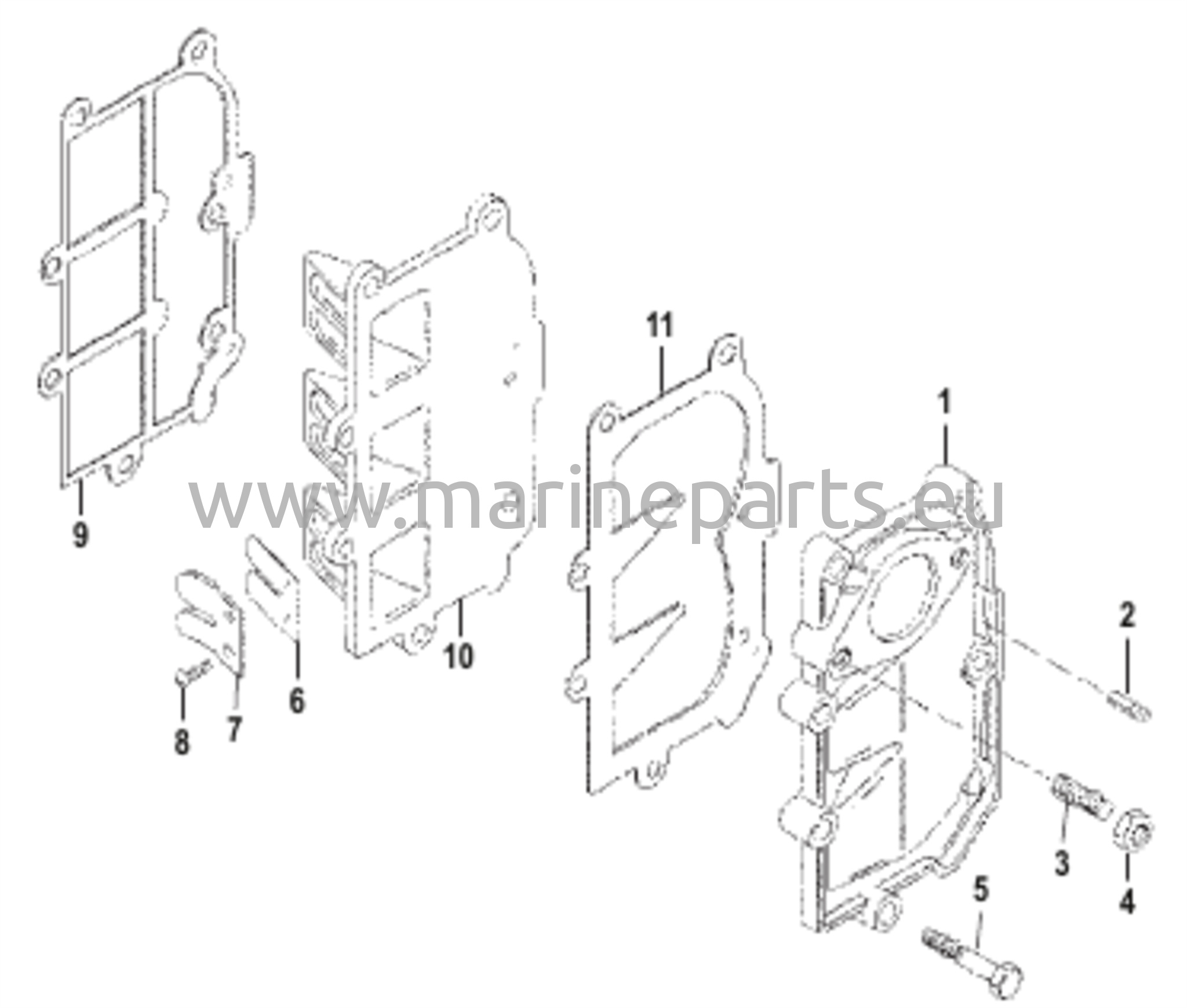

Reed Plate / Manifold Assembly

Reference no. 854300 10

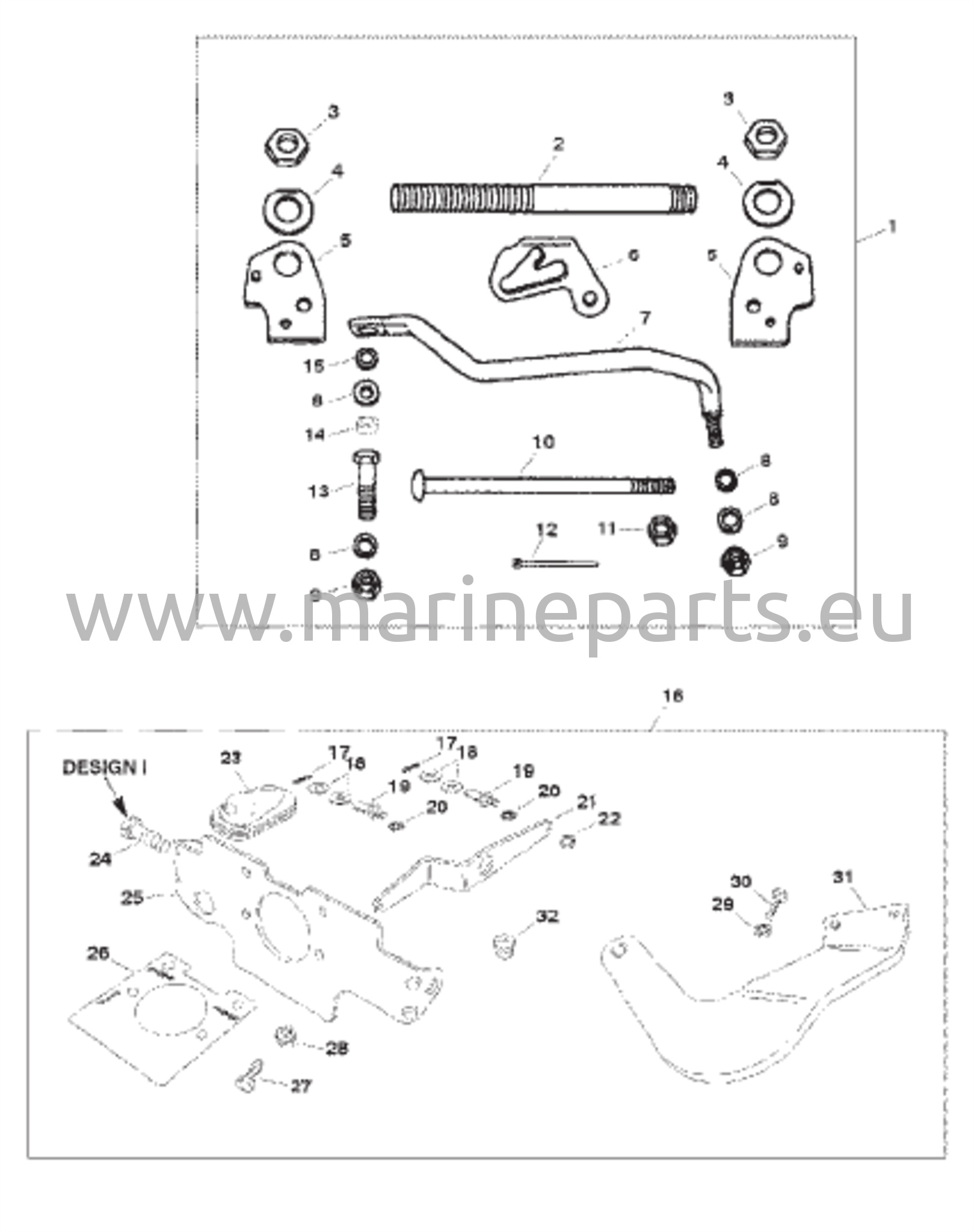

Remote Control Linkage (Design I)

Reference no. 854300 11

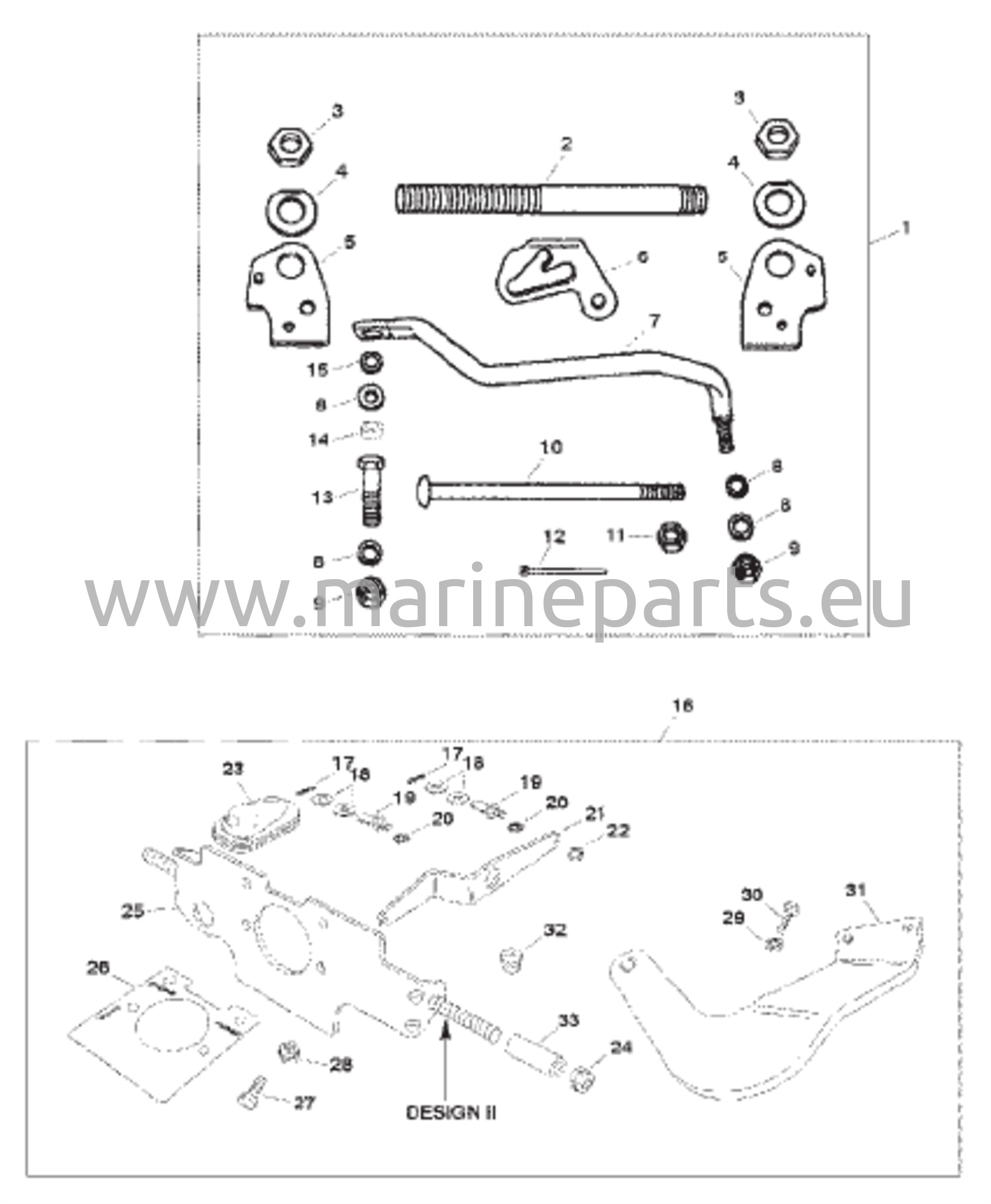

Remote Control Linkage (Design II)

Reference no. 854300 12

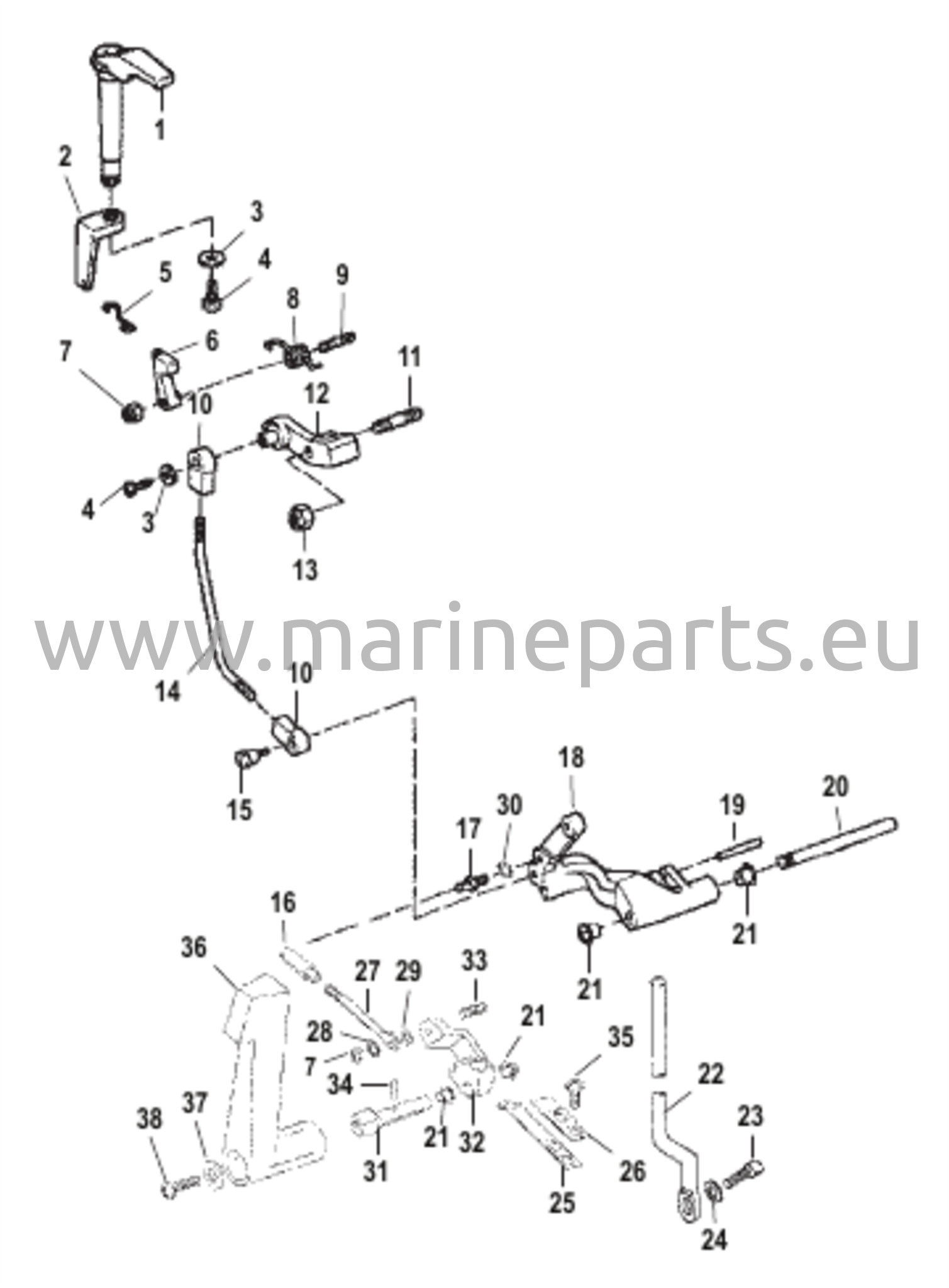

Shift Linkage

Reference no. 854300 13

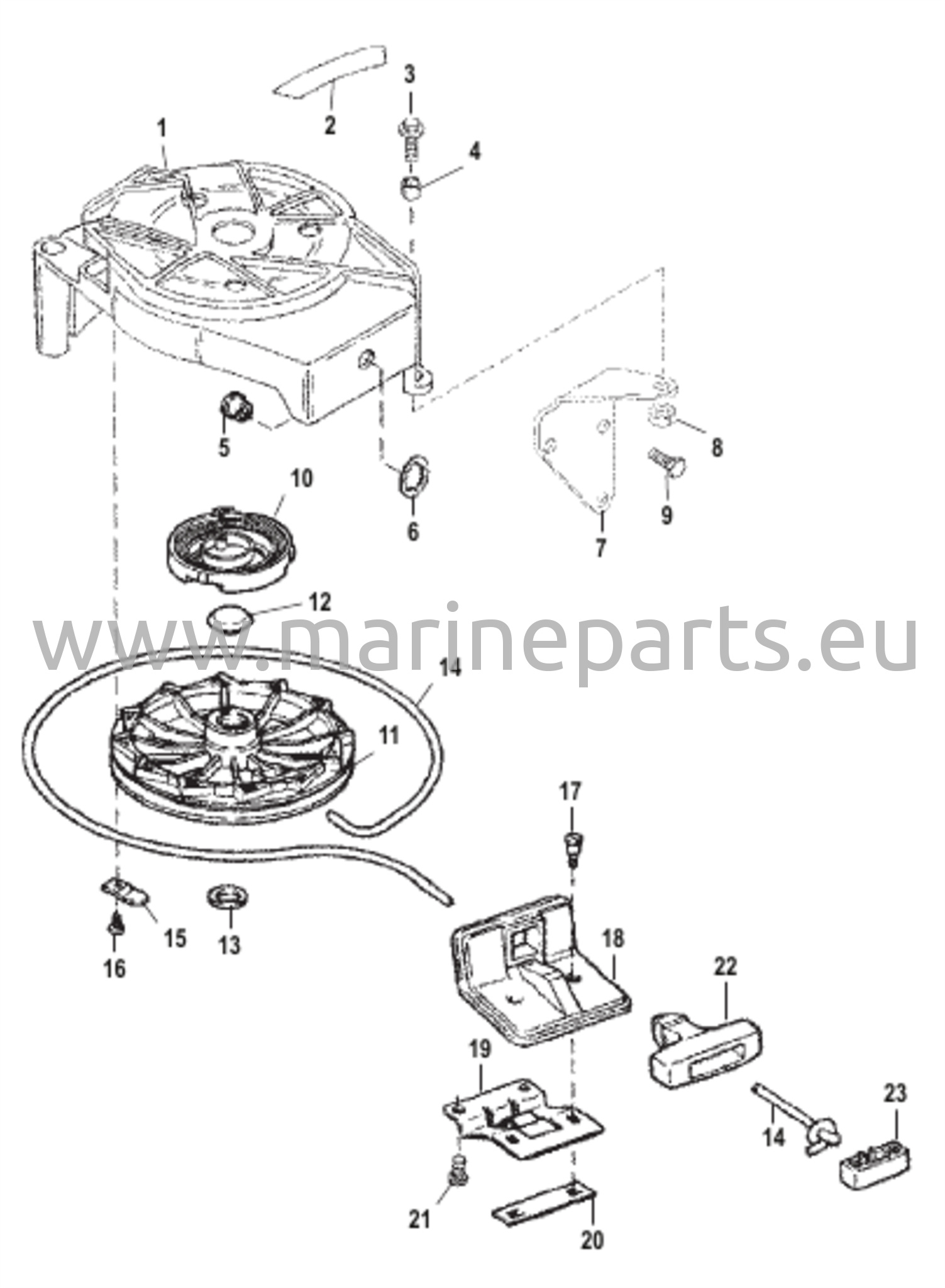

Starter Rewind Components

Reference no. 854300 14

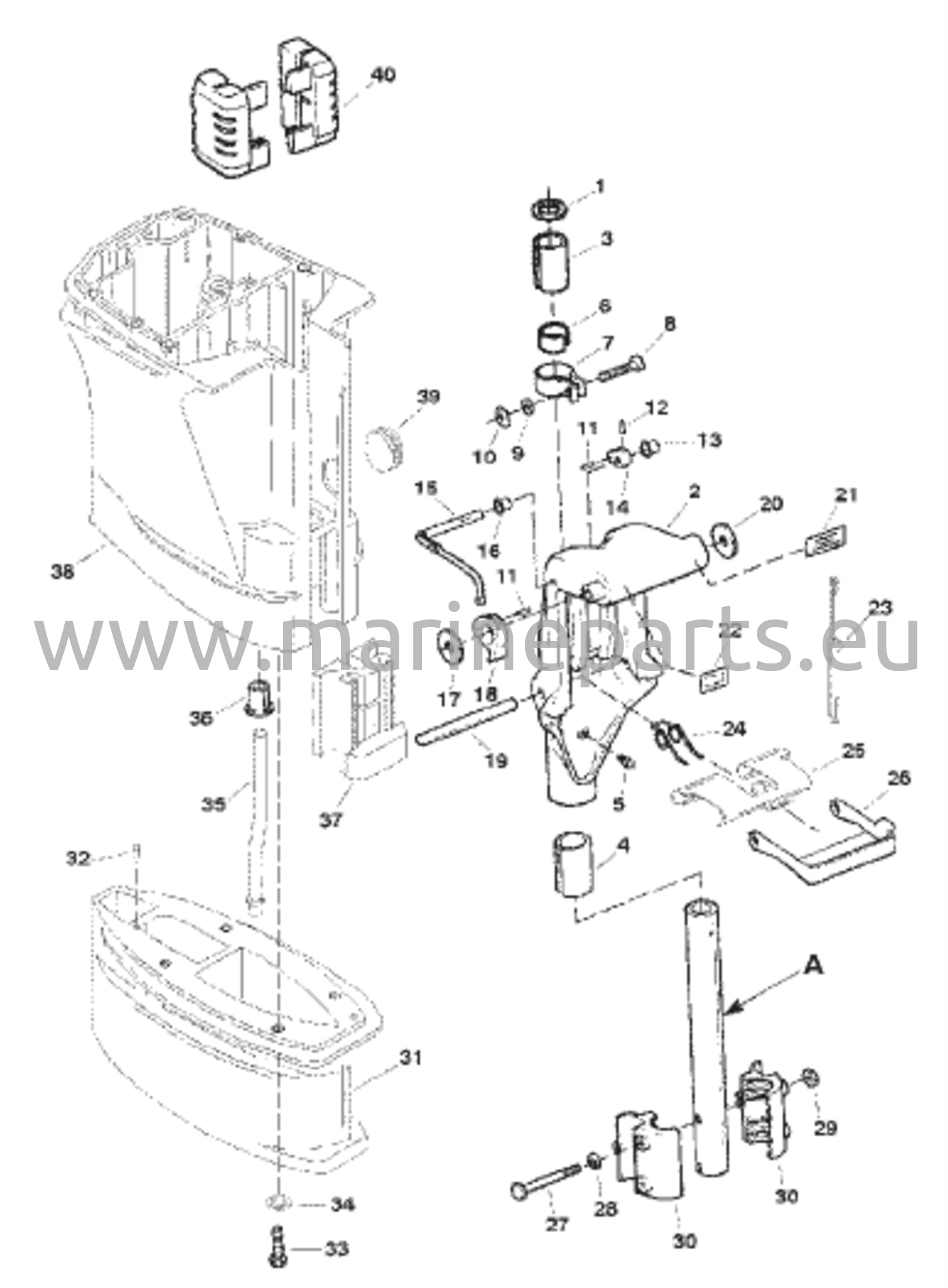

Swivel Bracket and Driveshaft Housing

Reference no. 854300 15

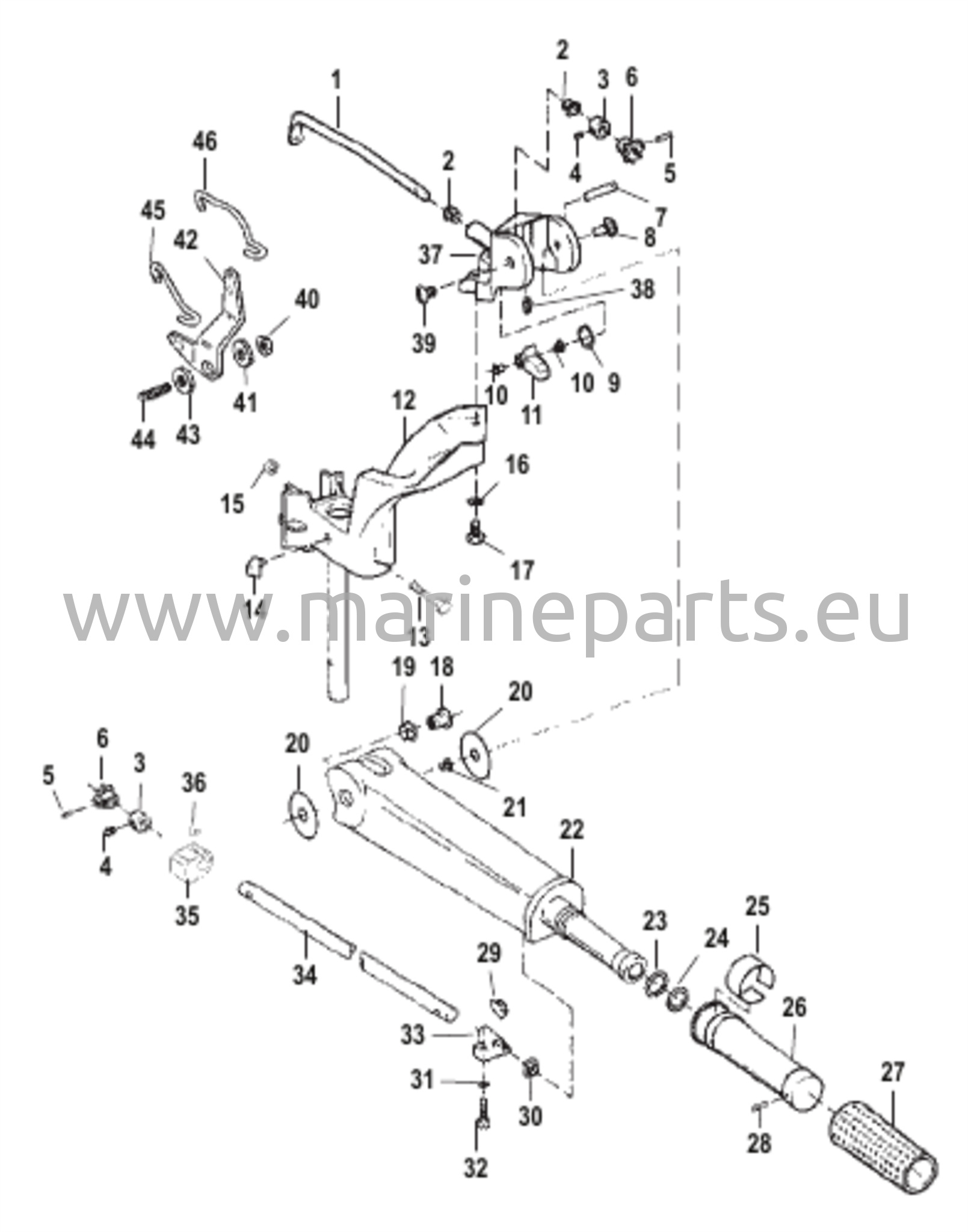

Tiller Handle / Linkage

Reference no. 854300 16
