Exploded views for Parts Catalog Mercury/Mariner 25 hp 3 cyl. lightning

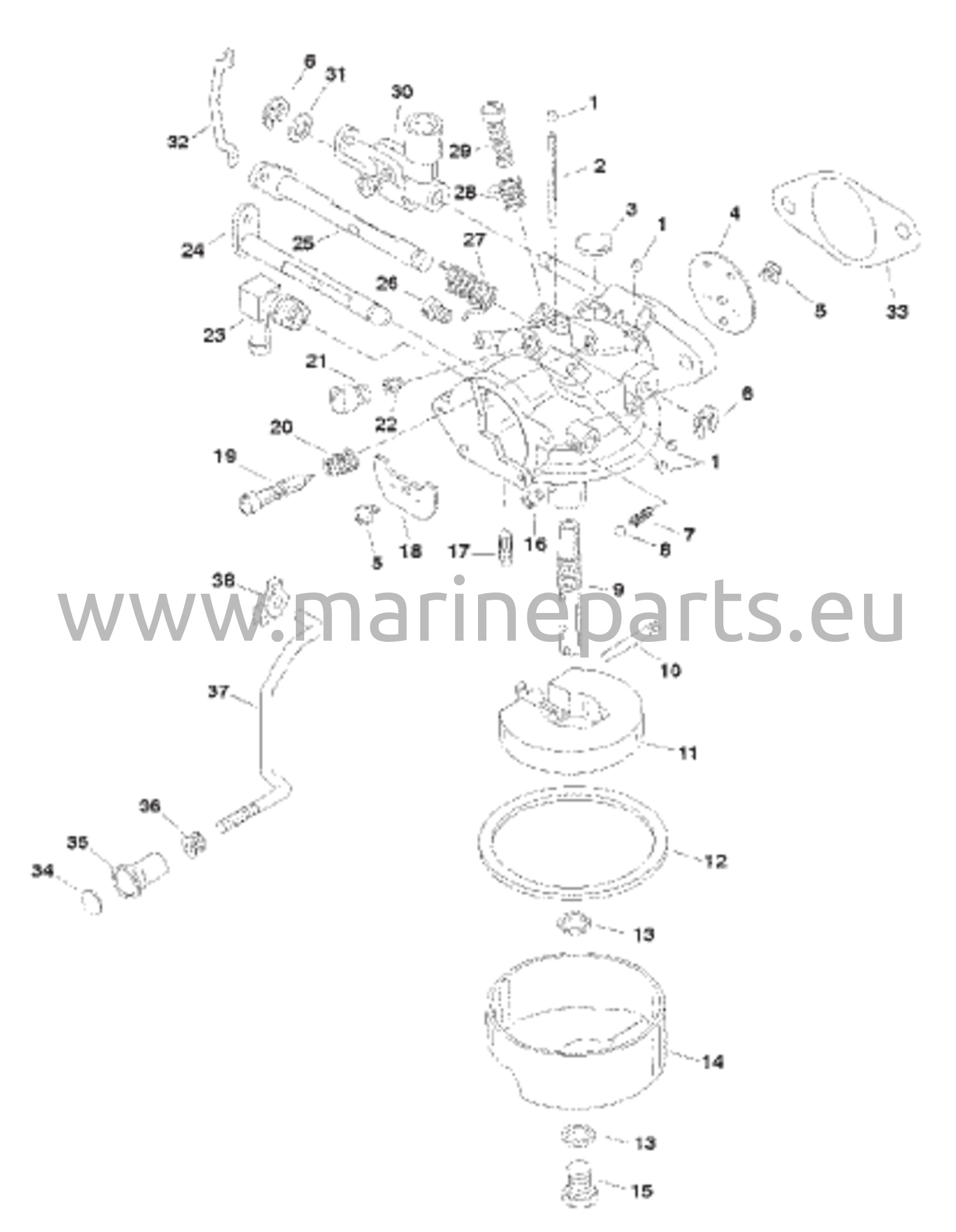

Carburetor

Reference no. 854006 0

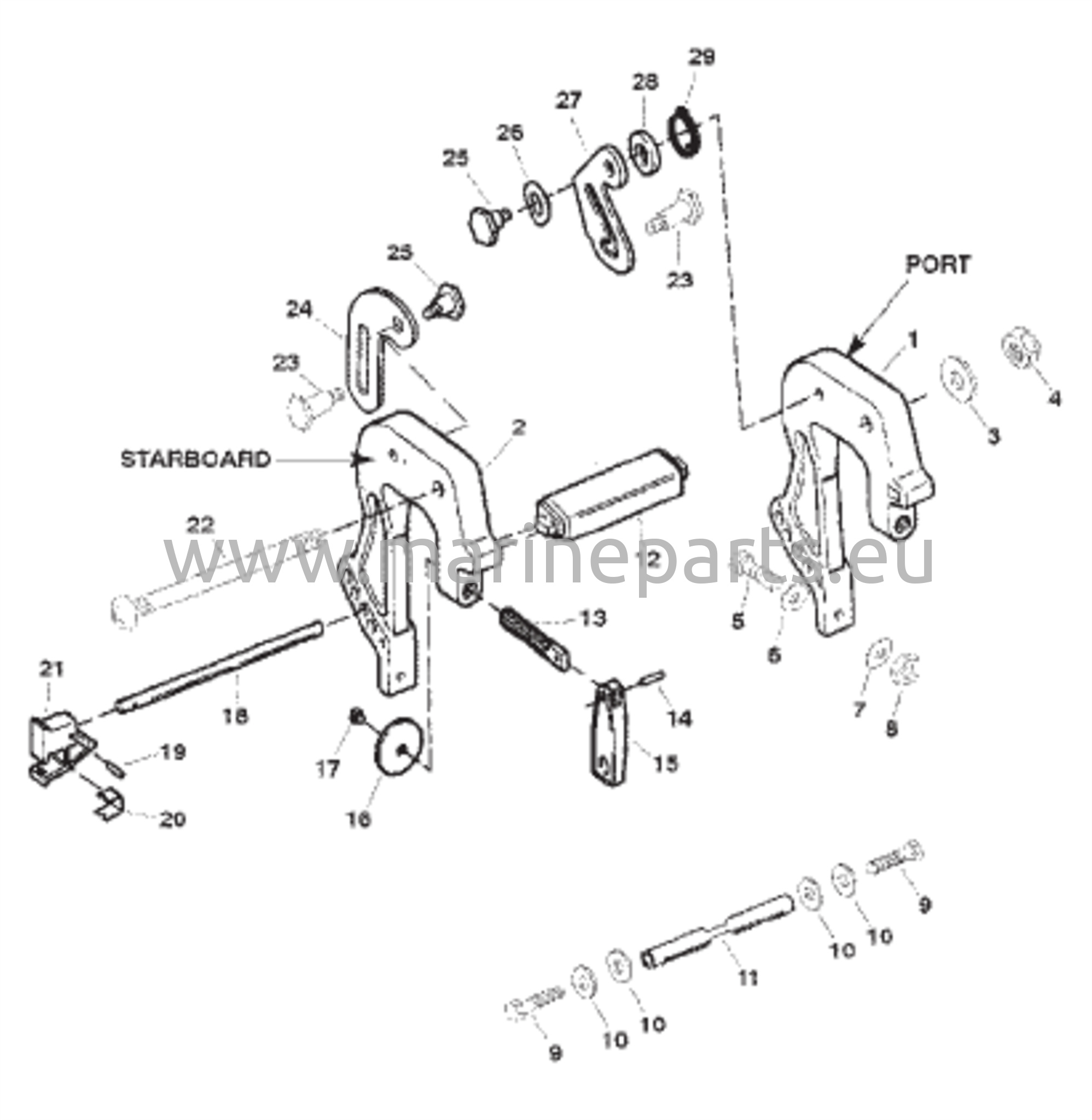

Clamp Brackets

Reference no. 854006 1

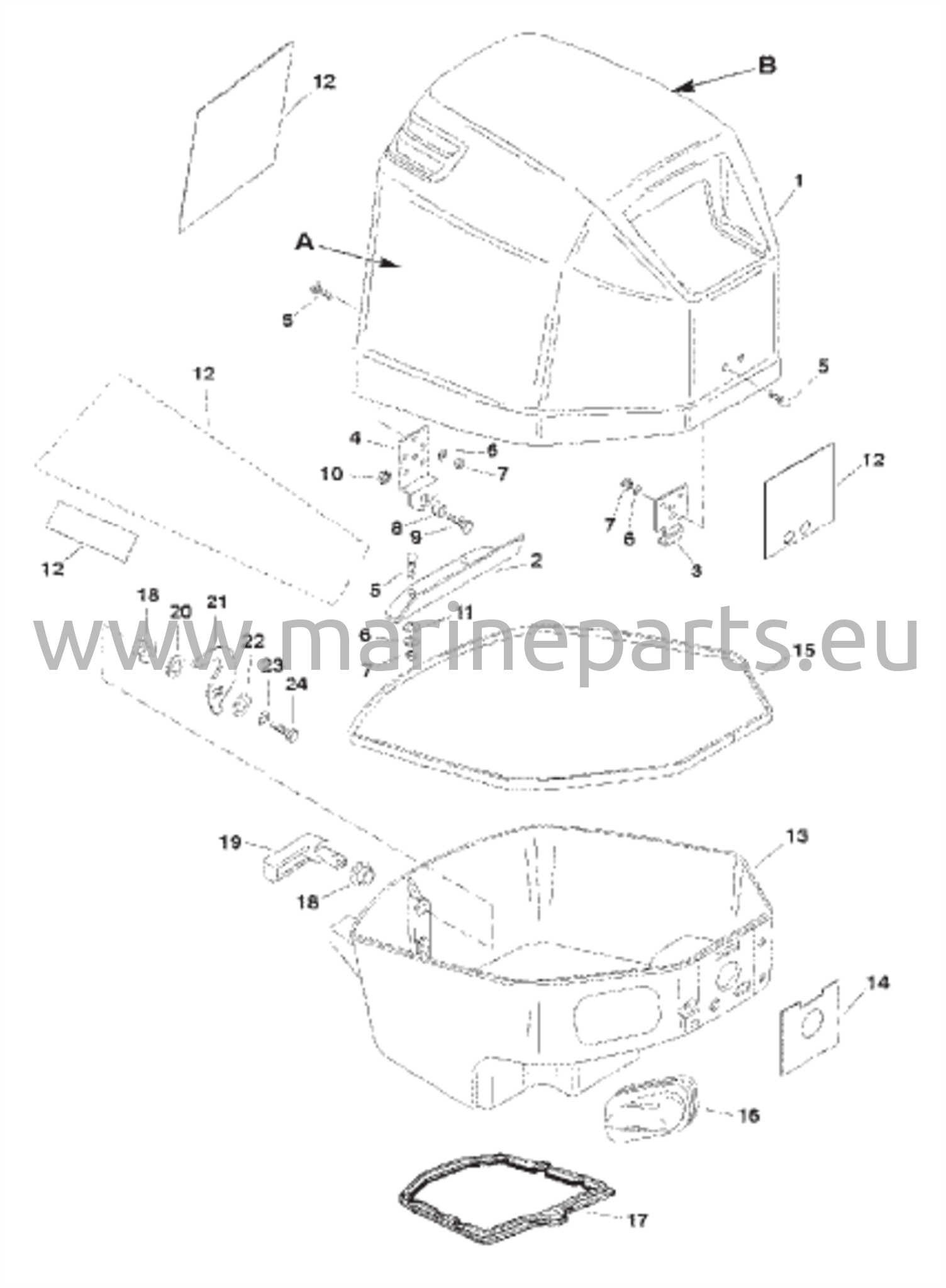

Cowl Assembly (Top and Bottom)

Reference no. 854006 2

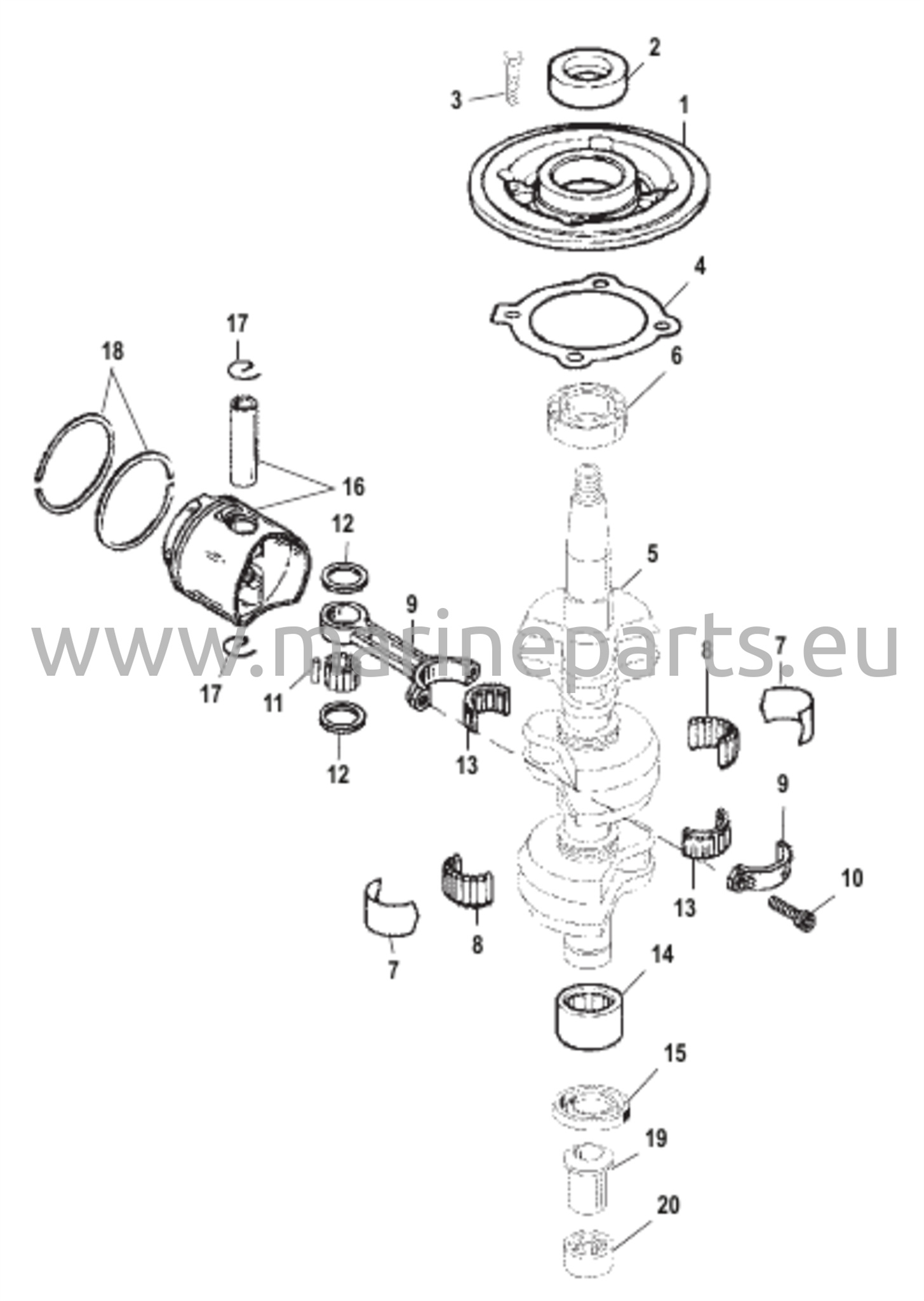

Crankshaft and Piston

Reference no. 854006 3

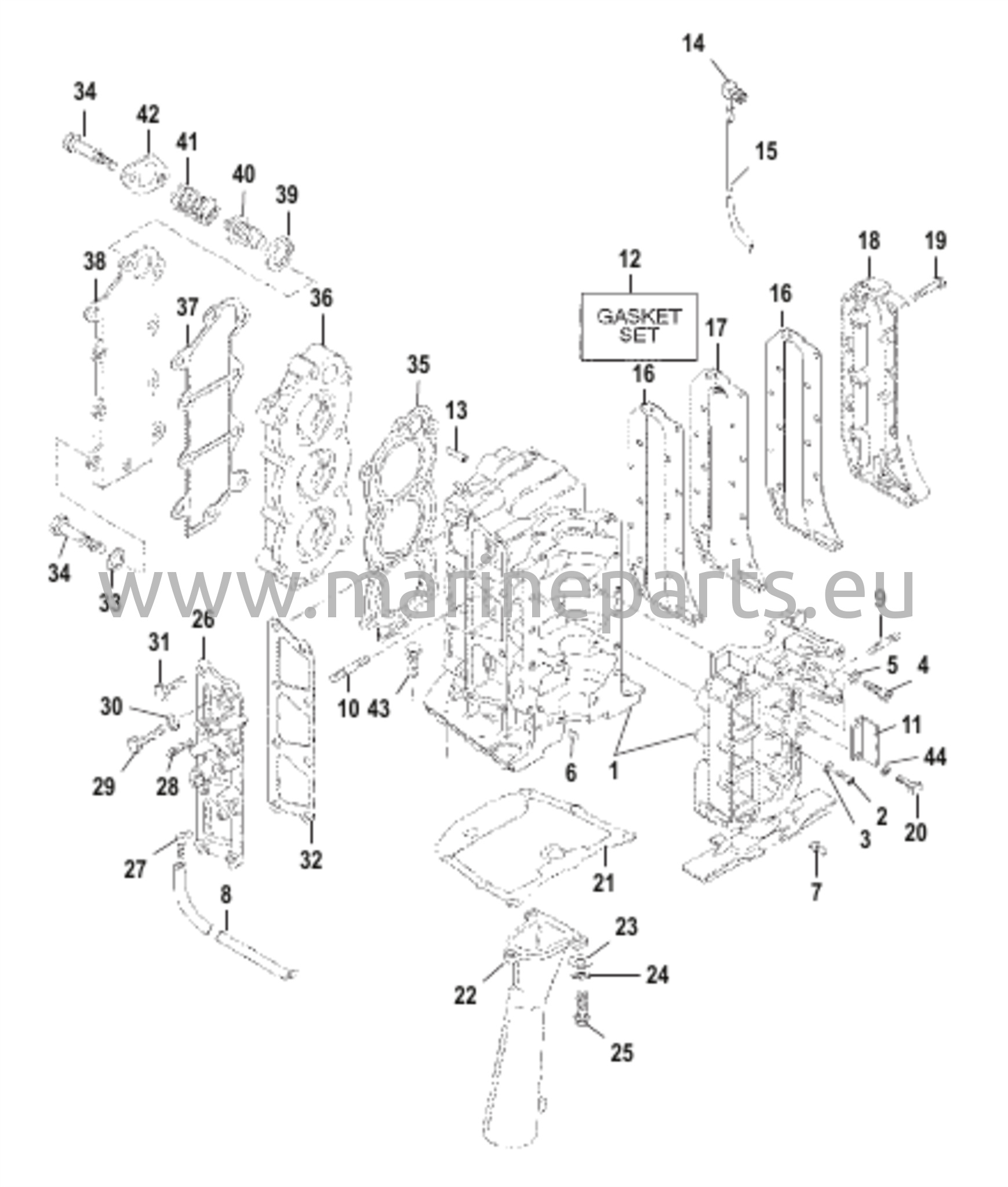

Cylinder Block Assembly

Reference no. 854006 4

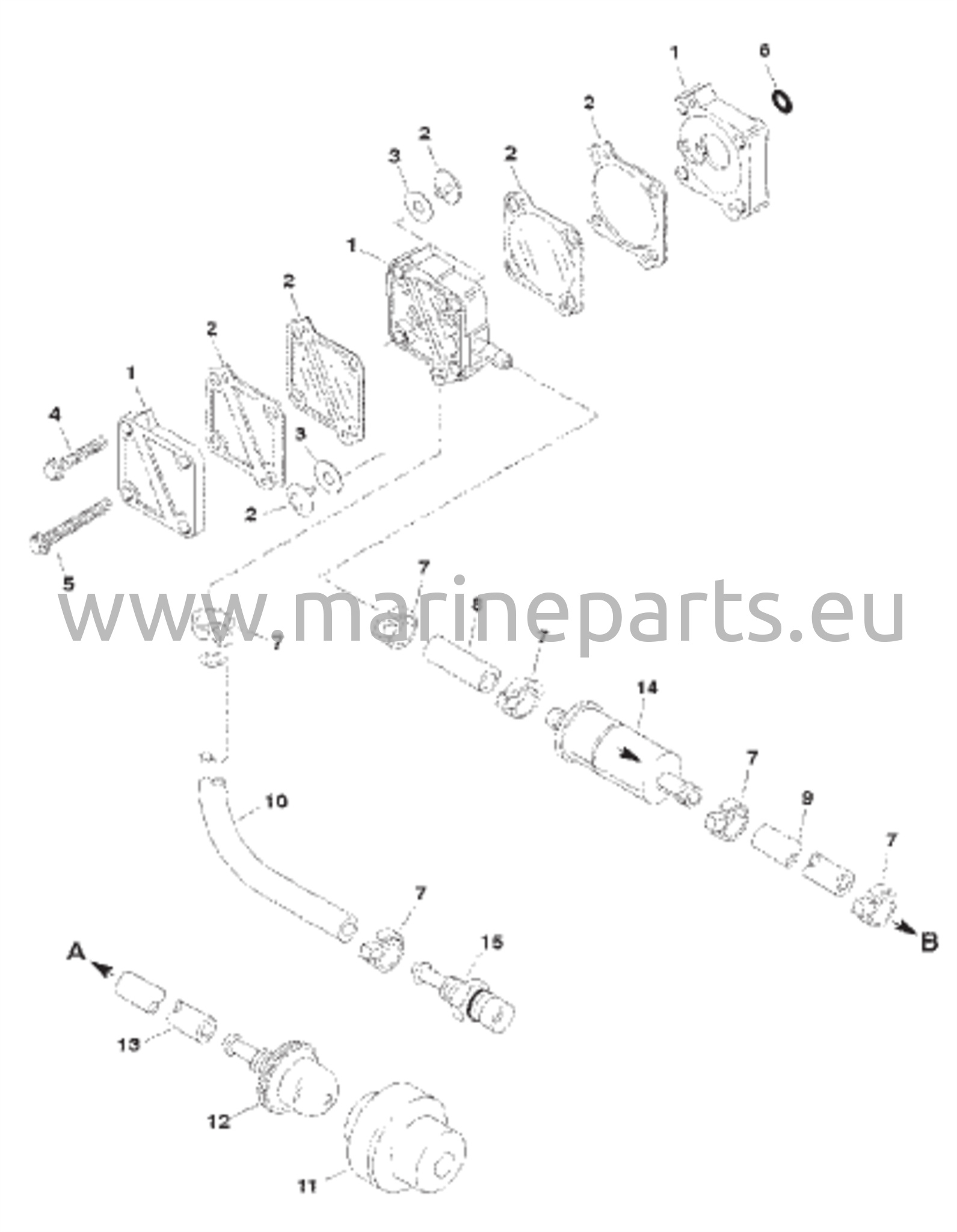

Fuel System

Reference no. 854006 5

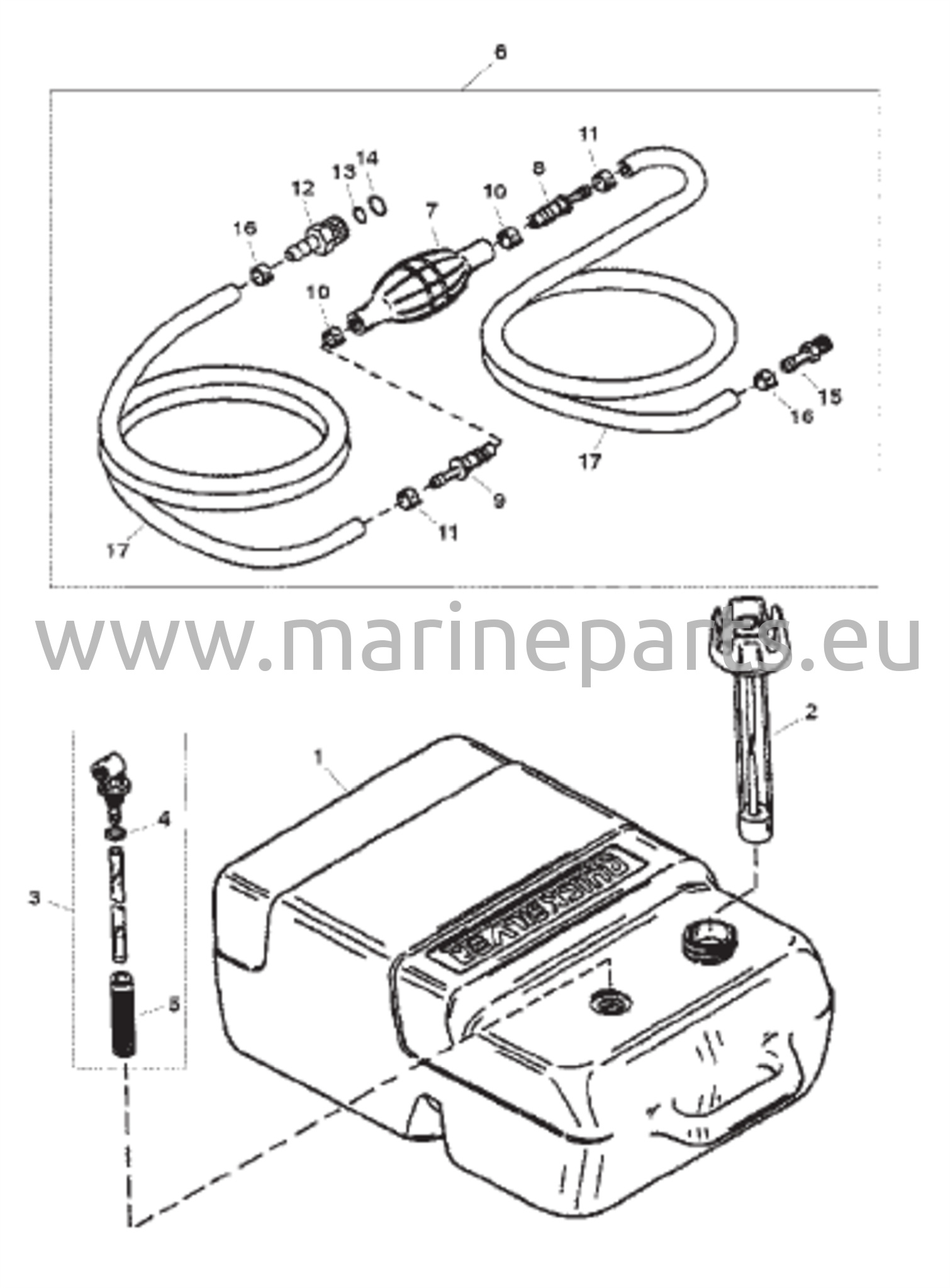

Fuel Tank and Line Assembly (6.6 Gallon)

Reference no. 854006 6

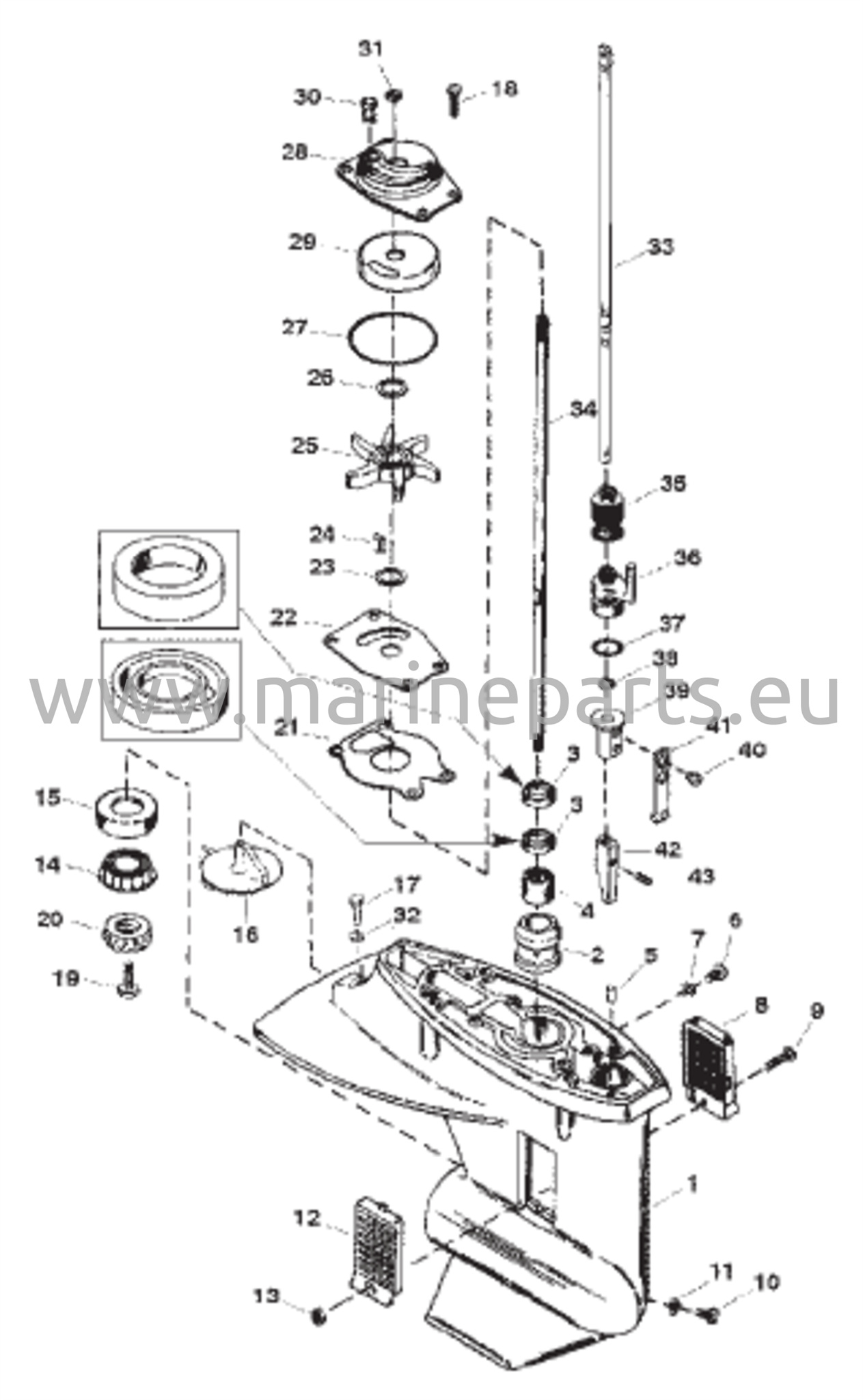

Gear Housing Assembly (Driveshaft)

Reference no. 854006 7

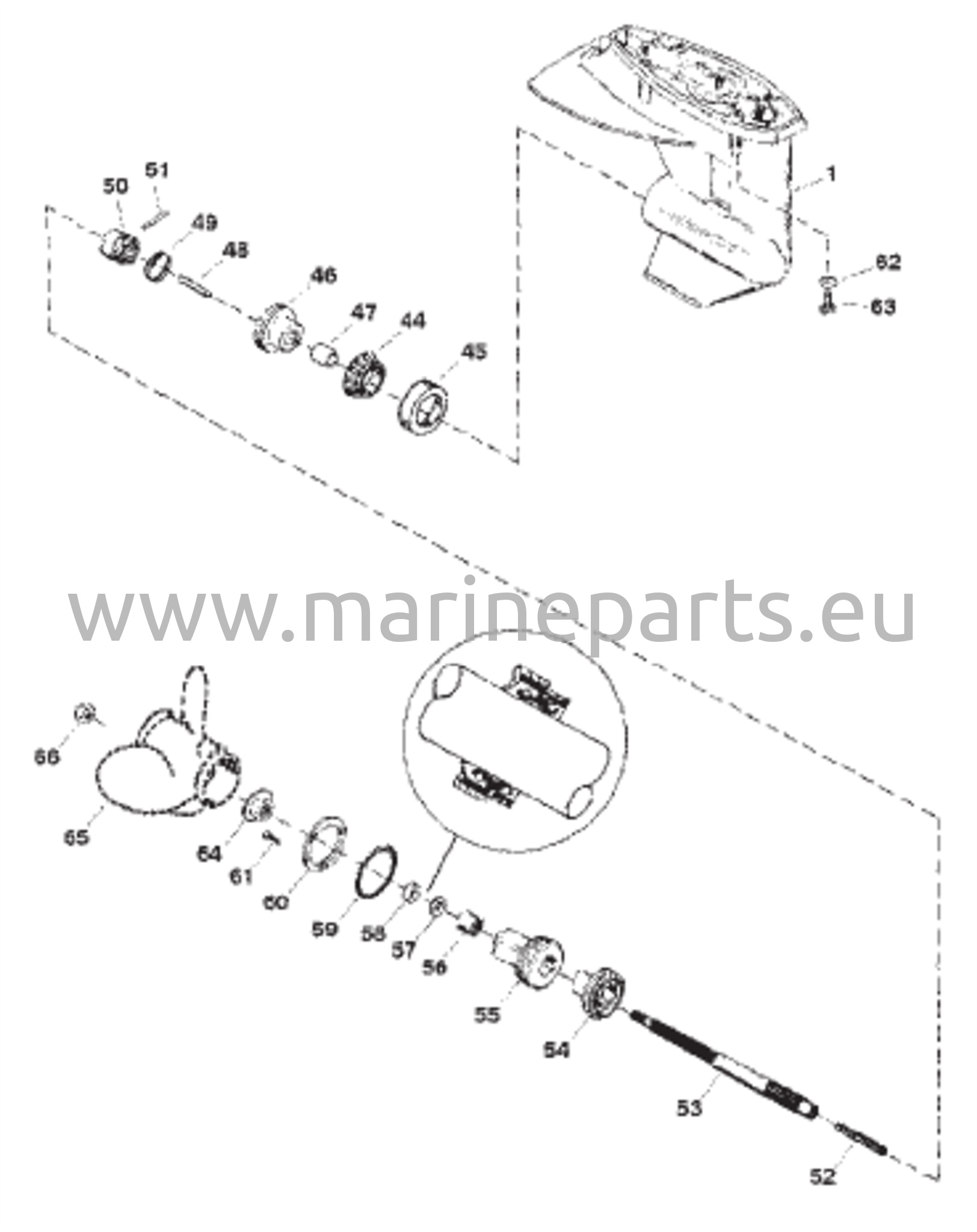

Gear Housing Assembly (Propeller Shaft)

Reference no. 854006 8

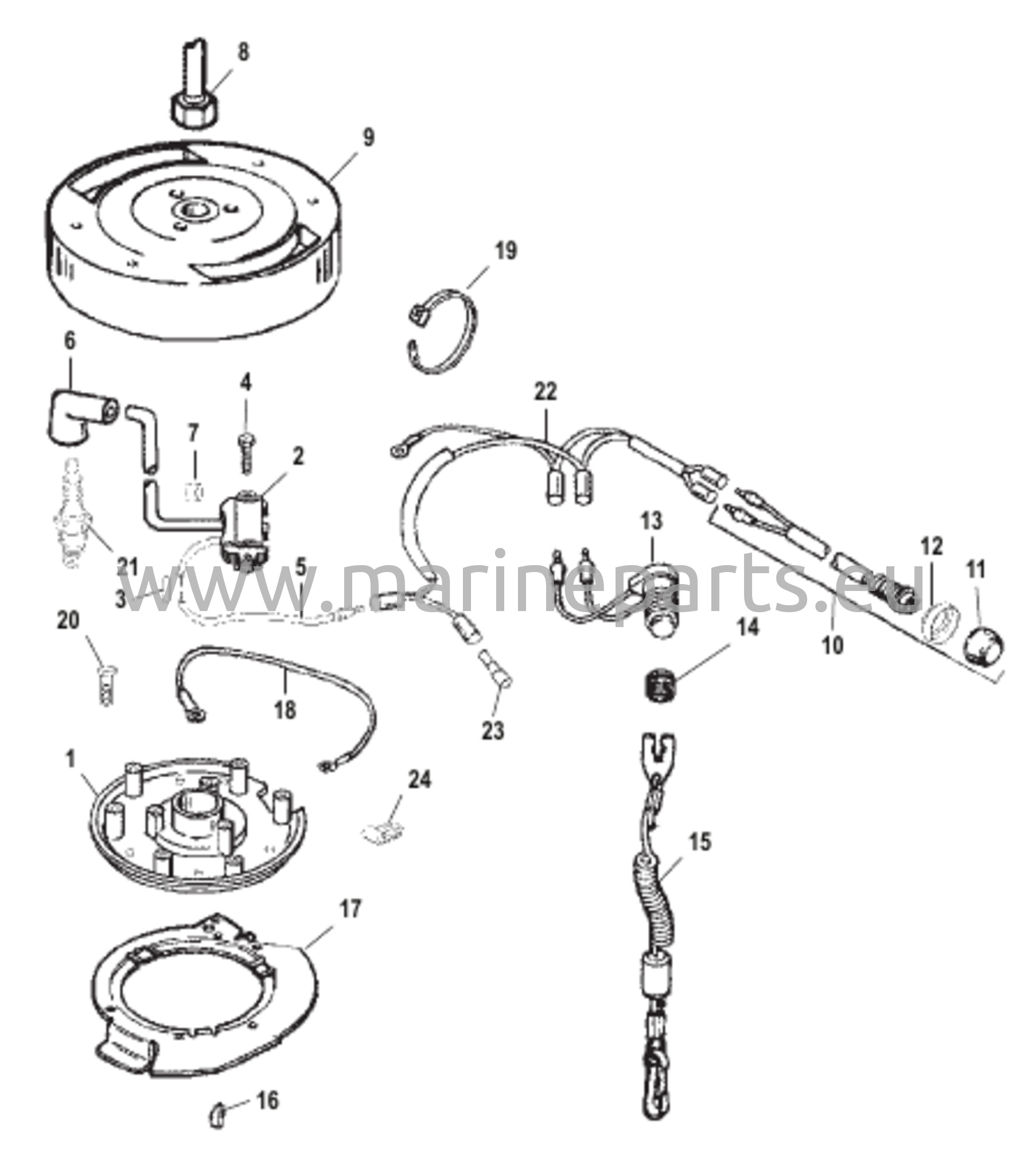

Ignition System

Reference no. 854006 9

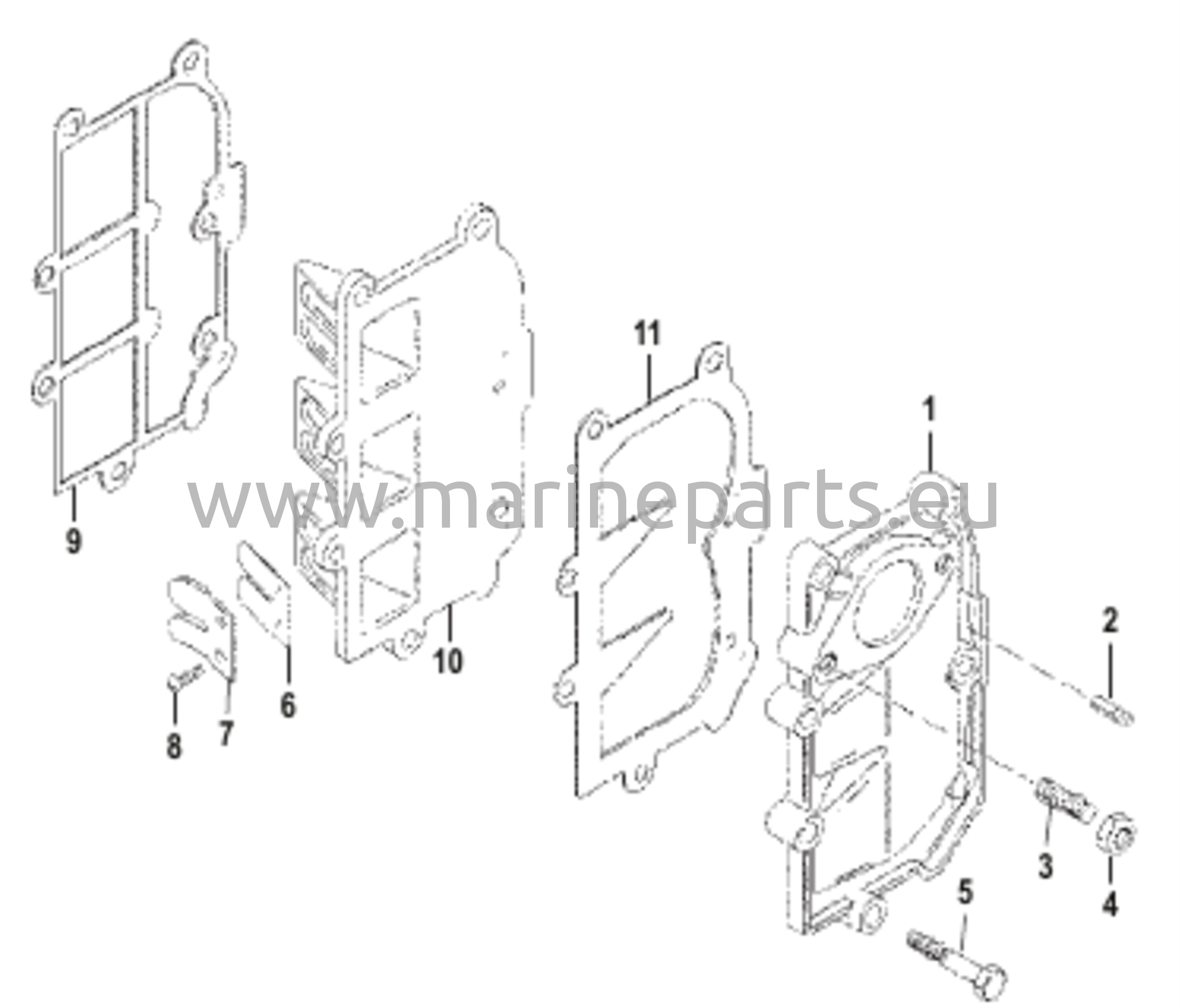

Reed Plate / Manifold Assembly

Reference no. 854006 10

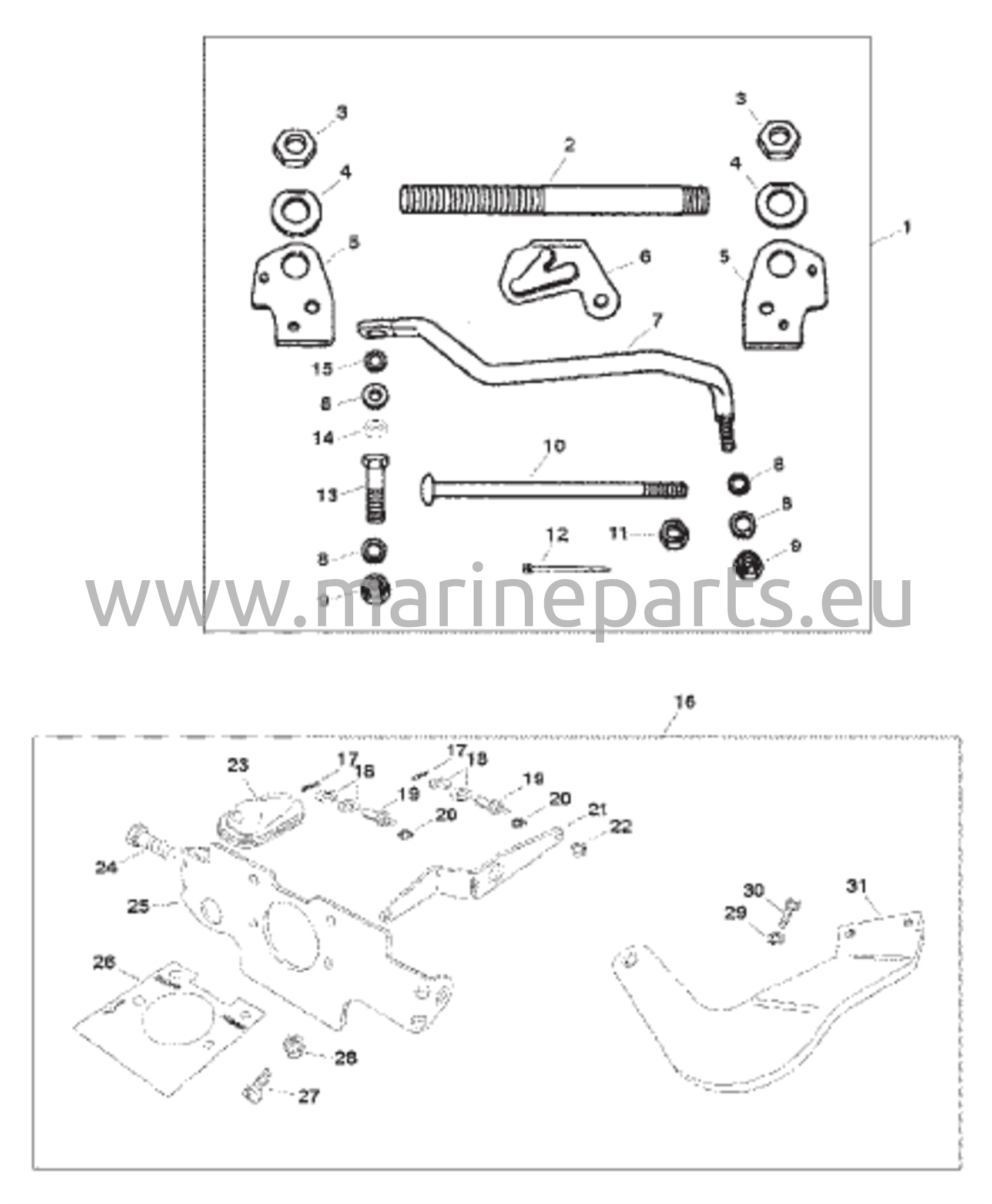

Remote Control Linkage

Reference no. 854006 11

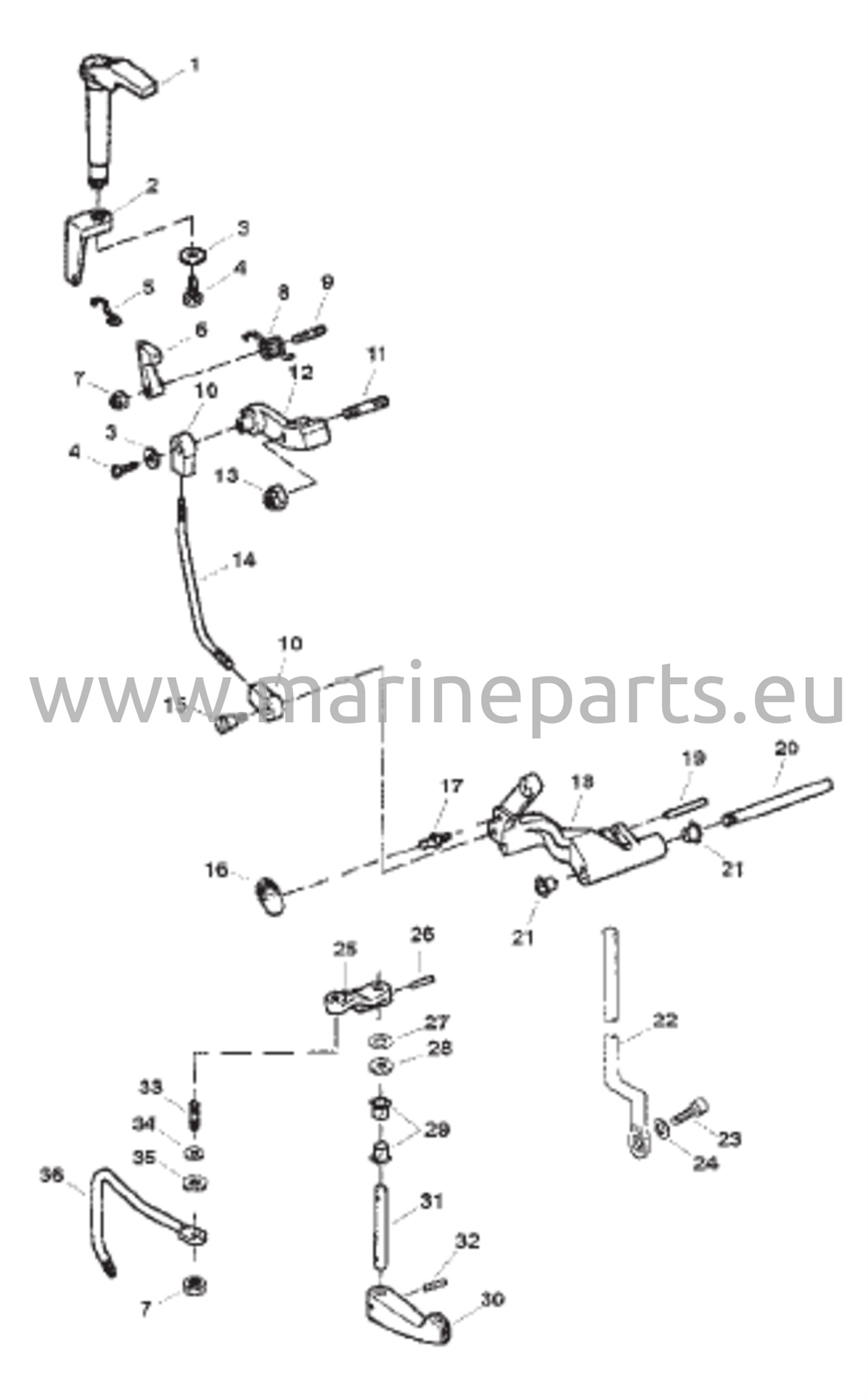

Shift Linkage

Reference no. 854006 12

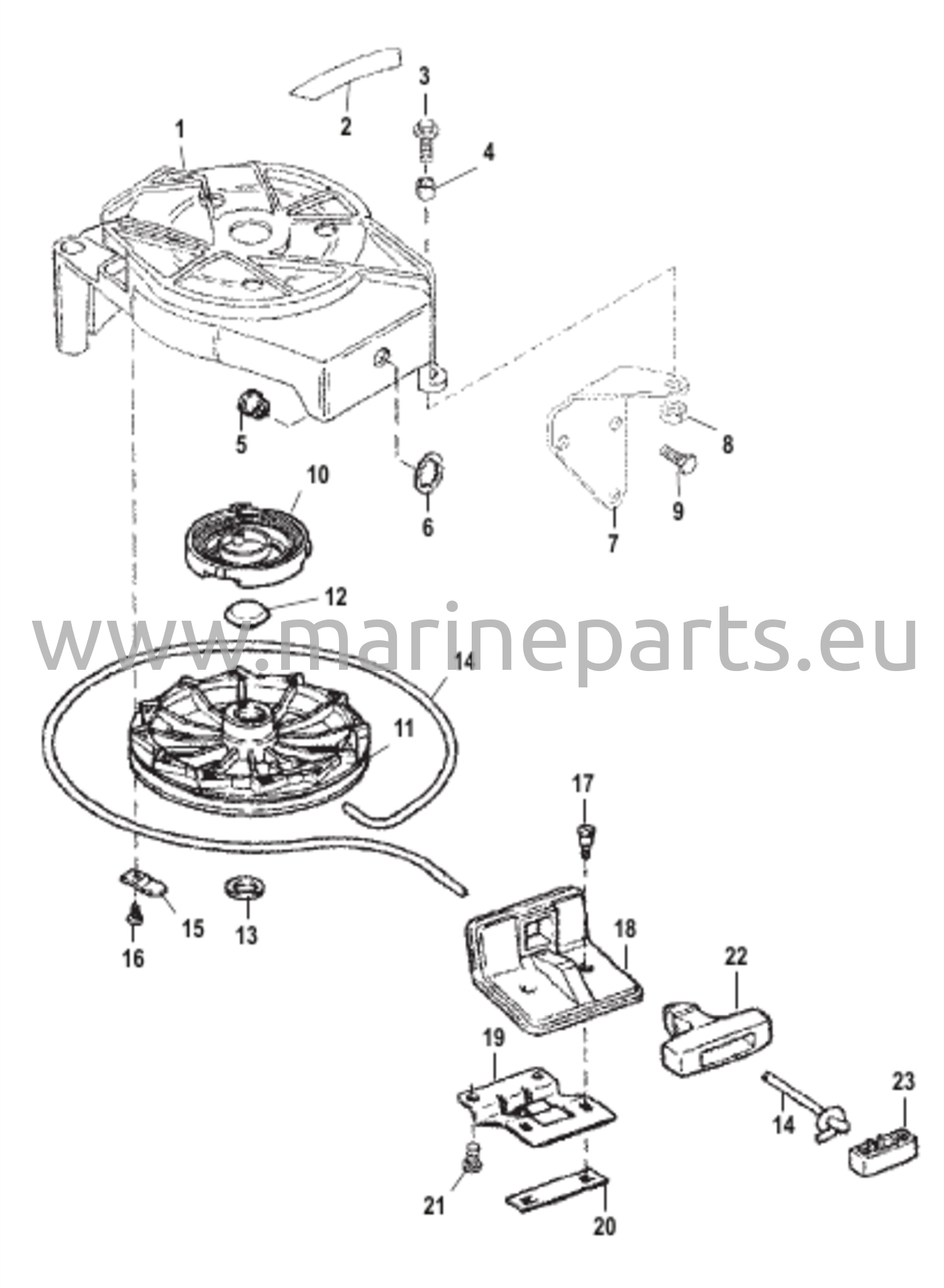

Starter Rewind Components

Reference no. 854006 13

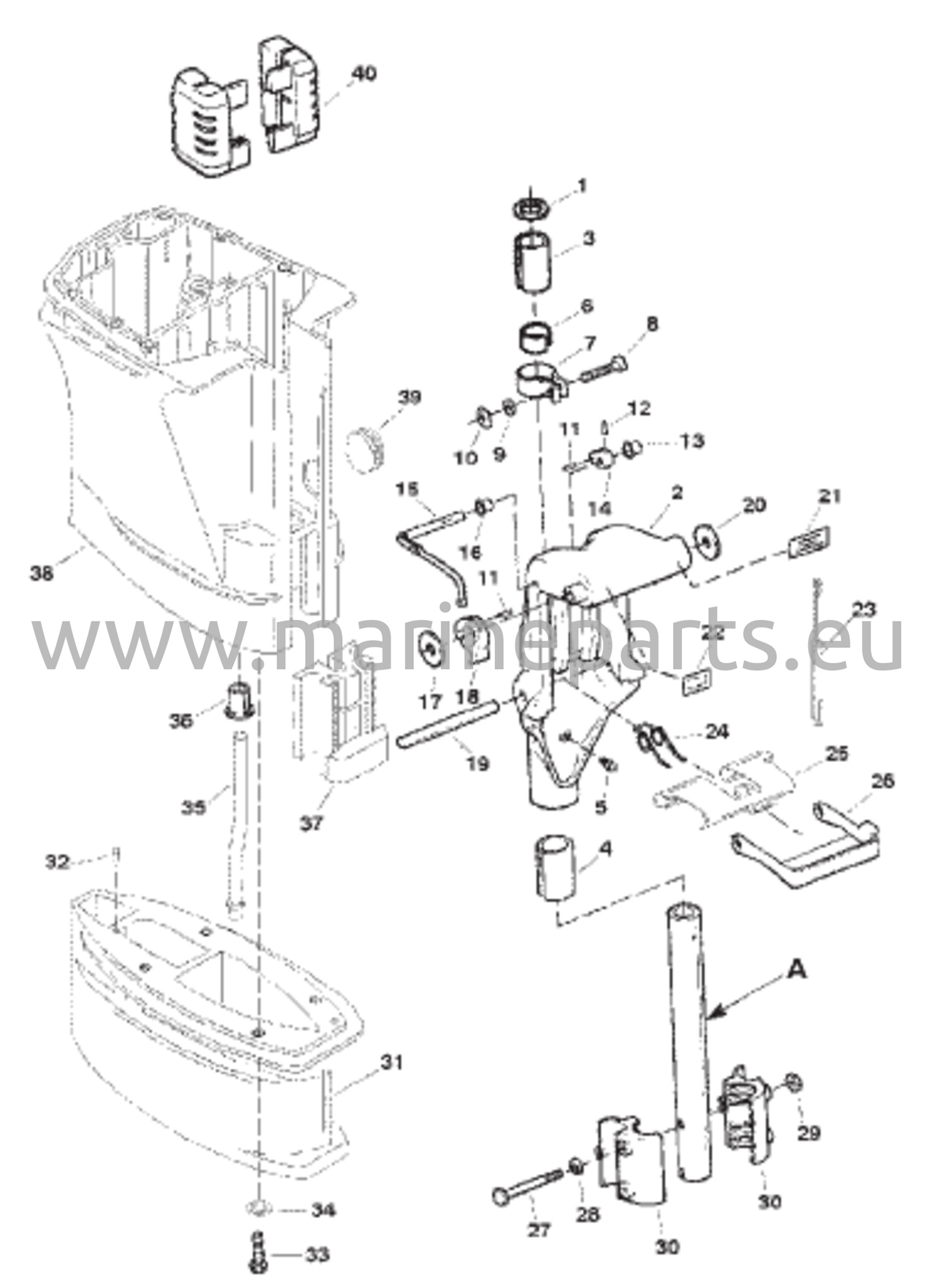

Swivel Bracket and Driveshaft Housing

Reference no. 854006 14

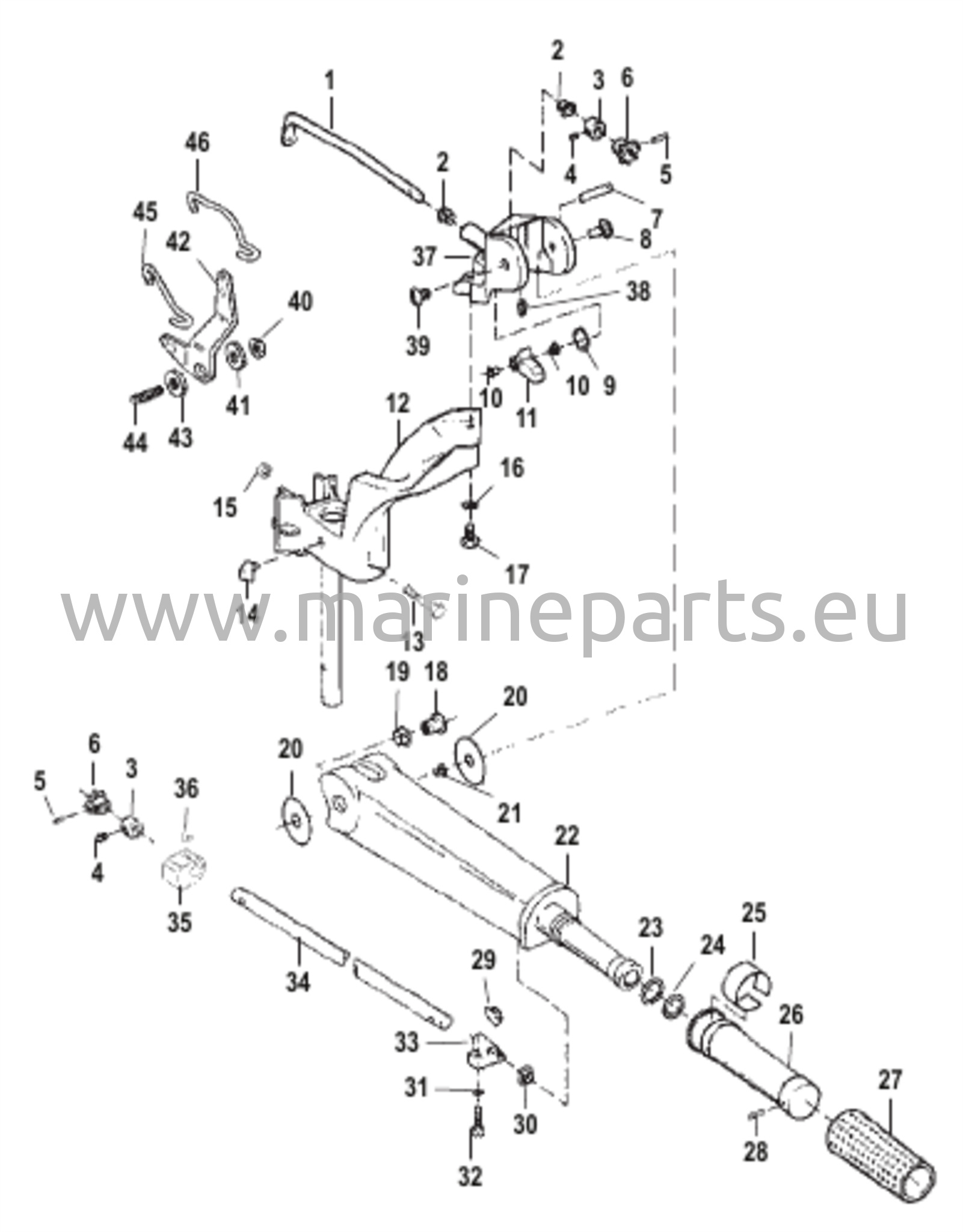

Tiller Handle / Linkage

Reference no. 854006 15
