Exploded views for Parts Catalog Mariner 25C 25 hp 2 cyl. 2-stroke (695-series)

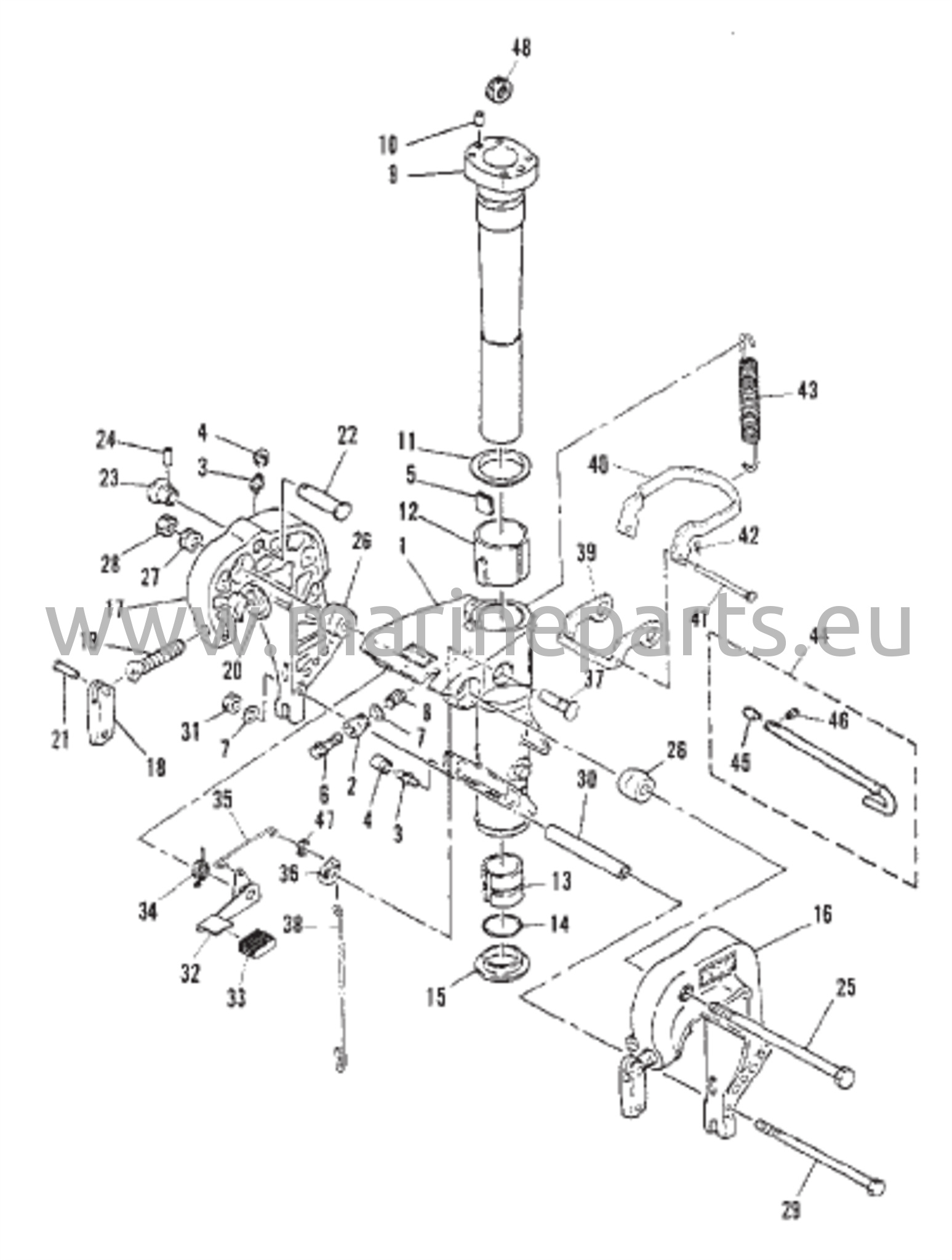

Brackets (M-006085 / ML-305360 / E-251105 / EL-552120 and Below)

Reference no. 92571 0

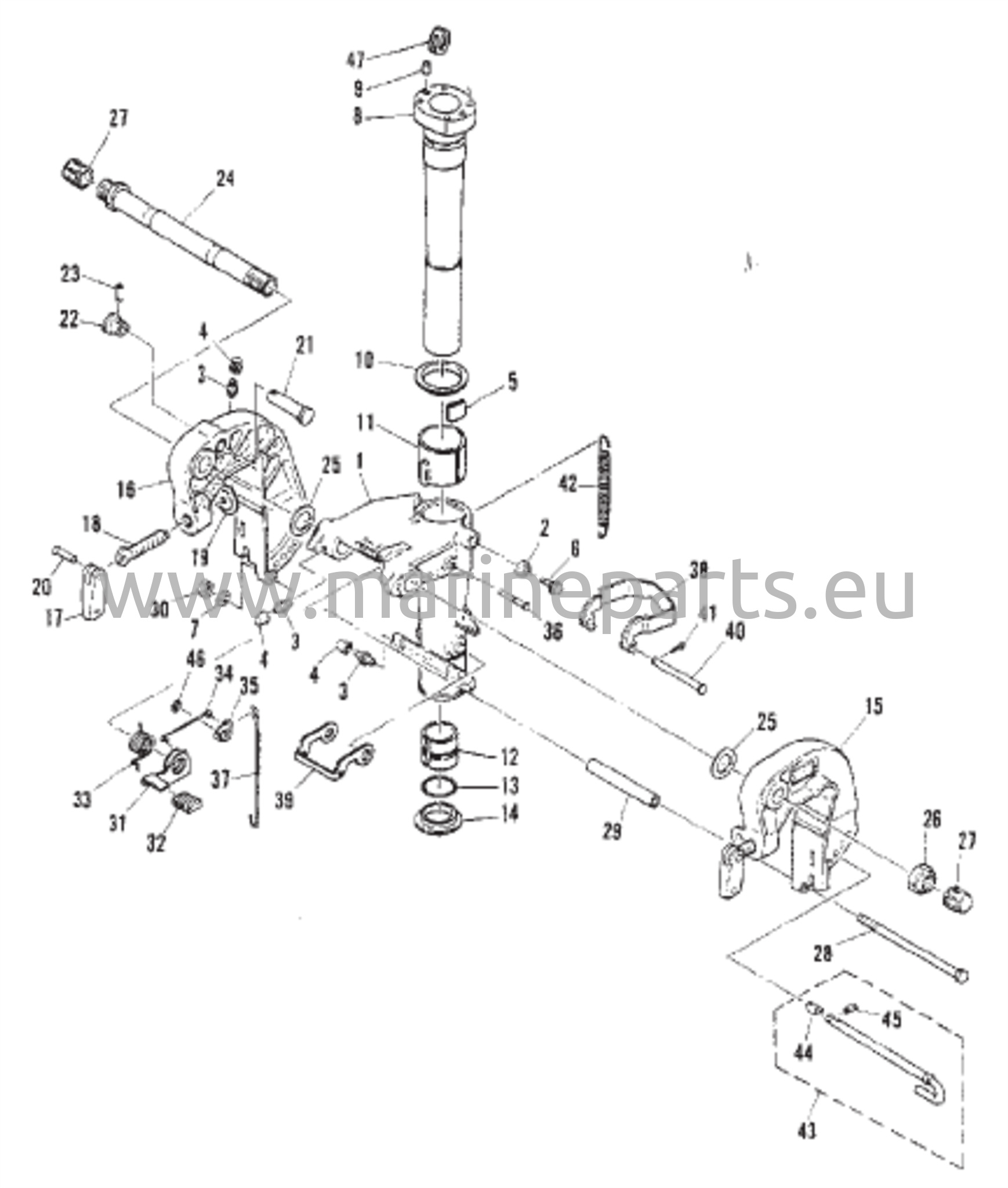

Brackets (M-006086 / ML-305361 / E-251106 / EL-552121 and Up)

Reference no. 92571 1

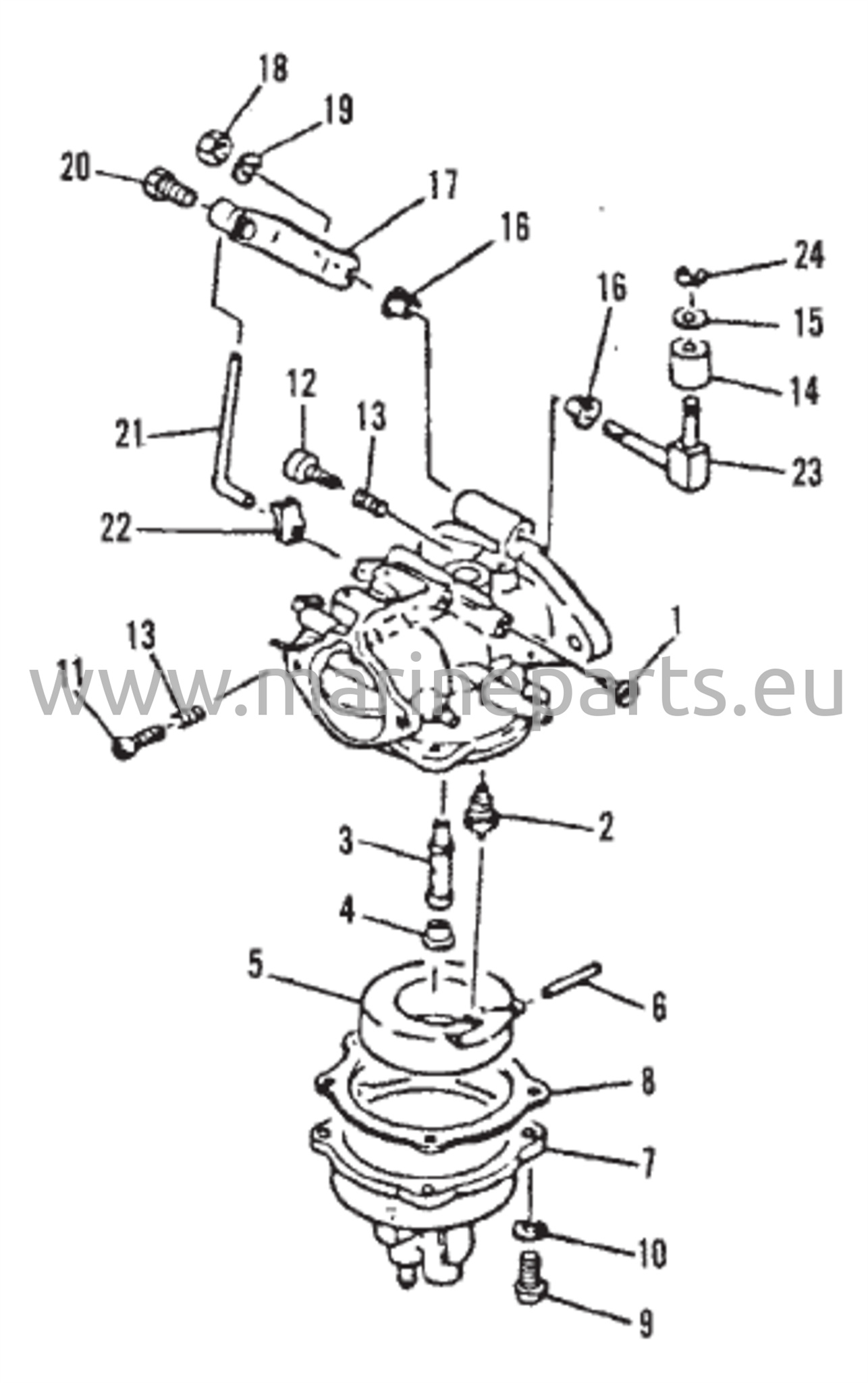

Carburetor

Reference no. 92571 2

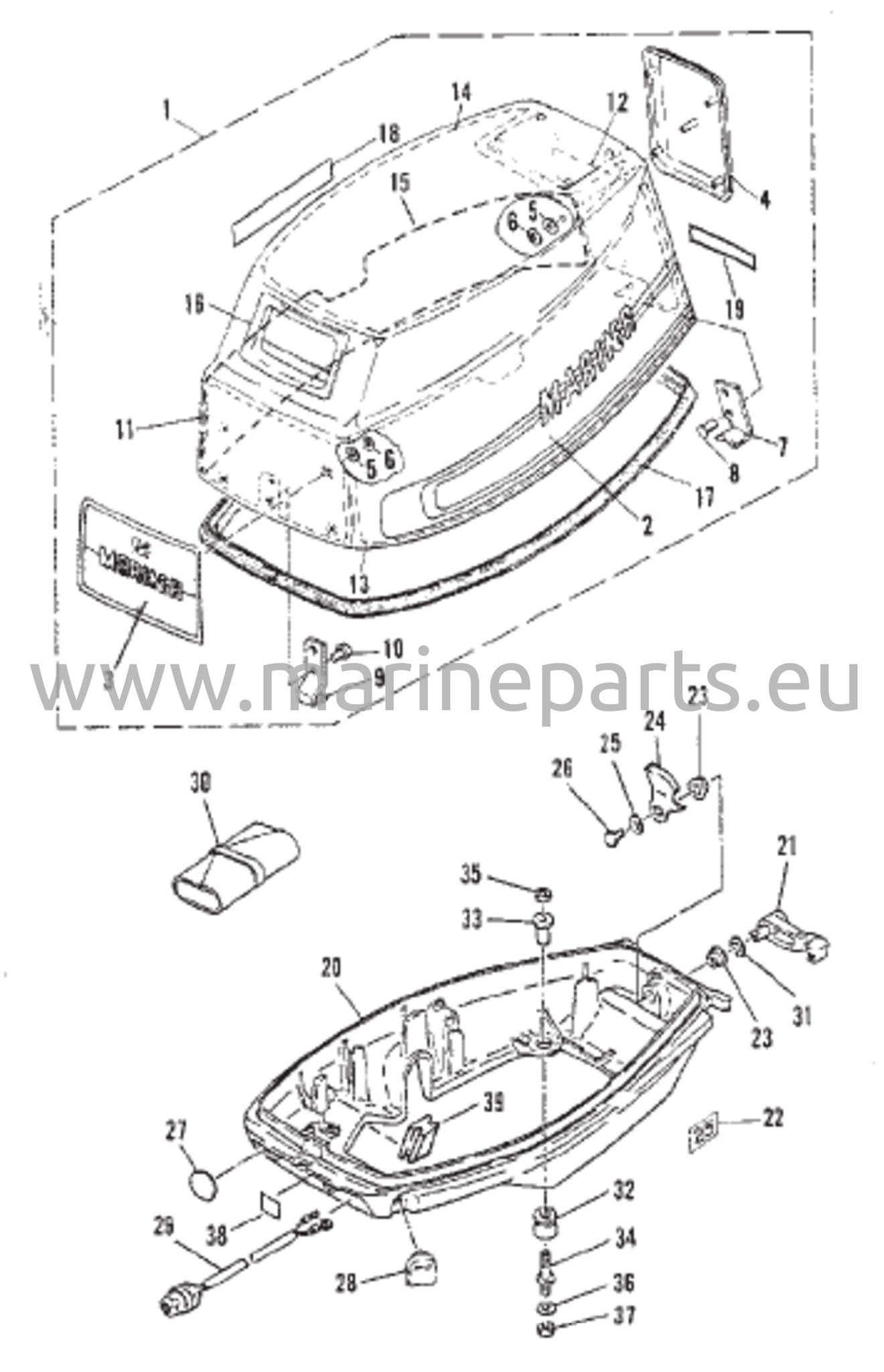

Cowling

Reference no. 92571 3

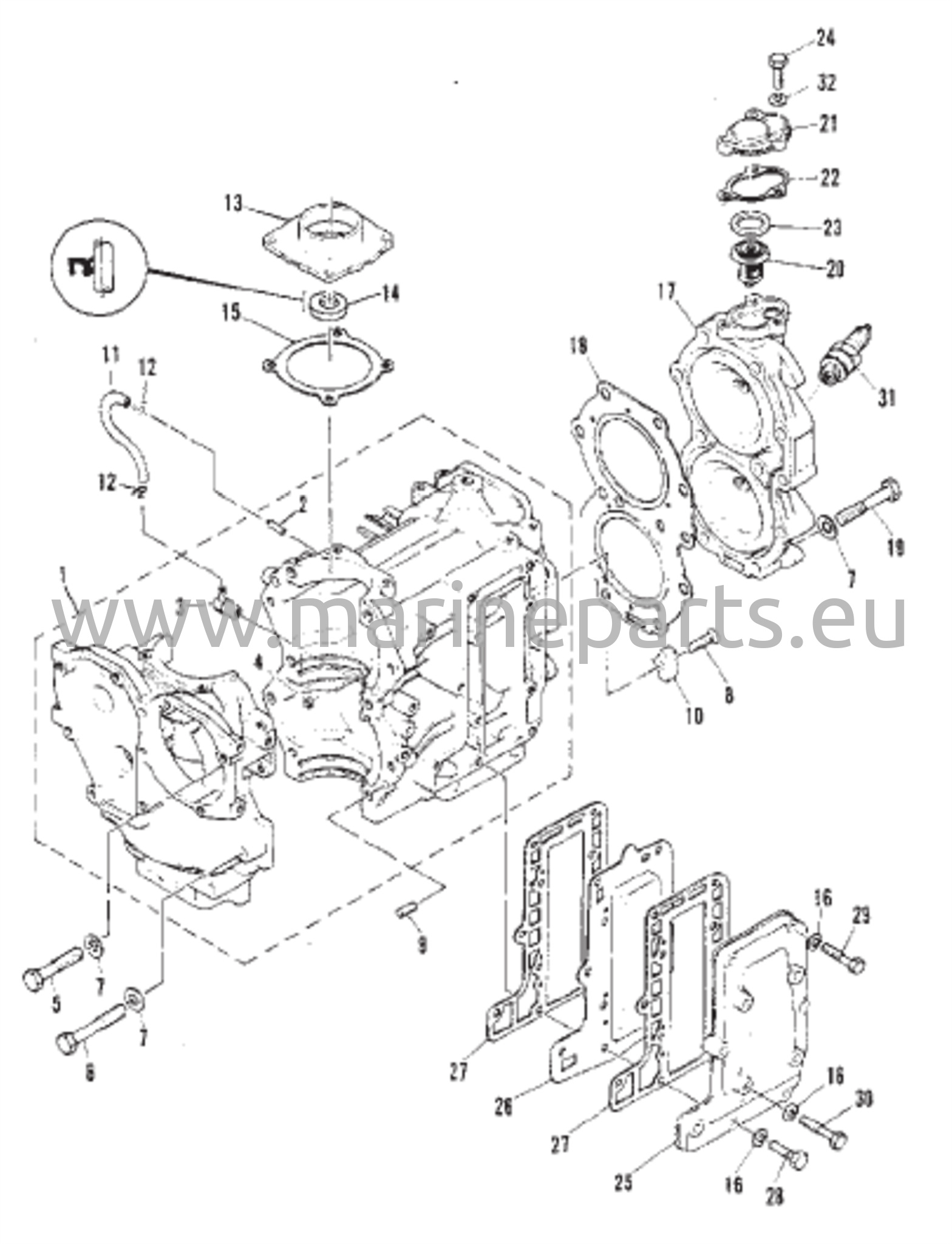

Crankcase and Cylinder Head

Reference no. 92571 4

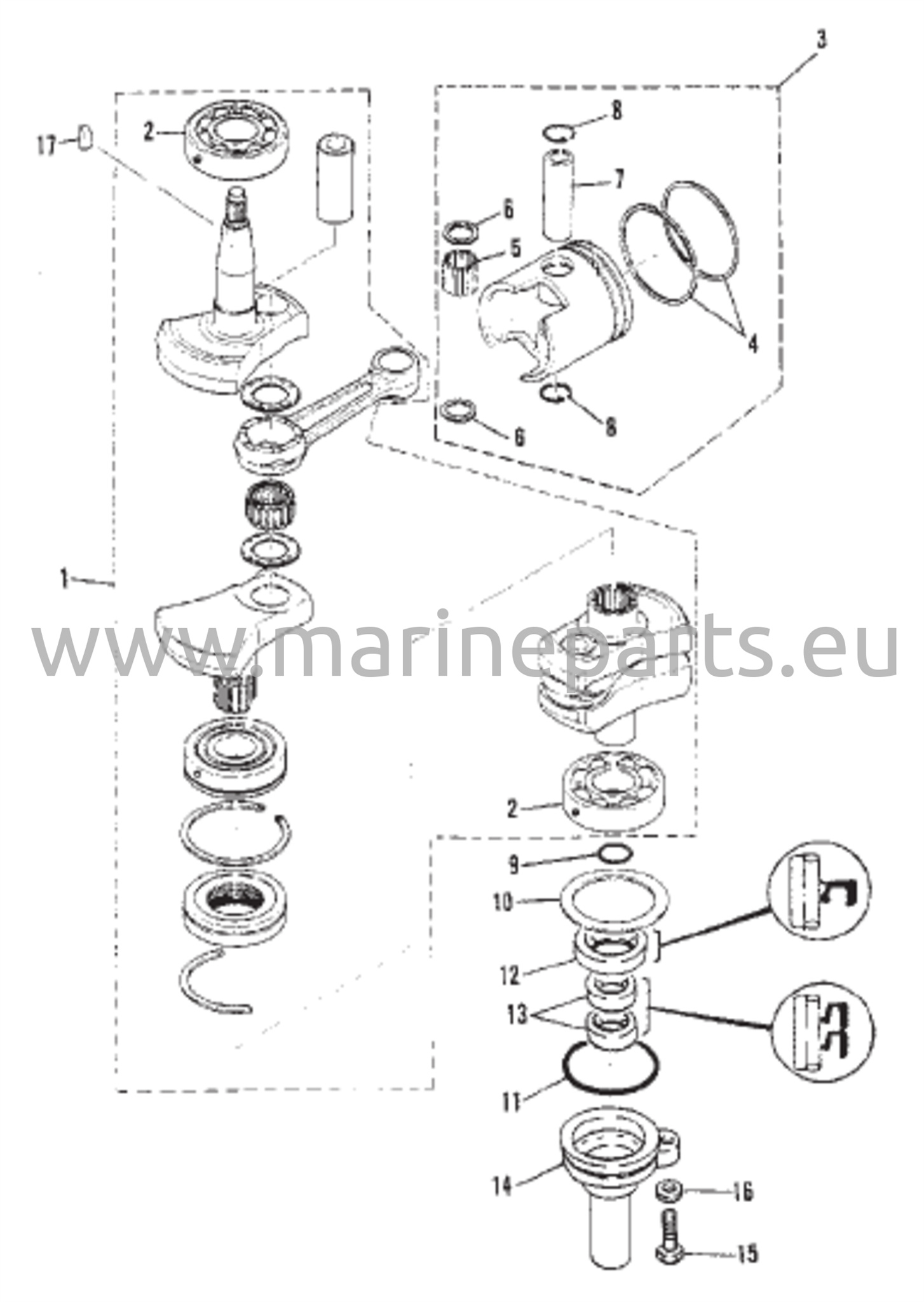

Crankshaft and Piston

Reference no. 92571 5

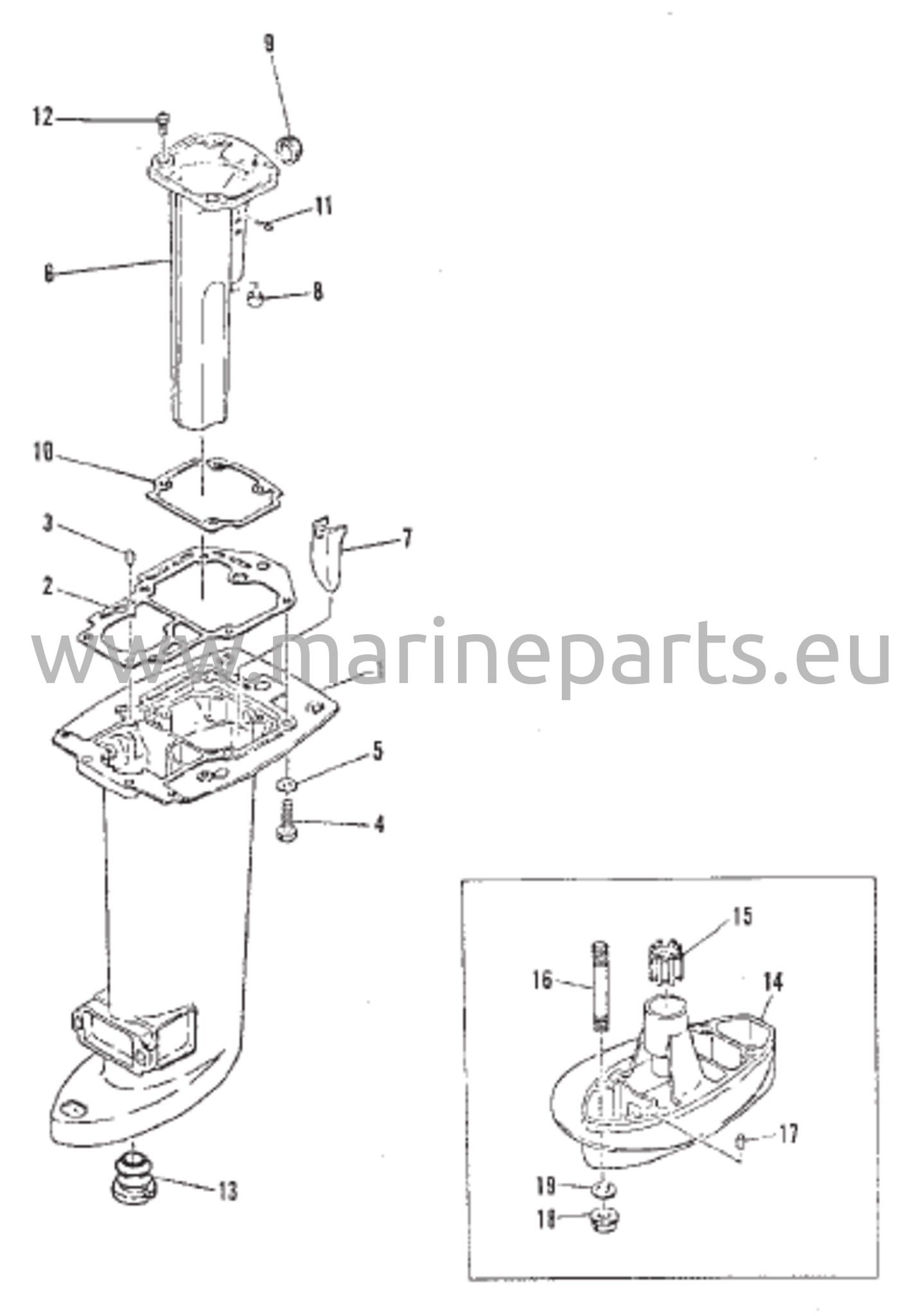

Driveshaft Housing

Reference no. 92571 6

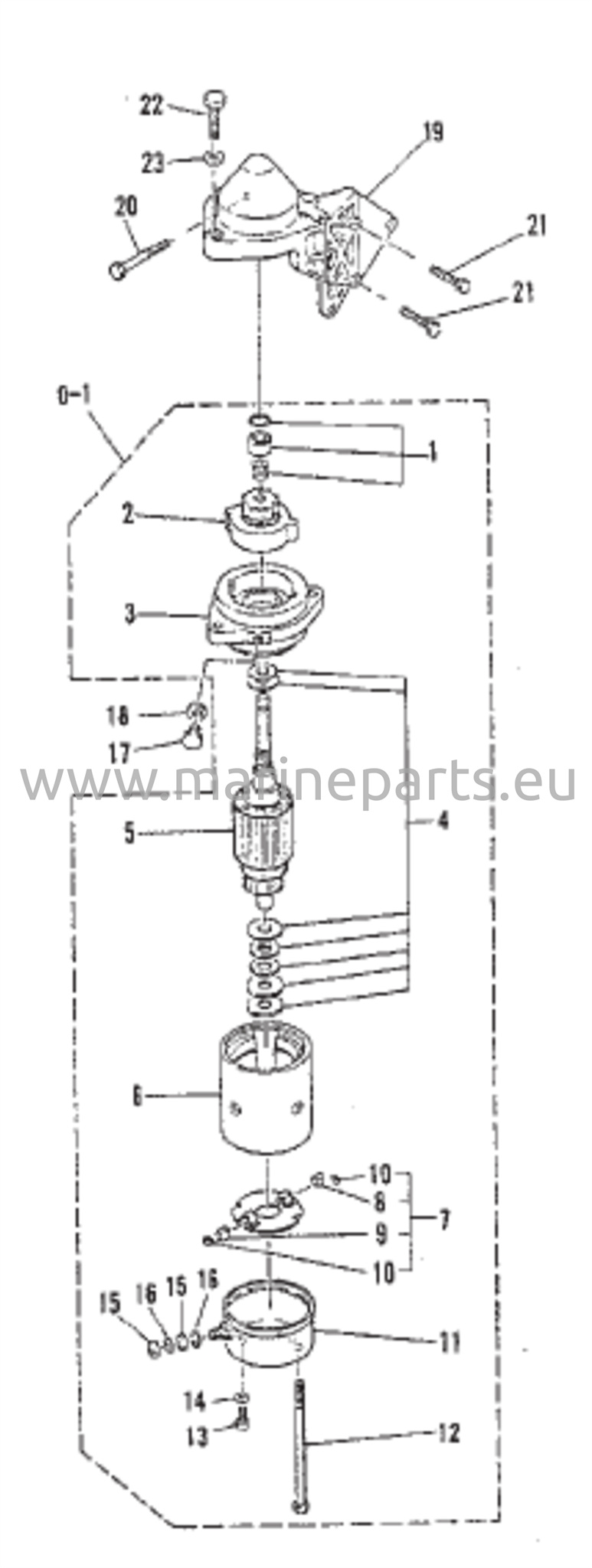

Electric Start Motor (E-251105 / EL-552120 and Below)

Reference no. 92571 8

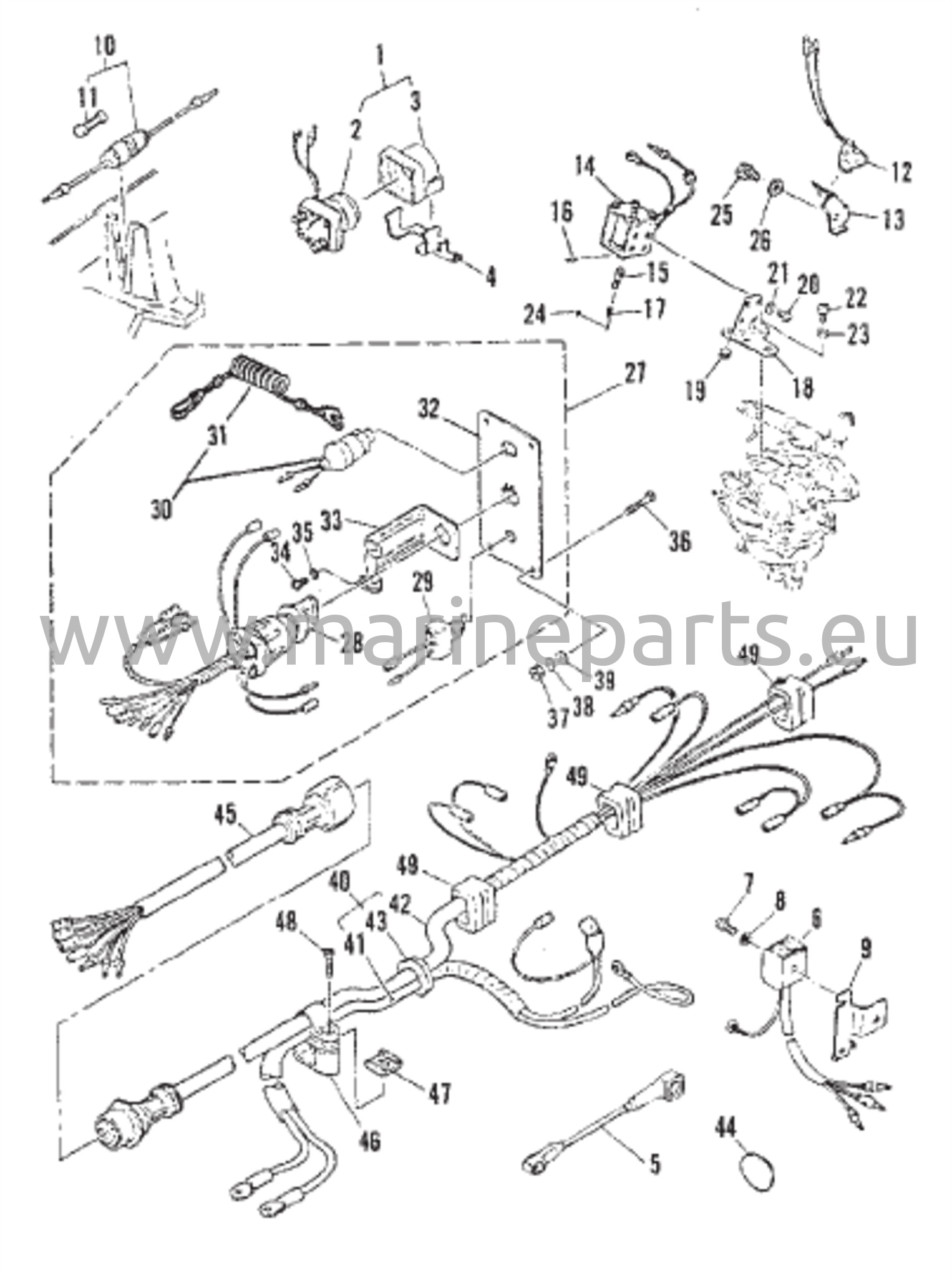

Electric Start Components

Reference no. 92571 7

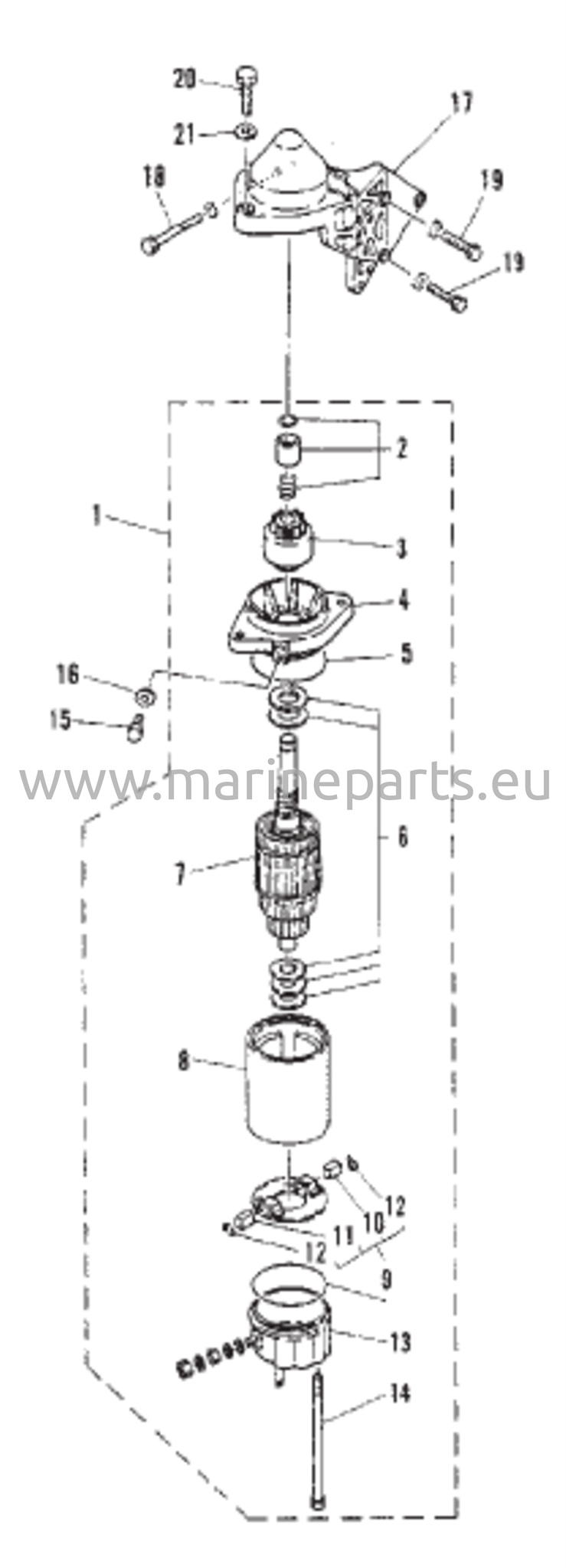

Electric Start Motor (E-251106 / EL-552121 and Up)

Reference no. 92571 9

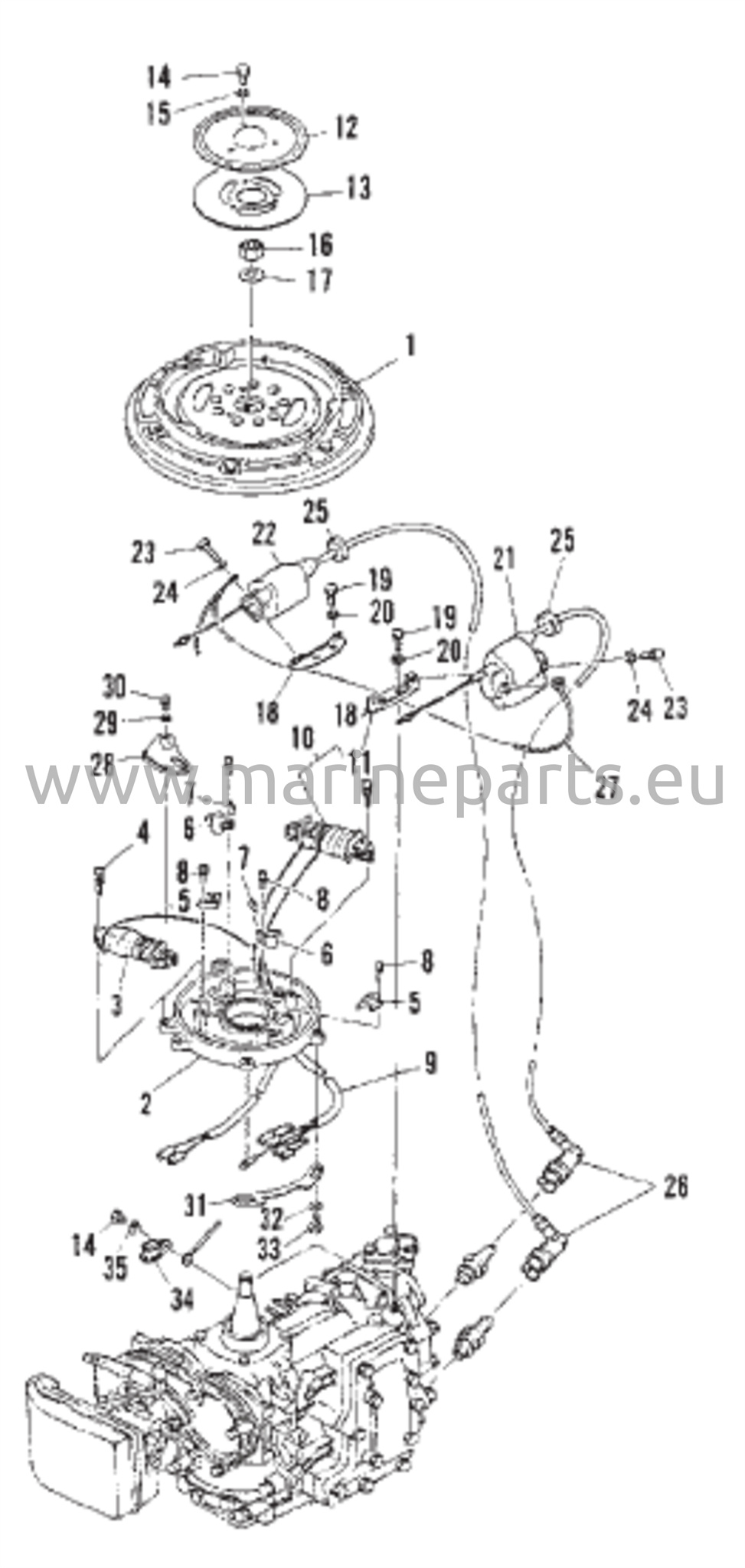

Flywheel (M-006085 / ML-305360 / E-251105 / EL-552120 and Below)

Reference no. 92571 10

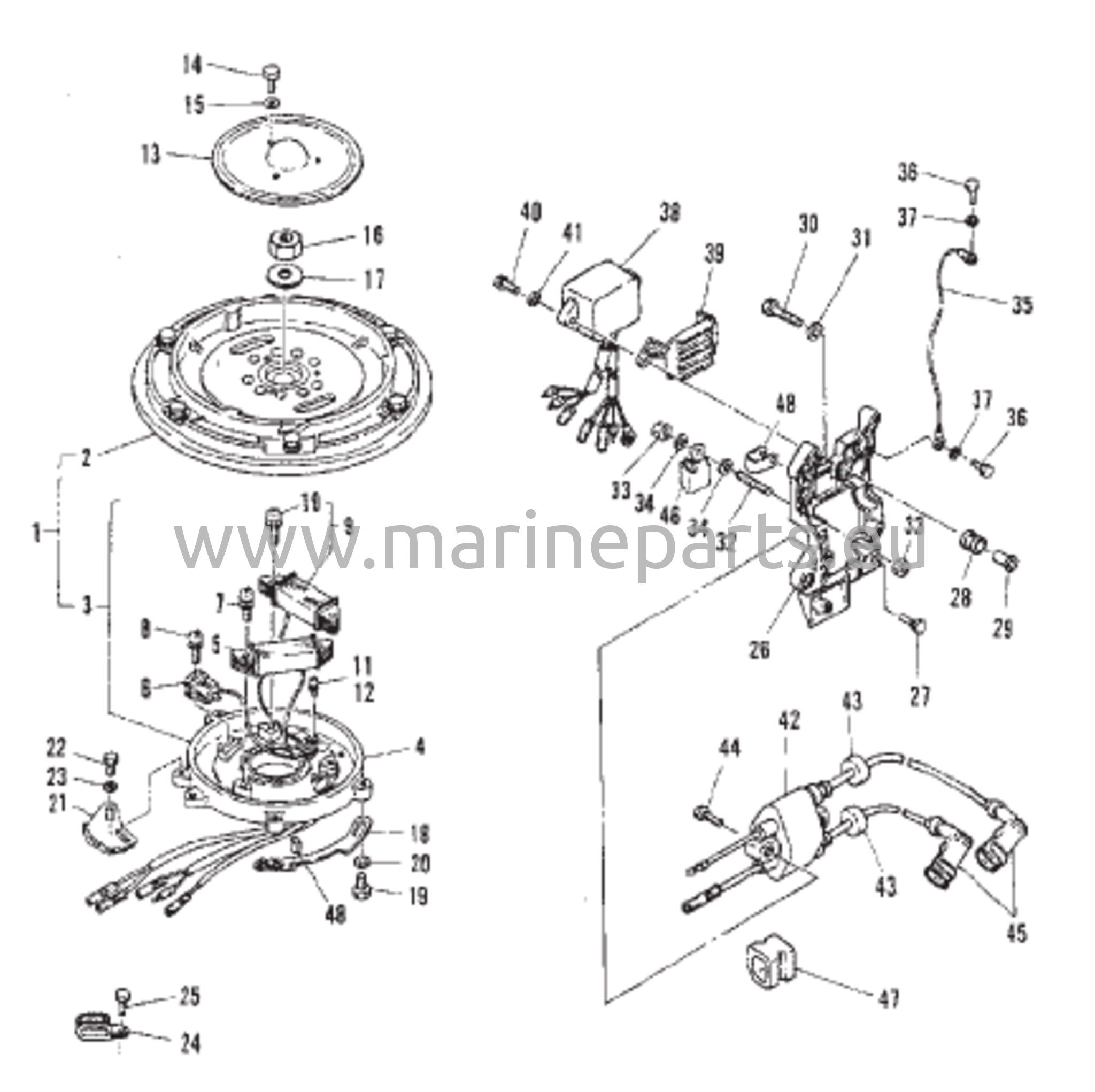

Flywheel (M-006086 / ML-305361 / E-251106 / EL-552121 and Up)

Reference no. 92571 11

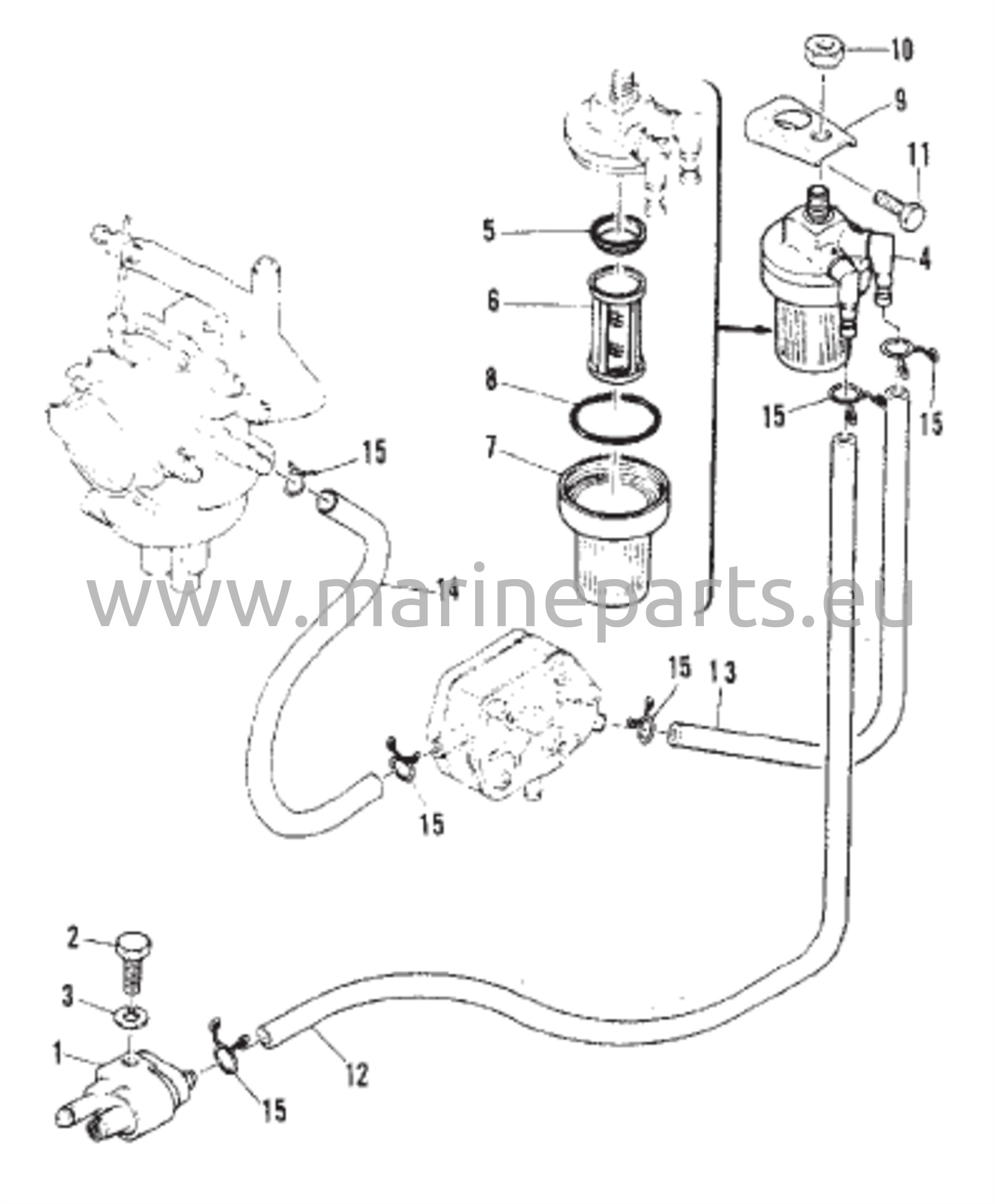

Fuel Lines and Filter

Reference no. 92571 12

Fuel Pump

Reference no. 92571 13

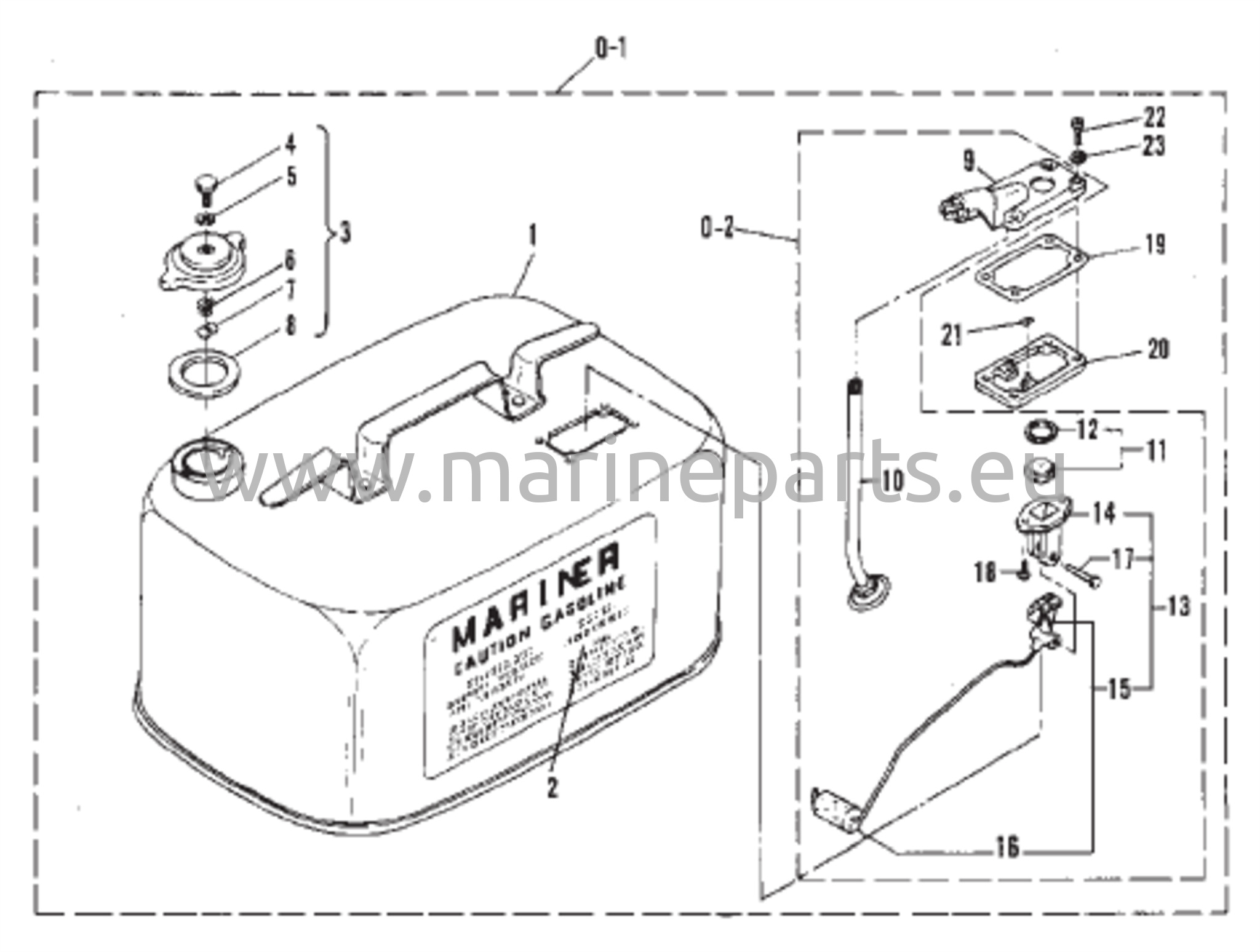

Fuel Tank Assembly (Not Original Equipment Tank)

Reference no. 92571 14

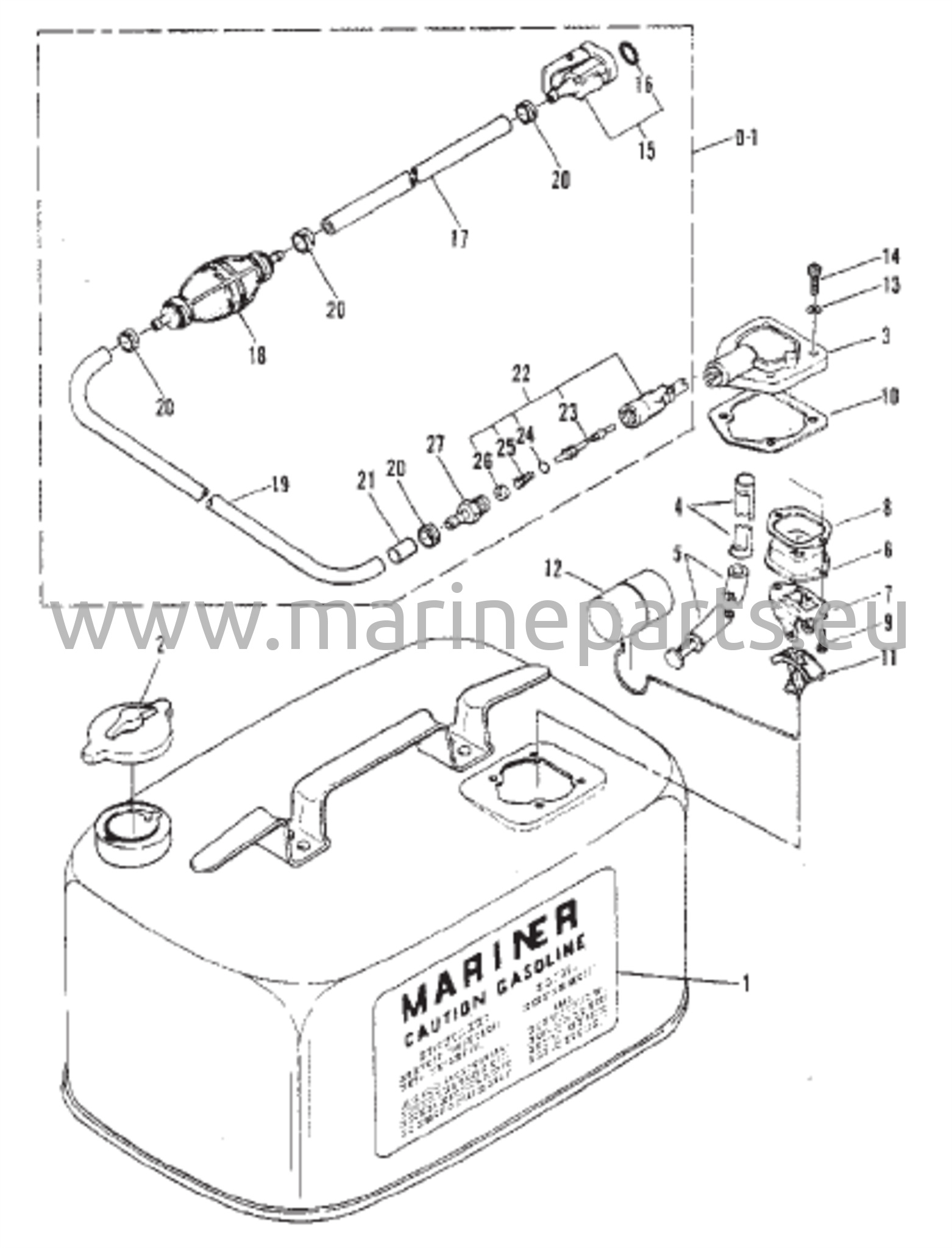

Fuel Tank (M-020319 / ML-315434 / E-253080 / EL-554805 and Below)

Reference no. 92571 15

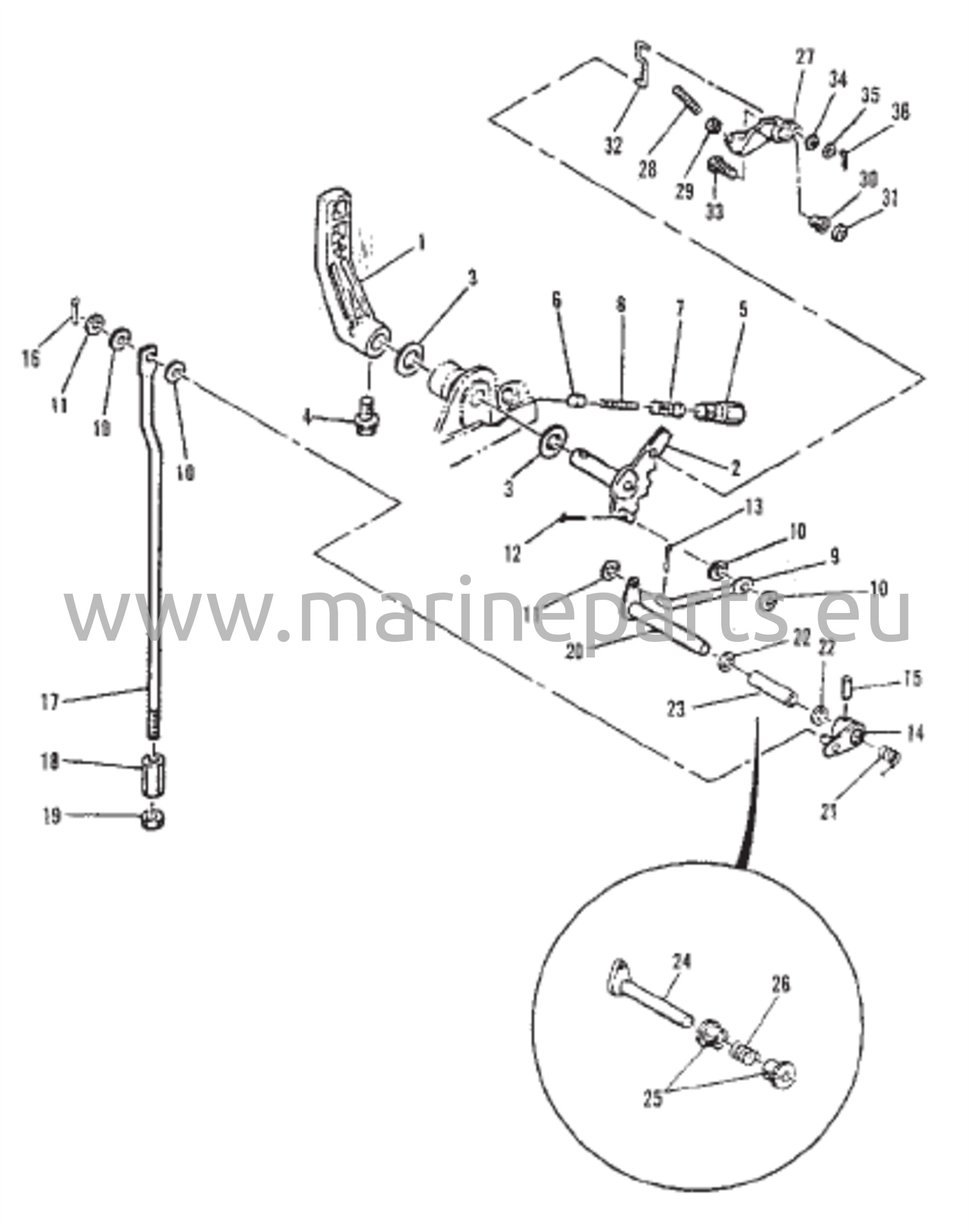

Gear Shift Linkage

Reference no. 92571 17

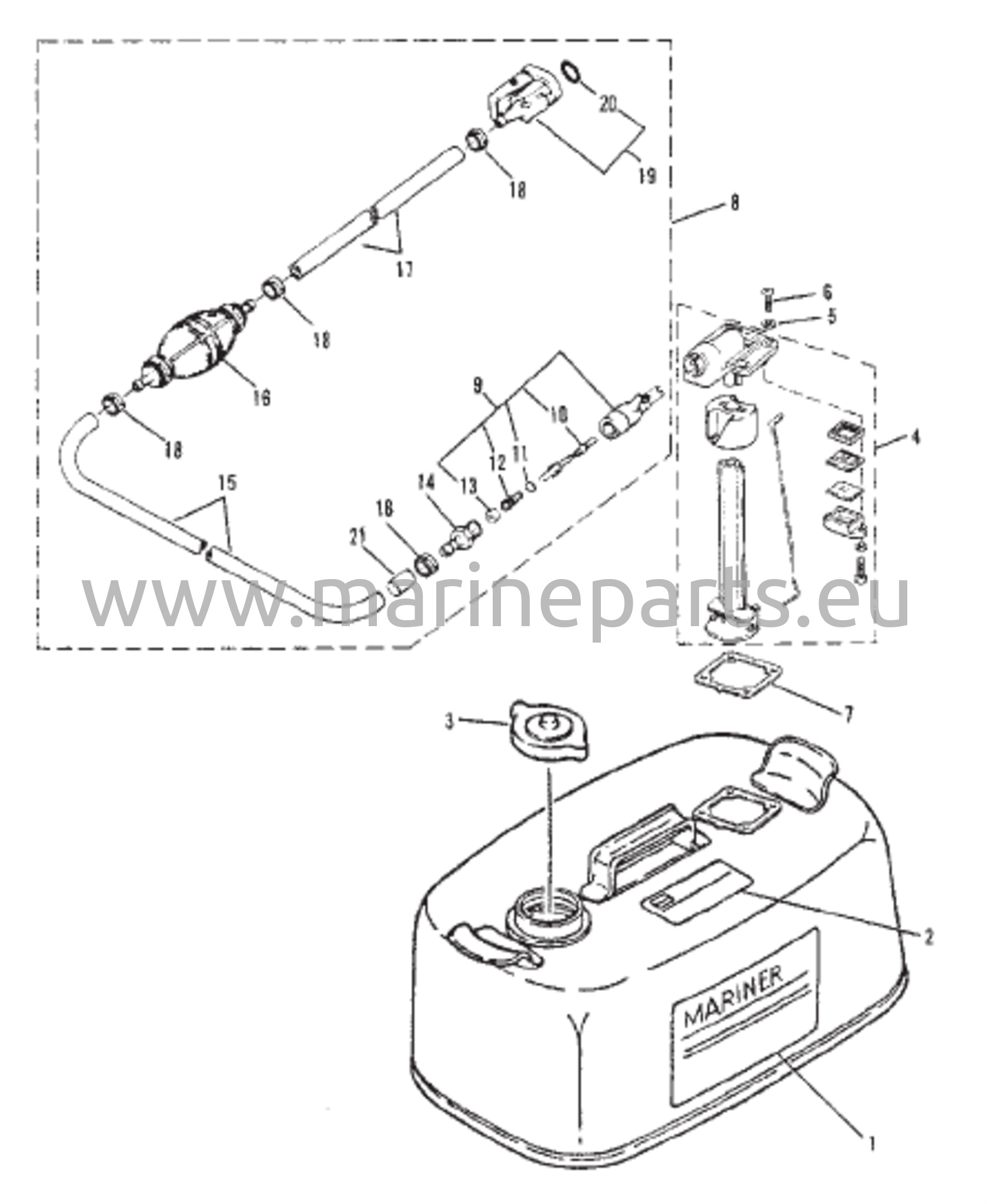

Fuel Tank (M-020320 / ML-315435 / E-253081 / EL-554806 and Up)

Reference no. 92571 16

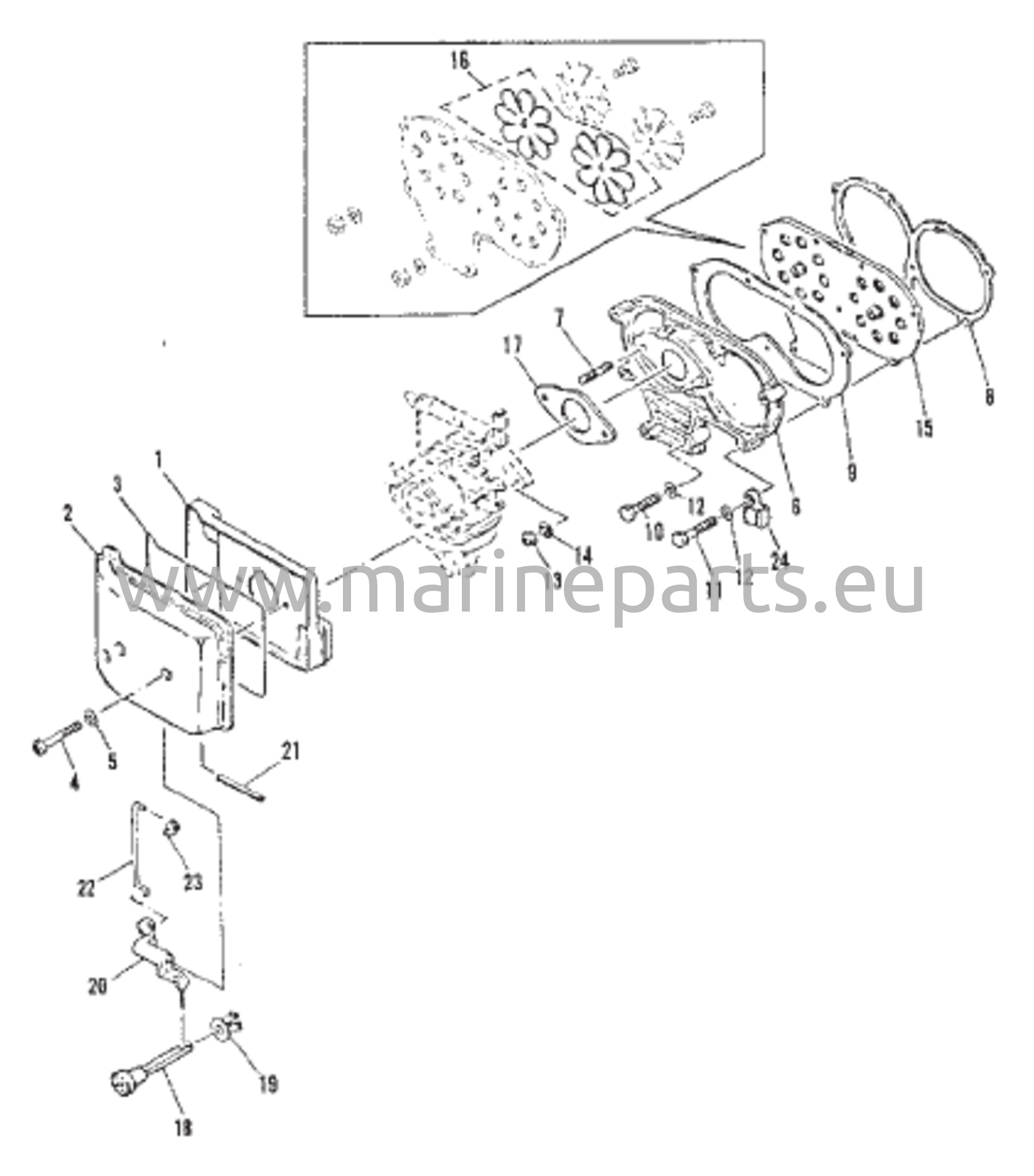

Intake Manifold

Reference no. 92571 19

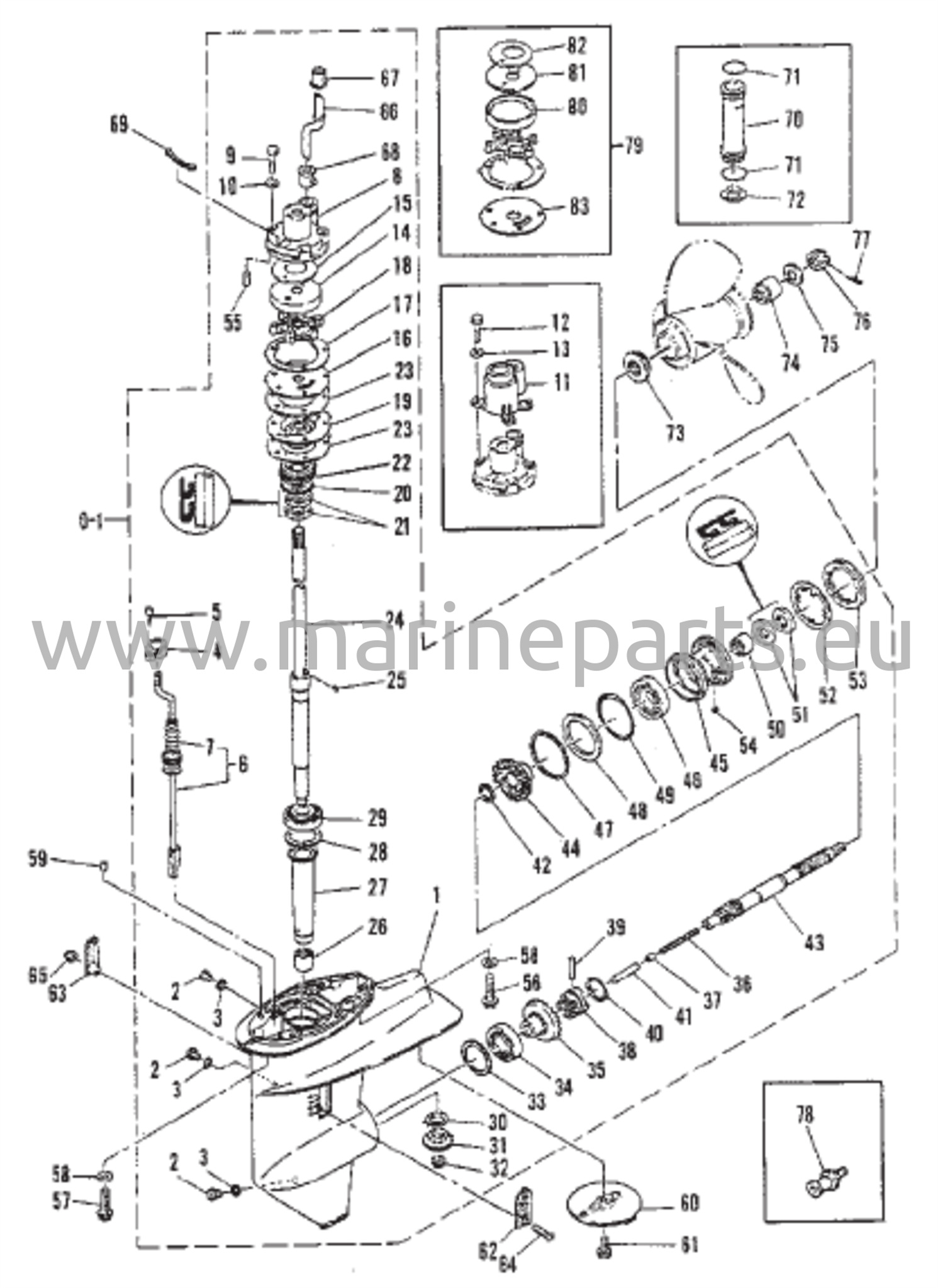

Gear Housing Assembly

Reference no. 92571 18

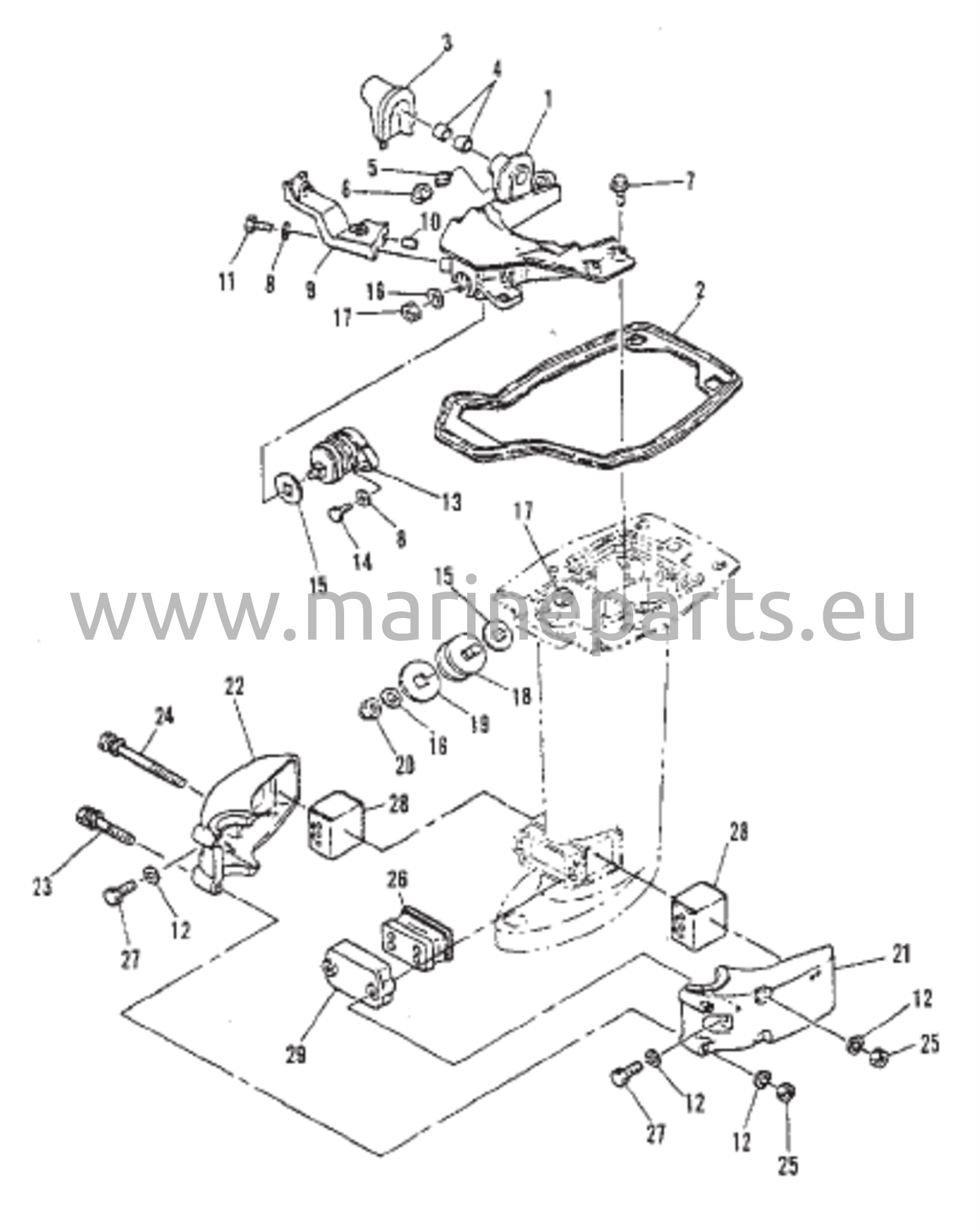

Mounting System

Reference no. 92571 20

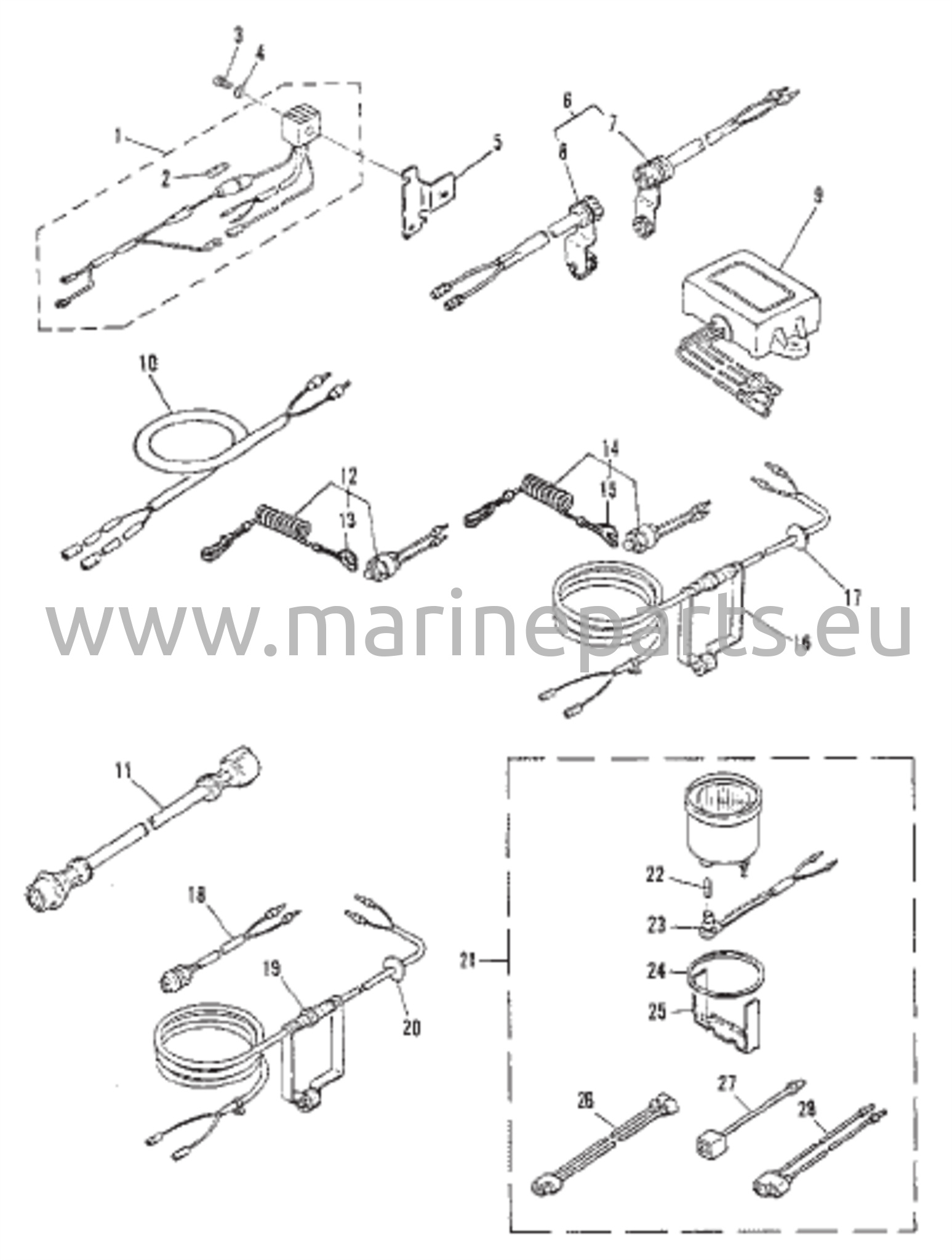

Optional Parts

Reference no. 92571 21

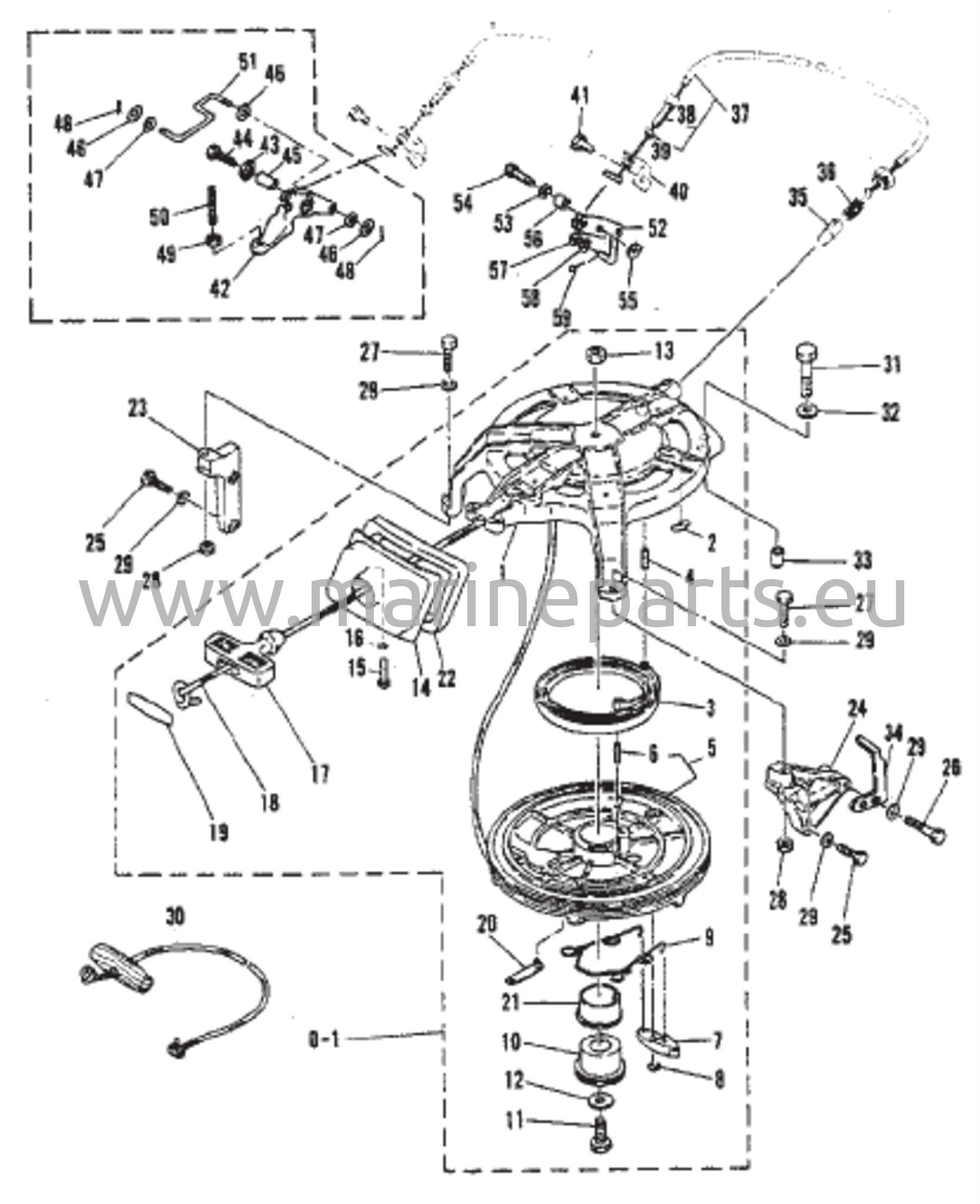

Recoil Starter

Reference no. 92571 22

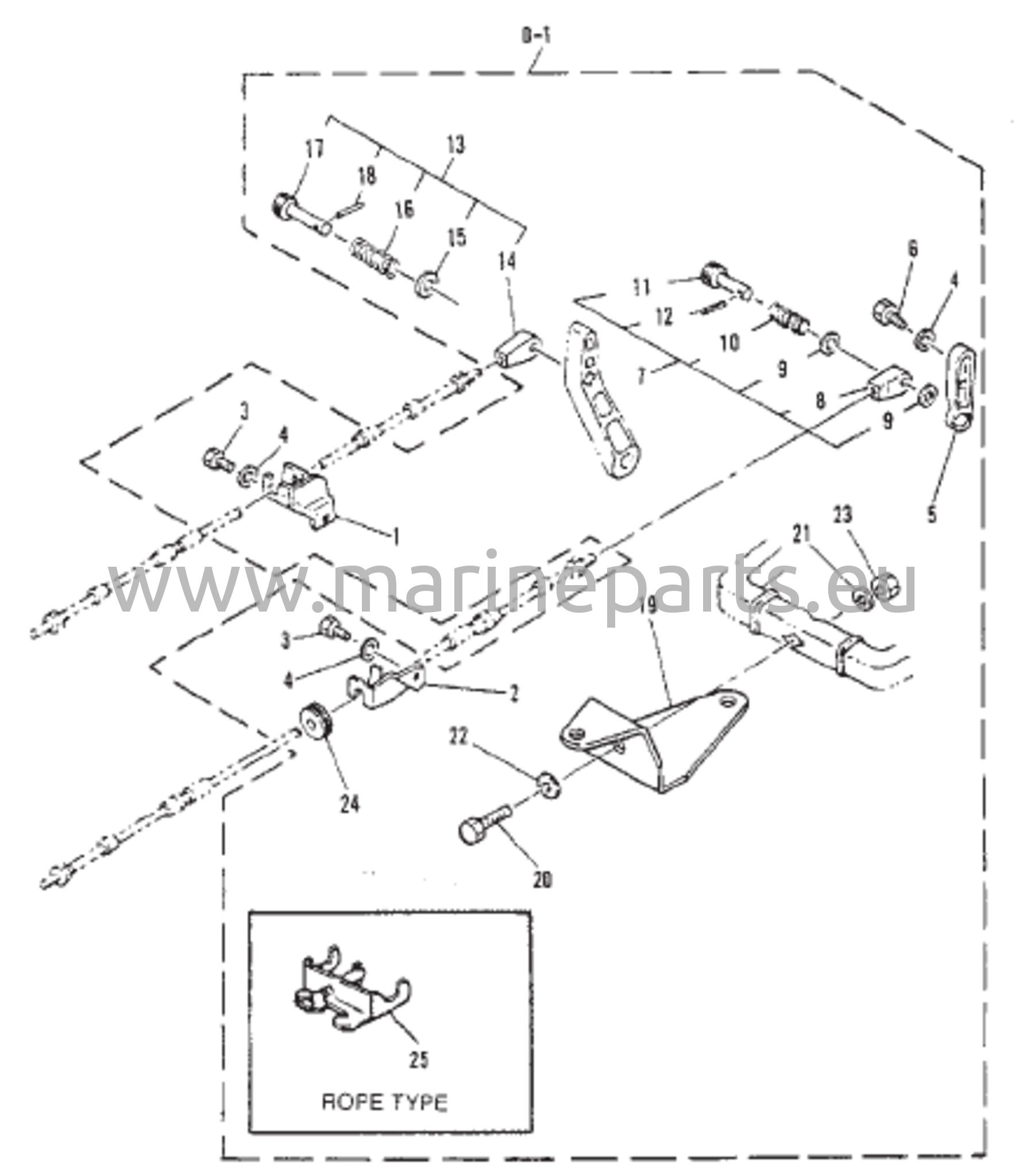

Remote Control Attaching Kit

Reference no. 92571 23

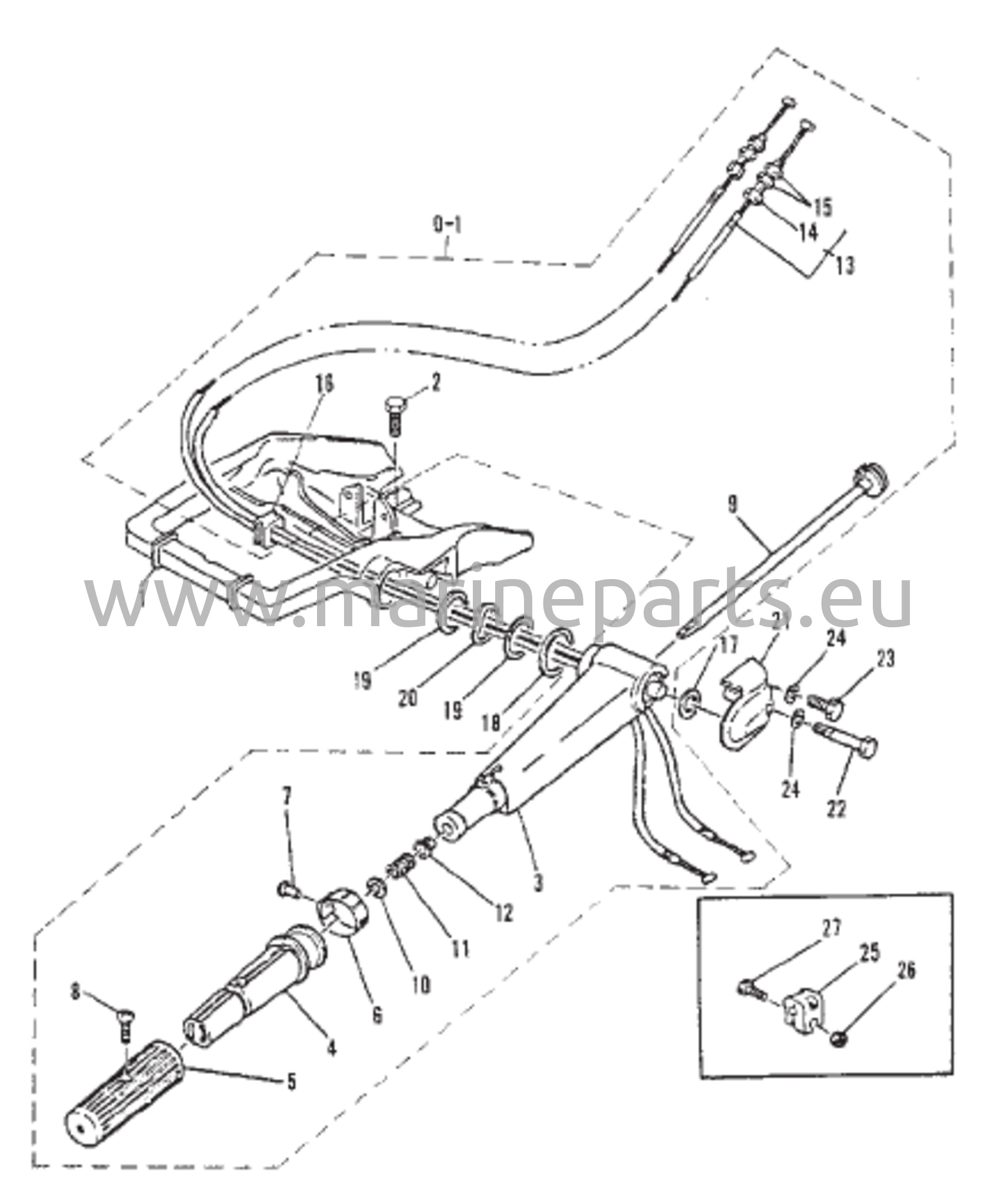

Steering Handle

Reference no. 92571 24

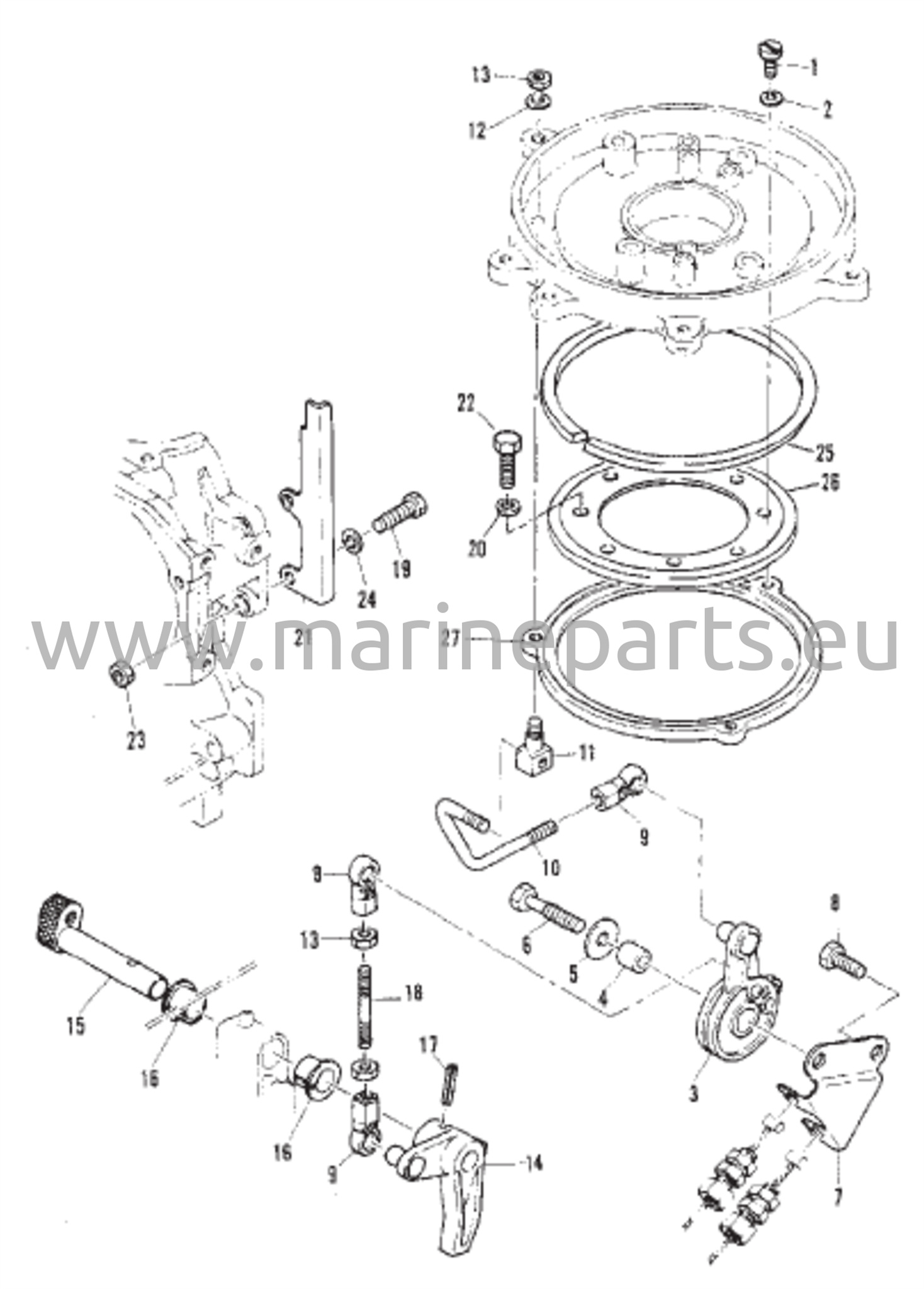

Throttle Control

Reference no. 92571 25
