Sprängskisser för Suzuki DF25A, DF30AT (P01) 2021-2023 [DF25A_30A_P01_023]
1
2
3
Läs mer
Läs mindre
Parts Pilot
Topplock
Referensnr. DF25A_30A_P01_023 0

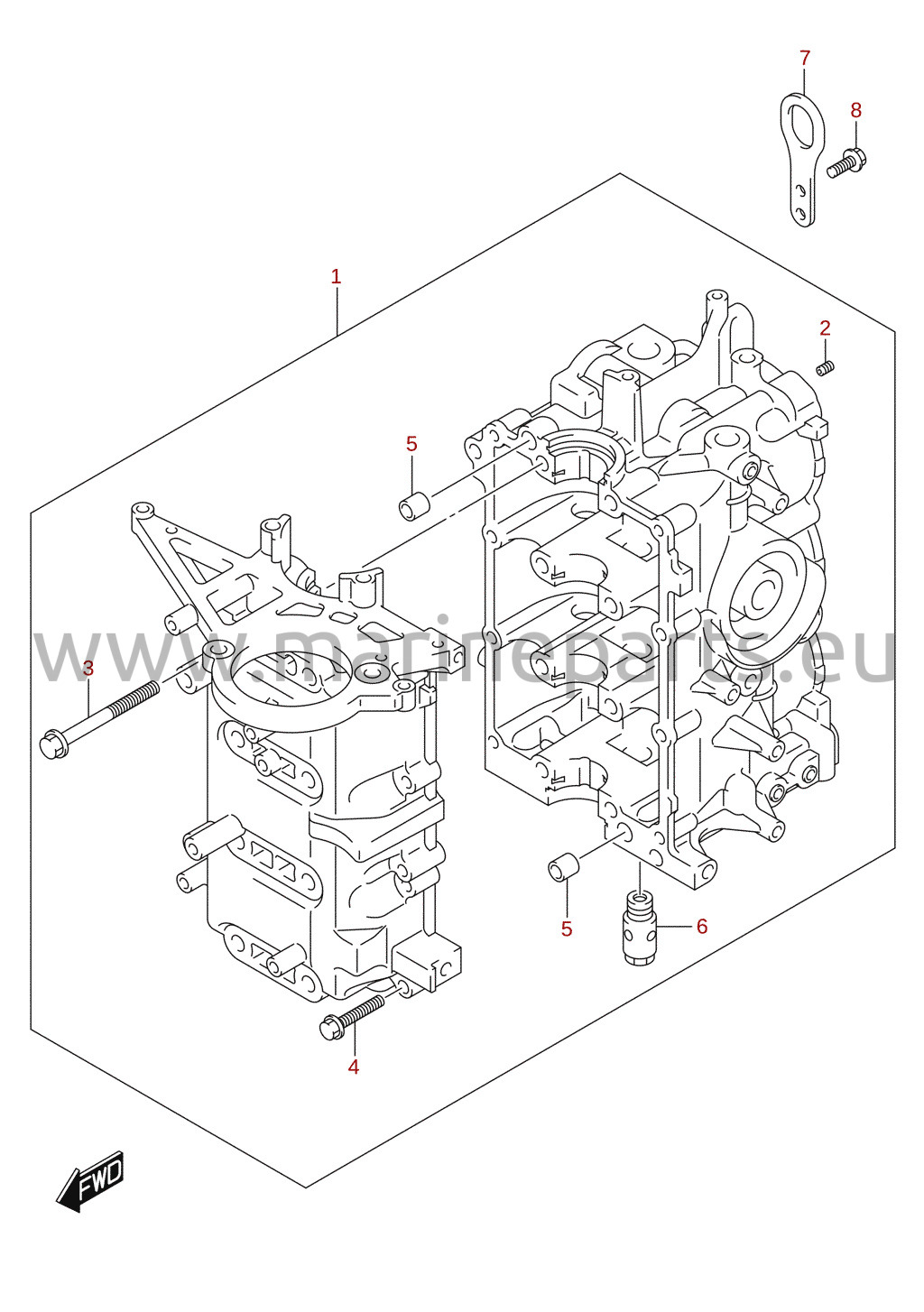

Cylinderblock
Referensnr. DF25A_30A_P01_023 1

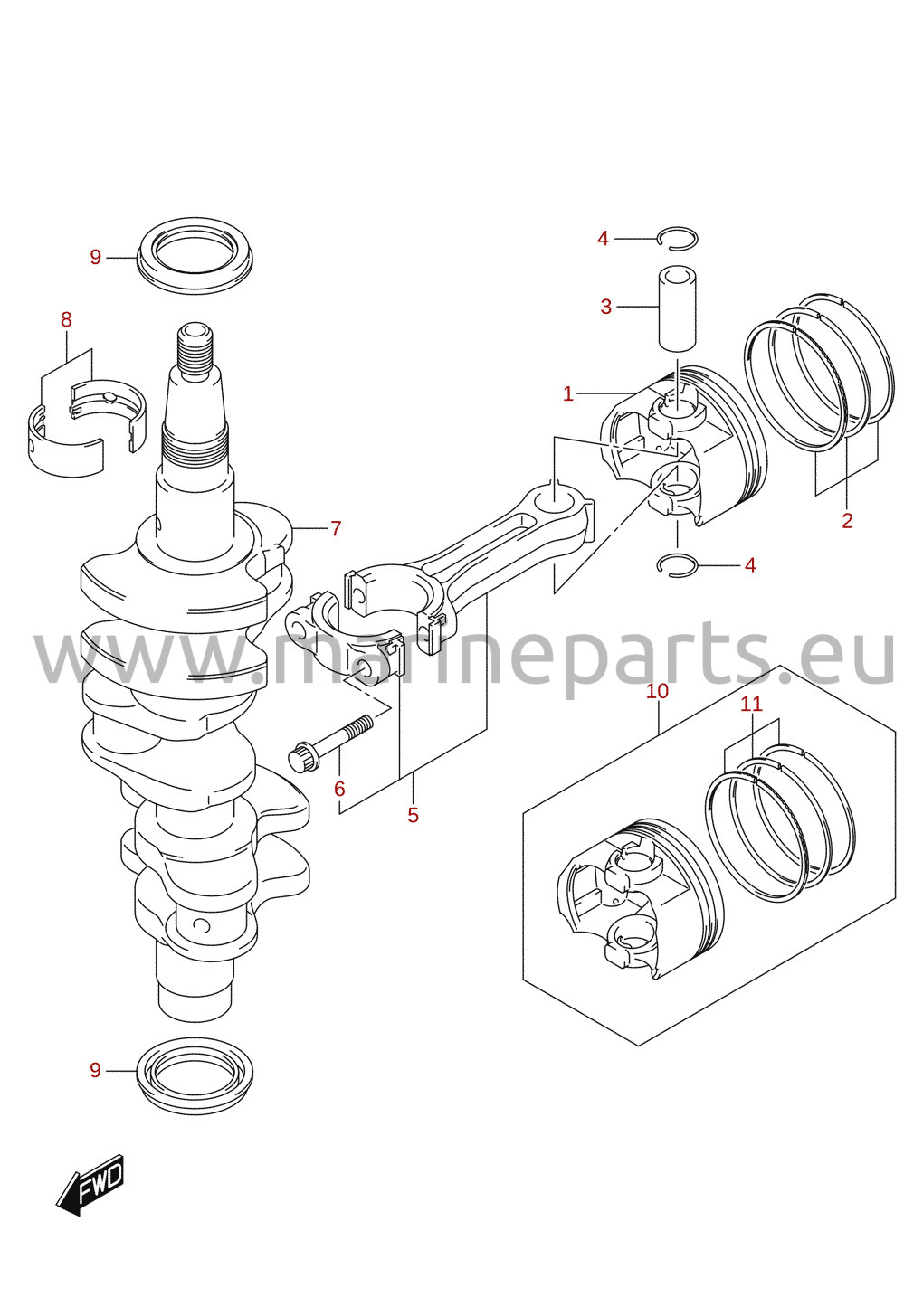

Vevaxel
Referensnr. DF25A_30A_P01_023 2

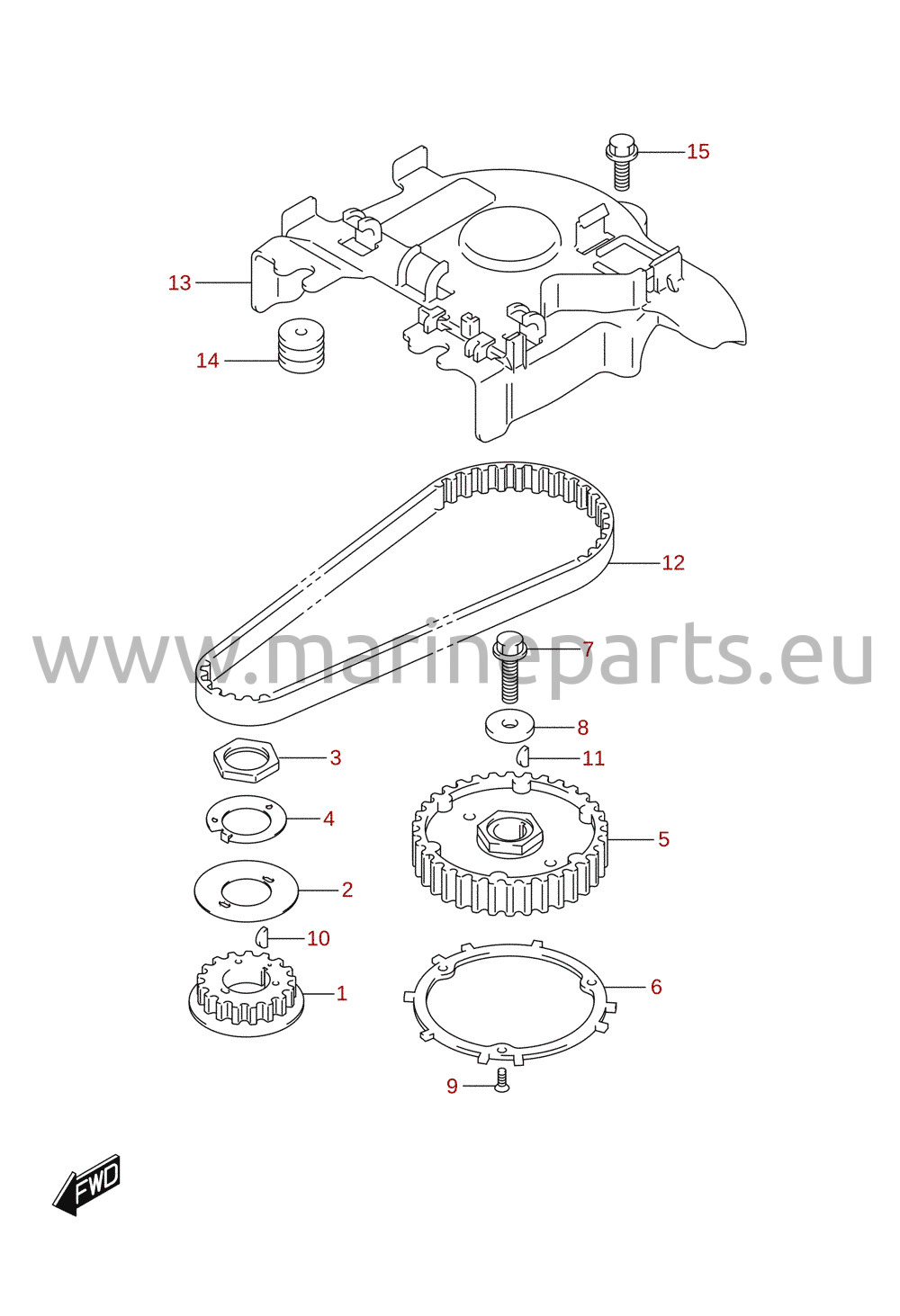

Kamrem
Referensnr. DF25A_30A_P01_023 3

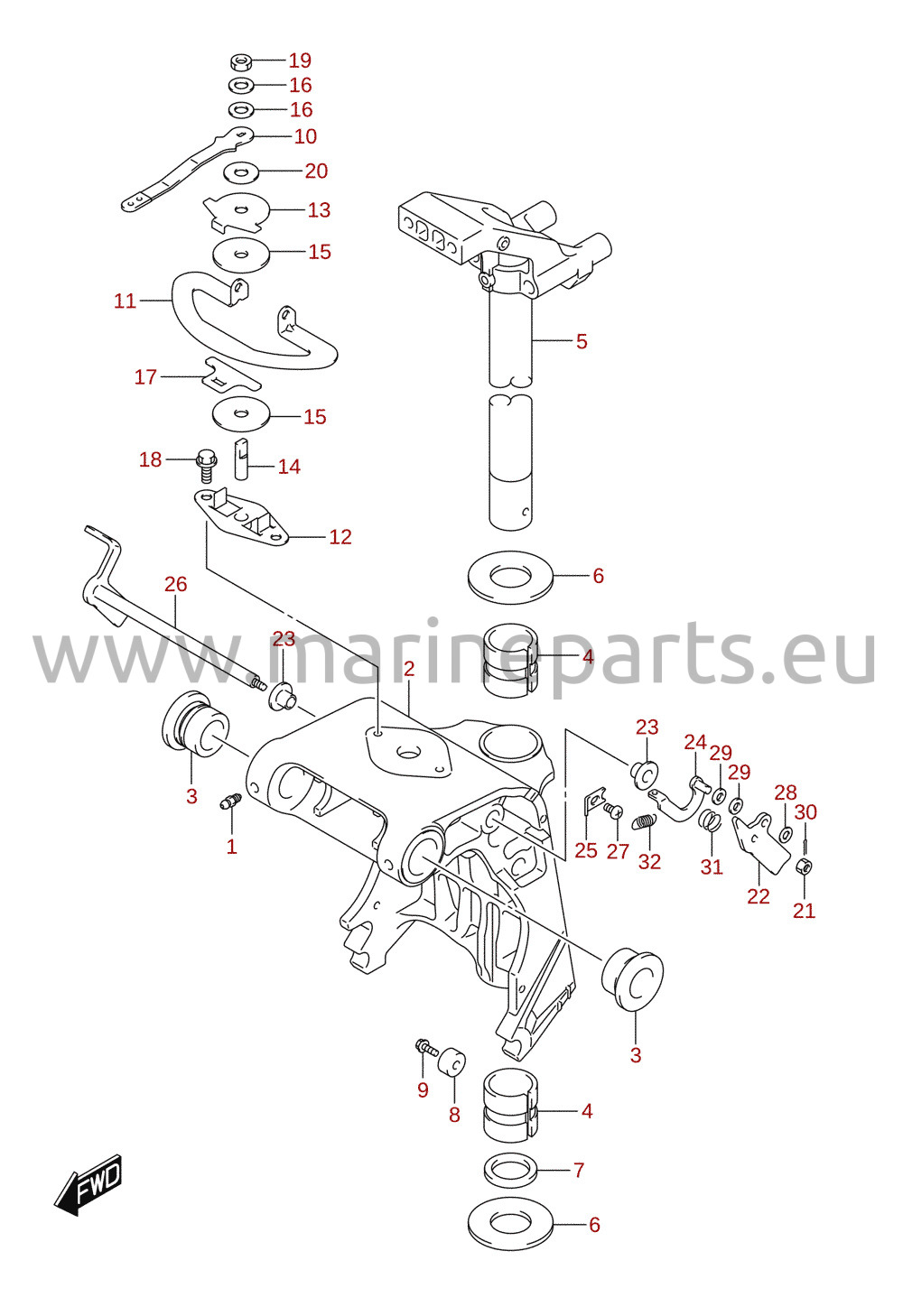

Svängfäste (DF25ATH, DF30ATH)
Referensnr. DF25A_30A_P01_023 61

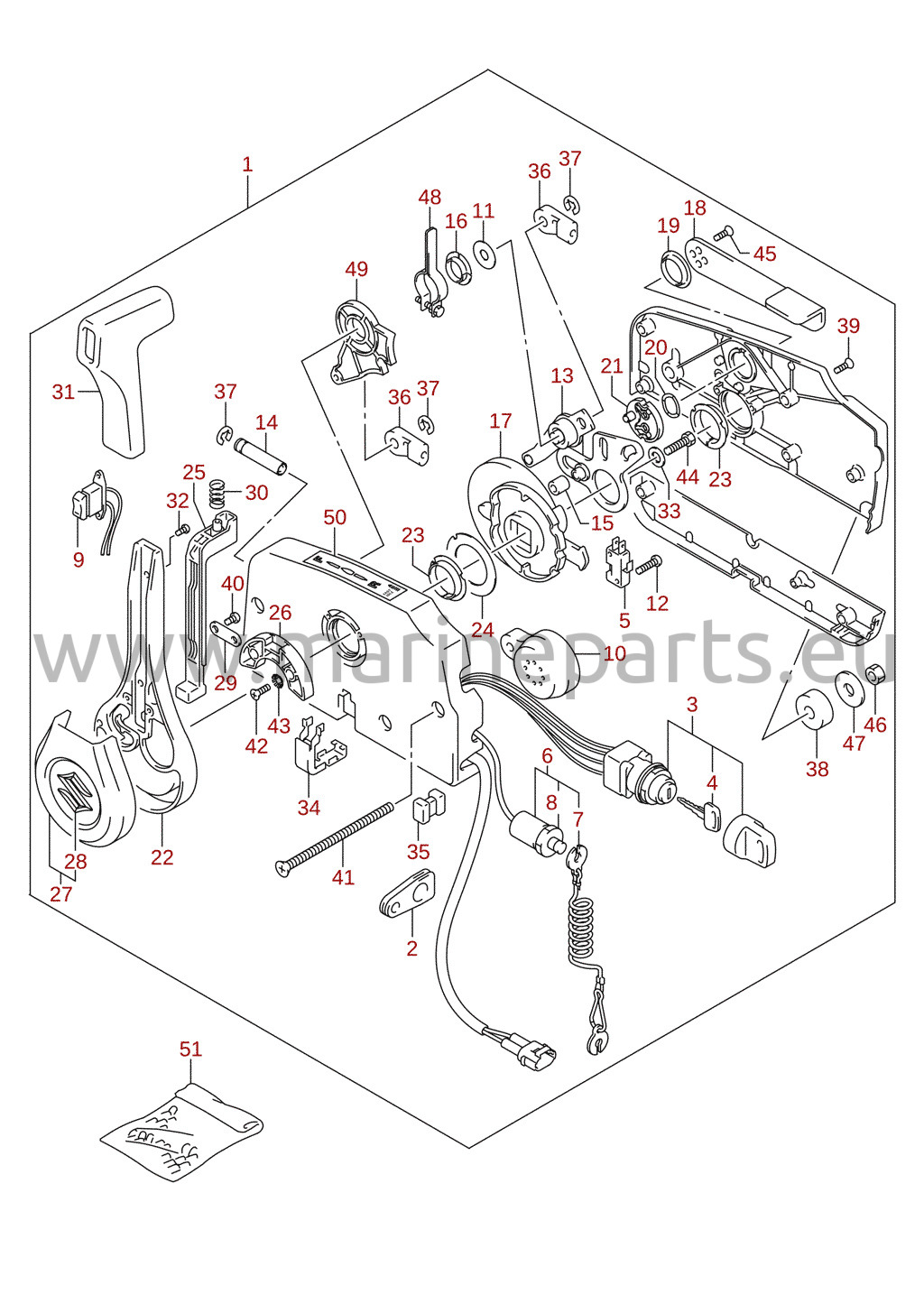

Reglage (DF25, DF30) (tillval)
Referensnr. DF25A_30A_P01_023 101

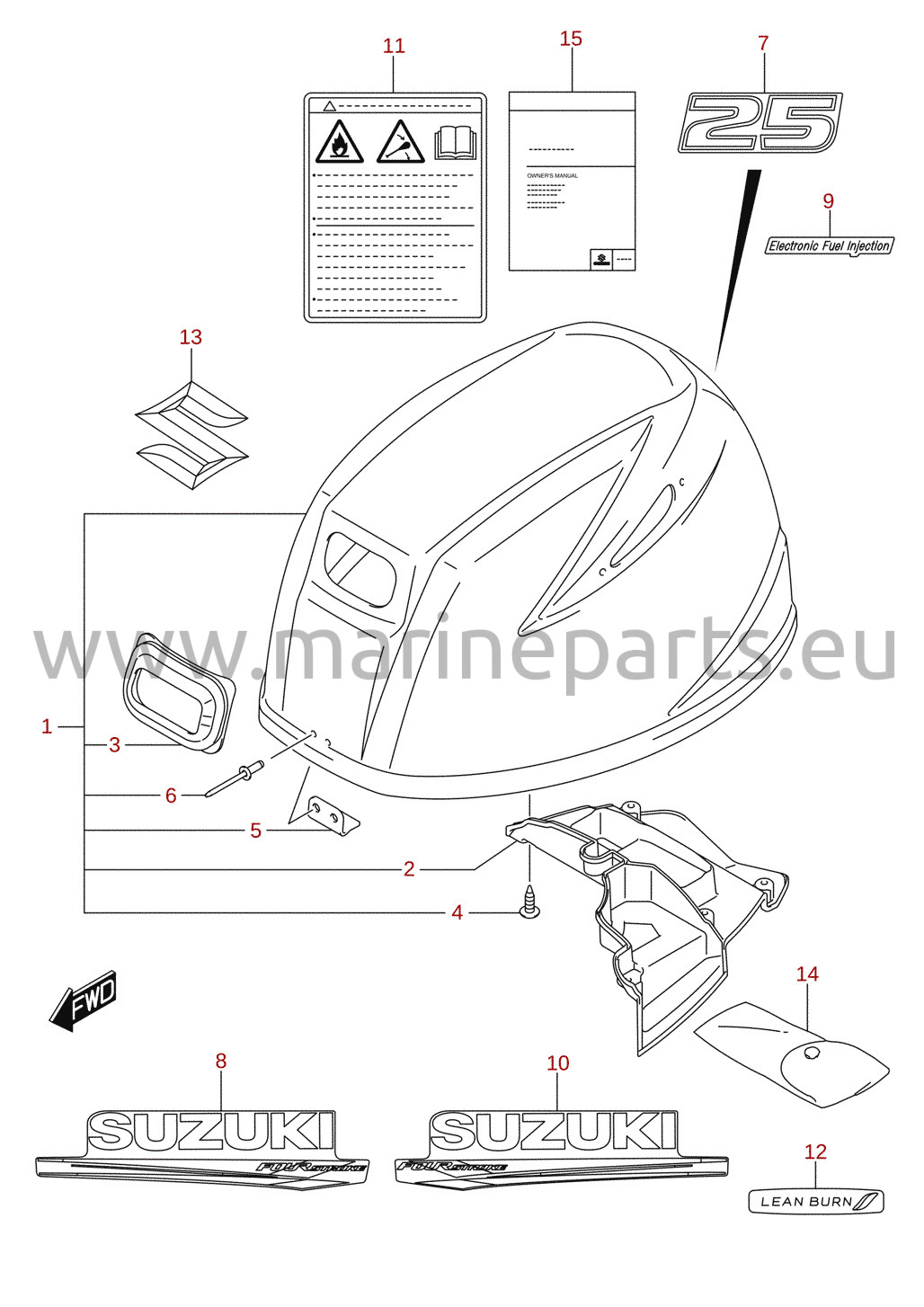

Motorkåpa (2020) (DF25)
Referensnr. DF25A_30A_P01_023 80

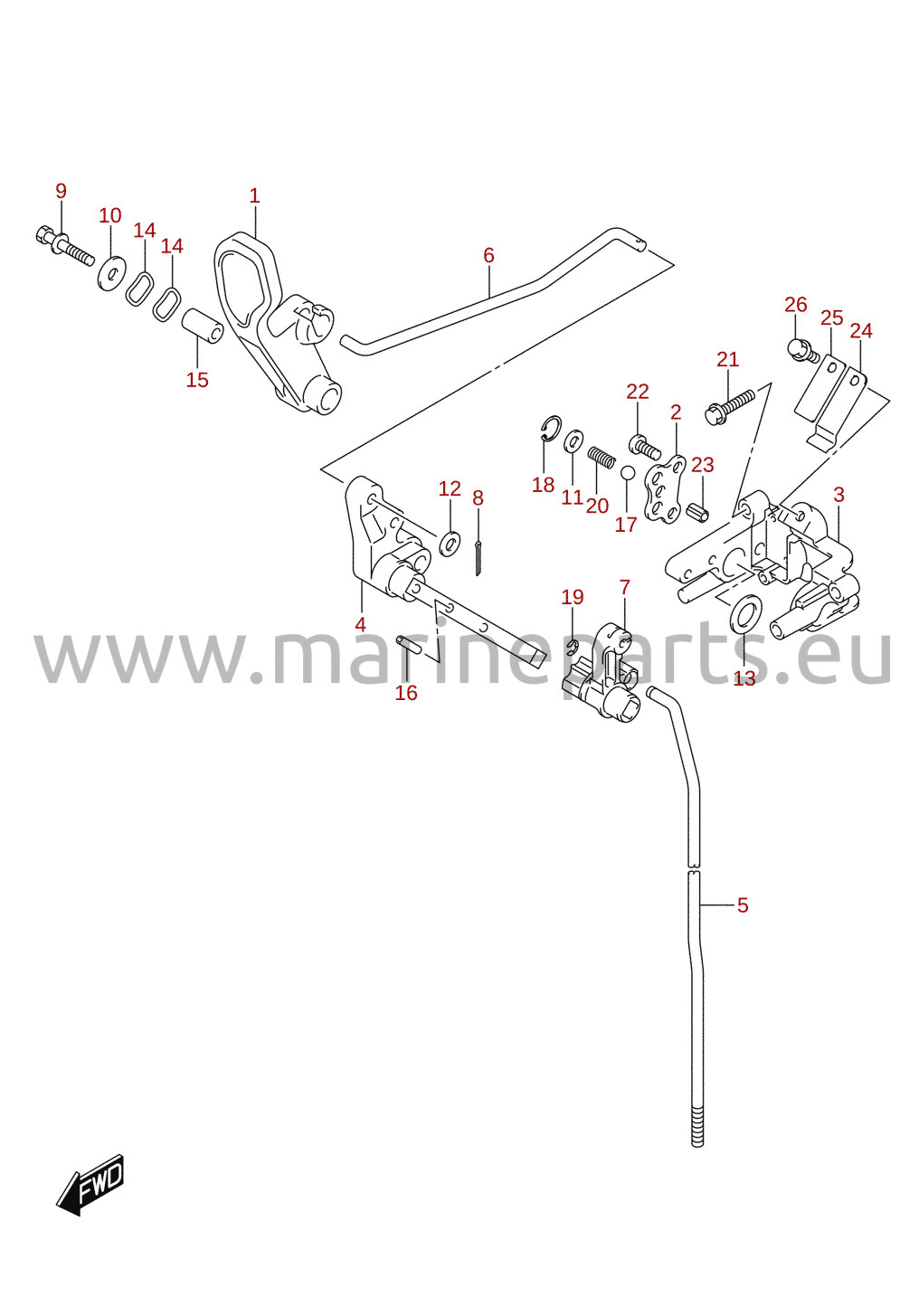

Kopplingsstång (DF30AQ)
Referensnr. DF25A_30A_P01_023 26
Vattenpump (DF30AQ)
Referensnr. DF25A_30A_P01_023 17

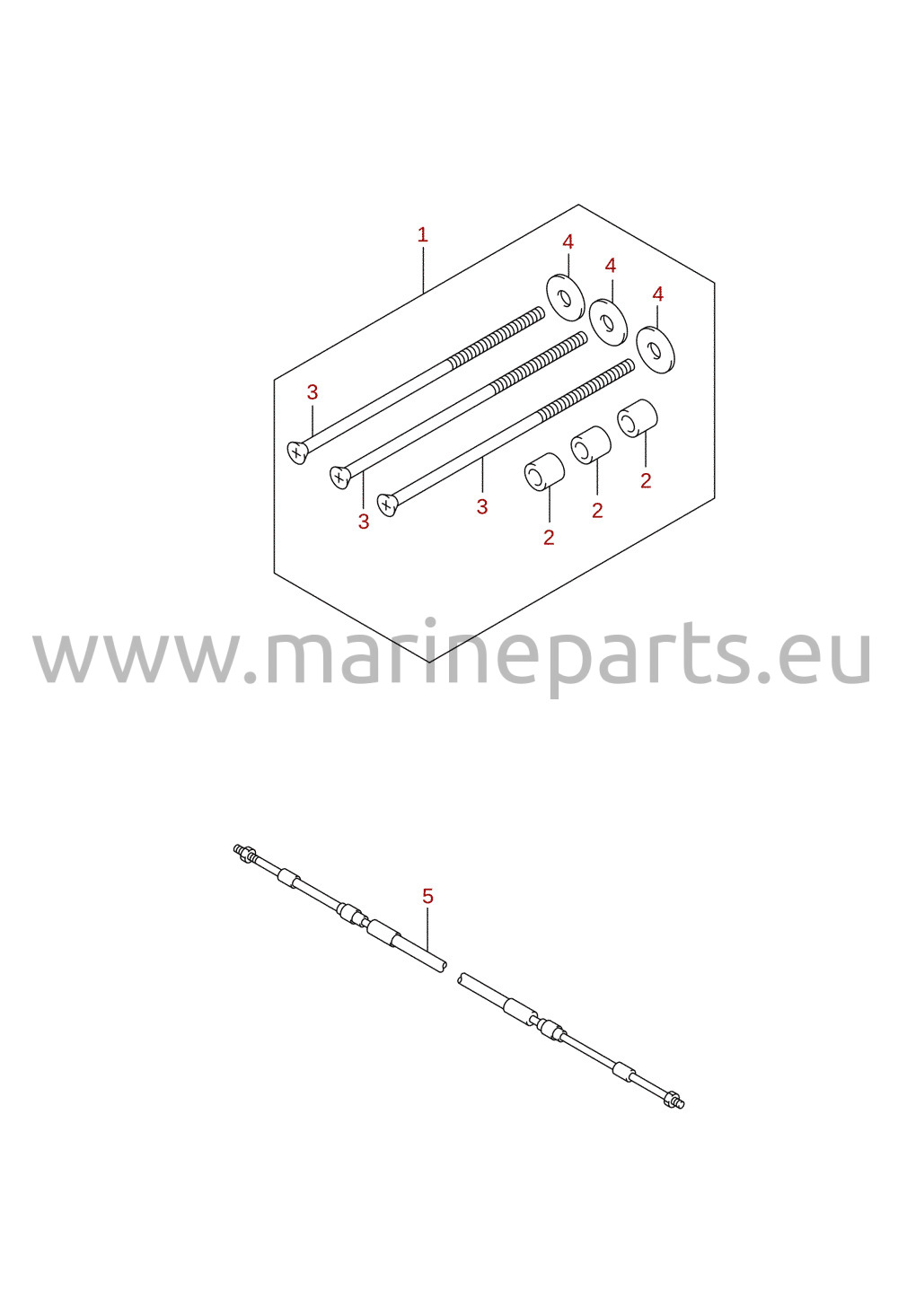

Reglagekabel (tillval)
Referensnr. DF25A_30A_P01_023 104

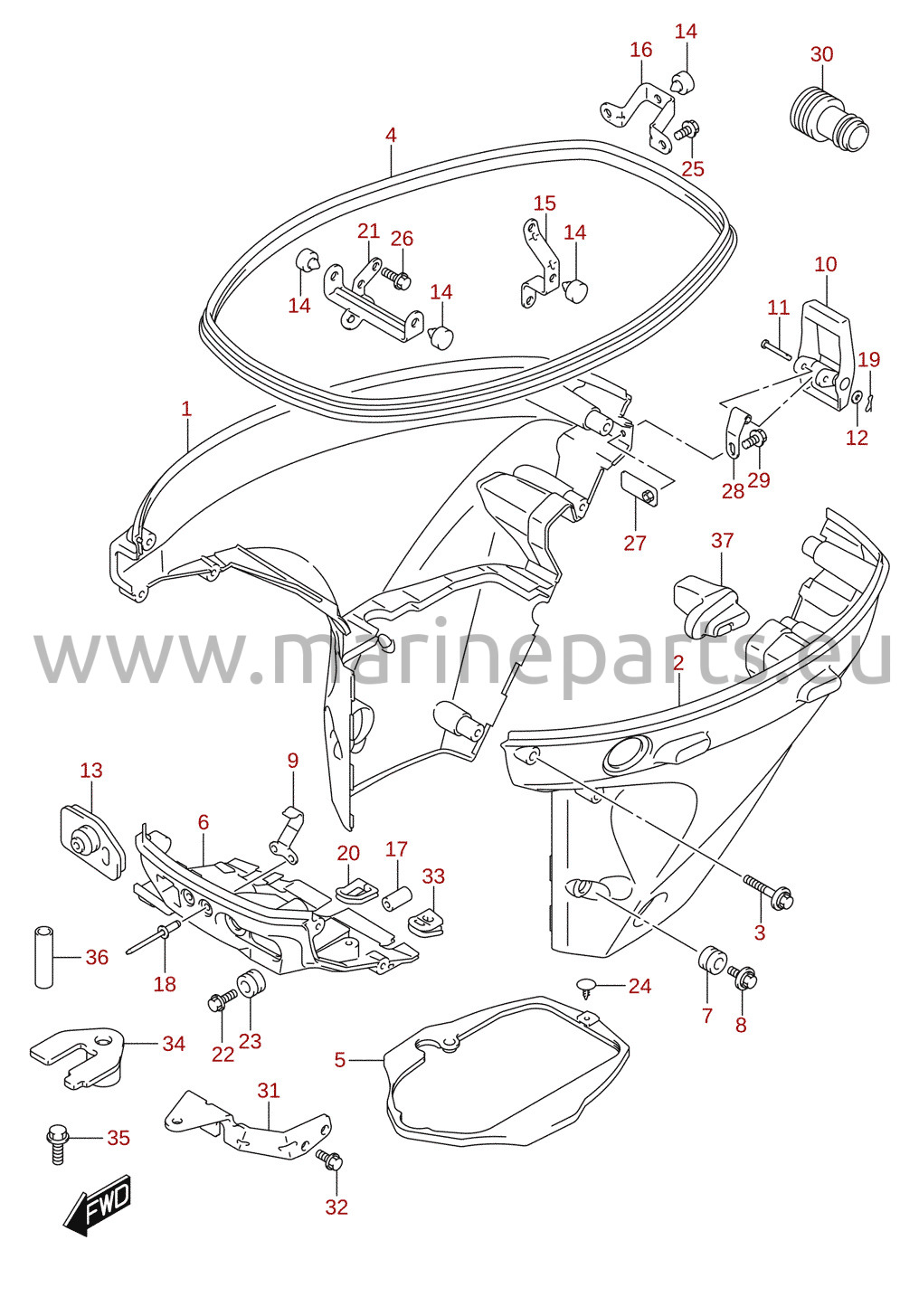

Sidokåpa (DF25AT, DF30AT)
Referensnr. DF25A_30A_P01_023 76

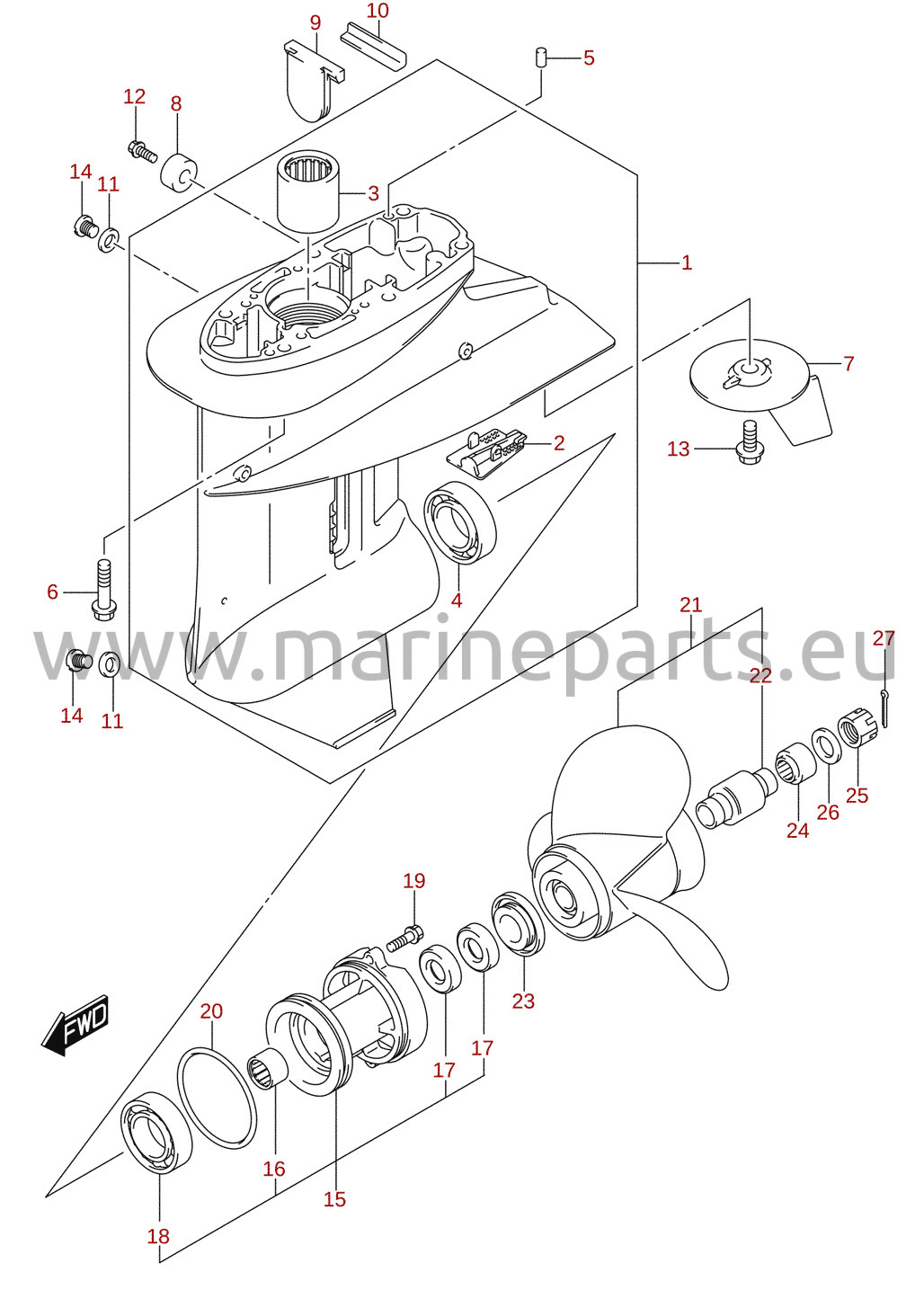

Växelhus (DF25A, DF25AR, DF30AR)
Referensnr. DF25A_30A_P01_023 71

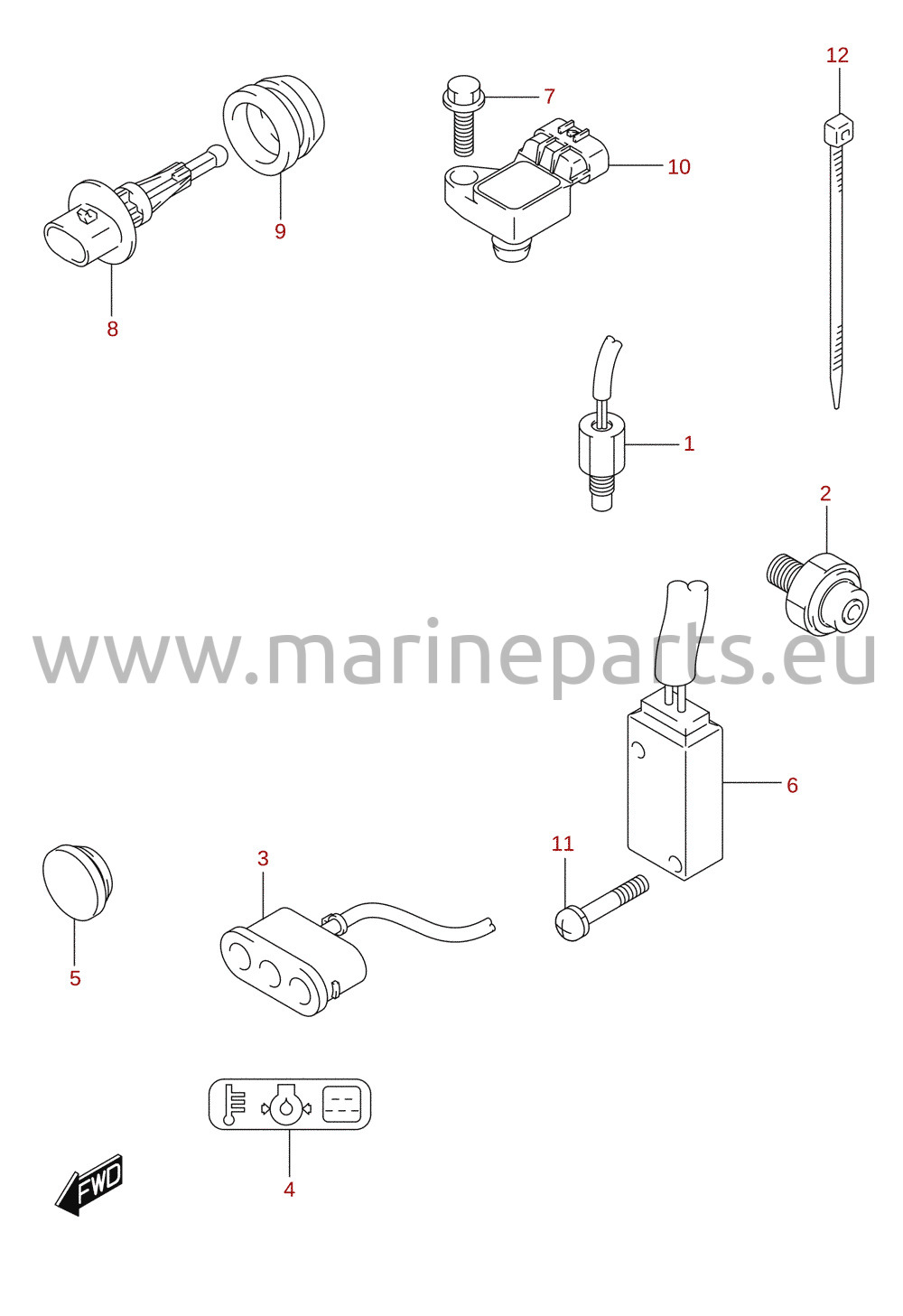

Givare / brytare (DF25AR, DF30AR)
Referensnr. DF25A_30A_P01_023 50

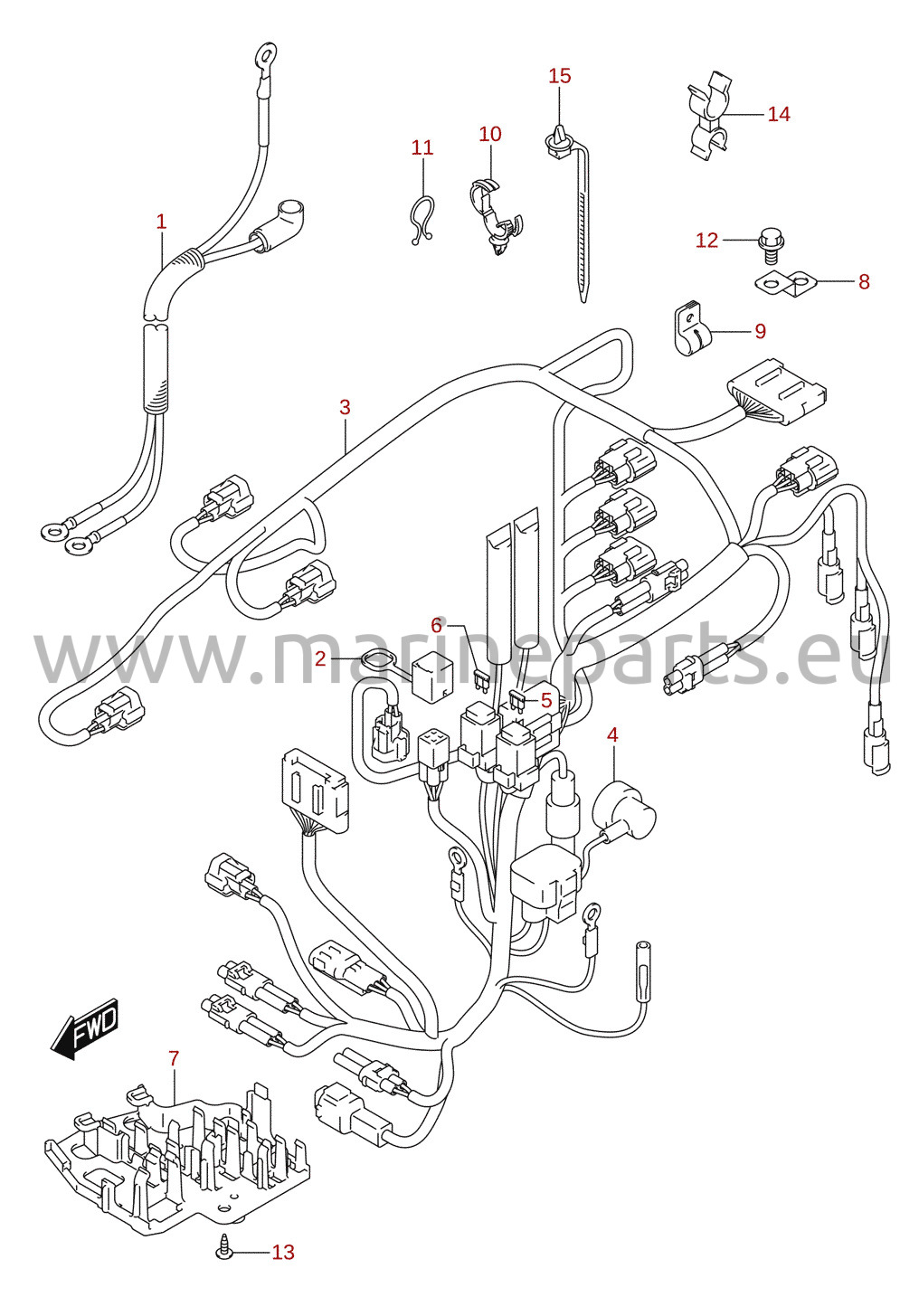

Kabelstam (DF25AR, DF30AR)
Referensnr. DF25A_30A_P01_023 44

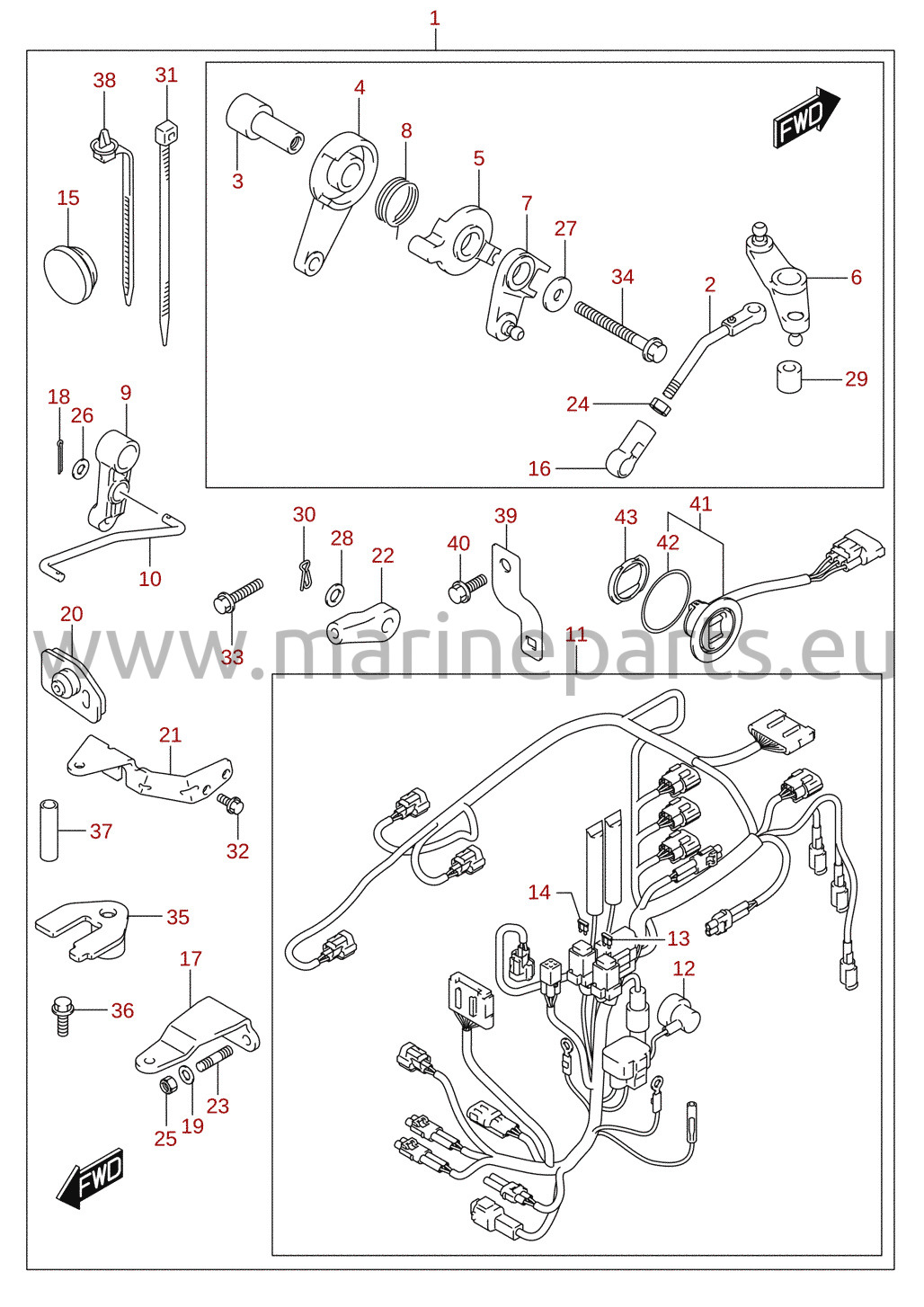

Reglagedelar (DF25ATH, DF30ATH) (tillval)
Referensnr. DF25A_30A_P01_023 103

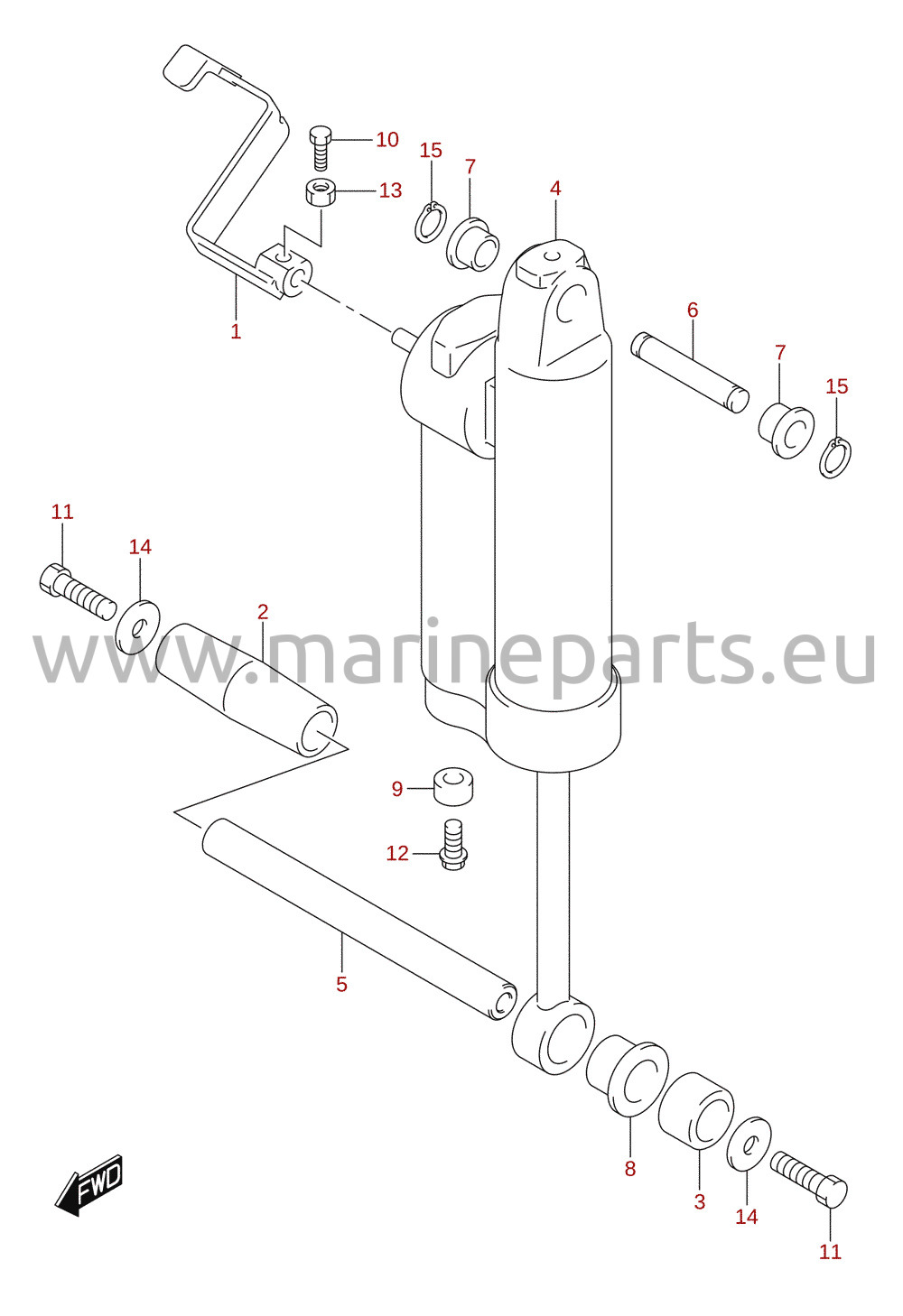

Gasfjäder (DF30AQ)
Referensnr. DF25A_30A_P01_023 65

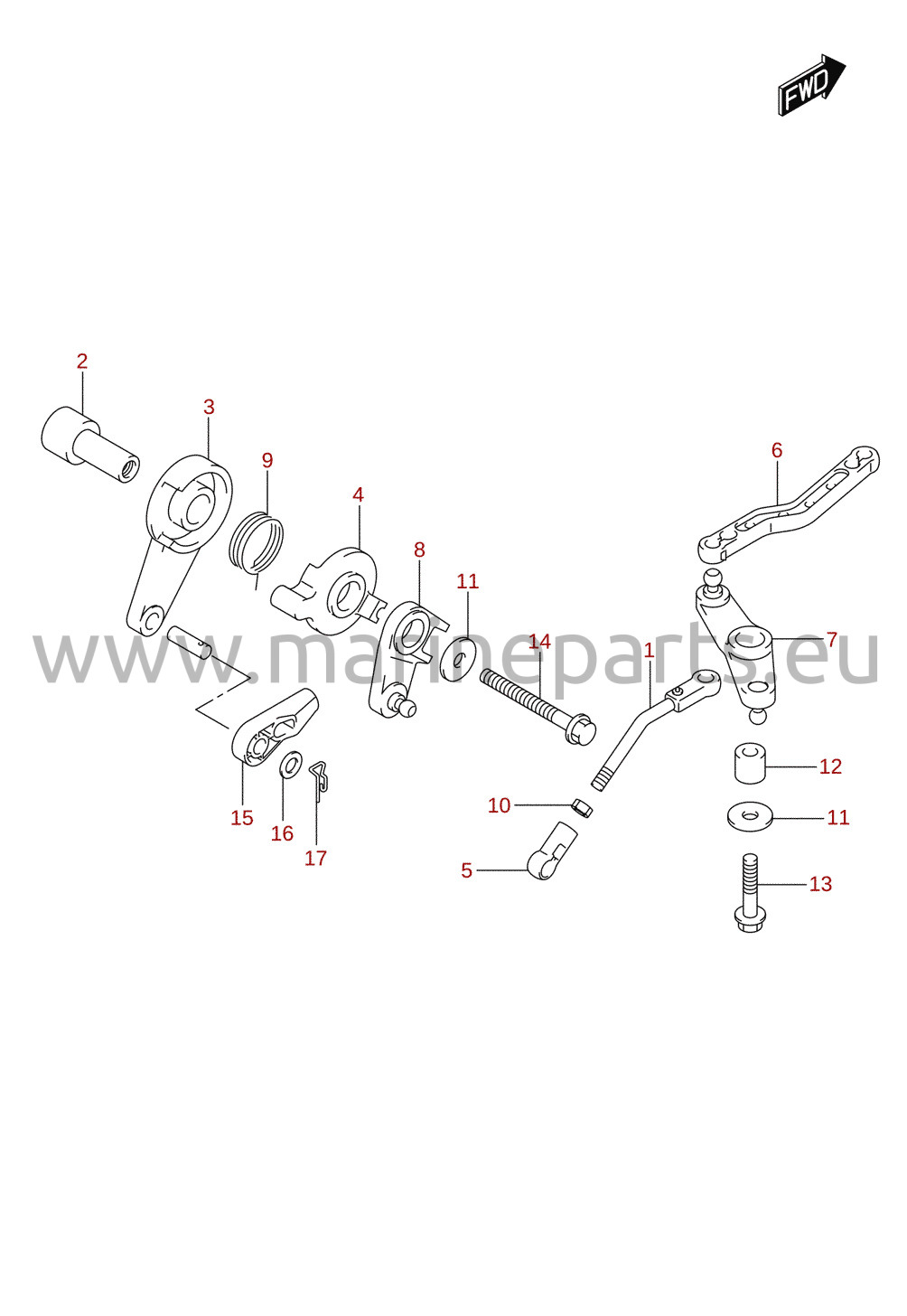

Gasreglage (DF25, DF30) 2/2
Referensnr. DF25A_30A_P01_023 21

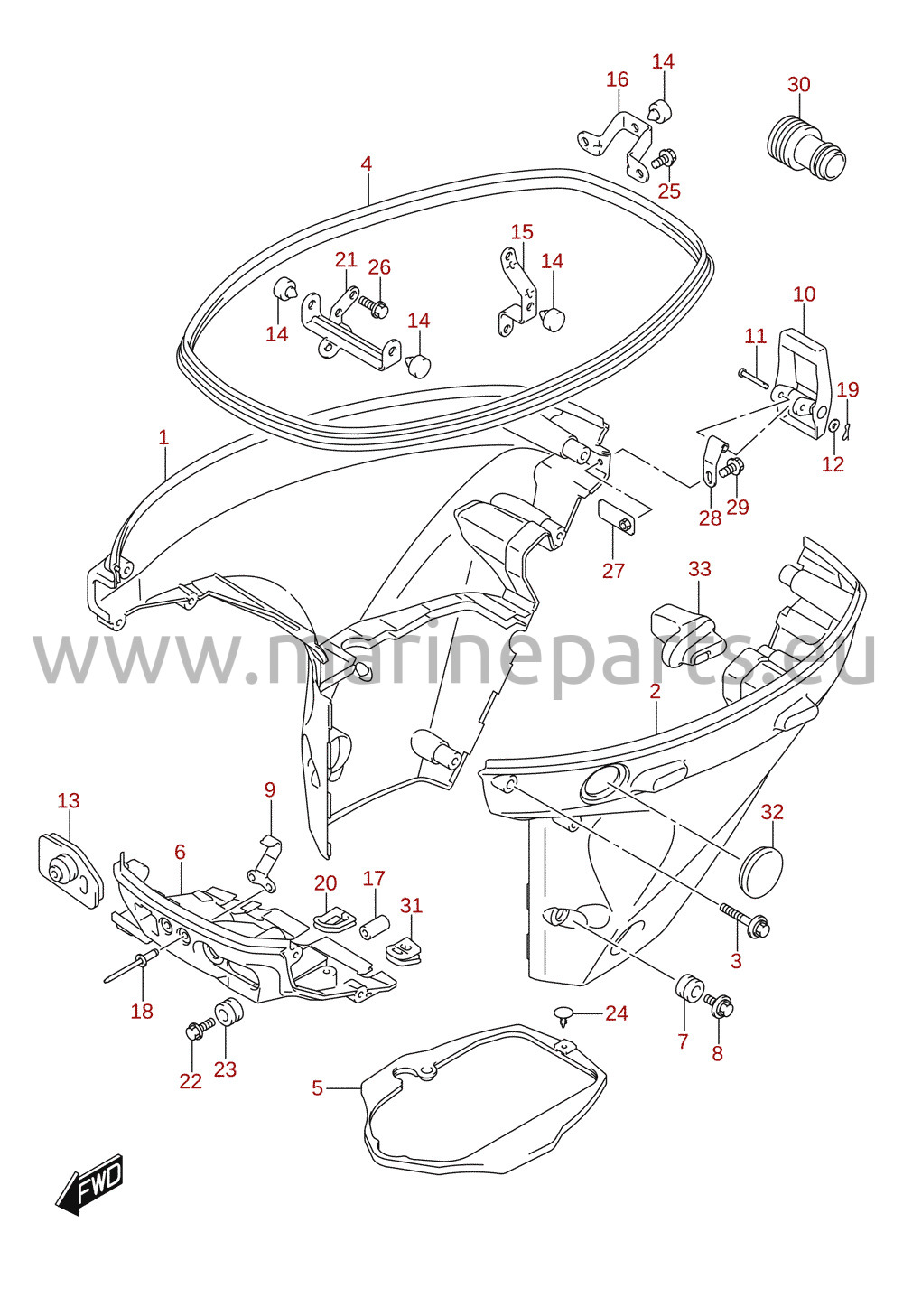

Sidokåpa (DF30A)
Referensnr. DF25A_30A_P01_023 78

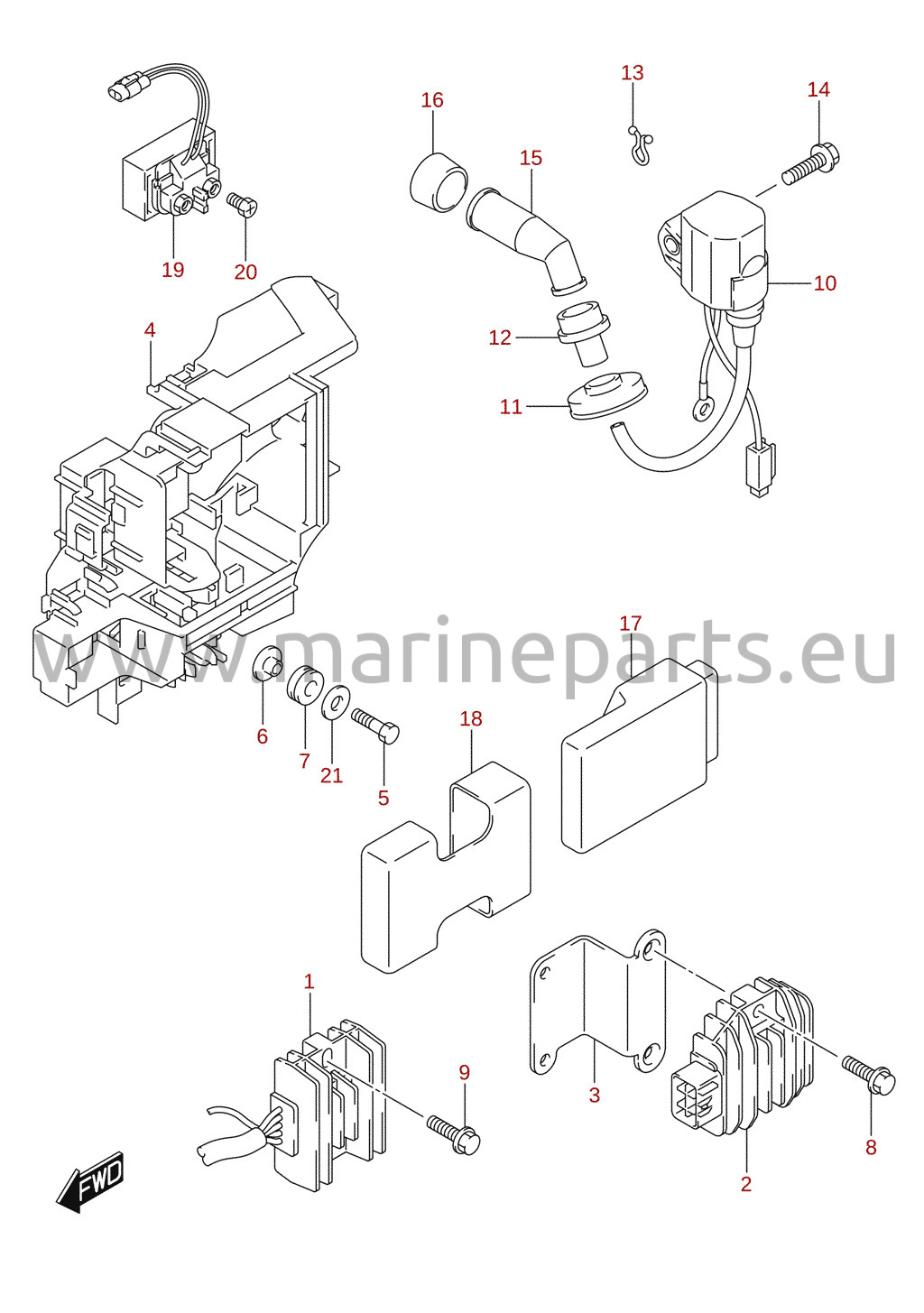

Likriktare / tändspole (DF30AQ)
Referensnr. DF25A_30A_P01_023 42

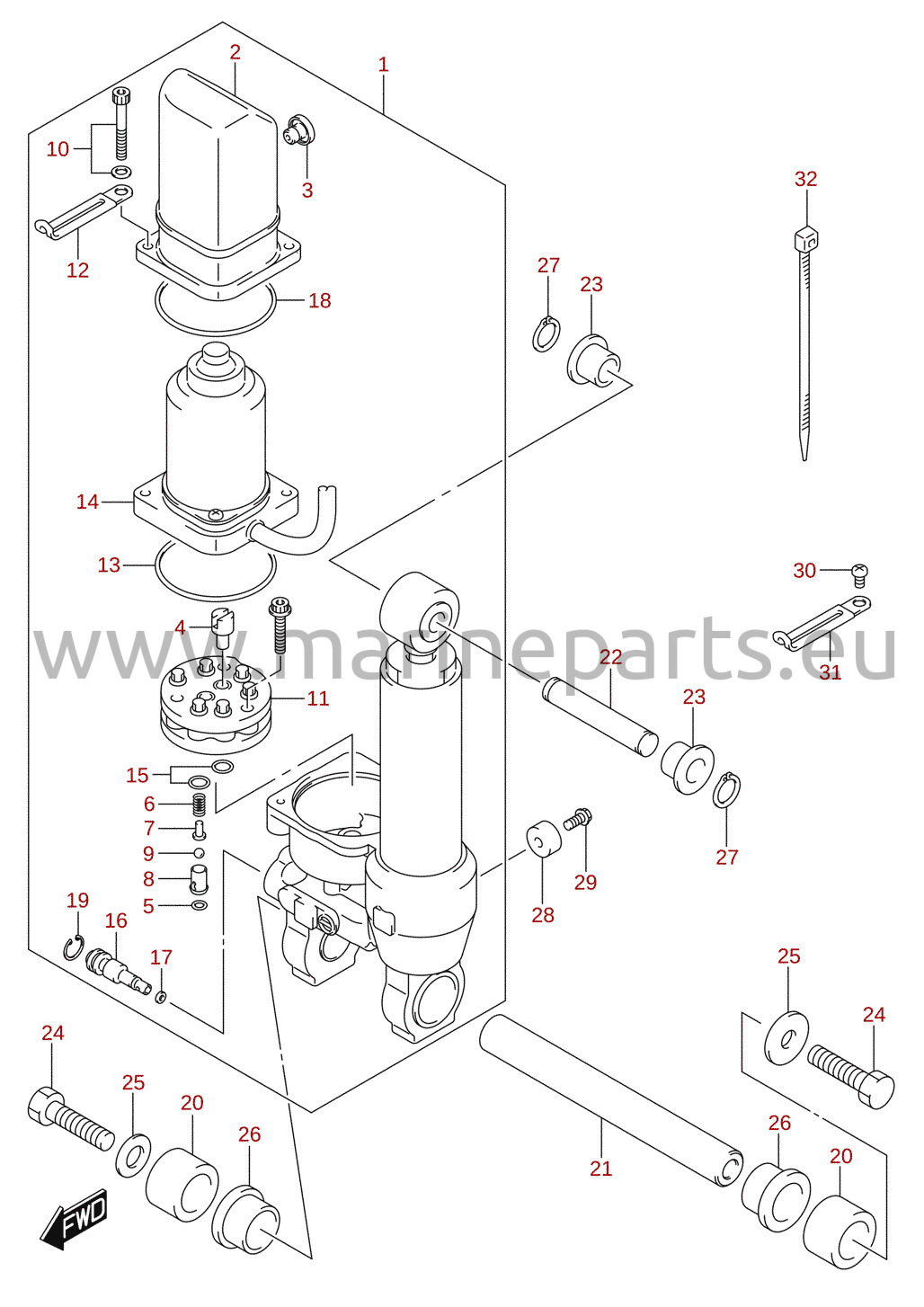

Tiltcylinder (DF25, DF30)
Referensnr. DF25A_30A_P01_023 64

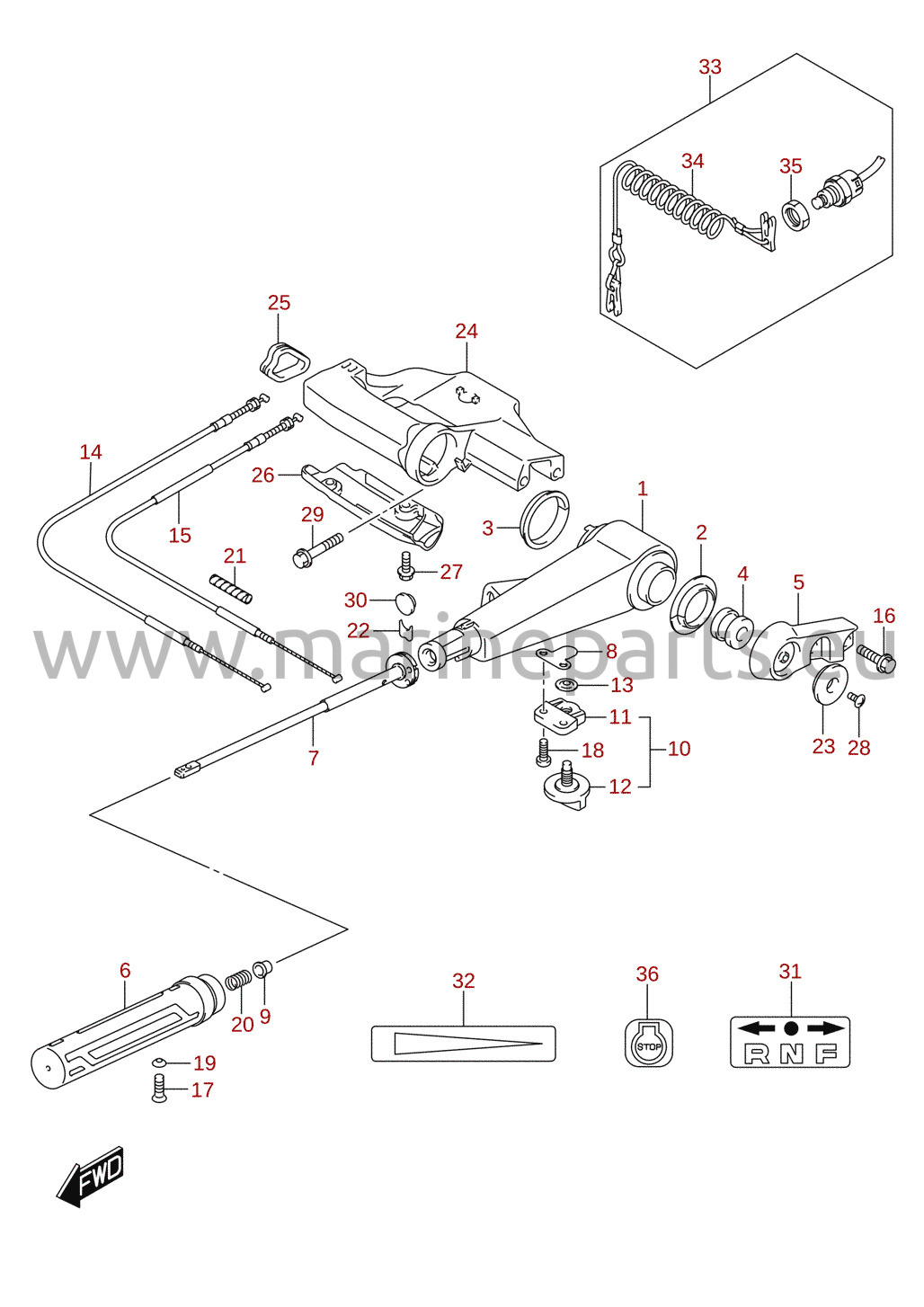

Styrkult (DF25A, DF30AQ)
Referensnr. DF25A_30A_P01_023 90

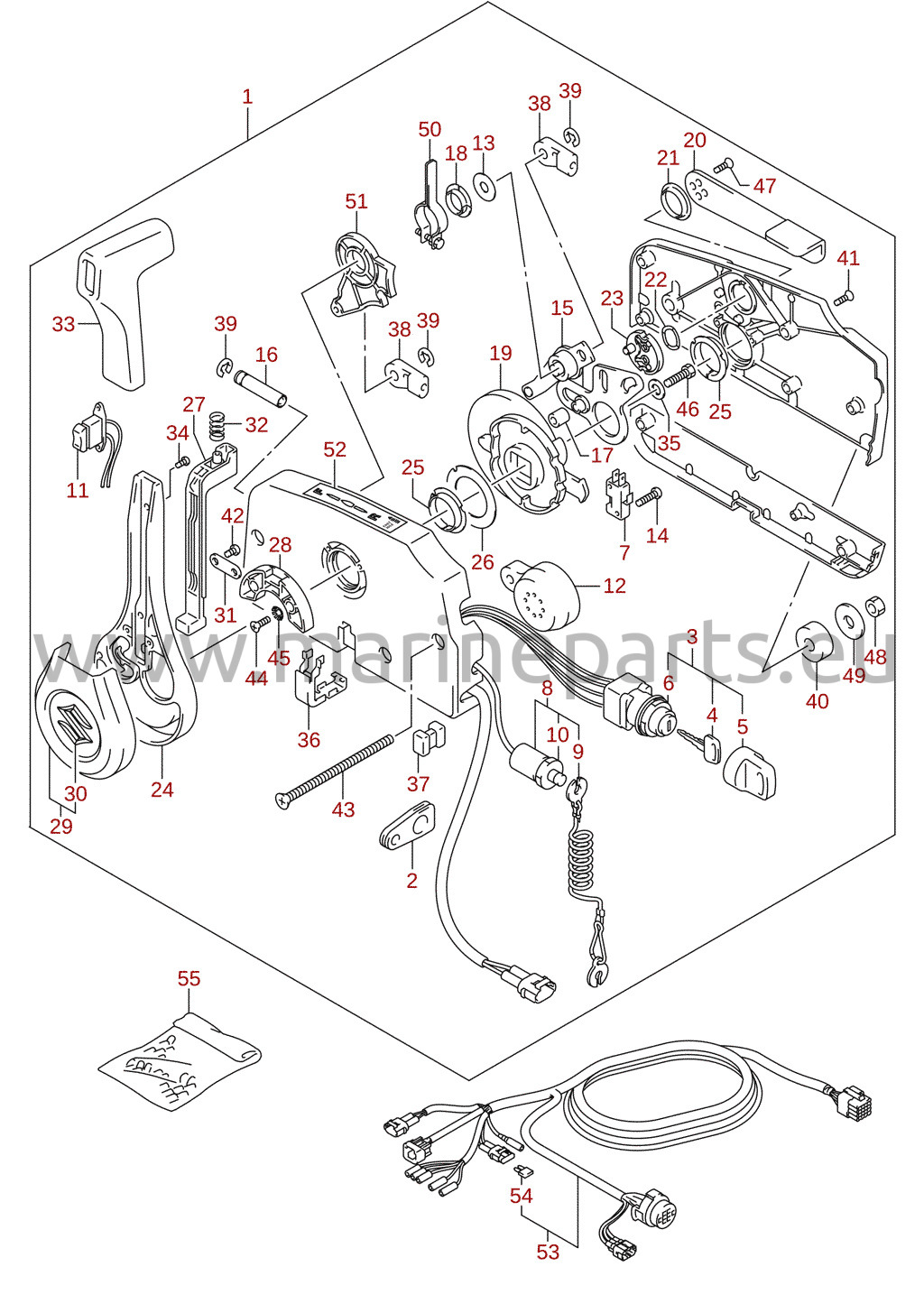

Reglage (DF25ATH, DF30ATH) (tillval)
Referensnr. DF25A_30A_P01_023 100

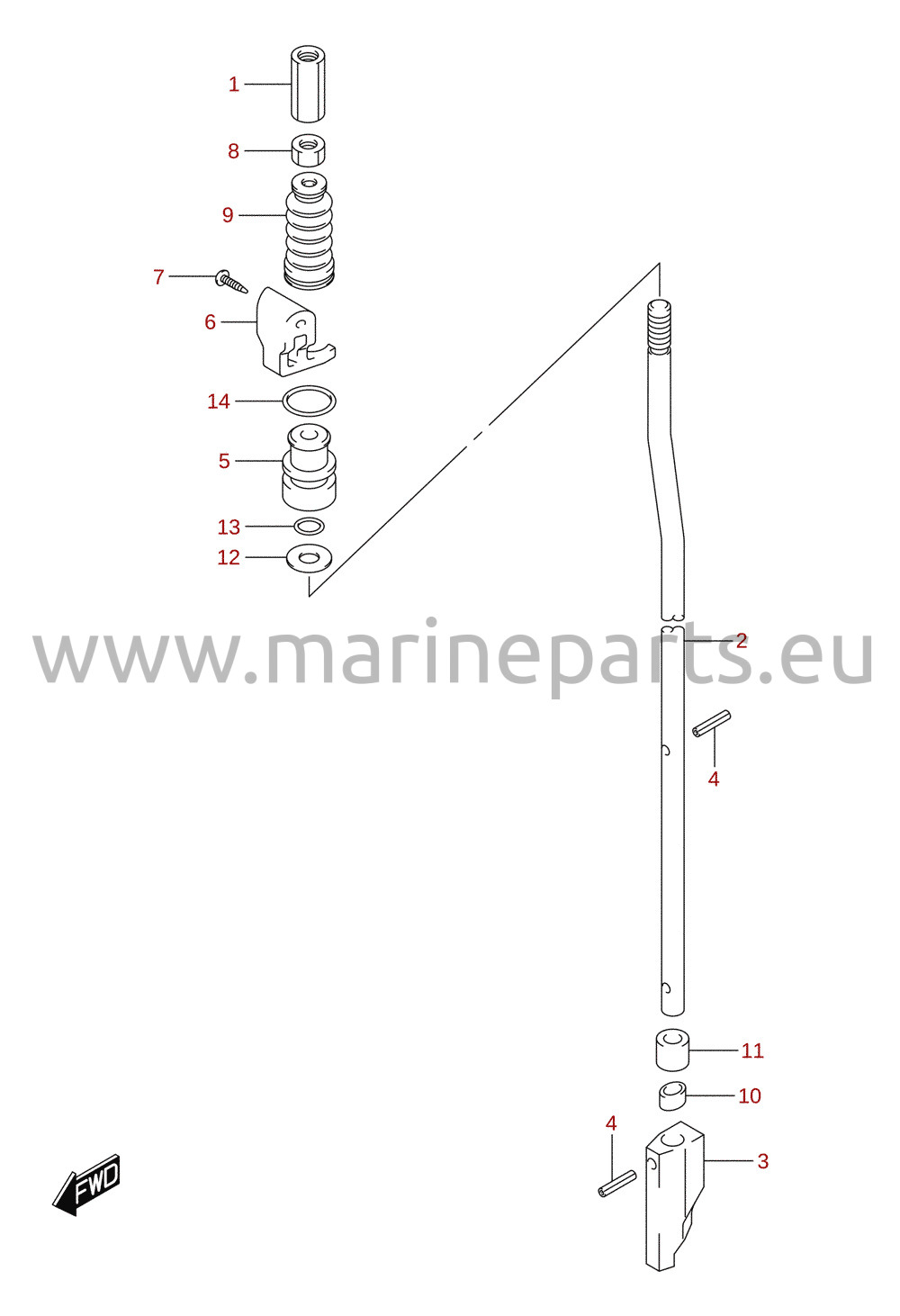

Växelstång (DF25)
Referensnr. DF25A_30A_P01_023 27

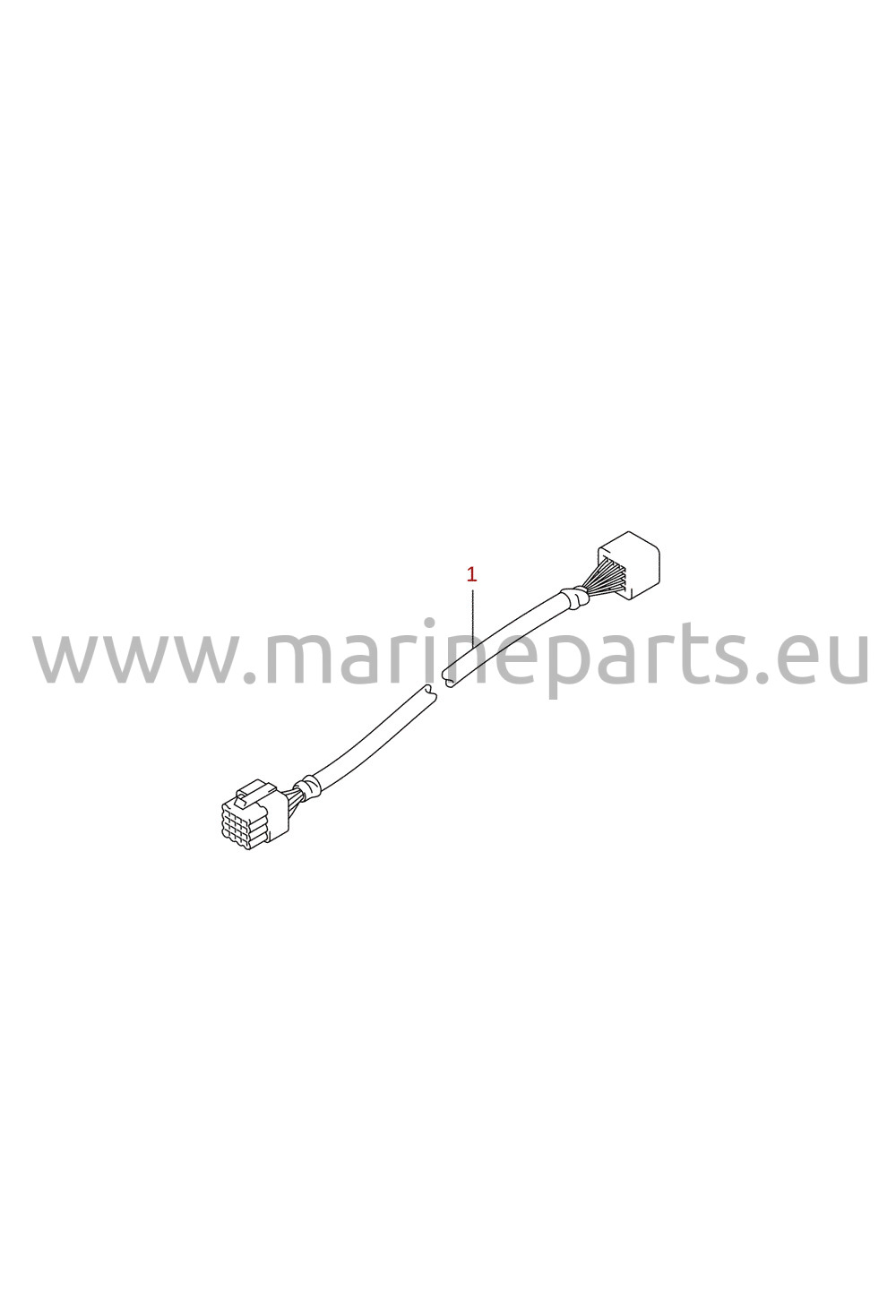

Kabelstam (2021) (DF25, DF30) (tillval)
Referensnr. DF25A_30A_P01_023 108

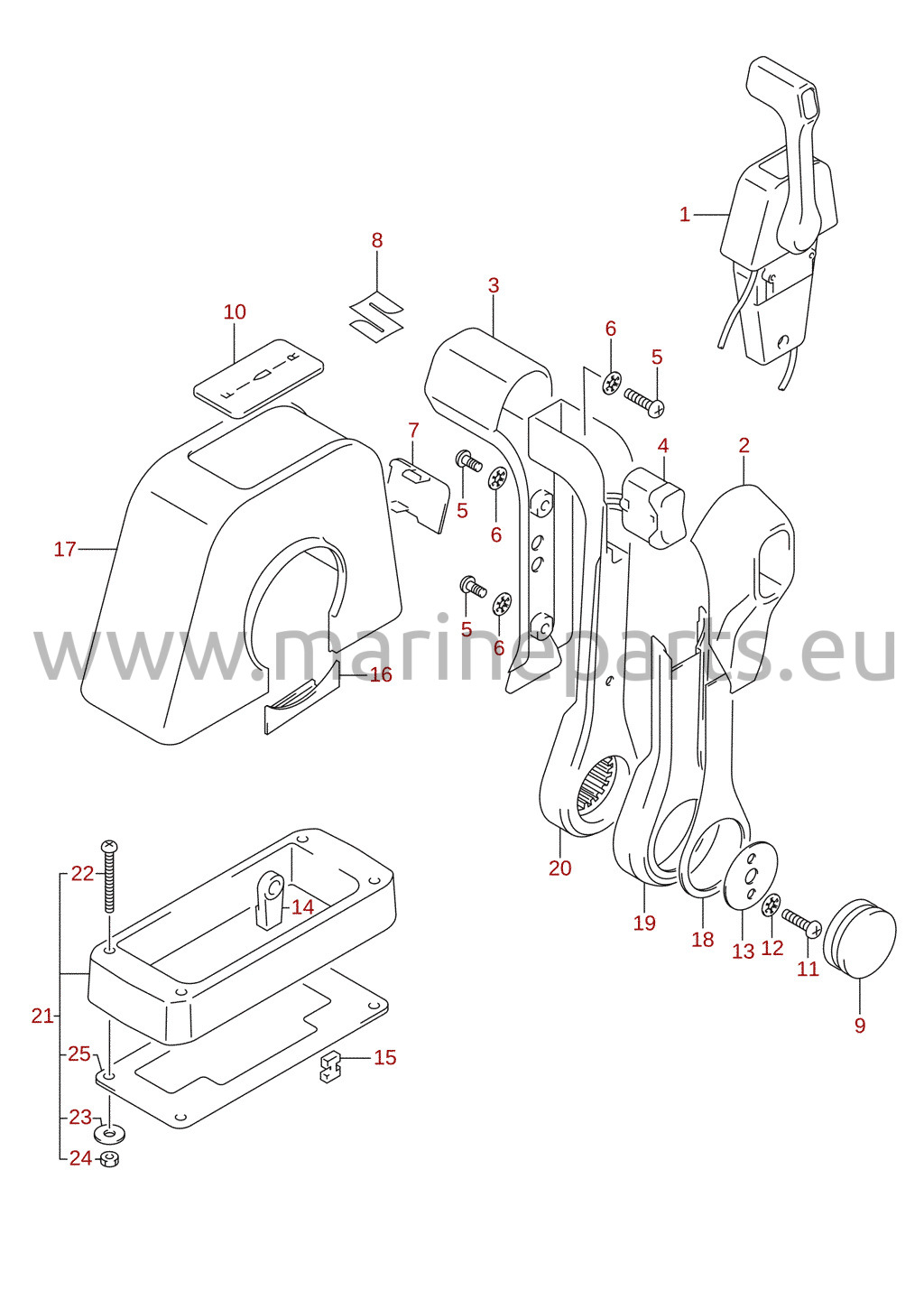

Reglage, enkelt (1) (DF25, DF30) (tillval)
Referensnr. DF25A_30A_P01_023 112

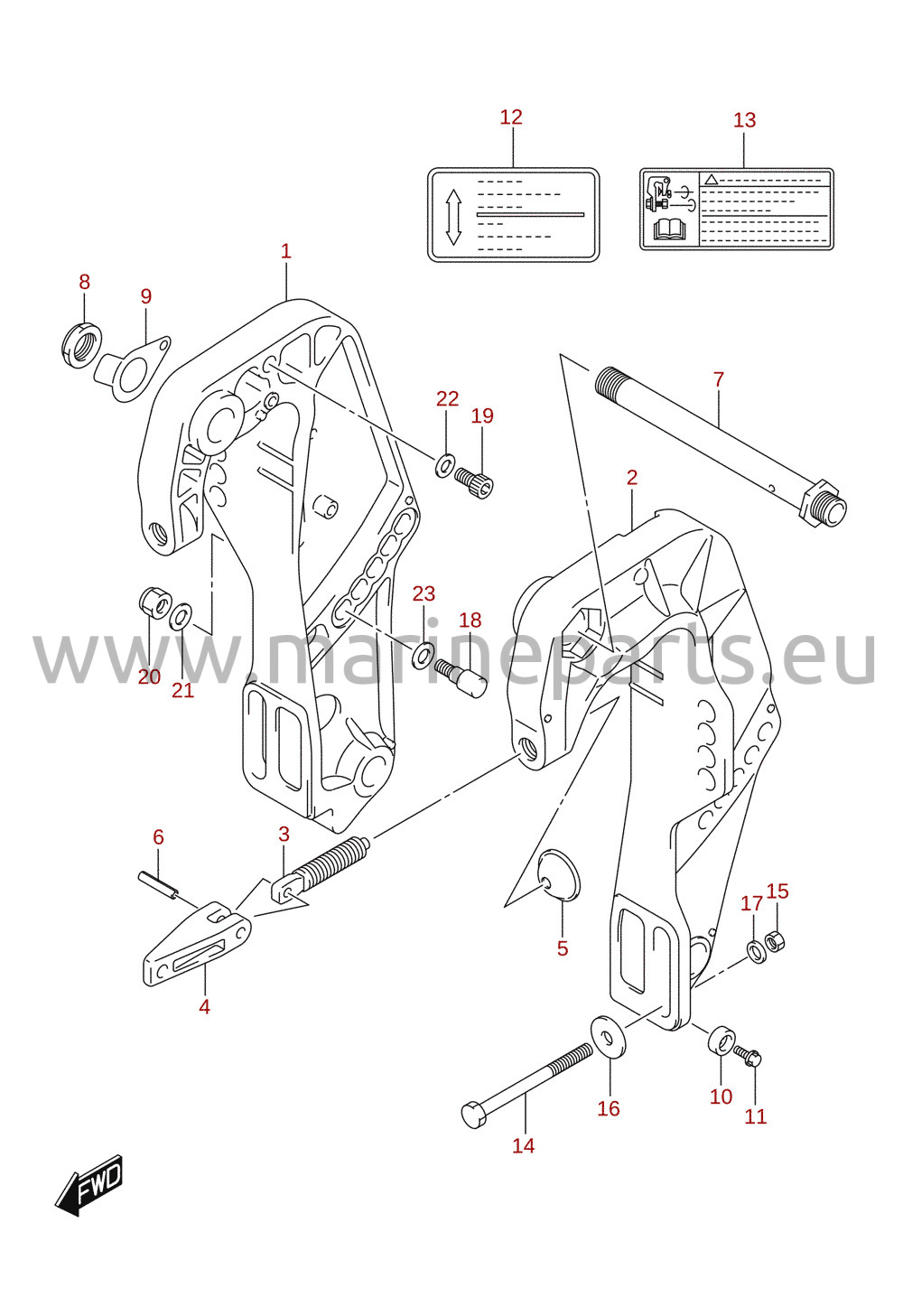

Akterspegelsfäste (DF30AQ)
Referensnr. DF25A_30A_P01_023 57
Kopplingsstång (DF25, DF30) 1/2
Referensnr. DF25A_30A_P01_023 24

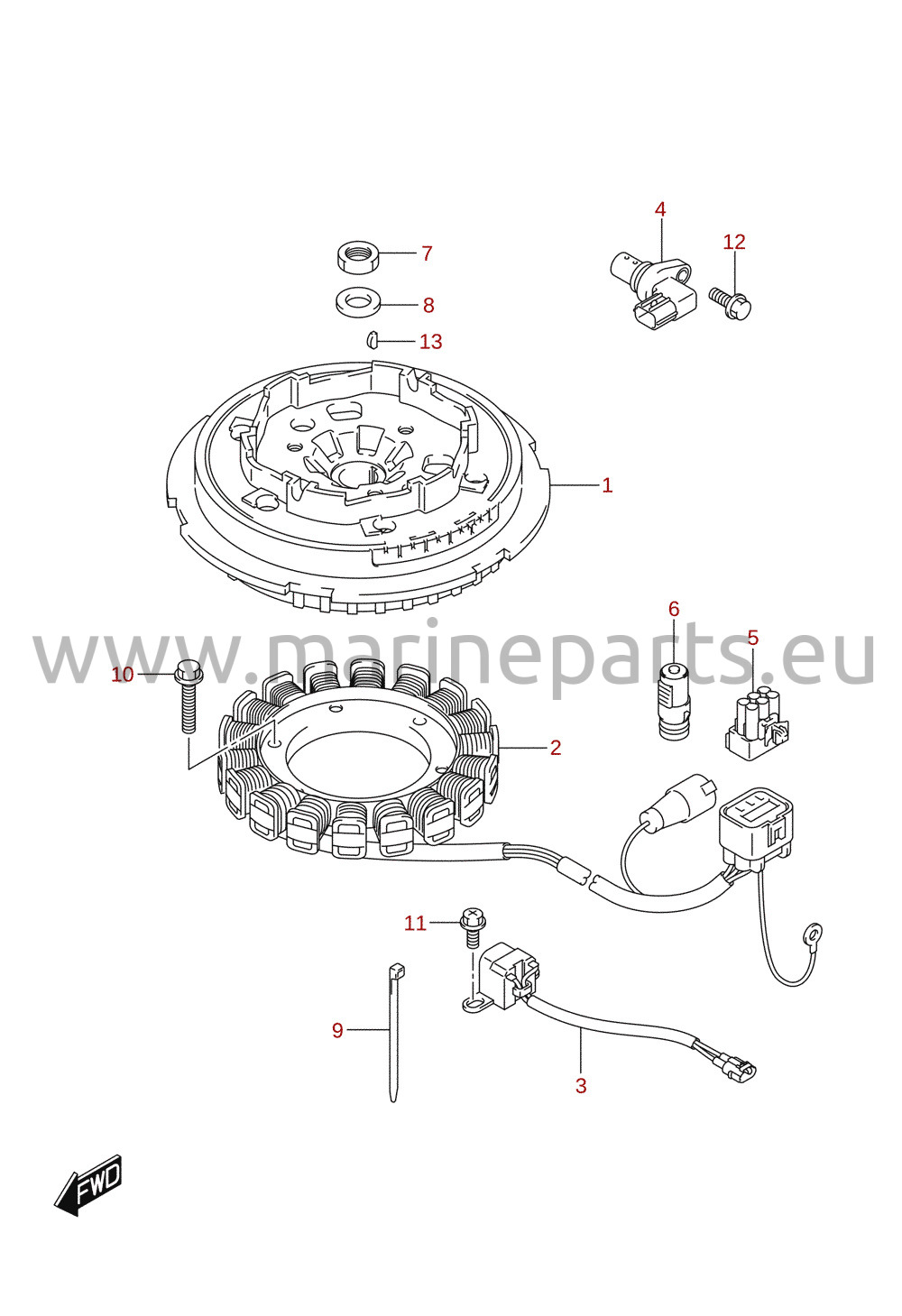

Magnet / generator (M-starter)
Referensnr. DF25A_30A_P01_023 36

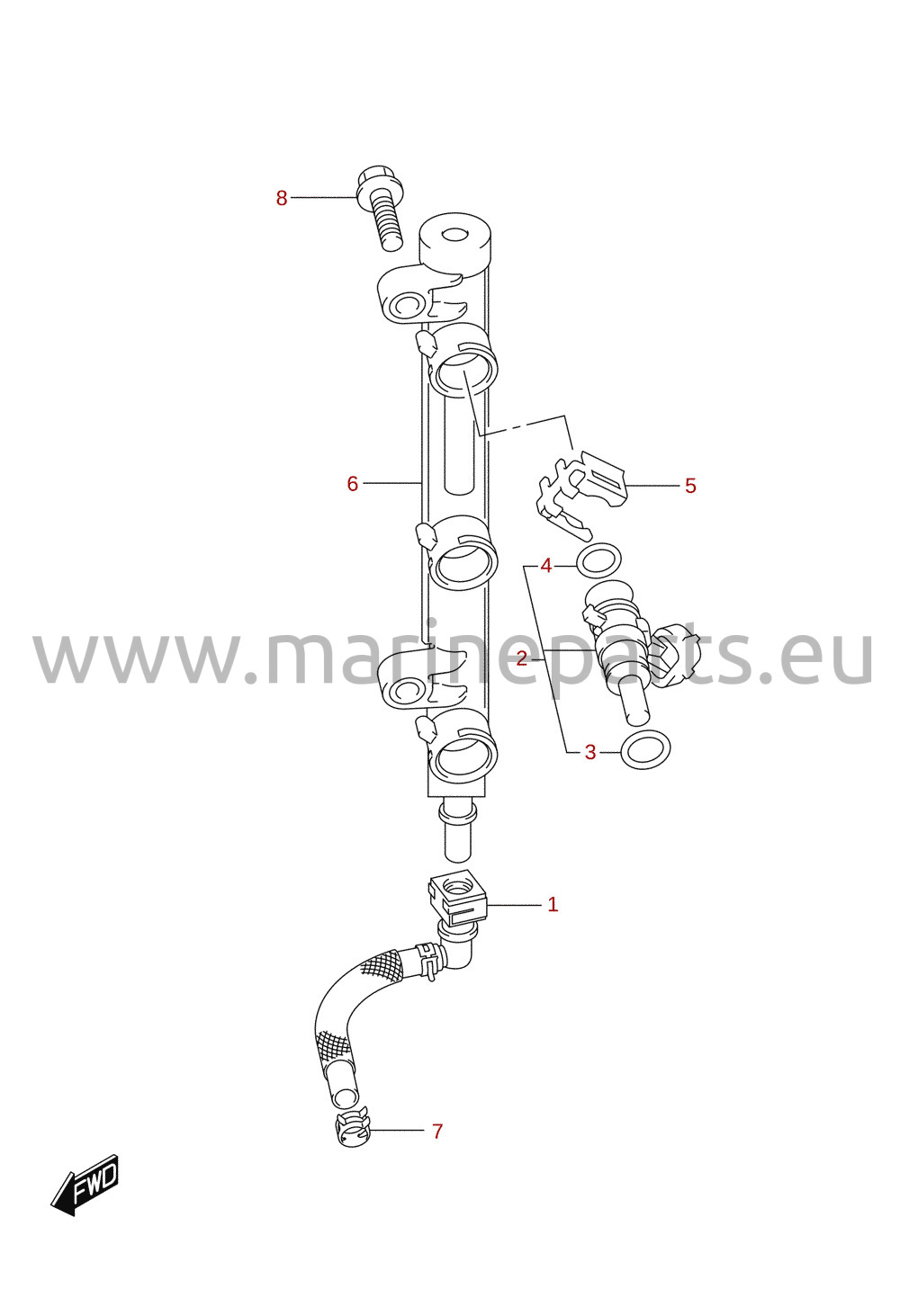

Bränsleinsprutare
Referensnr. DF25A_30A_P01_023 10
Motorkåpa (2020) (DF30) 2/2
Referensnr. DF25A_30A_P01_023 85

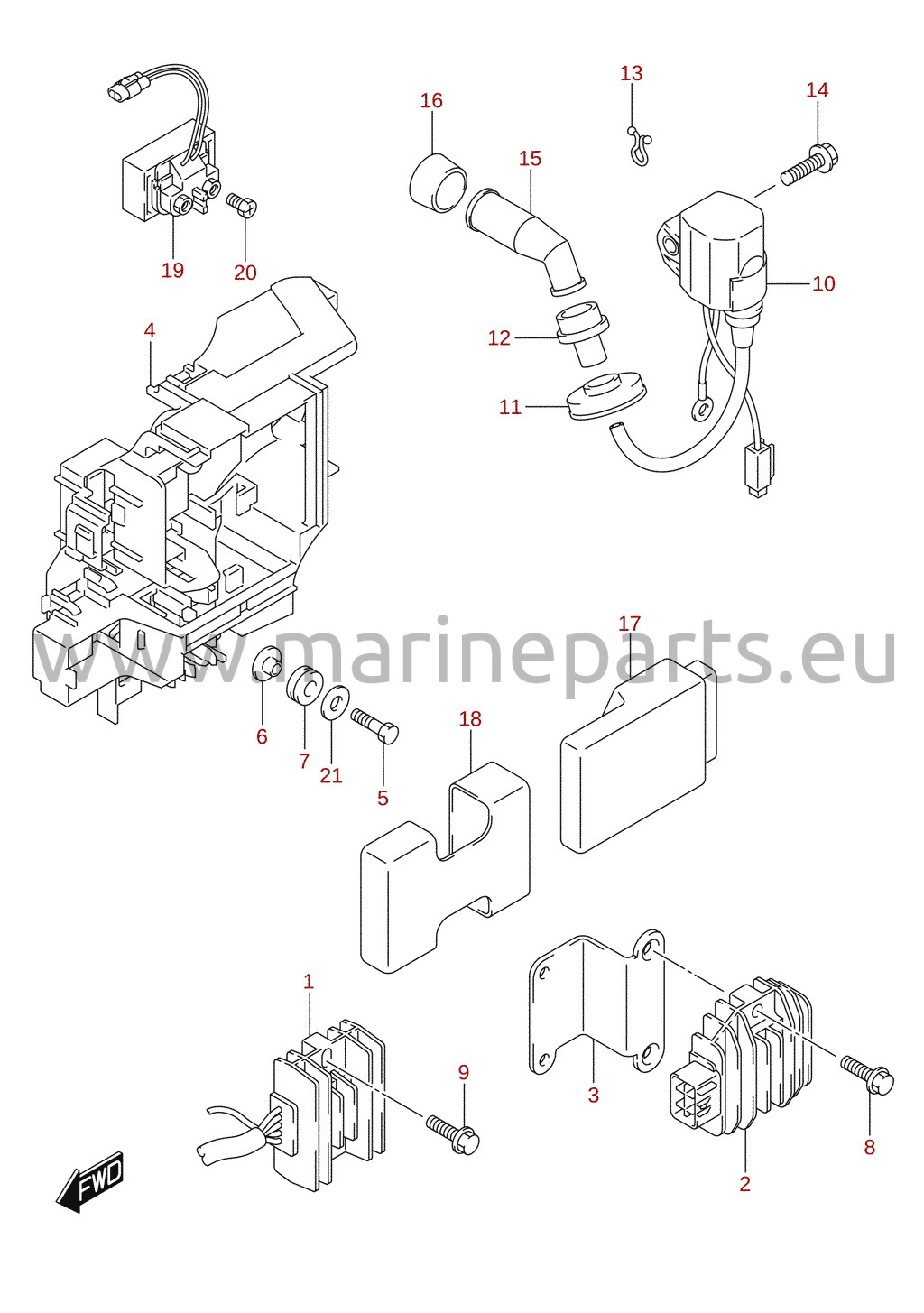

Likriktare / tändspole (DF25A)
Referensnr. DF25A_30A_P01_023 38

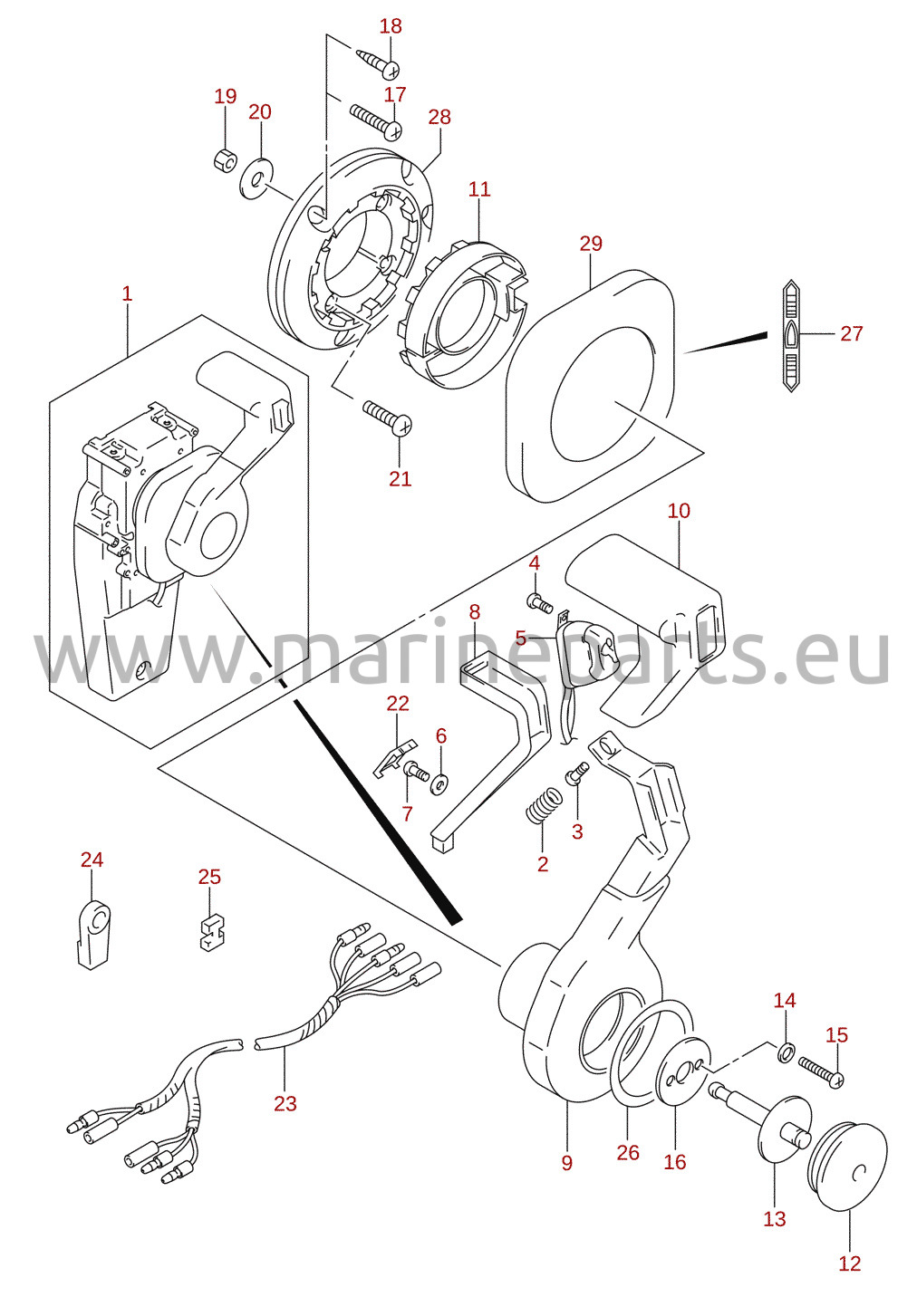

Dolt reglage (1) (DF25, DF30) (tillval)
Referensnr. DF25A_30A_P01_023 105

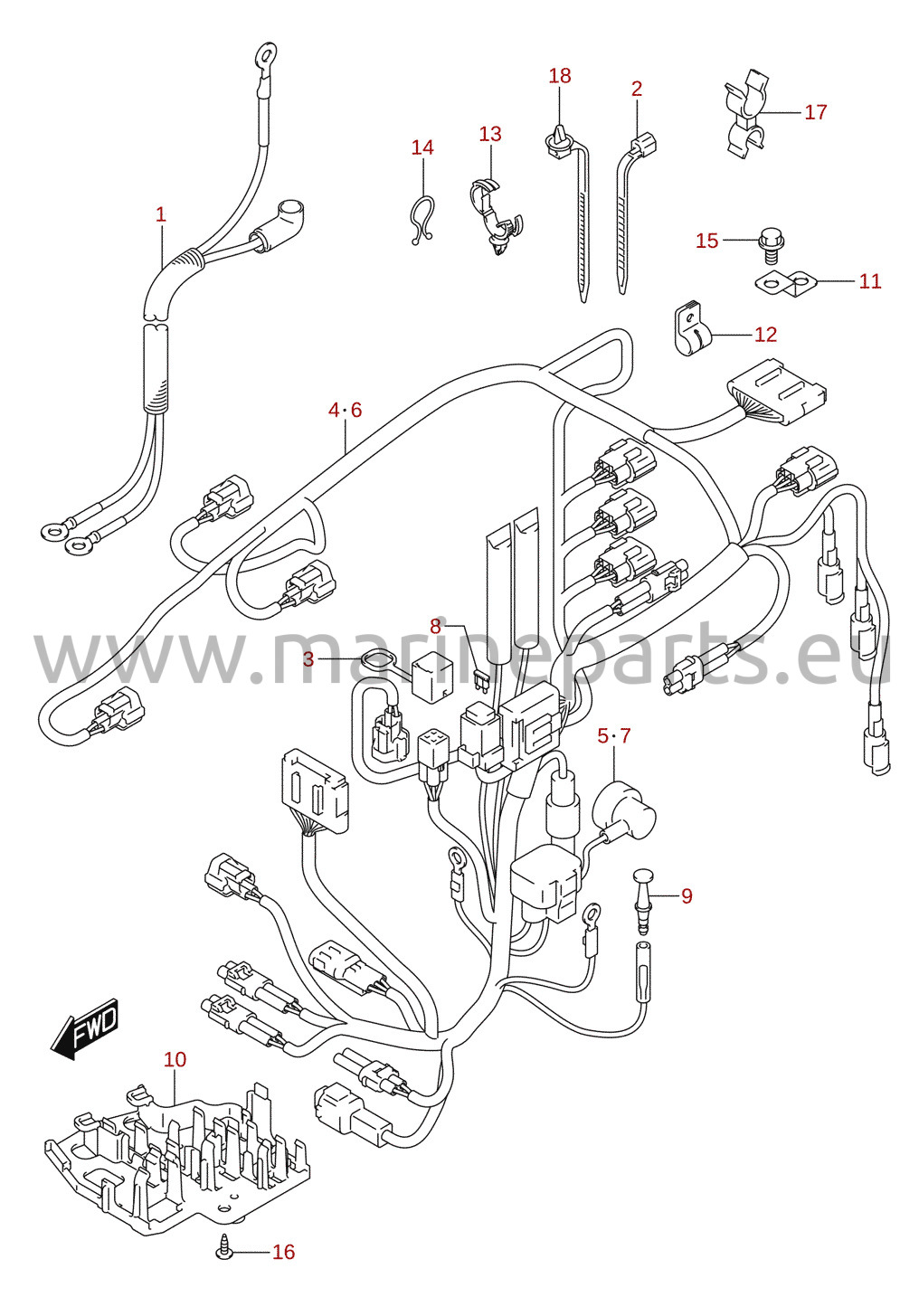

Kabelstam (DF25A, DF30A, DF30AQ)
Referensnr. DF25A_30A_P01_023 43

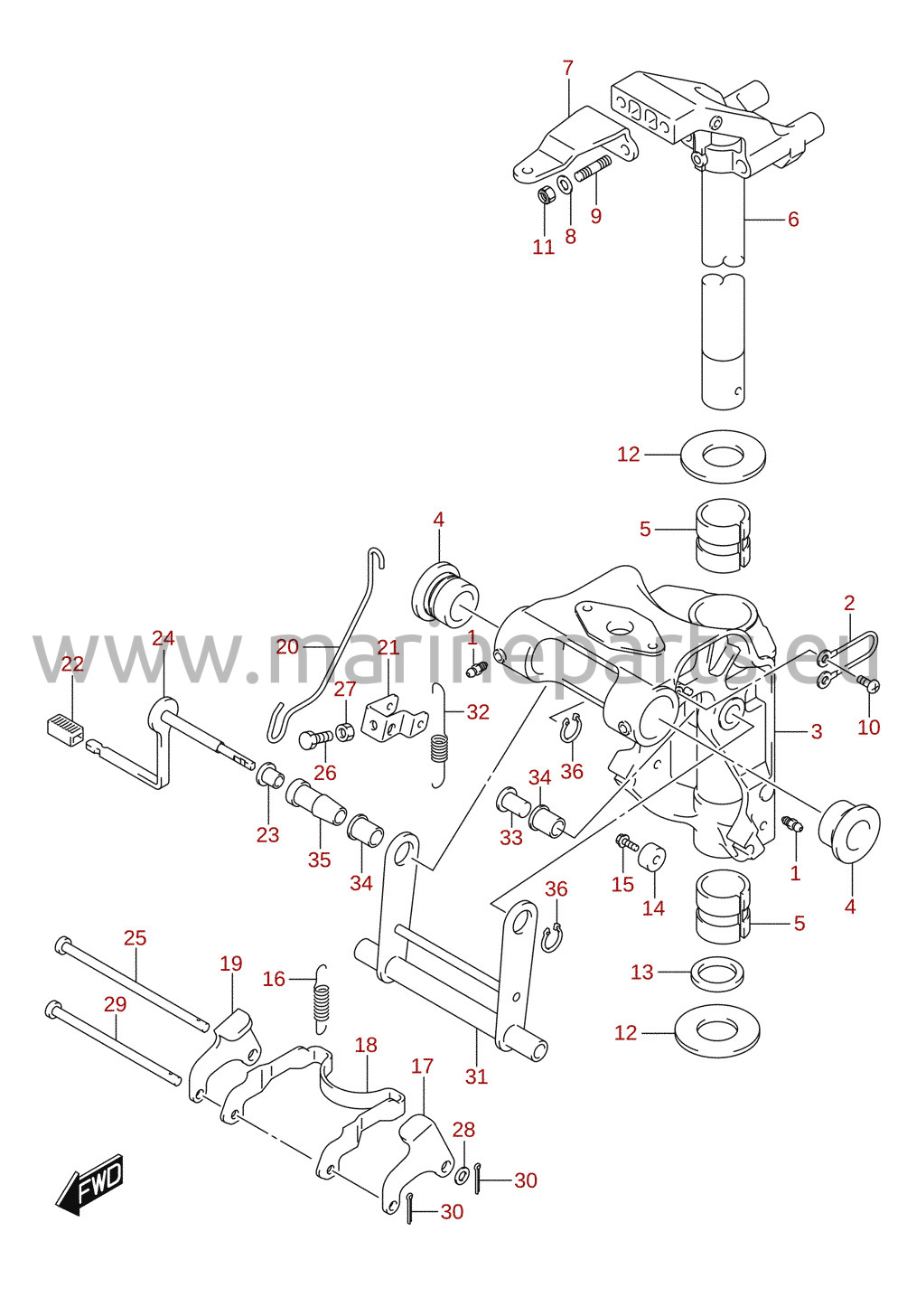

Svängfäste (DF25AR, DF30AR)
Referensnr. DF25A_30A_P01_023 59
Transmission (DF25)
Referensnr. DF25A_30A_P01_023 30

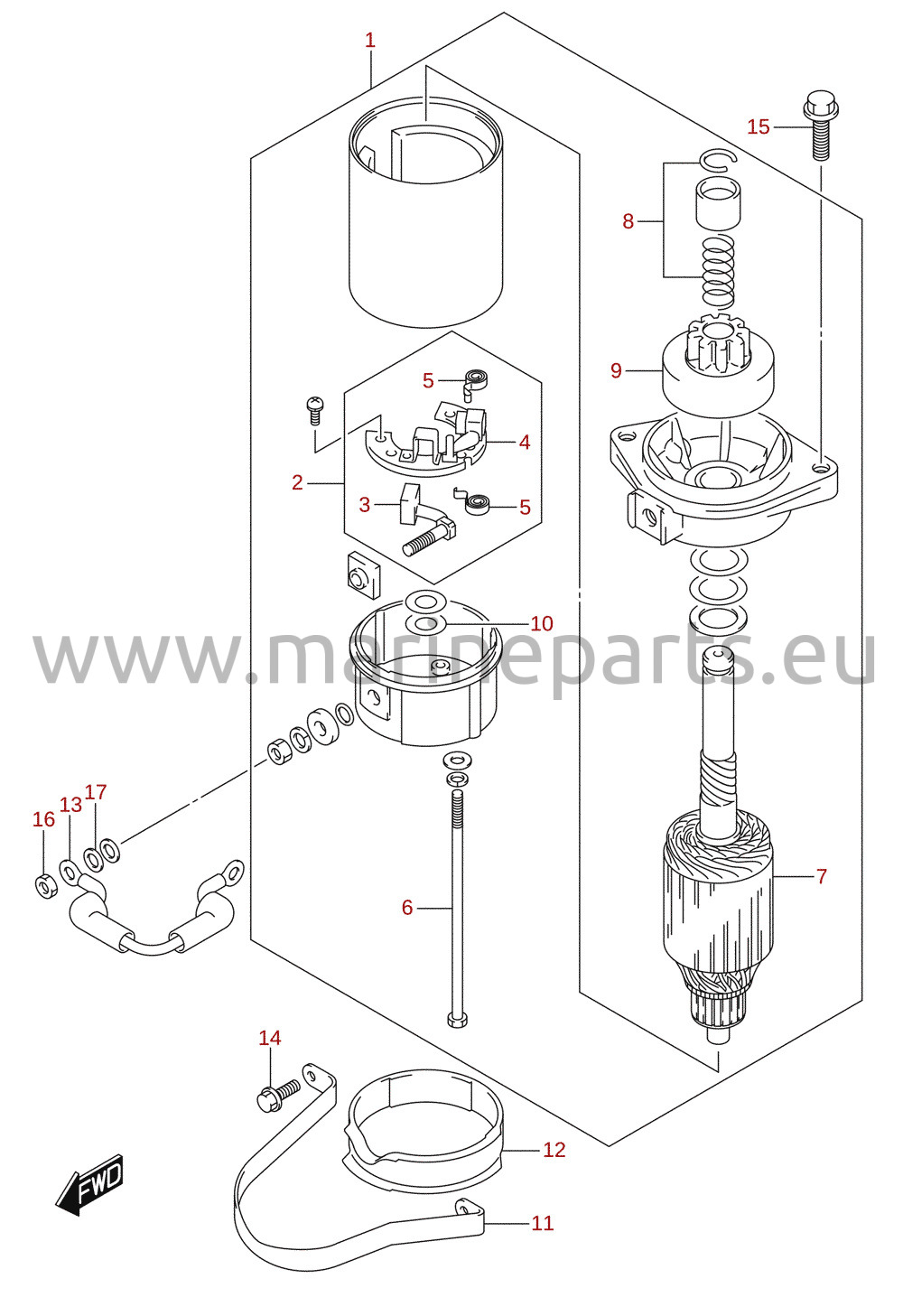

Startmotor (DF25)
Referensnr. DF25A_30A_P01_023 33

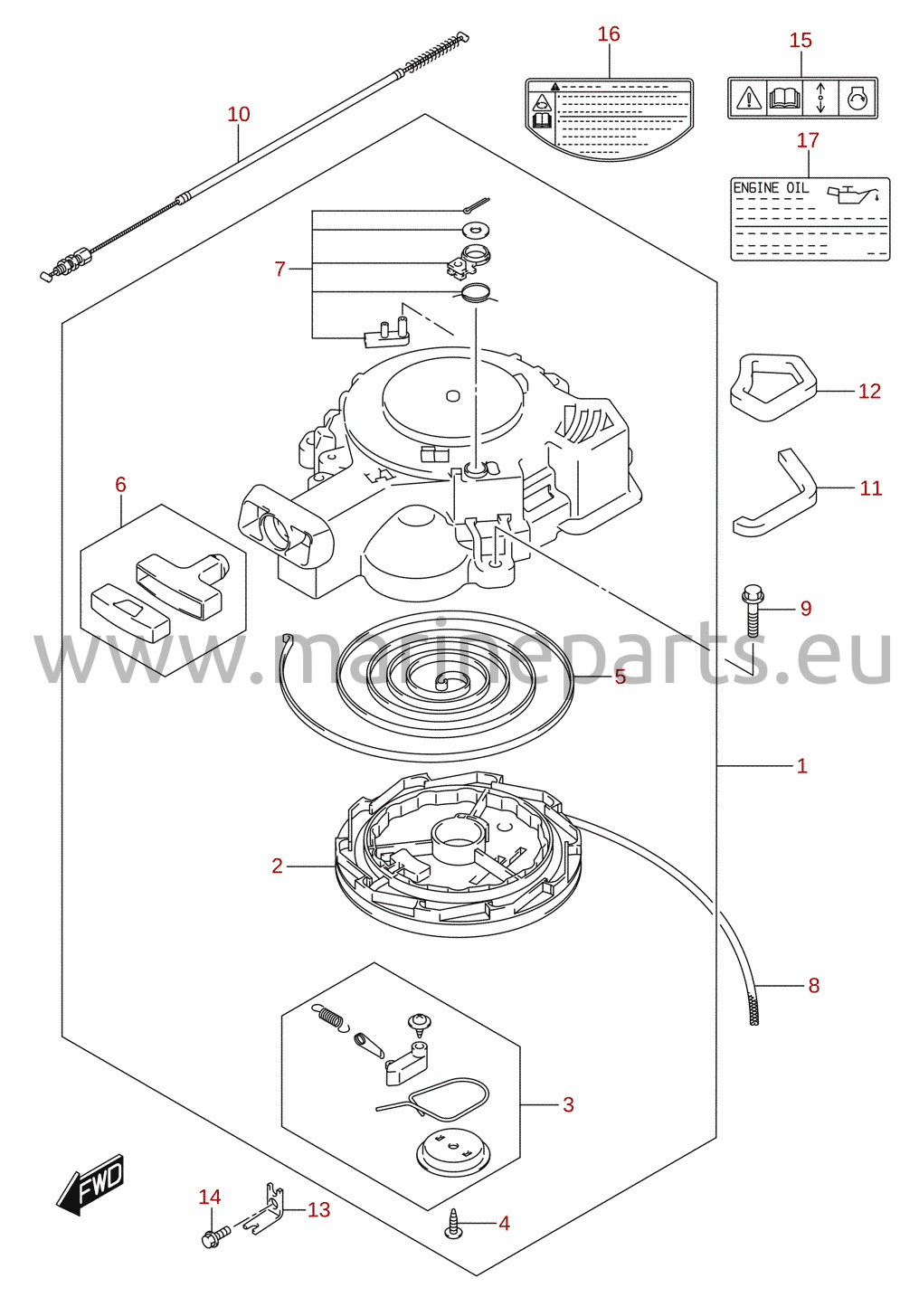

Snörstart
Referensnr. DF25A_30A_P01_023 22

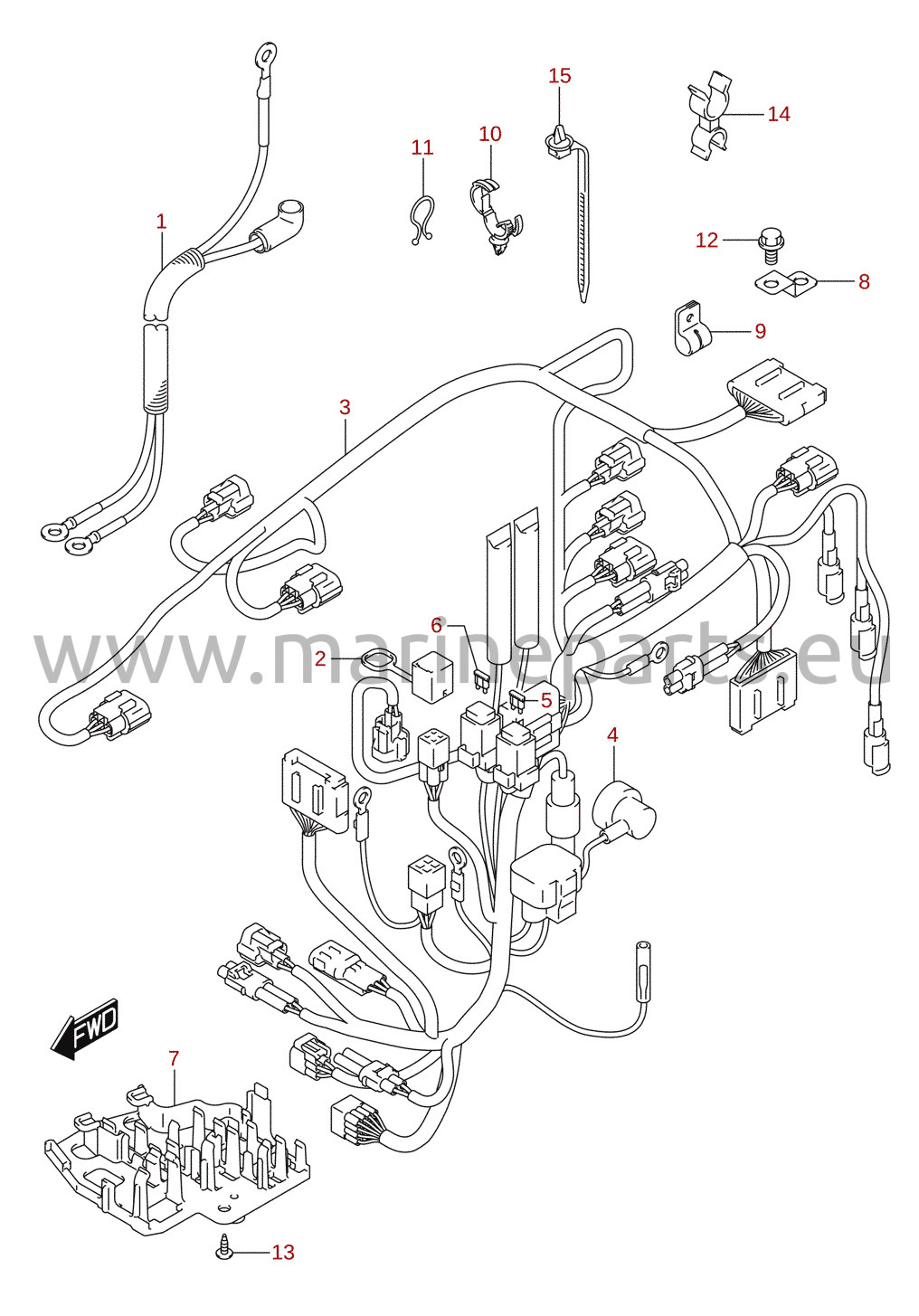

Kabelstam (DF25AT, DF30AT)
Referensnr. DF25A_30A_P01_023 45

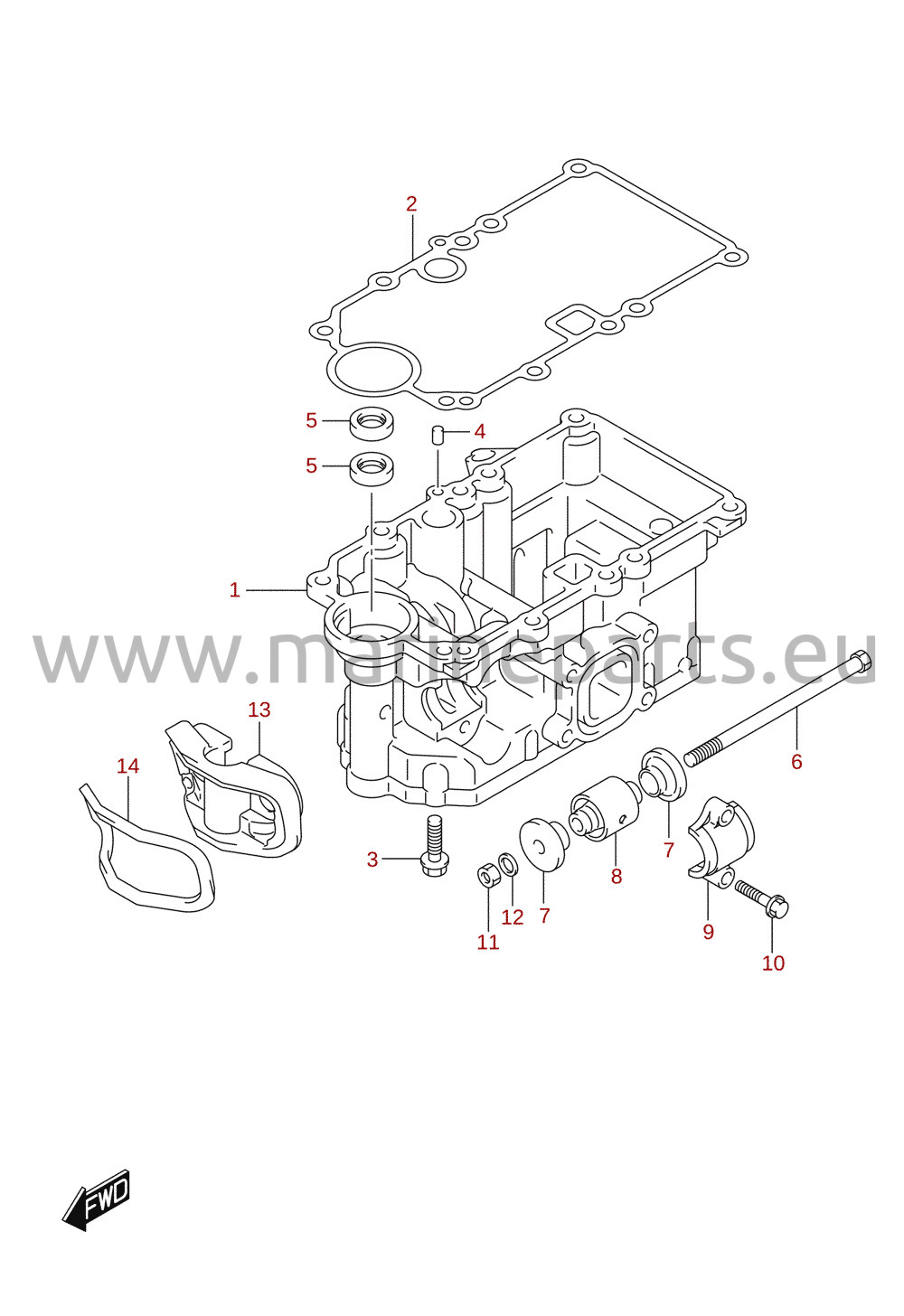

Motorhållare
Referensnr. DF25A_30A_P01_023 67
Styrkult (DF25ATH, DF30A, DF30ATH)
Referensnr. DF25A_30A_P01_023 91

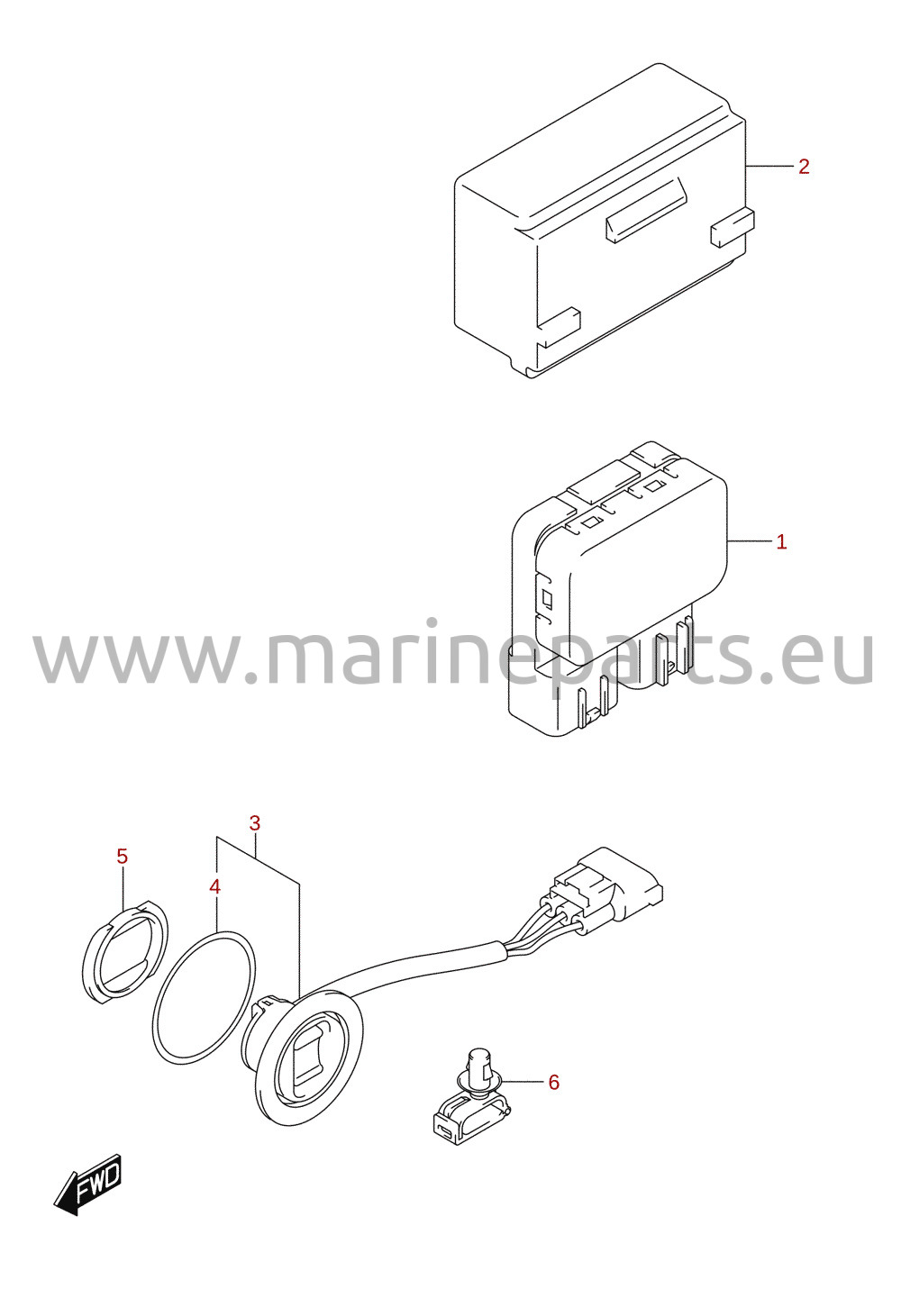

PTT-brytare (DF25AT, DF30AT)
Referensnr. DF25A_30A_P01_023 47

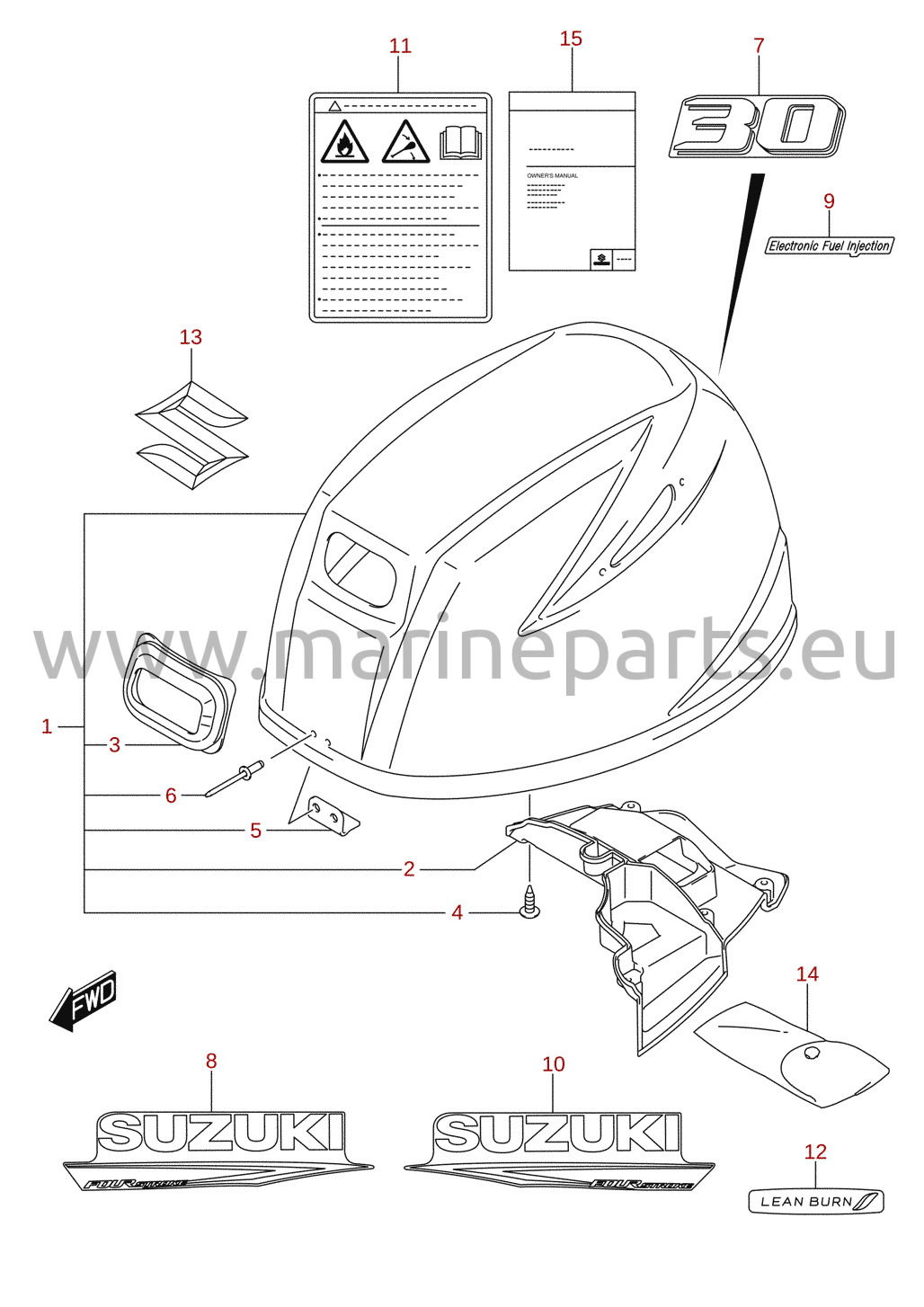

Motorkåpa (2021) (DF30)
Referensnr. DF25A_30A_P01_023 86

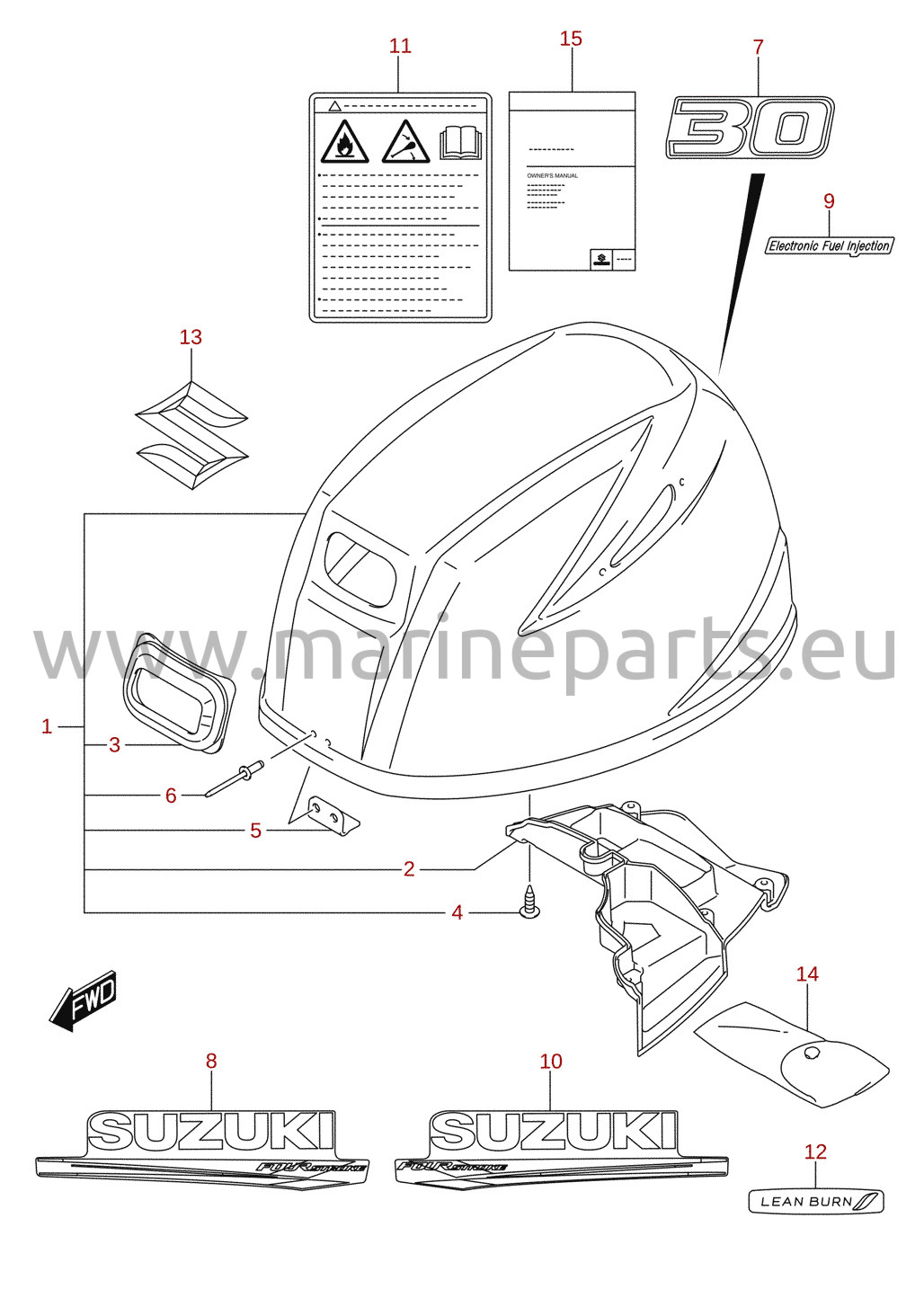

Motorkåpa (2020) (DF30A)
Referensnr. DF25A_30A_P01_023 83

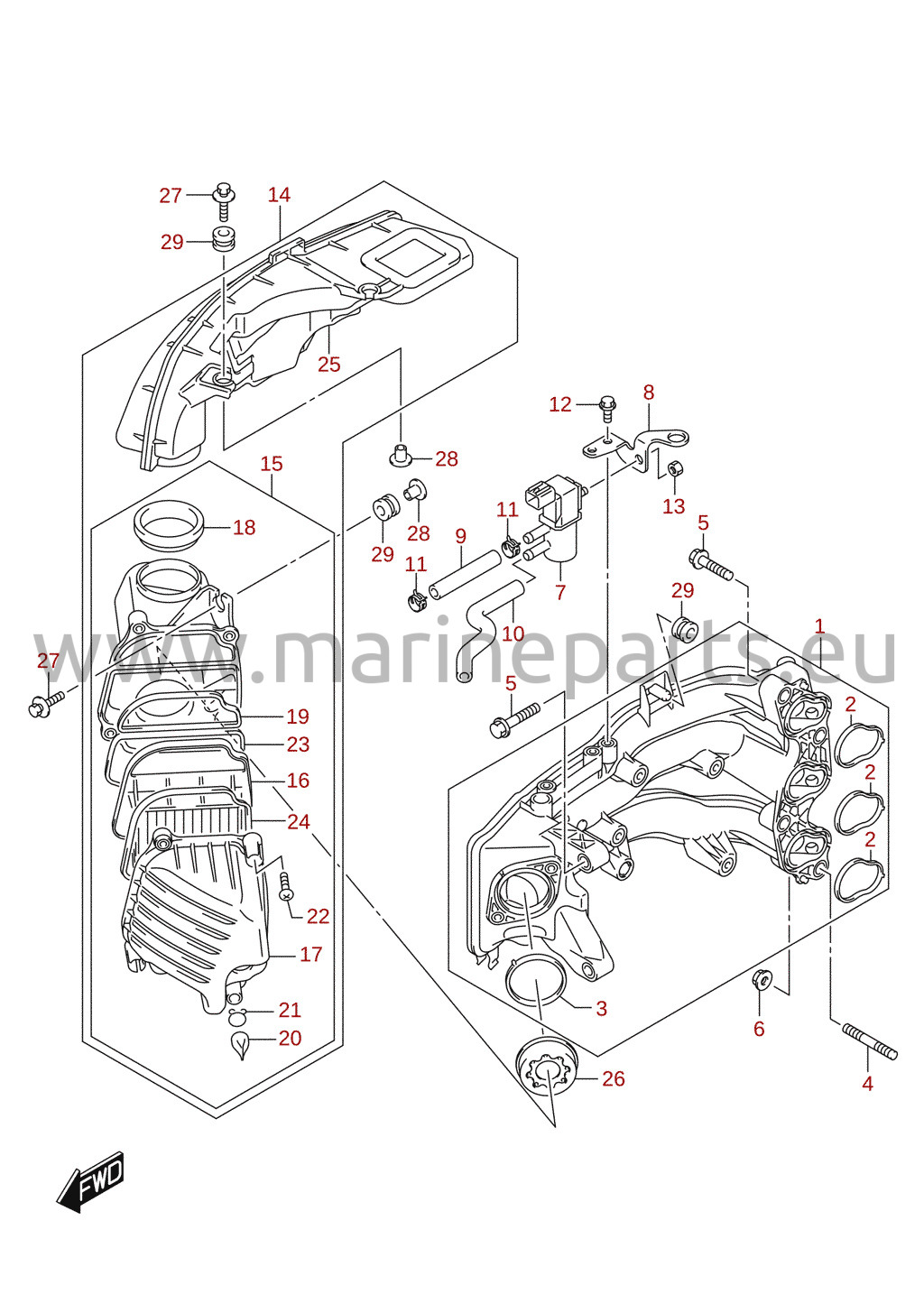

Insugningsrör (2020) (DF25)
Referensnr. DF25A_30A_P01_023 5
Likriktare / tändspole (DF30A)
Referensnr. DF25A_30A_P01_023 40

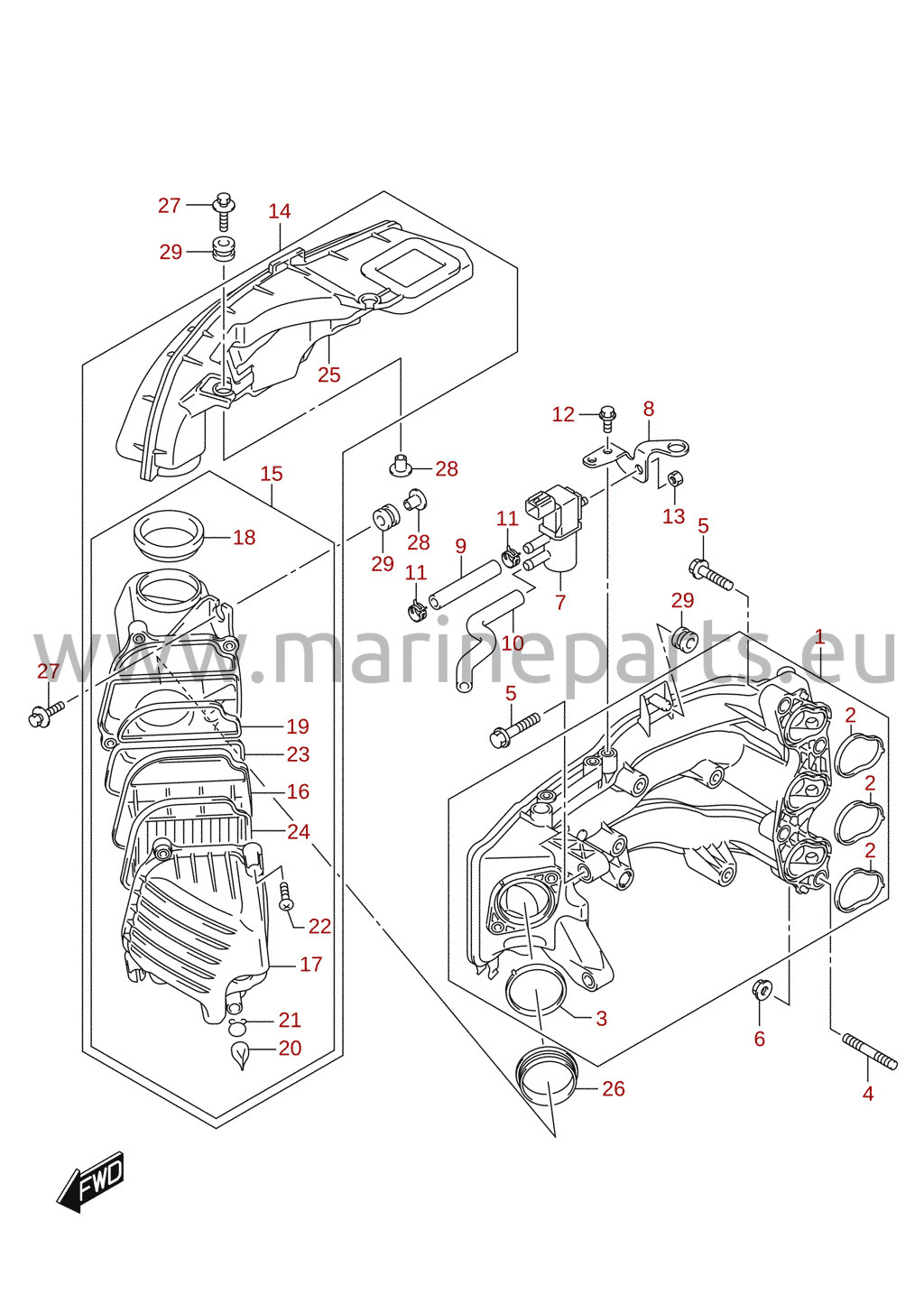

Insugningsrör (DF30)
Referensnr. DF25A_30A_P01_023 8

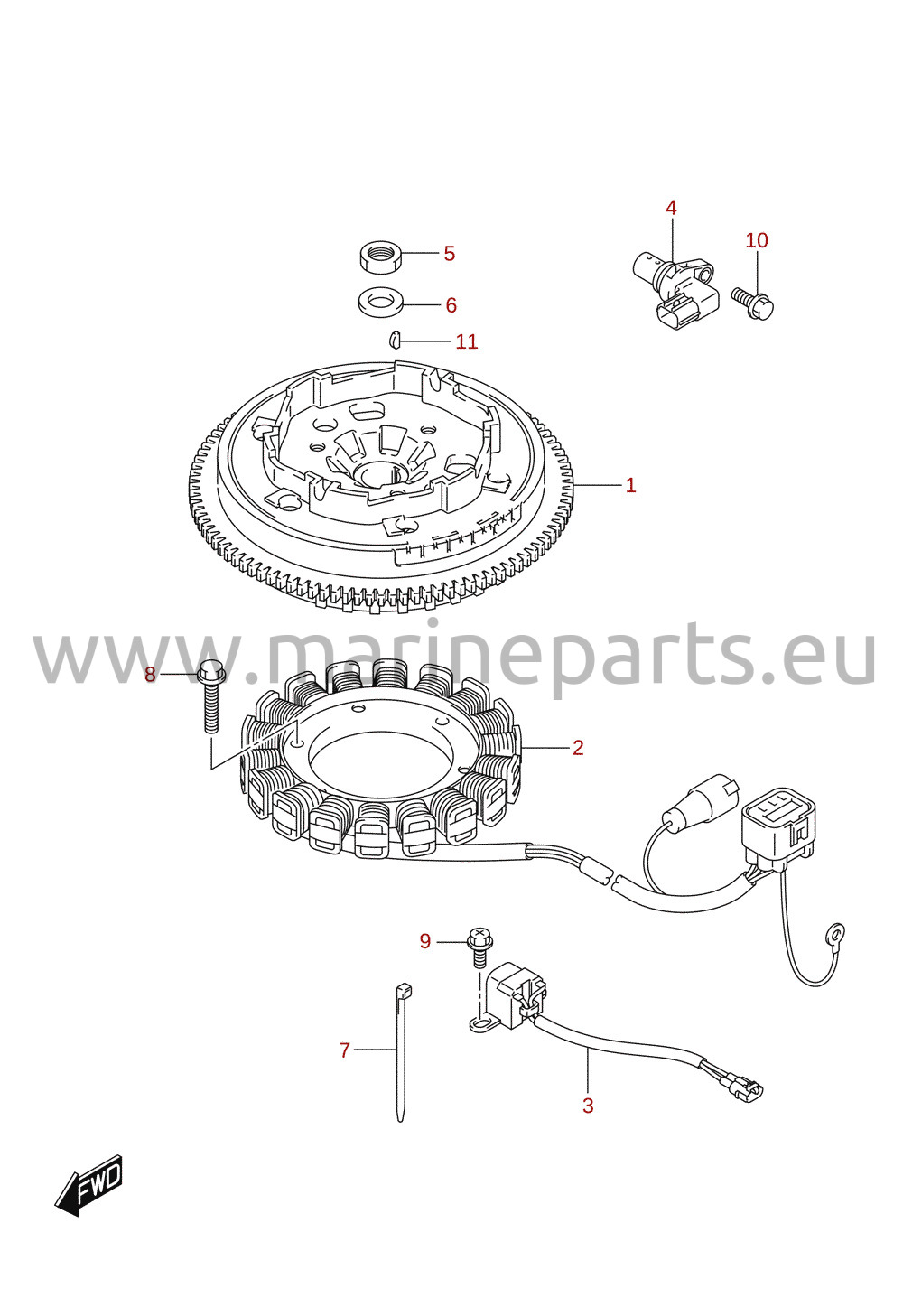

Magnet / generator (E-starter)
Referensnr. DF25A_30A_P01_023 37

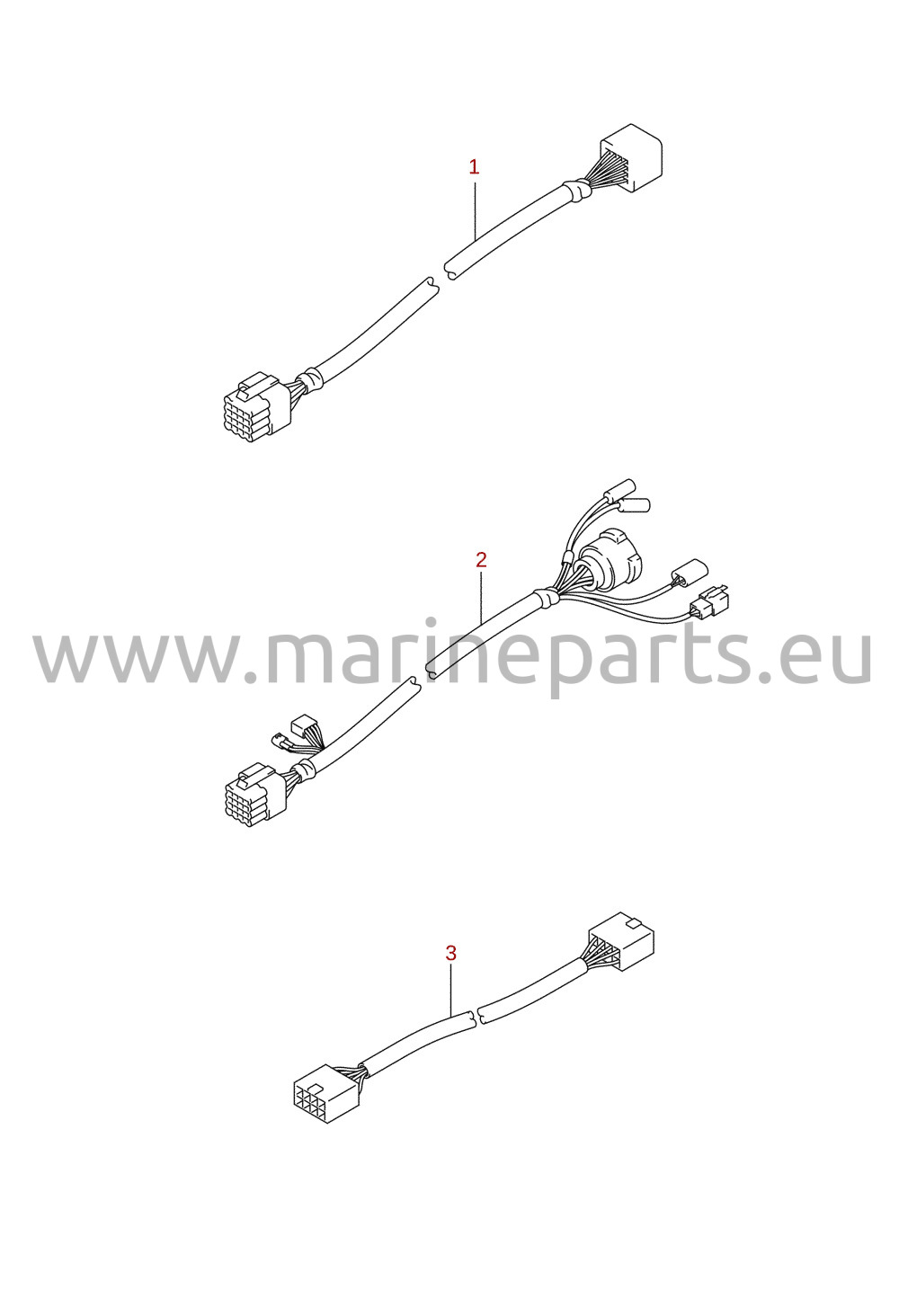

Kabelstam (tillval)
Referensnr. DF25A_30A_P01_023 109

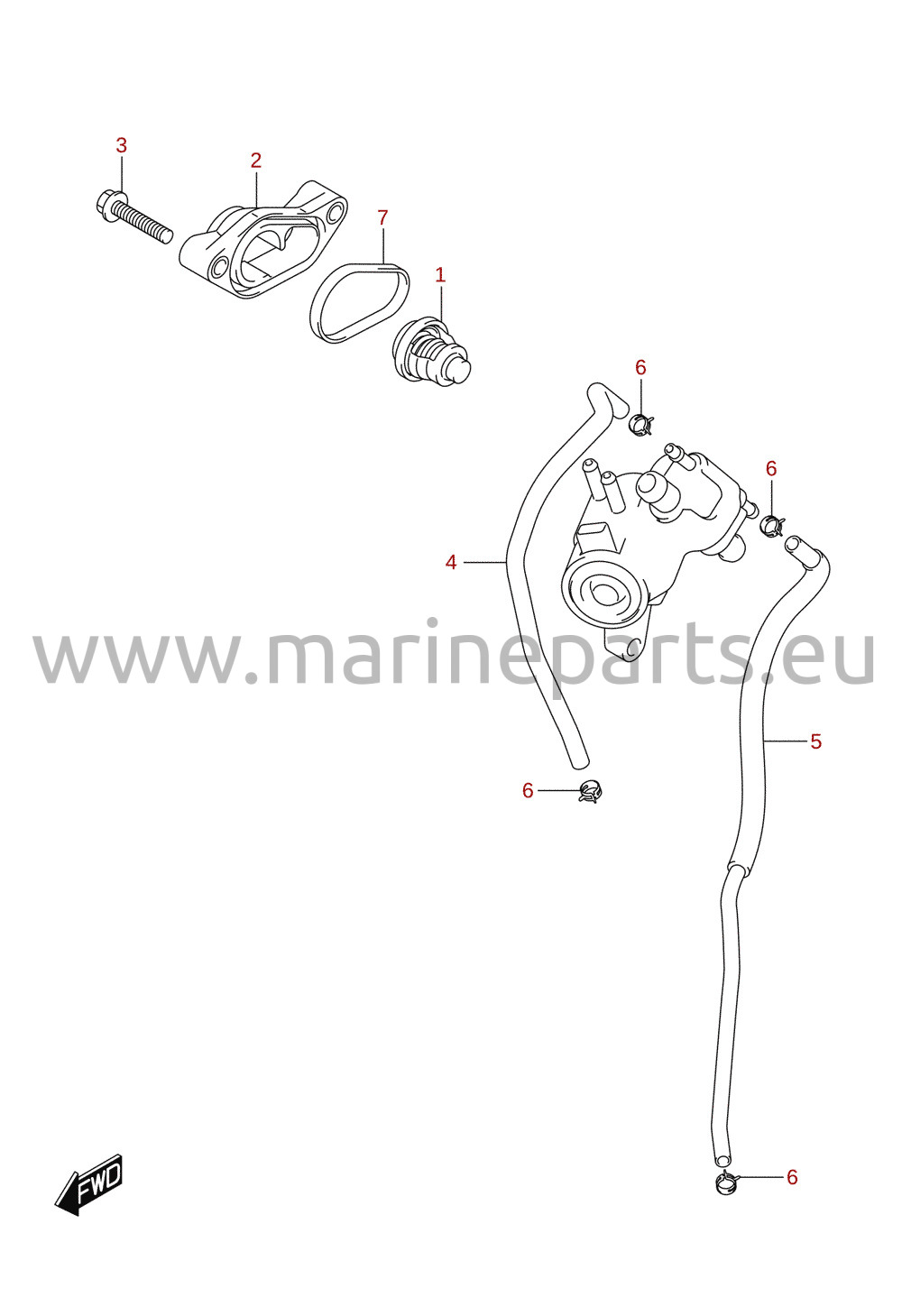

Termostat
Referensnr. DF25A_30A_P01_023 18

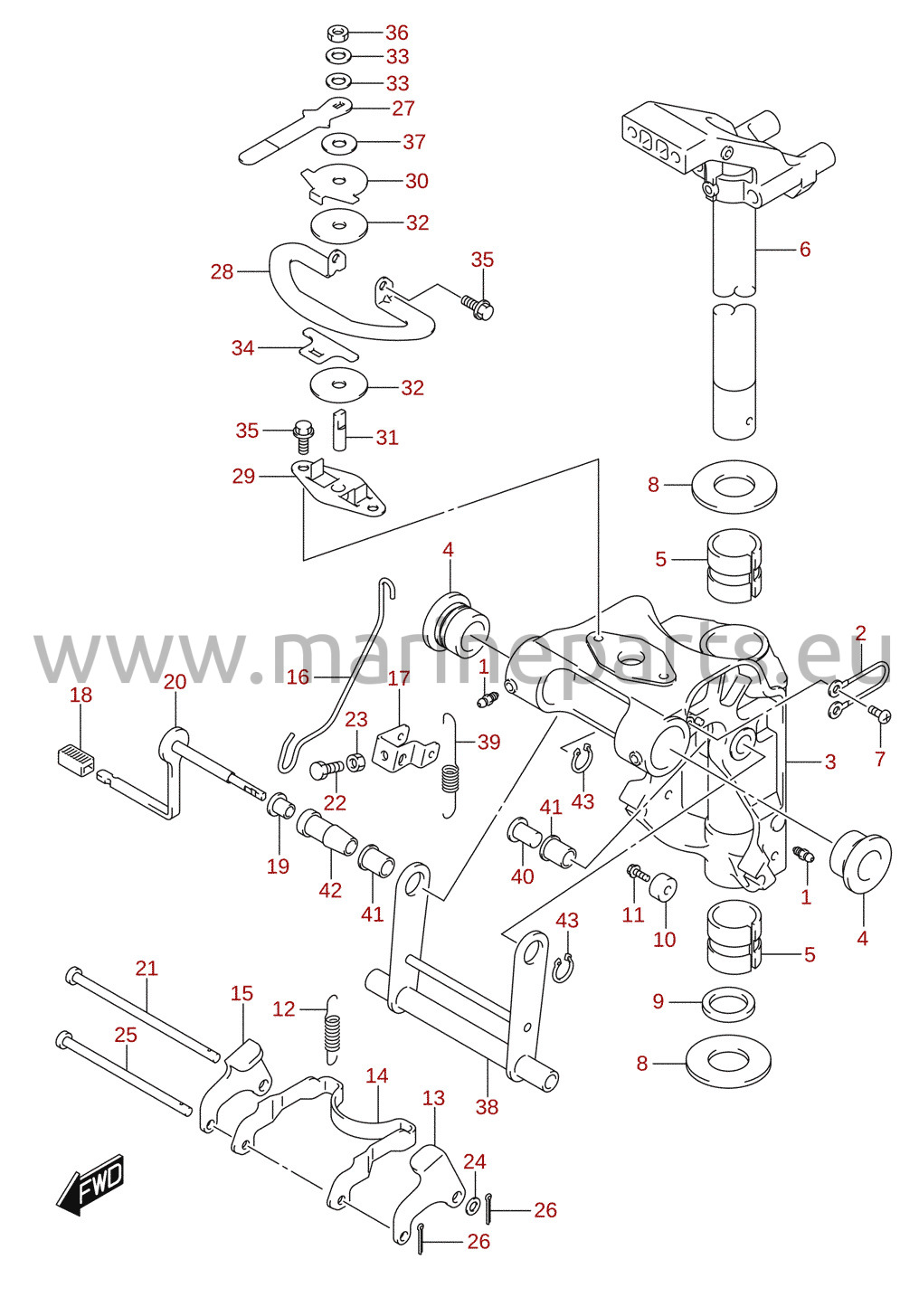

Svängfäste (DF30A)
Referensnr. DF25A_30A_P01_023 62

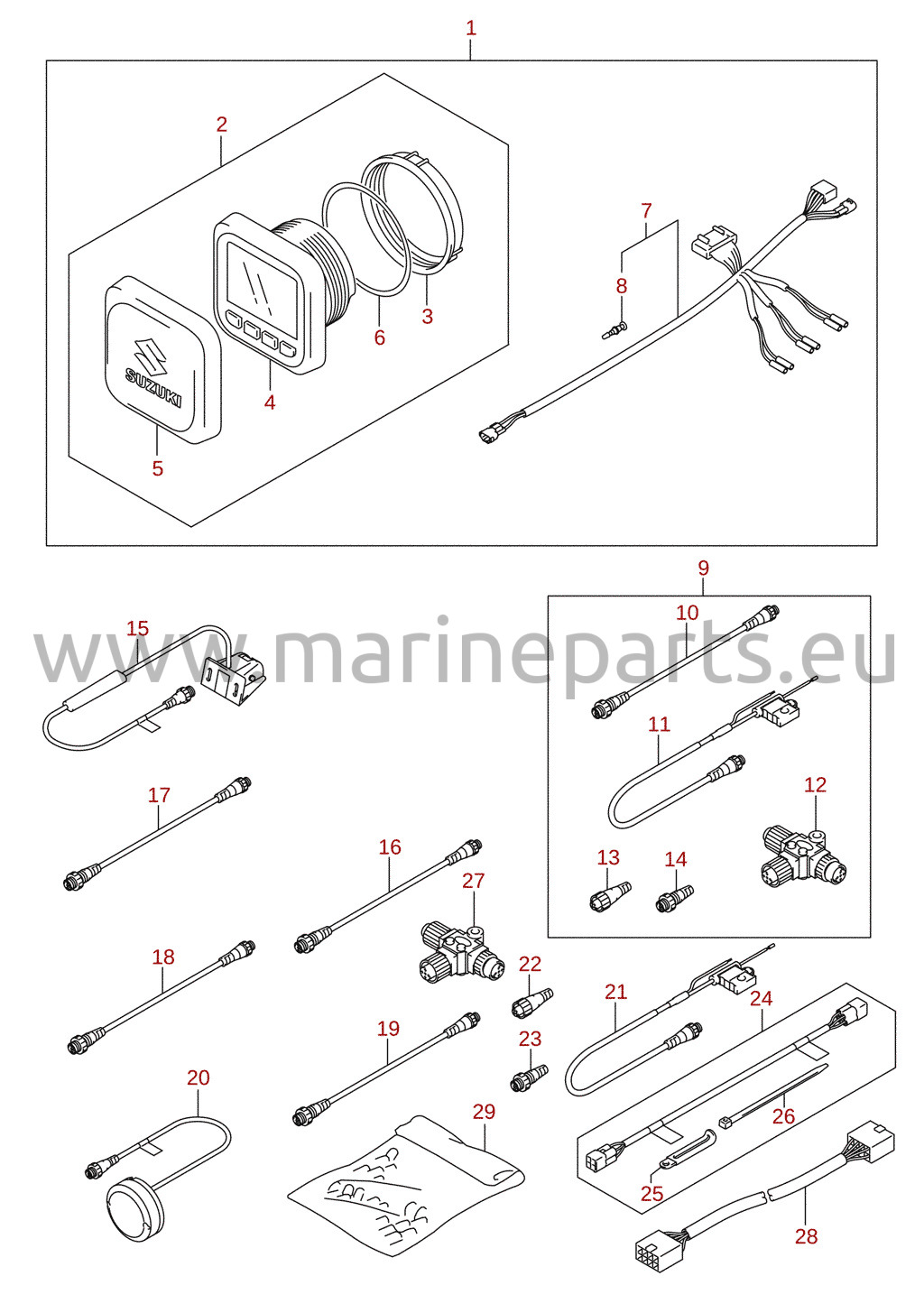

Multifunktionsinstrument (DF25, DF30) (tillval)
Referensnr. DF25A_30A_P01_023 117

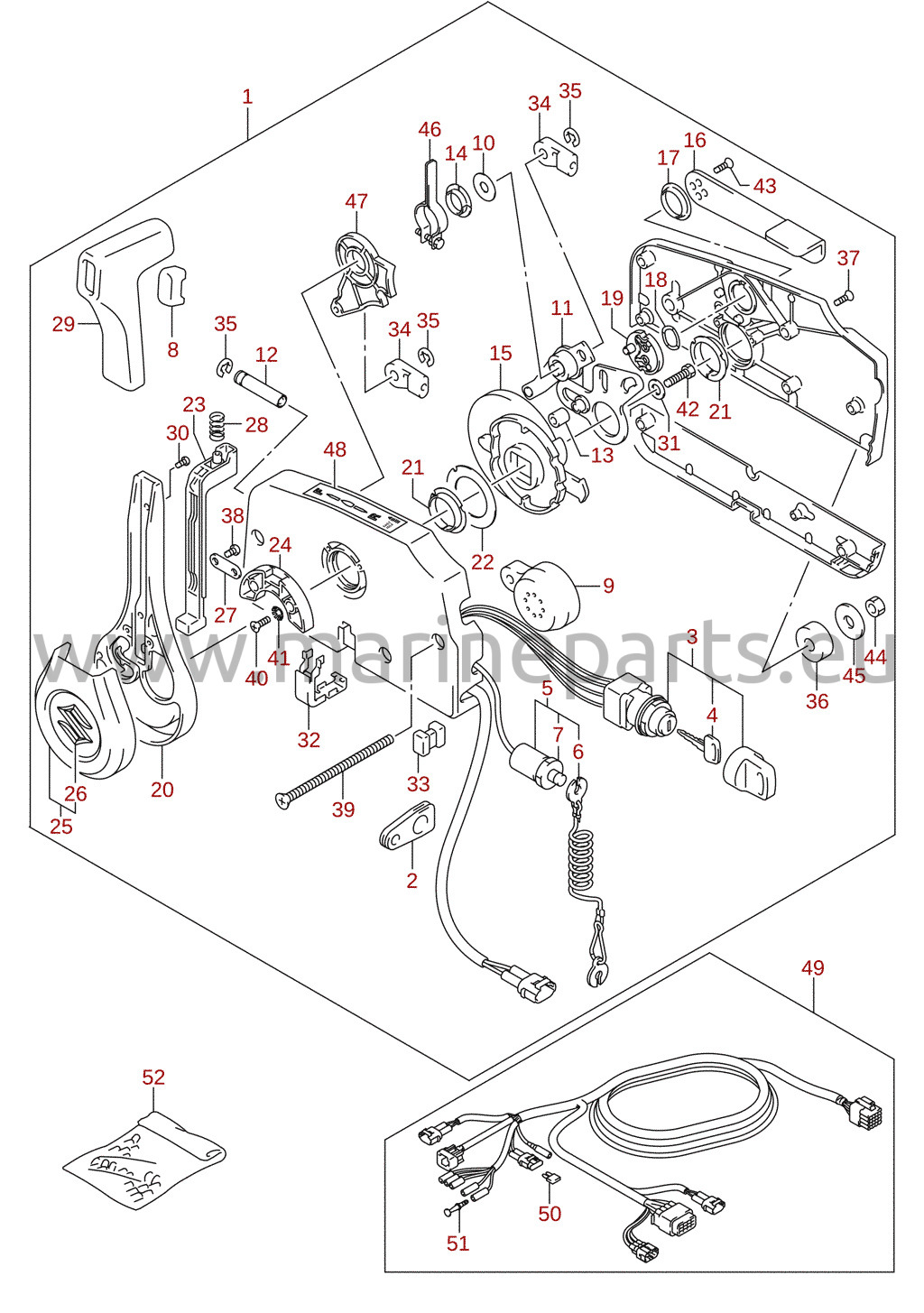

Reglage (DF30AR)
Referensnr. DF25A_30A_P01_023 93

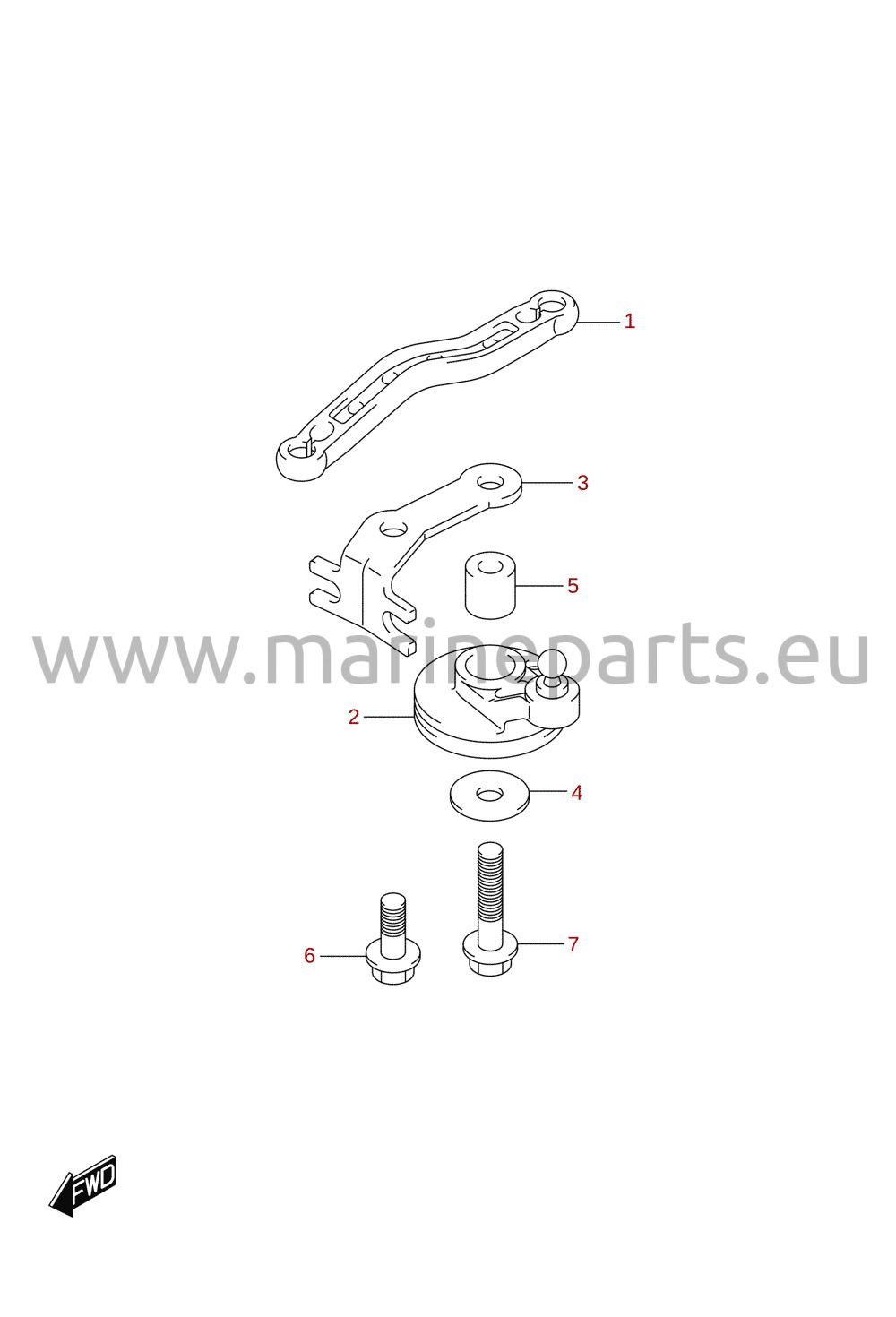

Gasreglage (DF25, DF30) 1/2
Referensnr. DF25A_30A_P01_023 20
Bränslepump 4/4
Referensnr. DF25A_30A_P01_023 14
Motorkåpa (2020) (DF30) 1/2
Referensnr. DF25A_30A_P01_023 84

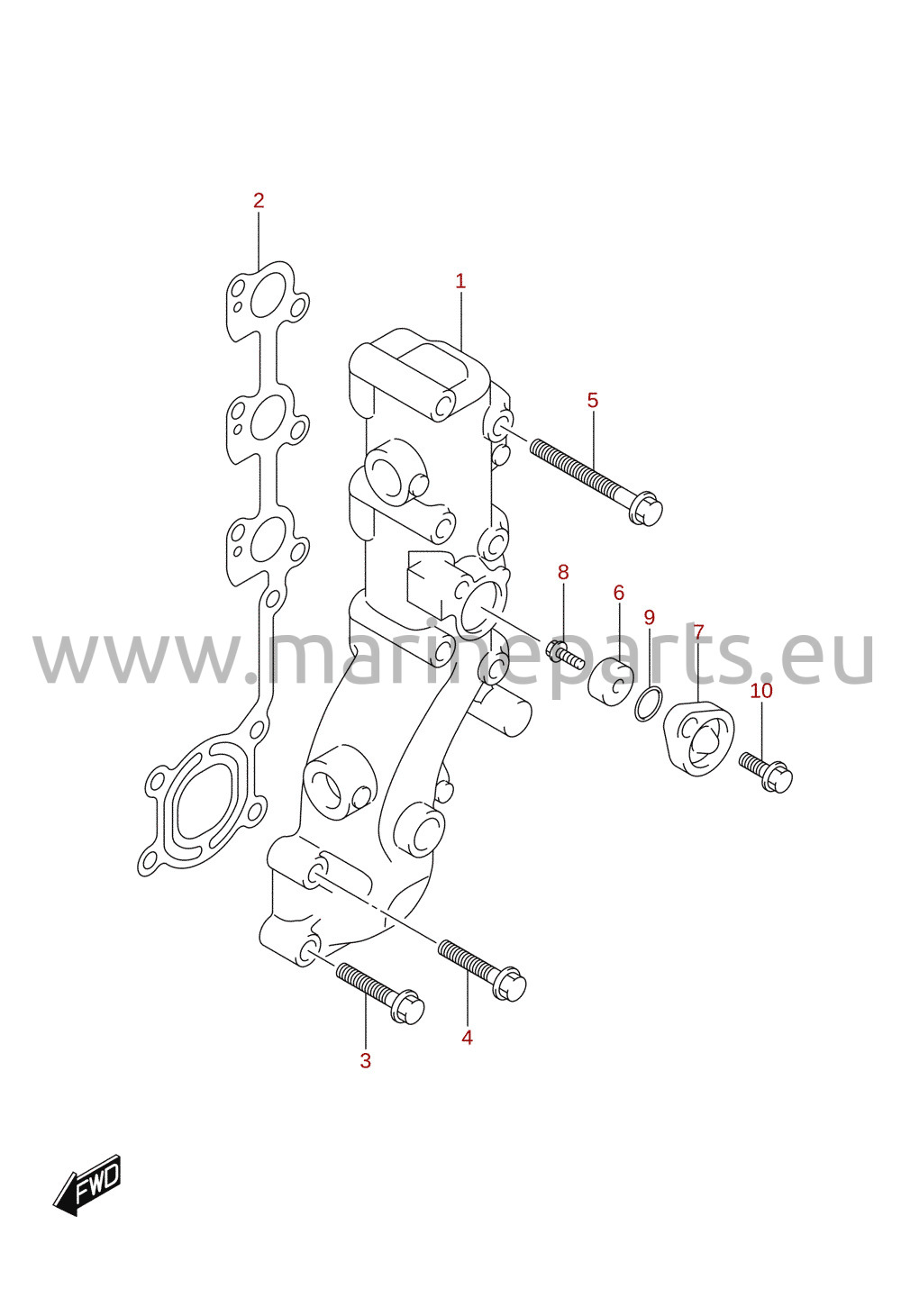

Avgasgrenrör
Referensnr. DF25A_30A_P01_023 9

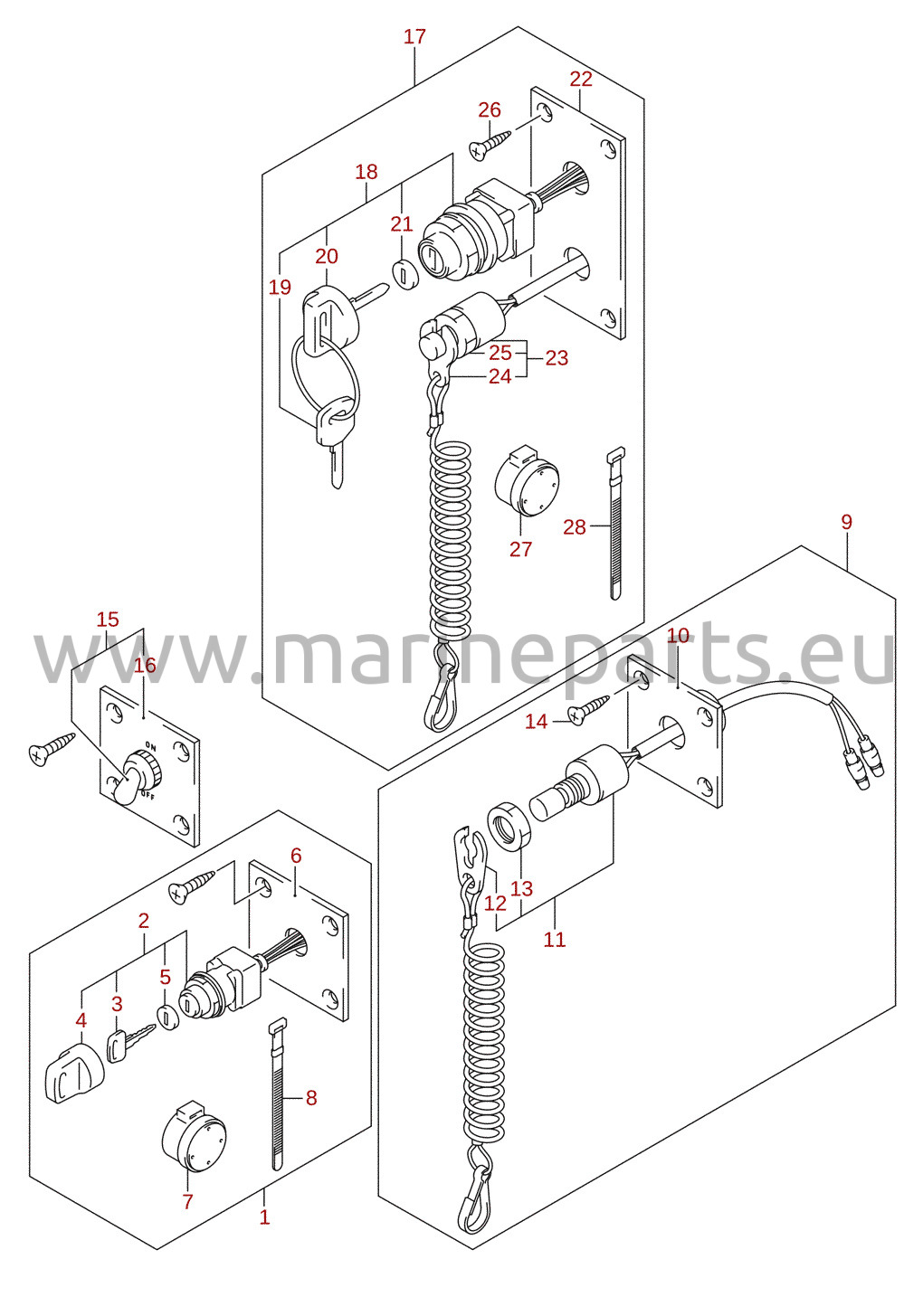

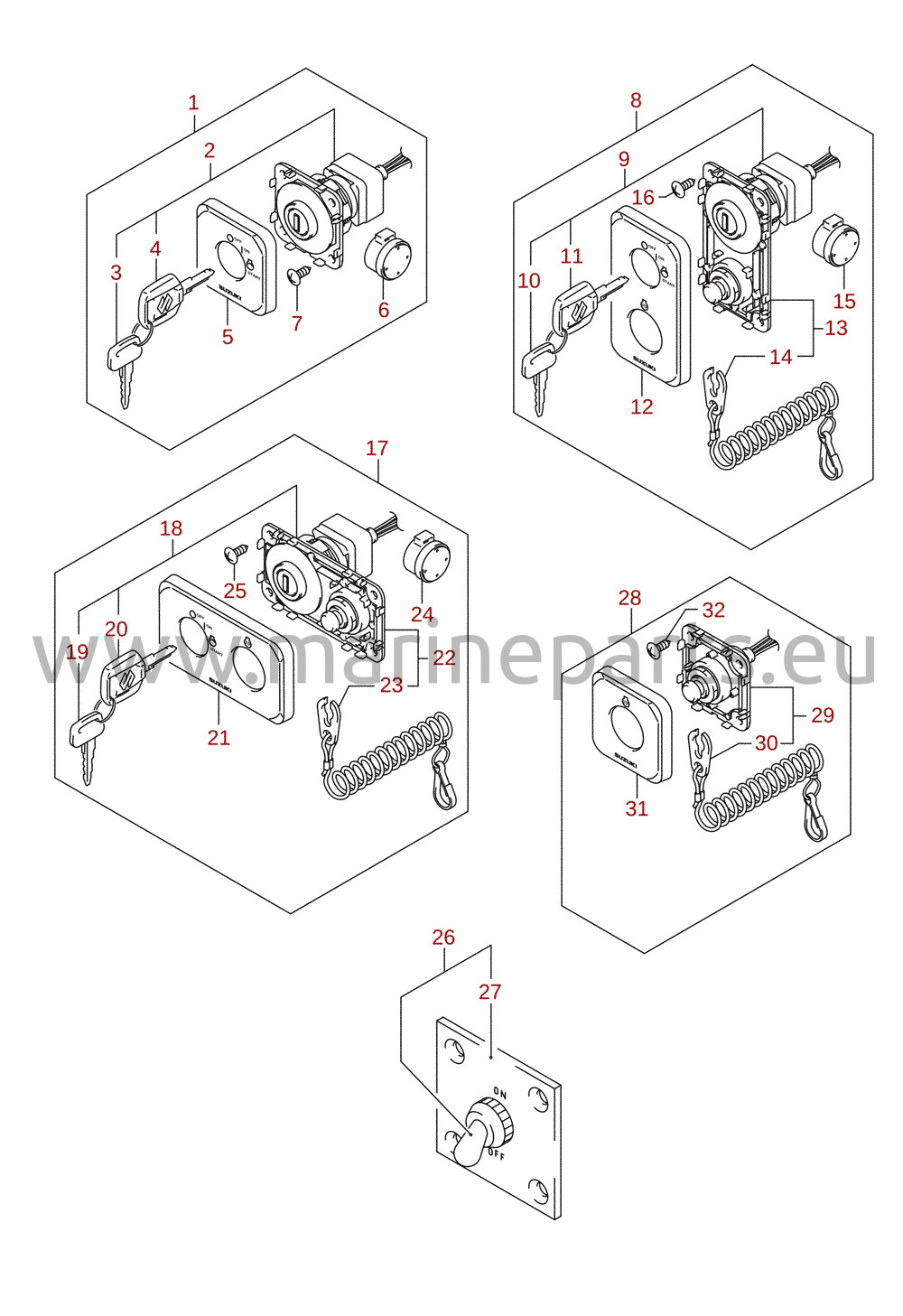

Brytare (tillval)
Referensnr. DF25A_30A_P01_023 111

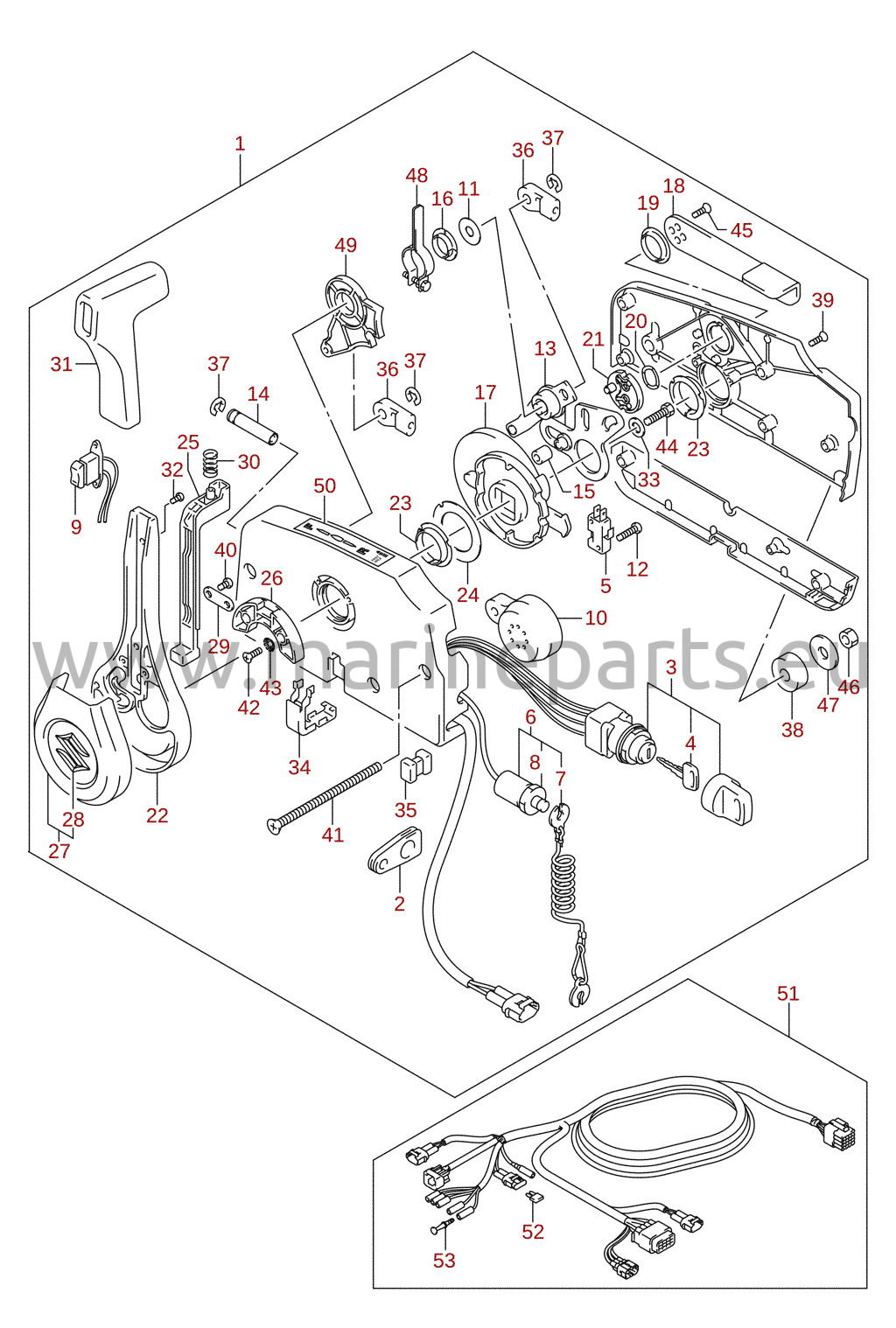

Reglage (DF25AT, DF30AT) 2/2
Referensnr. DF25A_30A_P01_023 95

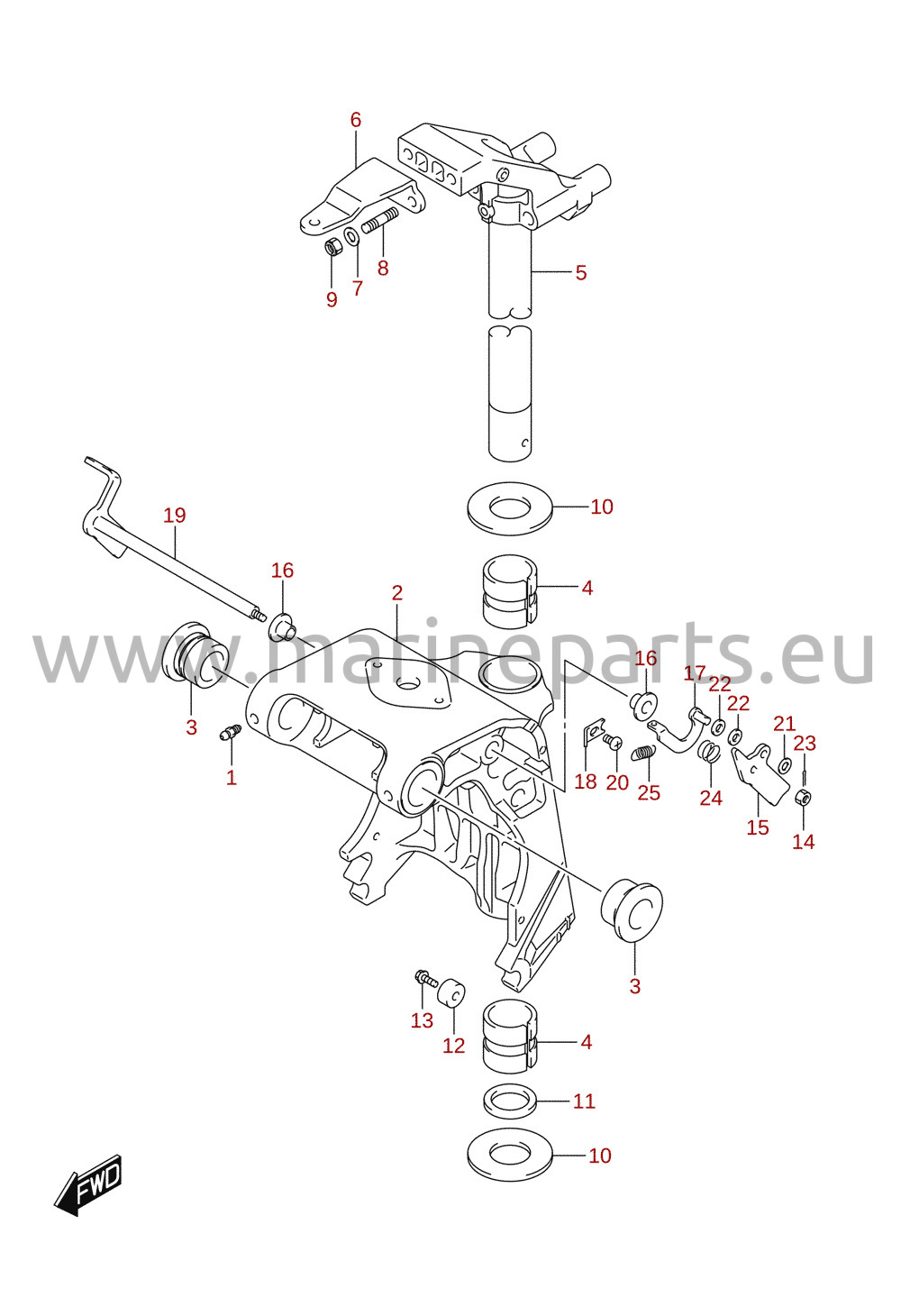

Svängfäste (DF25AT, DF30AT)
Referensnr. DF25A_30A_P01_023 60
Likriktare / tändspole (DF25)
Referensnr. DF25A_30A_P01_023 39
Bränslepump 1/4
Referensnr. DF25A_30A_P01_023 11

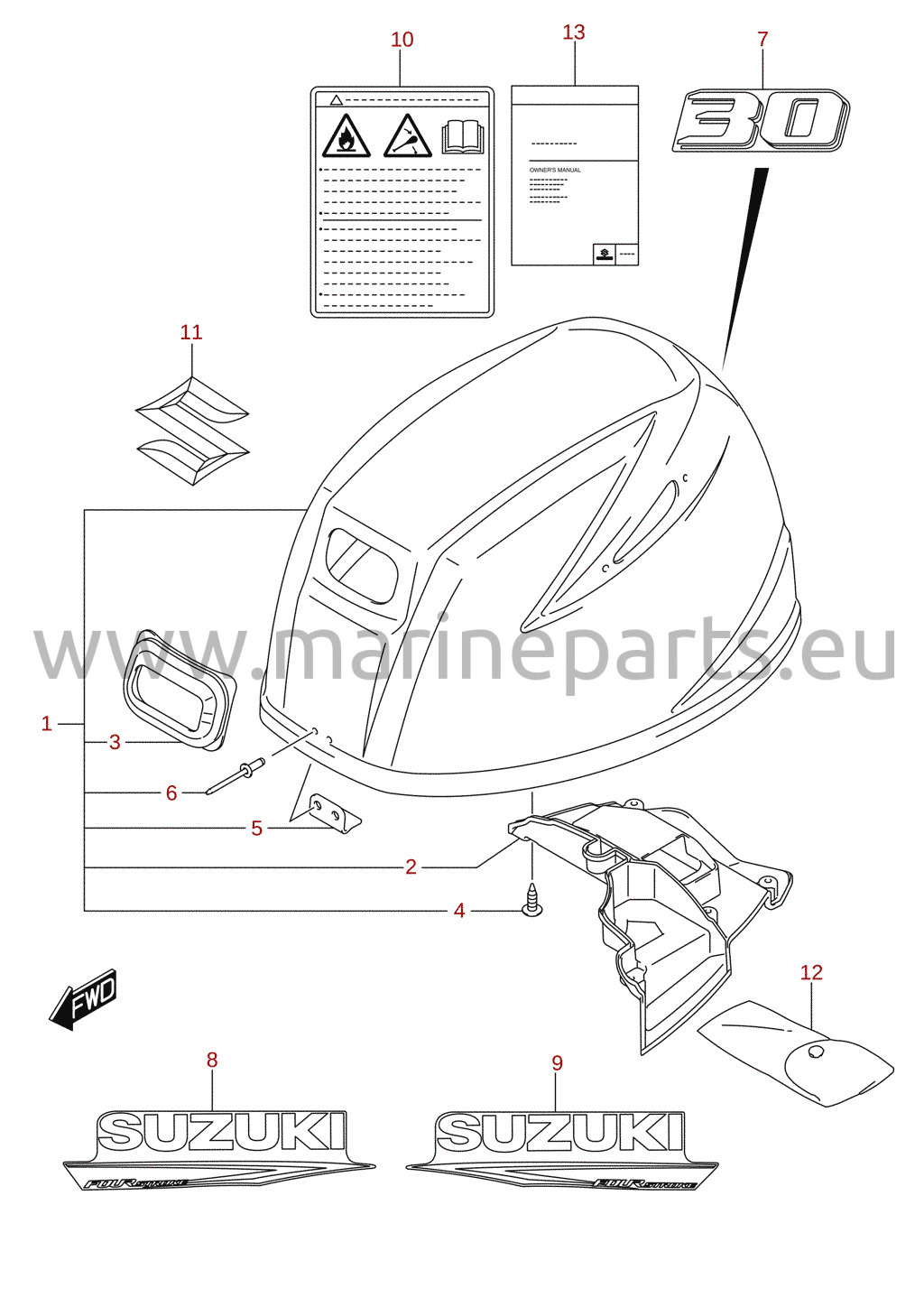

Motorkåpa (DF30)
Referensnr. DF25A_30A_P01_023 87

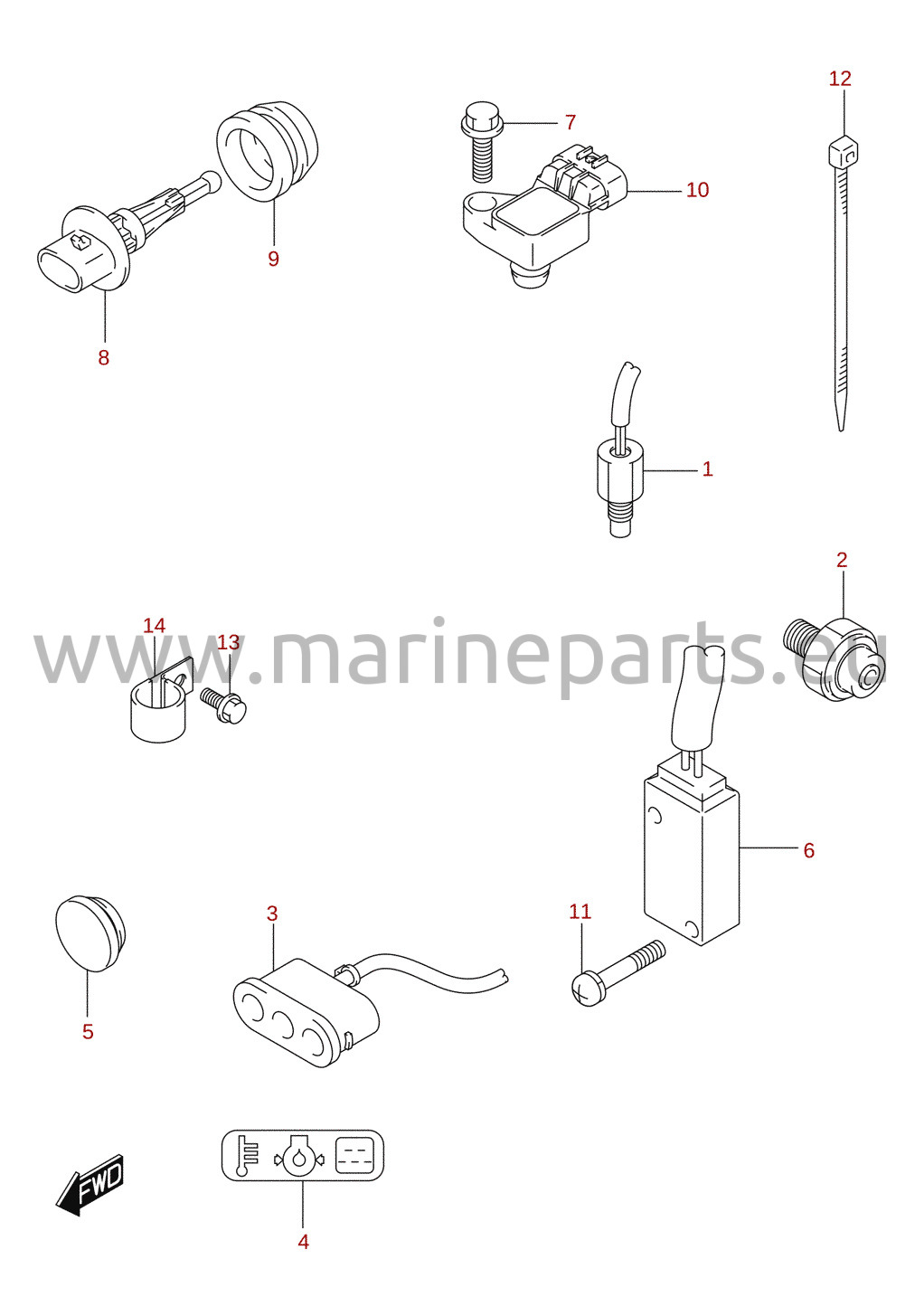

Givare / brytare (DF25AT, DF30AT)
Referensnr. DF25A_30A_P01_023 51

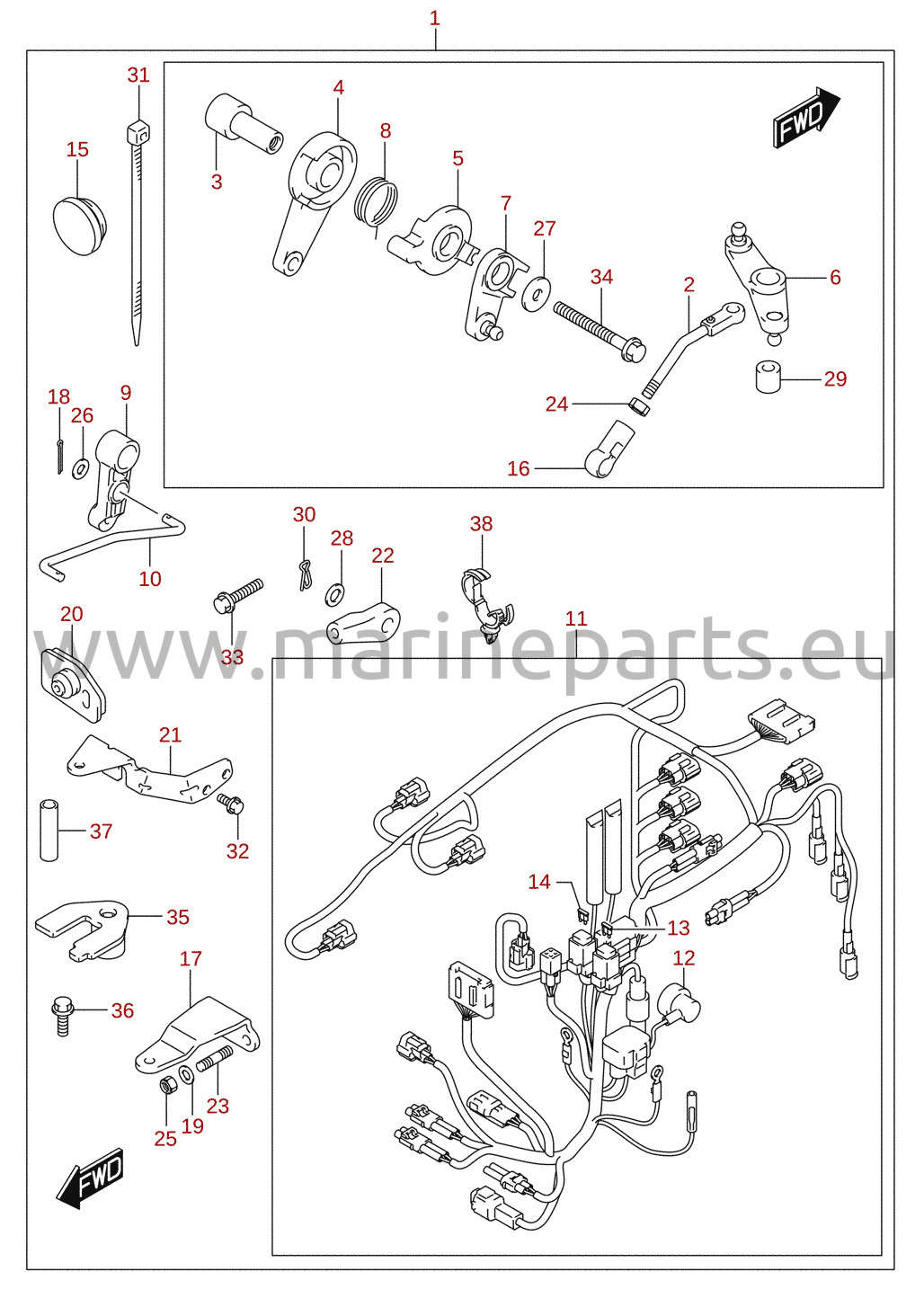

Reglagedelar (DF25A, DF30A, DF30AQ) (tillval)
Referensnr. DF25A_30A_P01_023 102

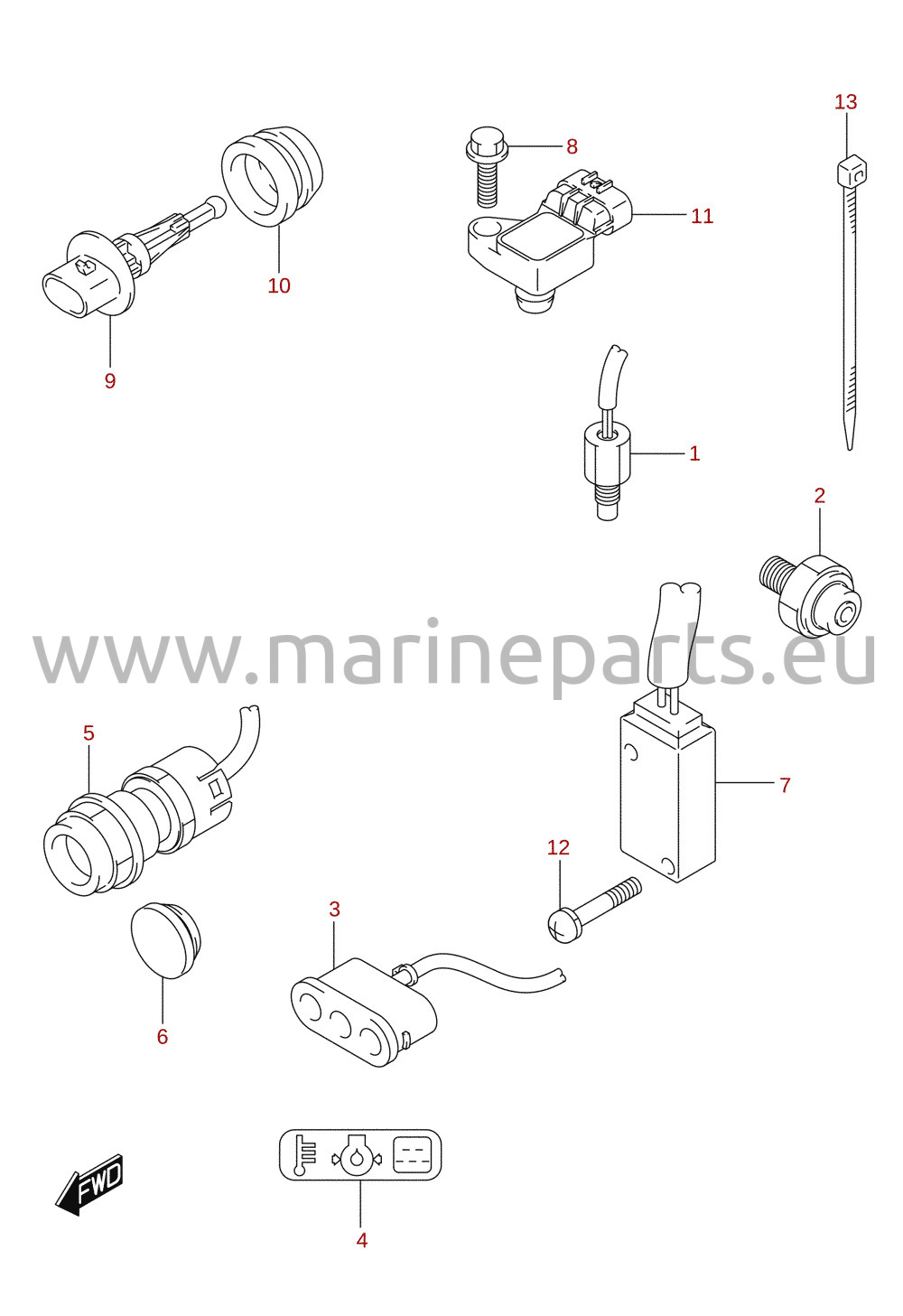

Givare / brytare (DF30A)
Referensnr. DF25A_30A_P01_023 53
Insugningsrör (DF25)
Referensnr. DF25A_30A_P01_023 6
Startmotor (DF30)
Referensnr. DF25A_30A_P01_023 35
Växelstång (DF30)
Referensnr. DF25A_30A_P01_023 28

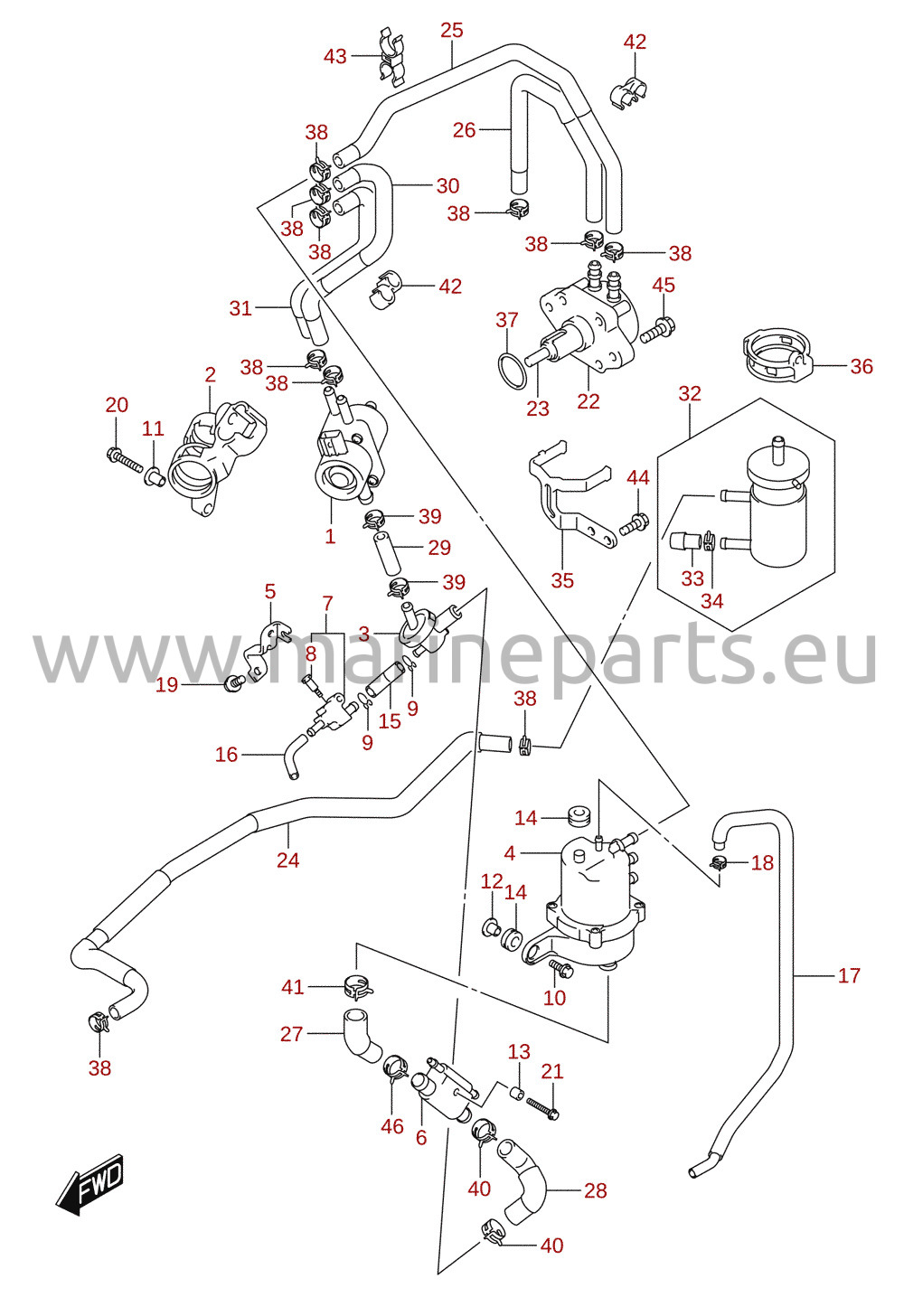

Bränslepump 2/4
Referensnr. DF25A_30A_P01_023 12

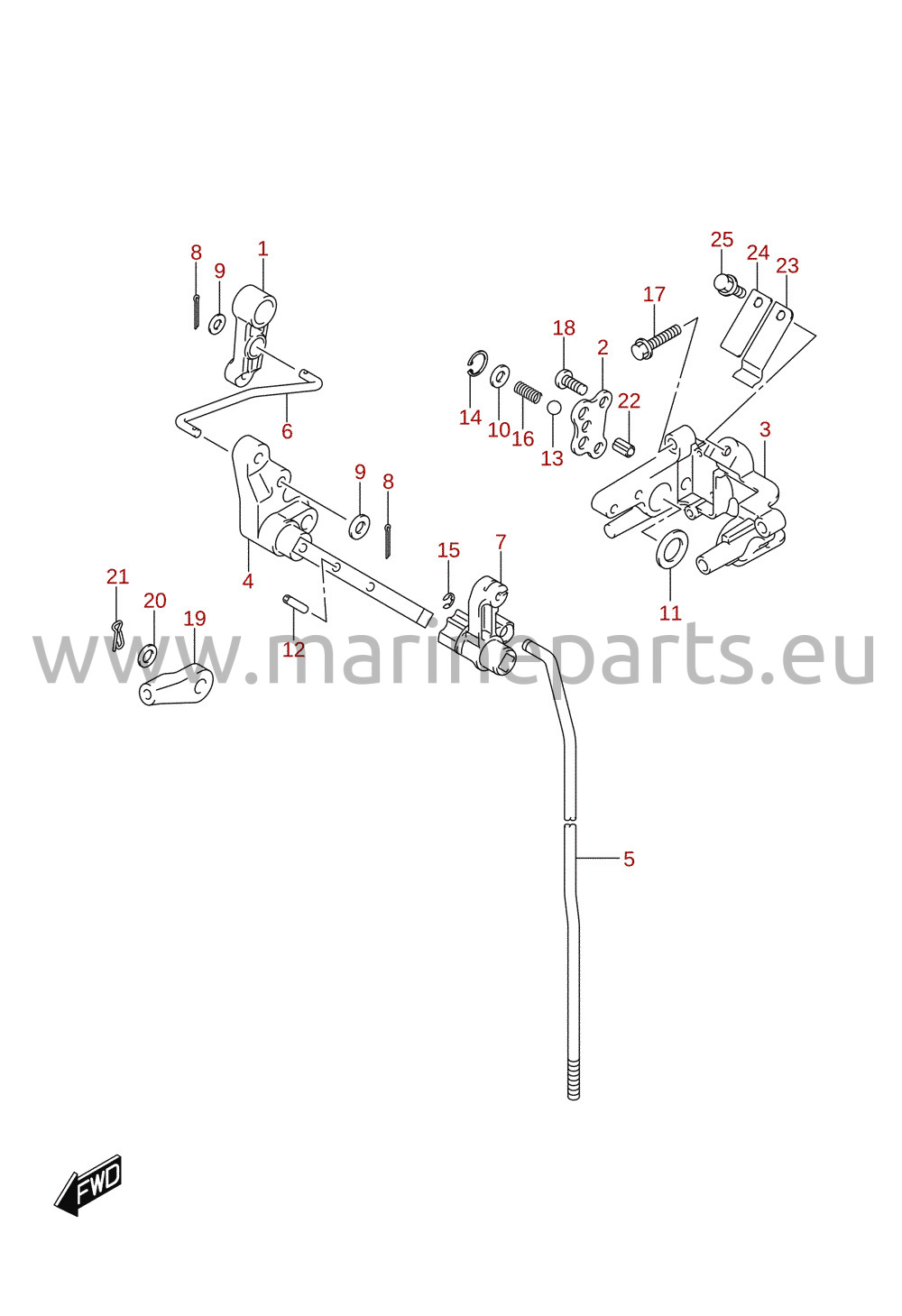

Kopplingsstång (DF25, DF30) 2/2
Referensnr. DF25A_30A_P01_023 25

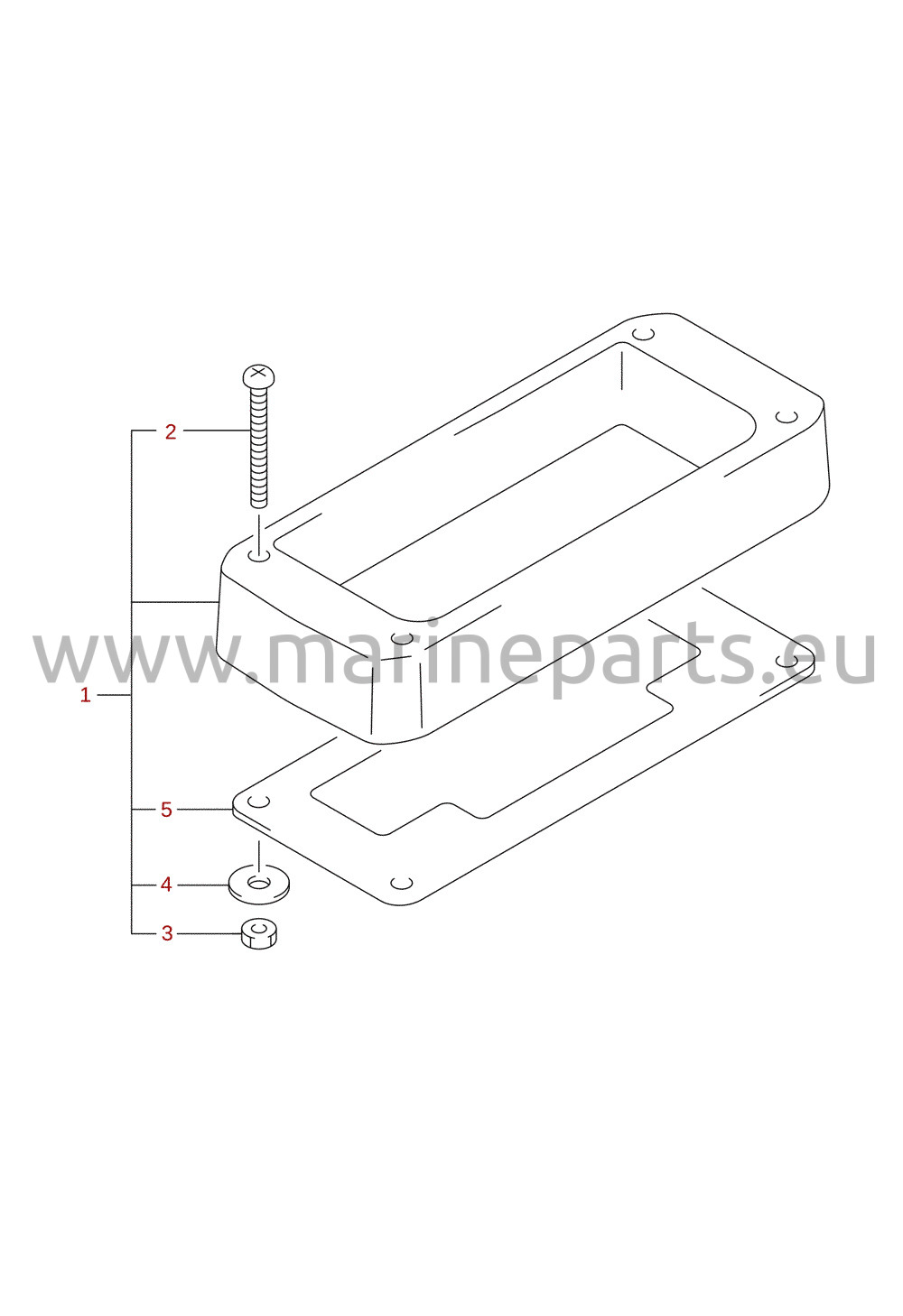

Distans för reglage (DF25, DF30) (tillval)
Referensnr. DF25A_30A_P01_023 107
Växelhus (DF25, DF30)
Referensnr. DF25A_30A_P01_023 72

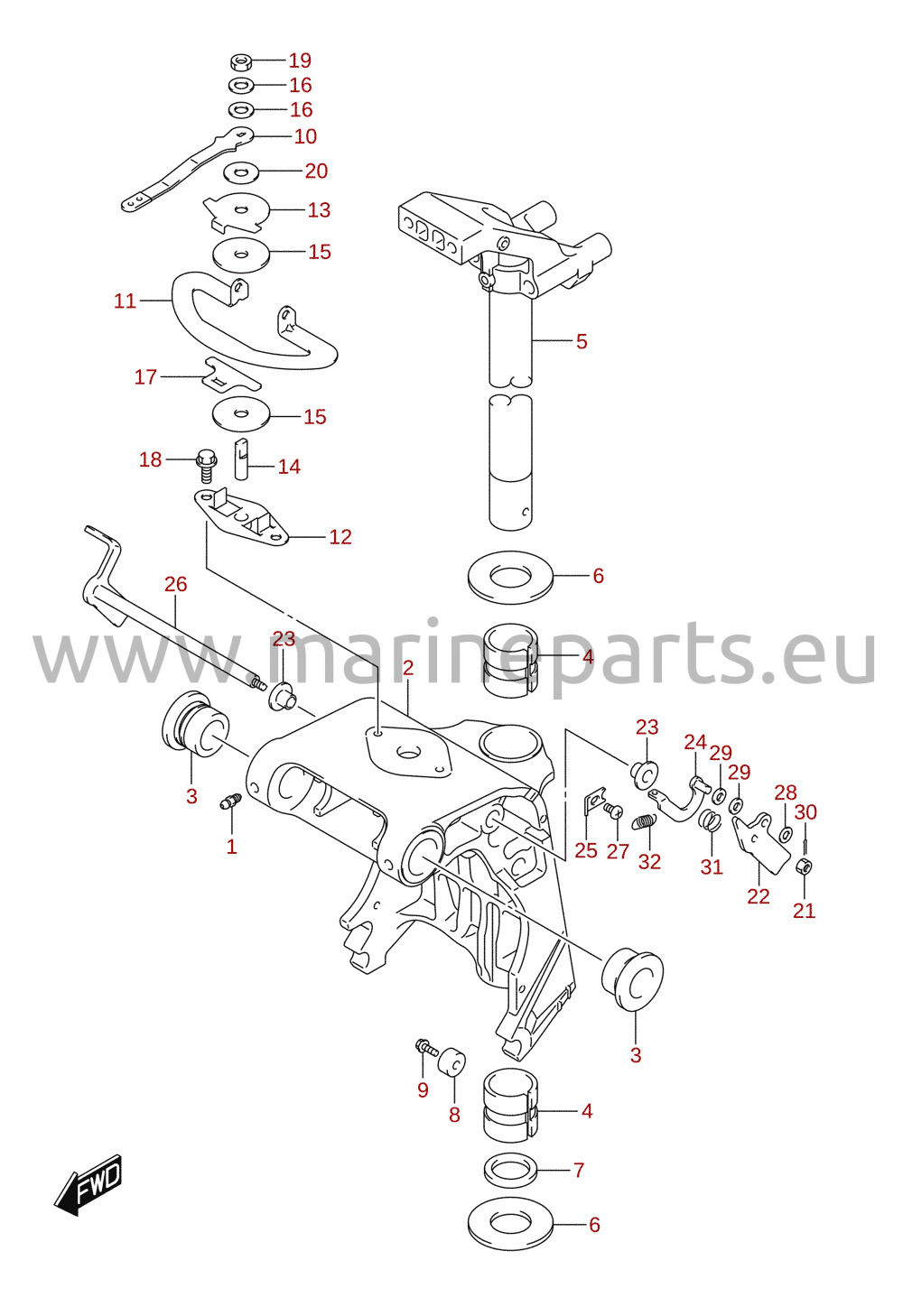

Svängfäste (DF30AQ)
Referensnr. DF25A_30A_P01_023 63
Likriktare / tändspole (DF30)
Referensnr. DF25A_30A_P01_023 41

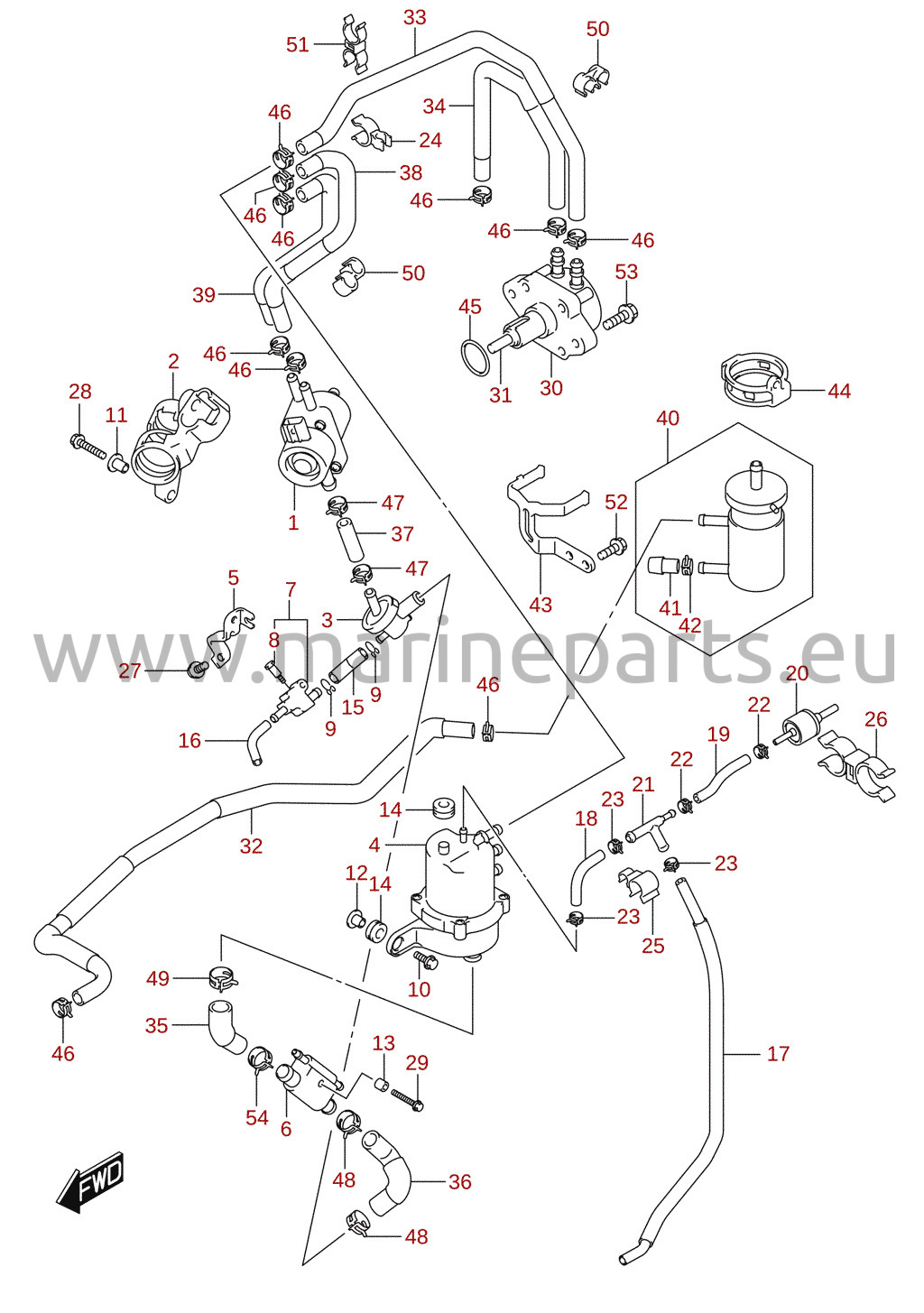

Bränslepump 3/4
Referensnr. DF25A_30A_P01_023 13
Elsystem (manuell start) (M-starter) (tillval)
Referensnr. DF25A_30A_P01_023 114
Brytare (DF25, DF30) (tillval)
Referensnr. DF25A_30A_P01_023 110

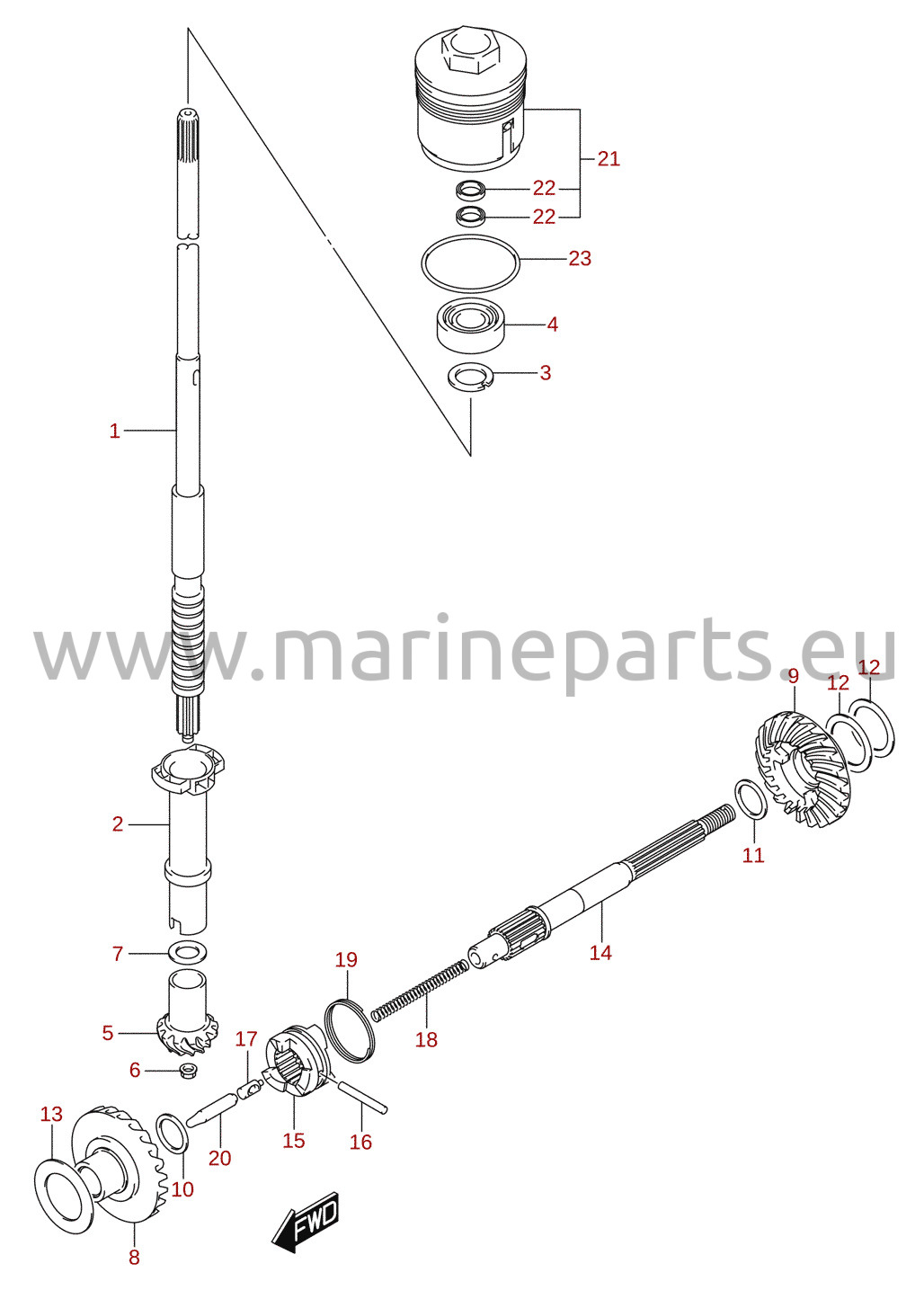

Transmission (DF30AQ)
Referensnr. DF25A_30A_P01_023 32

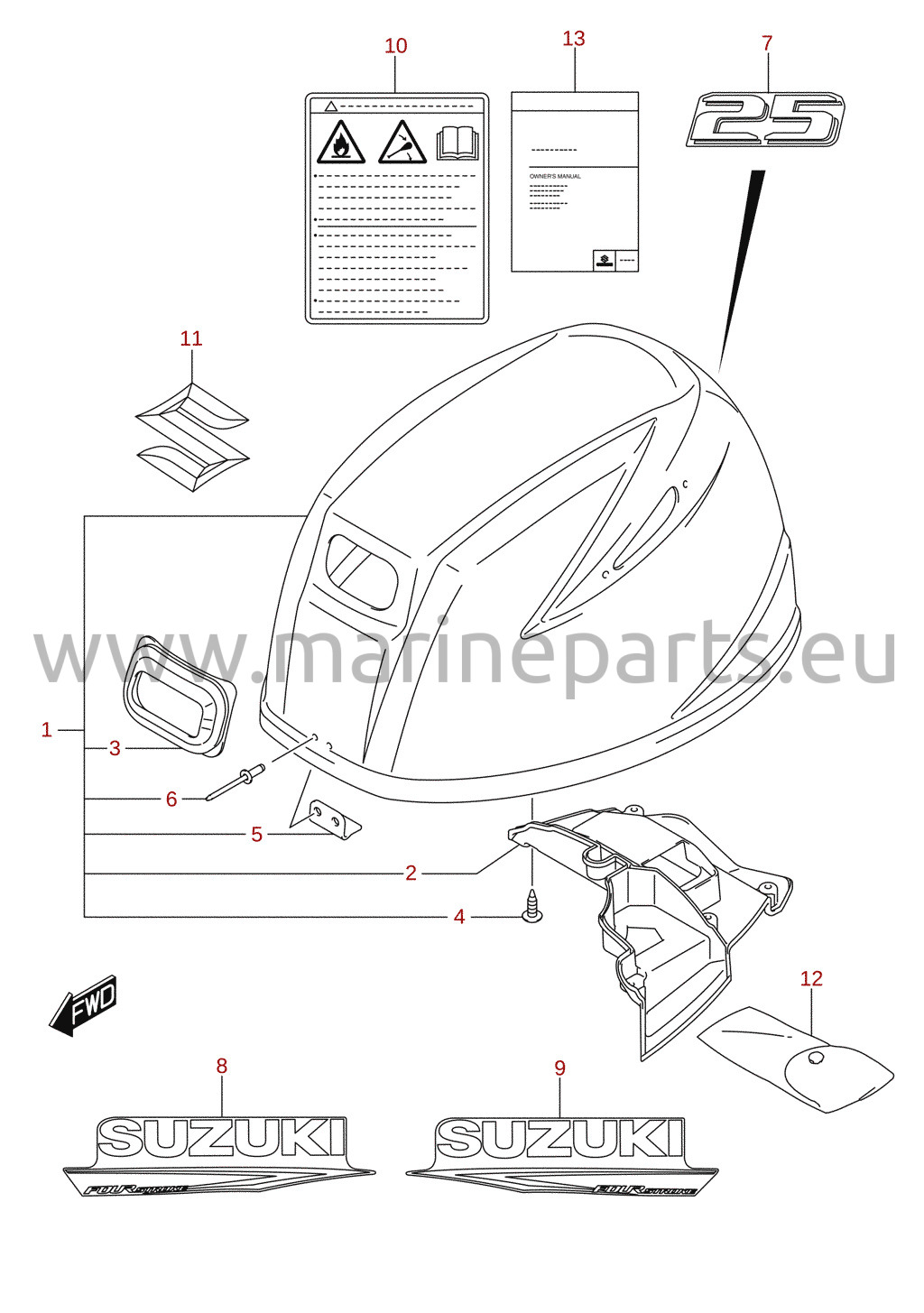

Motorkåpa (DF25)
Referensnr. DF25A_30A_P01_023 82

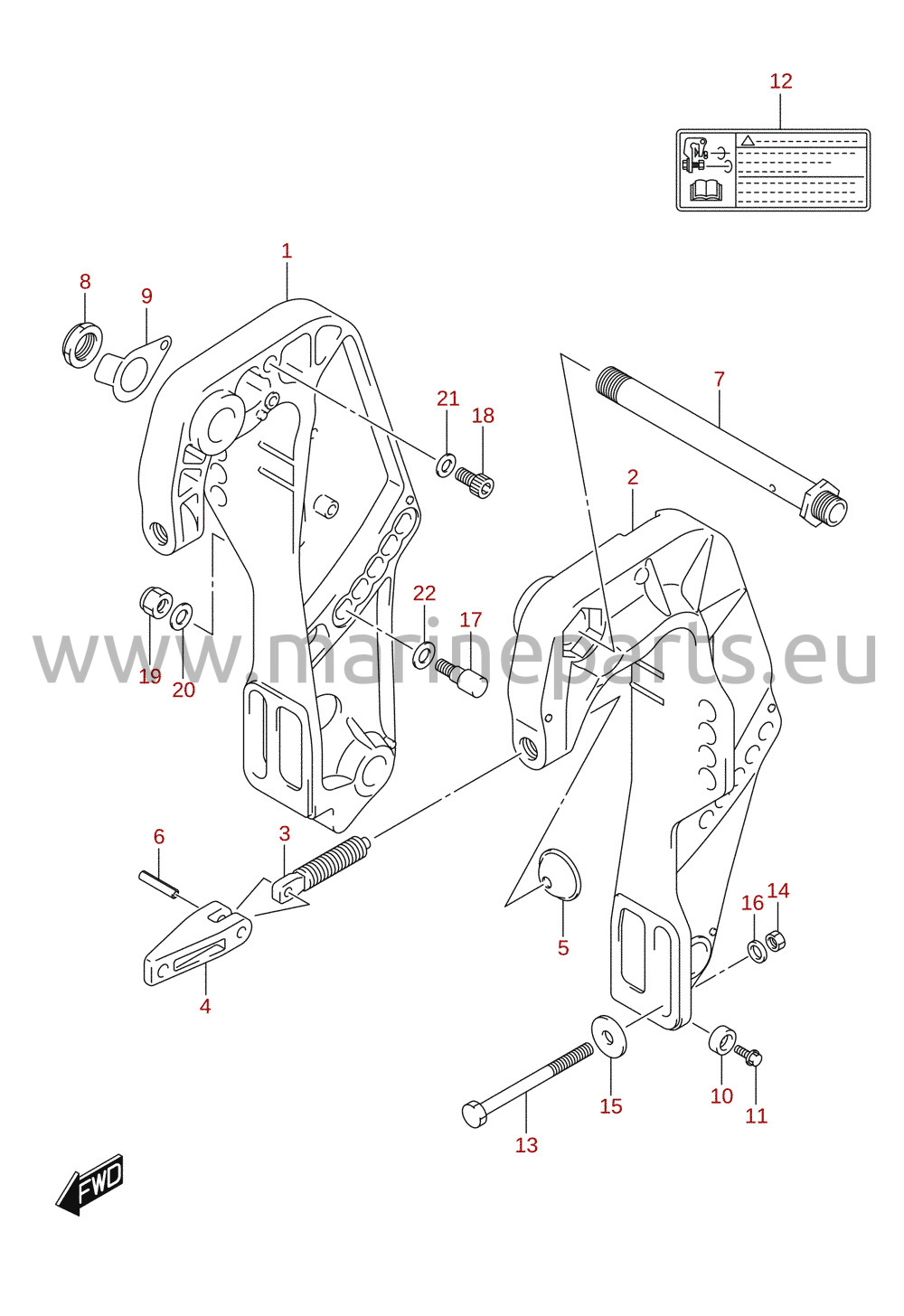

Akterspegelsfäste (DF25, DF30)
Referensnr. DF25A_30A_P01_023 55

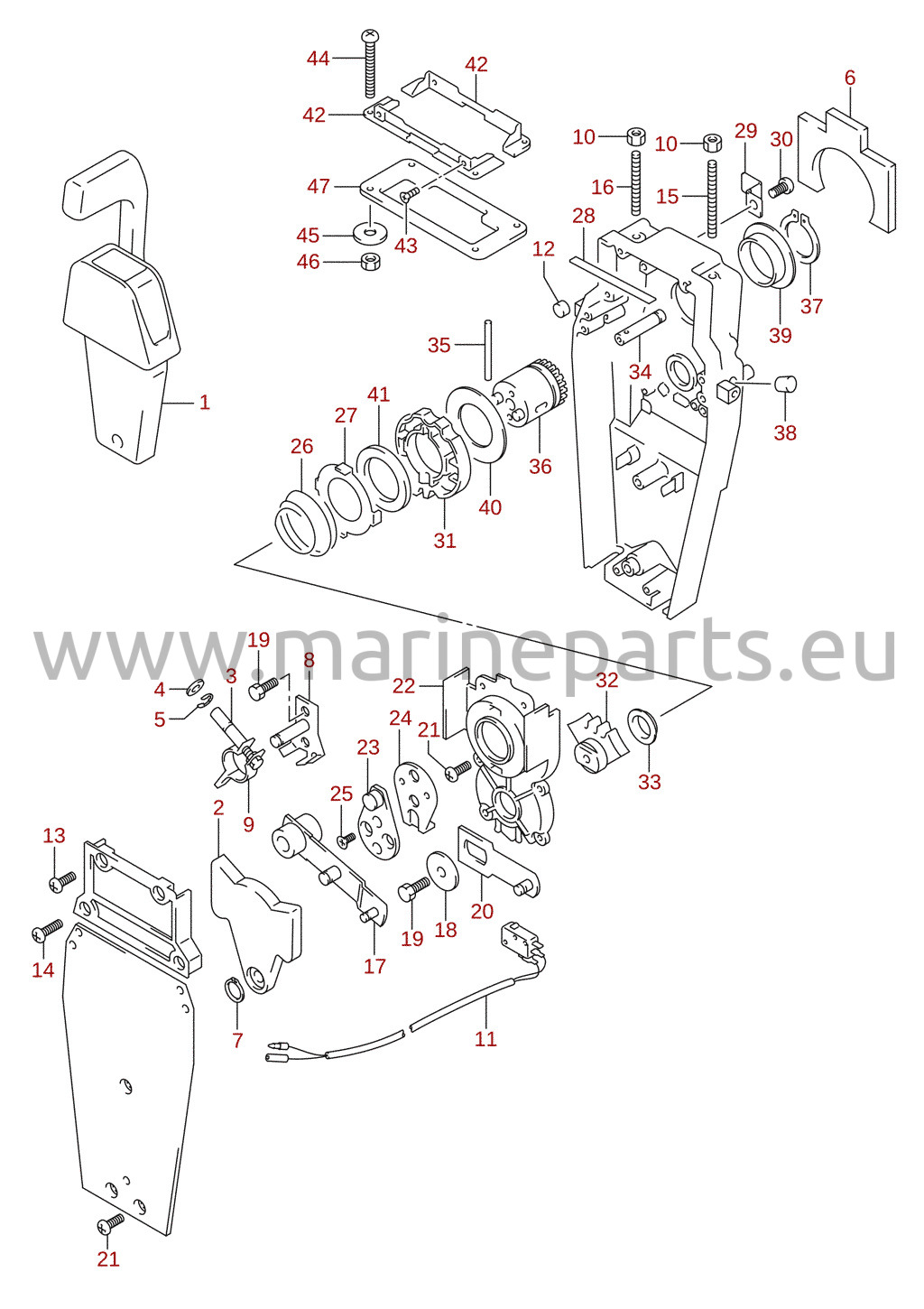

Reglage, enkelt (2) (DF25, DF30) (tillval)
Referensnr. DF25A_30A_P01_023 113

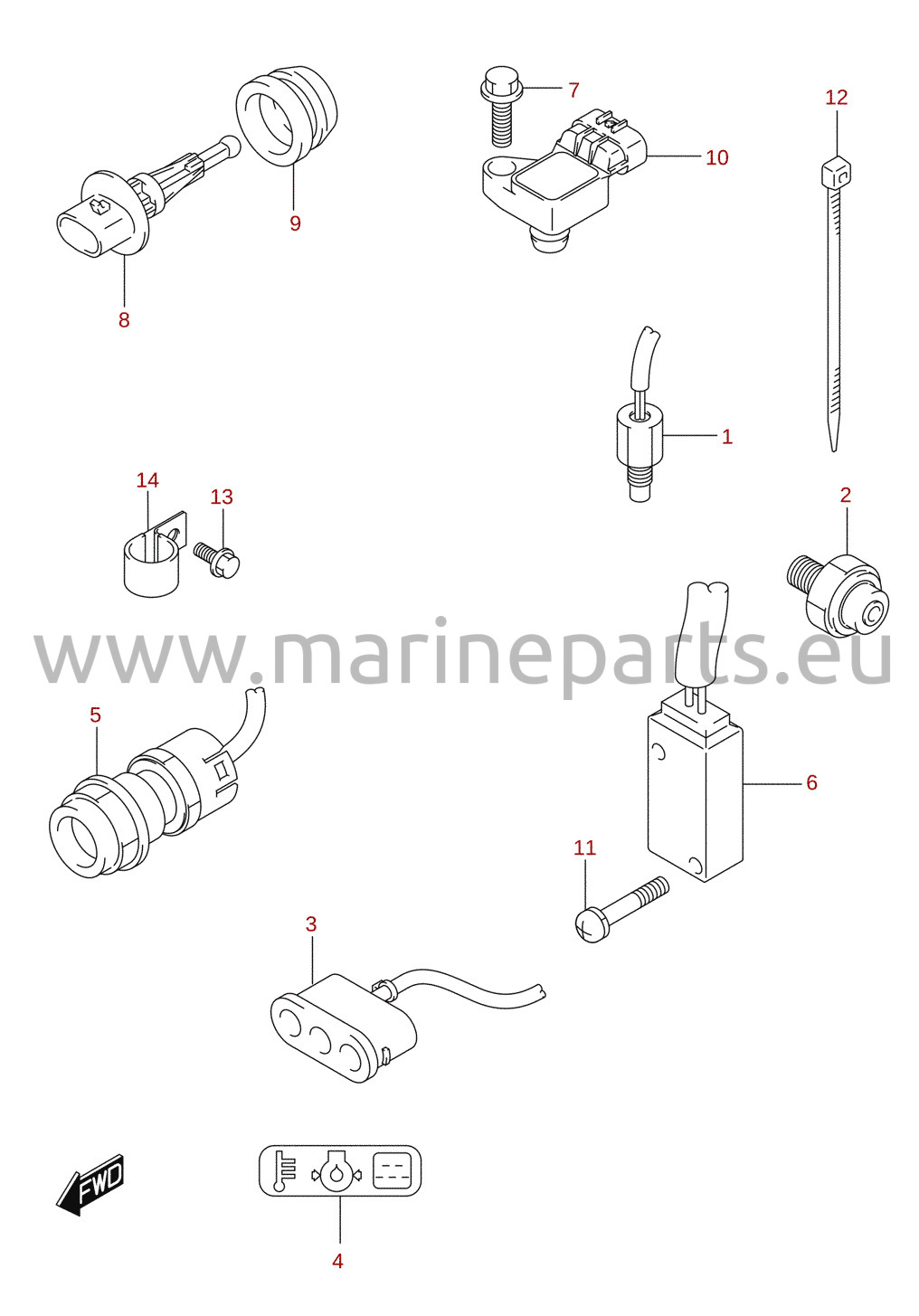

Givare / brytare (DF25ATH, DF30ATH)
Referensnr. DF25A_30A_P01_023 52

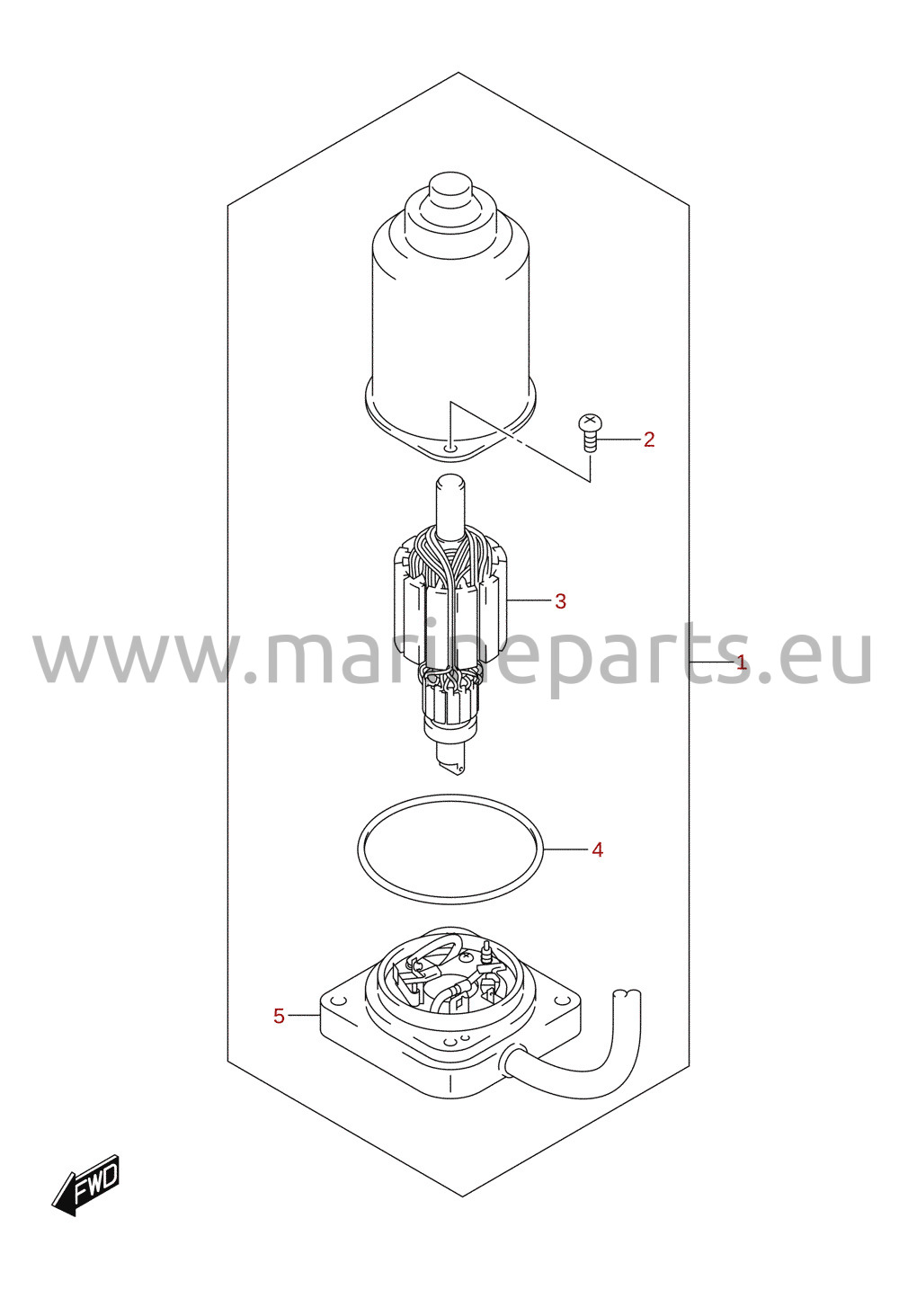

PTT-motor (DF25, DF30)
Referensnr. DF25A_30A_P01_023 66

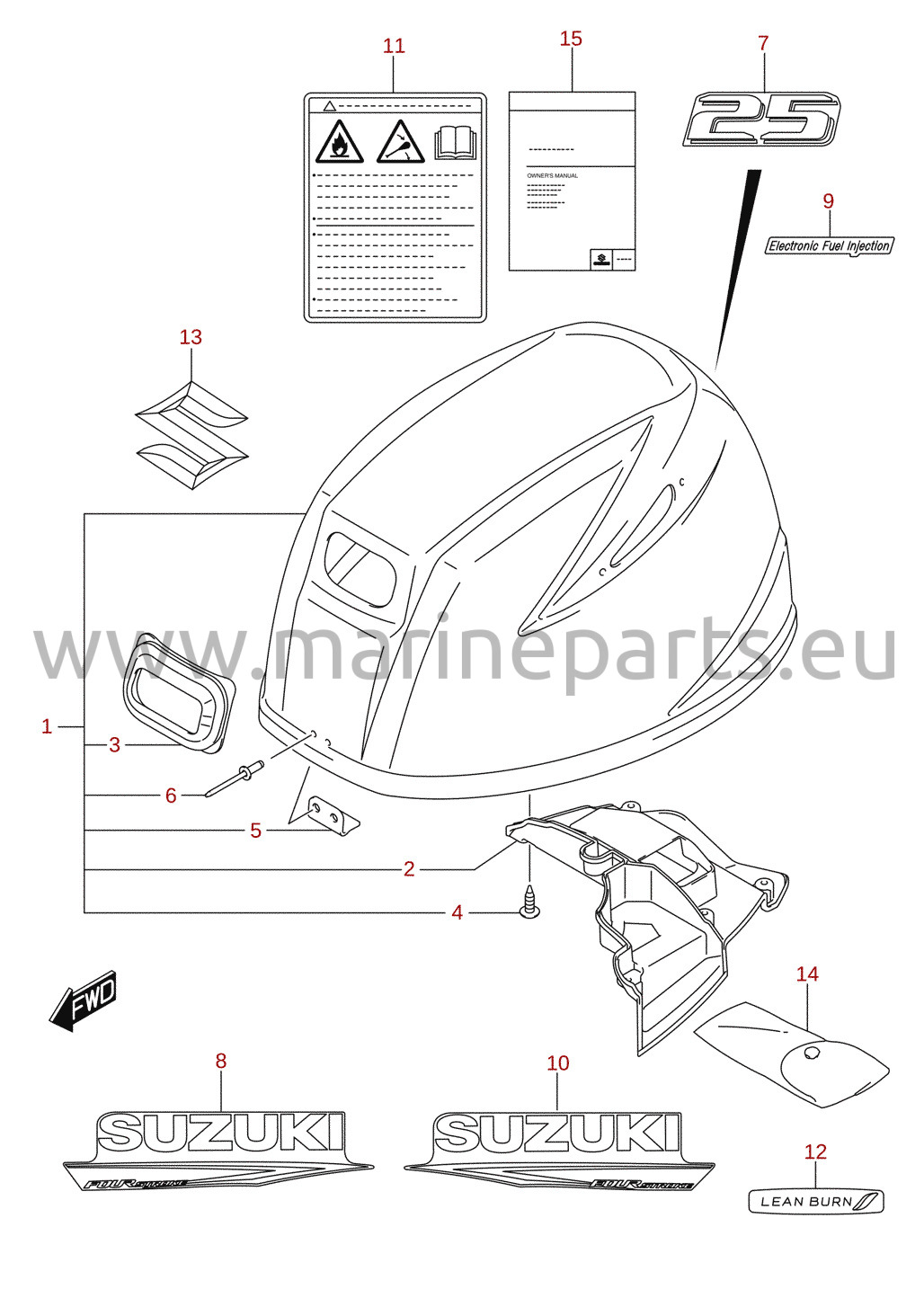

Motorkåpa (2021) (DF25)
Referensnr. DF25A_30A_P01_023 81
Akterspegelsfäste (DF30A)
Referensnr. DF25A_30A_P01_023 56

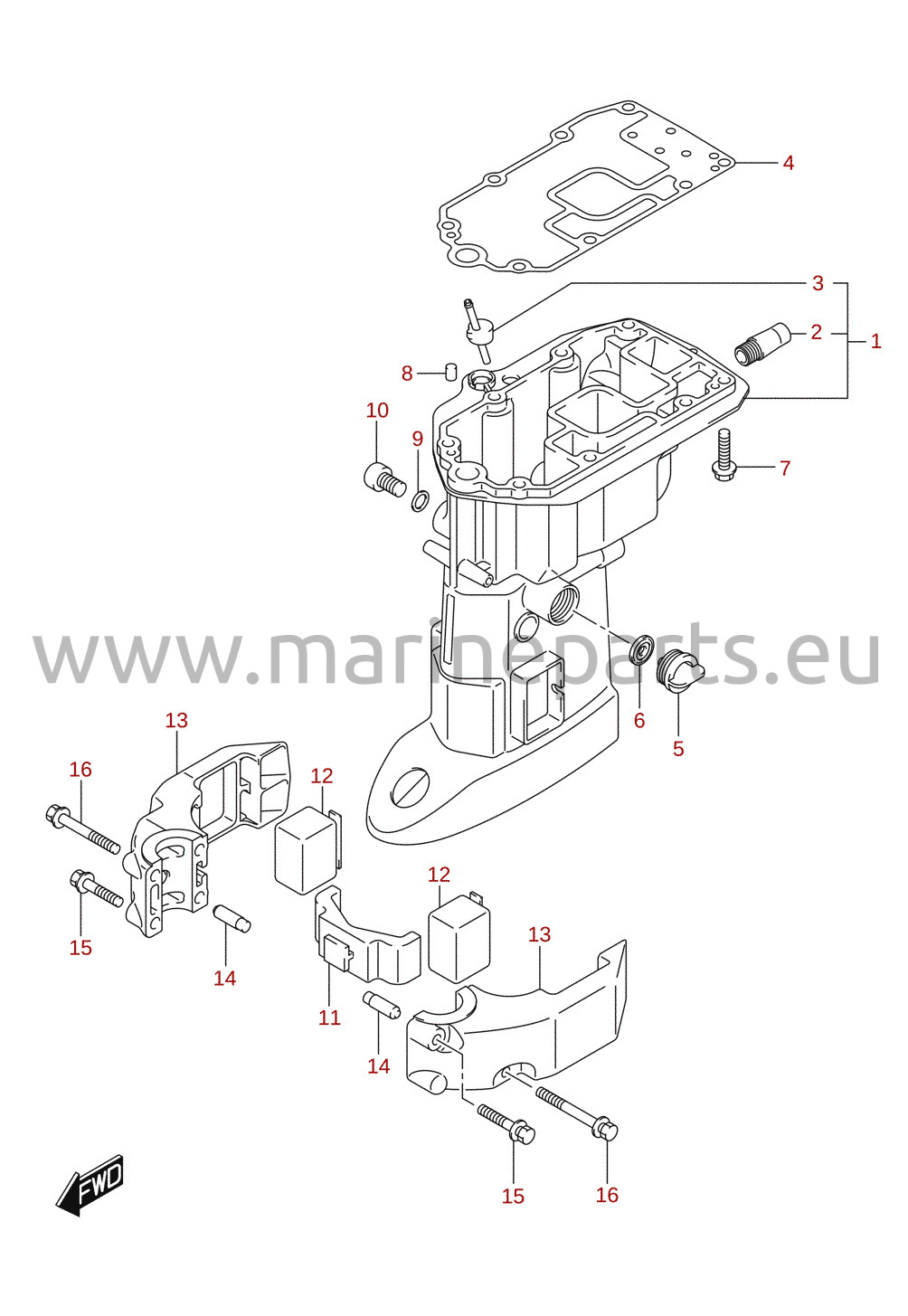

Drivaxelhus (DF25, DF30)
Referensnr. DF25A_30A_P01_023 69

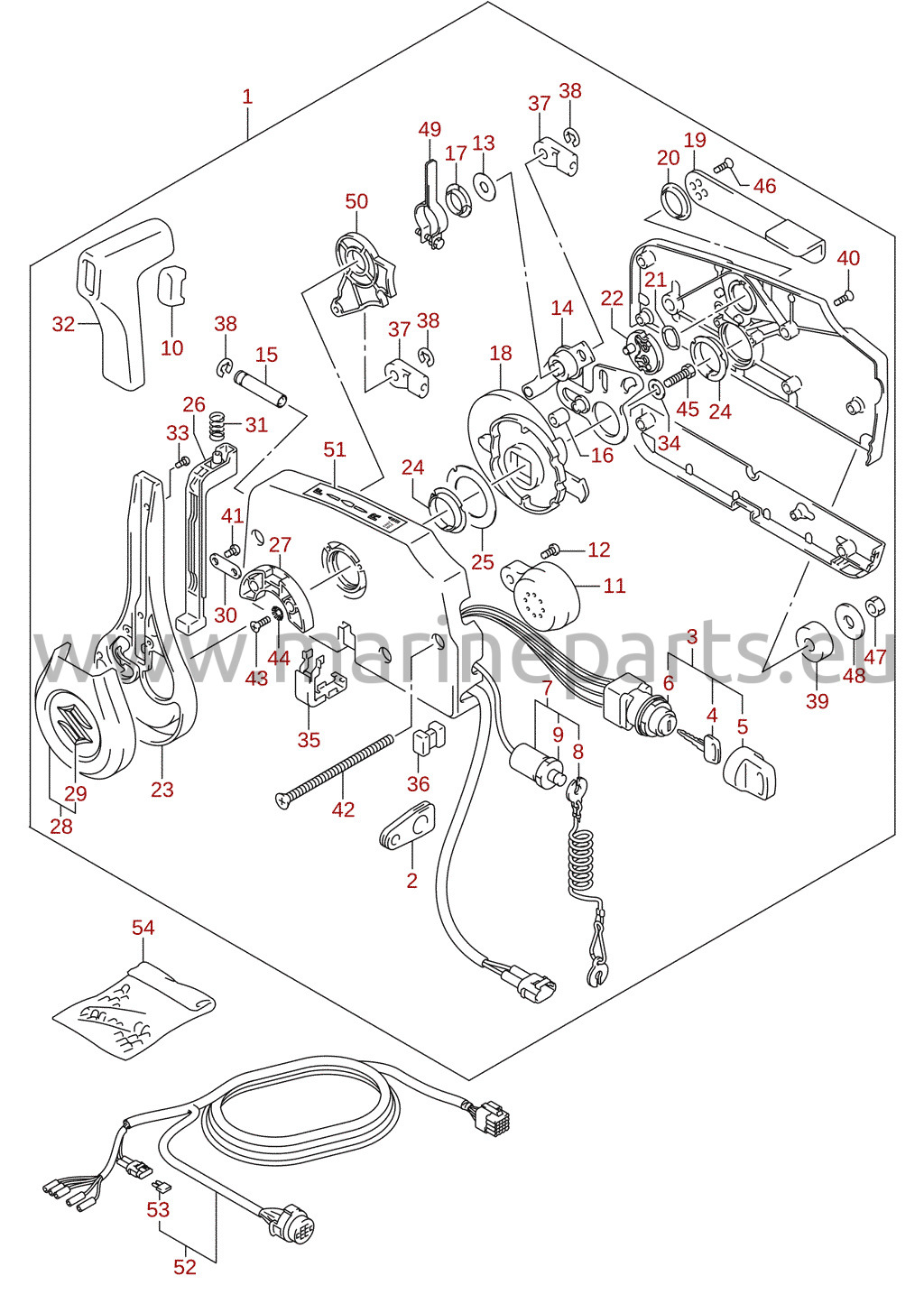

Reglage (DF25A, DF30A, DF30AQ) (tillval) 1/2
Referensnr. DF25A_30A_P01_023 98
Sidokåpa (DF25ATH, DF30ATH)
Referensnr. DF25A_30A_P01_023 77

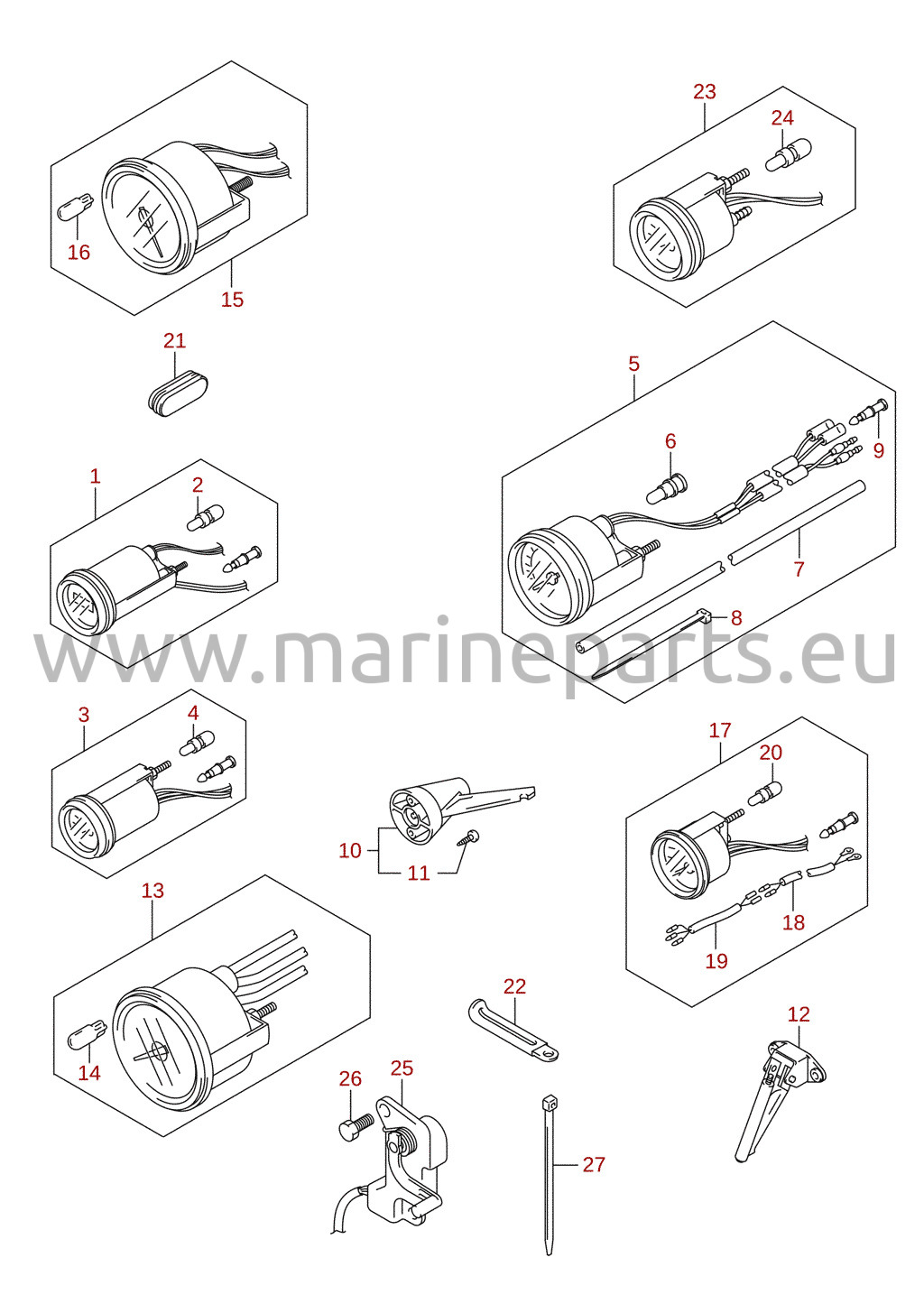

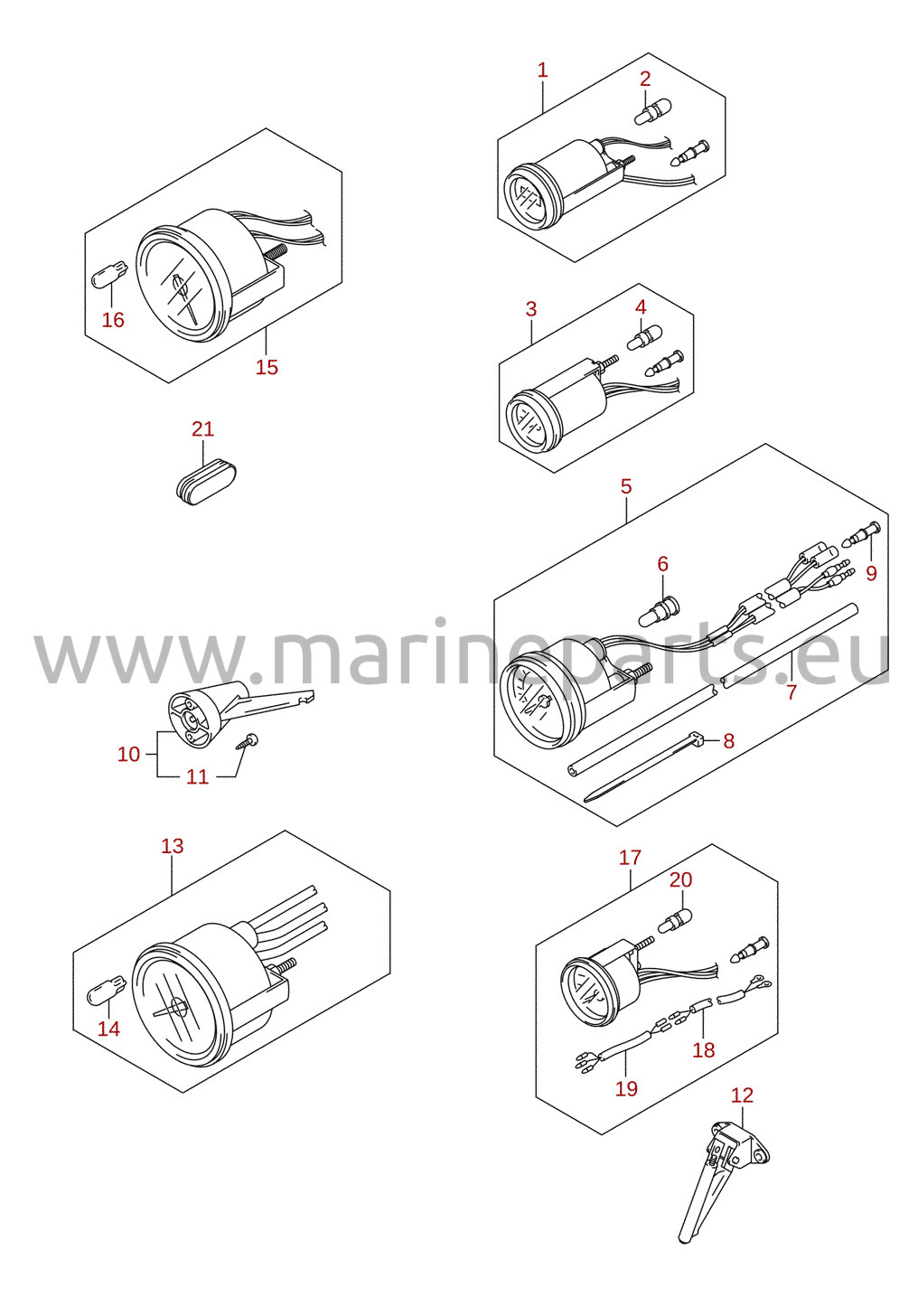

Instrument (DF25, DF30) (tillval) 2/2
Referensnr. DF25A_30A_P01_023 97
Instrument (DF25, DF30) (tillval) 1/2
Referensnr. DF25A_30A_P01_023 96

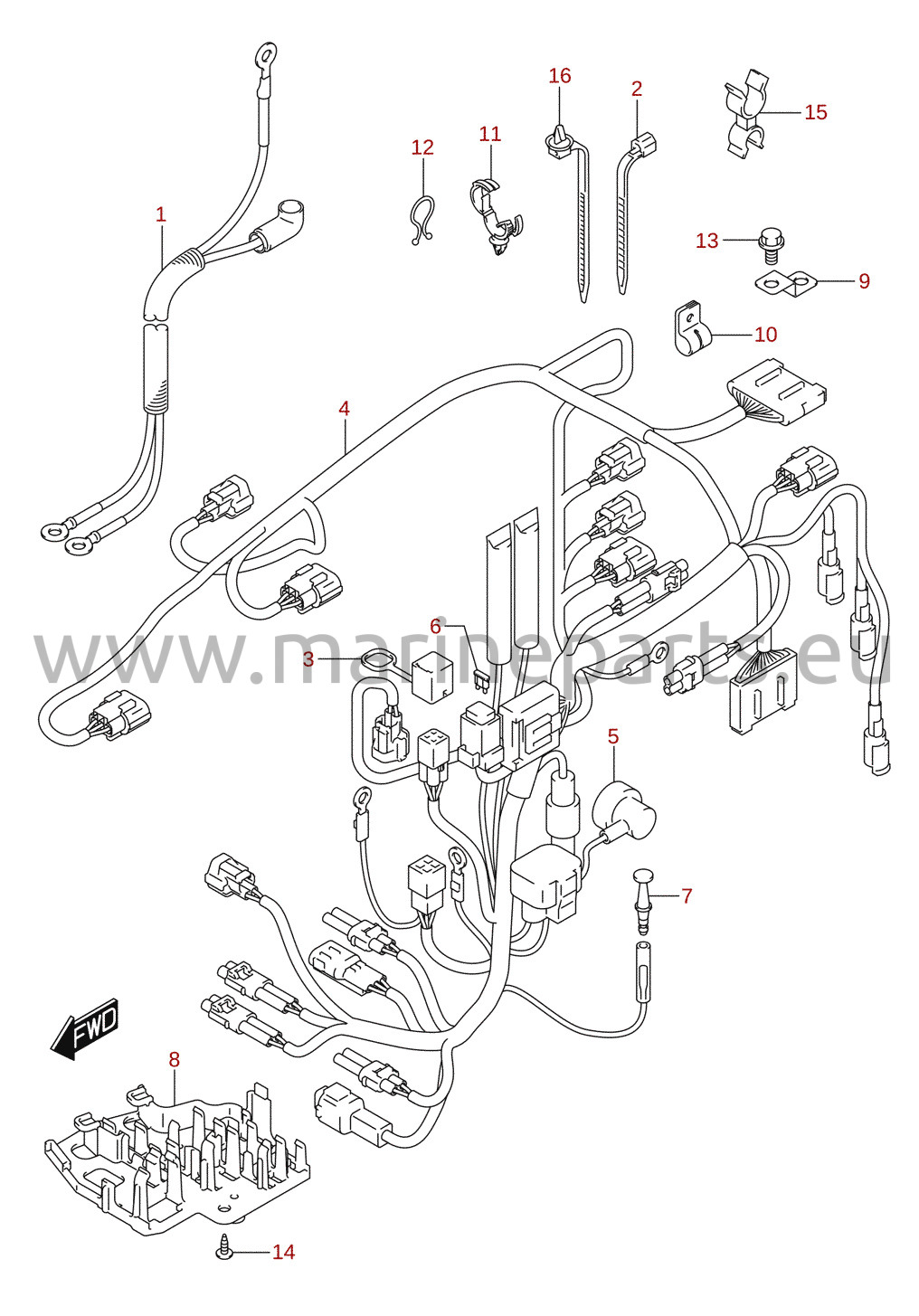

Kabelstam (DF25ATH, DF30ATH)
Referensnr. DF25A_30A_P01_023 46

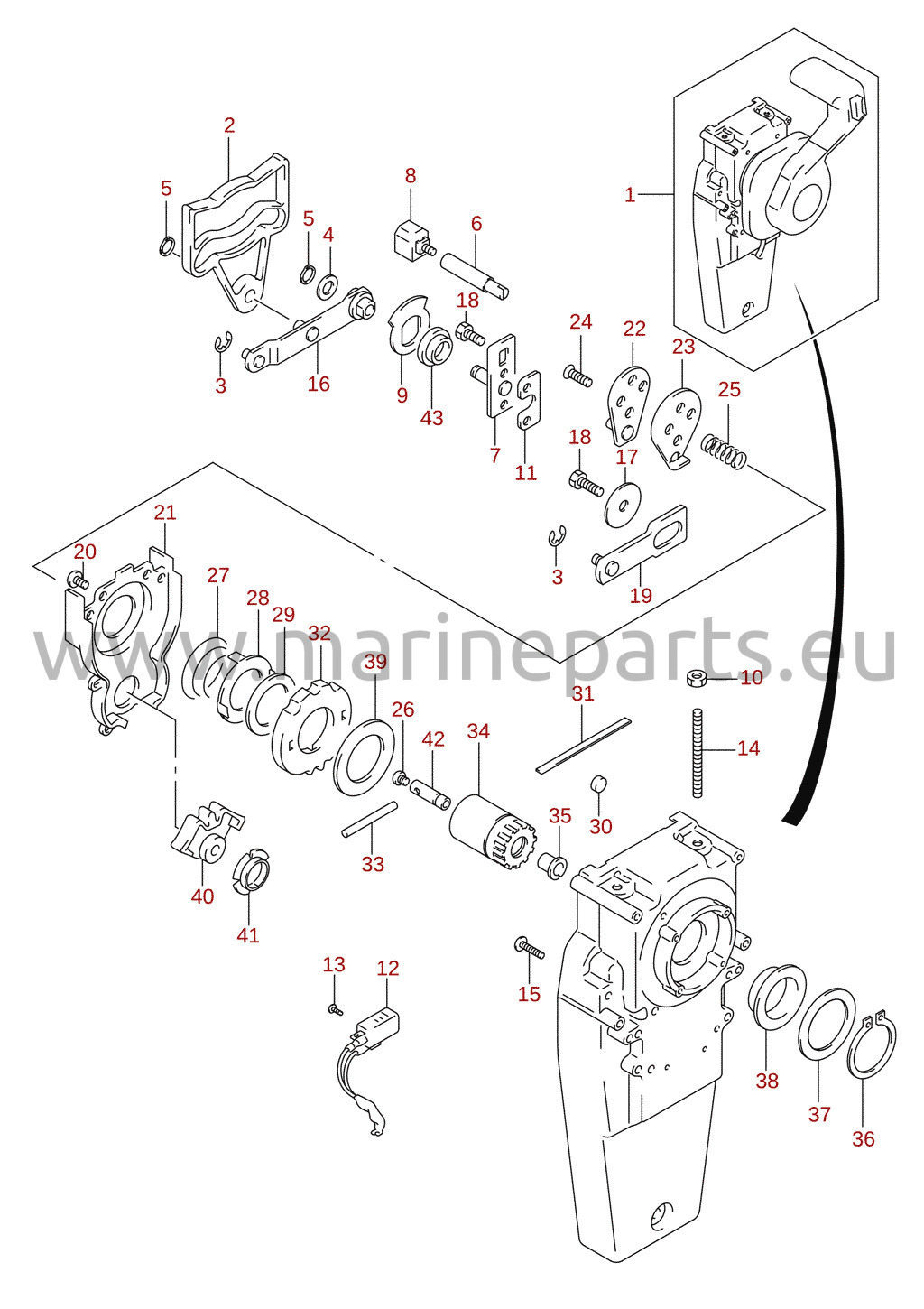

Dolt reglage (2) (DF25, DF30) (tillval)
Referensnr. DF25A_30A_P01_023 106

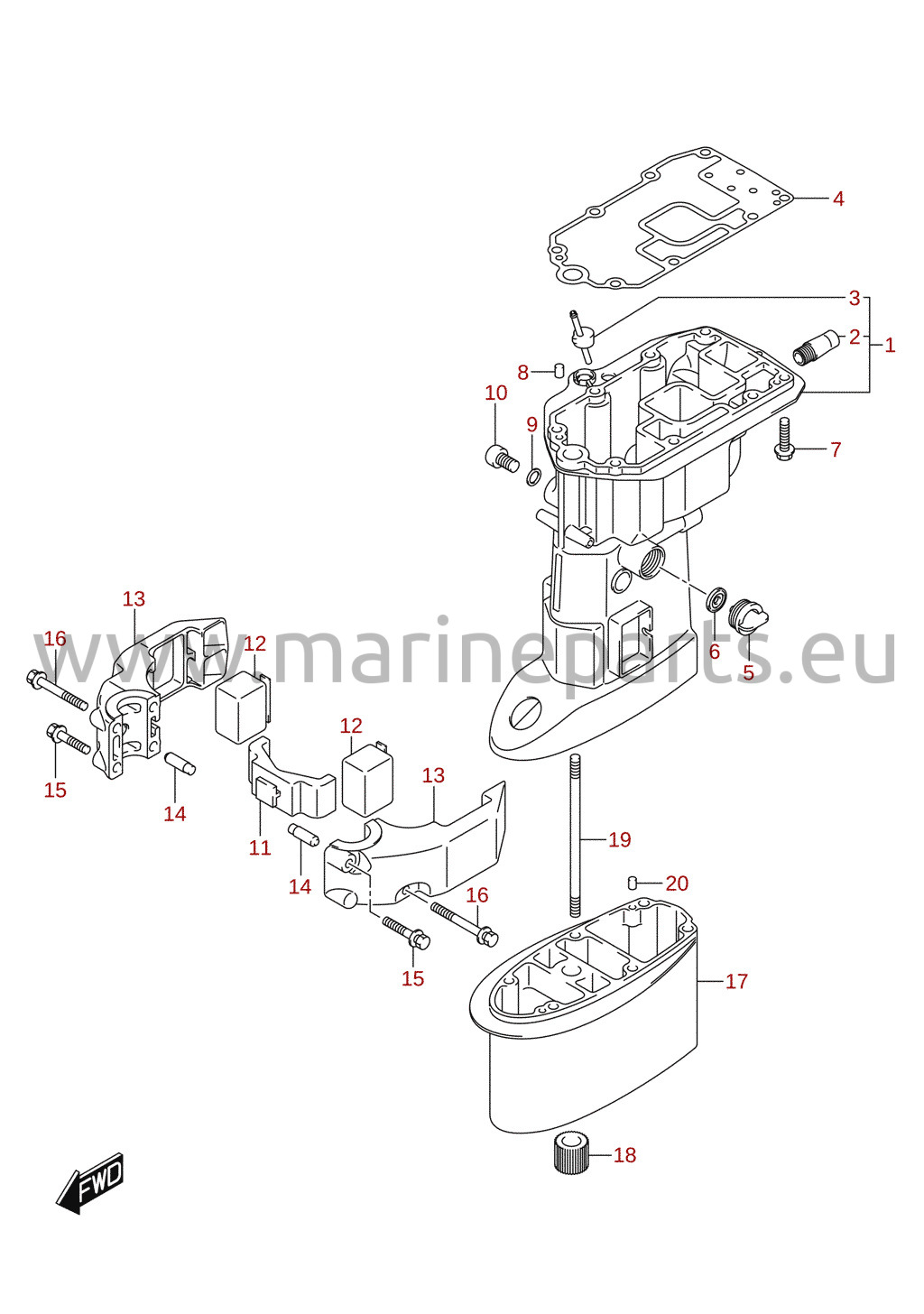

Drivaxelhus (DF30AQ)
Referensnr. DF25A_30A_P01_023 70

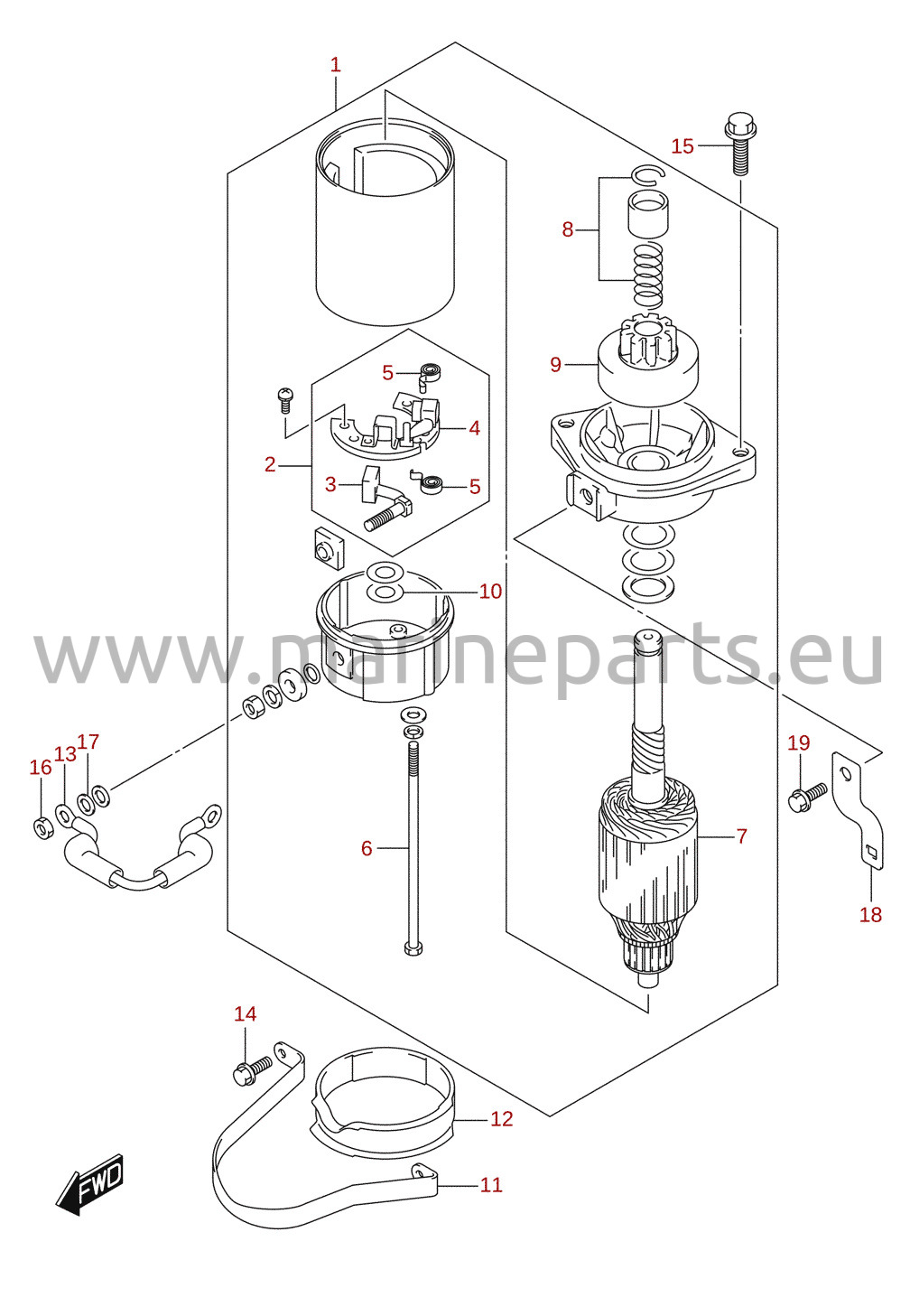

Startmotor (DF25AT, DF30AT)
Referensnr. DF25A_30A_P01_023 34

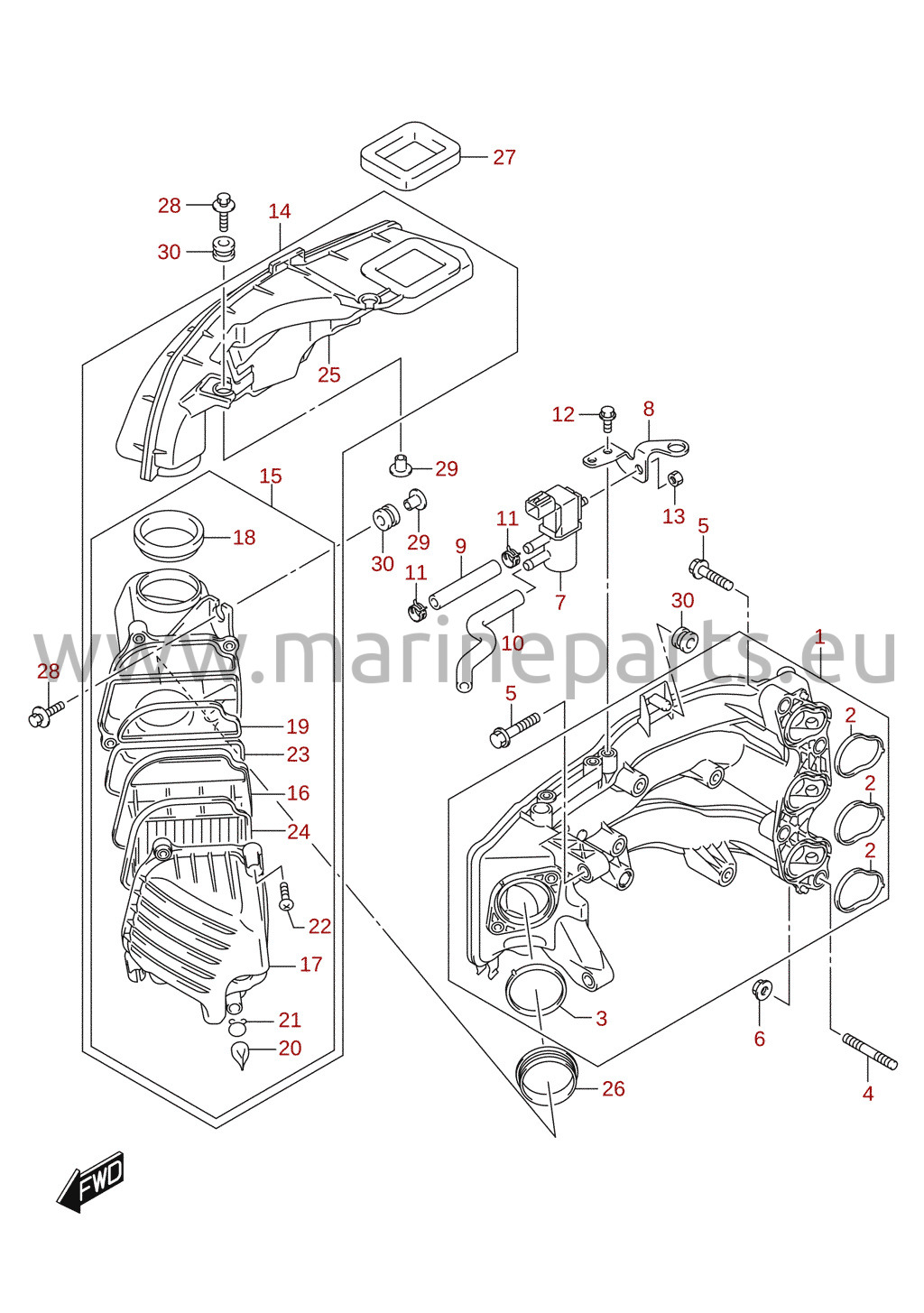

Insugningsrör (2020) (DF30)
Referensnr. DF25A_30A_P01_023 7
Drivaxelhus (DF25A, DF25AR, DF30AR)
Referensnr. DF25A_30A_P01_023 68

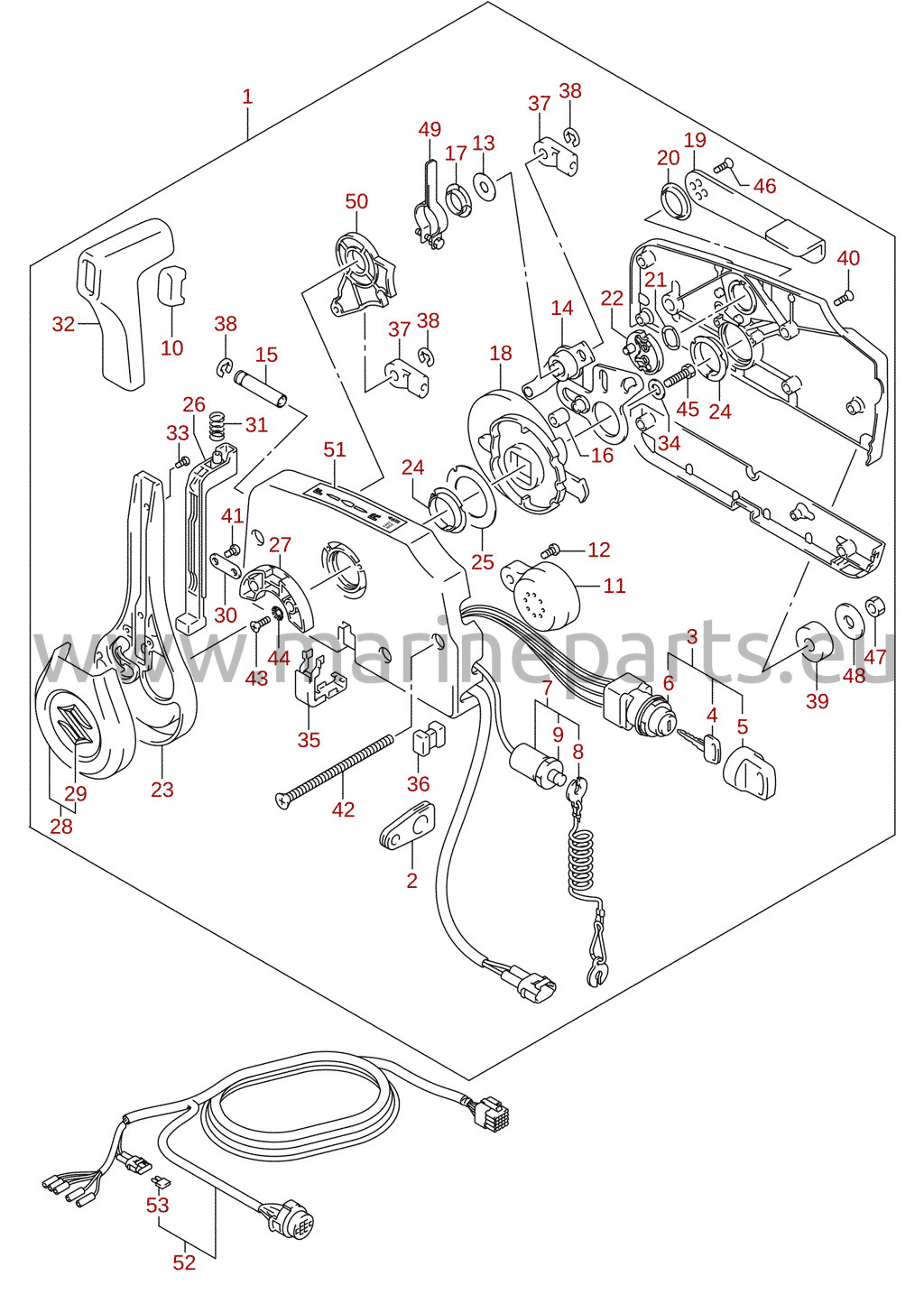

Reglage (DF25AR, DF30AR)
Referensnr. DF25A_30A_P01_023 92

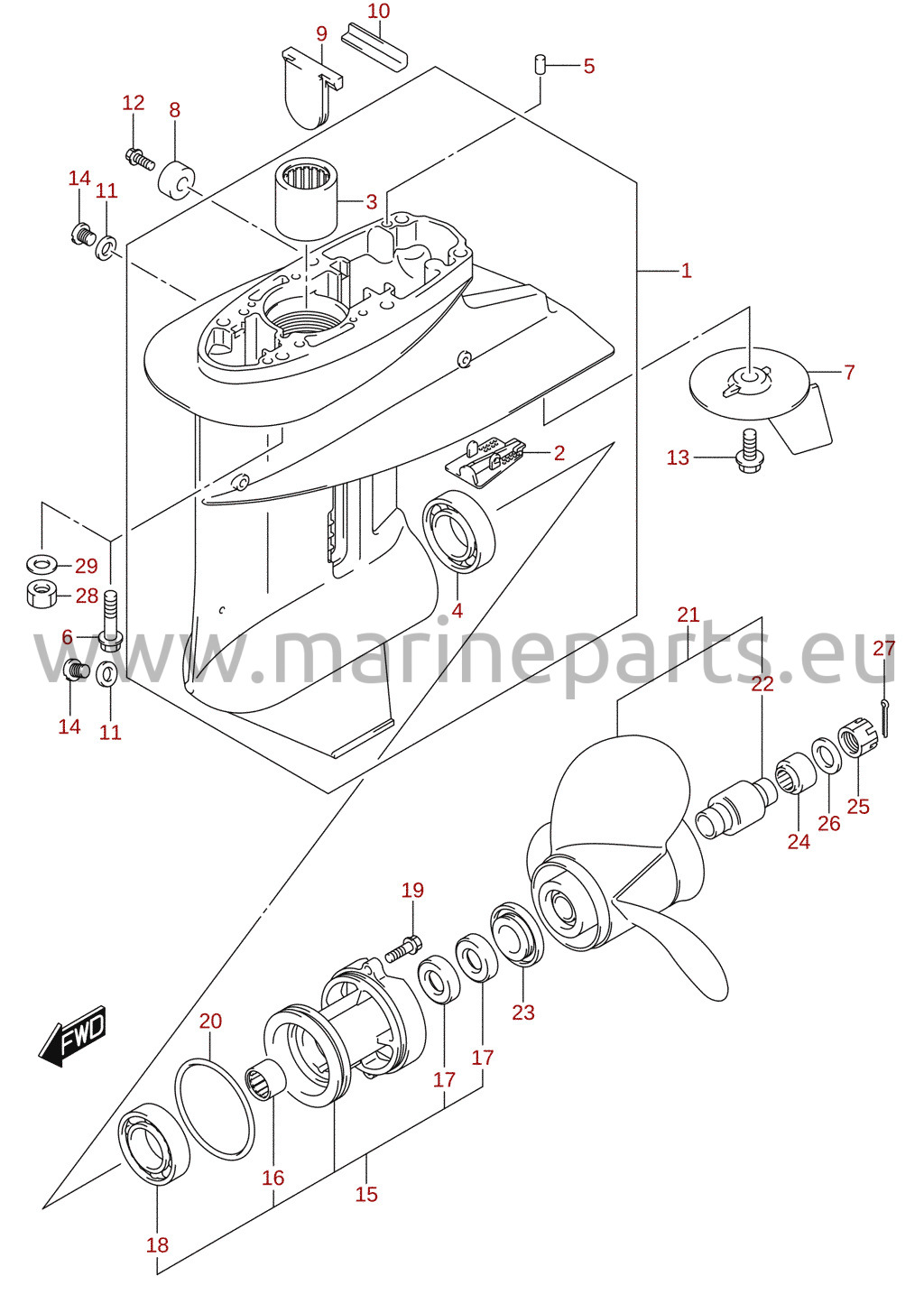

Växelhus (DF30AQ)
Referensnr. DF25A_30A_P01_023 73

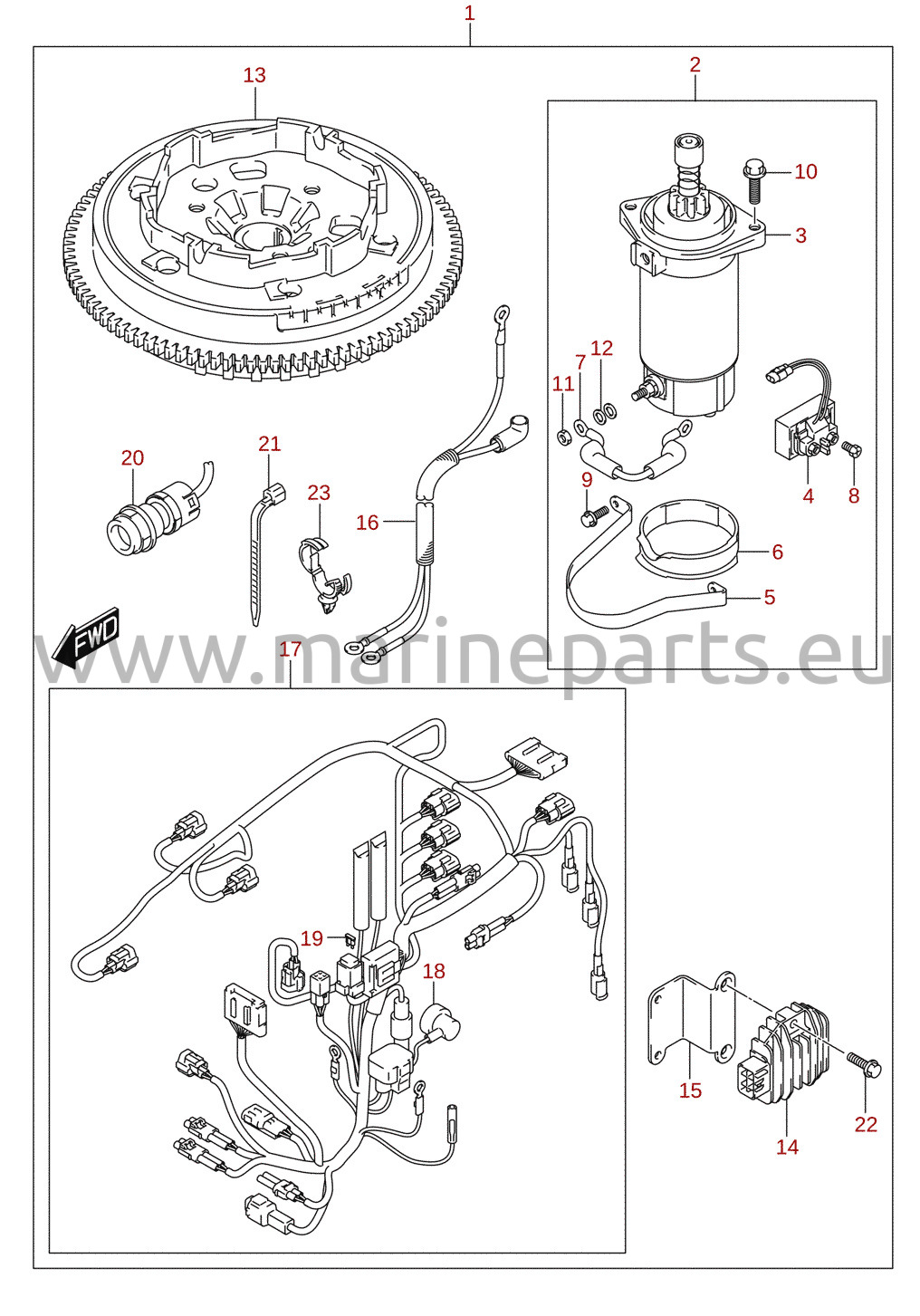

Startmotor (manuell start) (M-starter) (tillval)
Referensnr. DF25A_30A_P01_023 115
Växelstång (DF30AQ)
Referensnr. DF25A_30A_P01_023 29

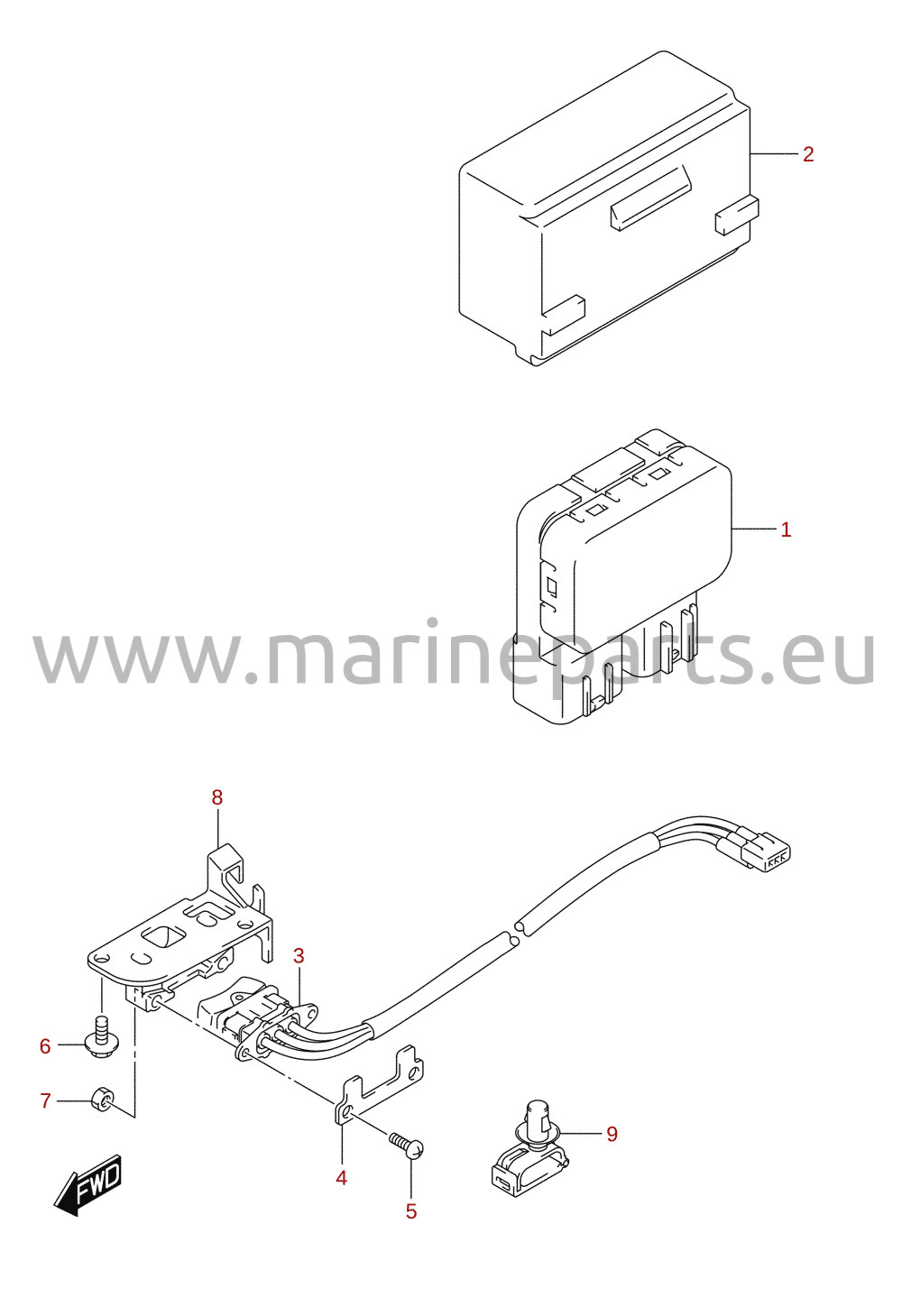

PTT-brytare (DF25ATH, DF30ATH)
Referensnr. DF25A_30A_P01_023 48

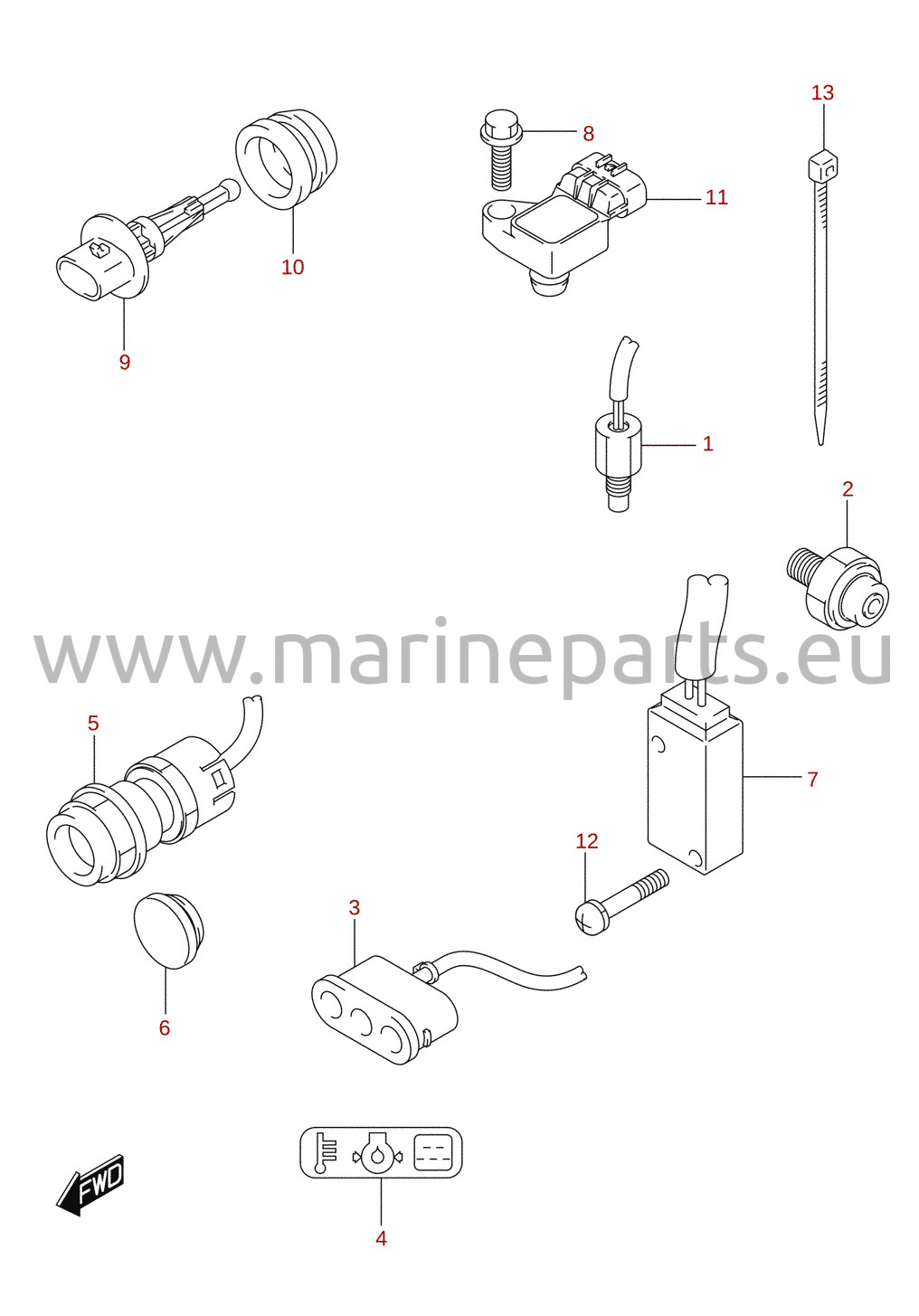

Givare / brytare (DF25A, DF30AQ)
Referensnr. DF25A_30A_P01_023 49

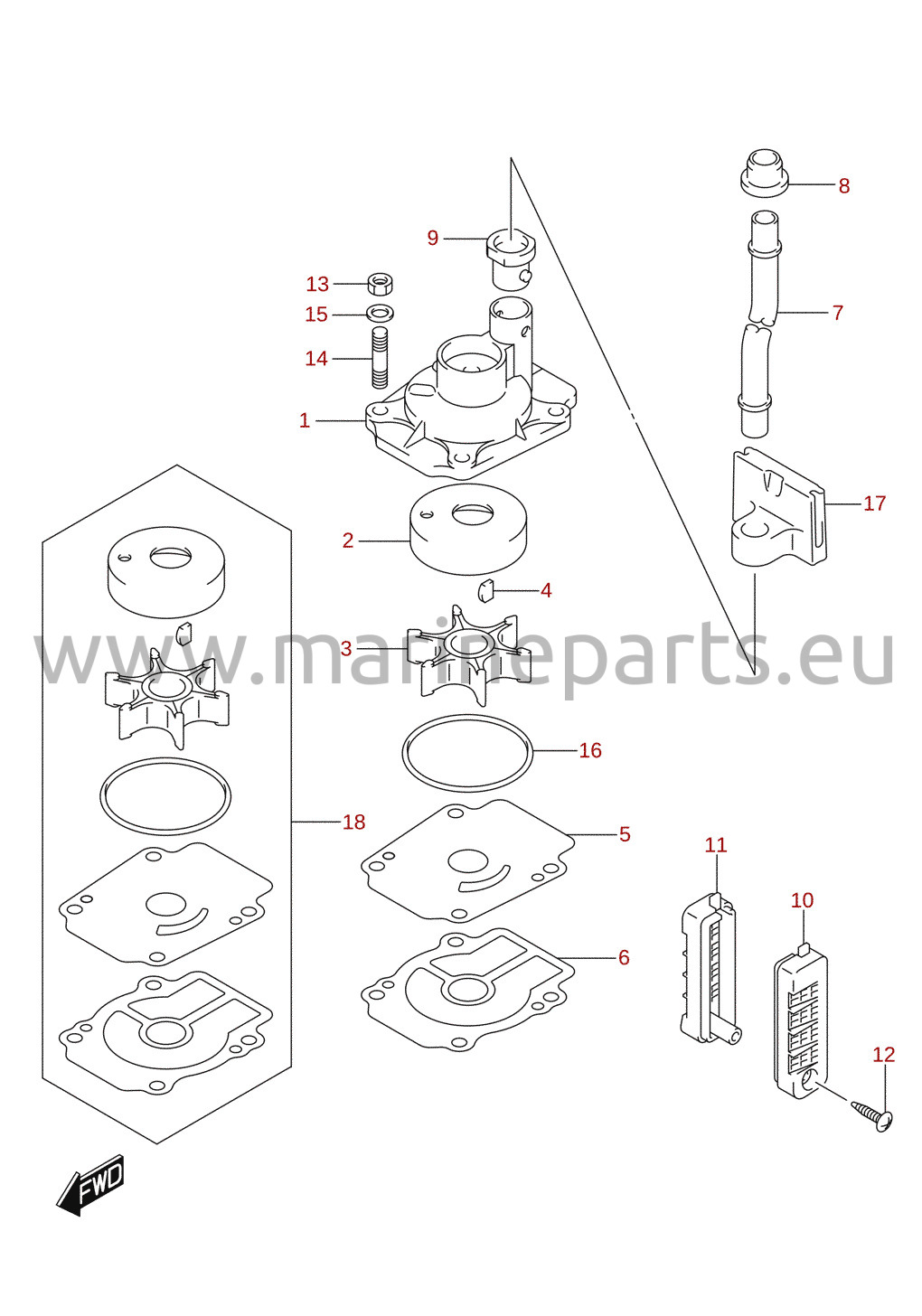

Vattenpump (DF30A)
Referensnr. DF25A_30A_P01_023 16
Vattenpump (DF25, DF30)
Referensnr. DF25A_30A_P01_023 15
Motorkåpa (2020) (DF25A)
Referensnr. DF25A_30A_P01_023 79

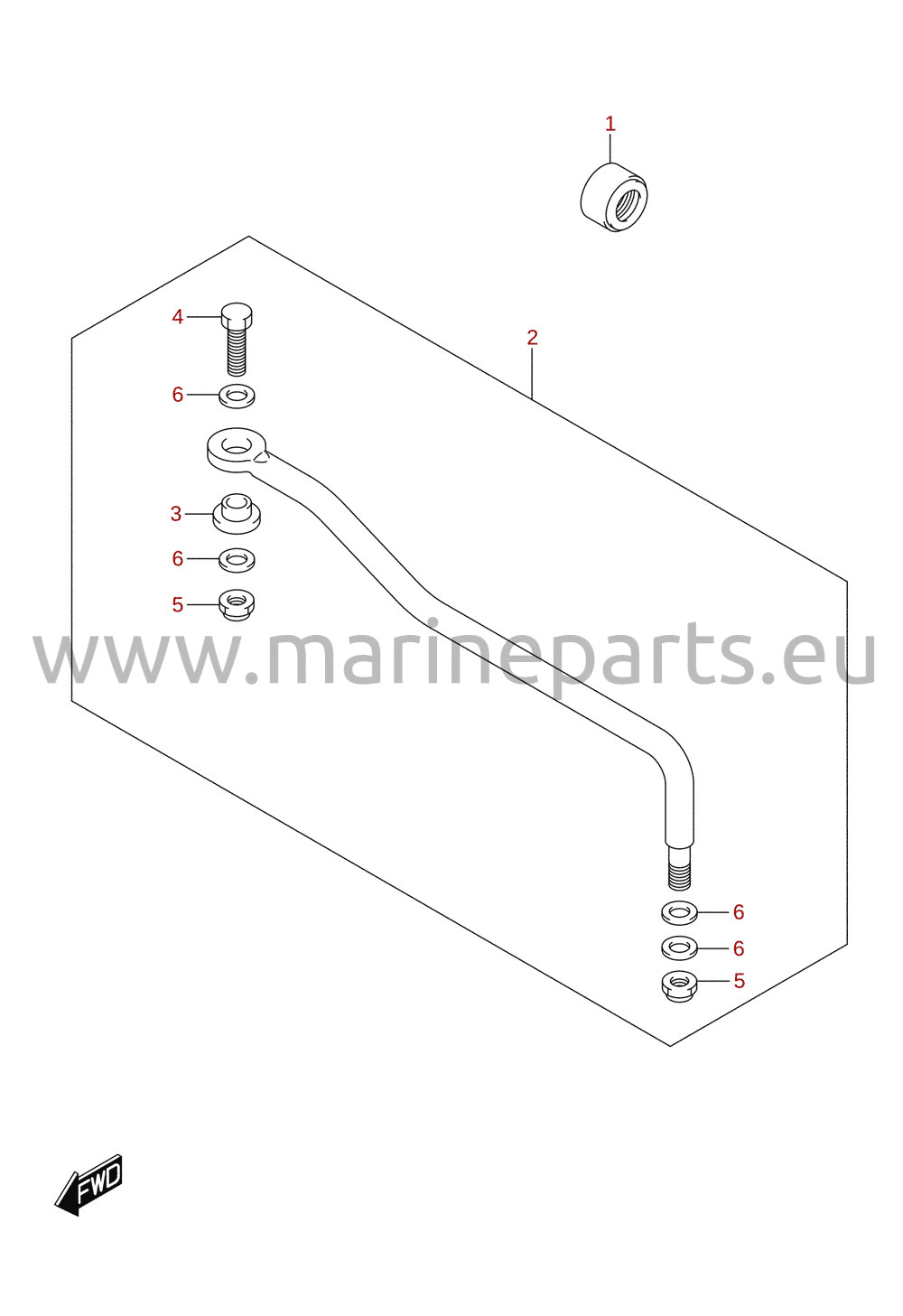

Styrstag (DF25AT, DF30AR, DF30AT)
Referensnr. DF25A_30A_P01_023 89

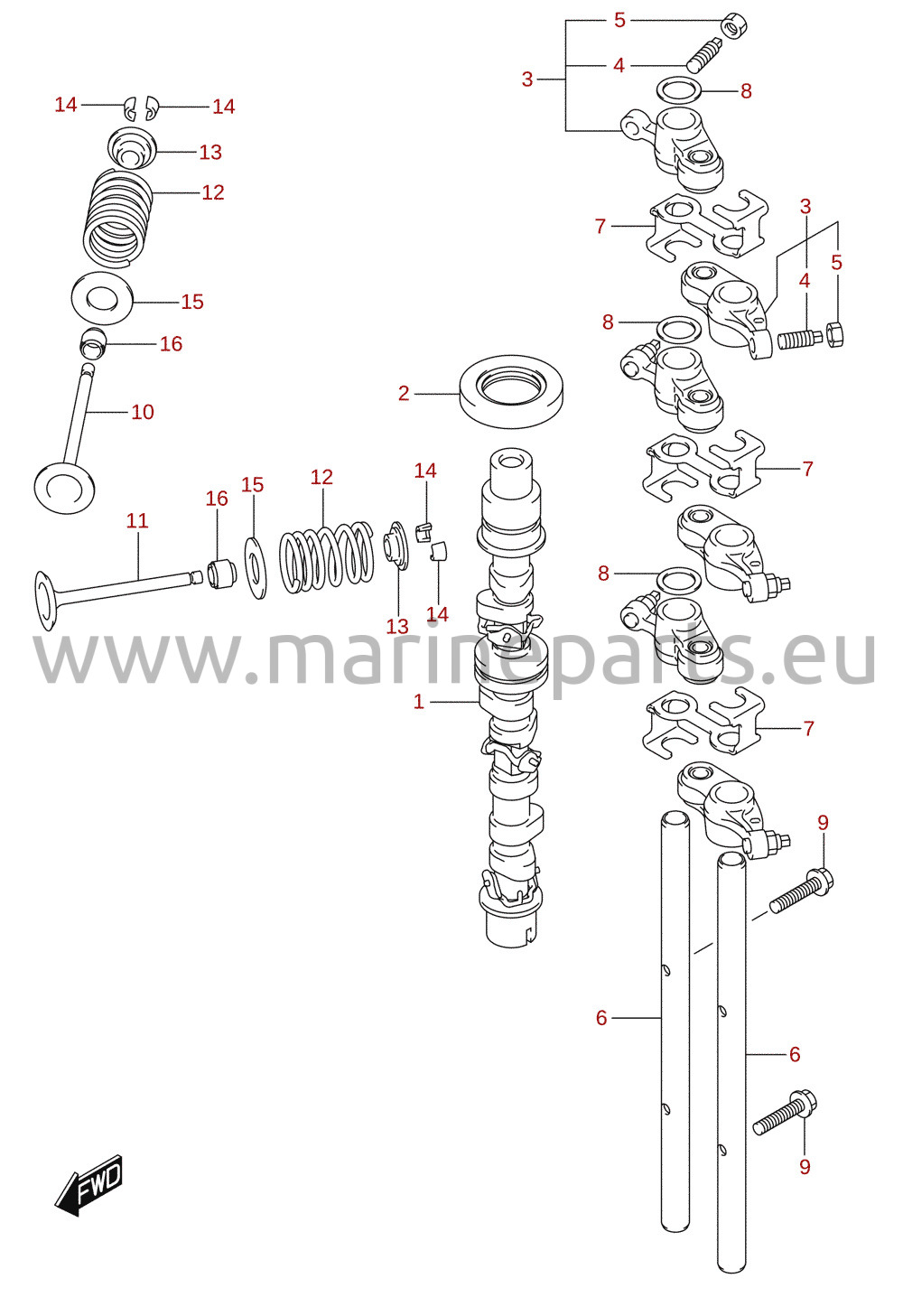

Kamaxel
Referensnr. DF25A_30A_P01_023 4

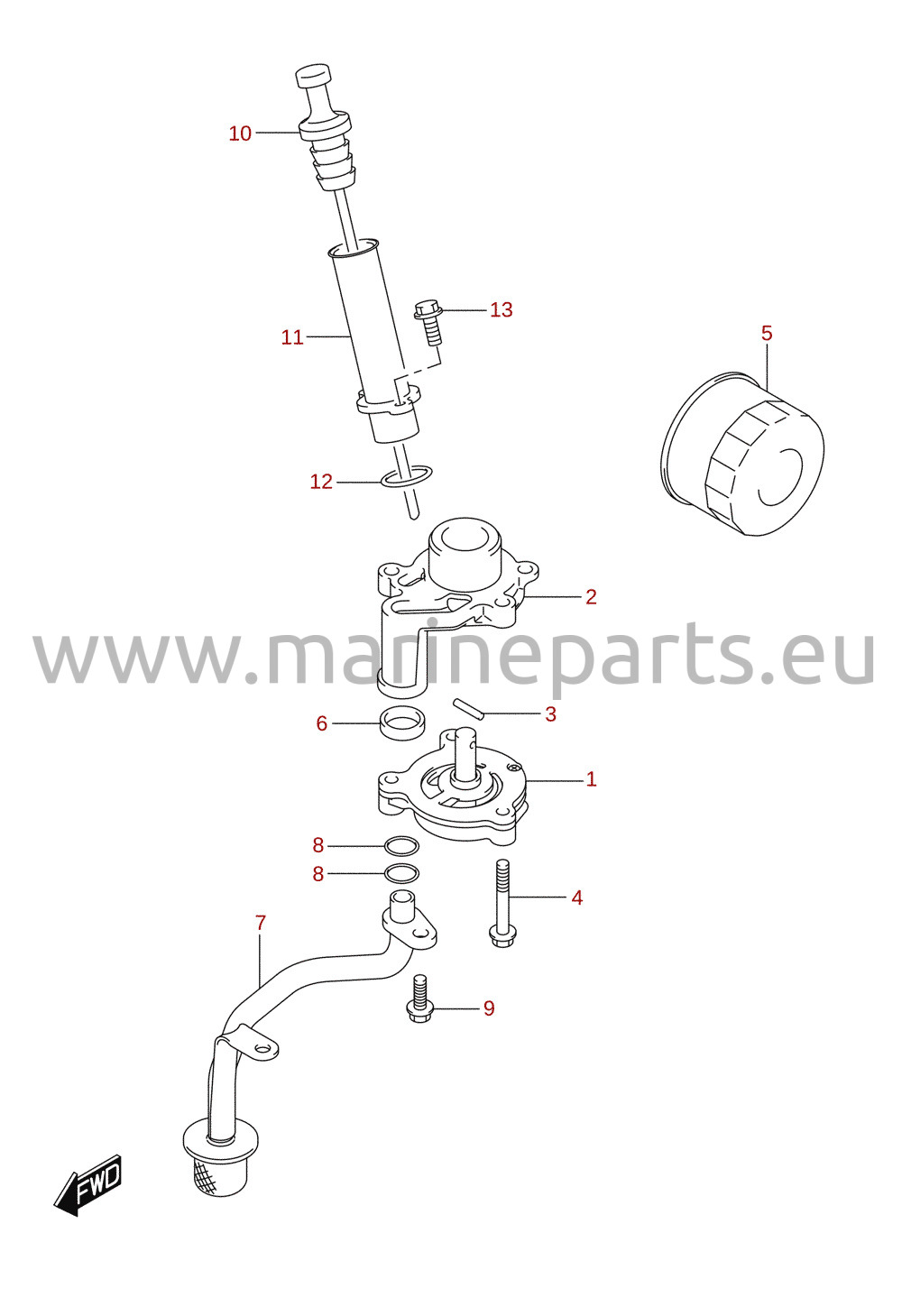

Oljepump
Referensnr. DF25A_30A_P01_023 23

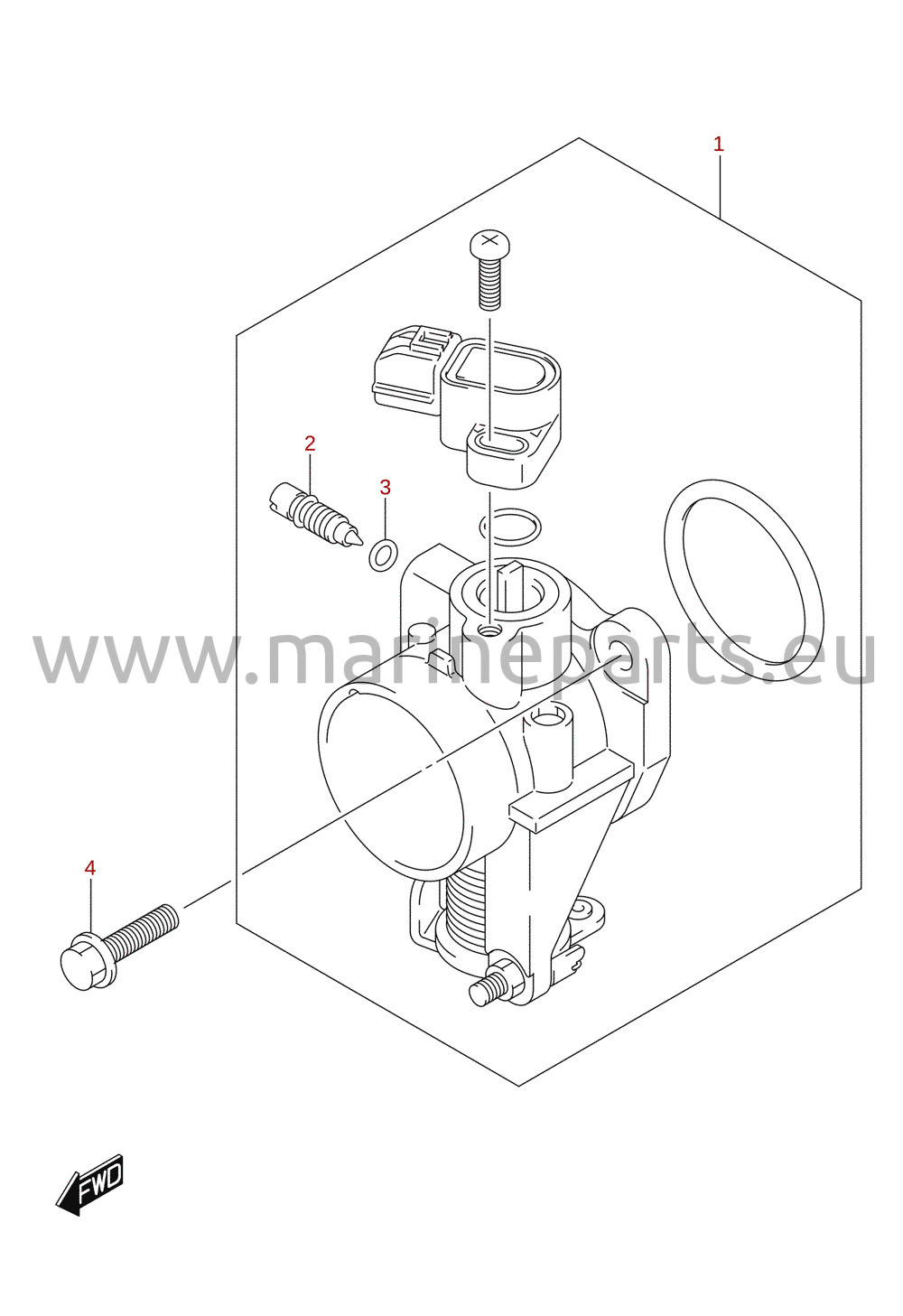

Gasspjällhus
Referensnr. DF25A_30A_P01_023 19

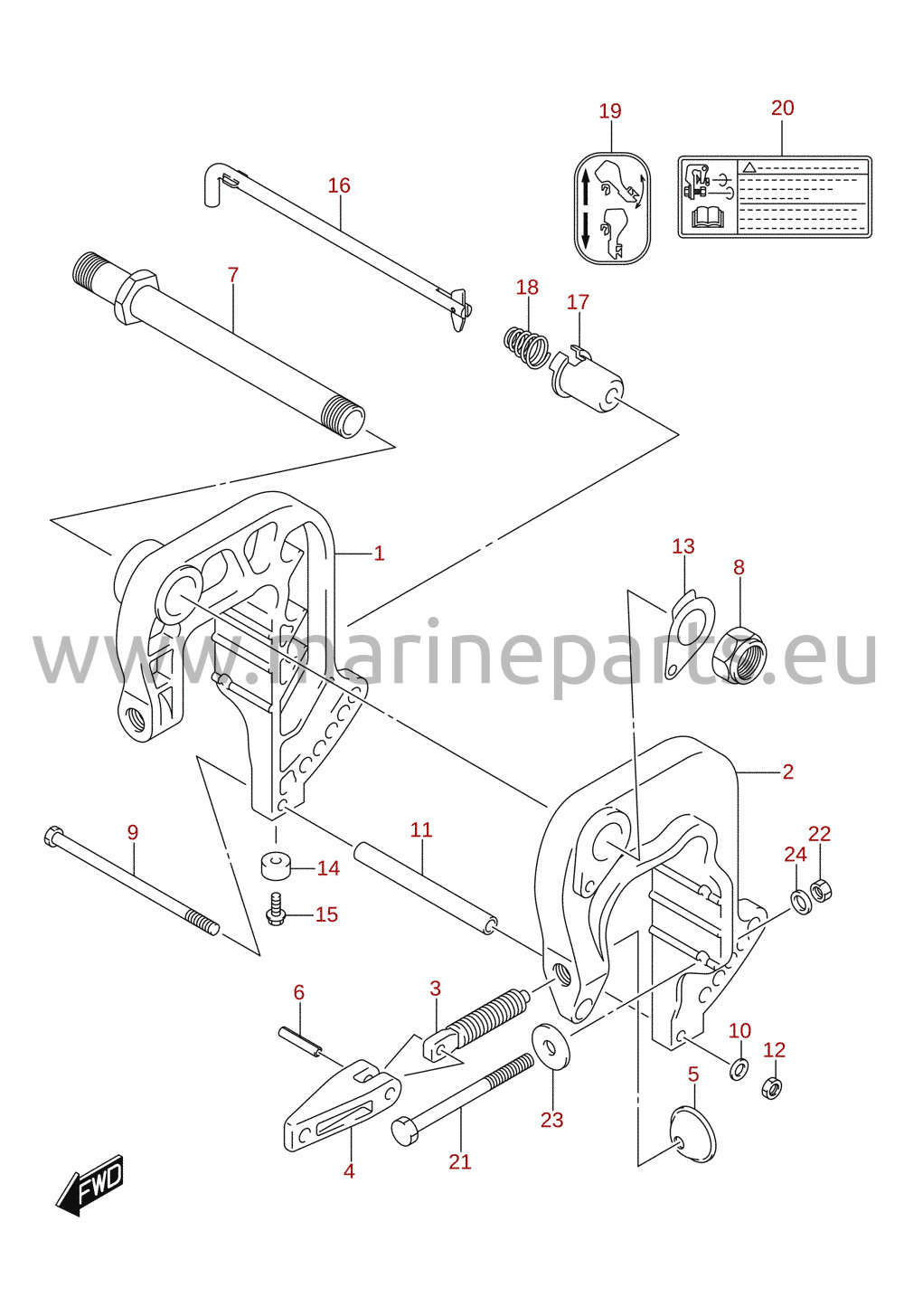

Akterspegelsfäste (DF25A, DF25AR, DF30AR)
Referensnr. DF25A_30A_P01_023 54

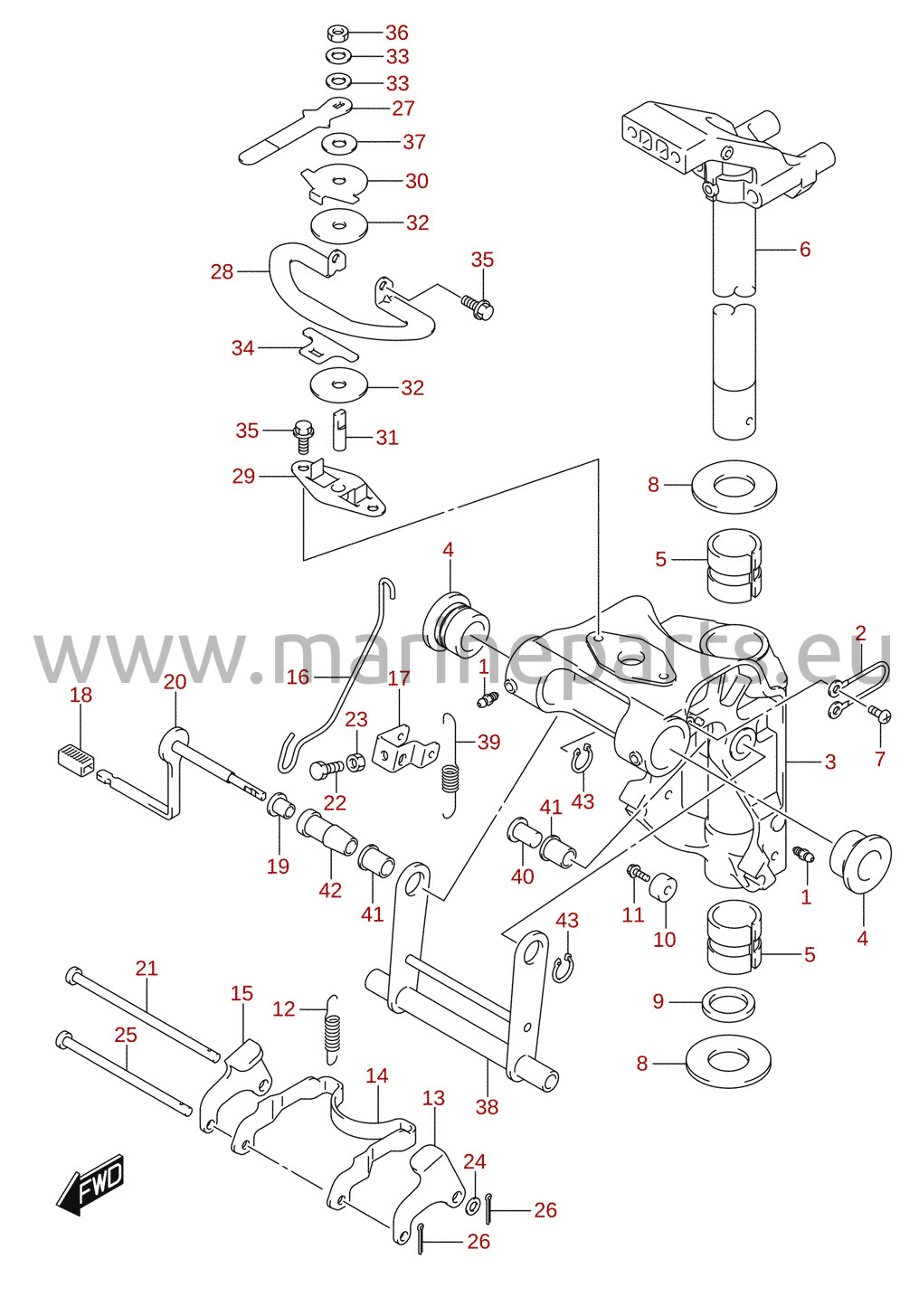

Svängfäste (DF25A)
Referensnr. DF25A_30A_P01_023 58

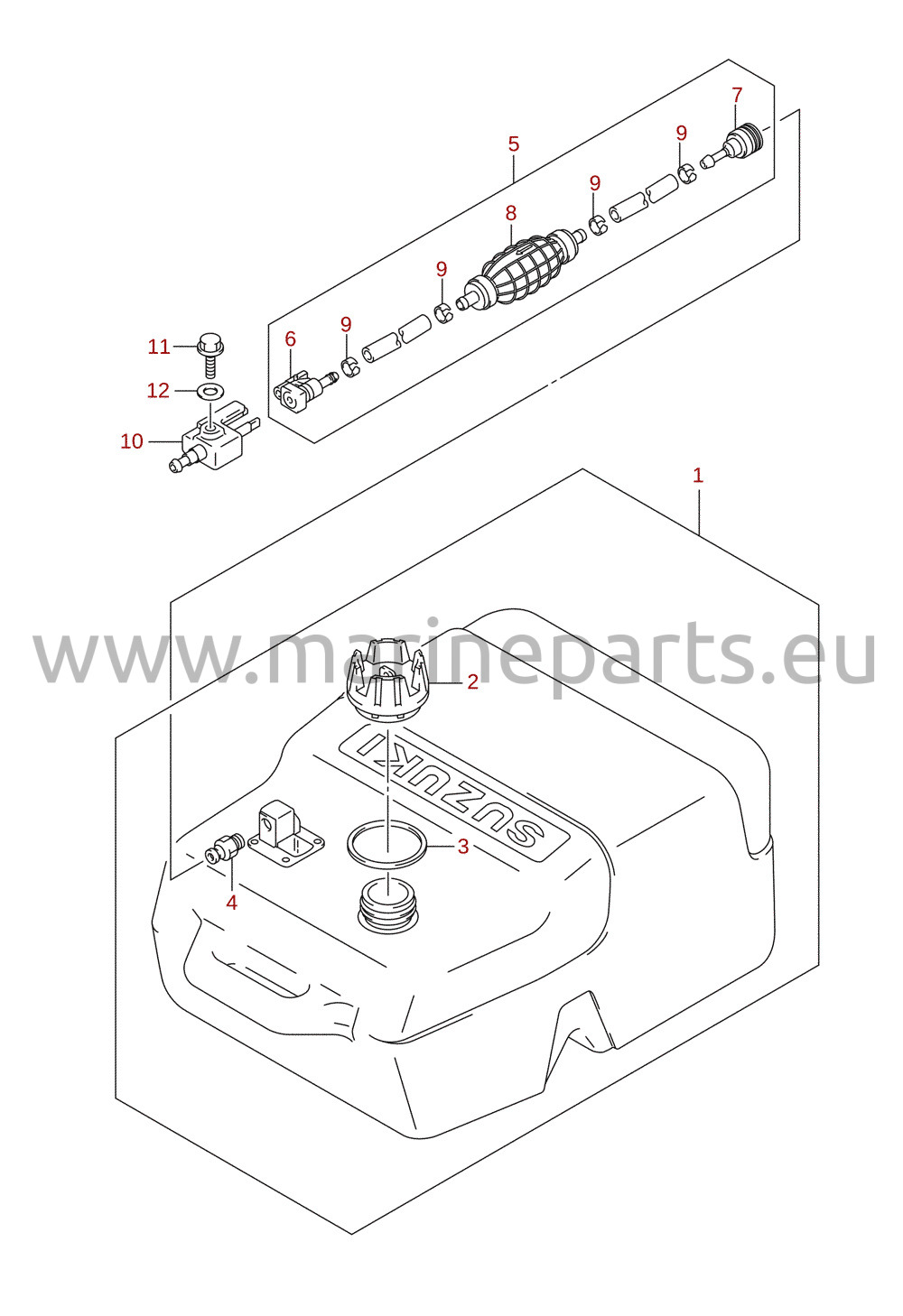

Bränsletank
Referensnr. DF25A_30A_P01_023 88
Styrstag (DF25, DF30) (tillval)
Referensnr. DF25A_30A_P01_023 116

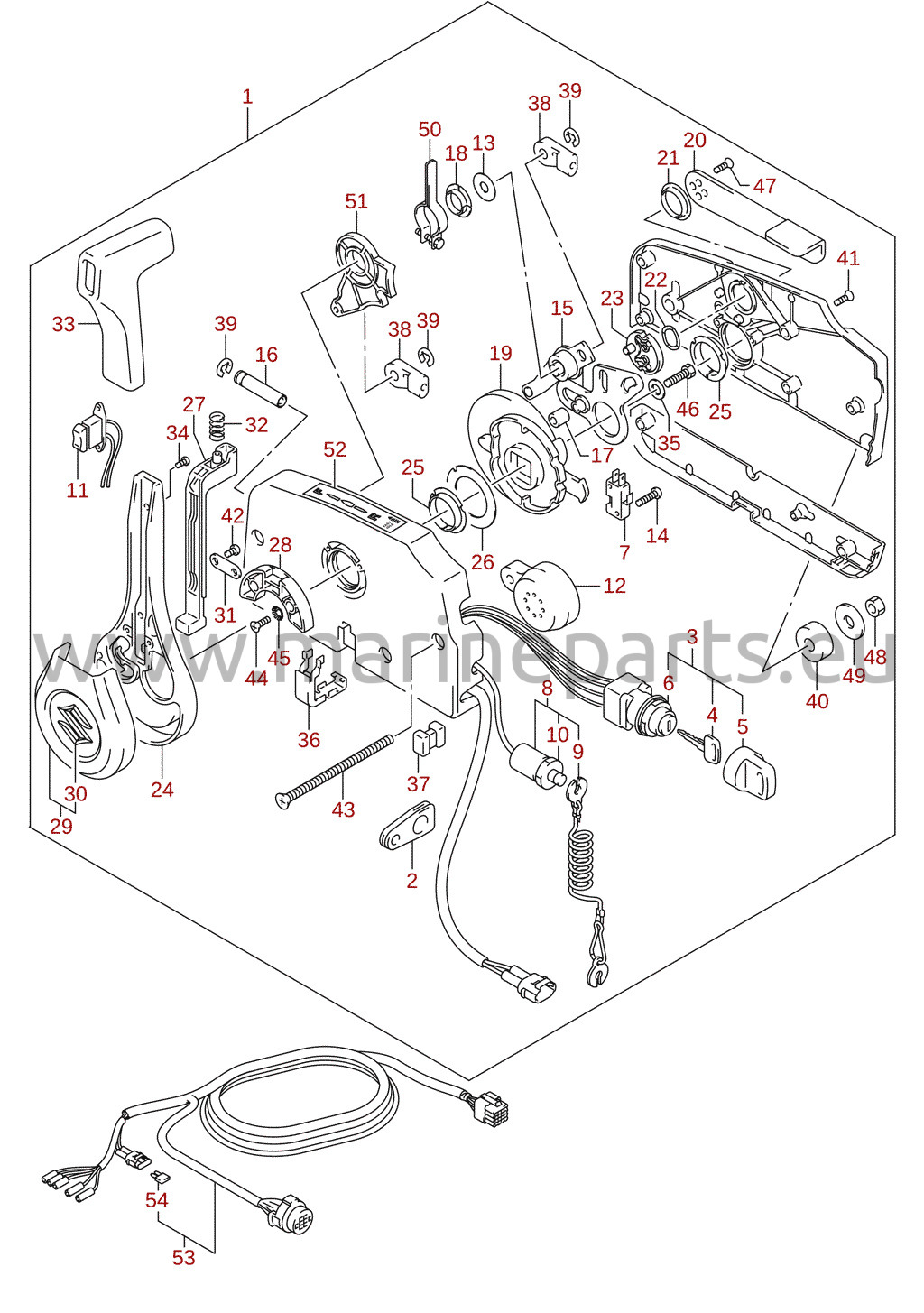

Reglage (DF25AT, DF30AT) 1/2
Referensnr. DF25A_30A_P01_023 94

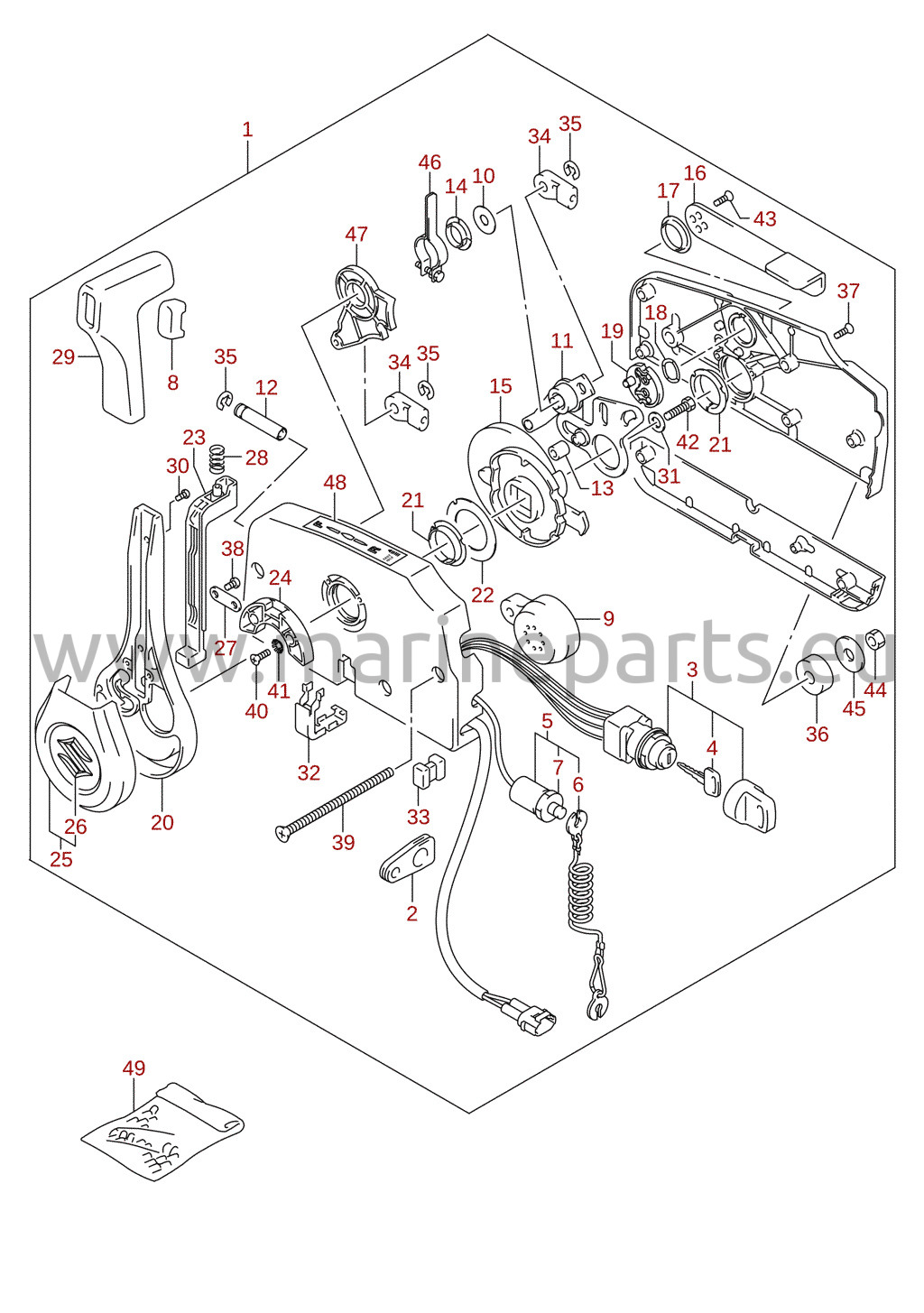

Reglage (DF25A, DF30A, DF30AQ) (tillval) 2/2
Referensnr. DF25A_30A_P01_023 99
Sidokåpa (DF25A, DF30AQ)
Referensnr. DF25A_30A_P01_023 74

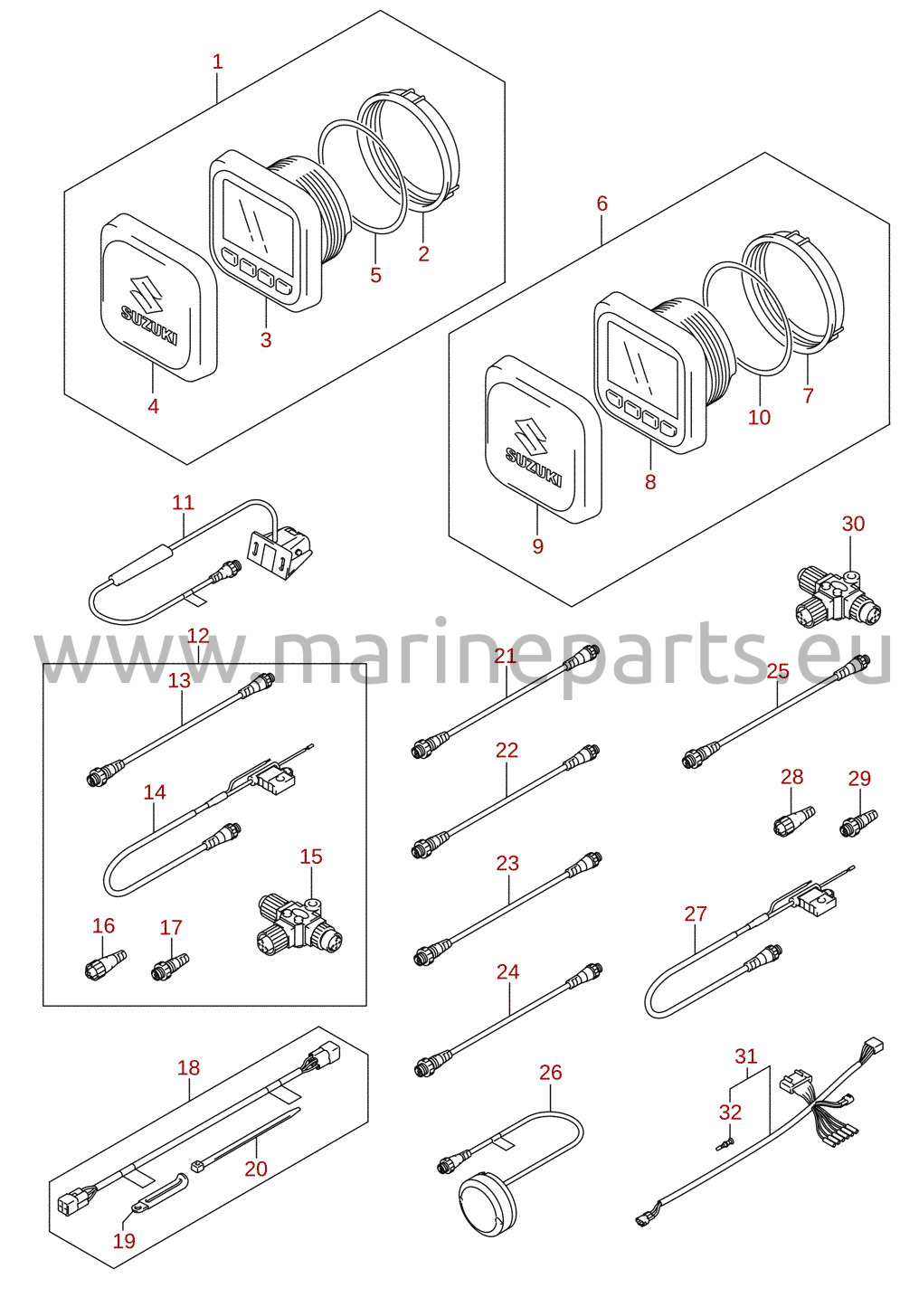

Multifunktionsinstrument (tillval)
Referensnr. DF25A_30A_P01_023 118

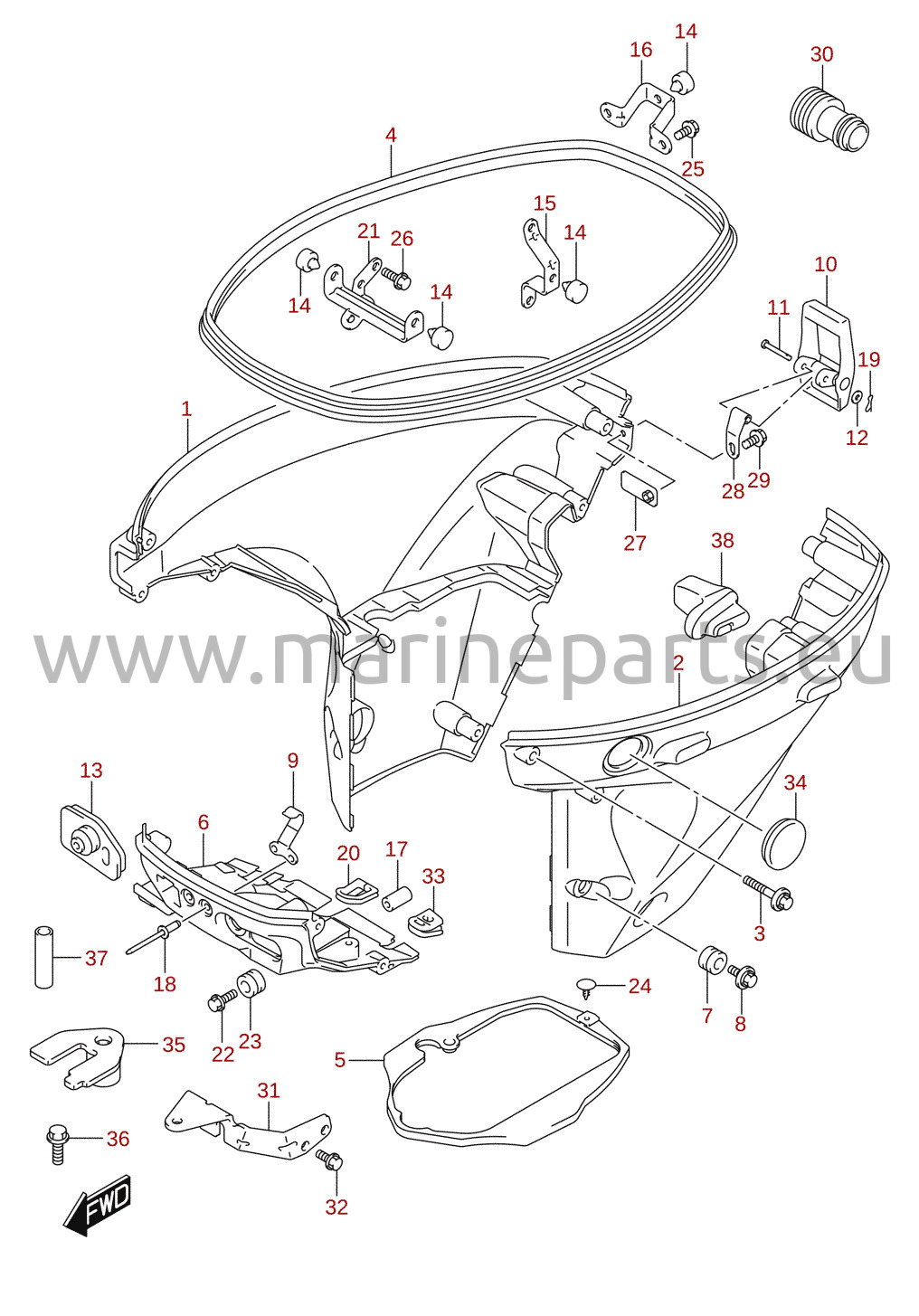

Sidokåpa (DF25AR, DF30AR)
Referensnr. DF25A_30A_P01_023 75
Transmission (DF30)
Referensnr. DF25A_30A_P01_023 31
